Product Overview

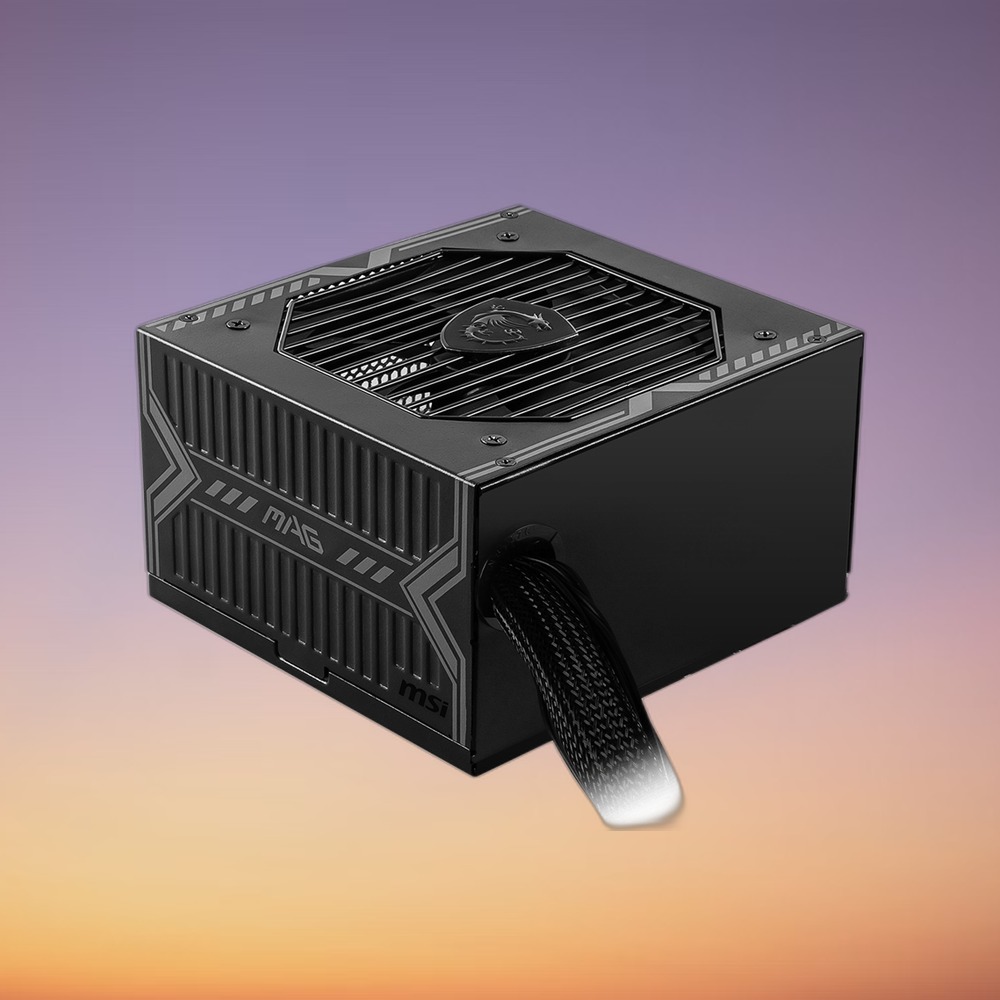

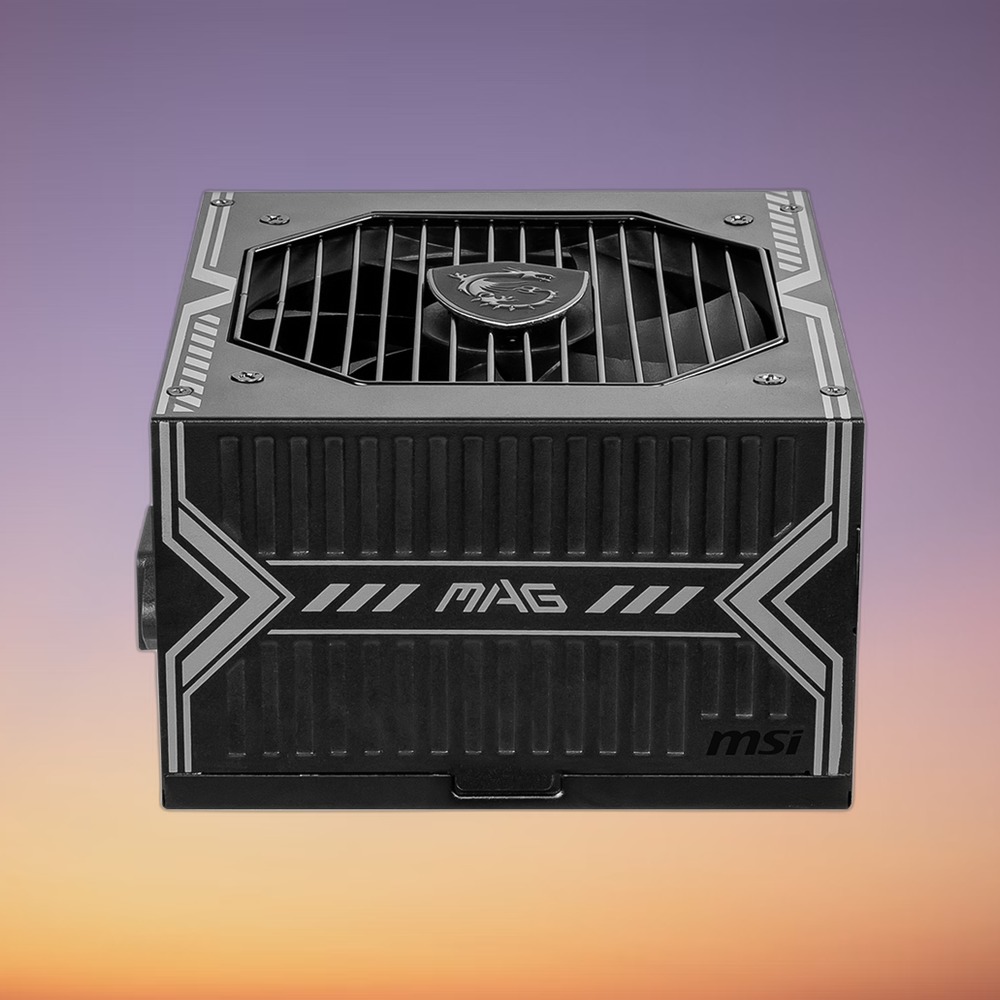

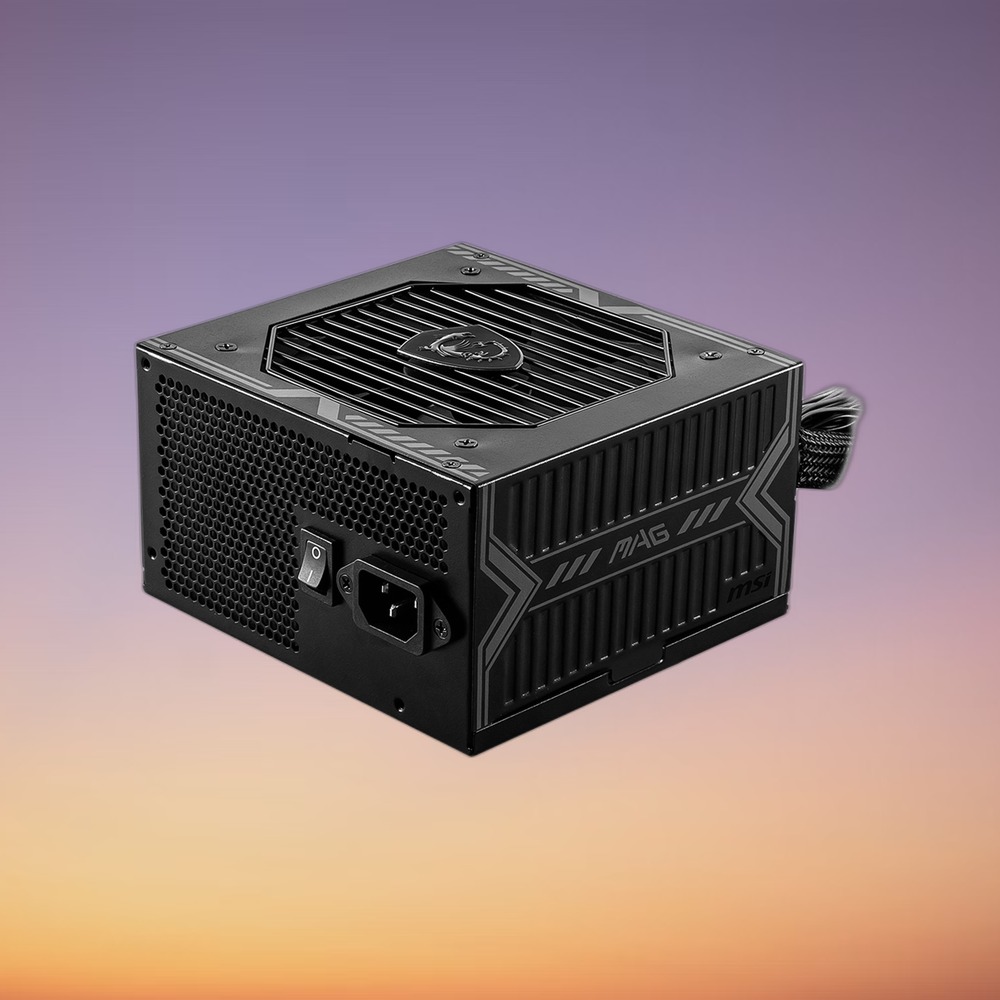

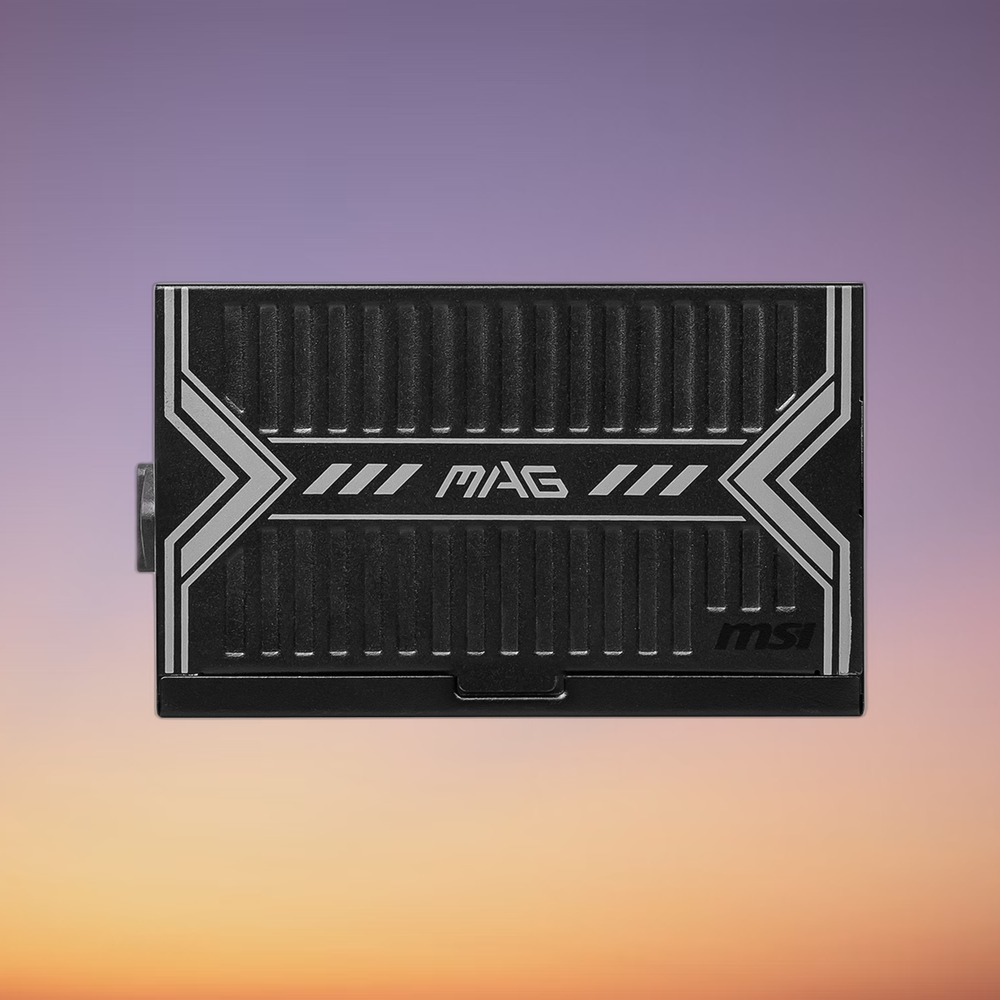

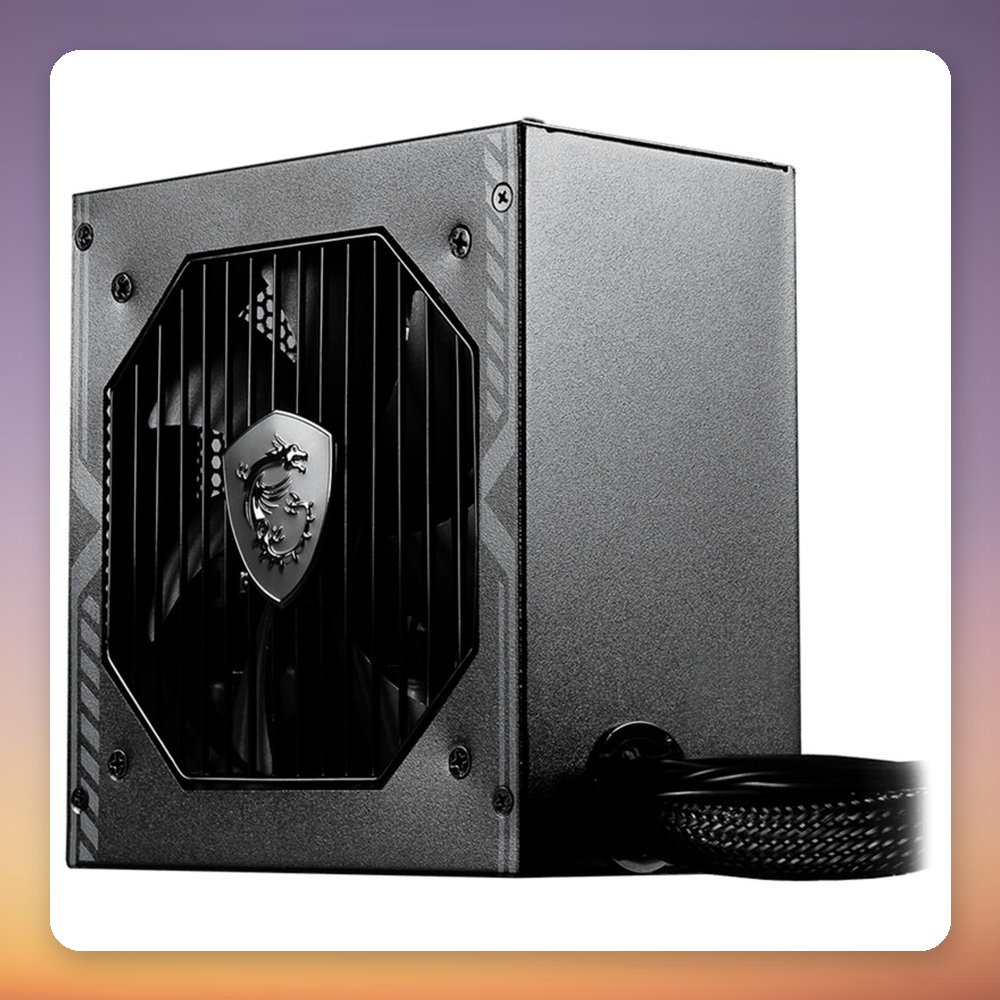

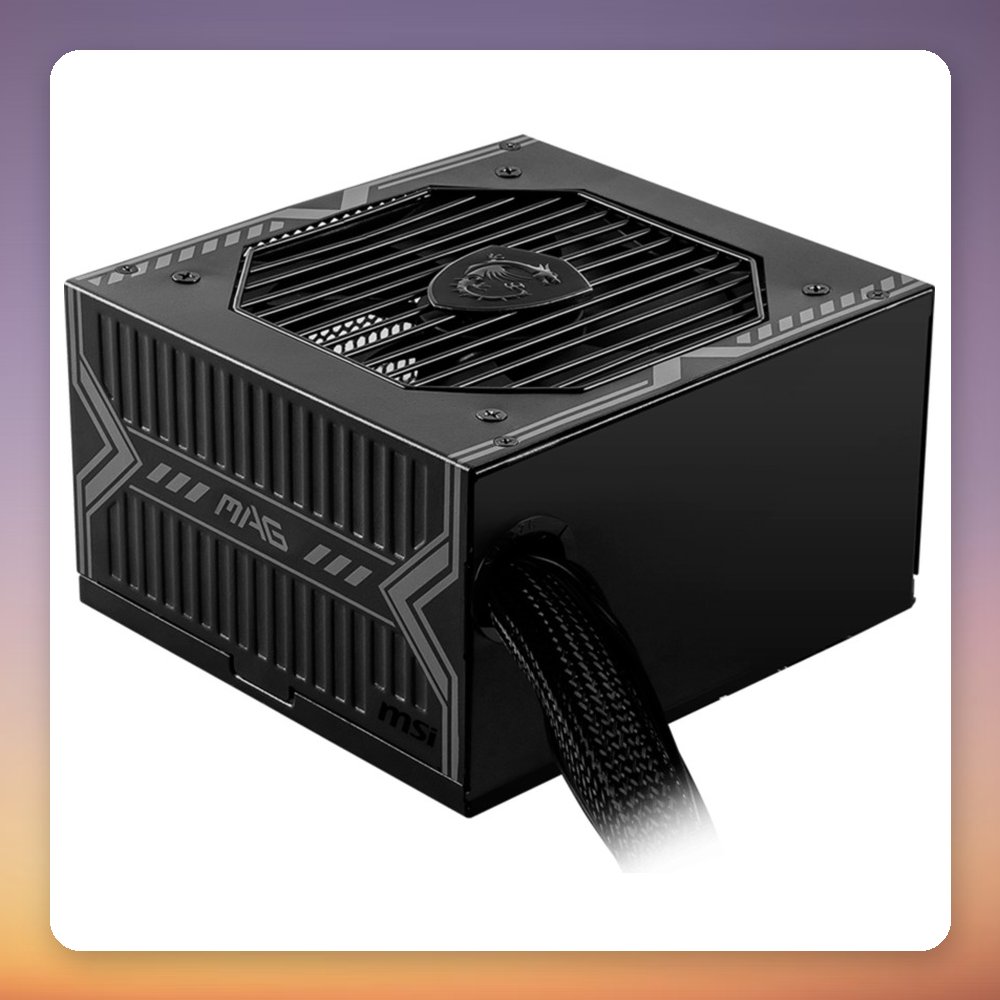

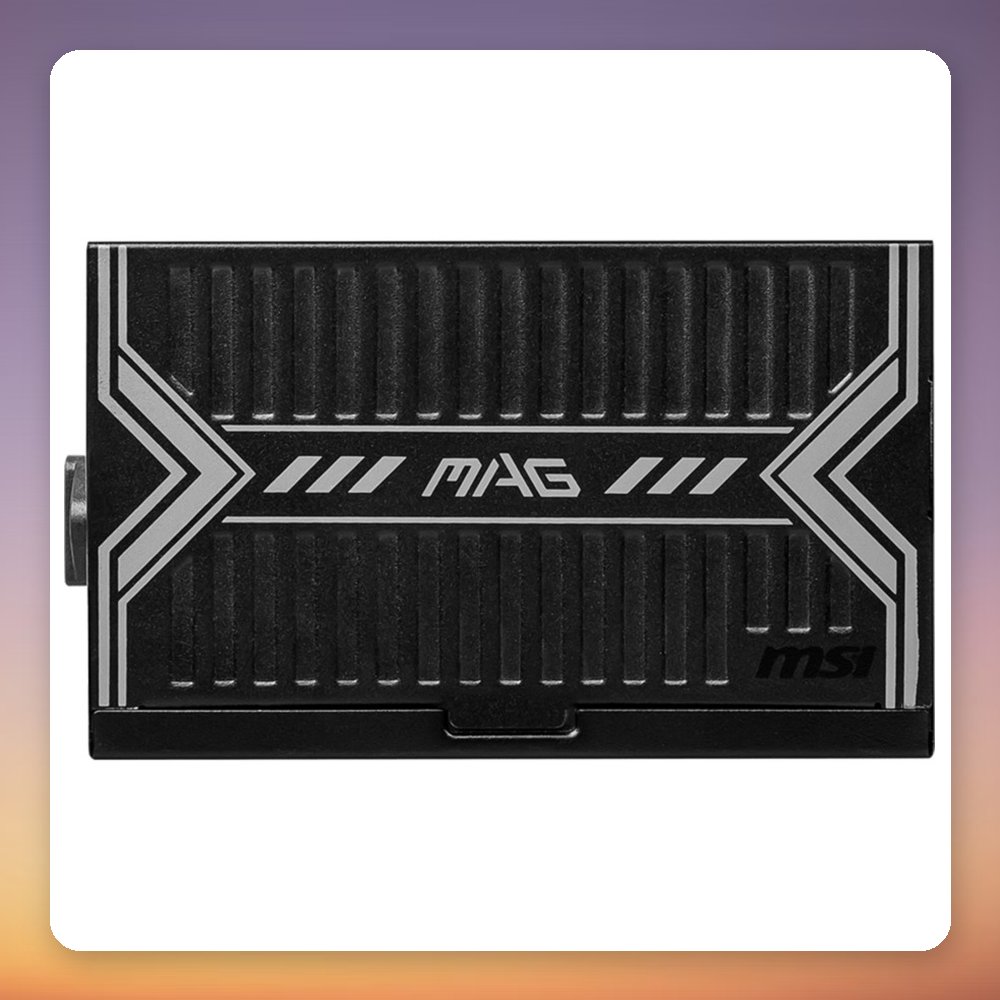

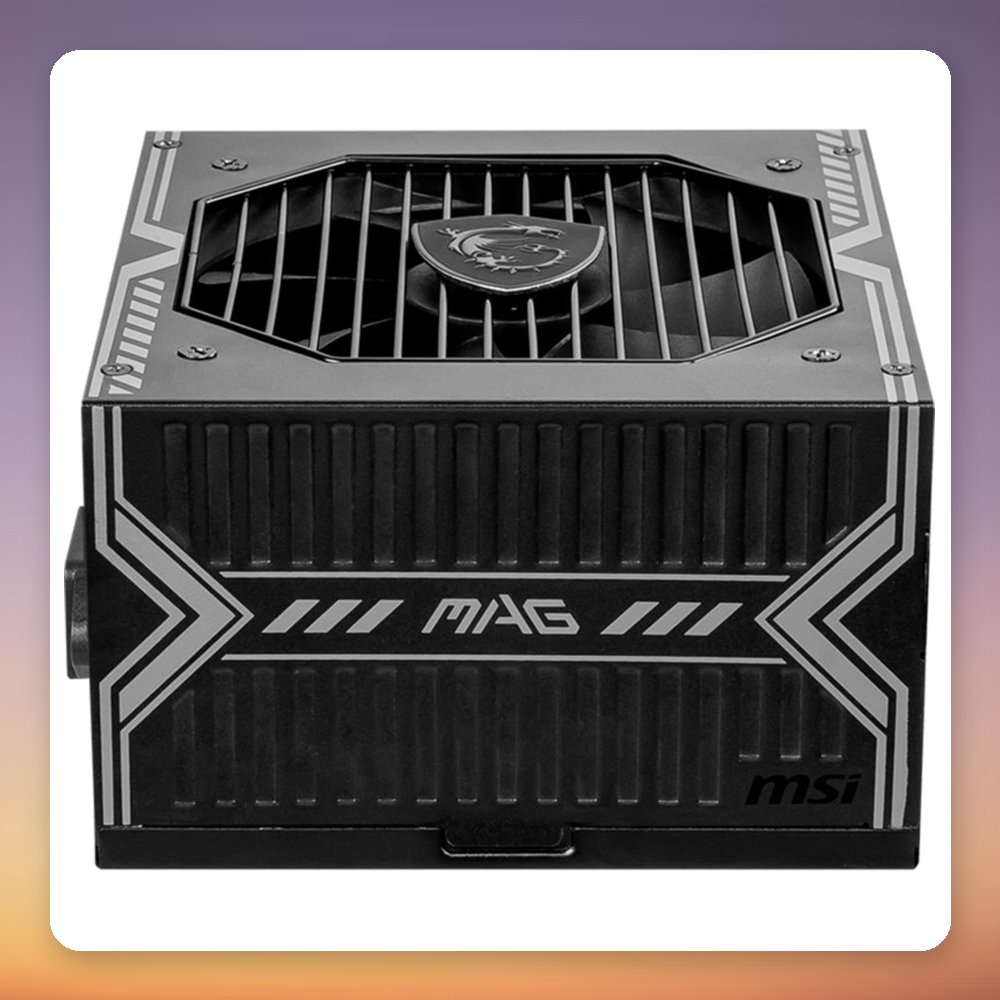

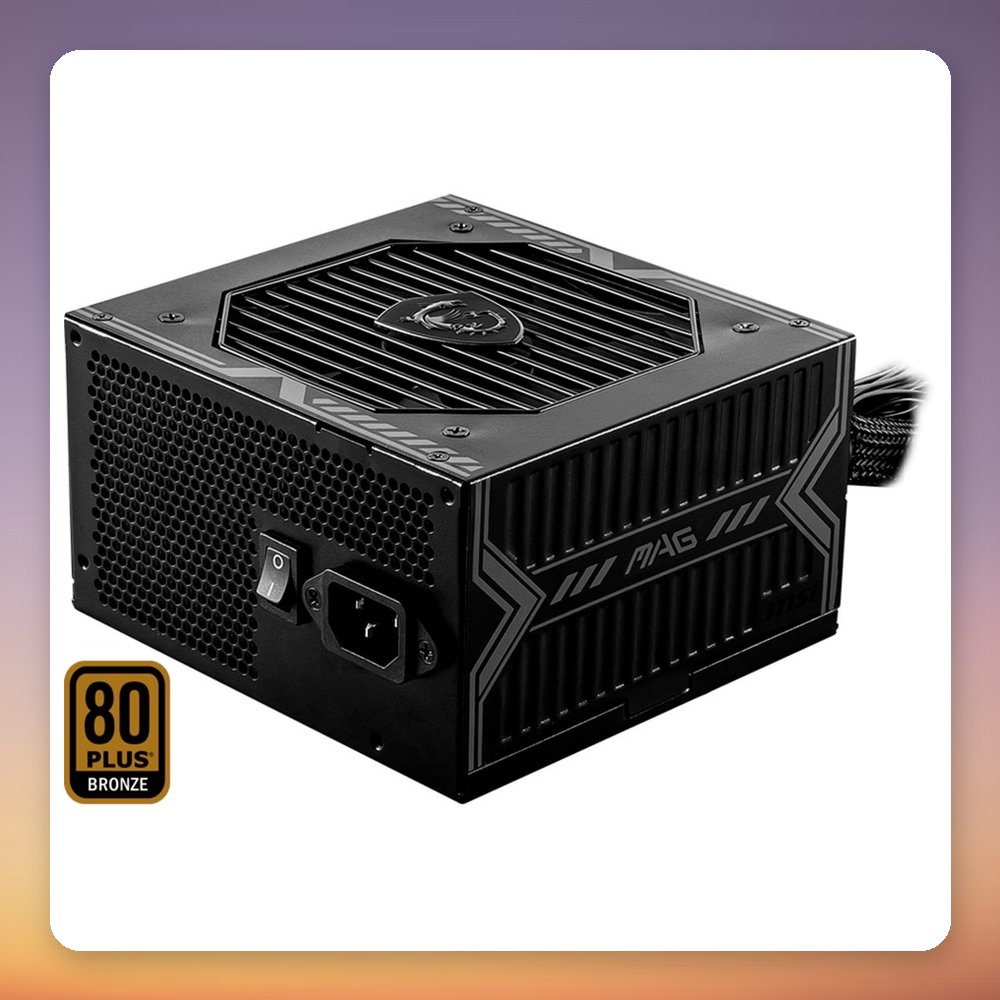

MSI MAG A650BN UK PSU ‘650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black’. Total power: 650 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular.

Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Specification

• EAN: [‘4719072849627’, ‘4719072870478’, ‘0824142258460’, ‘824142258460’]
• Combined power (+5Vsb): 12.5 W
• Max output current (+3.3V): 20 A
• Max output current (+12V): 54 A
• Max output current (+5V): 20 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 20 A
• Efficiency: 85%
• Power protection features: Over current, Over power, Over voltage, Short circuit
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 60 cm
• Number of SATA power connectors: 5
• Peripheral (Molex) power connectors (4-pin): 2
• EPS power connector (8-pin): No
• EPS power connector (4+4 pin): Yes
• PCI Express power connectors (6+2 pin): 2
• CPU power connector (4+4 pin): Yes
• ATX Power connector (24-pin): No
• ATX power connector (20+4 pin): Yes
• Floppy disk drive connector: No
• PCI Express connector: Yes
• Cabling type: Non-Modular
• 80 PLUS certification: 80 PLUS Bronze
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• Product colour: Black
• Cooling type: Active
• Fan diameter: 12 cm
• Number of fans: 1 fan(s)
• Illumination: No
• On/off switch: Yes
• Width: 150 mm
• Depth: 140 mm
• Height: 86 mm
• Harmonized System (HS) code: 84733020
