Product Overview

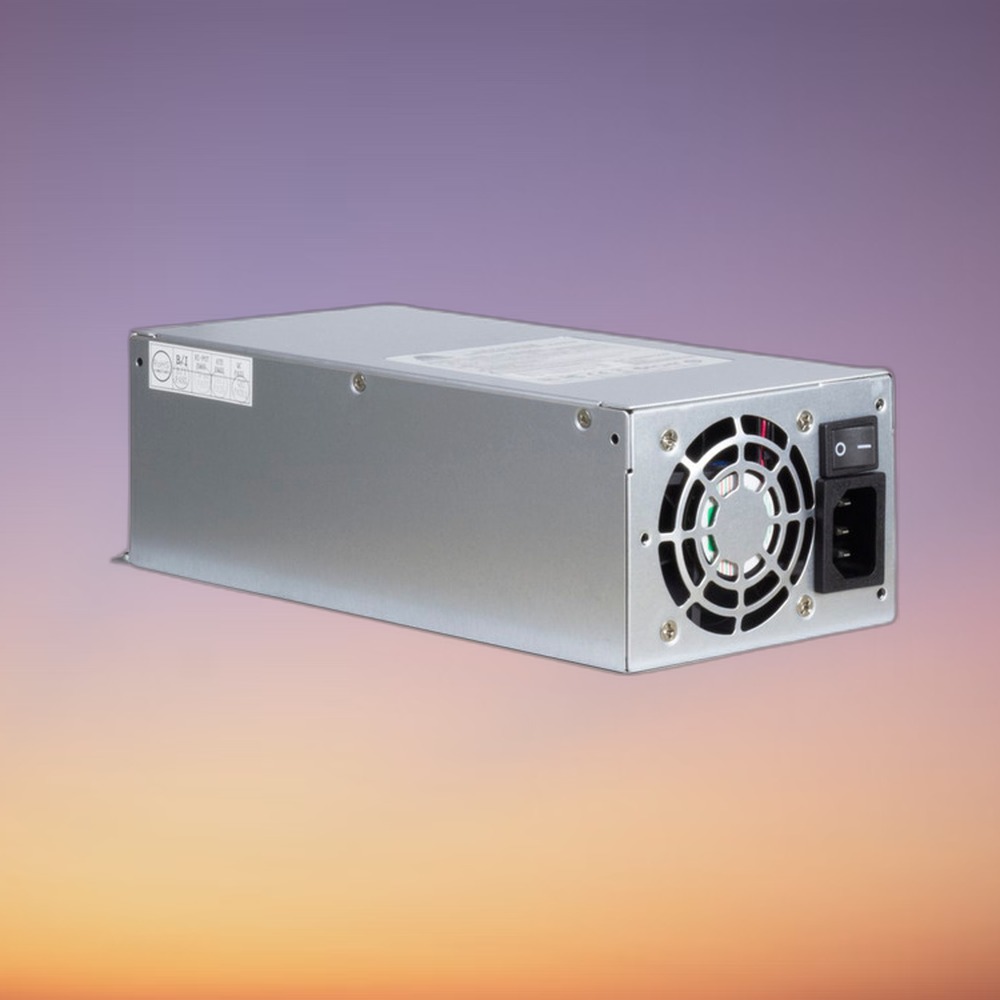

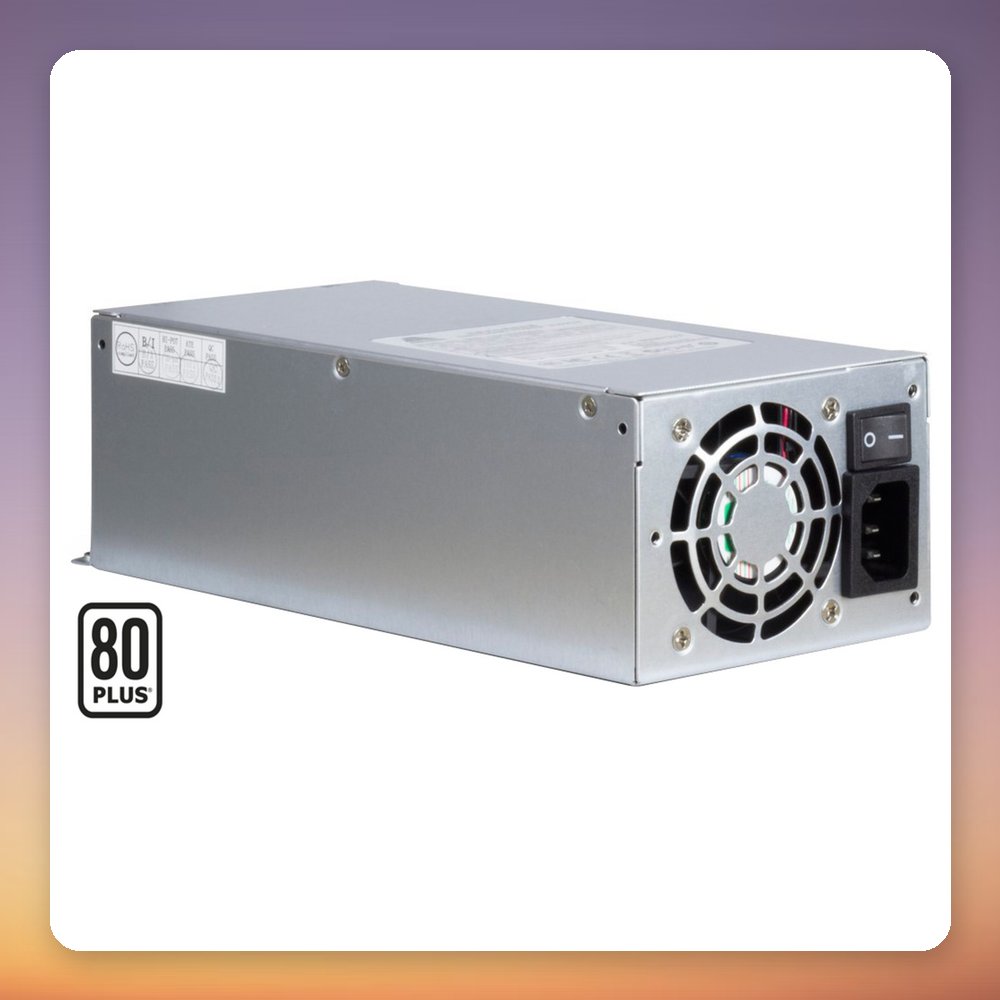

The Inter-Tech ASPOWER U2A-B20600-S is a 600 W server-style power supply with up to 90% efficiency and an 80 PLUS certification. It delivers its full 600 W on the +12V rail (48 A on a single +12V1 line), with 150 W combined on the +3.3V/+5V rails, and uses active PFC. A single 60 mm temperature-controlled fan handles cooling.

This is a compact unit measuring 70 x 100 x 225 mm and weighing 1.7 kg, with a main power switch on the unit. Connectors include a 24-pin ATX, a 4+4-pin 12V CPU lead, six 4-pin 5.25″ Molex plugs, a 4-pin 3.5″ plug and two 15-pin SATA plugs. Protection covers OCP, OVP, OLP/OPP, SCP and OTP, which suits server and workstation-style builds that need a small 600 W supply.

Specification

• Manufacturer: Inter-Tech
• Model: ASPOWER U2A-B20600-S
• MPN: 88887228
• EAN: 4260455642279
• Power output: 600 W
• Efficiency: Up to 90%
• Certification: 80 PLUS
• +12V output: 600 W total, 48 A (single +12V1 rail)
• +3.3V/+5V combined: 150 W (25 A each on +3.3V and +5V)
• Power factor correction: Active PFC
• Connectors: 1x 24-pin ATX12V 2.x, 1x 4+4-pin 12V, 6x 4-pin 5.25″, 1x 4-pin 3.5″, 2x 15-pin SATA
• Cooling: 1x 60 mm fan, temperature-controlled
• Protection: OCP, OVP, OLP/OPP, SCP, OTP
• Input current: 10 A at 110 V / 60 Hz
• Power switch: 1x main power switch
• Colour: Grey
• Dimensions (W x H x D): 70 x 100 x 225 mm
• Weight: 1.7 kg
