Product Overview

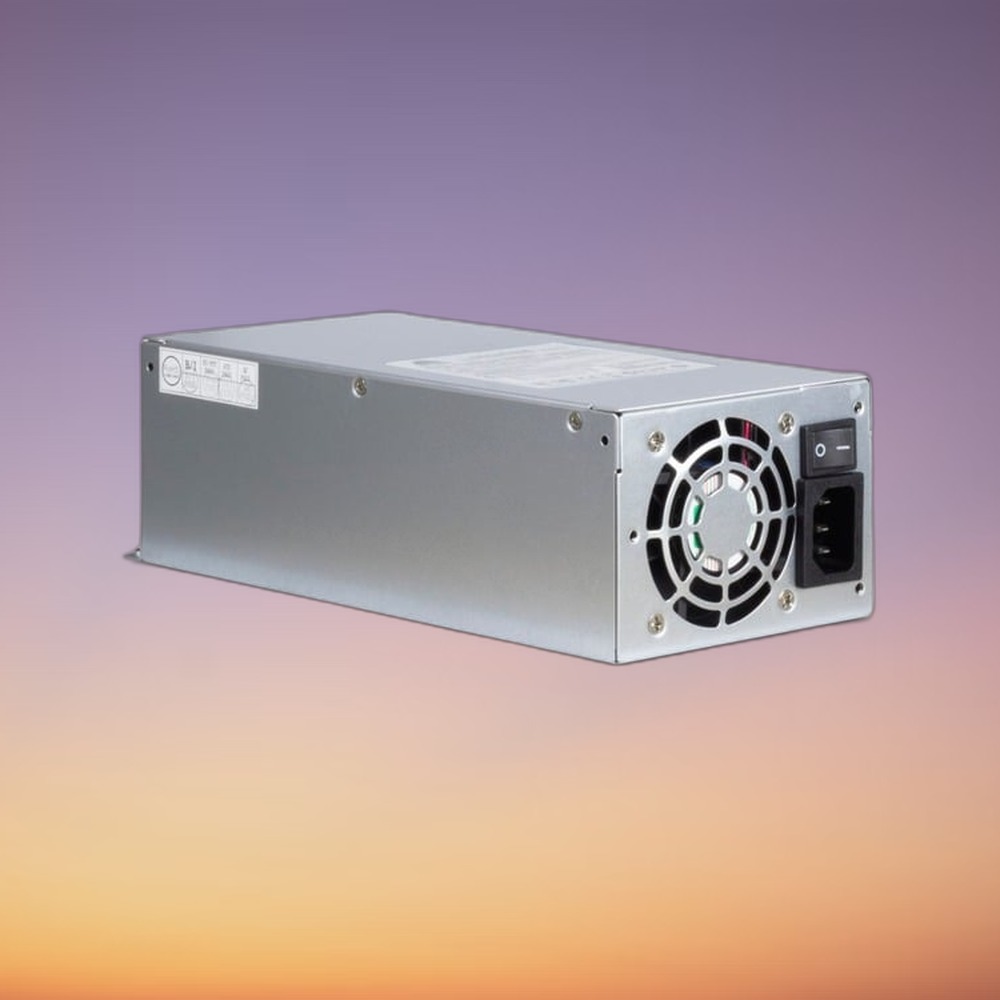

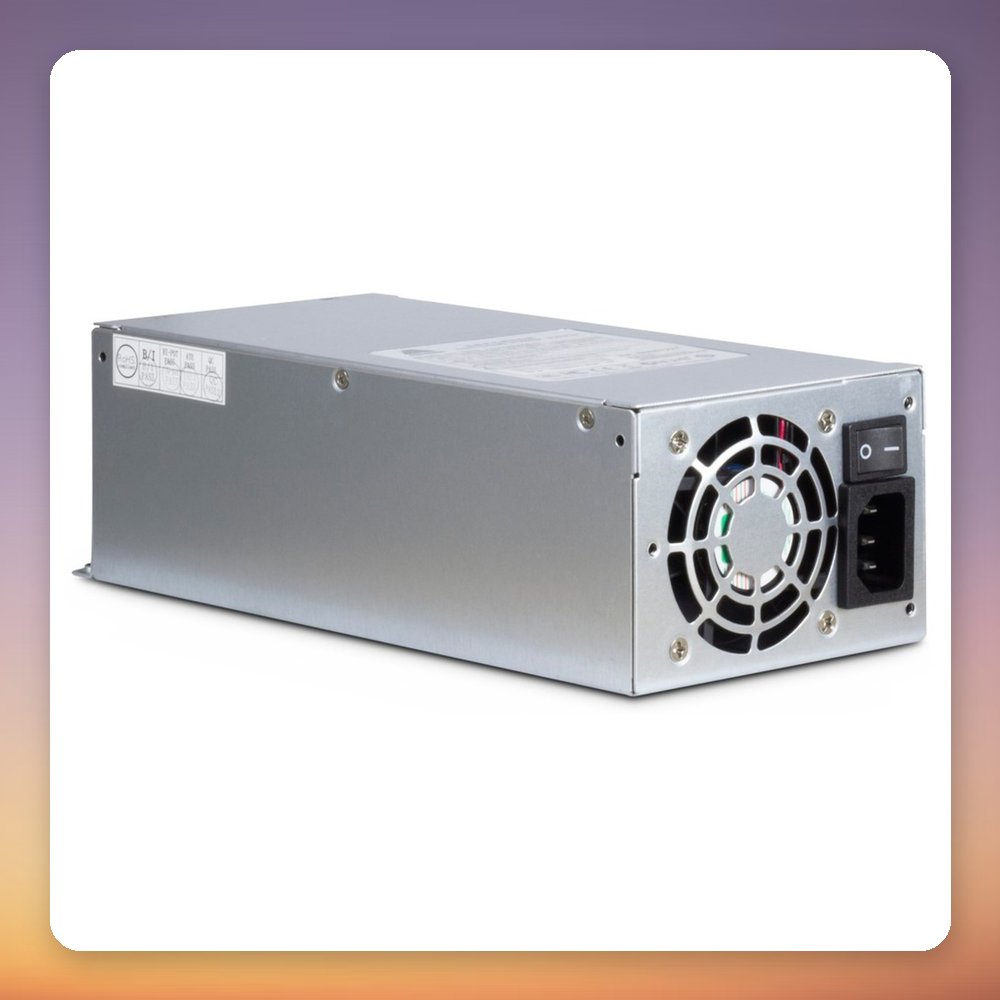

The Inter-Tech ASPOWER U2A-B20500-S is a 500 W power supply in grey, described by the manufacturer as a server PSU with efficiency of up to 90%. It delivers up to 40 A on a single +12 V rail and uses active PFC, with a temperature-controlled 60 mm fan and a full set of protection circuits (OCP, OVP, OLP/OPP, SCP, OTP).

The unit accepts 100-240 V input and offers a 24-pin ATX12V 2.x connector, a 4+4-pin 12V connector, two SATA power connectors, six 4-pin 5.25″ Molex connectors and one 4-pin 3.5″ connector. That connector set suits a basic or server-style system rather than a modern gaming build. It measures 100 x 70 x 225 mm, weighs 1.7 kg and has a mains power switch.

Specification

• Manufacturer: Inter-Tech
• Model: ASPOWER U2A-B20500-S
• MPN: 88887227
• EAN: 4260455642262
• Total power: 500 W
• Efficiency: Up to 90%
• +12 V rail: 1x 40 A (40 A total)
• +3.3 V / +5 V: 25 A / 25 A (150 W combined)
• +5 Vsb / -12 V: 3 A / 0.5 A
• Input voltage: 100-240 V
• Power factor correction: Active PFC

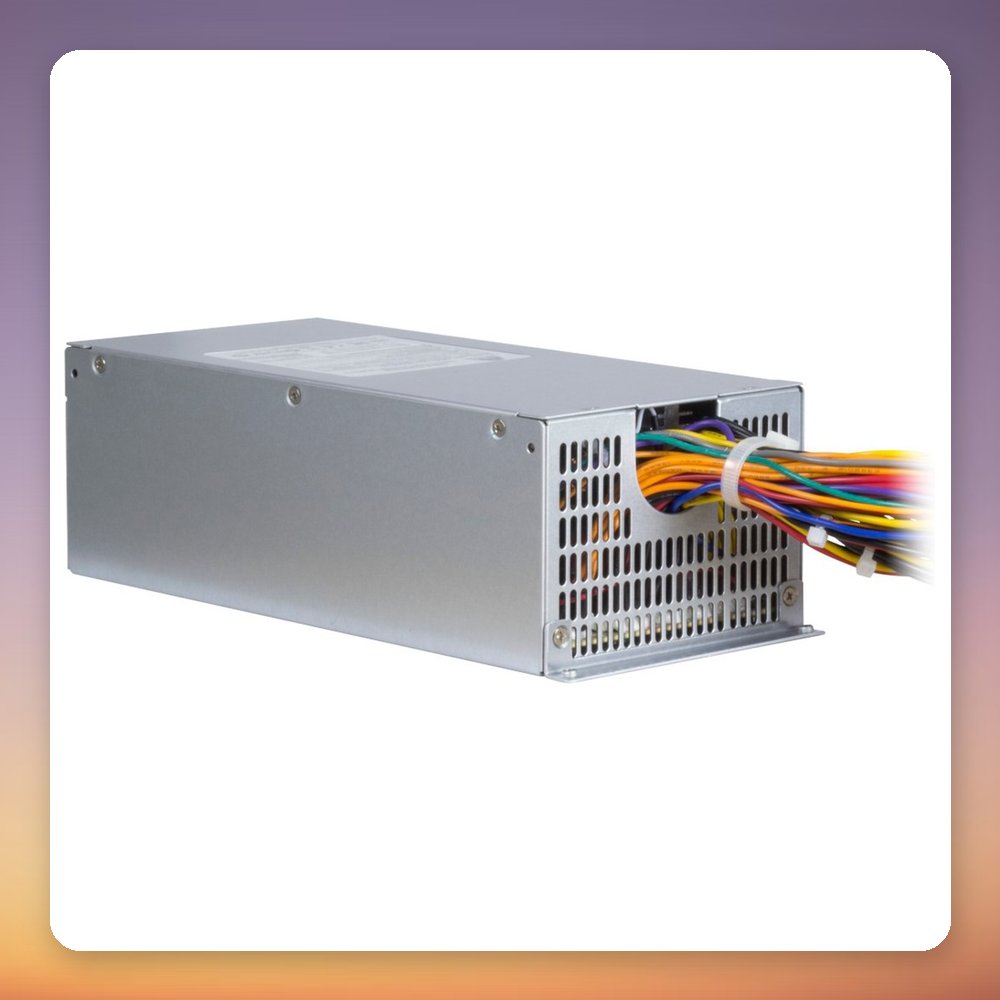

• Connectors: 1x 24-pin ATX12V 2.x, 1x 4+4-pin 12V, 2x 15-pin SATA, 6x 4-pin 5.25″, 1x 4-pin 3.5″

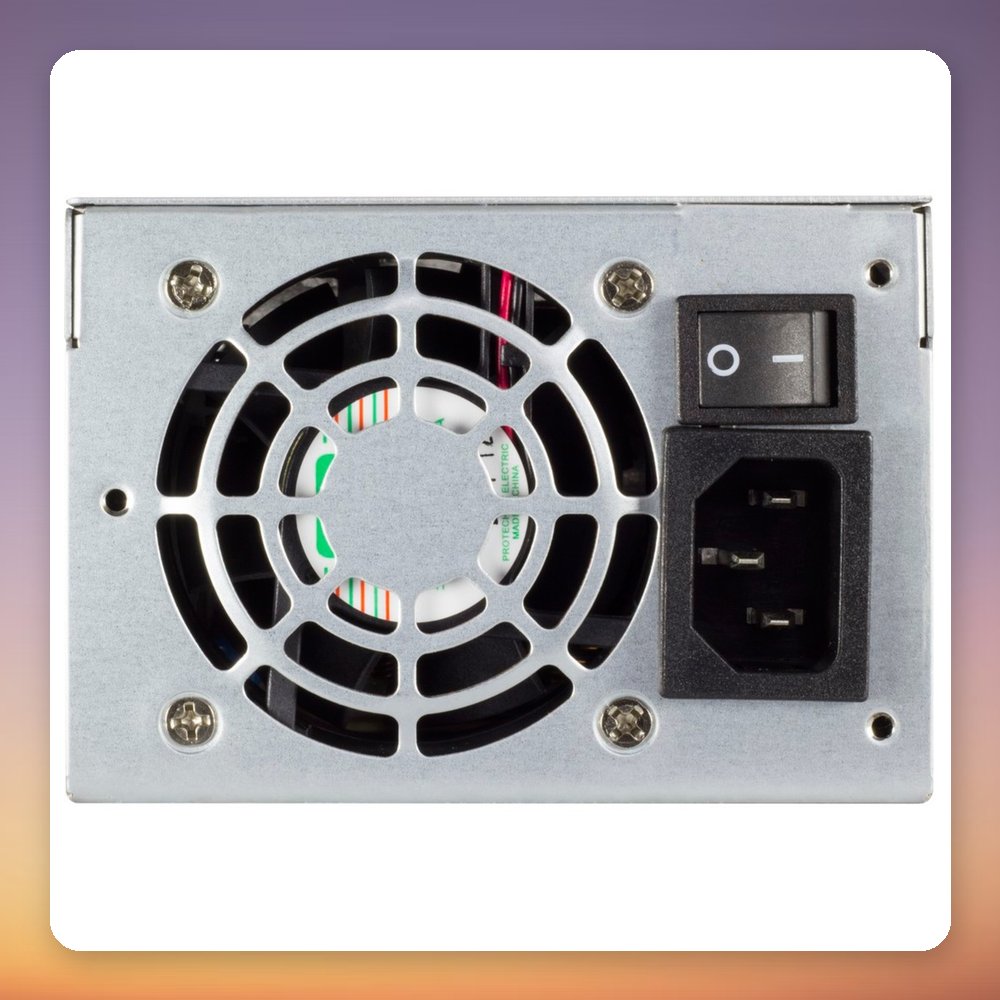

• Cooling: 1x 60 mm fan, temperature controlled
• Protections: OCP, OVP, OLP/OPP, SCP, OTP
• Switch: 1x power switch
• Colour: Grey
• Dimensions (W x H x D): 100 x 70 x 225 mm
• Weight: 1.7 kg
