Product Overview

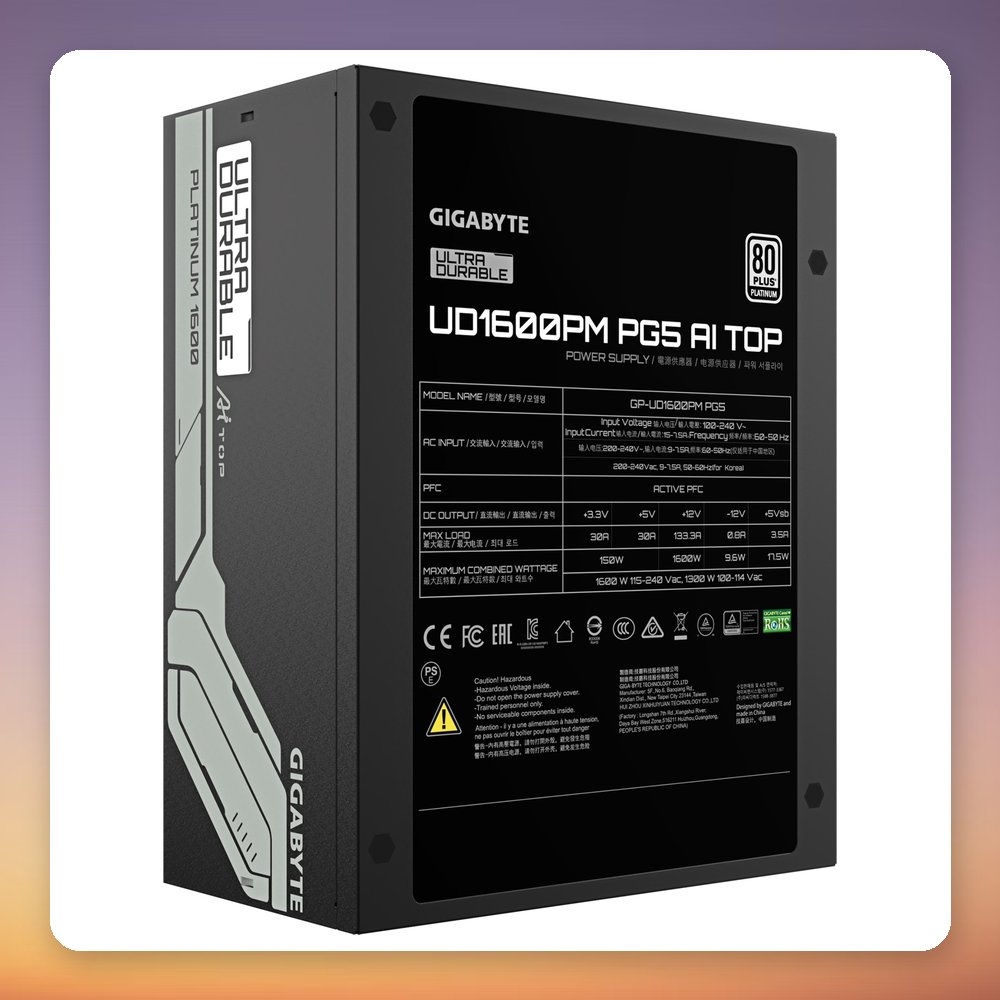

The GigaByte UD1600PM PG5 AI TOP 1600W is a fully modular ATX 3.1 power supply with 80 PLUS Platinum certification and up to 92% efficiency. It delivers its full 1600 W on the +12V rail (133.3 A) and includes two 12+4 pin connectors, each rated for 600 W, so it can feed two high-end graphics cards at the same time.

It suits high-end gaming PCs, dual-GPU builds and multi-card workstations that need a lot of headroom. Two 8-pin to 16-pin adaptors allow up to four PCIe Gen 5.0 cards at 300 W each. The 140 mm double ball bearing fan is temperature controlled and stops at idle or low load, keeping noise down. The standard ATX size (150 x 86 x 190 mm) fits regular ATX cases.

Specification

• Manufacturer: GigaByte
• Model: UD1600PM PG5 AI TOP
• MPN: GP-UD1600PM PG5
• EAN: 4719331555047
• Power: 1600 W
• Efficiency Rating: 80 PLUS Platinum (up to 92%)
• Standard: ATX 3.1 (ATX12V 3.1)

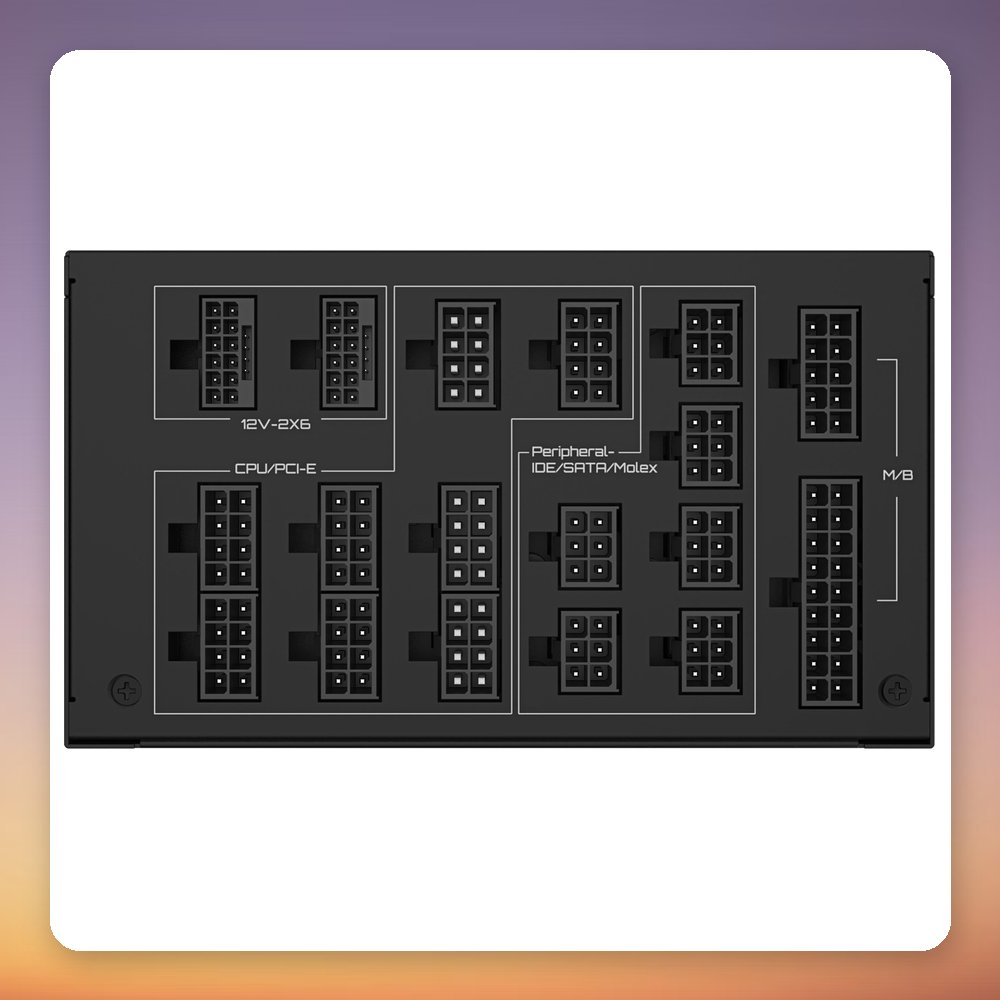

• Modularity: Fully modular
• +12V Output: 1600 W (133.3 A)
• 12+4 Pin GPU Connectors: 2x (600 W each)
• PCIe 6+2 Pin Connectors: 8x
• SATA Power Connectors: 16x
• Molex 4-Pin Connectors: 6x
• Fan: 1x 140 mm double ball bearing, temperature controlled, zero RPM at low load
• Protections: OCP, OVP, UVP, OPP, SCP, OTP
• Form Factor: ATX
• Dimensions (W x H x D): 150 x 86 x 190 mm
• Weight: 5.3 kg
• Manufacturer warranty: 10 years
