Product Overview

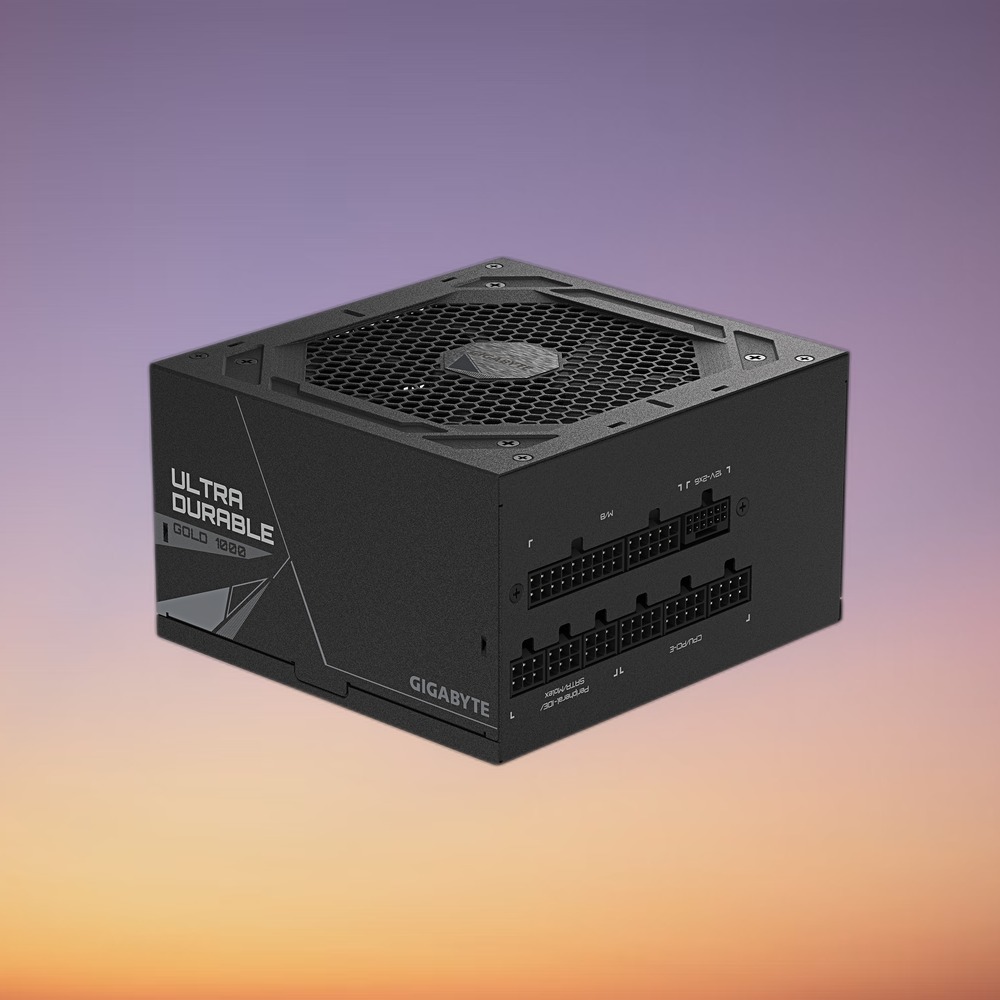

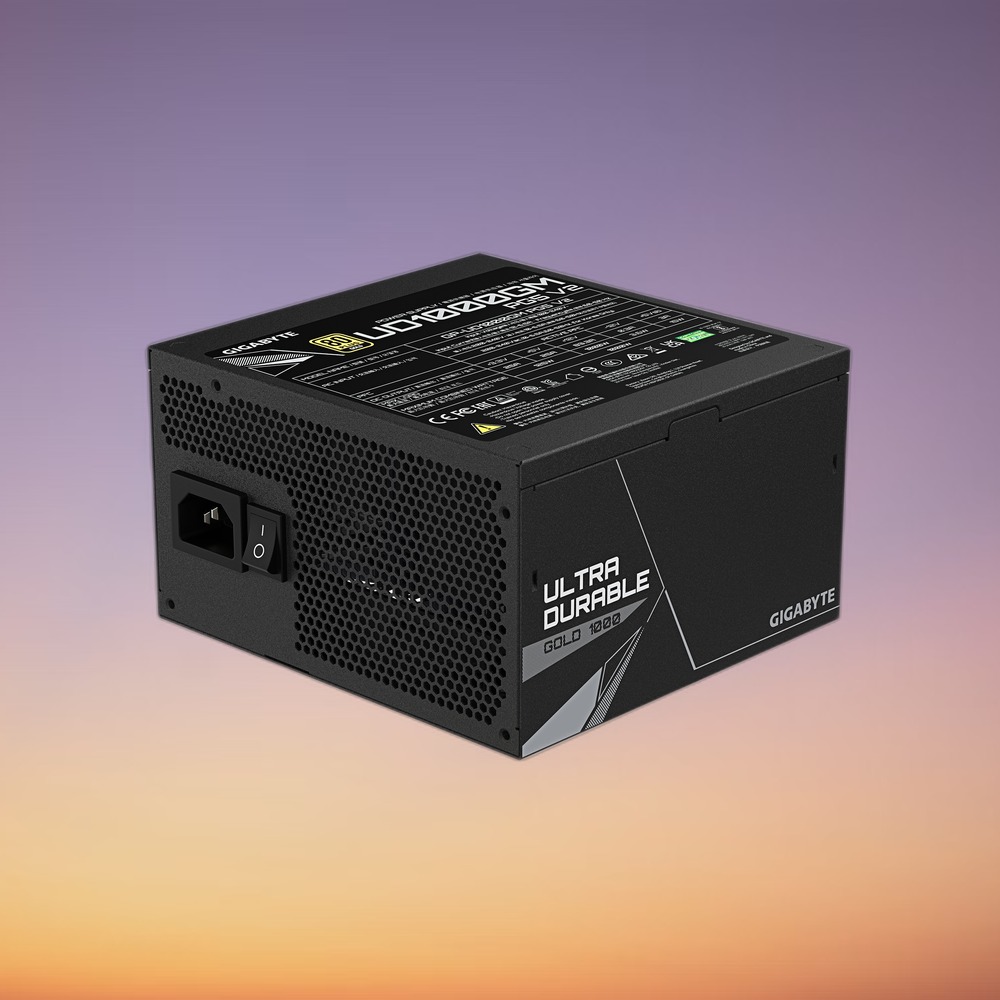

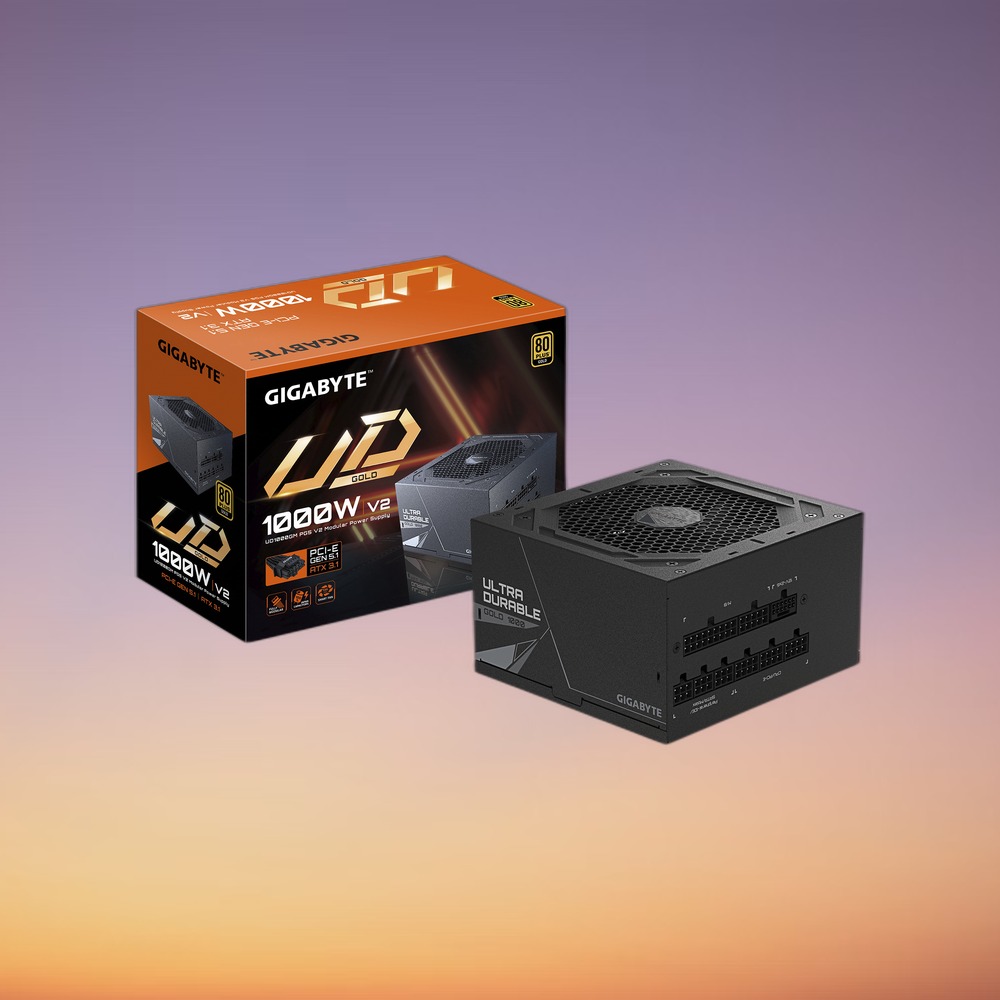

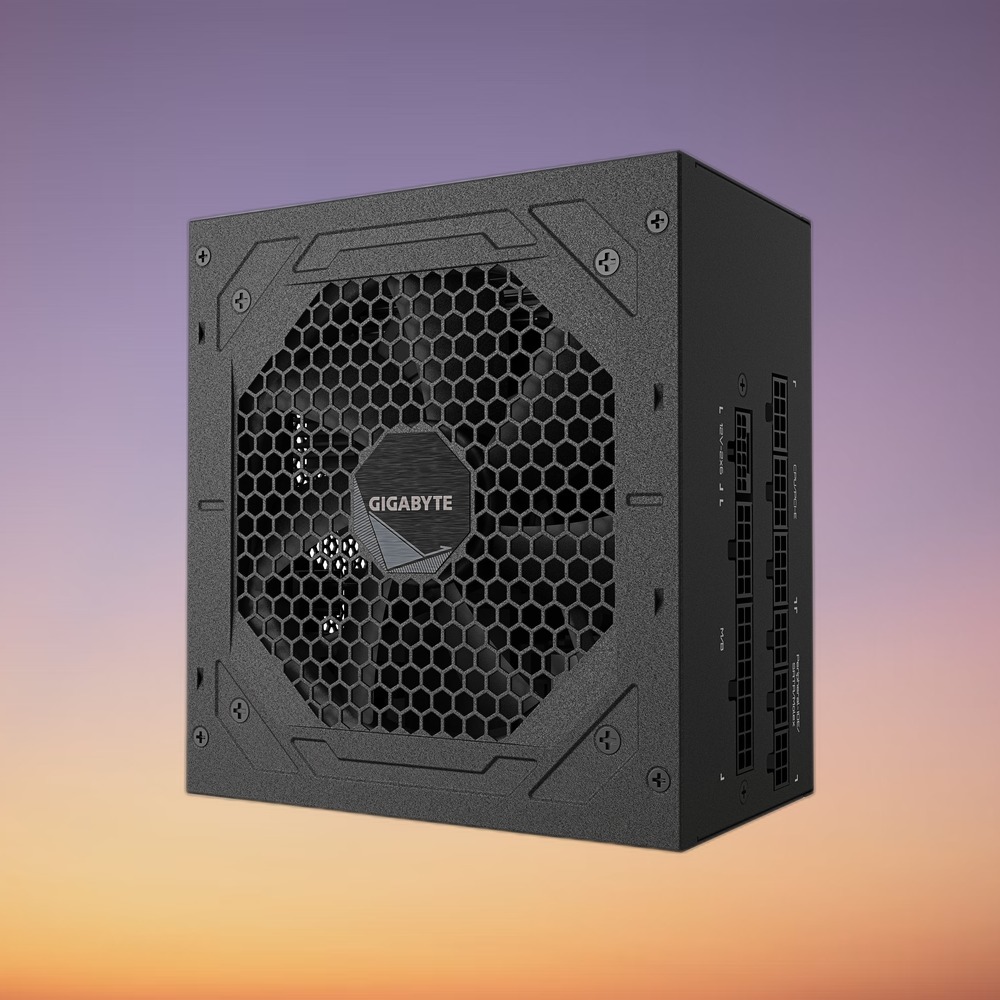

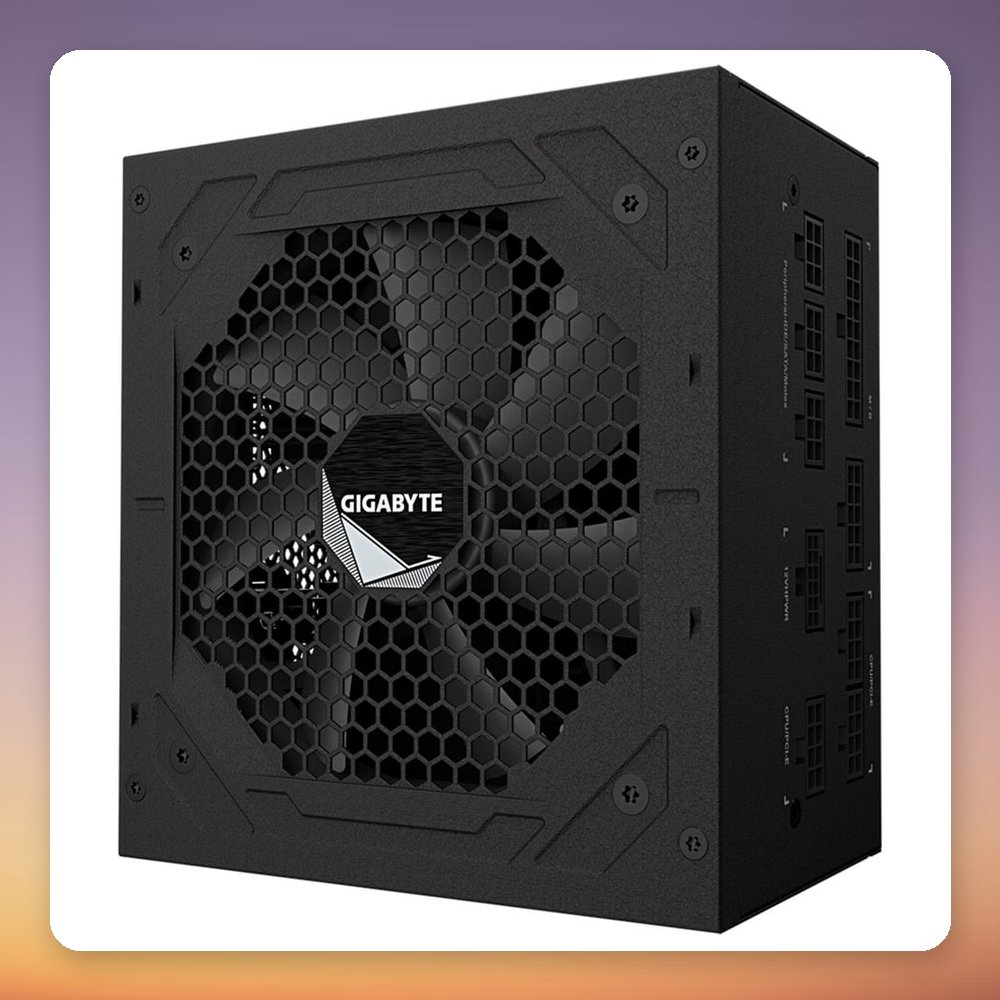

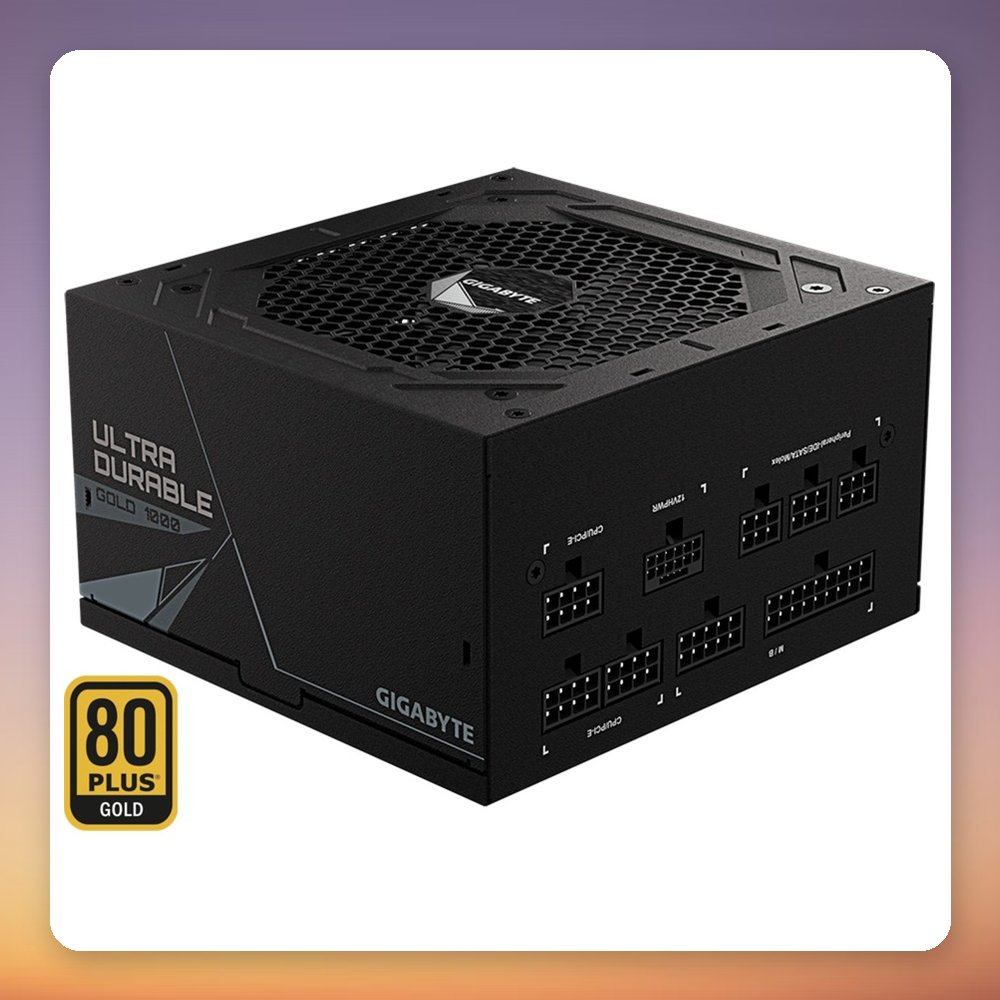

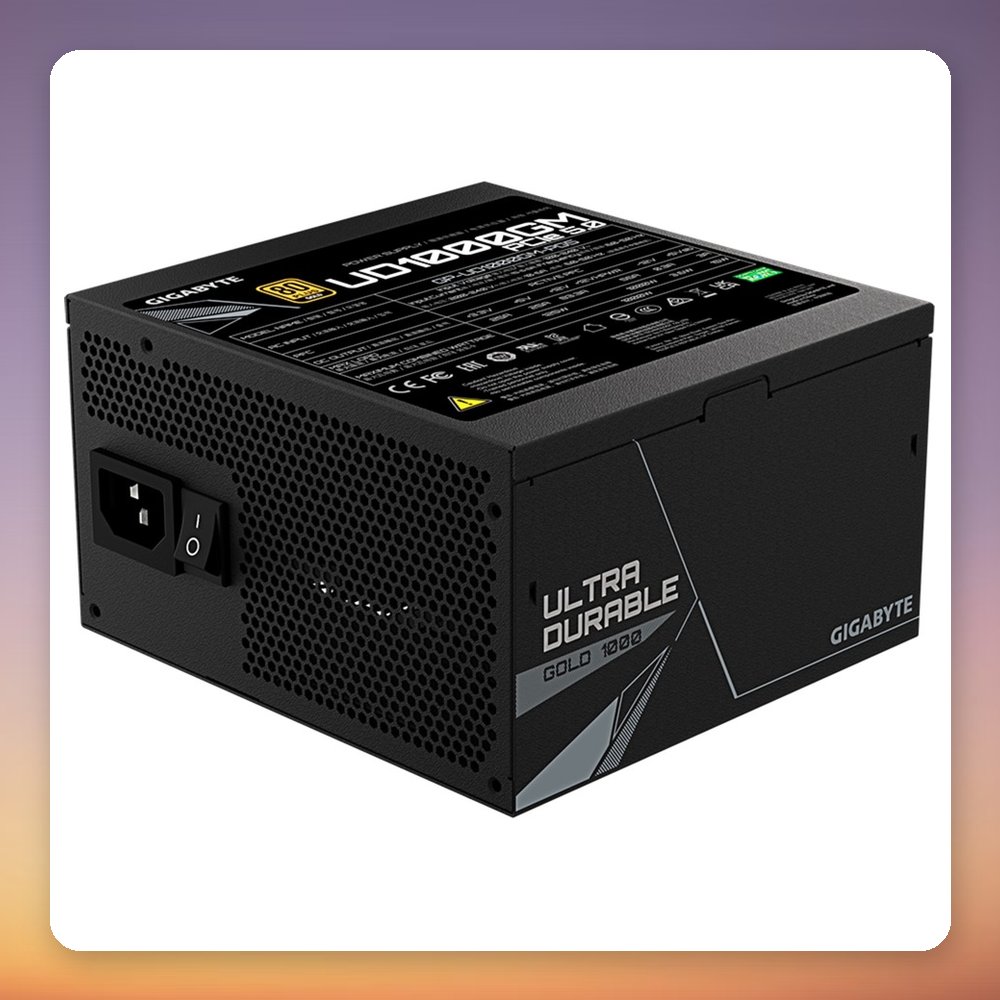

GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm.

Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Specification

• EAN: [‘4719331556112’]

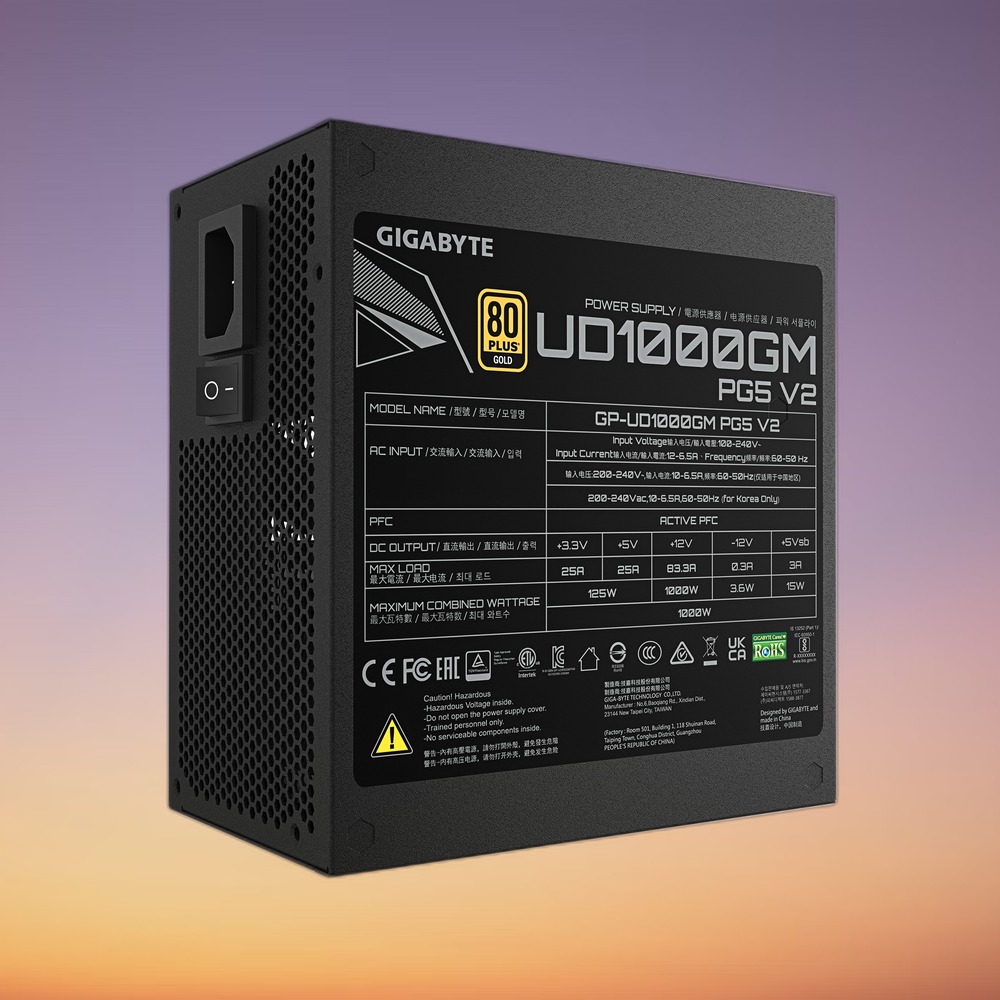

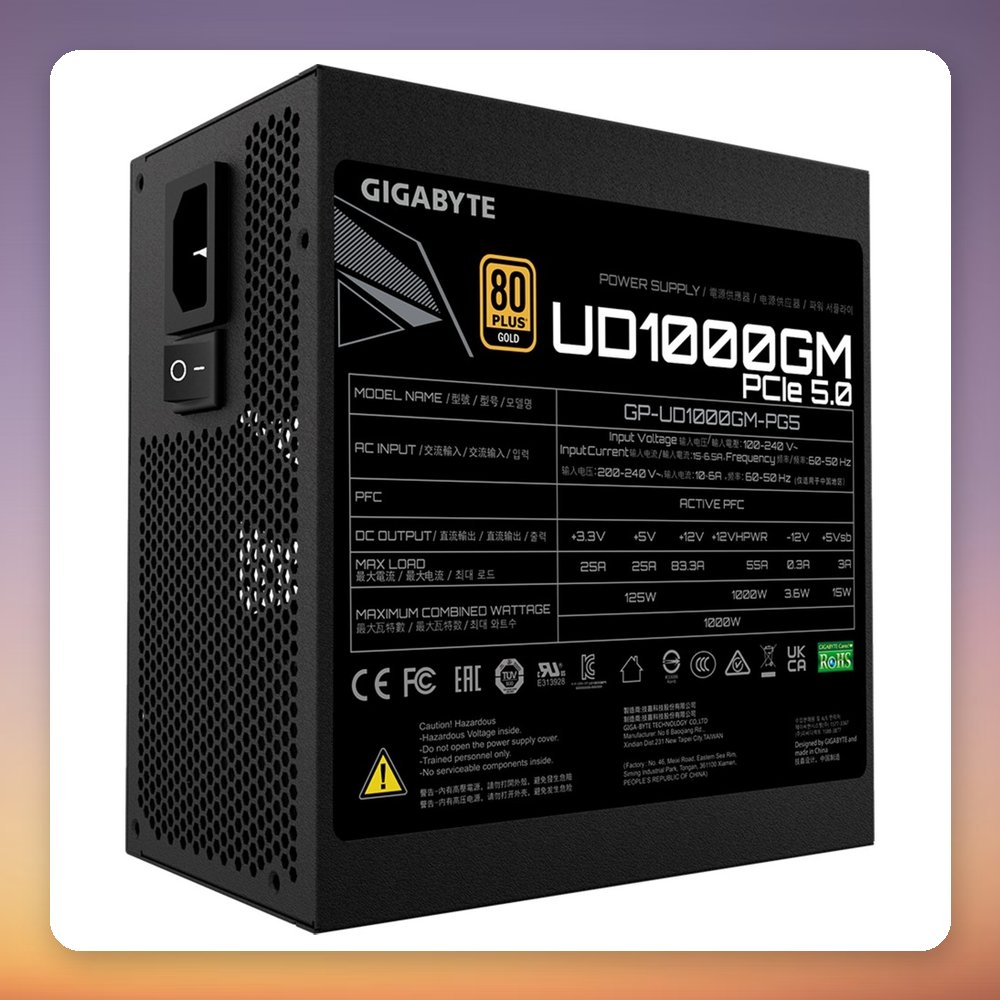

• Combined power (+5Vsb): 15 W
• Max output current (+3.3V): 25 A
• Max output current (+12V): 83.3 A
• Max output current (+5V): 25 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 3 A
• Hold time: 16 ms
• Efficiency: 90%
• Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

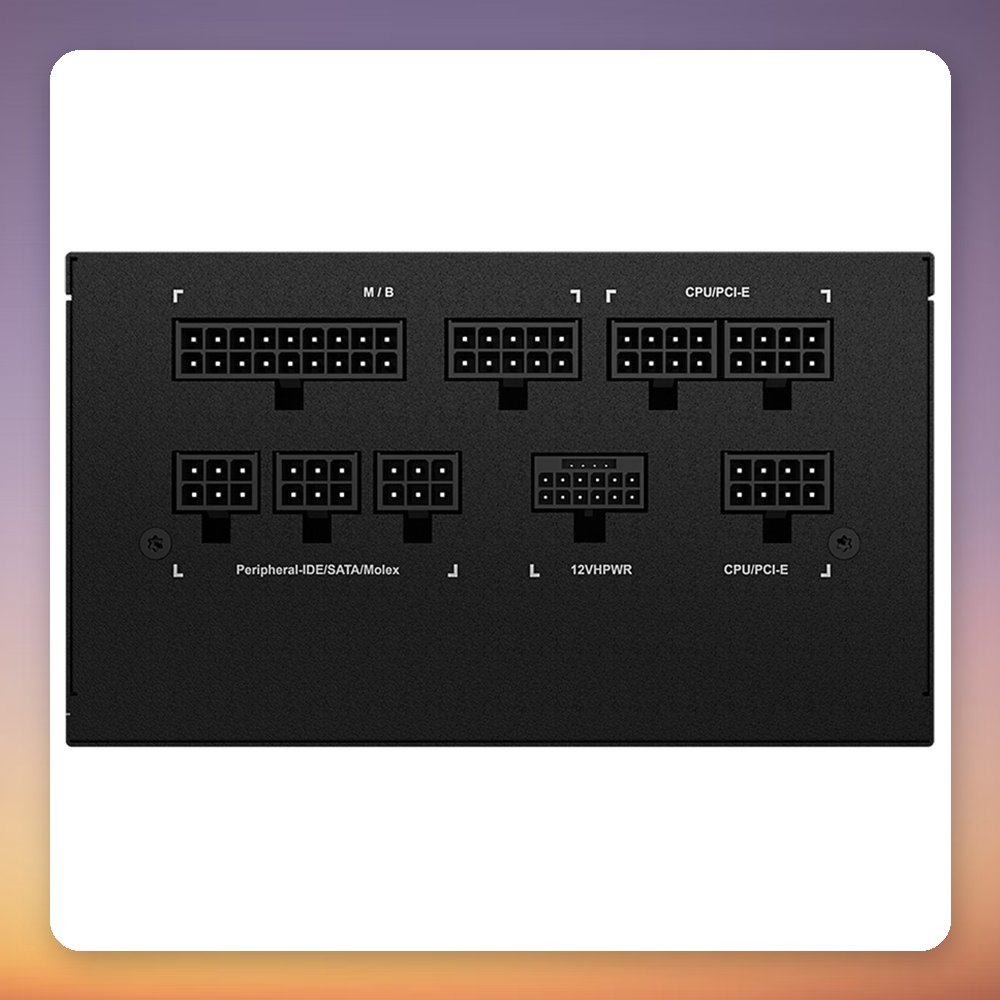

• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 61 cm
• Number of SATA power connectors: 8
• SATA power cable length: 150,600 mm
• Peripheral (Molex) power connectors (4-pin): 3
• Peripheral (Molex) power cable length: 120,150,500 mm
• PCI Express power connectors (6+2 pin): 4
• PCI Express power connectors (16-pin): 1
• PCI Express power cable length: 70 cm
• CPU power connector (4+4 pin): Yes
• CPU power cable length: 60 cm
• Floppy drive power connector: 1
• PCI Express connector: Yes
• Number of EPS connectors: 2
• Cabling type: Fully-Modular
• 80 PLUS certification: 80 PLUS Gold
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 3.1
• Bearing technology: HYB
• Mean time between failures (MTBF): 100000 h
• Product colour: Black
• Cooling type: Active

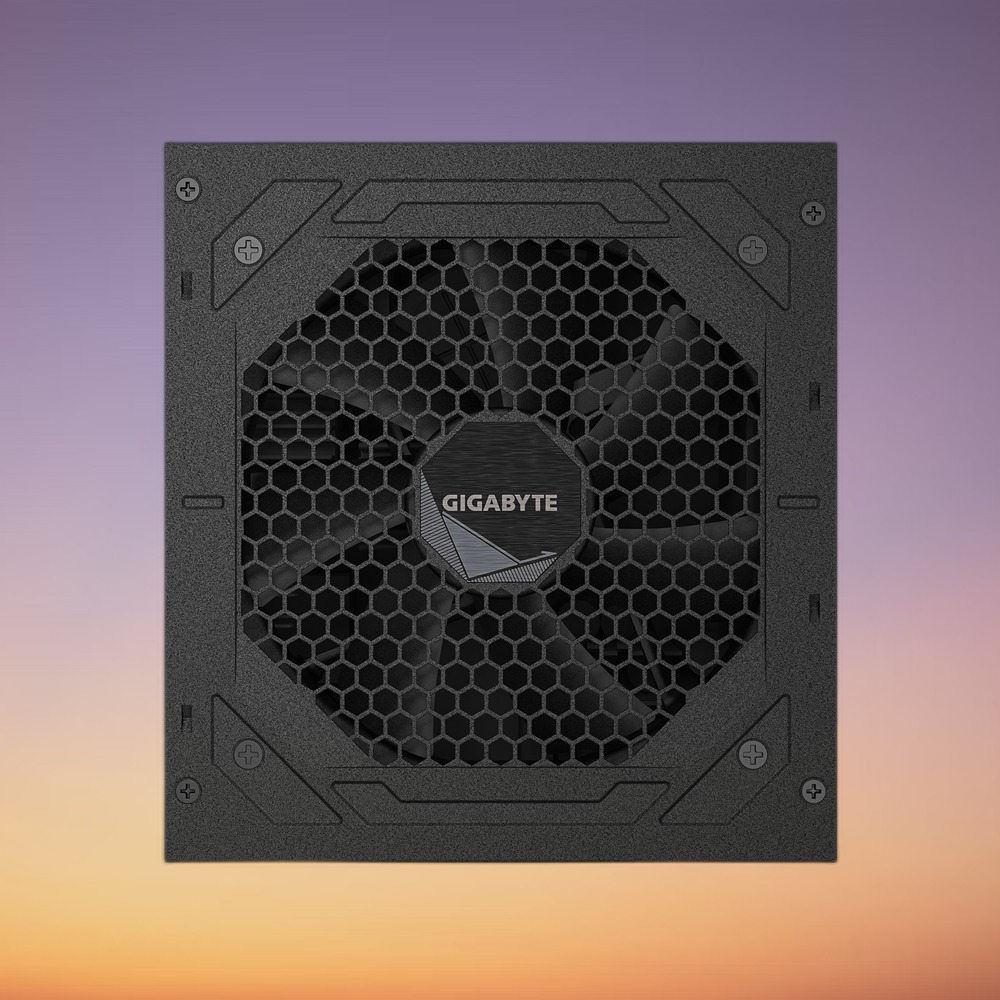

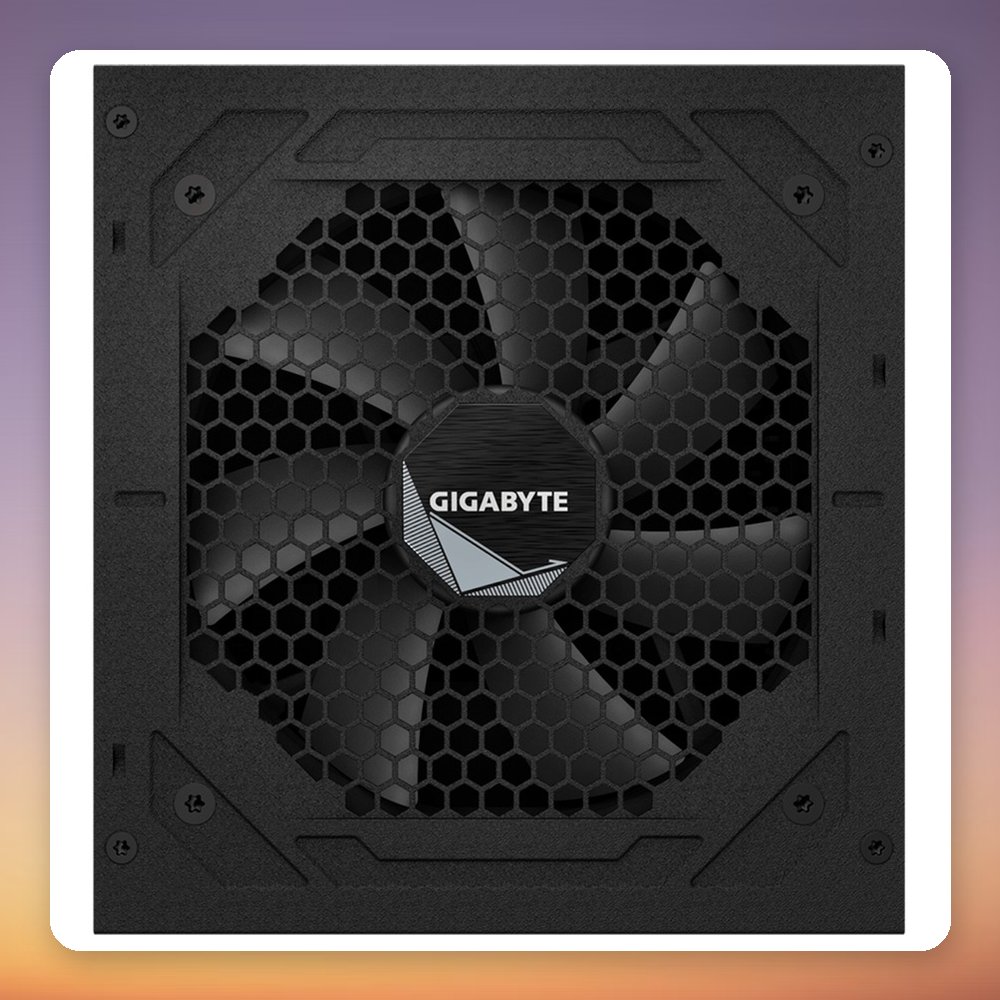

• Fan diameter: 12 cm
• Number of fans: 1 fan(s)
• On/off switch: Yes
