Product Overview

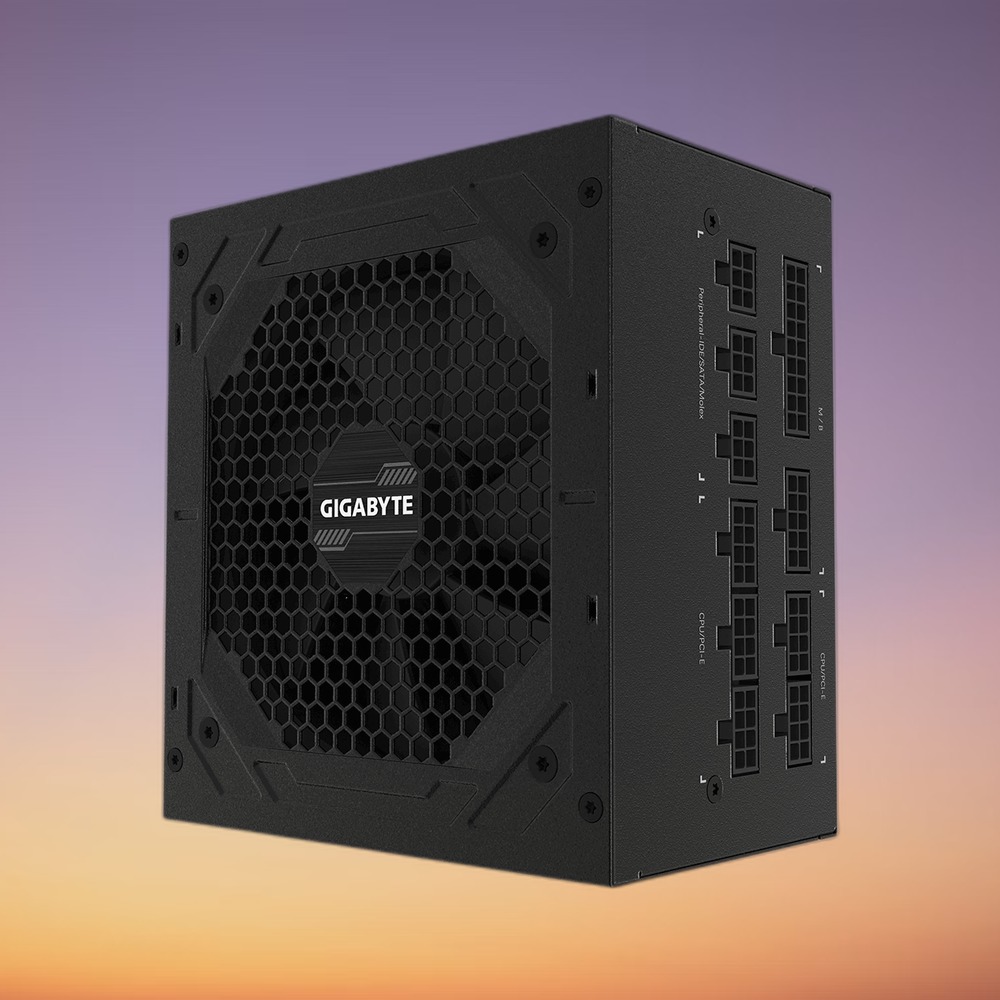

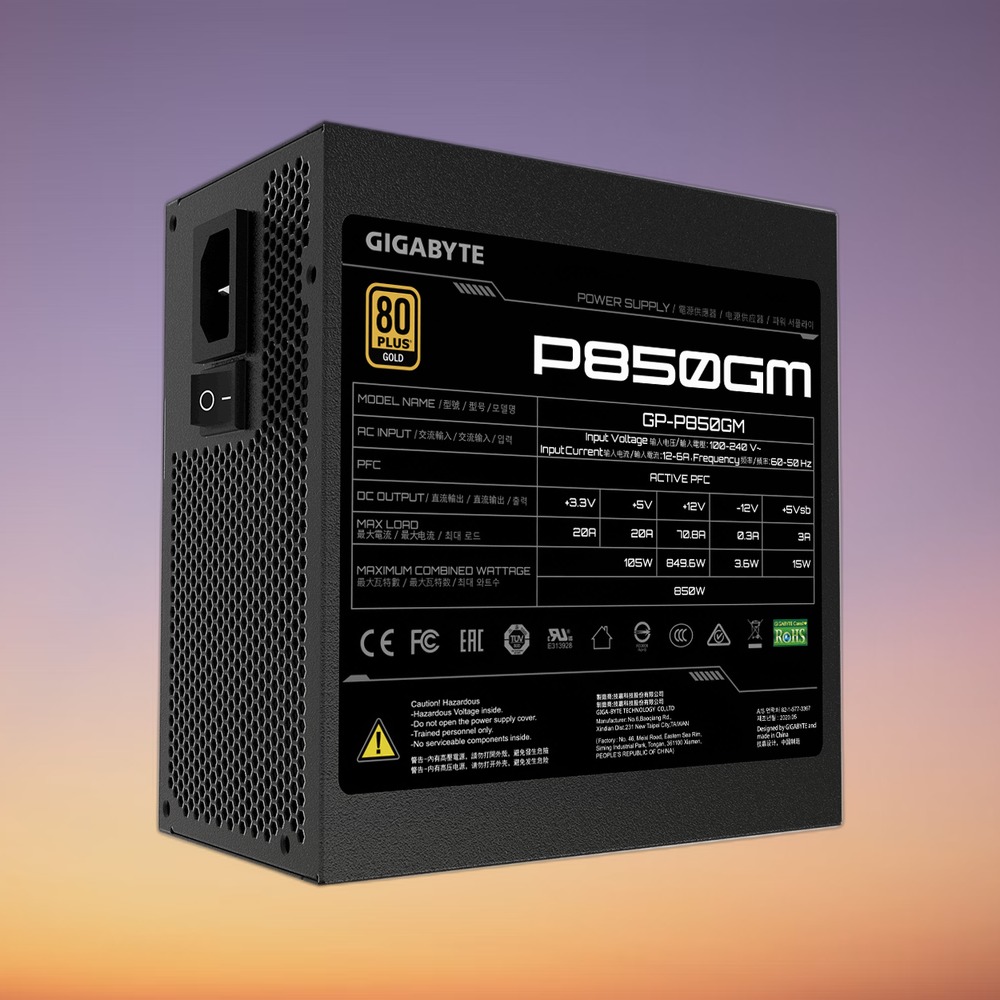

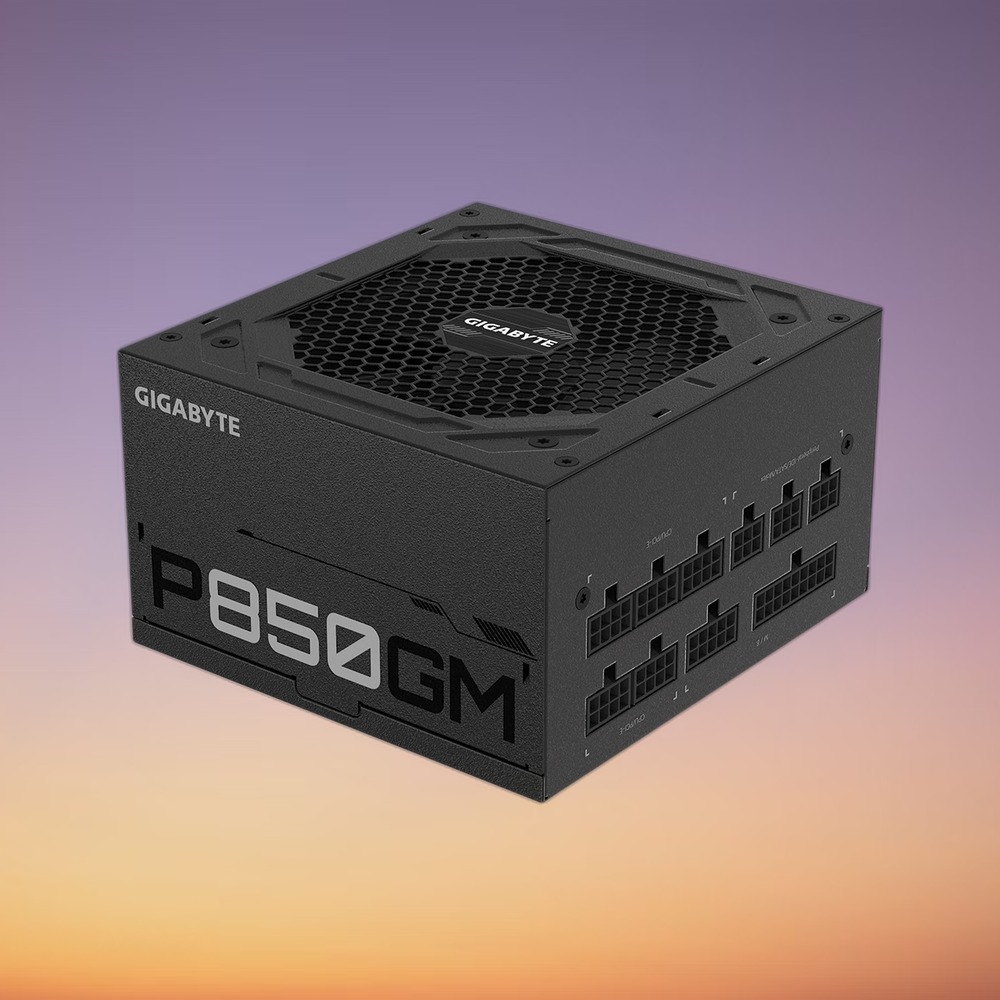

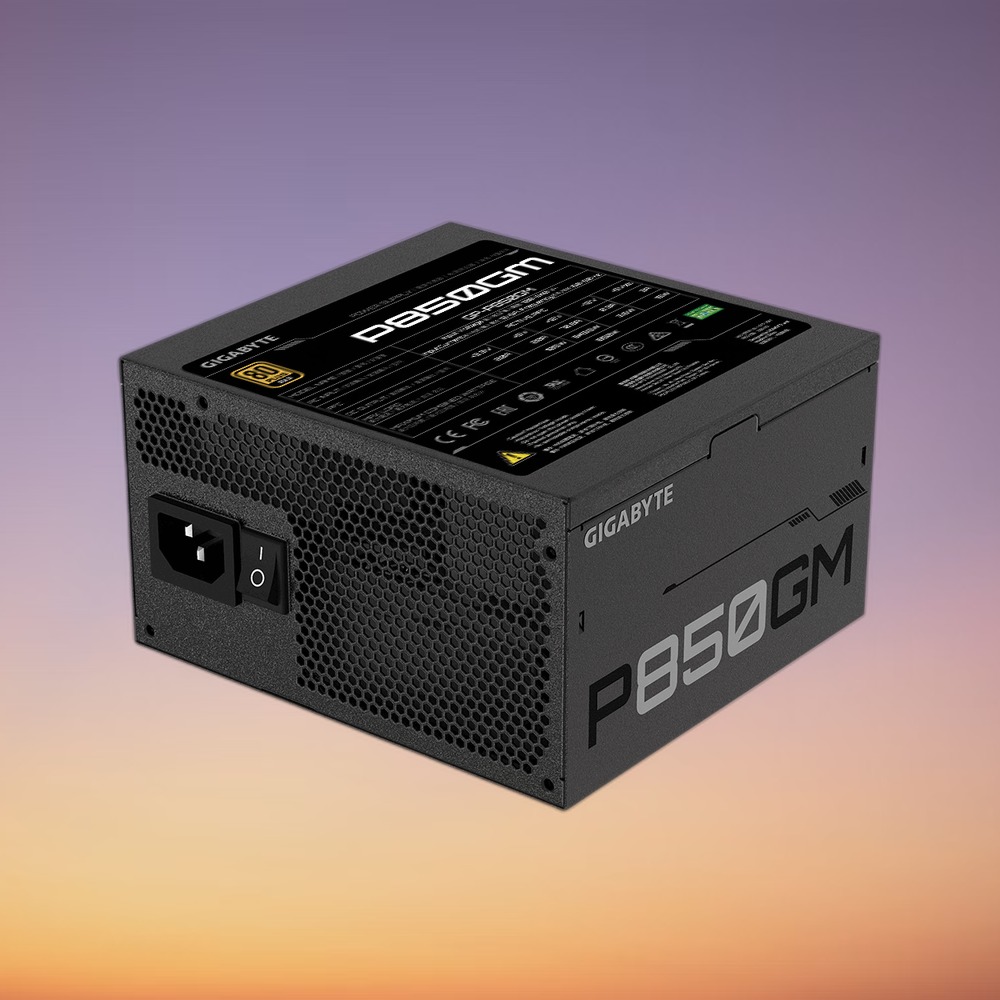

GIGABYTE P850GM. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 600,750,900 mm.

Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Specification

• EAN: [‘4719331551865’, ‘4719331551872’]
• Combined power (-12V): 3.6 W
• Combined power (+5Vsb): 15 W
• Max output current (+3.3V): 20 A
• Max output current (+12V): 70.5 A
• Max output current (+5V): 20 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 3 A
• Hold time: 16 ms
• Efficiency: 90%
• Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

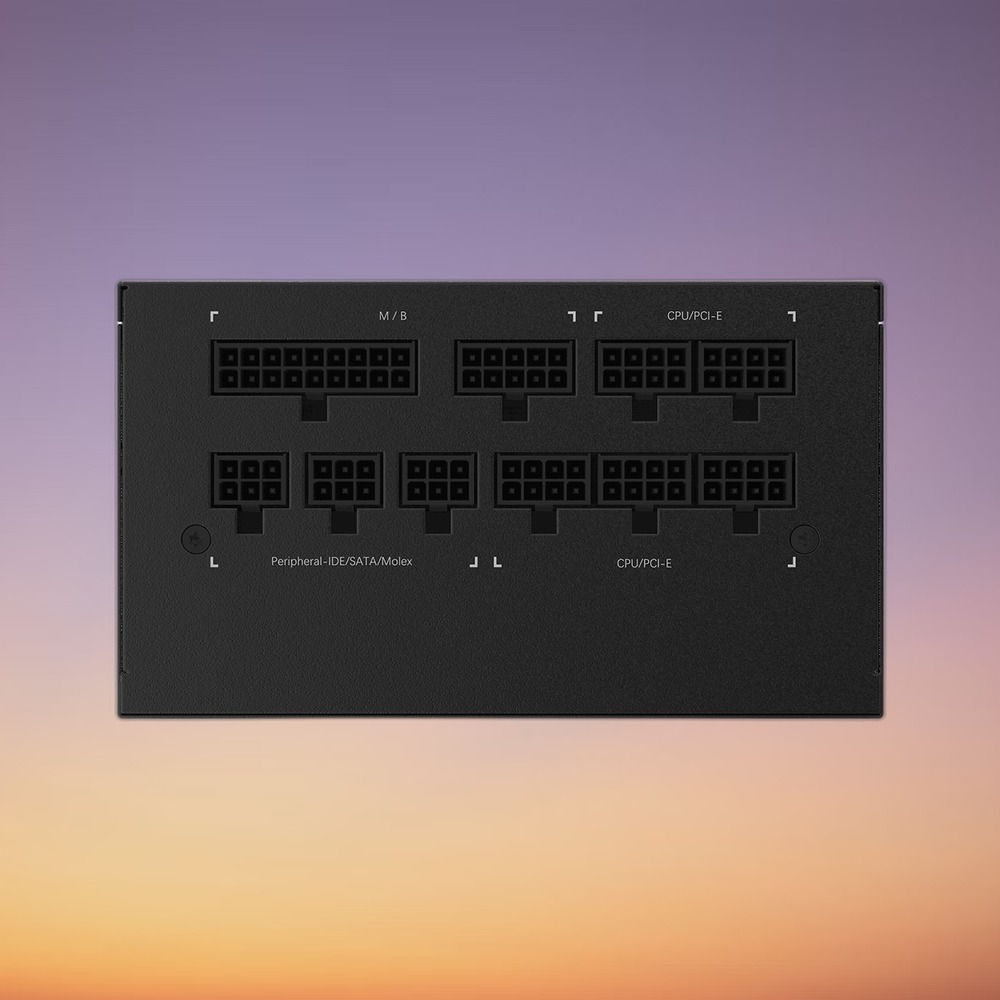

• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 61 cm
• Number of SATA power connectors: 8
• SATA power cable length: 600,750,900 mm
• Peripheral (Molex) power connectors (4-pin): 3
• PCI Express power connectors (6+2 pin): 4
• PCI Express power cable length: 75 cm
• CPU power connector (4+4 pin): Yes
• CPU power cable length: 60 cm
• ATX power connector (20+4 pin): Yes
• Floppy drive power connector: 2
• Floppy disk drive connector: Yes
• Floppy disk drive cable length: 89 cm
• Cabling type: Fully-Modular
• 80 PLUS certification: 80 PLUS Gold
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.31
• Mean time between failures (MTBF): 100000 h
• Product colour: Black
• Cooling type: Active

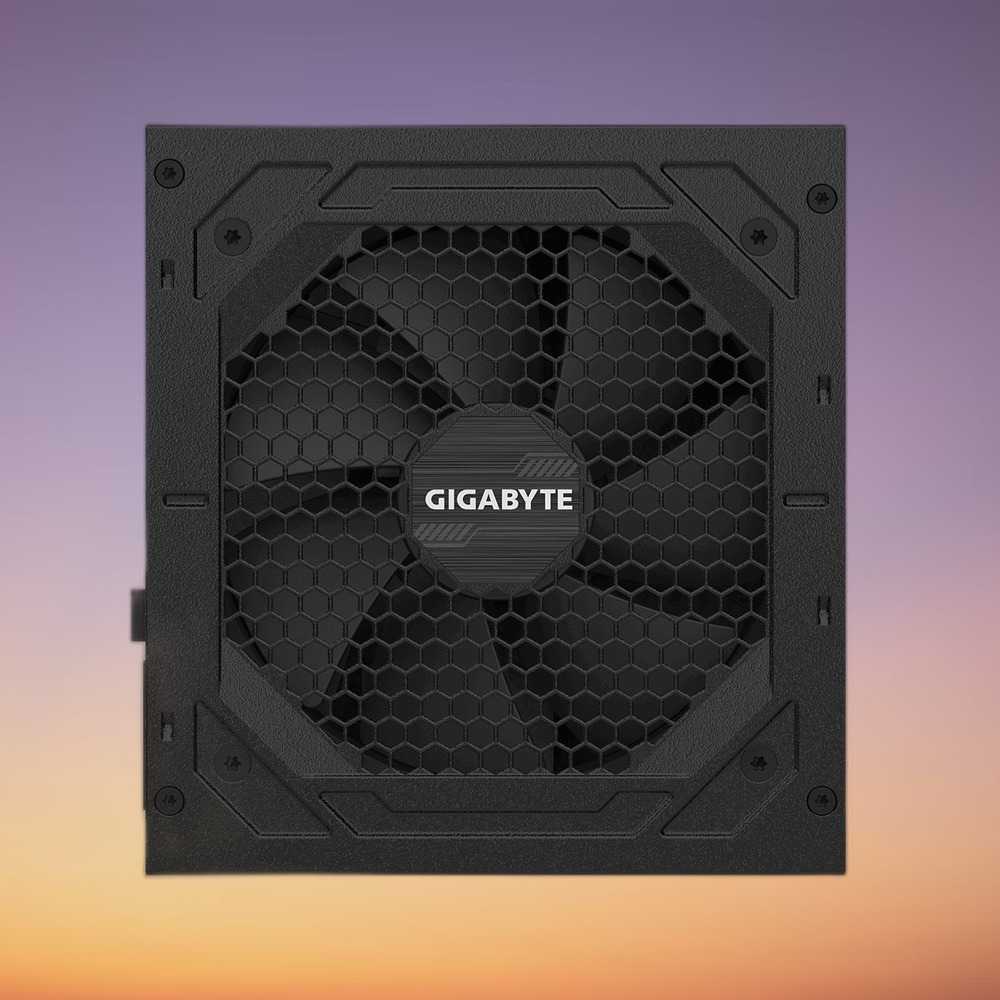

• Fan diameter: 12 cm
• Number of fans: 1 fan(s)
• Fan location: Top
• On/off switch: Yes
