GigaByte GP-AE850PM PG5 ICE 850W 80 PLUS Platinum Fully Modular ATX 3.1 PSU, White

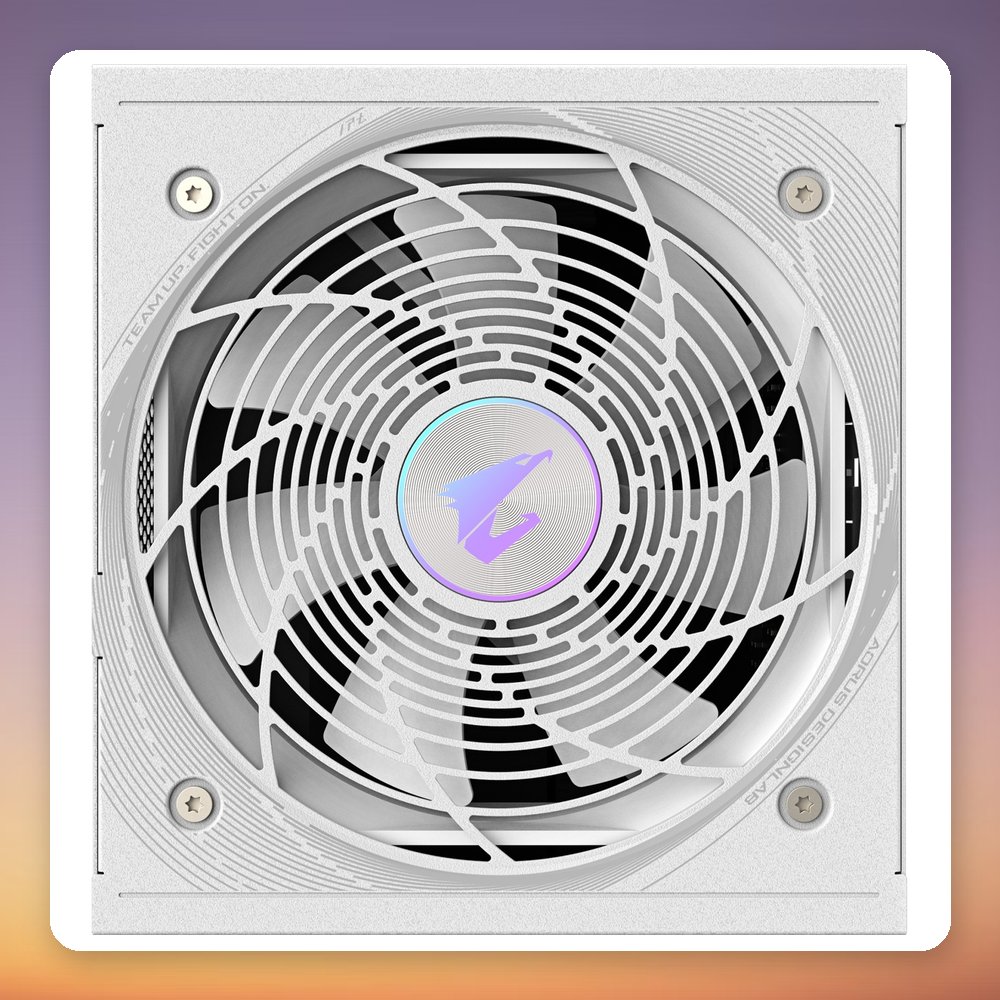

GigaByte GP-AE850PM PG5 ICE 850W 80 PLUS Platinum Fully Modular ATX 3.1 PSU, White – image 2
GigaByte GP-AE850PM PG5 ICE 850W 80 PLUS Platinum Fully Modular ATX 3.1 PSU, White – image 3
GigaByte GP-AE850PM PG5 ICE 850W 80 PLUS Platinum Fully Modular ATX 3.1 PSU, White – image 4
GigaByte GP-AE850PM PG5 ICE 850W 80 PLUS Platinum Fully Modular ATX 3.1 PSU, White – image 5
GigaByte GP-AE850PM PG5 ICE 850W 80 PLUS Platinum Fully Modular ATX 3.1 PSU, White – image 6

GigaByte GP-AE850PM PG5 ICE 850W 80 PLUS Platinum Fully Modular ATX 3.1 PSU, White

€164.03

Delivery: 7-12 business days
GigaByte GP-AE850PM PG5 ICE 850W 80 PLUS Platinum Fully Modular ATX 3.1 PSU, White

  • Compact 140 mm length for space-limited cases
  • Native 12+4 pin cable for GPUs up to 600 W
  • Fully modular with 6x PCIe 6+2 pin connectors
  • 80 PLUS Platinum, ATX 3.1, white finish

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100082356 Category: Tags: , , , , , Brand:

✅

Product Overview

The GigaByte GP-AE850PM PG5 ICE 850W PSU is a white, fully modular ATX power supply with 80 PLUS Platinum certification and ATX 3.1 compliance. It delivers 849.6 W on the +12V rail (70.8 A) and includes a native 12+4 pin (12VHPWR) cable for PCIe 5.x graphics cards drawing up to 600 W. At just 140 mm long, it is shorter than many 850 W units.

With six 6+2 pin PCIe connectors, eight SATA connectors and two 4+4 pin CPU connectors, it suits a modern gaming PC built around a high-end graphics card, including compact cases where length is limited. GigaByte states it handles power excursions of up to 200% of rated power, and it uses a single 120 mm fan with ball bearings. Protections include OCP, OVP, UVP, OPP, SCP and OTP.

Specification

  • Manufacturer: GigaByte
  • Model: GP-AE850PM PG5 ICE
  • MPN: GP-AE850PM PG5 ICE
  • EAN: 4719331554392
  • Rated power: 850 W
  • 80 PLUS certification: 80 PLUS Platinum
  • ATX standard: ATX 3.1 (PCIe 5.0)
  • Modularity: Fully modular
  • +12V output: 849.6 W / 70.8 A (single rail)
  • Form factor: ATX
  • Colour: White
  • Cooling: 1x 120 mm fan, ball bearing
  • 12VHPWR (12+4 pin) connector: 1x
  • PCIe 6+2 pin connectors: 6x
  • CPU 4+4 pin connectors: 2x
  • SATA connectors: 8x
  • Molex 4-pin connectors: 4x
  • Input voltage: 100-240 V, 50/60 Hz
  • Protections: OCP, OVP, UVP, OPP, SCP, OTP
  • Dimensions (W x H x D): 150 x 86 x 140 mm
  • Weight: 2.68 kg
  • Manufacturer warranty: 10 years
