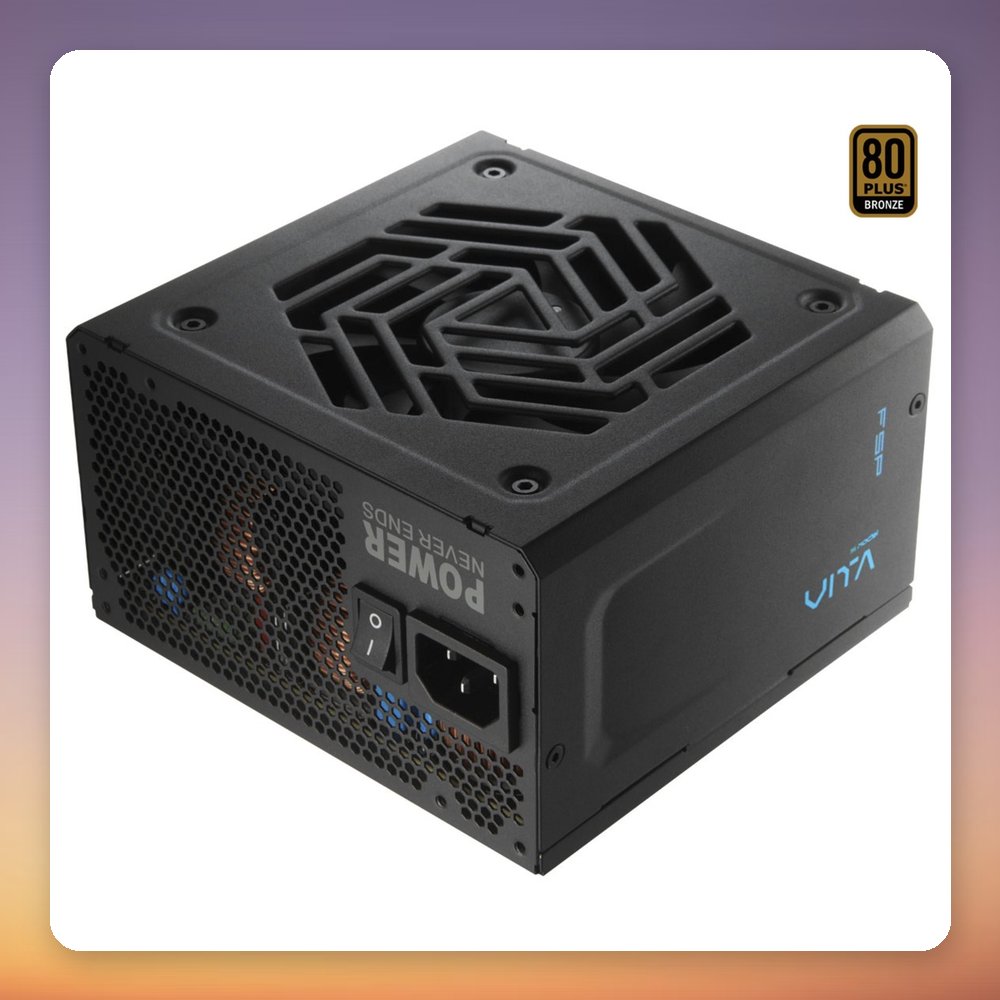

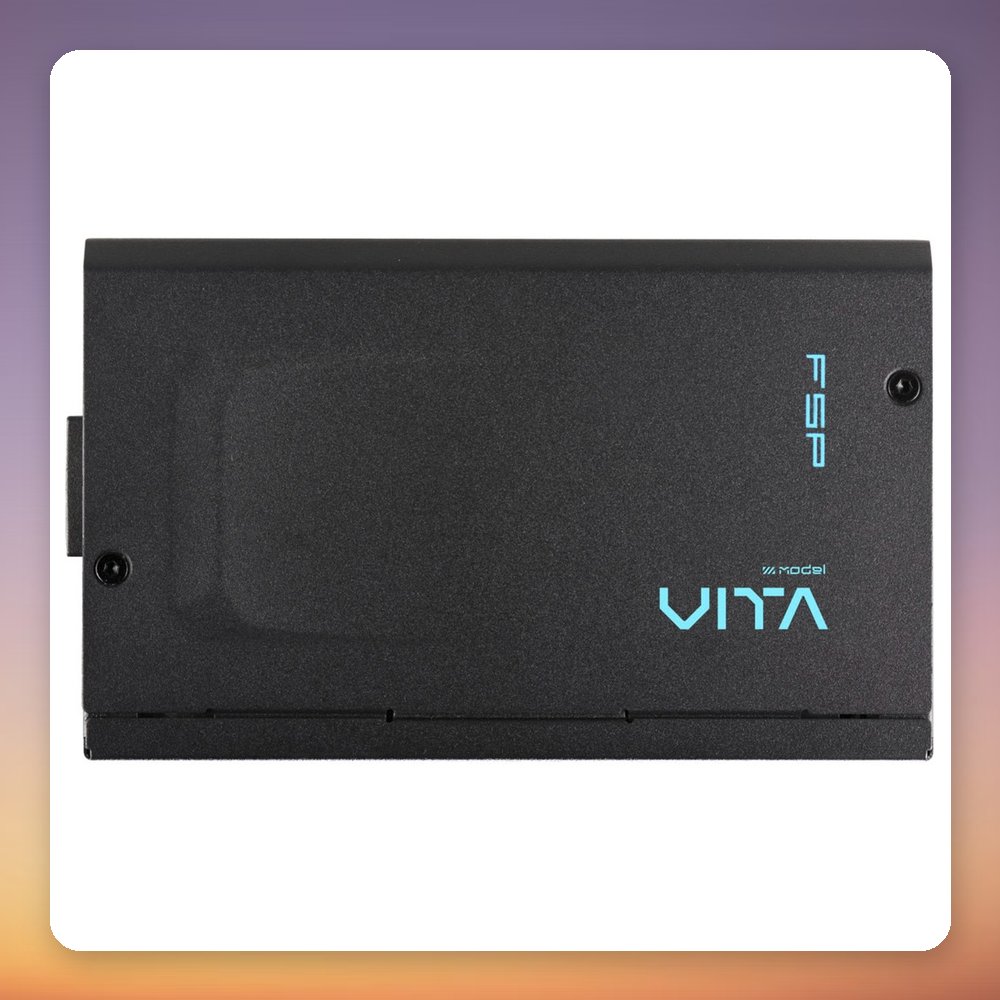

Fortron VITA BD 750W 80 PLUS Bronze ATX 3.1 Non-Modular PSU
Fortron VITA BD 750W 80 PLUS Bronze ATX 3.1 Non-Modular PSU – image 2
Fortron VITA BD 750W 80 PLUS Bronze ATX 3.1 Non-Modular PSU – image 3
Fortron VITA BD 750W 80 PLUS Bronze ATX 3.1 Non-Modular PSU – image 4
Fortron VITA BD 750W 80 PLUS Bronze ATX 3.1 Non-Modular PSU – image 5
Fortron VITA BD 750W 80 PLUS Bronze ATX 3.1 Non-Modular PSU – image 6

Fortron VITA BD 750W 80 PLUS Bronze ATX 3.1 Non-Modular PSU

€71.31

Delivery: 7-12 business days
Fortron VITA BD 750W 80 PLUS Bronze ATX 3.1 Non-Modular PSU

  • 12+4 pin (12V-2×6) connector for modern GPUs
  • Single +12V rail rated at 62.5 A
  • Compact 140 mm depth for tight cases
  • 105°C Japanese bulk capacitors, ATX 3.1

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100109770 Category: Tags: , , , , Brand:

✅

Product Overview

The Fortron VITA BD 750W is a 750 W ATX 3.1 power supply with 80 PLUS Bronze certification, a single +12V rail rated at 62.5 A and a 12+4 pin (12V-2×6) connector, so modern graphics cards can be powered from one cable. It follows ATX 3.1 and EPS 2.92, and uses active PFC with 105°C Japanese bulk capacitors.

At 150 x 86 x 140 mm, the VITA BD is shorter than a typical ATX unit, which helps in compact cases or builds where space behind the motherboard tray is tight. It is non-modular with flat black cables, four 6+2 pin PCIe connectors and six SATA connectors on Wave’s listing, and a 120 mm fan keeps it cooled. Protections include OCP, OVP, UVP, OPP, SCP and OTP. Note the input range is 200-240 V, which covers Irish mains.

Specification

  • Manufacturer: Fortron
  • Model: VITA BD 750W
  • MPN: PPA7508001
  • EAN: 4711498480217
  • Power output: 750 W
  • 80 PLUS rating: 80 PLUS Bronze (230V EU)
  • Standards: ATX12V 3.1, EPS12V 2.92
  • Form factor: ATX
  • Cabling: Non-modular, flat black cables
  • +12V rail: Single rail, 62.5 A
  • GPU power: 1x 12+4 pin (12V-2×6), 4x 6+2 pin PCIe
  • CPU power: 1x 4+4 pin, 1x 8 pin
  • Storage connectors: 6x SATA, 2x 4-pin Molex (Wave listing)
  • Cooling: 1x 120 mm fan
  • Input: 200-240 V, 50/60 Hz, active PFC
  • Protections: OCP, OVP, UVP, OPP/OLP, SCP, OTP
  • Dimensions (W x H x D): 150 x 86 x 140 mm
  • Colour: Black

return to the shop
see our fanpage

delivery time 7-12 business days

Weight 2.5 kg
