Product Overview

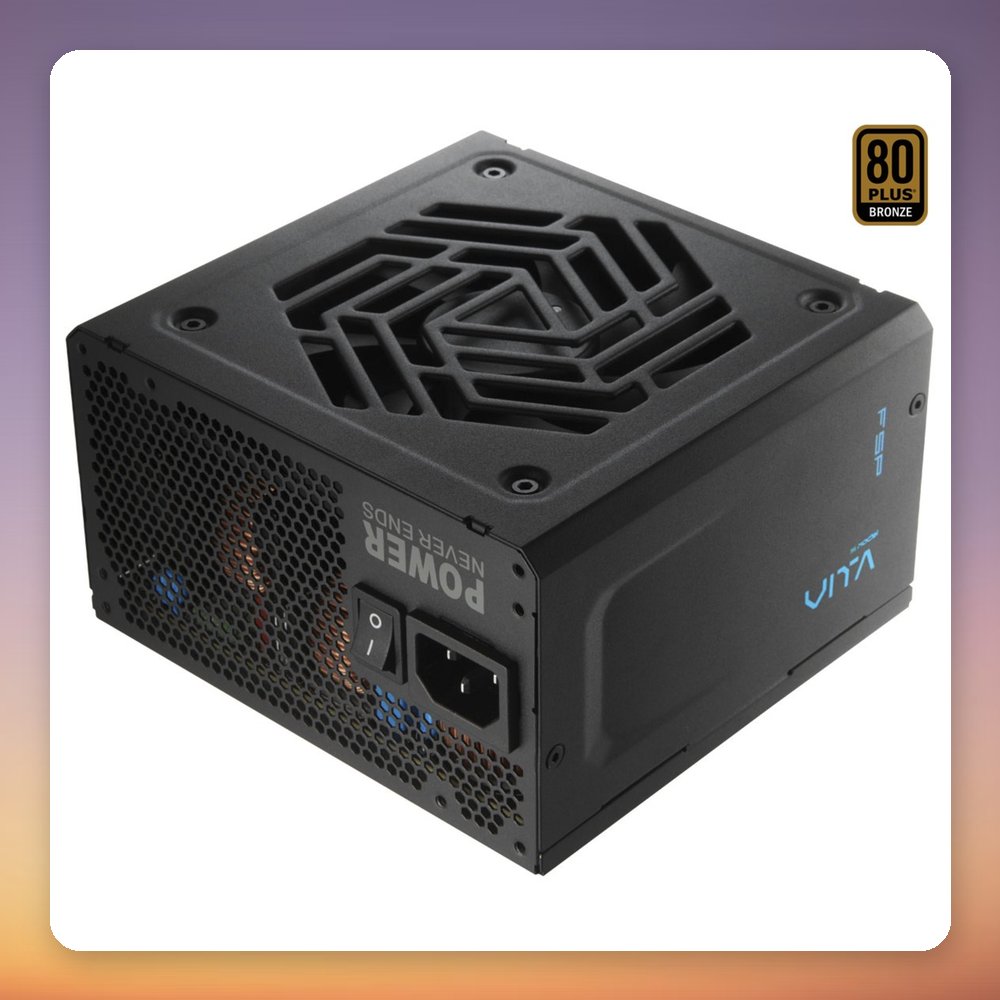

The Fortron VITA BD 550W is a 550 W ATX power supply built to the ATX 3.1 and EPS 2.92 standards, with 80 PLUS Bronze certification and active PFC. It uses a single +12V rail rated at 45.8 A for the full 550 W, and 105°C Japanese bulk capacitors for stable output under heat and voltage fluctuations.

At 150 x 86 x 140 mm, the VITA BD is shorter than the usual ATX unit, which suits compact cases and tighter builds. The flat black cables are non-modular but soft and easy to route, and the 120 mm fan handles cooling. With 2 PCIe 6+2-pin connectors and 6 SATA plugs per Wave, it fits mainstream gaming and general-use PCs. Full protection suite included.

Specification

• Manufacturer: Fortron
• Model: VITA BD
• MPN: PPA5506103
• EAN: 4711498480231
• Power output: 550 W
• 80 PLUS certification: 80 PLUS Bronze
• Standards: ATX 3.1, EPS 2.92
• Form factor: ATX
• Cabling: Non-modular, flat black cables
• +12V rail: Single rail, 45.8 A / 550 W
• +3.3V / +5V combined: 100 W
• PFC: Active
• Fan: 1 x 120 mm
• PCIe connectors: 2 x 6+2-pin (Wave data)
• SATA connectors: 6 x 15-pin (Wave data)
• Protections: OCP, OVP, UVP, OPP, SCP, OTP
• Capacitors: 105°C Japanese bulk capacitors
• Dimensions (W x H x D): 150 x 86 x 140 mm
