Product Overview

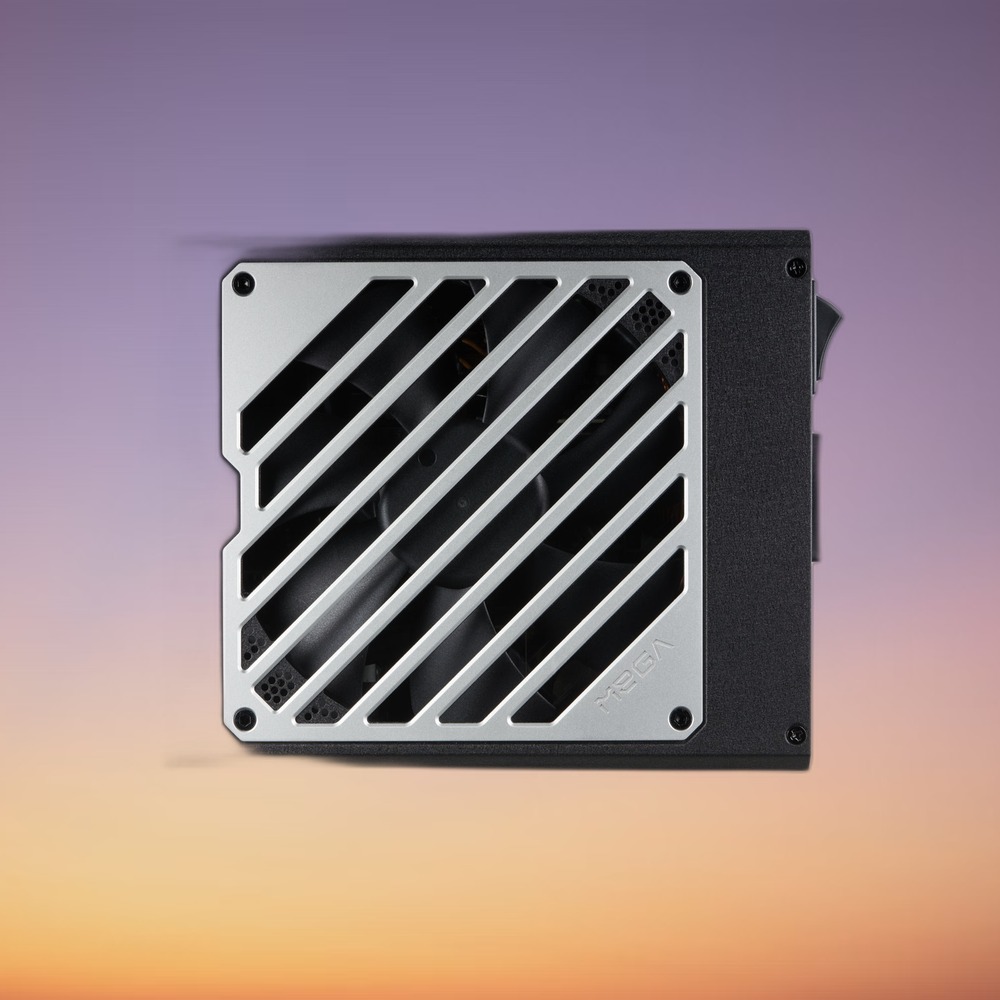

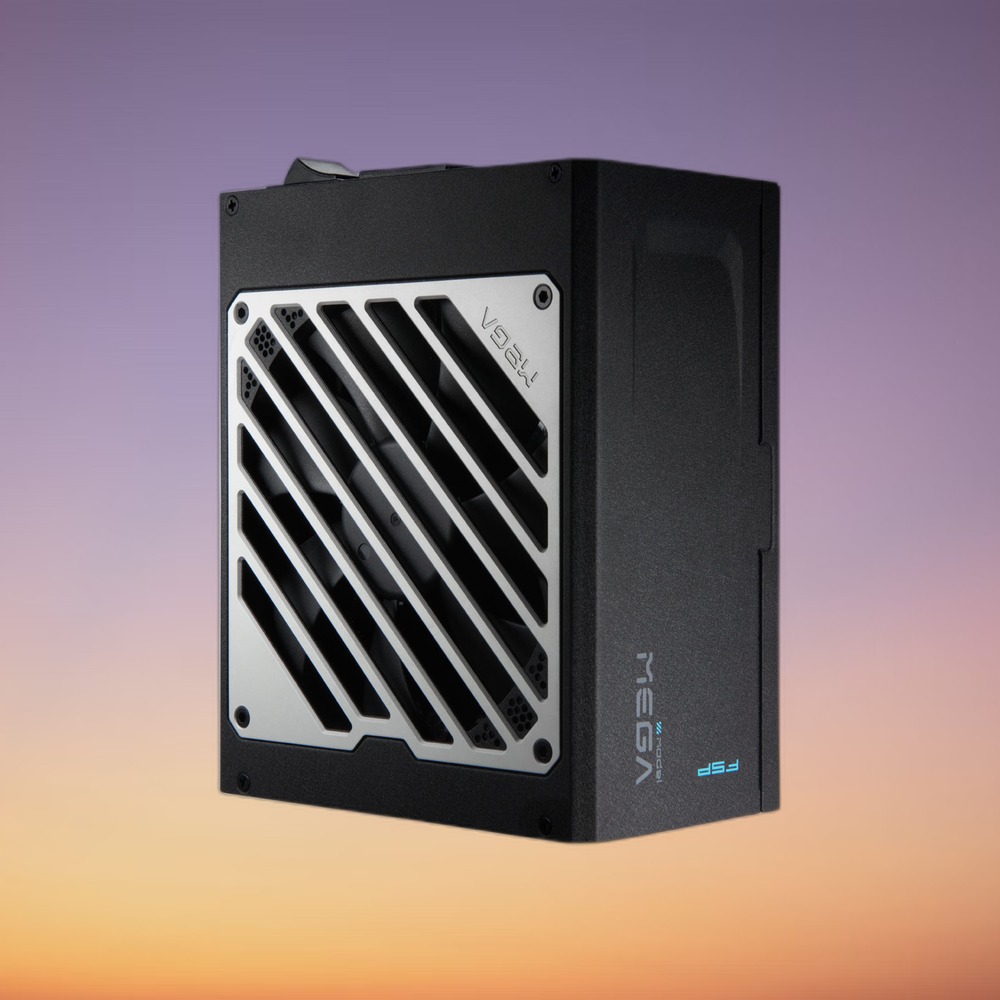

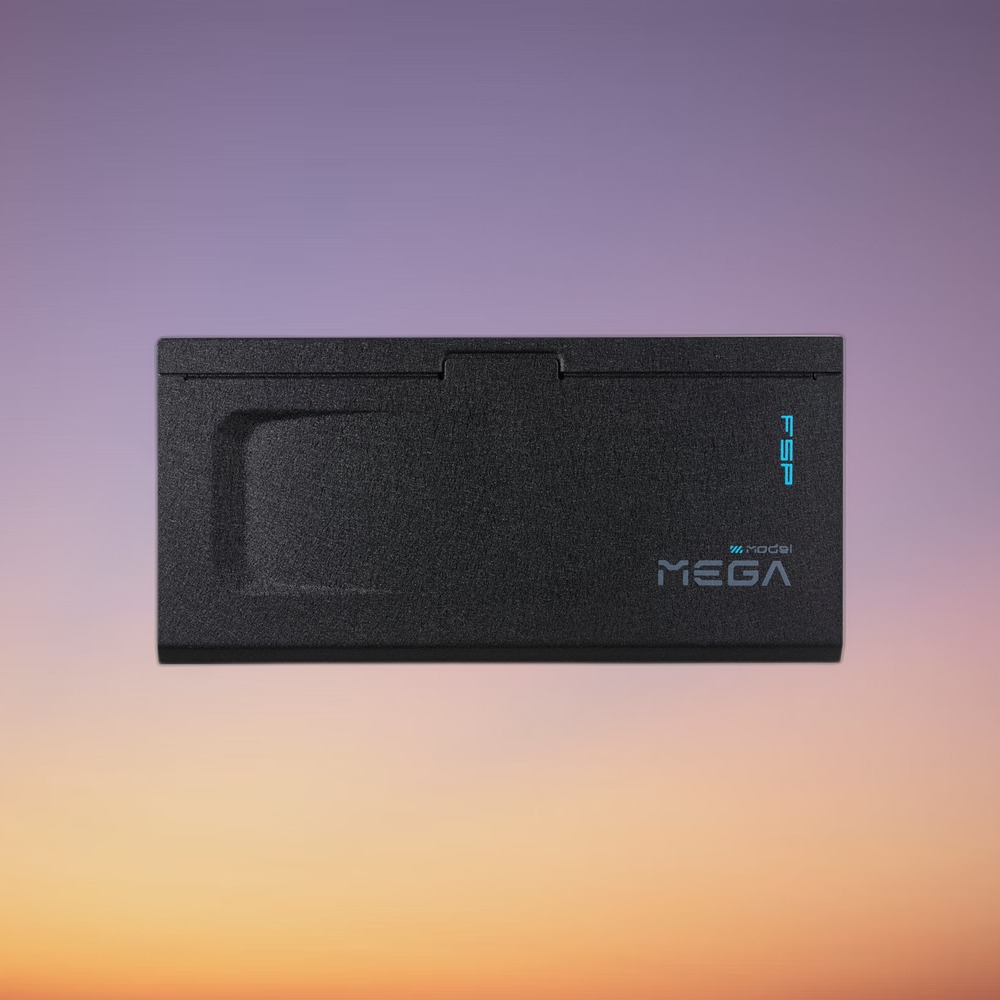

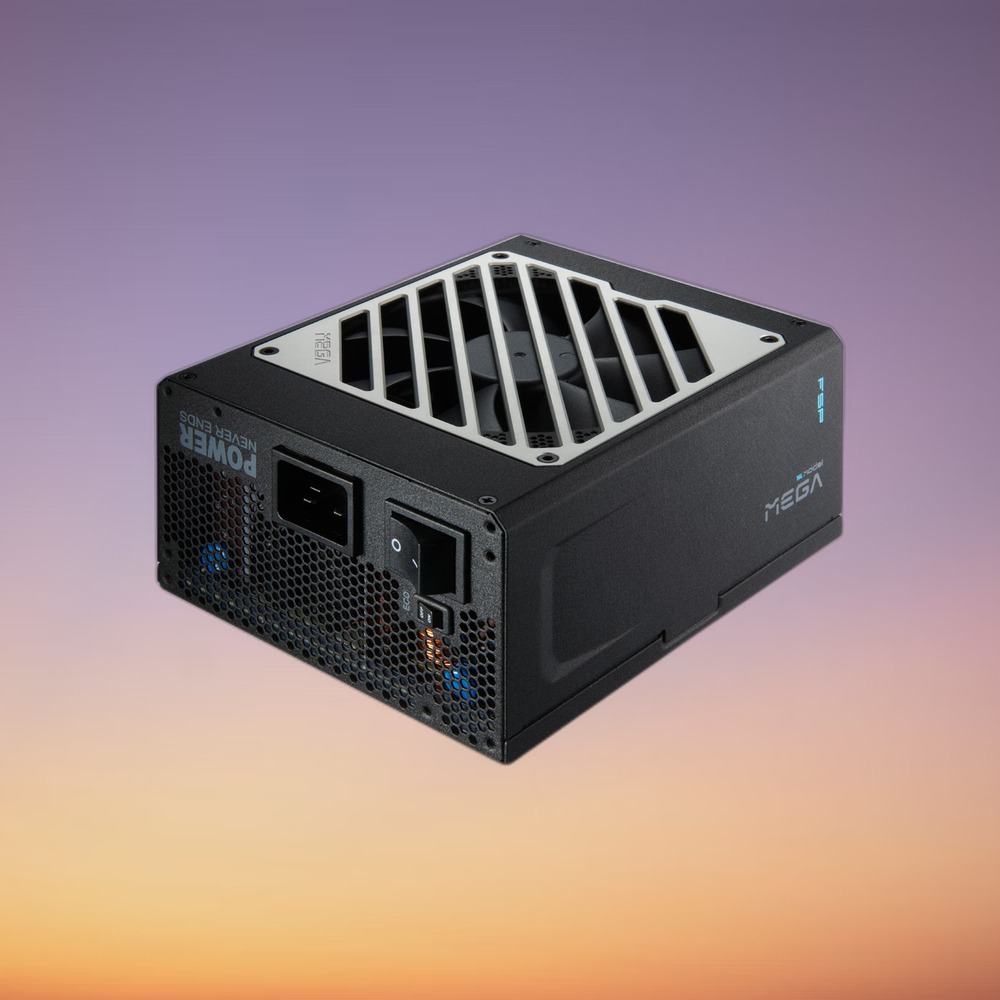

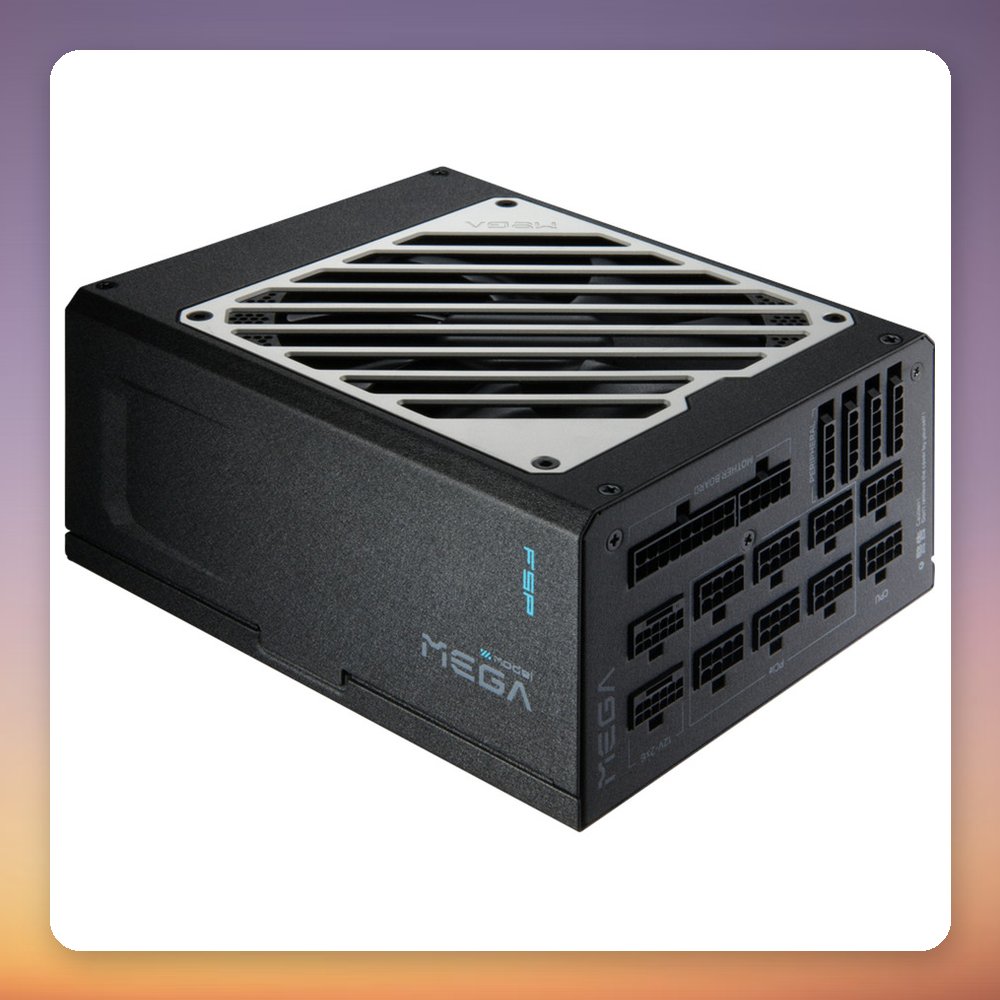

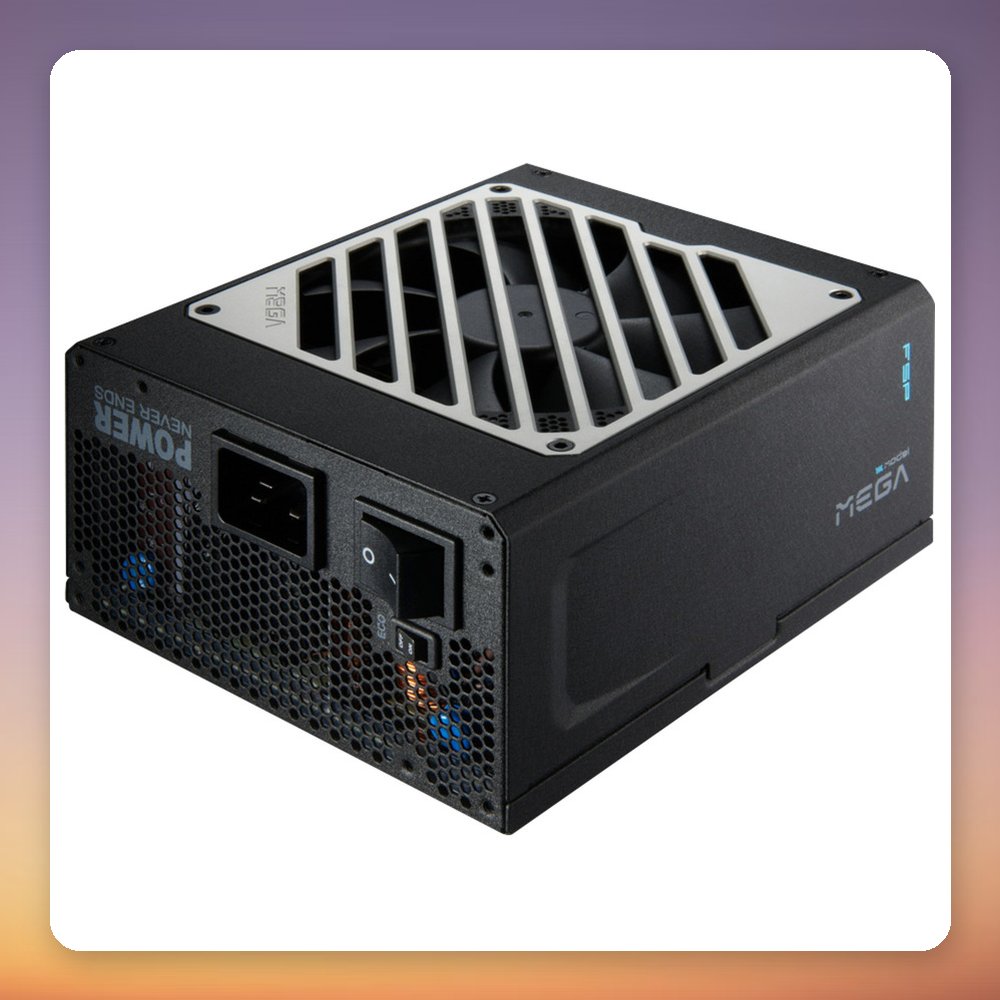

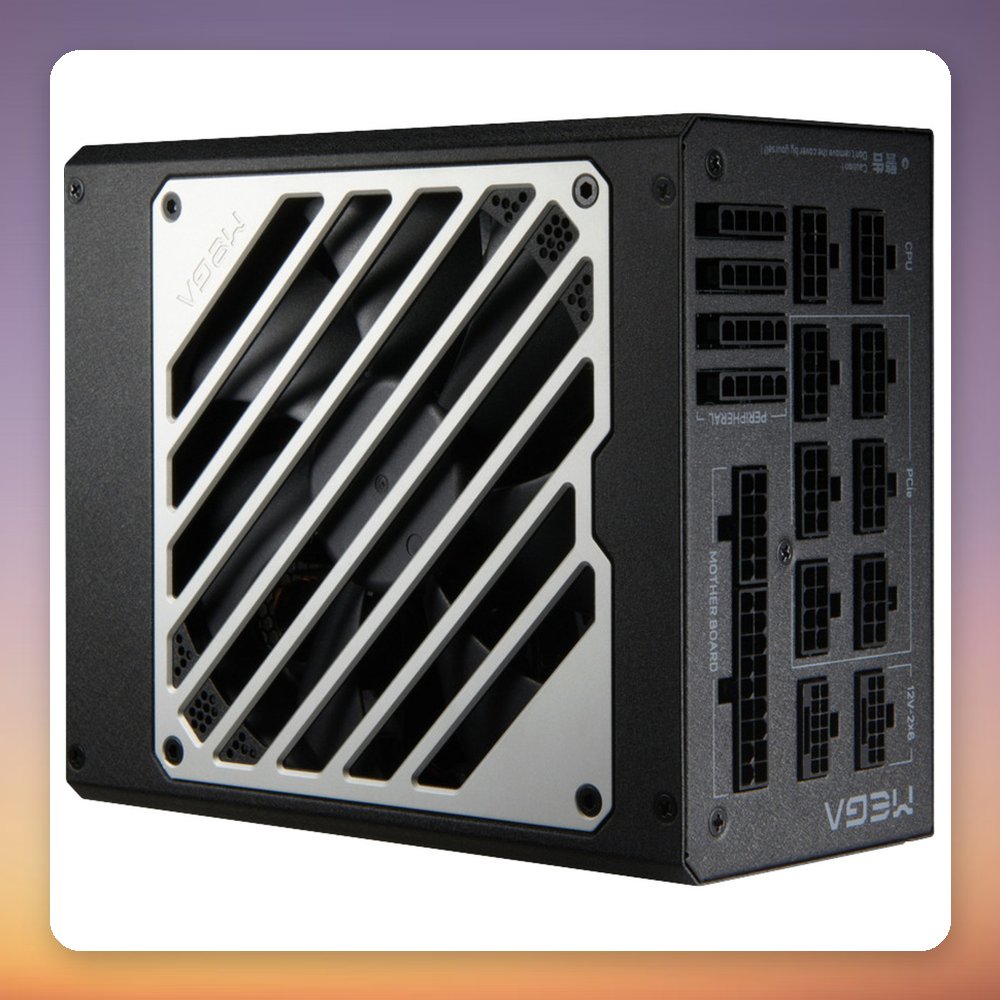

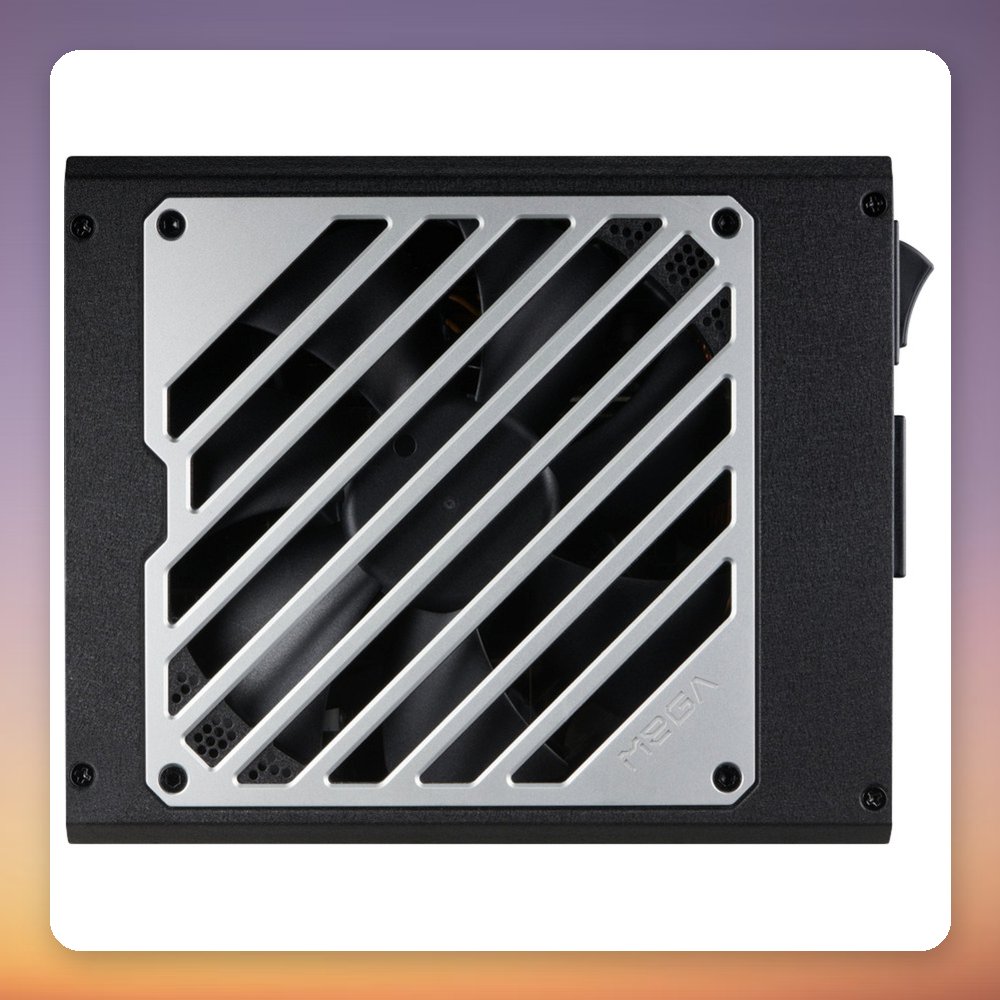

FSP MEGA TI 1650W Power supply unit ATX ATX3.1 Black. Total power: 1650 W, AC input voltage: 110 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 155,500 mm.

Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 180 mm, Height: 86 mm

Specification

• EAN: [‘4711498480385’]
• Max output current (+3.3V): 20 A
• Max output current (+12V): 137.5 A
• Max output current (+5V): 20 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 4 A
• Efficiency: 94%
• Power protection features: No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

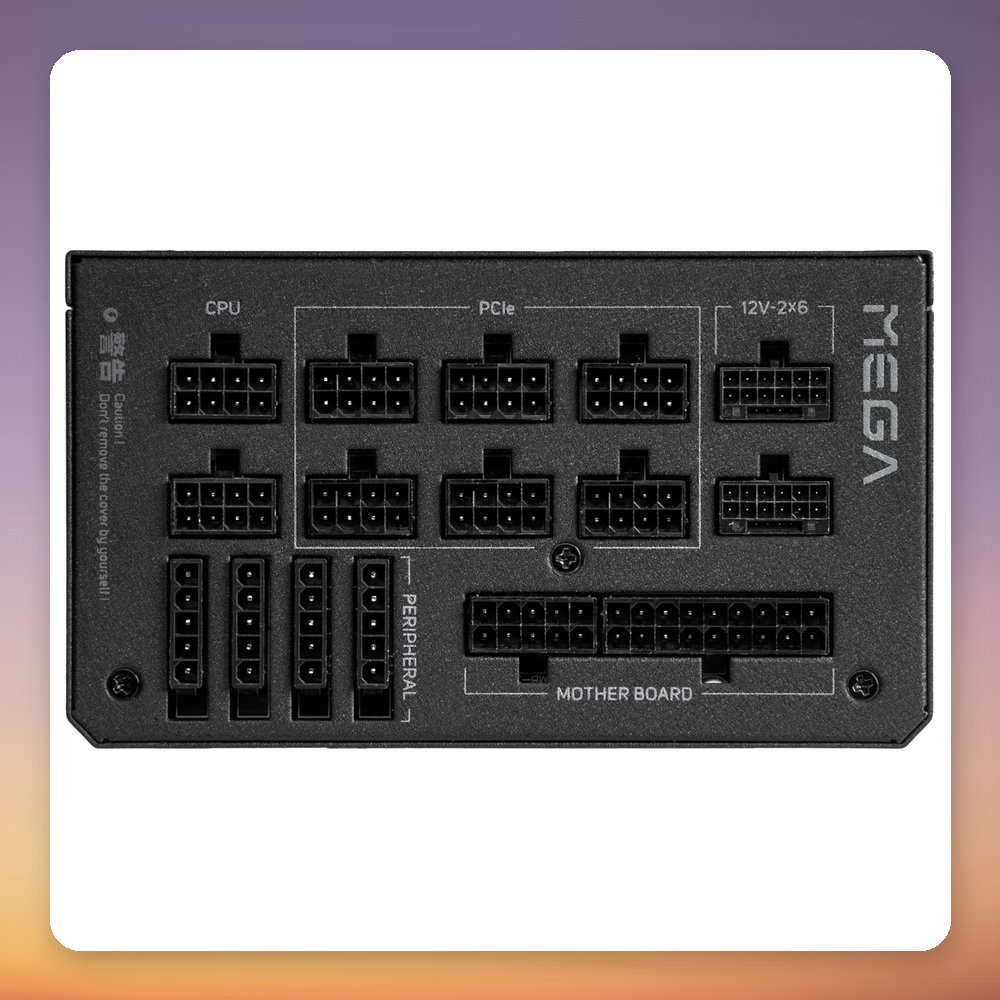

• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 60 cm
• Number of SATA power connectors: 10
• SATA power cable length: 155,500 mm
• Number of SATA power cables: 3
• Peripheral (Molex) power connectors (4-pin): 6
• Peripheral (Molex) power cable length: 155,500 mm
• PCI Express power connectors (6+2 pin): 6
• PCI Express power connectors (12-pin): 1
• PCI Express power cable length: 70 cm
• CPU power connector (4+4 pin): Yes
• CPU power cable length: 70 cm
• PCI Express connector: Yes
• Cabling type: Fully-Modular
• 80 PLUS certification: 80 PLUS Titanium
• Cybenetics certification: Titanium
• Cybenetics noise rating: A++
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 3.1
• Bearing technology: FDB
• Product colour: Black
• Cooling type: Active
• Fan diameter: 13.5 cm
• Number of fans: 1 fan(s)

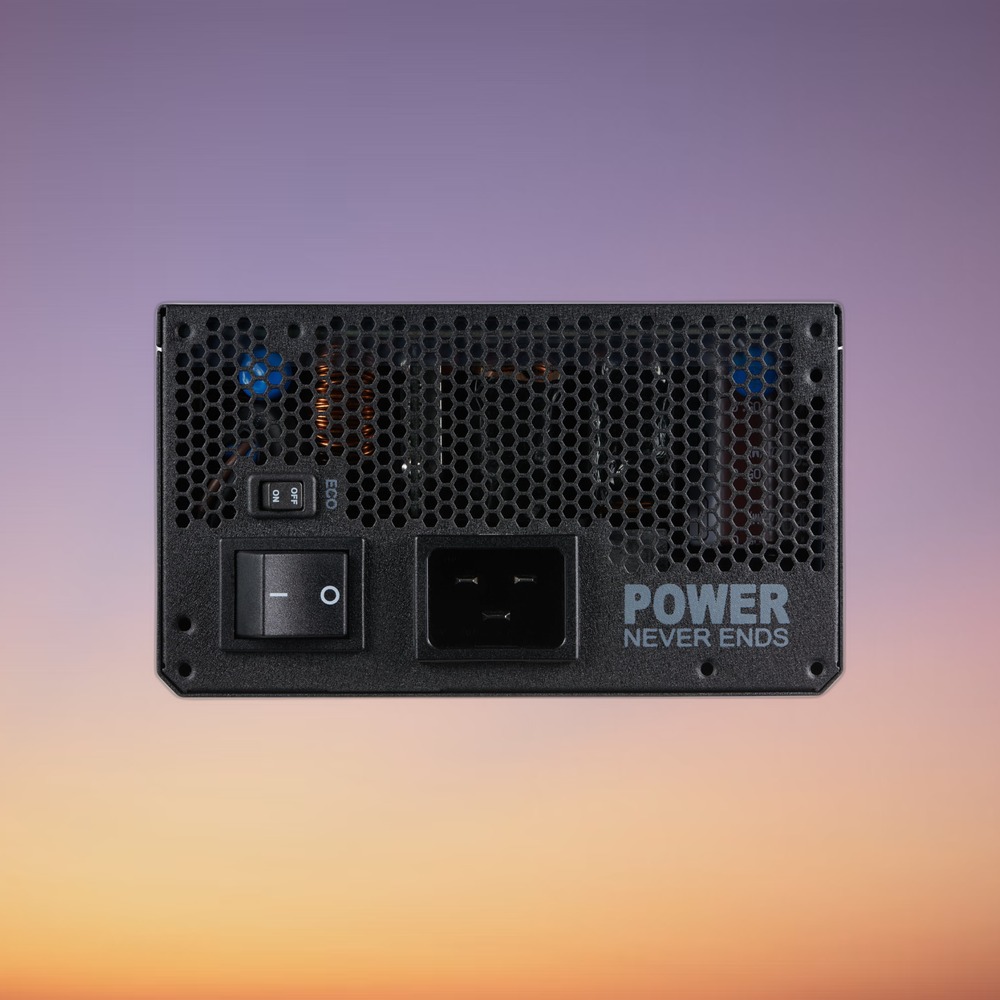

• On/off switch: Yes
• Operating temperature (T-T): 0 – 50 °C
• Width: 150 mm
