Product Overview

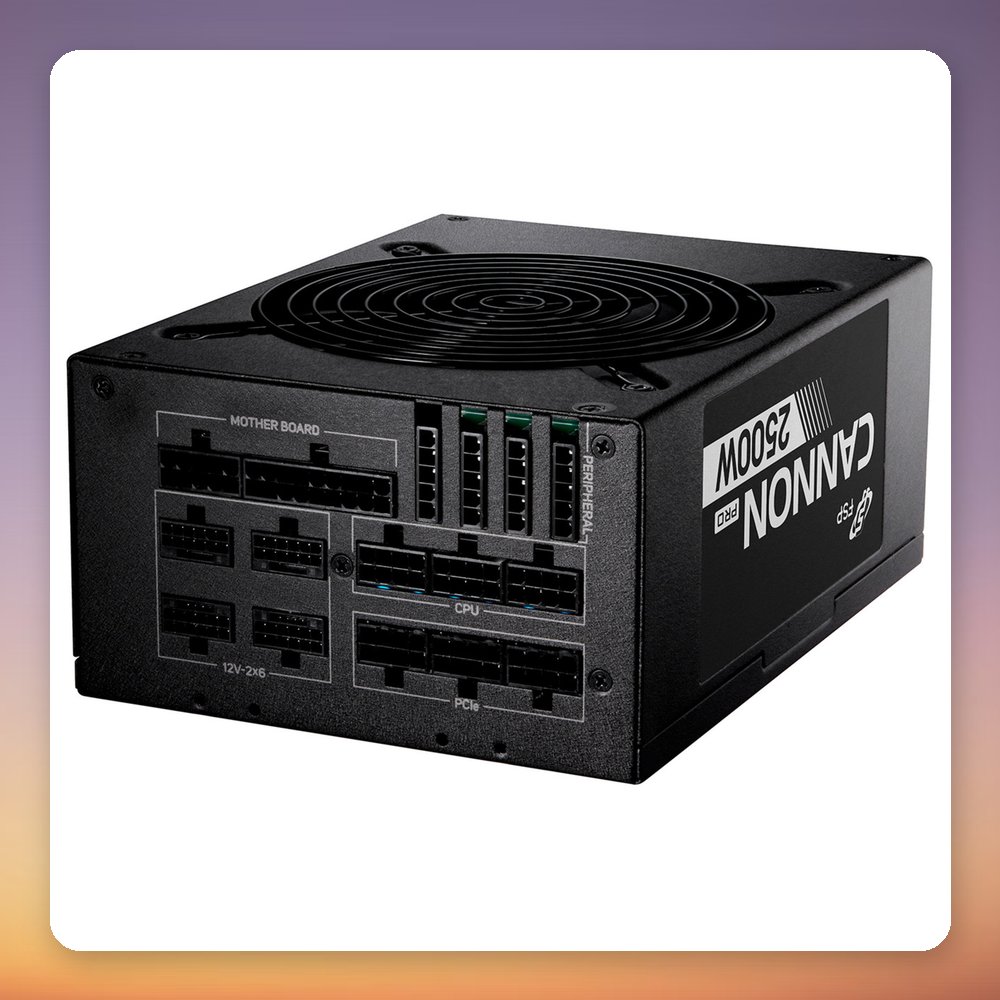

The Fortron FSP Cannon Pro 2500 is a 2500W ATX power supply built for extreme systems. It follows the ATX 3.1 and PCIe 5.1 standards, carries 80 PLUS Platinum 230V EU certification with efficiency of up to 94%, and offers four 12V-2×6 connectors plus three 6+2-pin PCIe connectors. The +12V rail alone delivers 2,499.6 W (208.3 A).

With support for four 12V-2×6 and three 6+2-pin graphics connectors, this unit suits high-end gaming, rendering and multi-GPU builds. It is fully modular, so you only fit the cables you need, and it uses a 135 mm fluid dynamic bearing fan with 105°C Japanese bulk capacitors. Note that it runs on 200-240 V mains input only. It measures 150 x 86 x 200 mm and comes with protections including OCP, OVP, UVP, SCP and OTP.

Specification

• Manufacturer: Fortron
• Model: Cannon Pro 2500
• MPN: PPA25A0102
• EAN: 47114984804460
• Wattage: 2500 W
• Efficiency Rating: 80 PLUS Platinum 230V EU (up to 94%)
• Standard: ATX 3.1, PCIe 5.1
• Form Factor: ATX
• Modularity: Fully modular
• +12V Output: 2,499.6 W (208.3 A)
• 12V-2×6 Connectors: 4x 12+4 pin
• PCIe Connectors: 3x 6+2 pin
• SATA Connectors: 10x 15-pin
• Input Voltage: 200-240 V, 50/60 Hz
• Cooling: 1x 135 mm FDB fan
• Protections: OCP, OVP, UVP, SCP, OTP, NLP, SIP
• Colour: Black
• Dimensions (W x H x D): 150 x 86 x 200 mm
