Fortron ADVAN GM 1000W 80 PLUS Gold Fully Modular ATX 3.1 PSU
€135.09
Delivery: 7-12 business days
Fortron ADVAN GM 1000W 80 PLUS Gold Fully Modular ATX 3.1 PSU
- ATX 3.1 with up to 200% power excursion support
- Native 12V-2×6 connector plus two PCIe 6+2 pin
- Fully modular with single 83.33 A +12V rail
- ECO switch: fan stops below 40% load
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview
The Fortron ADVAN GM 1000W is a 1000 W ATX power supply that meets the ATX 3.1 standard and carries 80 PLUS Gold certification. It supports up to 200% power excursion and includes a native 12V-2×6 connector. It is fully modular, with a single +12V rail rated at 83.33 A and a 120 mm hydraulic bearing fan.
With one 12V-2×6 cable and two PCIe 6+2 pin connectors, it suits builds around power-hungry NVIDIA or AMD graphics cards, including future GPU upgrades. The ECO switch stops the fan below 40% load for silent operation. LLC resonant converter topology with synchronous rectification, DC-to-DC circuits for +5V and 3.3V, 105°C Japanese capacitors and soft black embossed cables round out the design.
Specification
- Manufacturer: Fortron
- Model: ADVAN GM 1000W
- MPN: PPA10A4200
- EAN: 47114984807980
- Power output: 1000 W
- Standard: ATX 3.1 (ATX12V 3.1)
- Efficiency certification: 80 PLUS Gold, Cybenetics Gold
- Form factor: ATX

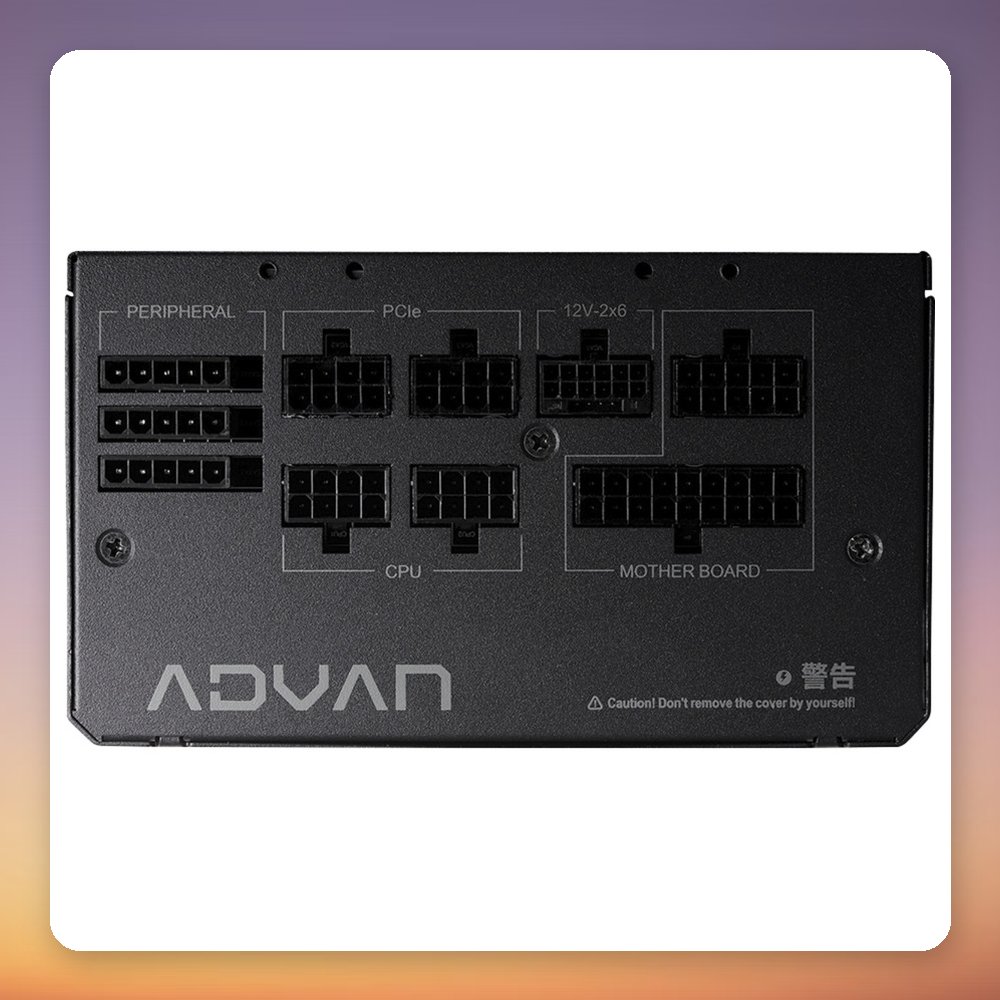

- Cabling: Fully modular
- +12V rail: Single rail, 83.33 A (1000 W)
- GPU power connectors: 1x 12V-2×6 (12+4 pin), 2x PCIe 6+2 pin
- Motherboard connector: 24-pin ATX (20+4 pin), 60 cm cable
- CPU connectors: 2x 4+4 pin
- Storage connectors: 4x SATA power, 4x Molex 4-pin
- Cooling: 1x 120 mm hydraulic bearing fan, ECO semi-fanless switch
- PFC: Active PFC
- Protections: OCP, OVP, UVP, OPP, SCP, SIP, no-load operation
- Dimensions (W x H x D): 150 x 86 x 140 mm
- Colour: Black
delivery time 7-12 business days
| Weight | 2.5 kg |
|---|
