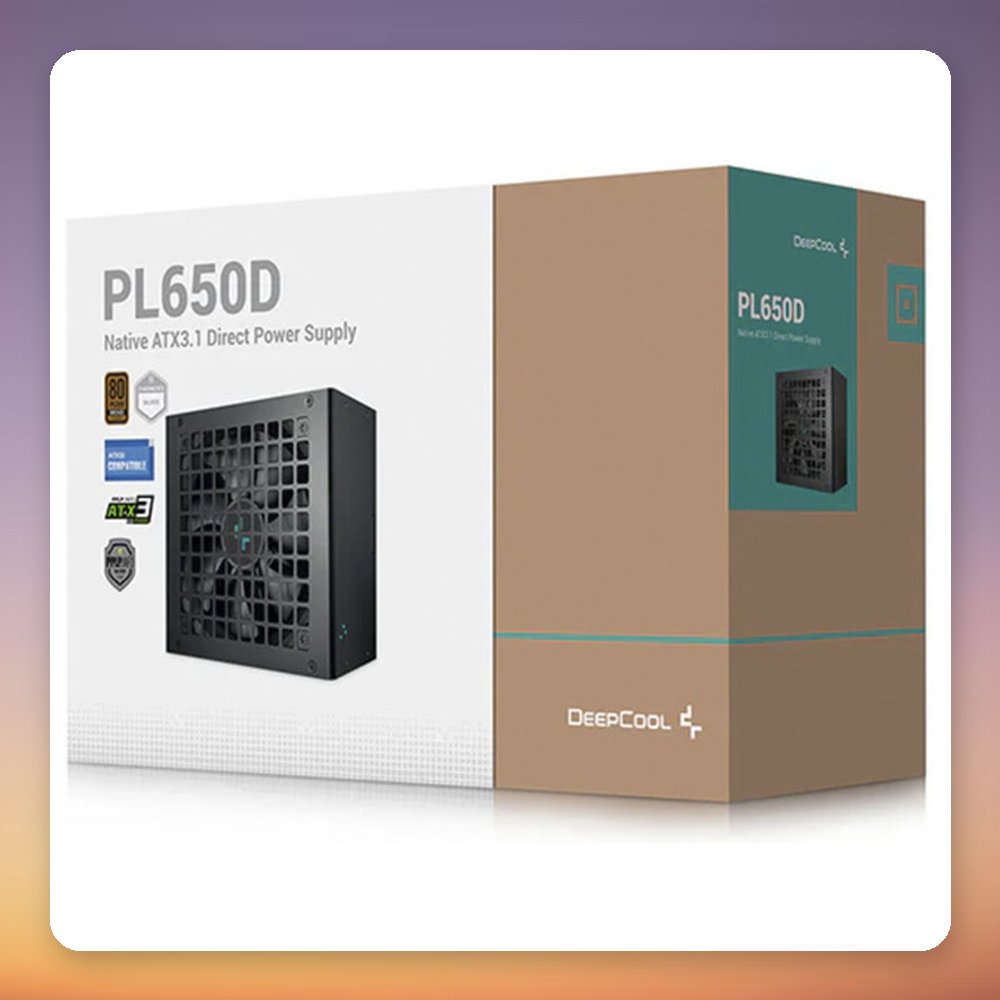

Deepcool PL650D 650W 80 PLUS Bronze ATX 3.1 Non-Modular PSU – image 6

Deepcool PL650D 650W 80 PLUS Bronze ATX 3.1 Non-Modular PSU

€61.16

Delivery: 7-12 business days
Deepcool PL650D 650W 80 PLUS Bronze ATX 3.1 Non-Modular PSU

  • 650 W with 648 W on a single 54 A +12V rail
  • Dedicated 12V-2×6 connector, ATX 3.1 and PCIe 5.1
  • 80 PLUS Bronze and Cybenetics Silver certified
  • Compact 140 mm deep ATX body, non-modular

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100093486 Category: Tags: , , , , , Brand:

✅

Product Overview

The Deepcool PL650D 650W power supply is a non-modular ATX unit built to the Intel ATX12V 3.1 standard, with PCIe 5.1 support. It delivers 650 W in total, with 648 W available on a single +12V rail (54 A), and carries 80 PLUS Bronze and Cybenetics Silver certifications with efficiency of up to 90 %. A dedicated 12V-2×6 connector sits alongside two 6+2-pin graphics cables.

With the 12V-2×6 connector, two 4+4-pin 12V (EPS) connectors and six SATA plugs, the PL650D suits mid-range gaming and general-purpose PC builds where a modern GPU connector is wanted without paying for a modular design. A temperature-controlled 120 mm fan handles cooling, and active PFC and a full set of protections (OCP, OVP, UVP, OPP, SCP, OTP, NLP, SIP) are included. It measures 150 x 86 x 140 mm in standard ATX form.

Specification

  • Manufacturer: Deepcool
  • Model: PL650D
  • MPN: R-PL650D-FC0B-EU-V2
  • EAN: 6933412721154
  • Power output: 650 W
  • +12V output: 648 W (54 A, single rail)
  • +3.3V/+5V combined: 110 W (20 A each)
  • Efficiency rating: 80 PLUS Bronze, Cybenetics Silver (up to 90 %)
  • Standard: ATX12V 3.1
  • Form factor: ATX
  • Modularity: Non-modular
  • Connectors: 1x 24-pin ATX, 2x 4+4-pin 12V, 1x 12+4-pin (12V-2×6), 2x 6+2-pin PCIe, 6x SATA, 2x 4-pin Molex
  • Cooling: 1x 120 mm fan, temperature-controlled
  • Power factor correction: Active PFC
  • Input voltage: 100-240 V
  • Protections: OCP, OVP, UVP, OLP/OPP, SCP, OTP, NLP/NLO, SIP
  • Colour: Black
  • Dimensions (W x H x D): 150 x 86 x 140 mm

return to the shop
see our fanpage

delivery time 7-12 business days

Weight 2.915 kg
