Product Overview

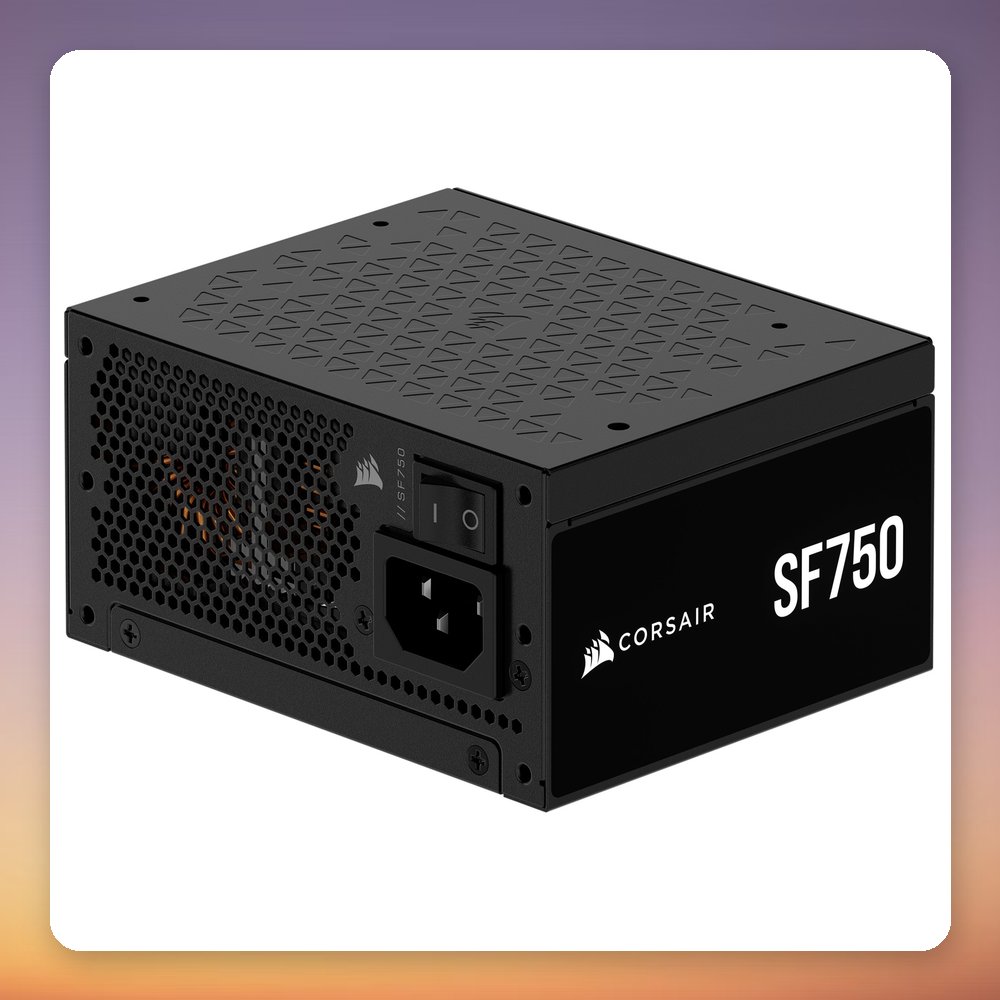

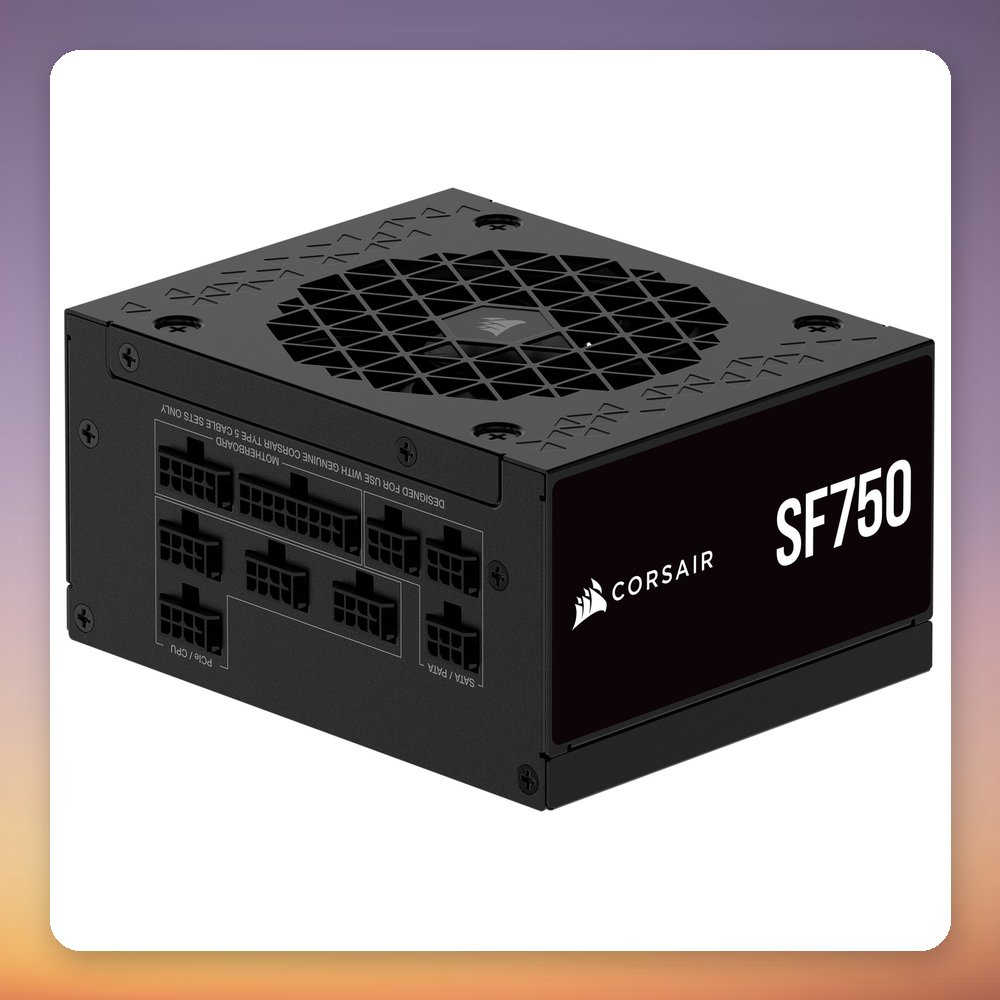

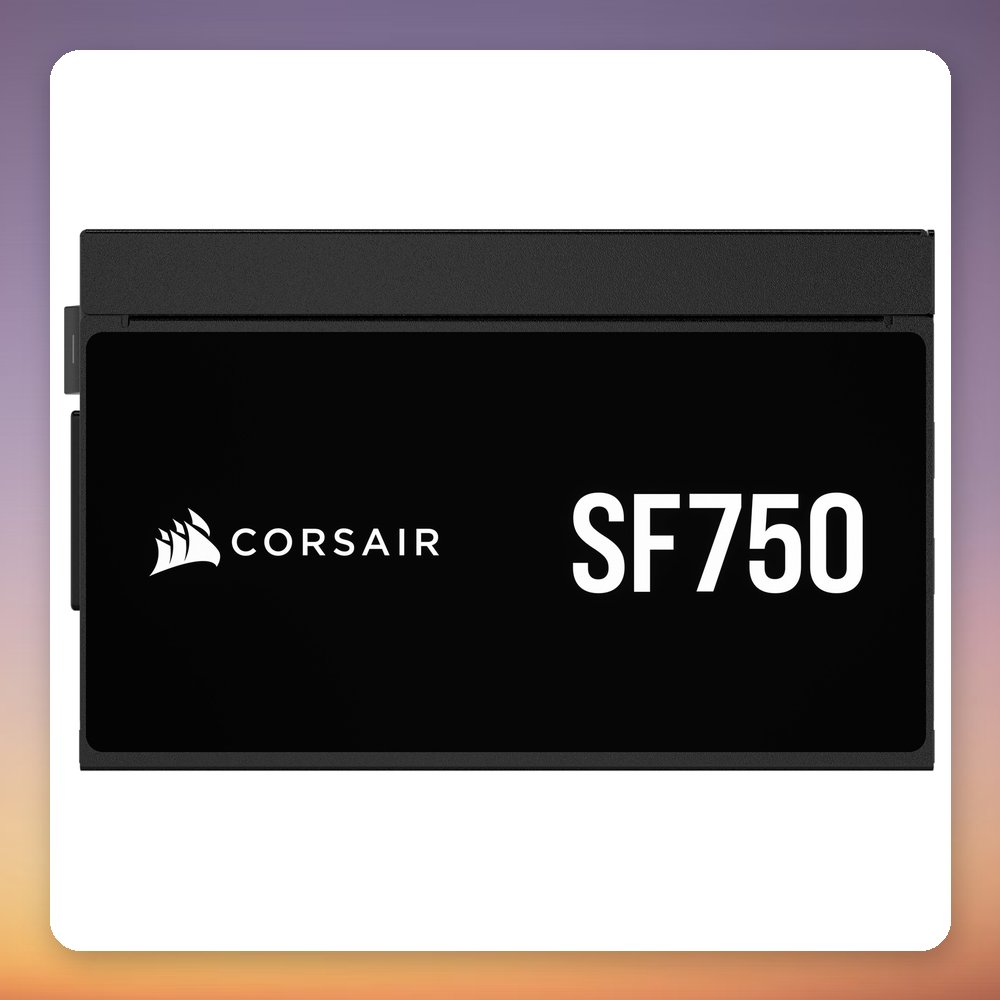

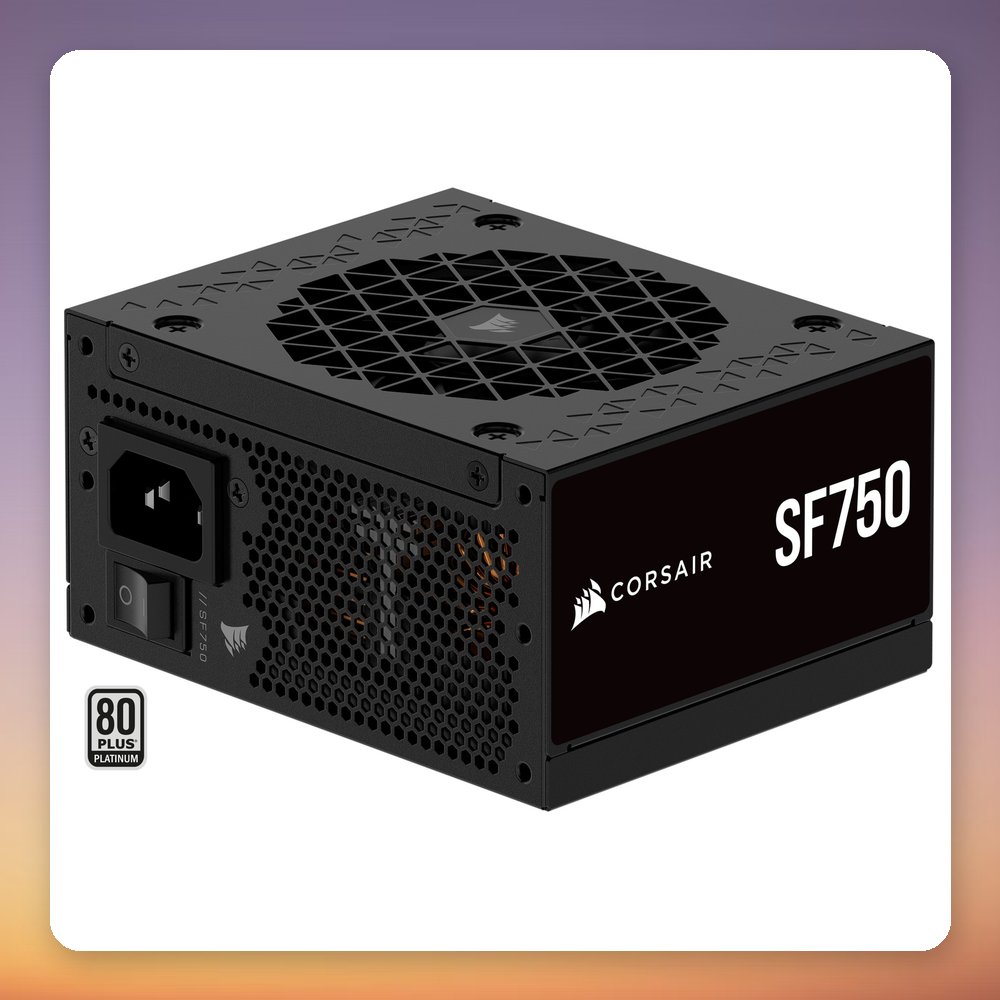

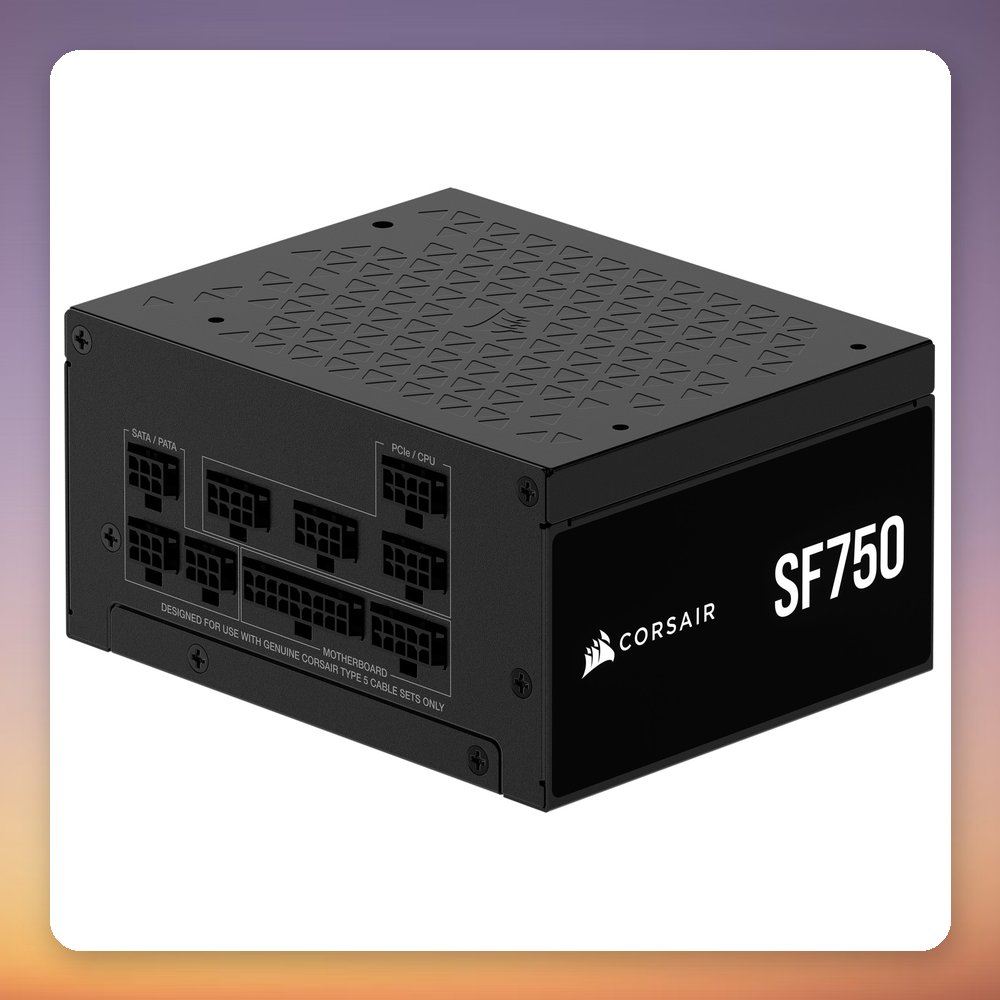

The Corsair SF750 750W 80 PLUS Platinum SFX PSU is a compact power supply built to the ATX12V 3.1 standard with PCIe 5.1 support. It is both 80 PLUS Platinum and Cybenetics Platinum certified, uses active PFC and delivers its full 750 W on the +12V rail (62.5 A). It has a native 12+4 pin (12V-2×6) connector, and the cables are modular, so you only connect what you need.

At just 100 x 63.5 x 125 mm in the SFX form factor, this unit suits small form factor builds that still need to power a capable graphics card. A 92 mm temperature-controlled fan runs in semi-passive mode with Zero RPM, so it stays silent under low loads. Corsair includes an SFX to ATX mounting bracket, so it also fits larger cases. Protections include OCP, OVP, UVP, OLP/OPP, SCP and OTP.

Specification

• Manufacturer: Corsair
• Model: SF750
• MPN: CP-9020284-EU
• EAN: 8400066763000
• Wattage: 750 W
• Form factor: SFX
• Standard: ATX12V 3.1, PCIe 5.1
• Efficiency rating: 80 PLUS Platinum, Cybenetics Platinum
• Modularity: Fully modular (cable management)
• +12V output: 750 W (62.5 A)
• +3.3V/+5V combined output: 130 W (20 A each)
• Cooling: 1x 92 mm fan, temperature-controlled, semi-passive (Zero RPM mode)

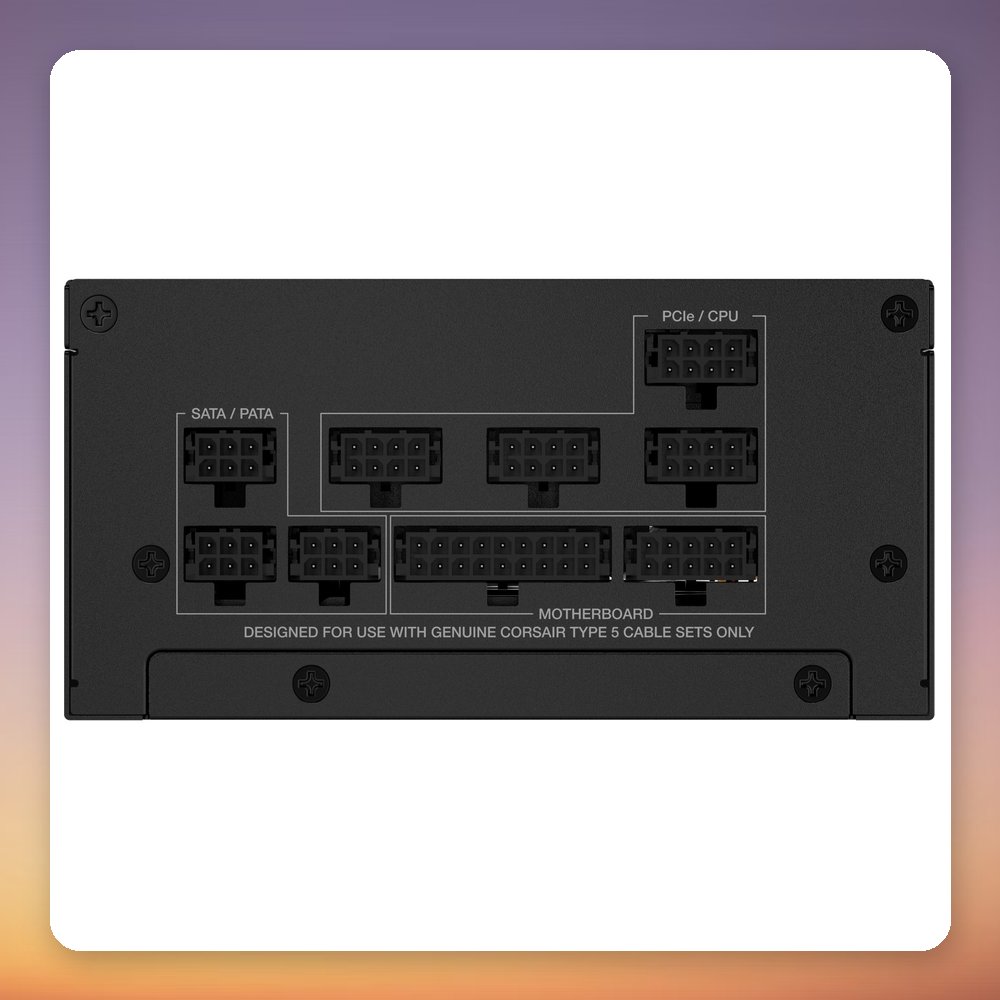

• Connectors: 1x 24-pin ATX, 2x 4+4-pin EPS 12V, 1x 12+4-pin (12V-2×6), 2x 6+2-pin PCIe, 8x SATA, 3x 4-pin Molex
• Input voltage: 100-240 V
• Power factor correction: Active PFC
• Protections: OCP, OVP, UVP, OLP/OPP, SCP, OTP
• Colour: Black
• Dimensions (W x H x D): 100 x 63.5 x 125 mm
• Included accessories: SFX to ATX mounting bracket
