Product Overview

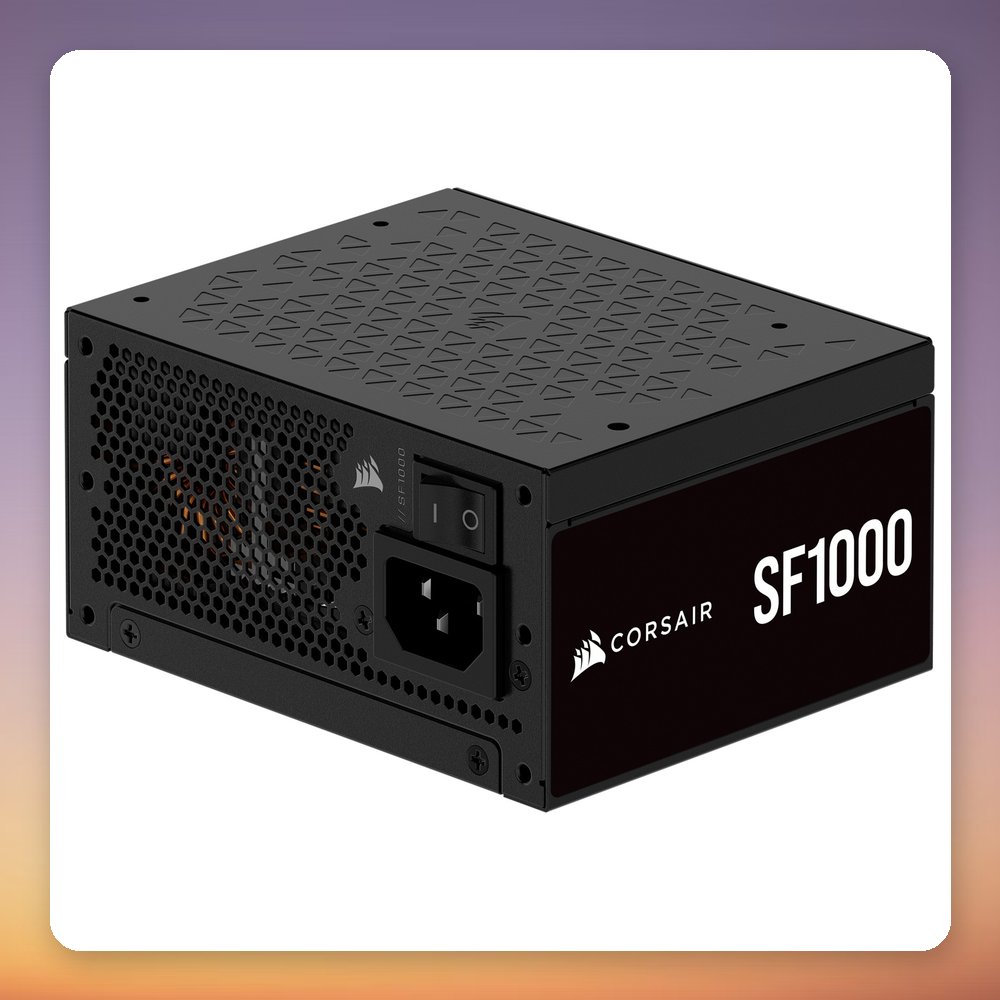

The Corsair SF1000 is a 1000 W SFX power supply built for compact PCs that still need serious headroom. It is ATX12V 3.1 compliant with PCIe 5.1 support, carries 80 PLUS Platinum and Cybenetics Platinum certification, and delivers its full 1000 W on the +12V rail (83.3 A) from a unit measuring just 100 x 63.5 x 125 mm.

A native 12V-2×6 (12+4 pin) connector and three 6+2-pin PCIe connectors make it suited to small-form-factor gaming builds with a high-power graphics card. The modular cabling keeps the inside of a tight case tidy, and the 92 mm temperature-controlled fan stops completely at low load thanks to the semi-passive Zero RPM mode. An SFX to ATX mounting bracket is included, so it also fits larger cases.

Specification

• Manufacturer: Corsair
• Model: SF1000
• MPN: CP-9020257-EU
• EAN: 840006663379
• Power output: 1000 W
• Form factor: SFX
• Efficiency certification: 80 PLUS Platinum, Cybenetics Platinum
• Standard: ATX12V 3.1, PCIe 5.1
• Cable management: Modular
• +12V output: 1000 W (83.3 A)
• +3.3V / +5V combined: 130 W (20 A each)

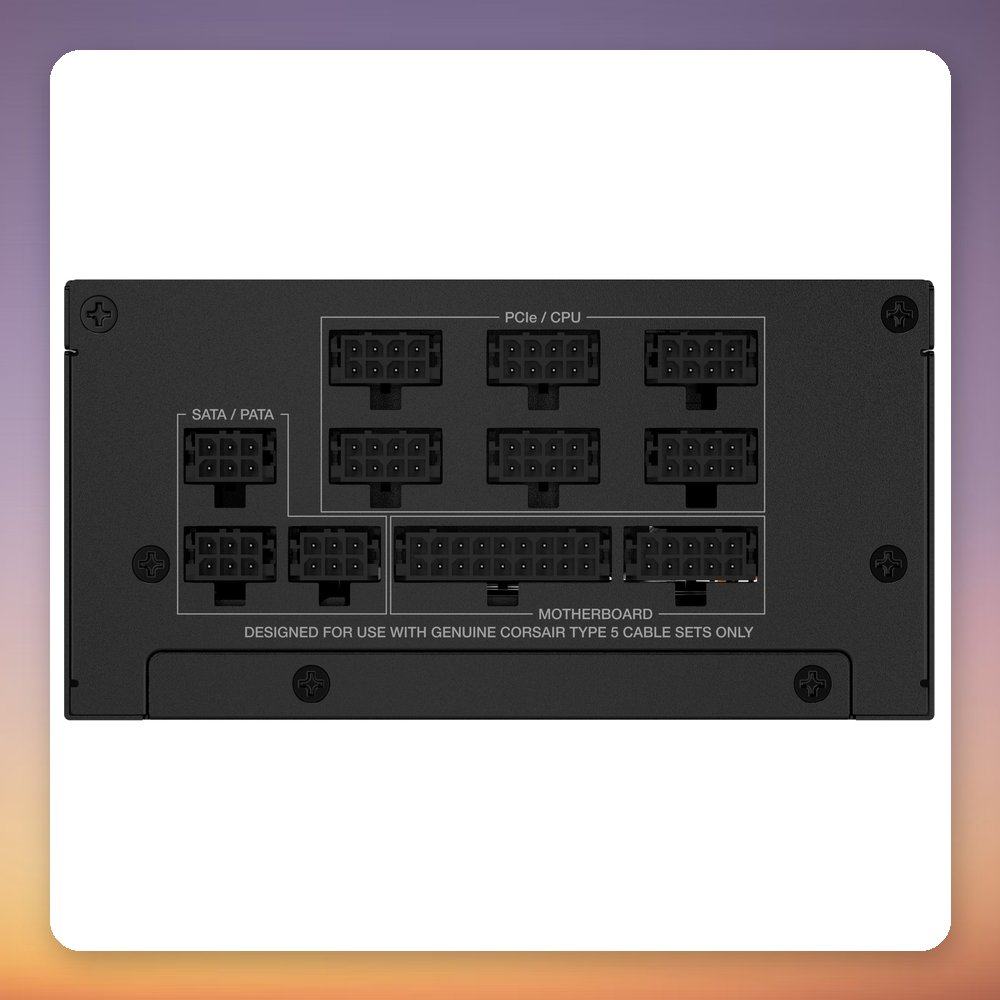

• GPU connectors: 1x 12V-2×6 (12+4 pin), 3x 6+2-pin PCIe
• Other connectors: 1x 24-pin ATX, 2x 4+4-pin CPU, 8x SATA, 3x 4-pin Molex
• Cooling: 1x 92 mm fan, temperature-controlled, semi-passive (Zero RPM mode)
• Input voltage: 100-240 V (6 A at 230 V / 50 Hz, 12 A at 110 V / 60 Hz)
• Protections: OCP, OVP, UVP, OLP/OPP, SCP, OTP
• Dimensions (W x H x D): 100 x 63.5 x 125 mm
• Colour: Black
