Product Overview

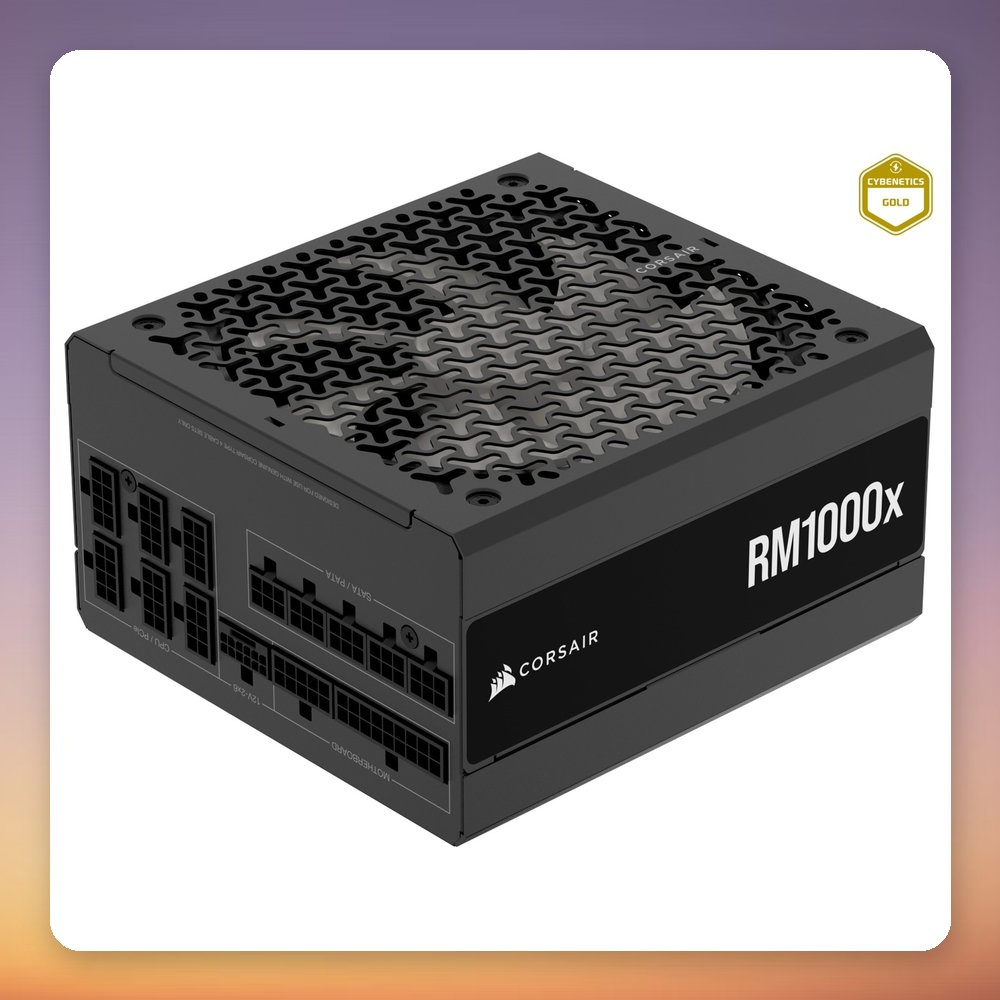

The Corsair RM1000x (2024) is a 1000 W ATX power supply from the RMx series, rated Cybenetics Gold for efficiency. It meets the ATX12V 3.1 standard and supports PCIe 5.1, with a native 12+4 pin (12V-2×6) connector for high-power graphics cards. All 1000 W is available on the single +12 V rail (83.3 A), and the cabling is fully modular.

With four 6+2 pin PCIe connectors plus the 12V-2×6 socket, this unit suits high-end gaming builds with a power-hungry GPU. A 140 mm fan runs semi-passively, so it stays off at small and medium loads for near-silent operation, and a tuned fan curve keeps noise low at full load. Twelve SATA connectors cover storage-heavy builds. Protections include OVP, UVP, OPP, SCP and OTP. It measures 150 x 86 x 160 mm and weighs 3.1 kg.

Specification

• Manufacturer: Corsair
• Model: RM1000x (2024)
• MPN: CP-9020271-EU
• EAN: 840006667636
• Power output: 1000 W
• Efficiency certification: Cybenetics Gold
• Standard: ATX12V 3.1, EPS12V 2.9x, PCIe 5.1
• Form factor: ATX
• Modularity: Fully modular (cable management)
• +12 V: 1000 W, 83.3 A (single rail)
• +3.3 V / +5 V combined: 150 W (20 A each)
• GPU power connectors: 1x 12+4 pin (12V-2×6), 4x 6+2 pin PCIe
• Other connectors: 1x 24-pin ATX, 2x 4+4 pin EPS 12V, 12x SATA, 6x 4-pin Molex
• Cooling: 1x 140 mm fan, semi-passive
• Input voltage: 100-240 V
• Power factor correction: Active PFC
• Protections: OVP, UVP, OLP/OPP, SCP, OTP
• Dimensions (W x H x D): 150 x 86 x 160 mm
• Weight: 3.1 kg
• Colour: Black
