Chieftec Vega M 1000W 80 PLUS Gold Fully Modular ATX 3.1 PSU
- 1000 W with the full 1000 W on the +12V rail
- Native 12V-2×6 connector plus 4x 6+2 pin PCIe
- ATX 3.1 and PCIe 5.1 with 80 PLUS Gold efficiency
- Fully modular with 135 mm FDB temperature-controlled fan
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview
The Chieftec Vega M 1000W is a 1000 W ATX power supply built to the ATX12V 3.1 standard with PCIe 5.1 support and 80 PLUS Gold efficiency. It is fully modular, uses an LLC half-bridge converter with DC-to-DC technology, and delivers its full 1000 W on the +12V rail (83.33 A). A native 12+4 pin (12V-2×6) connector means no adapter is needed for modern high-power graphics cards.
With four 6+2 pin PCIe connectors alongside the 12V-2×6 cable, the Vega M suits mainstream gaming builds and high-end graphics card upgrades. The cables are extra long, which helps when building in larger cases, and the 135 mm FDB fan is temperature controlled to balance cooling and noise. Protections include OCP, OVP, UVP, OPP, SCP, OTP and SIP. It accepts 100-240 V input with active PFC.
Specification
- Manufacturer: Chieftec
- Model: Vega M
- MPN: PPG-1000-C
- EAN: 0753263079091
- Power output: 1000 W
- Efficiency certification: 80 PLUS Gold
- ATX standard: ATX12V 3.1, PCIe 5.1
- Form factor: ATX
- Cabling: Fully modular
- +12V output: 1000 W (83.33 A)

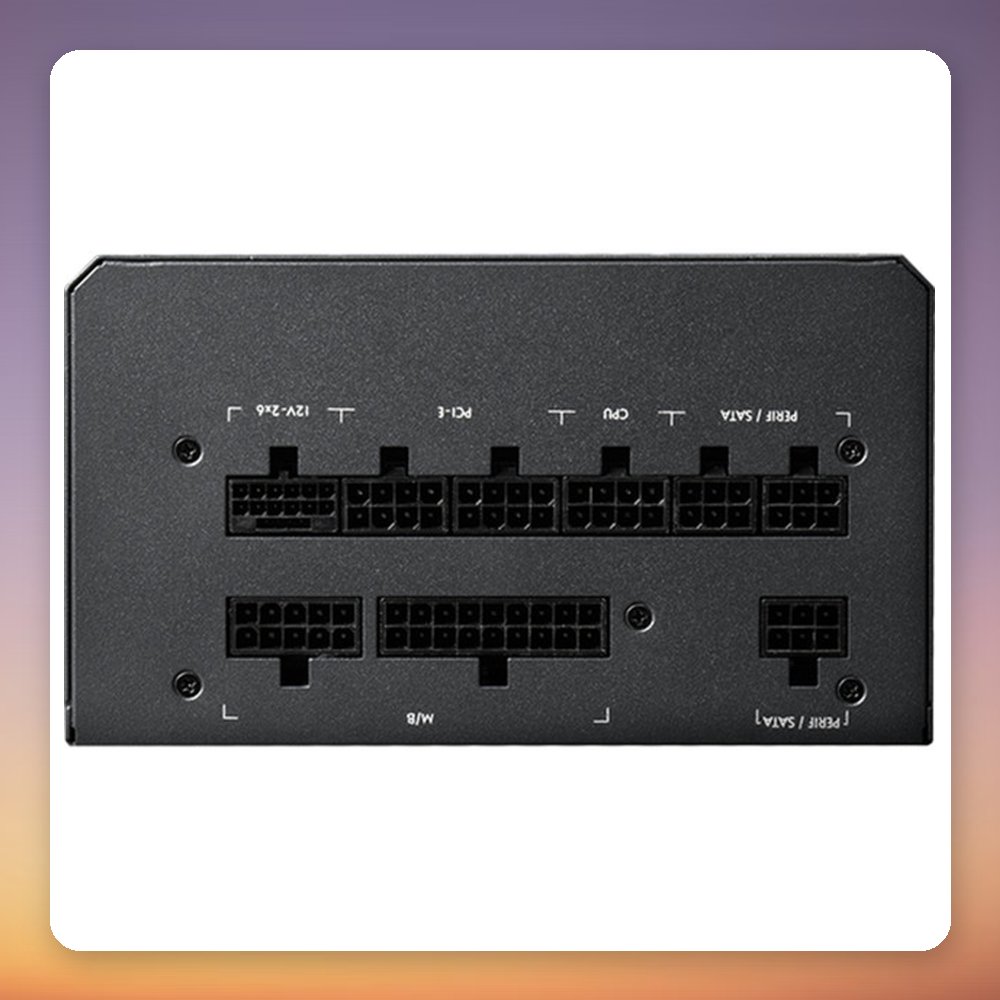

- PCIe connectors: 1x 12+4 pin (12V-2×6), 4x 6+2 pin
- CPU connectors: 1x 8-pin EPS, 1x 4+4 pin
- SATA / Molex connectors: 6x SATA, 3x 4-pin Molex
- Motherboard connector: 1x 24-pin ATX

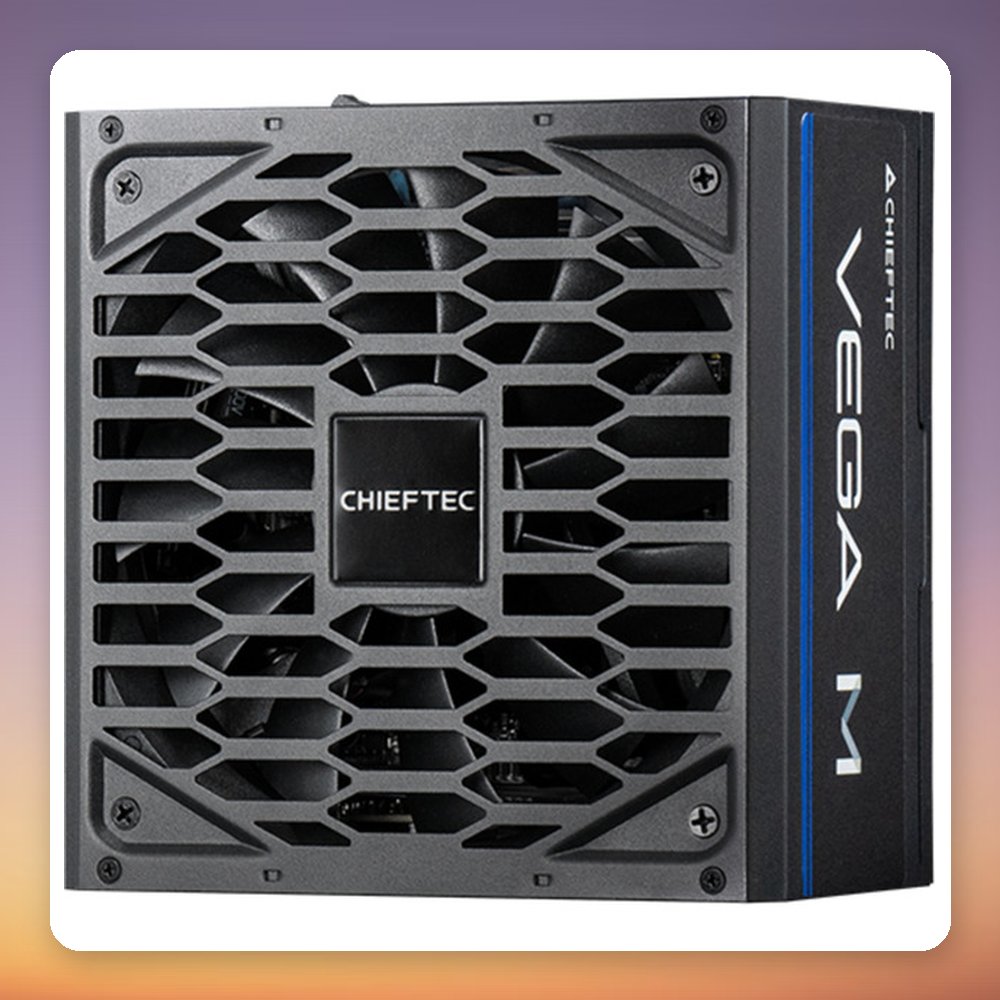

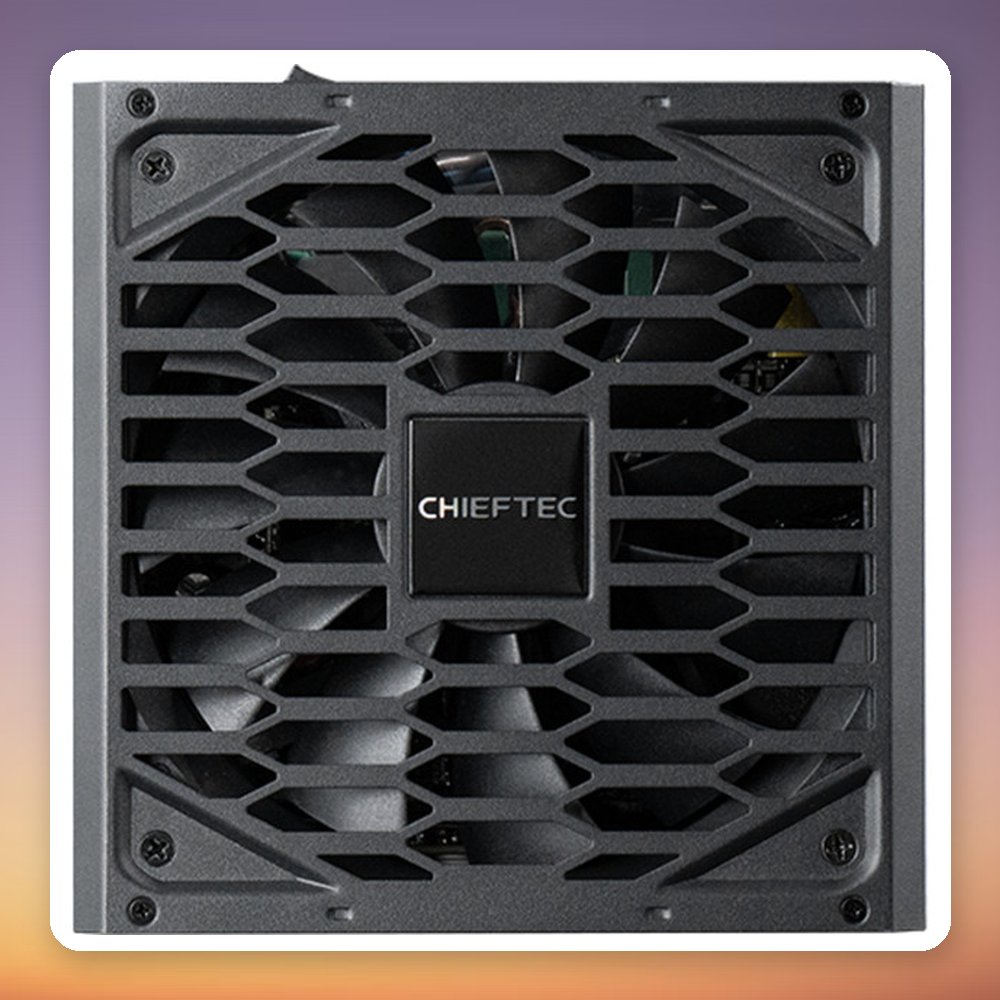

- Fan: 1x 135 mm FDB, temperature controlled
- Input voltage: 100-240 V, 50/60 Hz, active PFC
- Protections: OCP, OVP, UVP, OPP, SCP, OTP, SIP
- Dimensions (W x H x D): 150 x 85 x 150 mm
delivery time 7-12 business days
| Weight | 2.5 kg |
|---|
