Product Overview

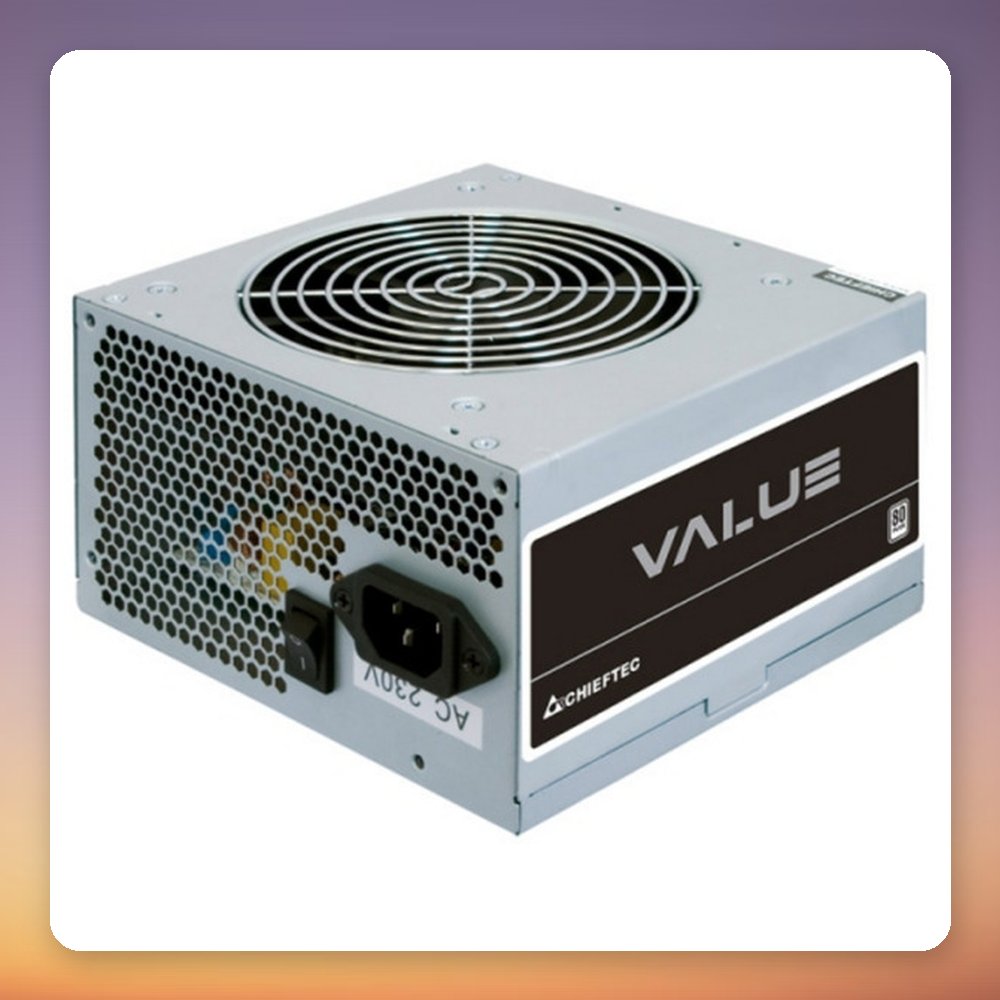

The Chieftec Value APB-700B8 is a 700 W ATX power supply from the Value Series, certified 80 PLUS 230V EU. It delivers 648 W on the single +12V rail (54 A) and uses active PFC. It is a non-modular unit with fixed cables, including two 6+2-pin PCIe connectors, four SATA connectors and a 4+4-pin CPU connector. A single 120 mm temperature-controlled fan handles cooling.

This PSU suits budget and mid-range desktop builds in a standard ATX case, where two PCIe power connectors are enough for a single graphics card. The 55 cm motherboard cable and 50 cm CPU and PCIe cables are fixed, so check cable reach in larger cases. It protects against over-voltage, under-voltage, overload, short circuit and surge, and carries CE, CB, EAC and TÜV certification. Note that the input range is 200-240 V only, which suits Irish mains supply.

Specification

• Manufacturer: Chieftec
• Model: Value APB-700B8
• MPN: APB-700B8
• EAN: 7532630778200
• Total power: 700 W
• +12V power: 648 W (54 A, single rail)
• +3.3V/+5V combined power: 130 W
• Efficiency certification: 80 PLUS 230V EU
• Form factor: ATX (ATX12V 2.3)
• Cabling: Non-modular (fixed cables)
• PCIe power connectors: 2x 6+2-pin
• CPU power connector: 1x 4+4-pin
• Other connectors: 1x 24-pin ATX, 4x SATA, 2x 4-pin Molex, 1x floppy
• Cable lengths: Motherboard 55 cm, CPU 50 cm, PCIe 50 cm
• Input voltage: 200-240 V, 47-63 Hz
• PFC: Active PFC
• Cooling: 1x 120 mm fan
• Protections: OVP, UVP, OPP/OLP, SCP, SIP
• Dimensions (W x H x D): 150 x 87 x 140 mm
• Weight: 1.42 kg
