Product Overview

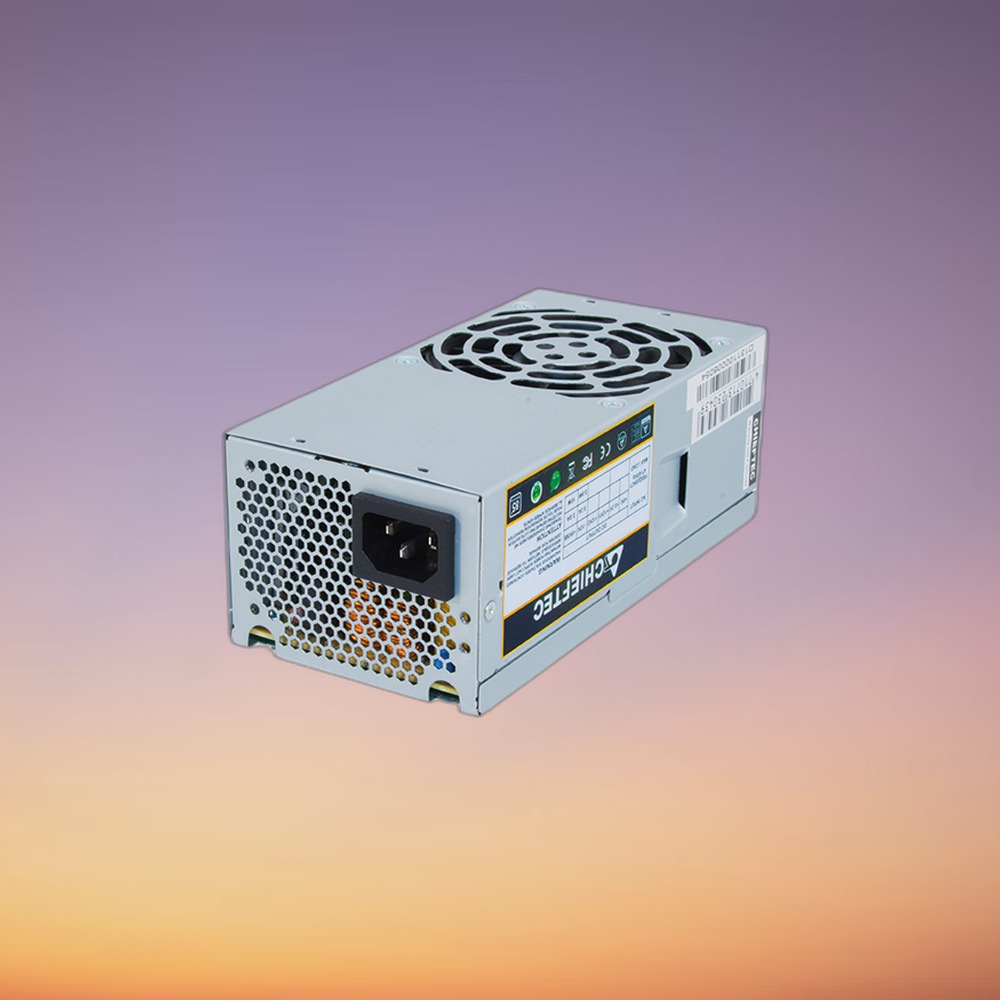

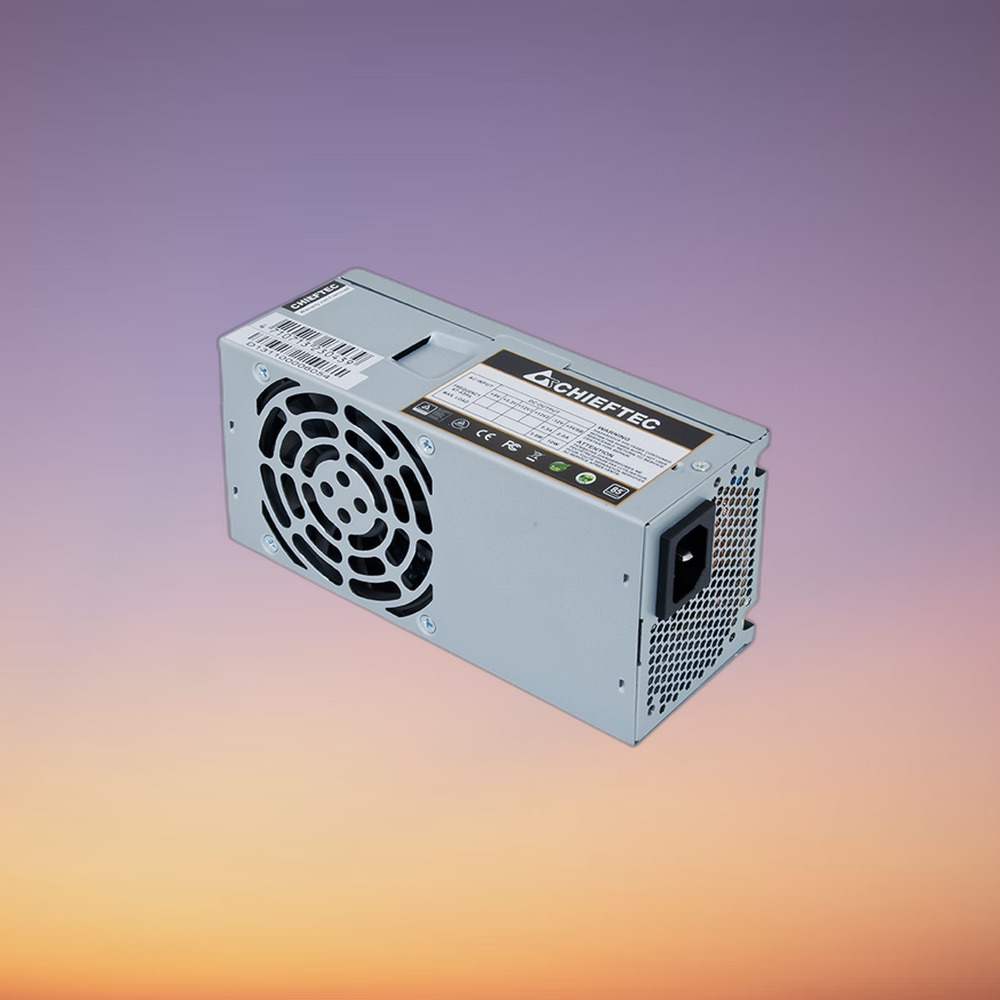

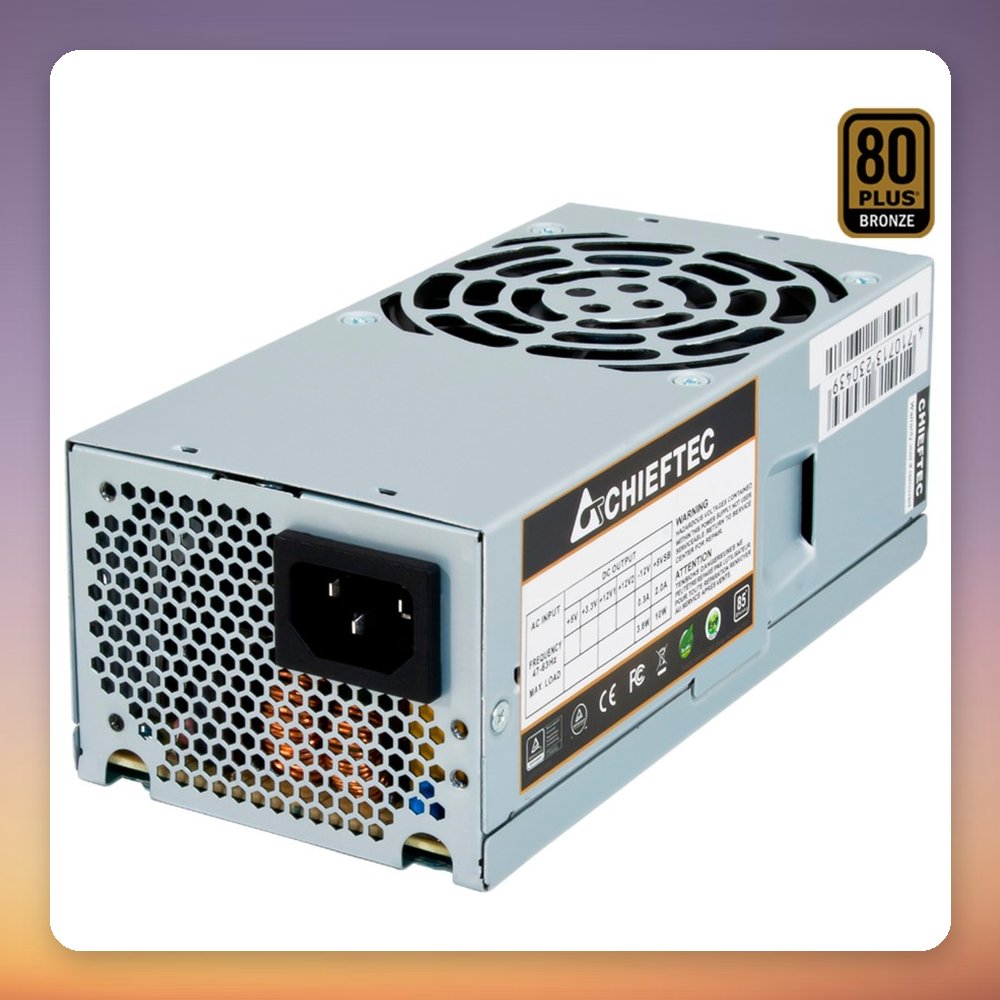

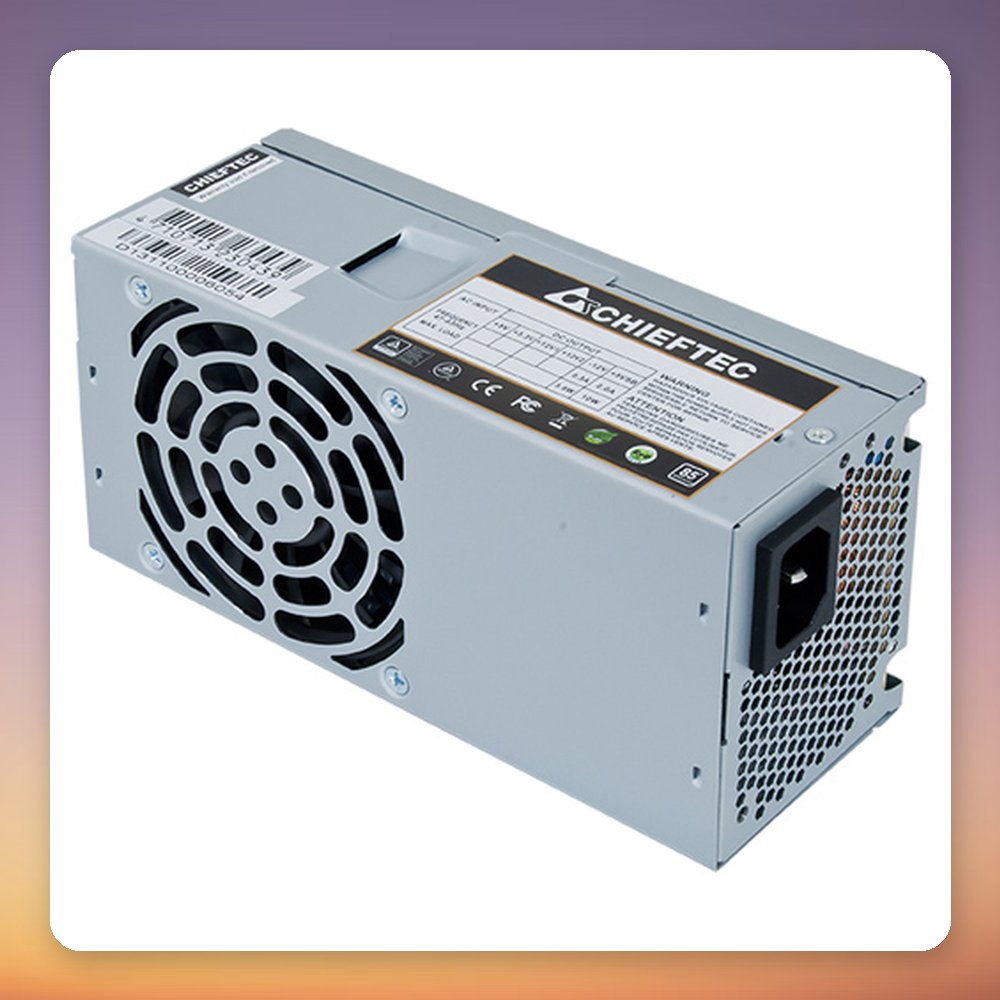

The Chieftec GPF-300P 300W TFX power supply is a compact PSU built around the small TFX form factor, measuring just 85 x 65 x 175 mm and weighing 1.1 kg. It delivers 300 W in total, including 276 W on the +12V rails, and holds 80 PLUS Bronze certification with efficiency of up to 85 %. Active PFC and a temperature-controlled 80 mm fan are included.

This unit suits small form factor builds, home entertainment systems and compact all-in-one style PCs that are designed around a TFX power supply. It follows the ATX12V 2.3 standard and offers a 24-pin motherboard connector, a 4+4 pin EPS connector, 4 SATA connectors and 2 Molex connectors. The cabling is non-modular. Protections include OVP, UVP, OLP/OPP, SCP and SIP, and the input range is 115-230 V.

Specification

• Manufacturer: Chieftec
• Model: GPF-300P
• MPN: GPF-300P
• EAN: 47107132346660
• Total power: 300 W
• +12V combined power: 276 W
• Efficiency certification: 80 PLUS Bronze (up to 85 %)
• Form factor: TFX
• Standard: ATX12V 2.3
• Cabling: Non-modular
• Fan: 1x 80 mm, temperature-controlled
• Power factor correction: Active PFC
• Connectors: 1x 24-pin ATX, 1x 4+4 pin EPS, 4x SATA, 2x 4-pin Molex, 1x floppy
• Input voltage: 115-230 V
• +12V1 / +12V2 current: 14 A / 15 A
• Protections: OVP, UVP, OLP/OPP, SCP, SIP
• Dimensions (W x H x D): 85 x 65 x 175 mm
• Weight: 1.1 kg
• Colour: Grey
