Product Overview

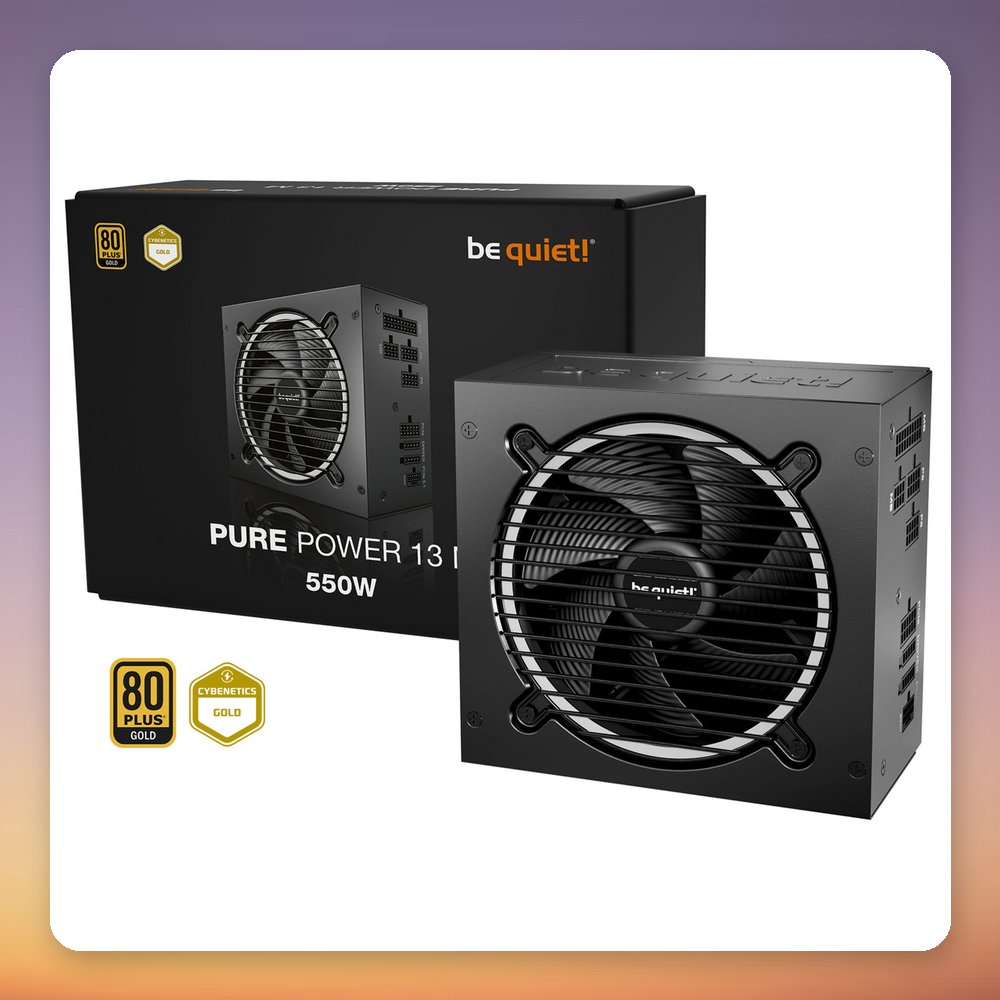

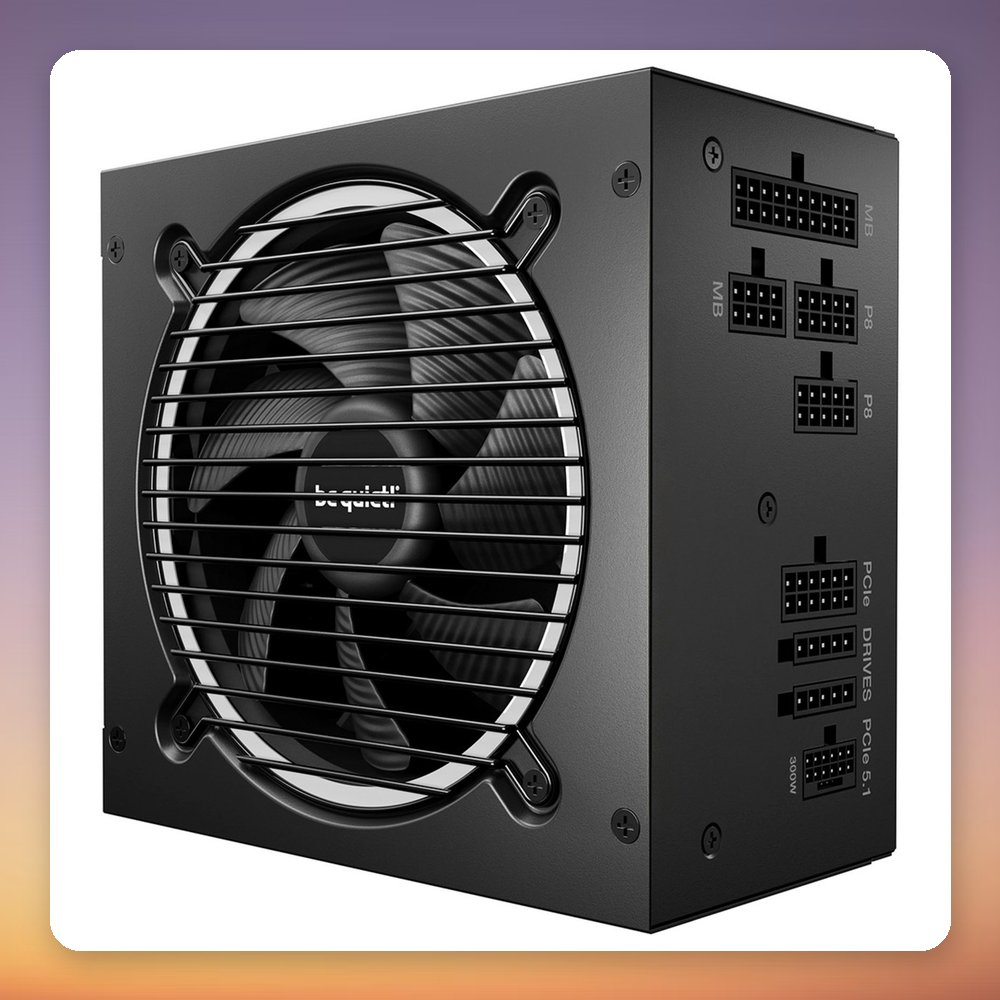

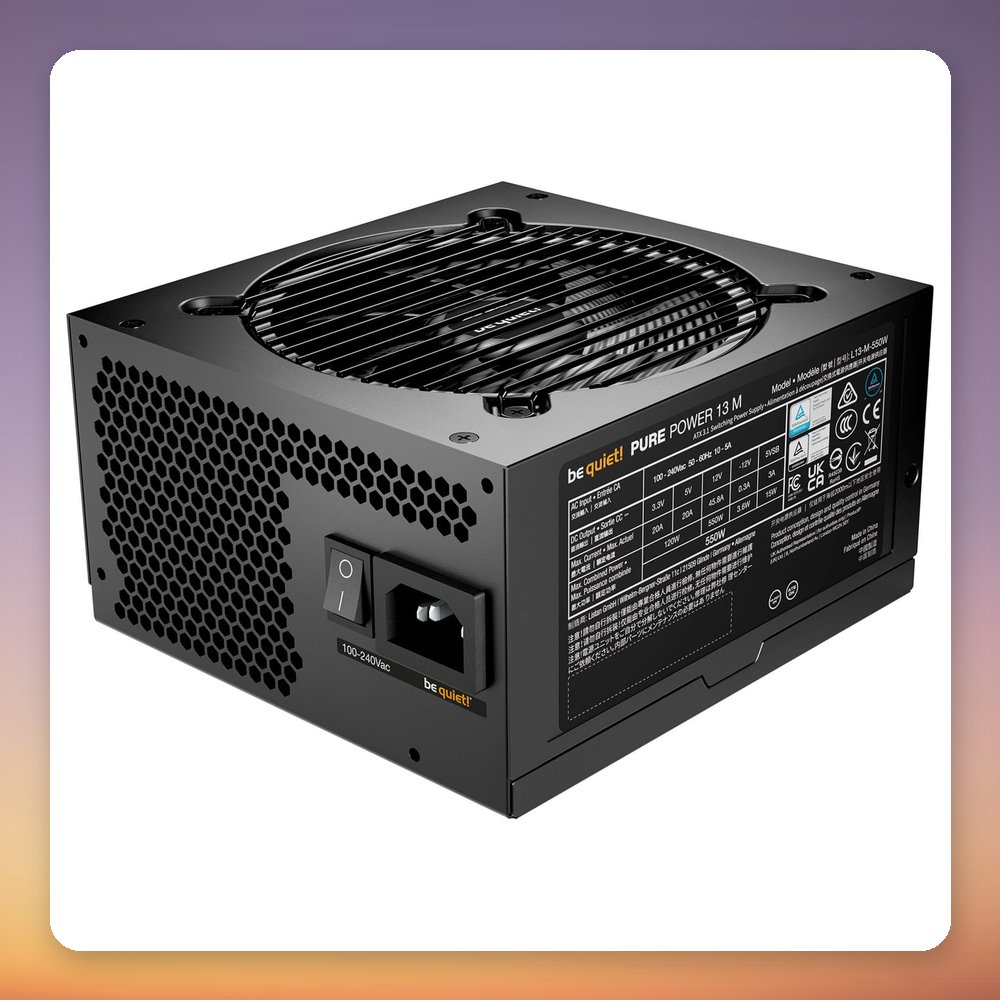

The be quiet! Pure Power 13 M 550W is an ATX 3.1 compliant, PCIe 5.1 compatible power supply with 80 PLUS Gold certification and efficiency of up to 93.8 %. It is fully modular, uses a single 120 mm temperature-controlled fan, and runs at 14.8 dB(A) at 20 % and 50 % load, rising to 20.8 dB(A) at full load. The ATX form factor unit includes a native 12V-2×6 (12+4 pin) cable.

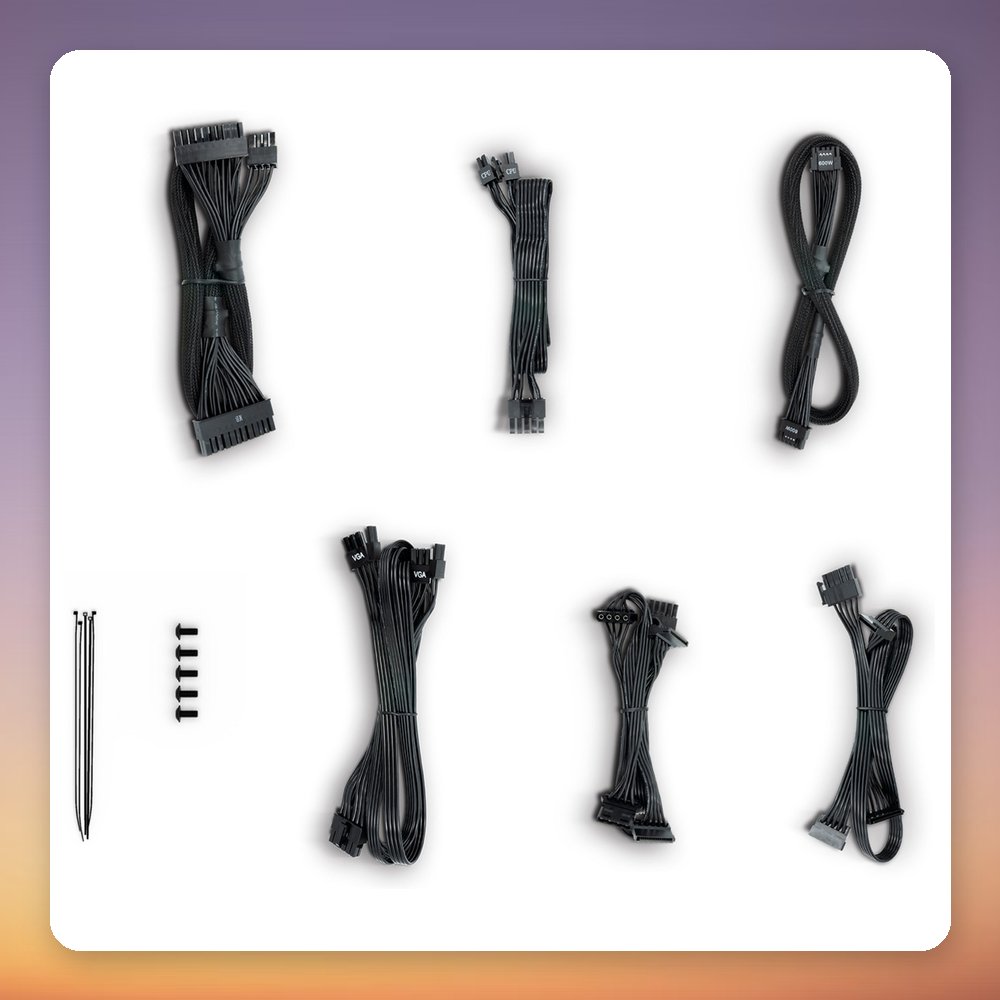

With 550 W total output and a single +12V rail rated at 45.8 A, this unit suits mid-range gaming and everyday PC builds. The bundle includes a PCIe 5.0 12VHPWR 450 W cable plus two 6+2 pin PCIe connectors, so it works with both current and newer graphics cards that use 12V-2×6. Fully modular cabling keeps the case tidy, and the PSU measures 150 x 86 x 160 mm, so it fits standard ATX cases.

Specification

• Manufacturer: Be quiet
• Model: Pure Power 13 M
• MPN: BP024EU
• EAN: 4260052192160
• Total power: 550 W
• Efficiency: 80 PLUS Gold, up to 93.8 %
• Standard: ATX 3.1, EPS 2.92, PCIe 5.1
• Form factor: ATX
• Cabling: Fully modular
• +12V rail: 1 rail, 45.8 A
• PCIe power connectors: 1x 12+4 pin (12V-2×6), 2x 6+2 pin
• Other connectors: 1x 24-pin ATX, 1x 4+4 pin CPU, 1x 4-pin CPU, 5x SATA, 2x Molex
• Cooling: 1x 120 mm fan, temperature controlled, 0-1800 RPM
• Noise level: 14.8 dB(A) at 20-50 % load, 20.8 dB(A) at 100 % load
• Protections: OCP, OVP, UVP, OPP, SCP, OTP, SIP
• Input: 100-240 V, 50/60 Hz, Active PFC
• Colour: Black
• Dimensions (W x H x D): 150 x 86 x 160 mm
• Weight: 2.2 kg
