Product Overview

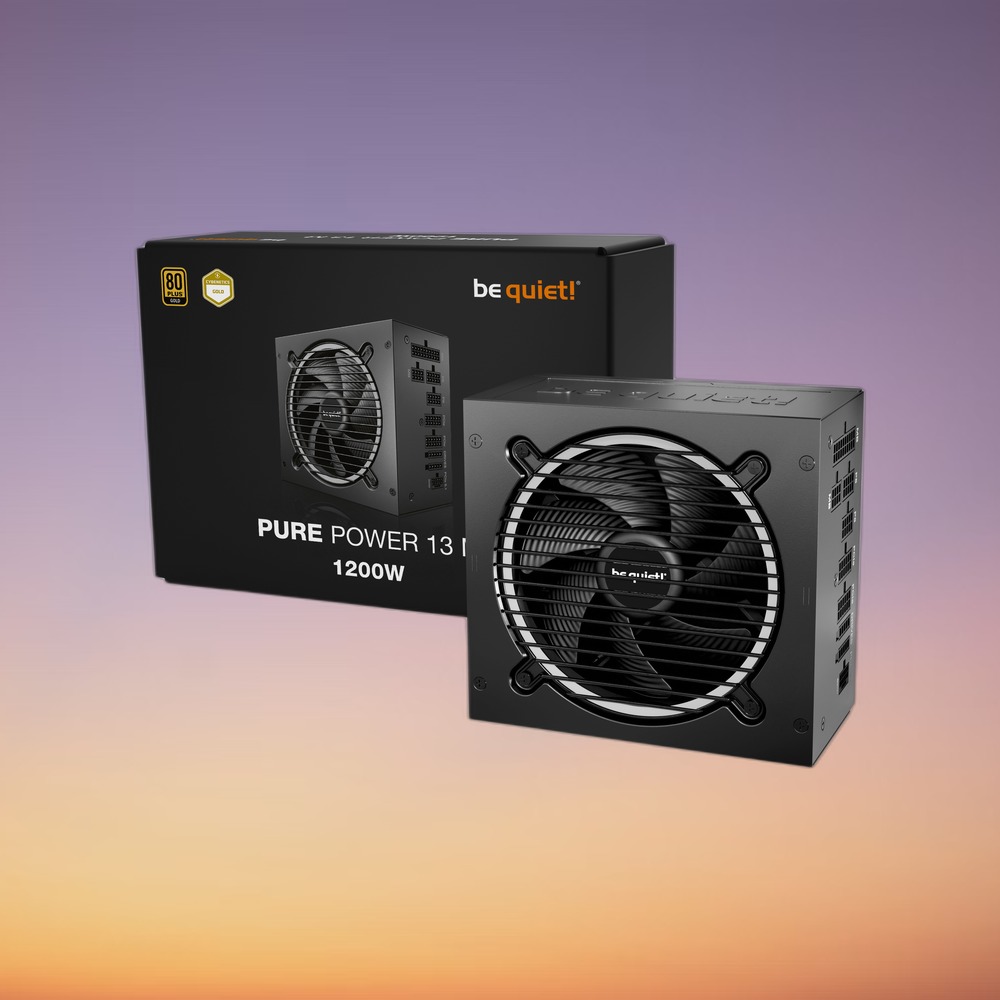

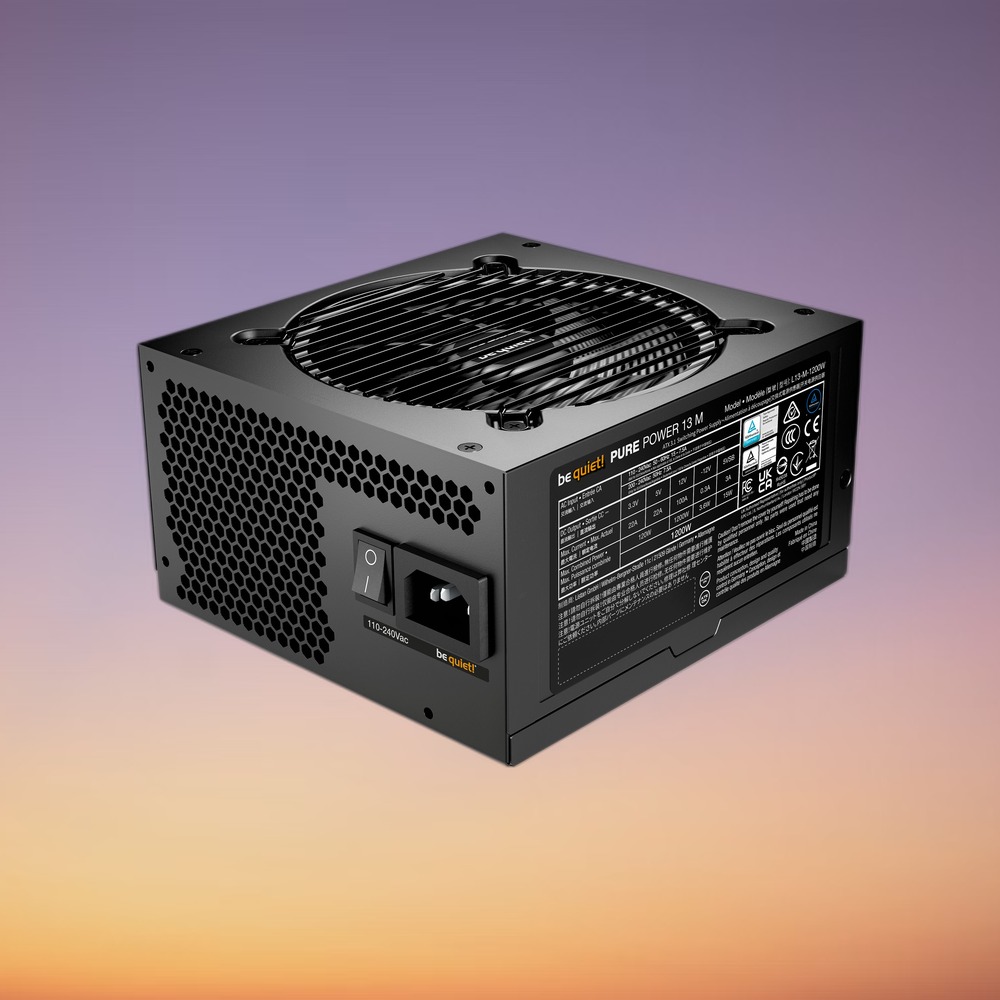

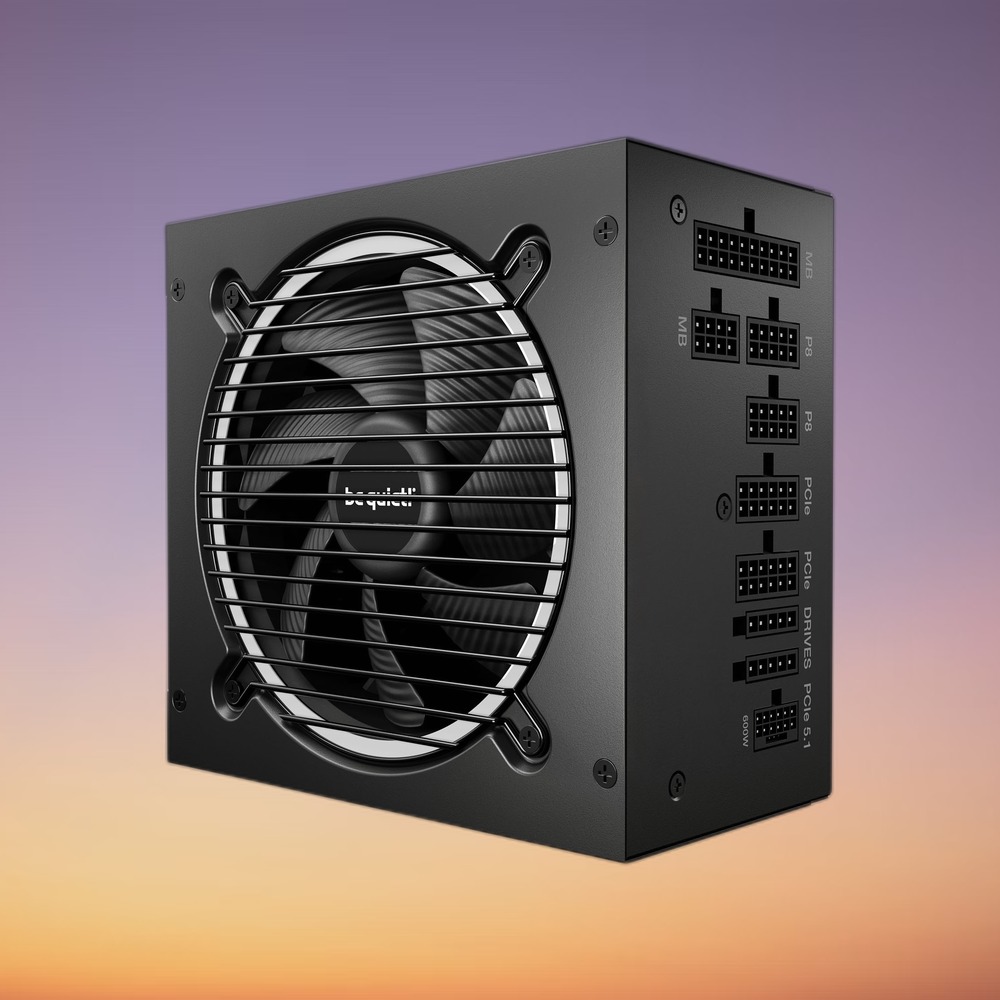

be quiet! Pure Power 13 M | 1200W. Total power: 1200 W, AC input voltage: 110 – 240 V, Peak power: 1250 W.

Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Specification

• EAN: [‘4260052193655’]
• Combined power (+12V): 1200 W
• Combined power (+5V): 120 W
• Combined power (-12V): 3.6 W
• Combined power (+5Vsb): 15 W
• Max output current (+3.3V): 22 A
• Max output current (+12V): 100 A
• Max output current (+5V): 22 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 3 A
• Hold time: 19.11 ms
• Efficiency: 90.8%
• Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 55 cm
• Number of SATA power connectors: 6
• SATA power cable length: 500,650,800,950 mm
• Number of SATA power cables: 2
• Peripheral (Molex) power connectors (4-pin): 2
• Peripheral (Molex) power cable length: 800,950 mm
• EPS power connector (8-pin): Yes
• PCI Express power connectors (6+2 pin): 4
• PCI Express power connectors (12-pin): 1
• PCI Express power cable length: 60 cm
• CPU P4 connector (4-pin): 2
• CPU power connector (4+4 pin): Yes
• CPU power cable length: 65 cm
• PCI Express connector: Yes
• Cabling type: Fully-Modular
• 80 PLUS certification: 80 PLUS Gold
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 3.1
• EPS version: 2.92
• Noise level: 32.3 dB
• Bearing technology: Rifle
