Product Overview

The Asus TUF Gaming 850W Platinum is an 850 W ATX power supply that combines 80 PLUS Platinum efficiency with a GaN MOSFET design, which Asus says brings lower heat generation and faster switching. It meets the ATX 3.1 standard, supports PCIe 5.1 graphics cards and includes a native 12V-2×6 (12+4 pin) connector, plus 70.83 A on the single +12V rail.

With three 6+2 pin PCIe connectors alongside the 12V-2×6 cable, it suits high-end gaming and video editing builds with a power-hungry graphics card. The fully modular cabling keeps the case tidy, and the etched cables are flexible to route. Asus fits TUF 5K black metallic capacitors and a 135 mm ball-bearing fan, and rates the unit at 120,000 hours MTBF. It is a standard ATX size at 150 x 86 x 150 mm and weighs 1.48 kg.

Specification

• Manufacturer: Asus
• Model: TUF Gaming 850W Platinum
• MPN: 90YE0102-B0NA00
• EAN: 47116364899110
• Rated Power: 850 W
• Efficiency Rating: 80 PLUS Platinum
• Standard: ATX 3.1, PCIe 5.1
• Cabling: Fully modular
• +12V Output: 850 W / 70.83 A (single rail)

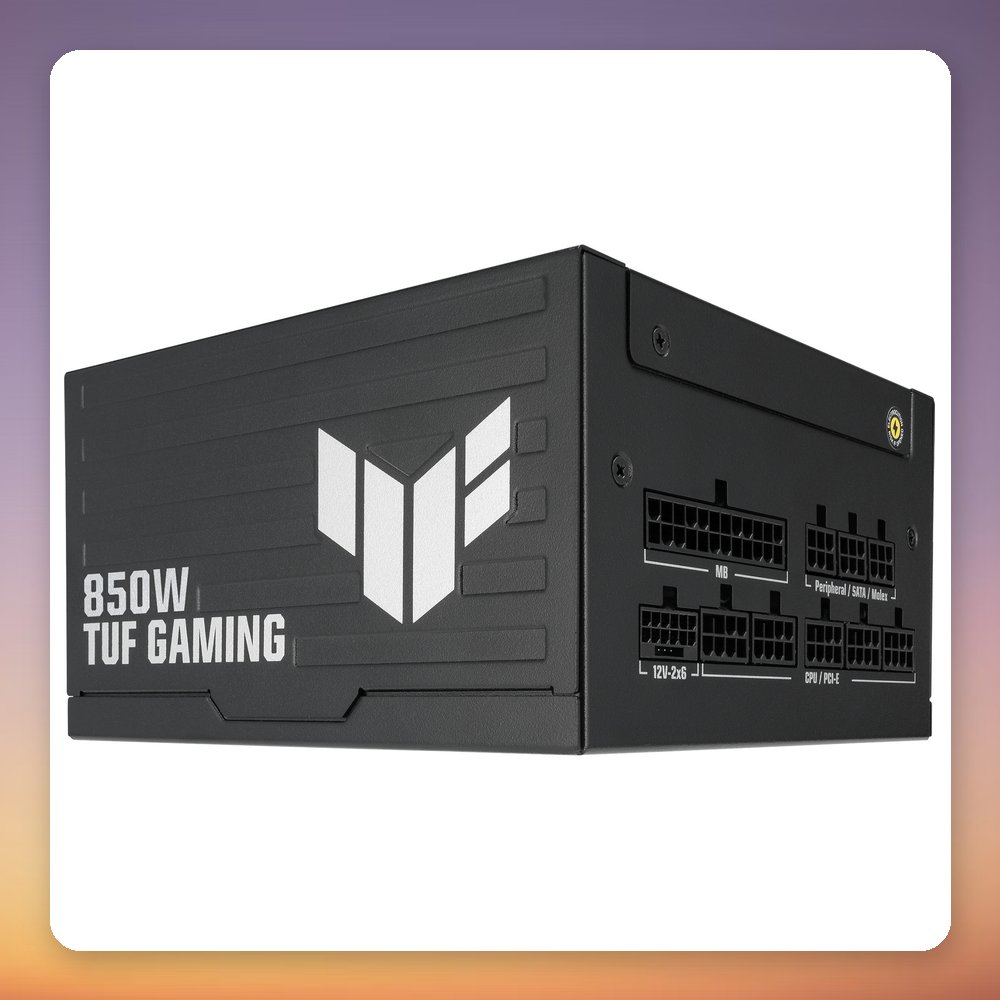

• GPU Power Connectors: 1x 12V-2×6 (12+4 pin), 3x PCIe 6+2 pin
• CPU Power Connectors: 2x 4+4 pin
• SATA / Molex Connectors: 6x SATA, 3x Molex 4-pin
• Motherboard Connector: 20+4 pin ATX (61 cm cable)
• Fan: 135 mm, ball bearing
• Input Voltage: 100-240 V, Active PFC
• Protections: OCP, OVP, UVP, OPP, SCP, OTP
• MTBF: 120,000 h
• Form Factor: ATX
• Dimensions (W x H x D): 150 x 86 x 150 mm
• Weight: 1.48 kg
• Manufacturer warranty: 8 years
