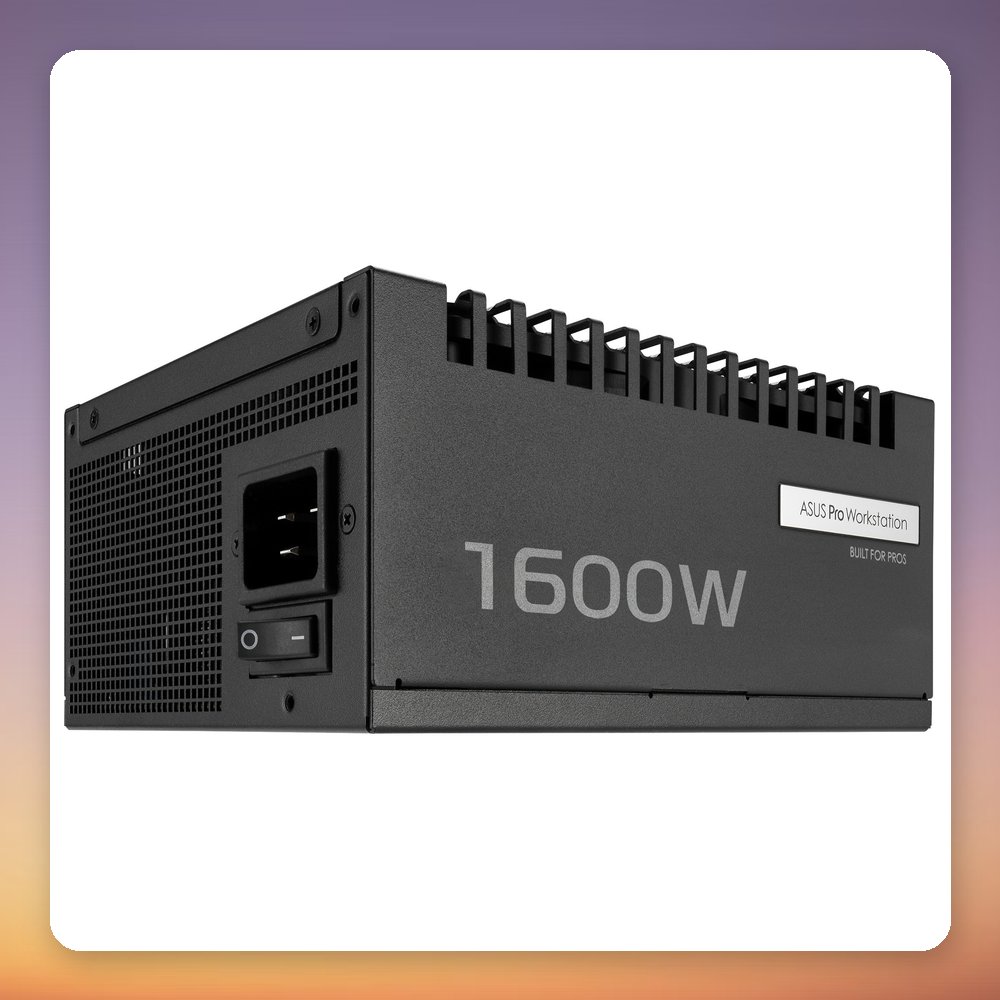

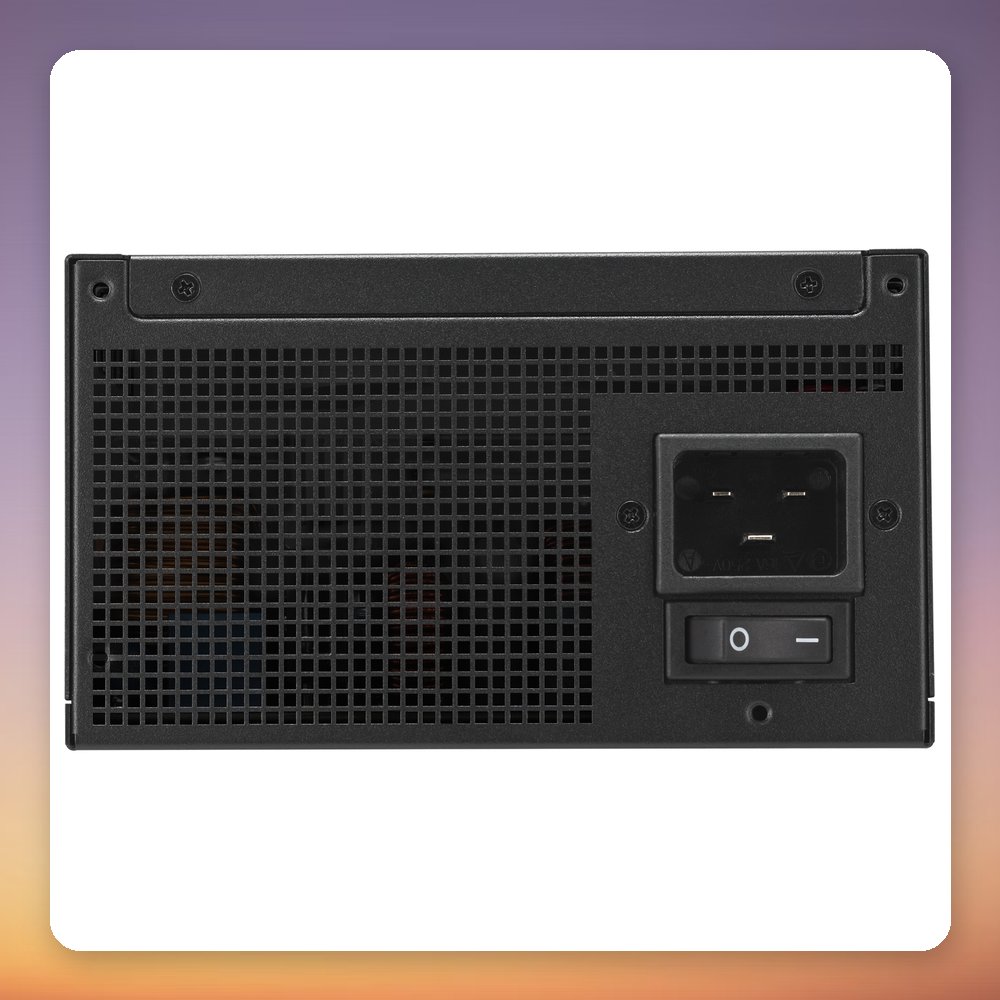

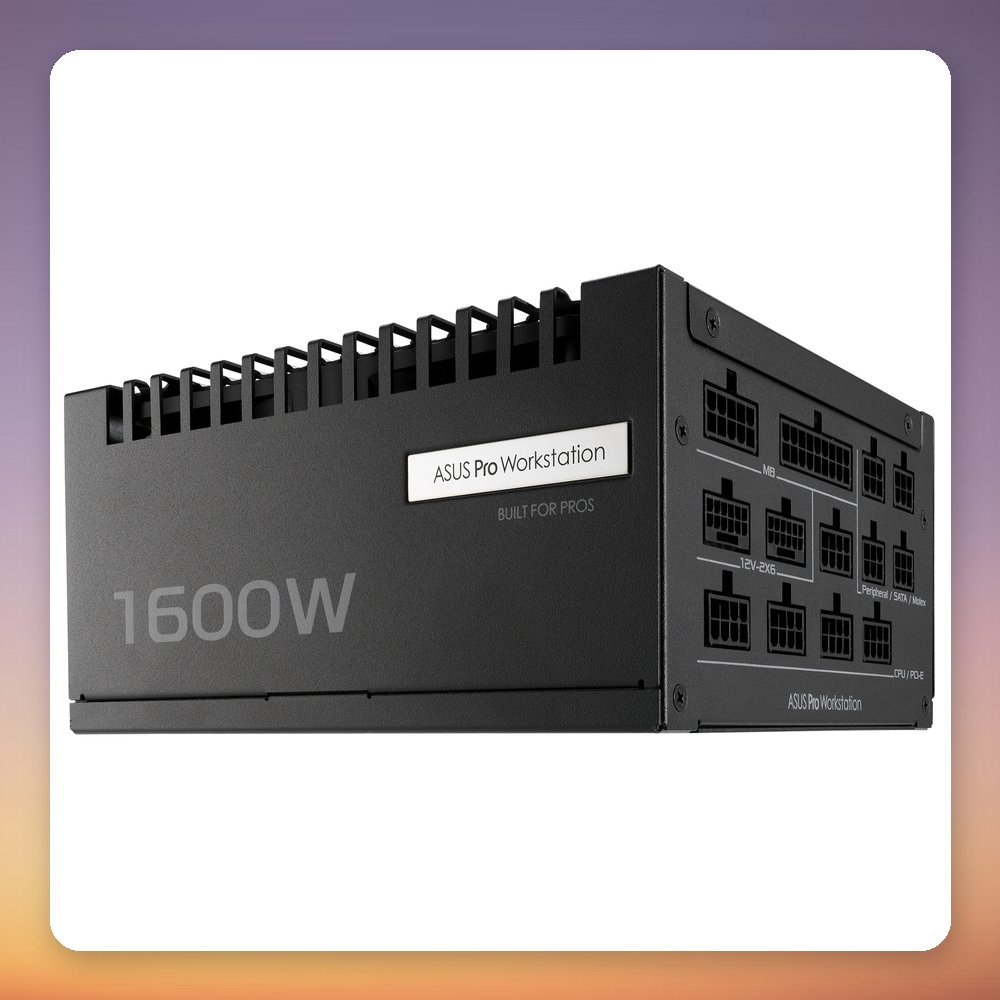

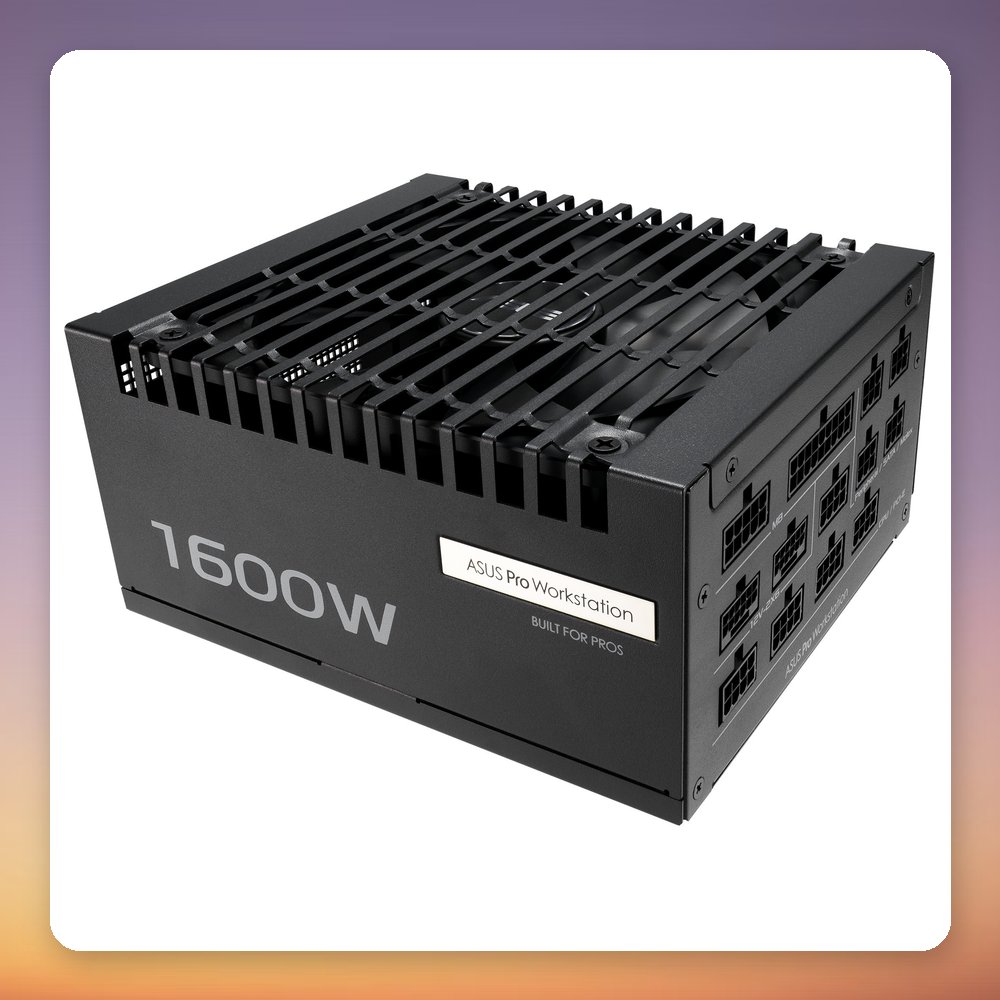

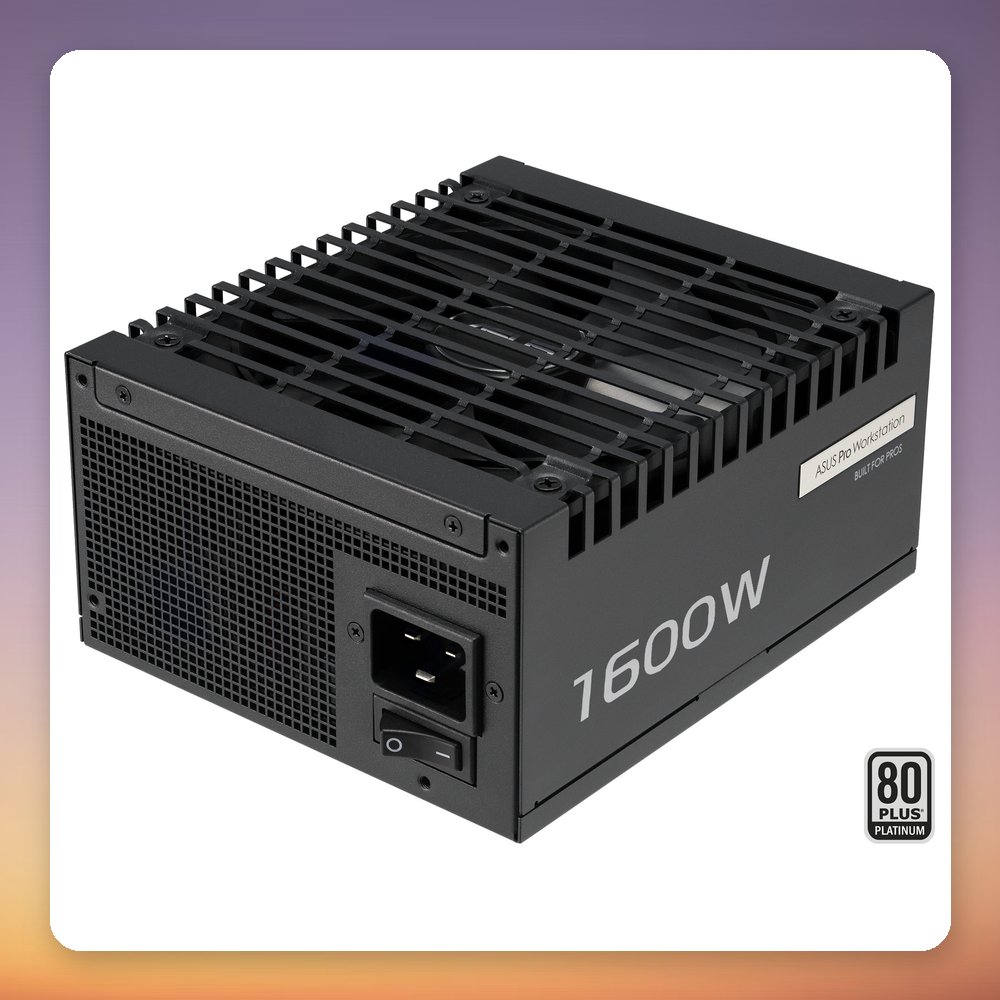

Asus Pro WS 1600W 80 PLUS Platinum Fully Modular ATX 3.1 PSU
€544.48
Delivery: 7-12 business days
Asus Pro WS 1600W 80 PLUS Platinum Fully Modular ATX 3.1 PSU
- 1600 W with two 12V-2×6 connectors for dual RTX 5090 setups
- 80 PLUS Platinum, ATX 3.1 and PCIe 5.1 compliant
- Gold-plated PCIe pins for up to 10°C cooler 12V-2×6 connectors

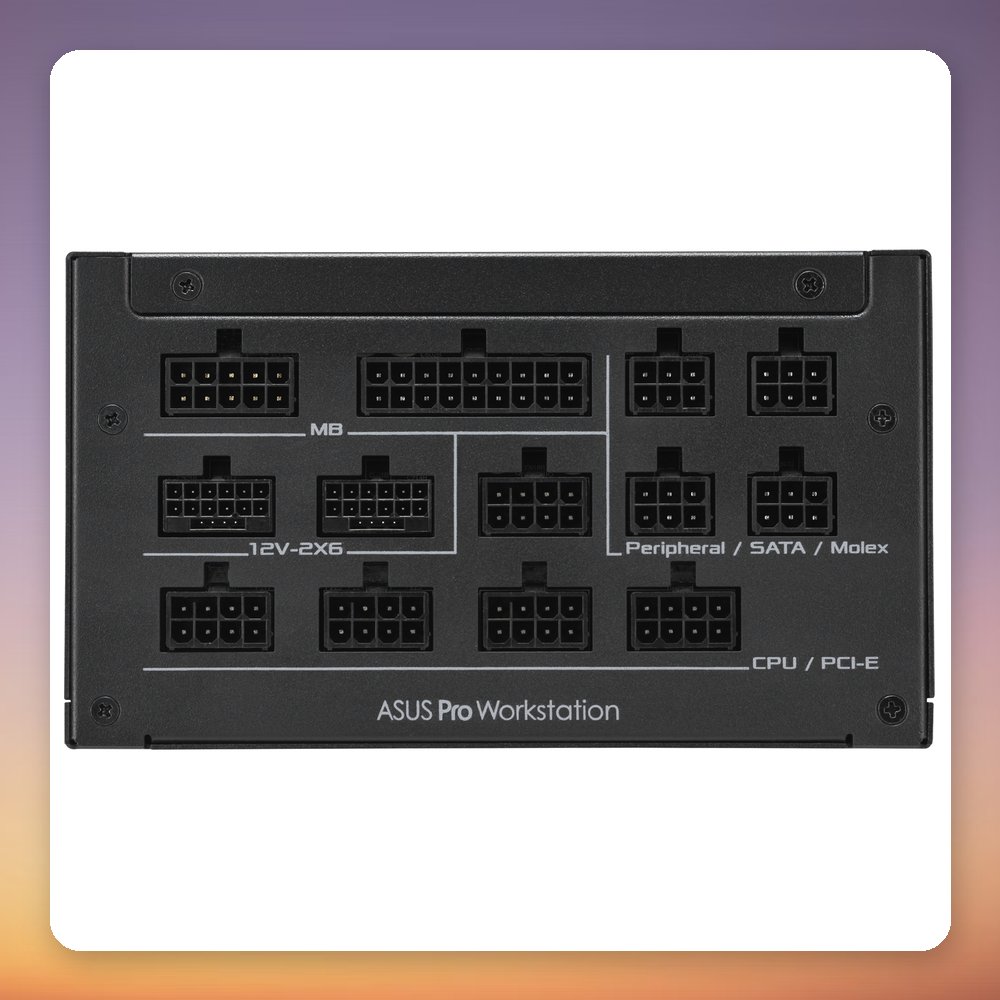

- Fully modular, with 9 SATA and 4x 6+2 pin PCIe connectors
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview
The Asus Pro WS 1600W Platinum is a 1600 W ATX 3.1 power supply with 80 PLUS Platinum certification, built to drive up to two GeForce RTX 5090 graphics cards. It has two 12V-2×6 (16-pin) connectors rated for up to 600 W each to PCIe 5.1 cards, four 6+2 pin PCIe connectors and a fully modular cable set.
With a 200-240 V input range and a 133.3 A single +12V rail, this PSU is aimed at workstation-class builds such as AI, deep learning and IT management systems running two high-end GPUs. The PCIe connector pins are gold-plated, which Asus says lowers 12V-2×6 connector temperatures by up to 10°C. Dual ball-bearing fan, protective PCB coating, and a 150 x 86 x 175 mm ATX body.
Specification
- Manufacturer: Asus
- Model: Pro WS 1600W Platinum
- MPN: 90YE00Z2-B0NA00
- EAN: 4711387973011
- Total Power: 1600 W
- Efficiency Certification: 80 PLUS Platinum
- Standard: ATX 3.1 / PCIe 5.1
- Form Factor: ATX
- Modularity: Fully modular
- Input Voltage: 200-240 V
- +12V Output: 1600 W / 133.3 A (single rail)
- PCIe Connectors: 2x 12V-2×6 (16-pin), 4x 6+2 pin
- SATA Connectors: 9x SATA power
- Molex Connectors: 3x 4-pin peripheral
- CPU Connectors: 2x 4+4 pin
- Fan Bearing: Dual ball bearing
- Protections: OCP, OVP, UVP, OPP, SCP, OTP
- Colour: Black
- Dimensions (W x H x D): 150 x 86 x 175 mm
- Weight: 2 kg
- Manufacturer warranty: 10 years
delivery time 7-12 business days
| Weight | 4.84 kg |
|---|
