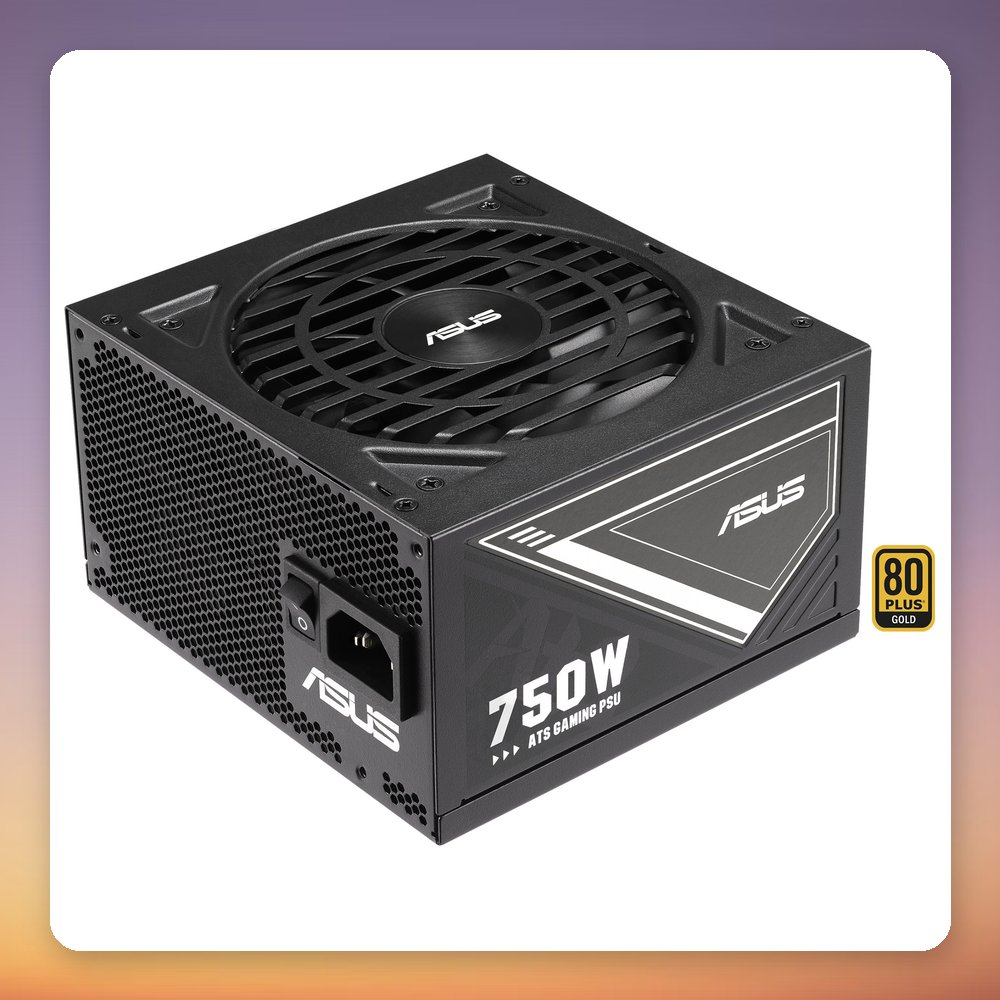

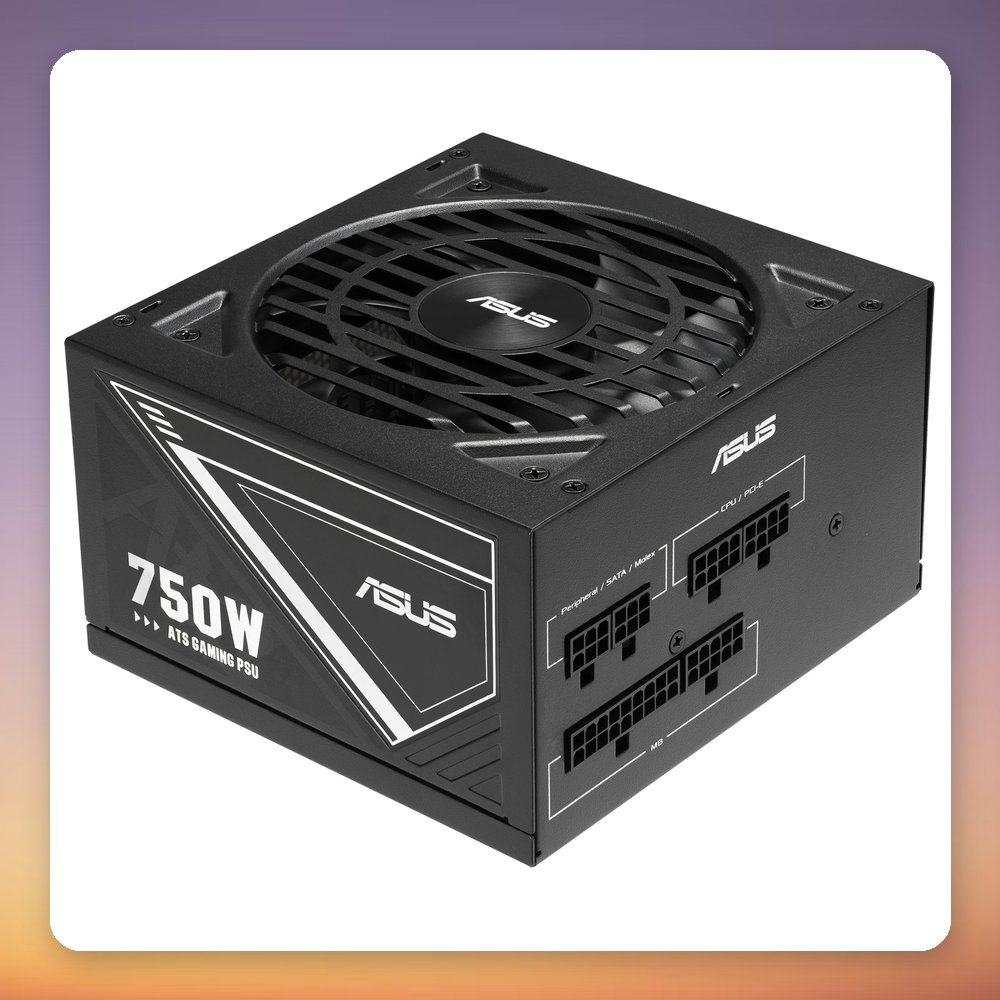

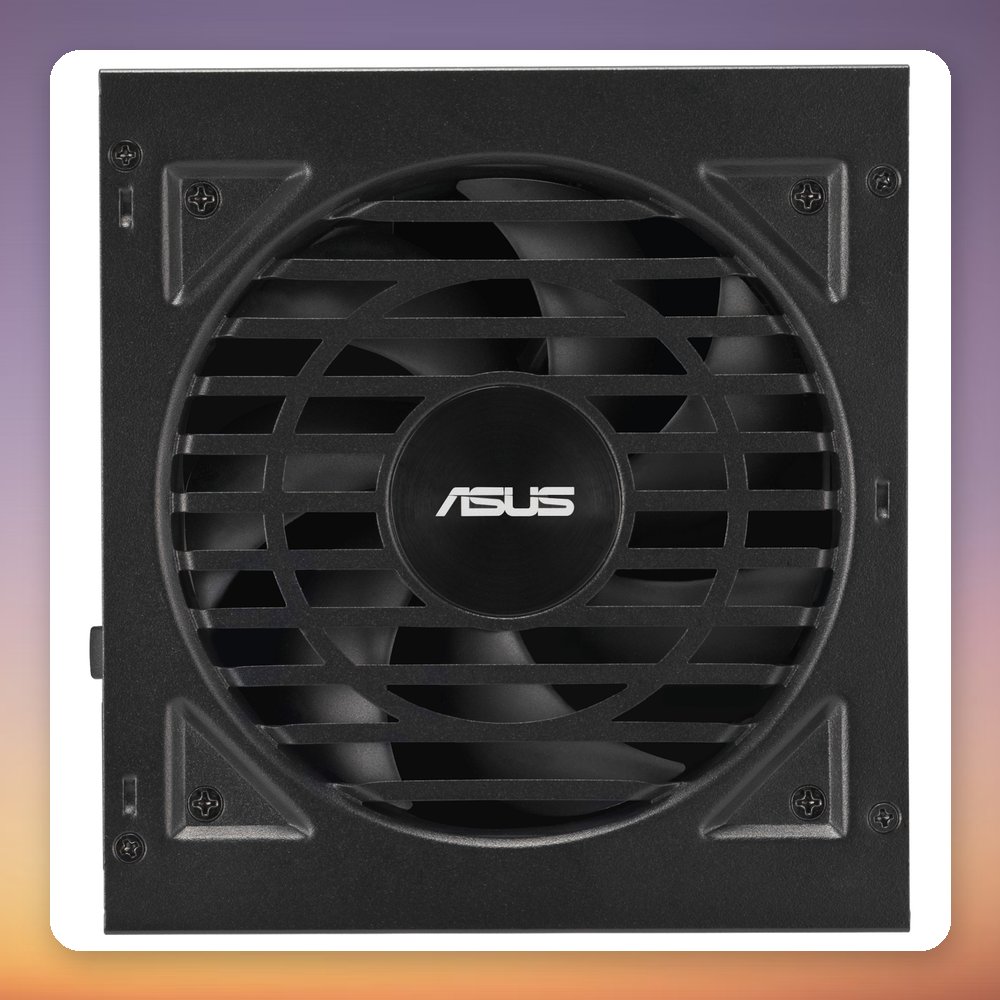

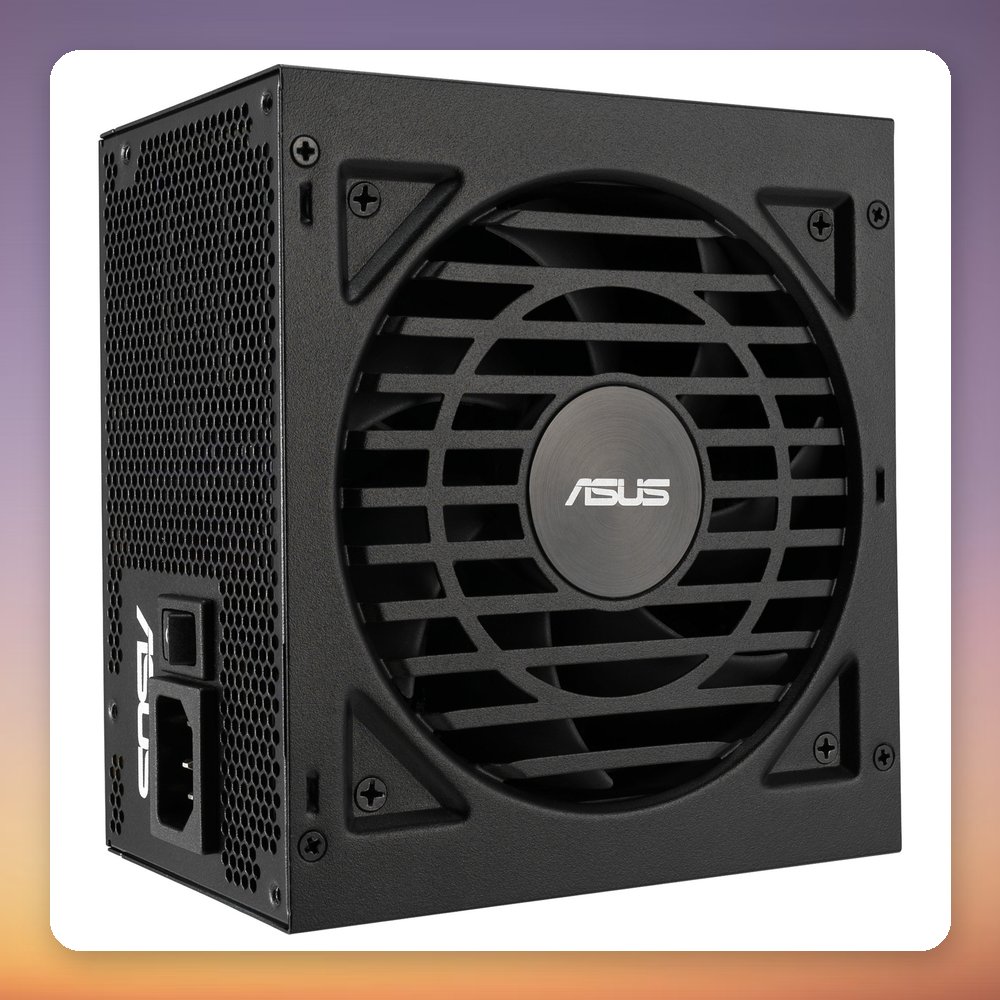

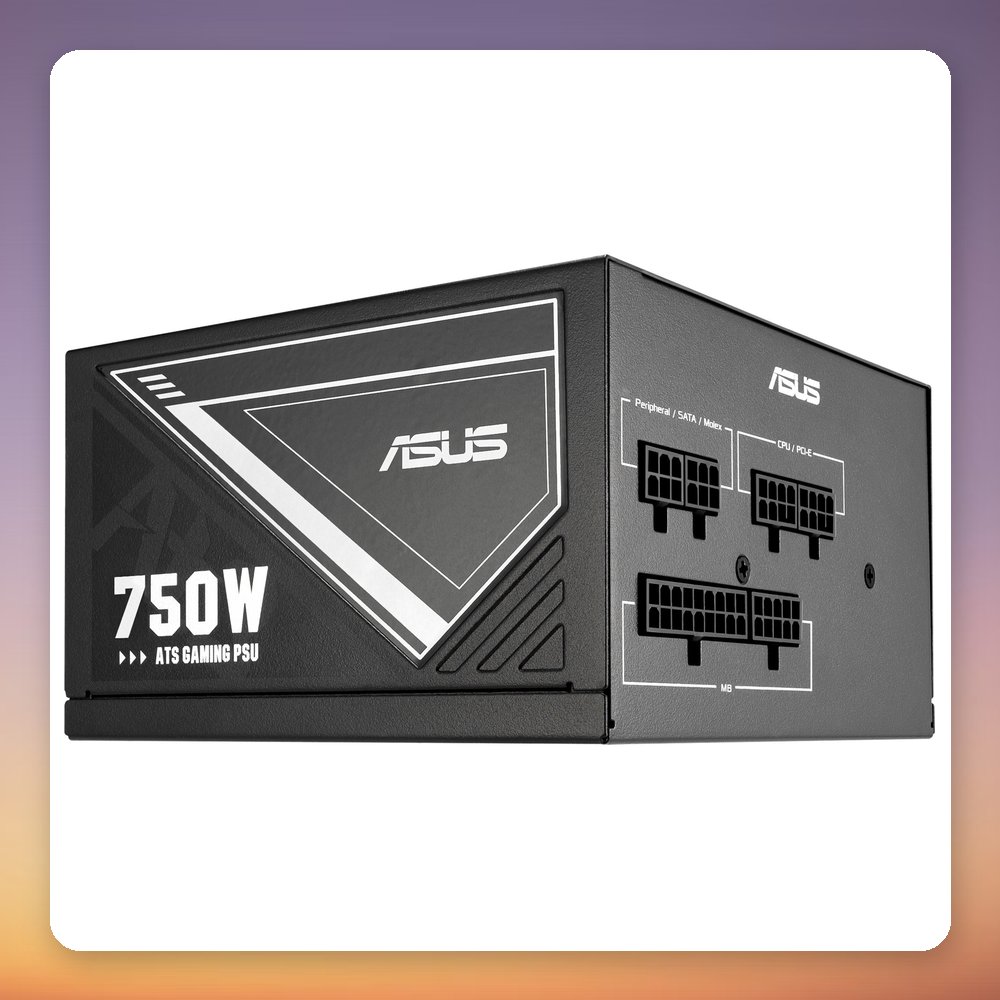

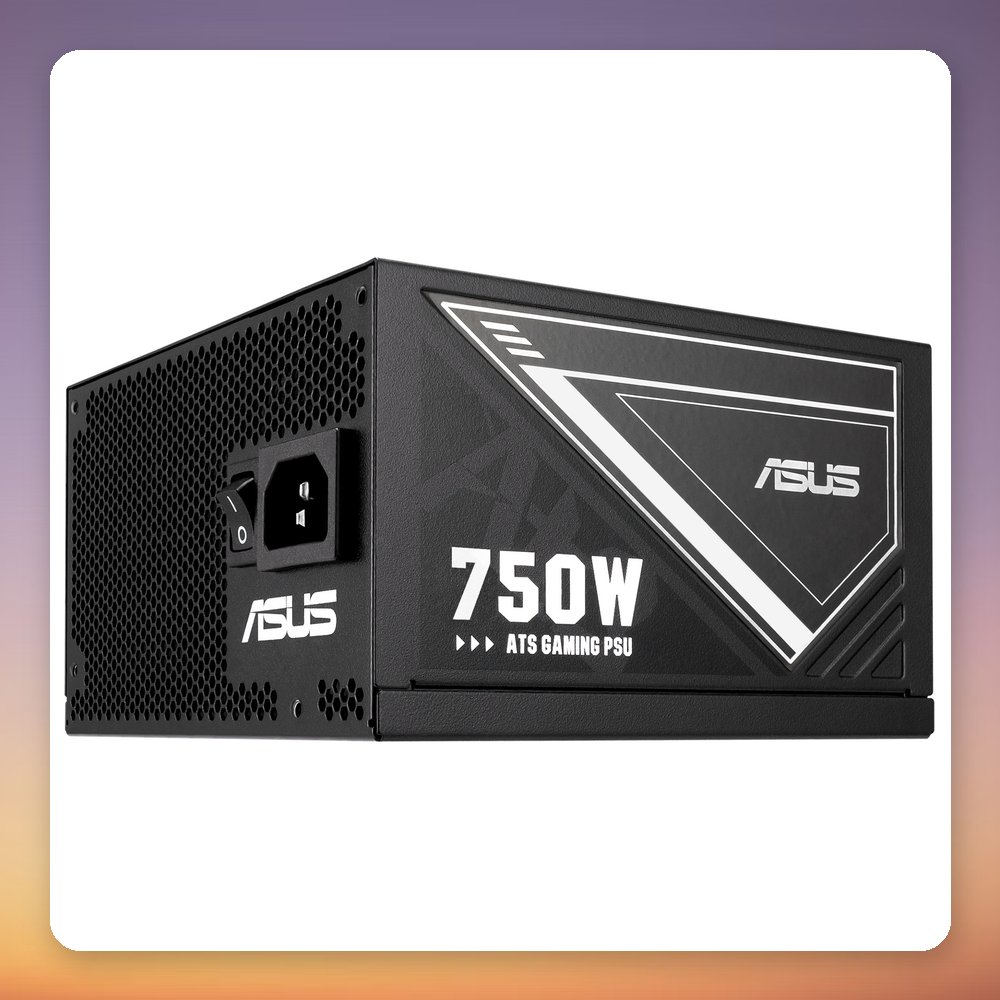

Asus ATS-750G 750W 80 PLUS Gold ATX PSU, 3x PCIe, Black
€157.93
Delivery: 7-12 business days
Asus ATS-750G 750W 80 PLUS Gold ATX PSU, 3x PCIe, Black
- 80 PLUS Gold with up to 92% efficiency
- Fully modular with etched, flexible cables
- Dual ball bearing 135 mm fan, up to 80,000 hours
- Full 750 W on a single +12V rail
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview
The Asus ATS-750G 750W 80 PLUS Gold PSU is an ATX power supply rated at 750 W, with the full 750 W available on the +12V rail (62.5 A). The Gold certification means efficiency of up to 92%, which Asus says results in less heat, reduced fan noise and increased reliability. It uses low-ESR capacitors and a 135 mm fan with dual ball bearings, rated for up to 80,000 hours.
This PSU suits all-round PCs and gaming rigs that need a solid 750 W supply with active PFC and a full set of protections (OCP, OVP, UVP, OPP, SCP, OTP). It comes with three 6+2-pin PCIe connectors, a 4+4-pin CPU cable with a distinct clip for easy identification, and flexible etched cables. Asus backs it with a 3-year warranty, and the box includes all cables, screws and a quick start guide.
Specification
- Manufacturer: Asus
- Model: ATS-750G (750W-ATS Gold)
- MPN: 90YE04A1-B0NC00
- EAN: 4711387870020
- Power output: 750 W
- 80 PLUS certification: 80 PLUS Gold (up to 92% efficiency)
- Form factor: ATX
- +12V output: 750 W / 62.5 A (single rail)
- +3.3V / +5V combined: 100 W (20 A each)
- Cabling: Fully modular
- PCIe connectors: 2x/3x 6+2-pin (see notes)
- CPU connectors: 4+4-pin (1-to-2 cable, 650+100 mm)
- SATA / Molex: 3x SATA, 3x 4-pin Molex
- Fan: 1x 135 mm, dual ball bearing, semi-passive
- Protections: OCP, OVP, UVP, OPP, SCP, OTP
- PFC: Active PFC, 110 – 240 V AC input
- MTBF: 120,000 h
- Dimensions (W x H x D): 140 x 86 x 150 mm
- Weight: 1.5 kg
- Manufacturer warranty: 3 years
