Digitus CAT.6 Data Connection Socket 2x RJ-45 Surface Mount, White

€9.15

Delivery: 7-12 business days
Digitus CAT.6 Data Connection Socket 2x RJ-45 Surface Mount, White

  • Two shielded CAT.6 RJ-45 ports in one socket
  • Full die-cast metal housing shields sockets and LSA strips
  • Rated up to 250 MHz for 1 Gbit Ethernet
  • Built-in cable strain relief with 40° sockets

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

Out of Stock

SKU: 144957 Category: Tags: , , , , Brand:

✅

Product Overview

The Digitus CAT.6 data connection socket is a surface-mounted wall outlet with two shielded RJ-45 (8P8C) ports, built for Class E cabling and 1 Gbit Ethernet. The die-cast metal housing fully encloses both sockets and the LSA terminal strips, so the whole connection is shielded, and the unit is suitable for frequencies of up to 250 MHz.

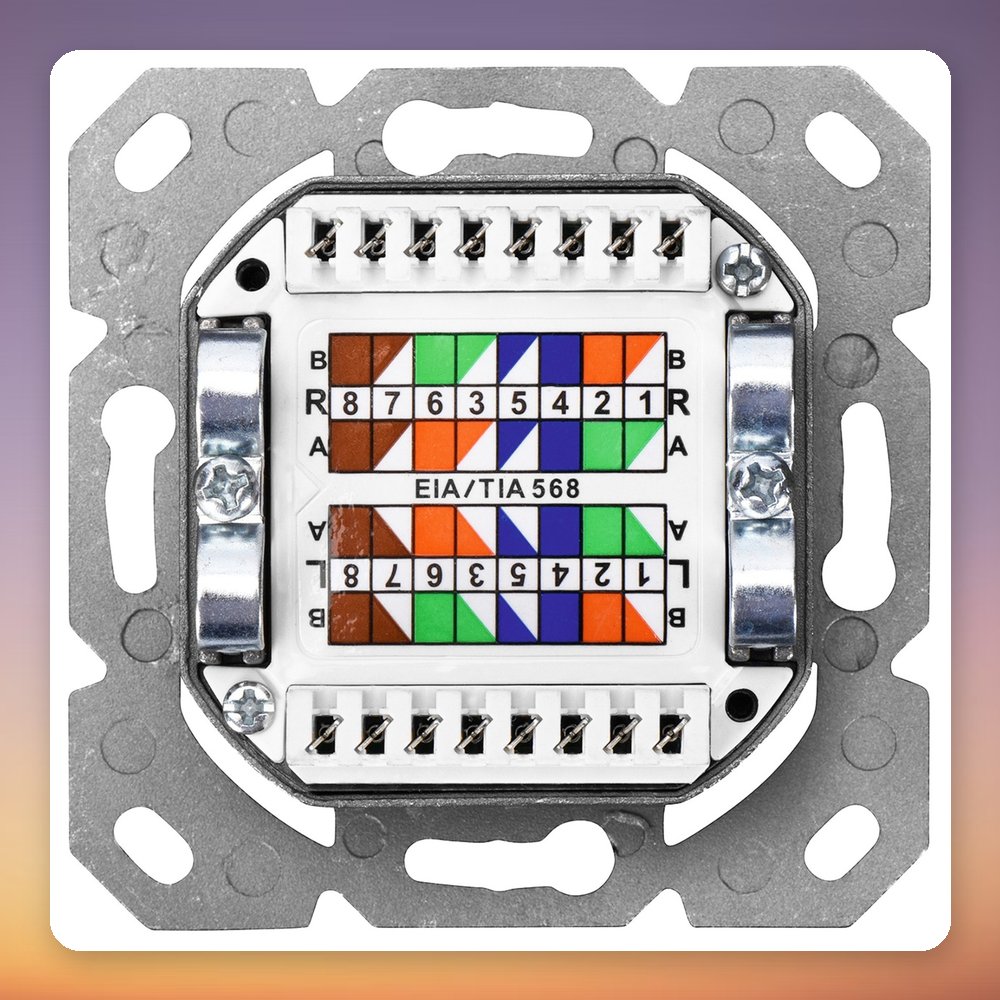

It suits home or office network installations where you want two network points in one wall box without chasing cables into the wall. Cables are terminated on LSA strips, colour-coded to EIA/TIA 568 A and B, with built-in strain relief for the installation cable. The sockets sit at a 40° angle and come with a labelling field. It is for indoor use and certified to CAT.6 EIA/TIA 568, ISO/IEC 11801 and EN 50173. A cover frame, central plate and installation guide are included.

Specification

  • Manufacturer: Digitus
  • Model: DN-9006-N
  • MPN: DN-9006-N
  • EAN: 4016032175735
  • Type: Data connection socket (surface mount)
  • Ports: 2x RJ-45 (8P8C)
  • Category: CAT.6, Class E
  • Shielding: Fully shielded (RJ-45 sockets and LSA strips)
  • Max frequency: Up to 250 MHz
  • Ethernet speed: 1 Gbit Ethernet
  • Housing material: Die-cast metal
  • Mounting: Surface mount
  • Termination: LSA strips, colour-coded EIA/TIA 568 A & B
  • Socket angle: 40°
  • Cover frame: 80 x 80 mm with 50 x 50 mm central plate (DIN 49075)
  • Use: Indoor
  • Colour: White
  • Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568

return to the shop
see our fanpage

delivery time 7-12 business days

Weight 1.1 kg
