Product Overview

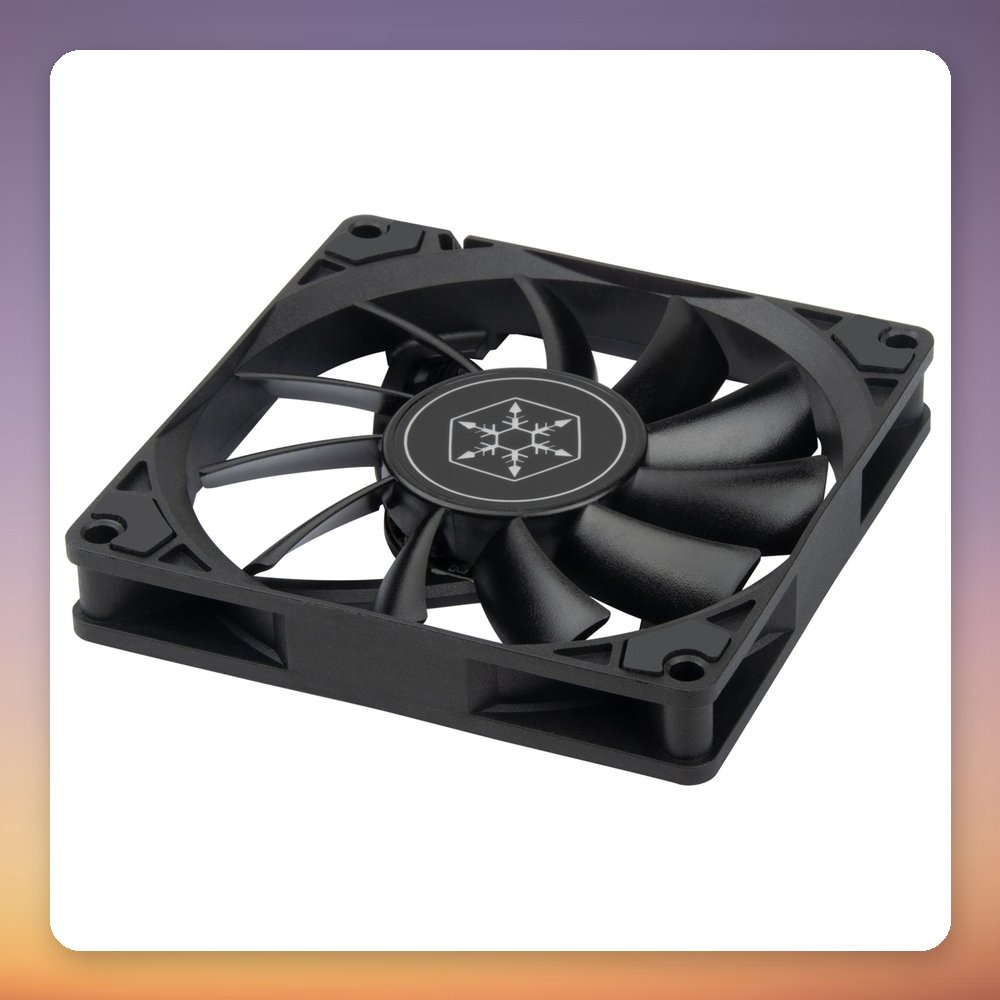

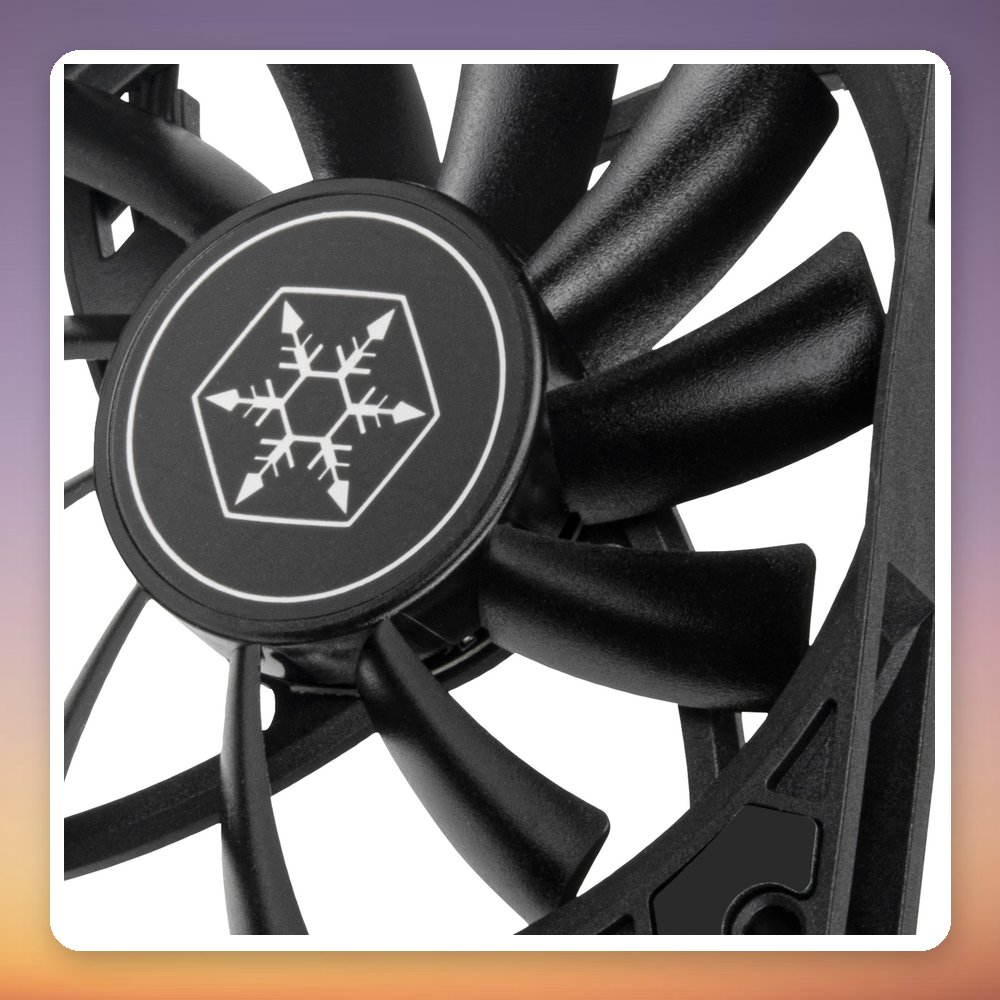

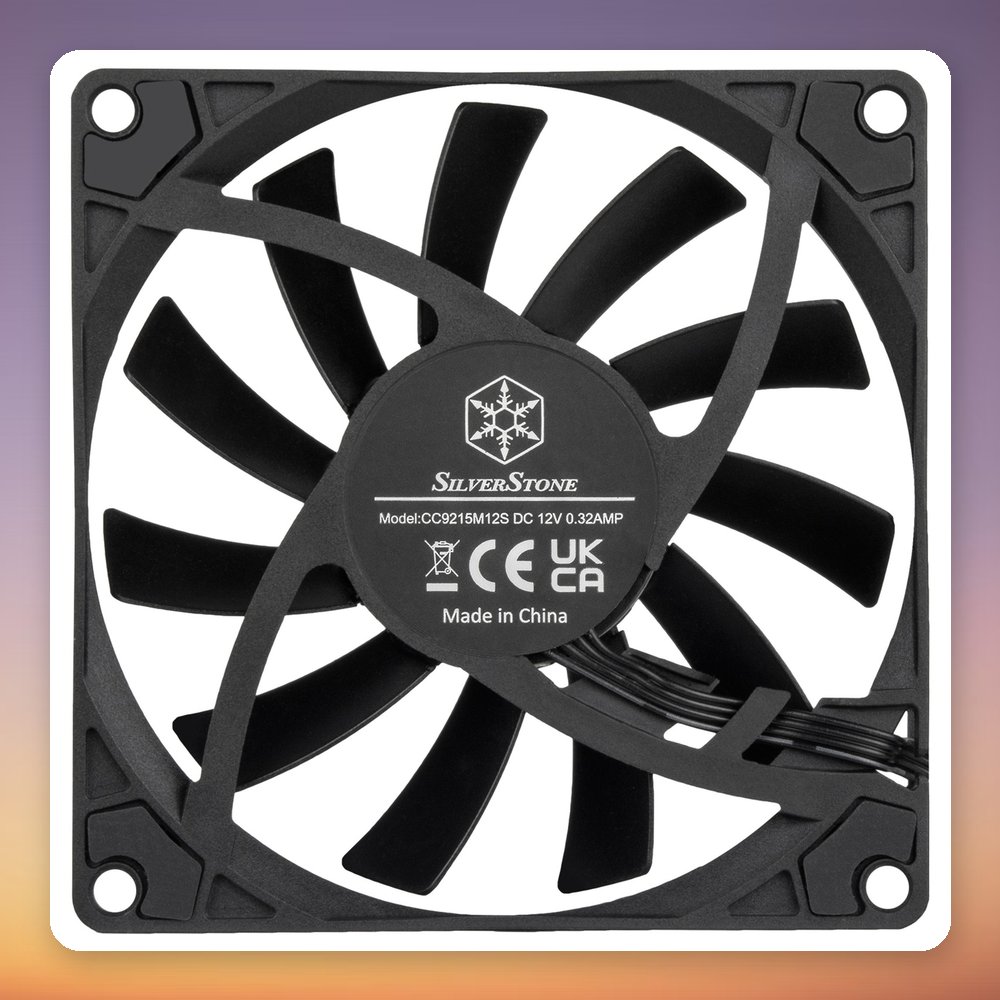

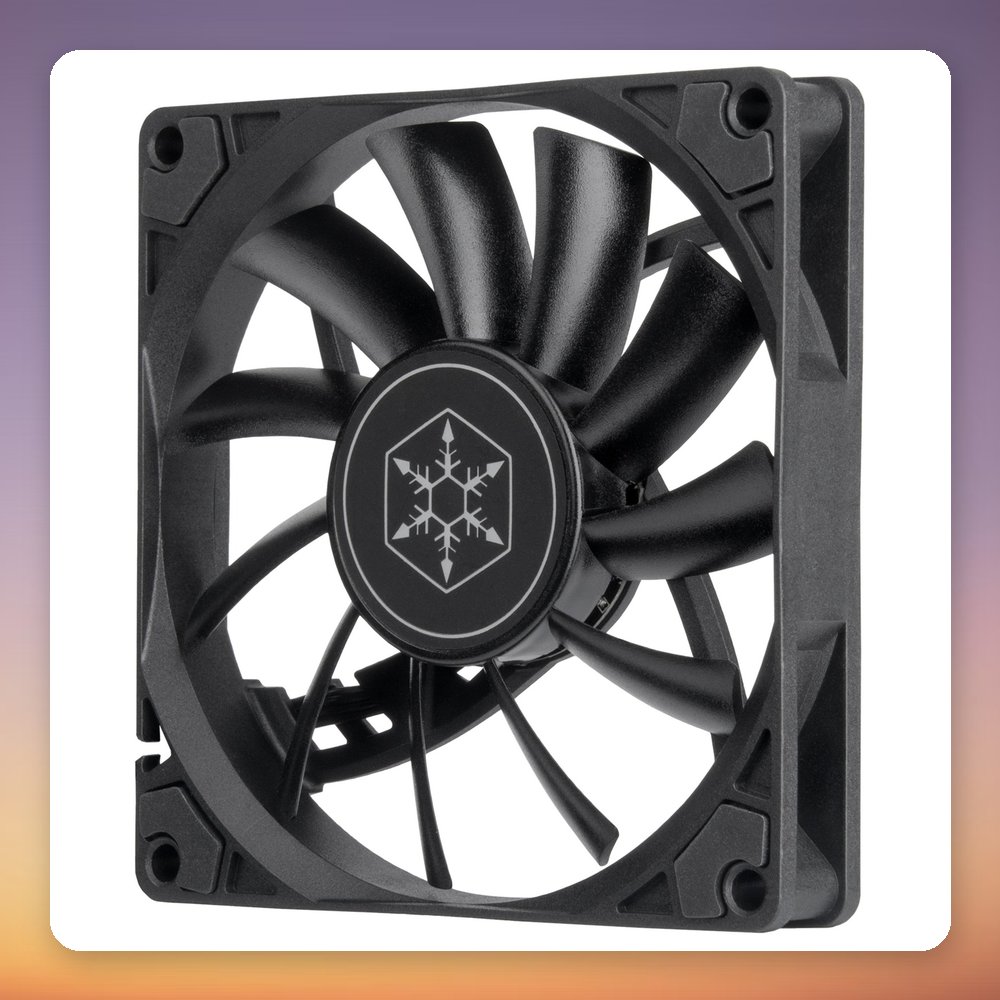

The Silverstone Air Slimmer 90 is a 92 mm slim PWM fan in black that is only 15 mm thick, which sets it apart from standard-depth 92 mm fans. The PWM control covers a wide 500 to 2,500 RPM range, with airflow of 5.38 to 45.73 CFM and static pressure of 0.11 to 2.29 mm H2O. Noise ranges from 11.3 dB to 32 dB, and it uses a hydraulic bearing.

The Air Slimmer 90 suits builds where space is limited, such as compact cases or tight spots where a thicker fan will not fit. It connects through a 4-pin PWM header, runs on 6 to 12 V and draws 3.84 W, and it is fixed with screws. Integrated rubber padding is included to further reduce vibration noise. The fan weighs 64 g and is sold as a single unit.

Specification

• Manufacturer: Silverstone Technology
• Model: Air Slimmer 90
• MPN: SST-AS90B
• EAN: 4710679815121
• Fan size: 92 x 92 mm

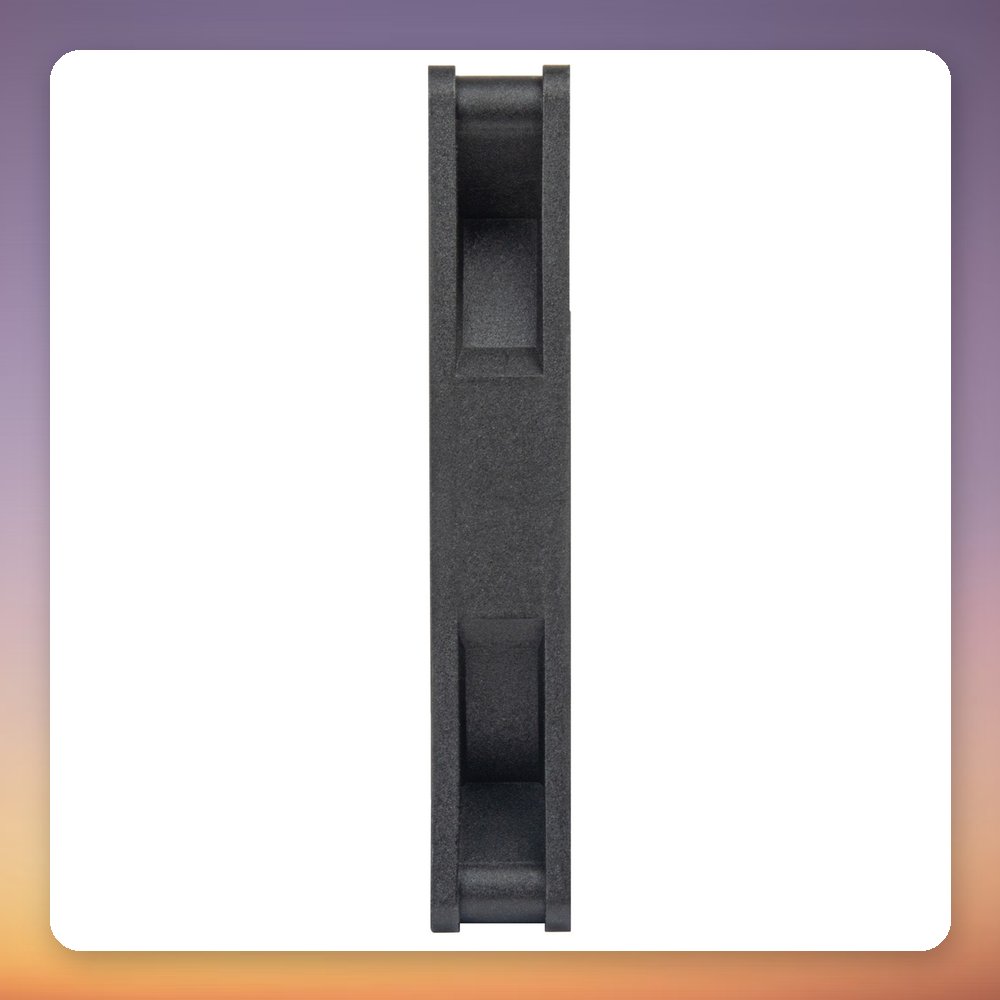

• Thickness: 15 mm
• Speed: 500 – 2,500 RPM
• Airflow: 5.38 – 45.73 CFM
• Static pressure: 0.11 – 2.29 mm H2O
• Noise level: 11.3 – 32 dB
• Bearing: Hydraulic
• Connector: 4-pin PWM
• Voltage range: 6 – 12 V
• Power consumption: 3.84 W
• Mounting: Screwed
• Colour: Black
• Weight: 64 g
• Dimensions (W x H x D): 92 x 92 x 15 mm
