Product Overview

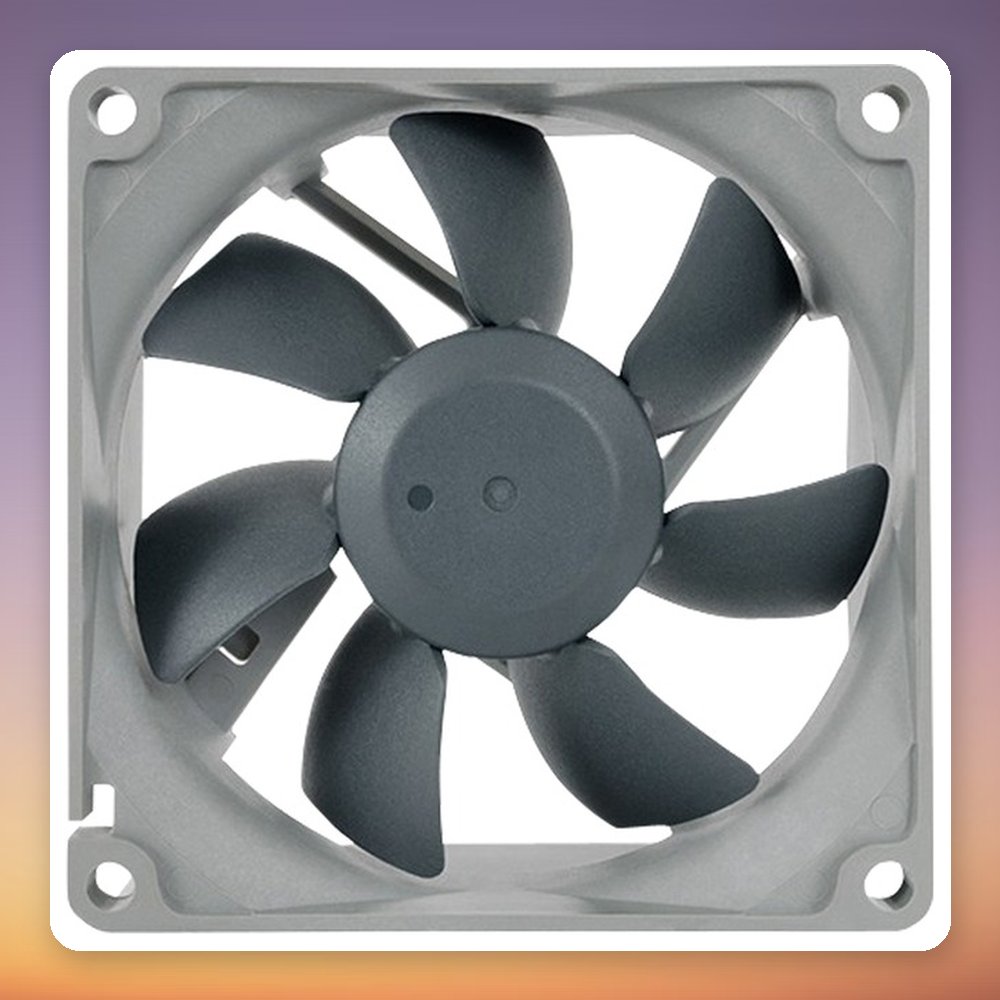

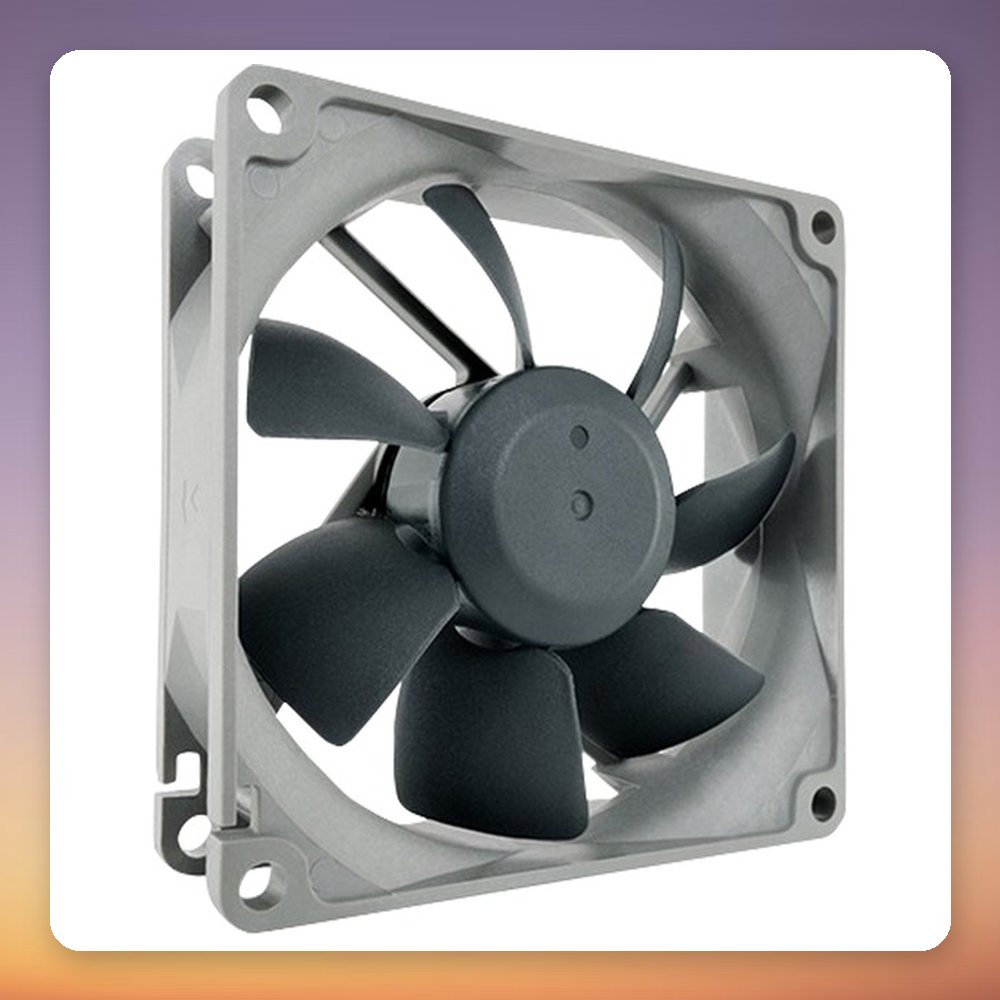

The Noctua NF-R8 redux-1800 is an 80 mm case fan that runs at up to 1,800 RPM and moves between 26 and 53 m³/h of air (15.3 to 31.2 cfm) at a noise level of 7 to 17 dB. It uses Noctua’s SSO bearing, which the manufacturer rates at an MTBF of over 150,000 hours, and connects through a standard 3-pin plug.

The redux range is a slimmed-down, lower-priced version of the well-known NF-R8, reduced to the fan itself. The 1800 RPM version is aimed at a balance between cooling performance and quiet running, which suits general case ventilation in compact builds and other applications that need a smaller 80 mm fan. It runs on 4 to 13 volts, draws 1.32 W and is screw-mounted.

Specification

• Manufacturer: Noctua
• Model: NF-R8 redux-1800
• MPN: NF-R8 redux-1800
• EAN: 4716123315346
• Fan size: 80 x 80 x 25 mm
• Speed: 1,800 RPM
• Airflow: 26 – 53 m³/h (15.3 – 31.2 cfm)
• Static pressure: Up to 1.41 mm H2O
• Noise level: 7 – 17 dB
• Bearing: SSO
• Connector: 3-pin
• Voltage range: 4 – 13 V
• Power consumption: 1.32 W
• Mounting: Screwed
• MTBF: Over 150,000 hours
• Weight: 145 g
