Product Overview

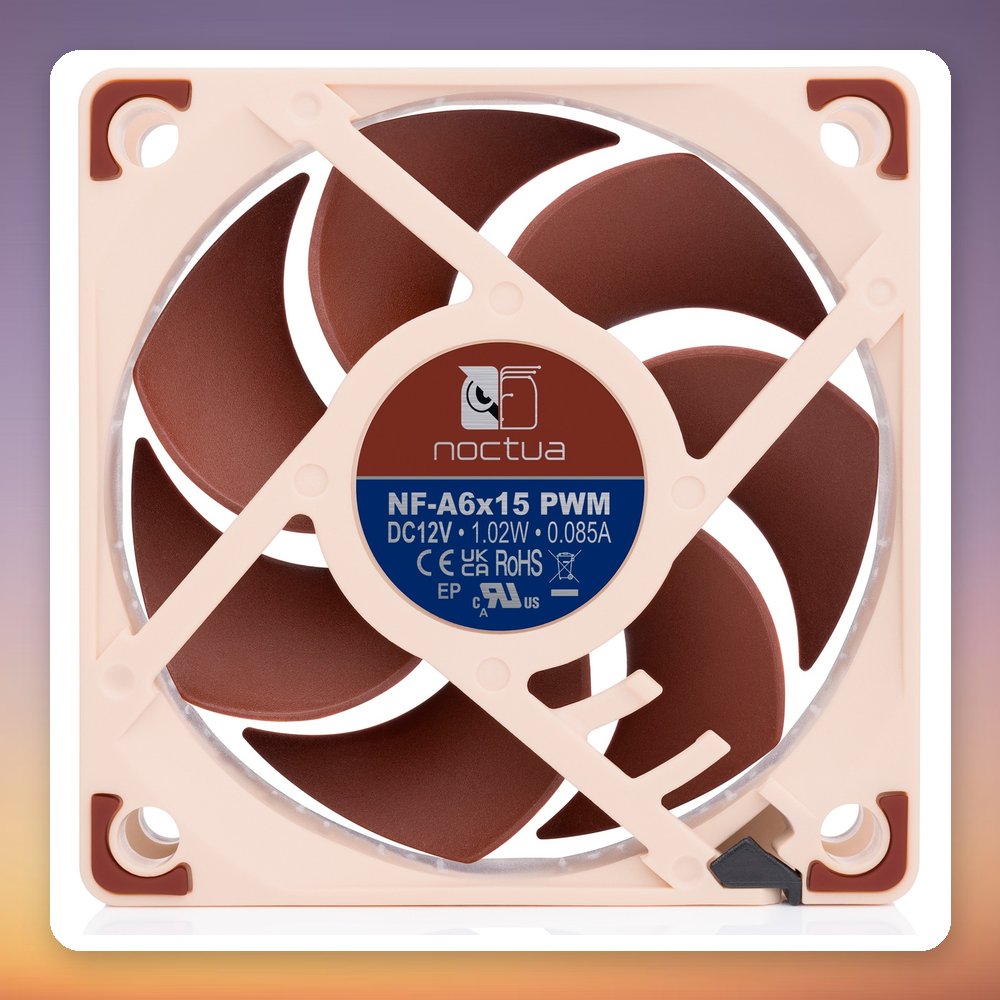

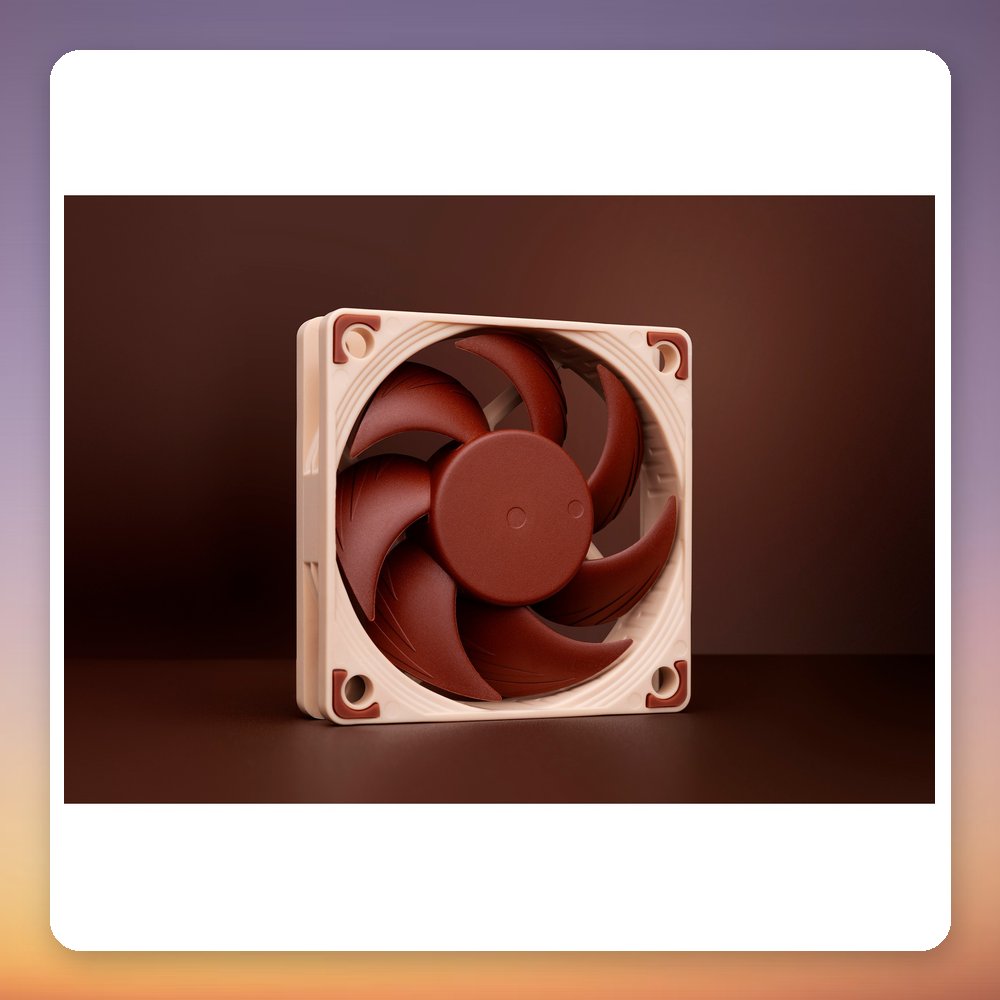

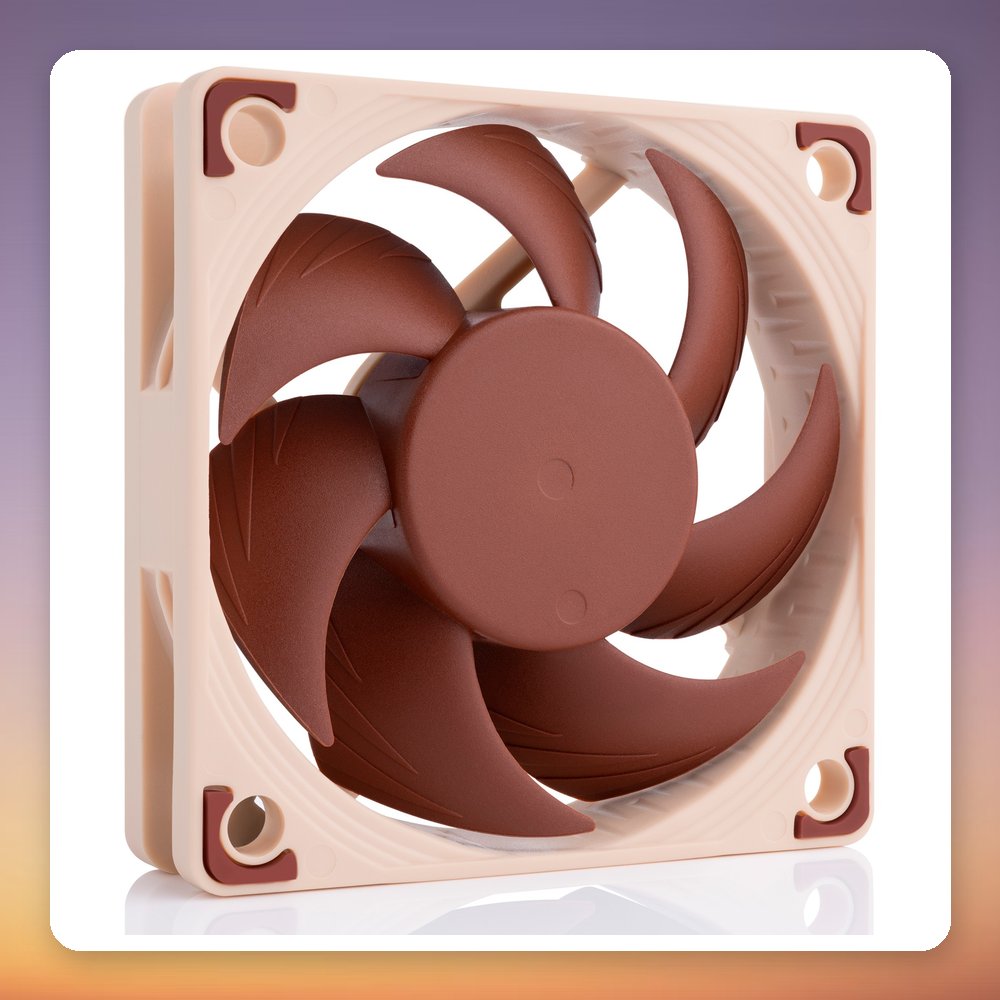

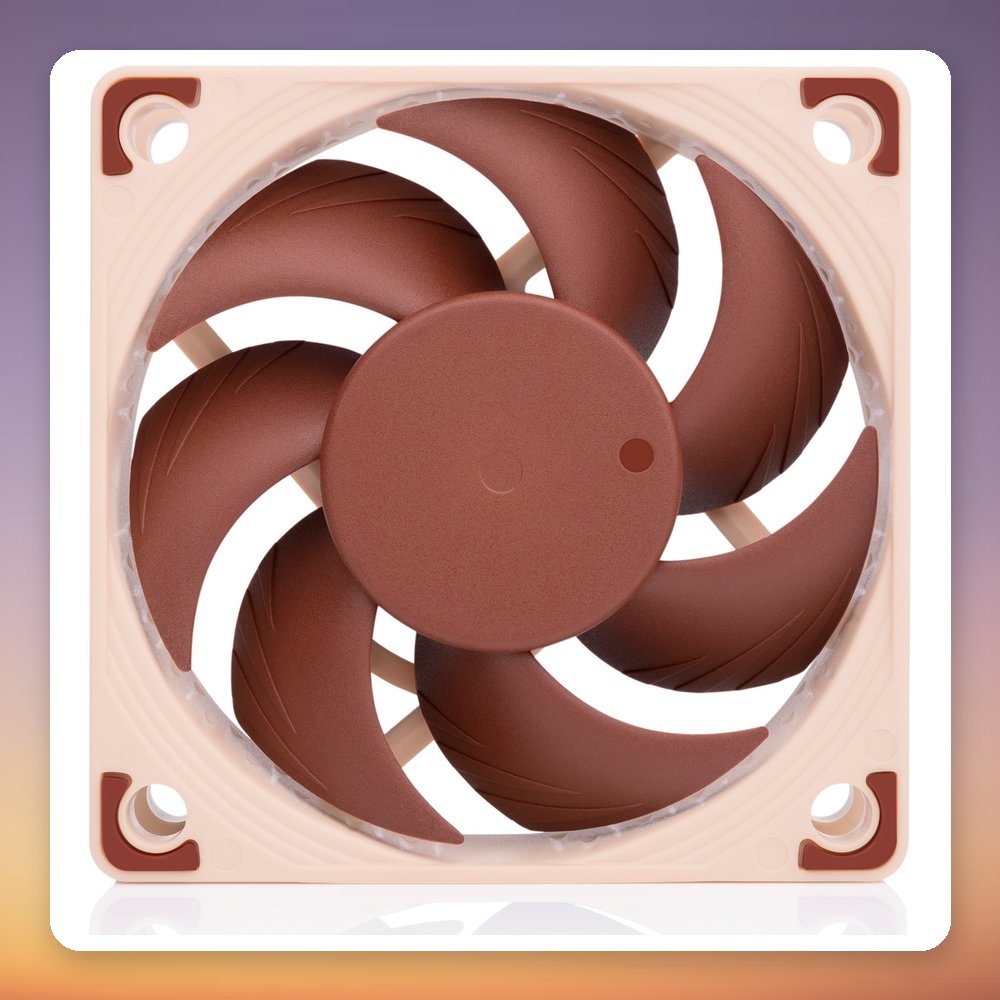

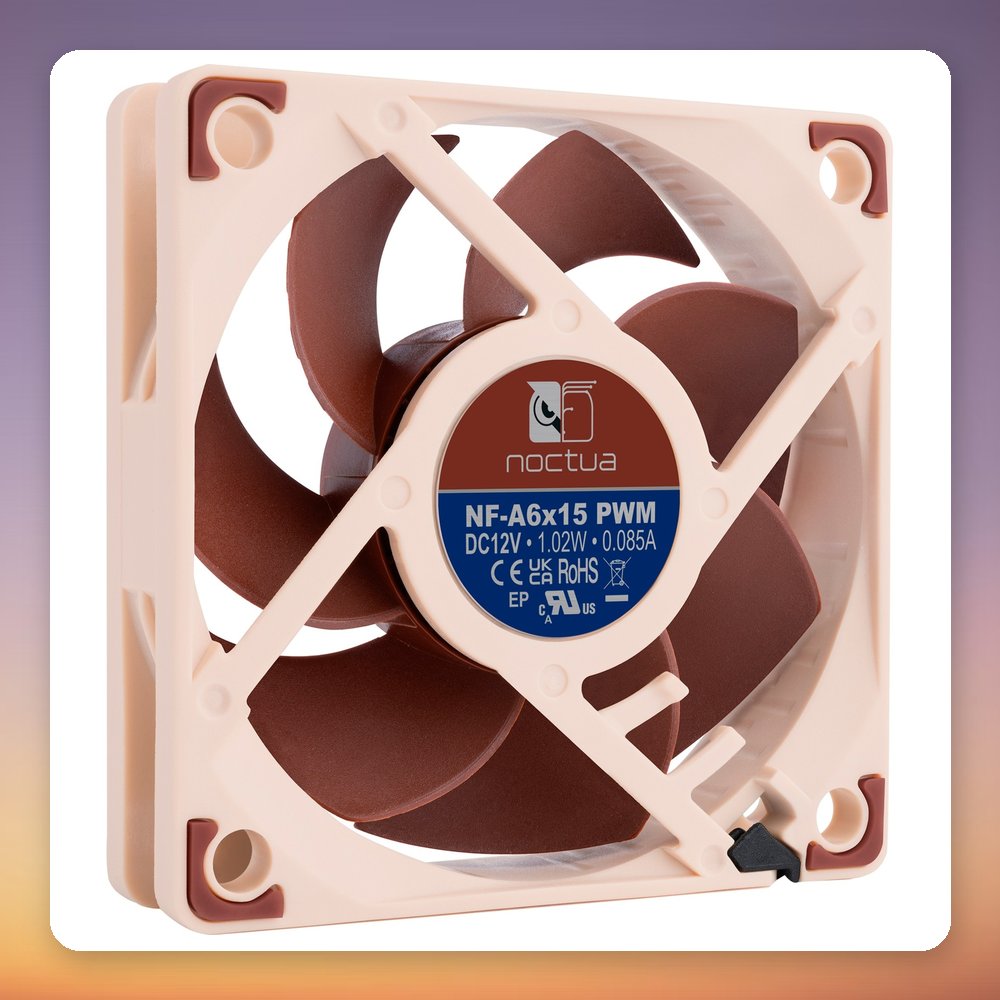

The Noctua NF-A6x15 PWM is a compact 60 x 60 x 15 mm case fan with 4-pin PWM control and a top speed of 3,500 RPM. It uses Flow Acceleration Channels and Noctua’s AAO frame design, moves up to 23.4 m³/h of air and produces 2.43 mm H2O of static pressure, all at a noise level of 16.5 to 19.8 dB.

The slim 15 mm profile suits small cases, NAS builds, heatsinks and other tight spaces where a standard 120 mm fan will not fit. The built-in NE-FD1 IC handles fully automatic speed control over PWM, and the included Low-Noise Adapter lowers the maximum speed from 3,500 to 3,050 RPM for quieter running. The SSO2 bearing and a generous accessory bundle, including anti-vibration mounts, an extension cable and a Y-cable, make installation straightforward.

Specification

• Manufacturer: Noctua
• Model: NF-A6x15 PWM
• MPN: NF-A6x15 PWM
• EAN: 9010018100143
• Fan size: 60 x 60 x 15 mm
• Speed: 3,050 to 3,500 RPM (3,050 RPM max with L.N.A.)
• Airflow: 20.1 to 23.4 m³/h
• Static pressure: 1.79 to 2.43 mm H2O
• Noise level: 16.5 to 19.8 dB
• Bearing: SSO2
• Connector: 4-pin PWM
• Voltage: 12 V
• Power consumption: 1.02 W
• Mounting: Screws
• Design: AAO frame with Flow Acceleration Channels

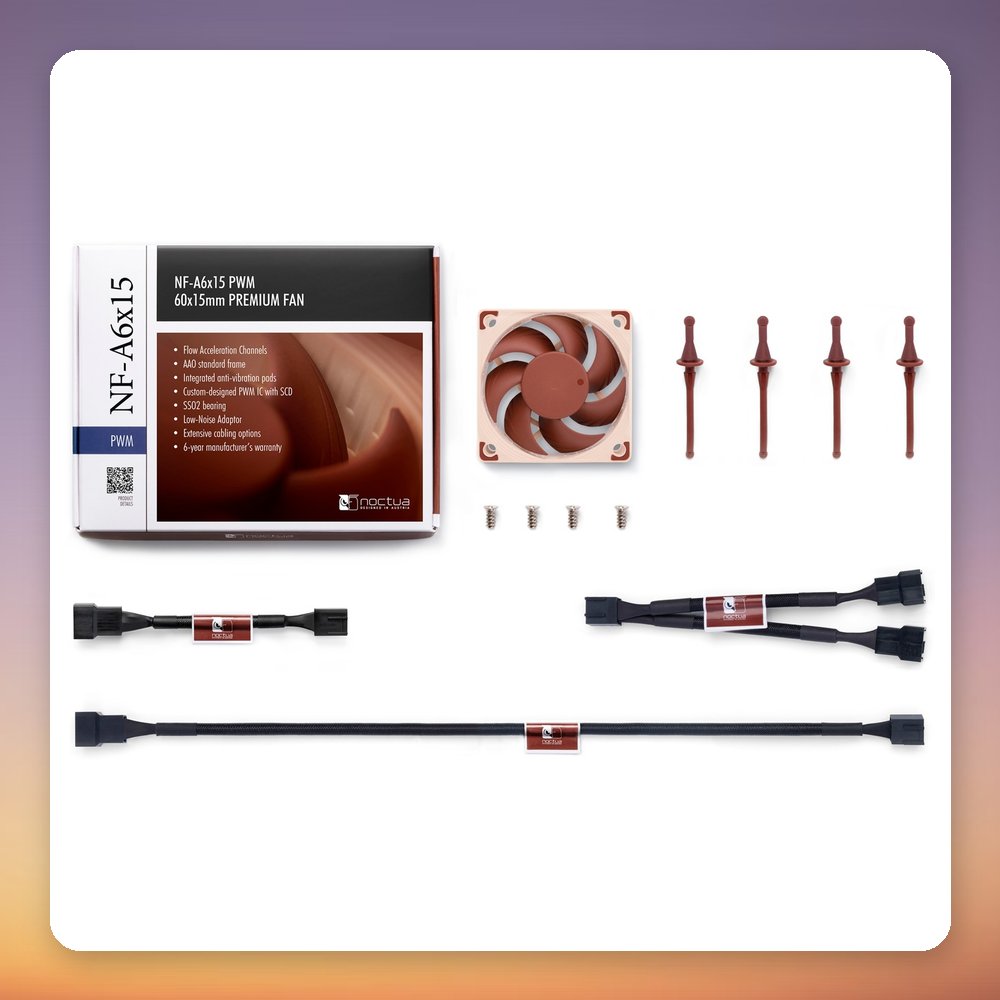

• Included accessories: 4x NA-AV2 anti-vibration mounts, NA-EC1 30 cm extension cable, NA-YC1 PWM Y-cable, NA-RC14 Low-Noise Adapter, 4x fan screws
