Product Overview

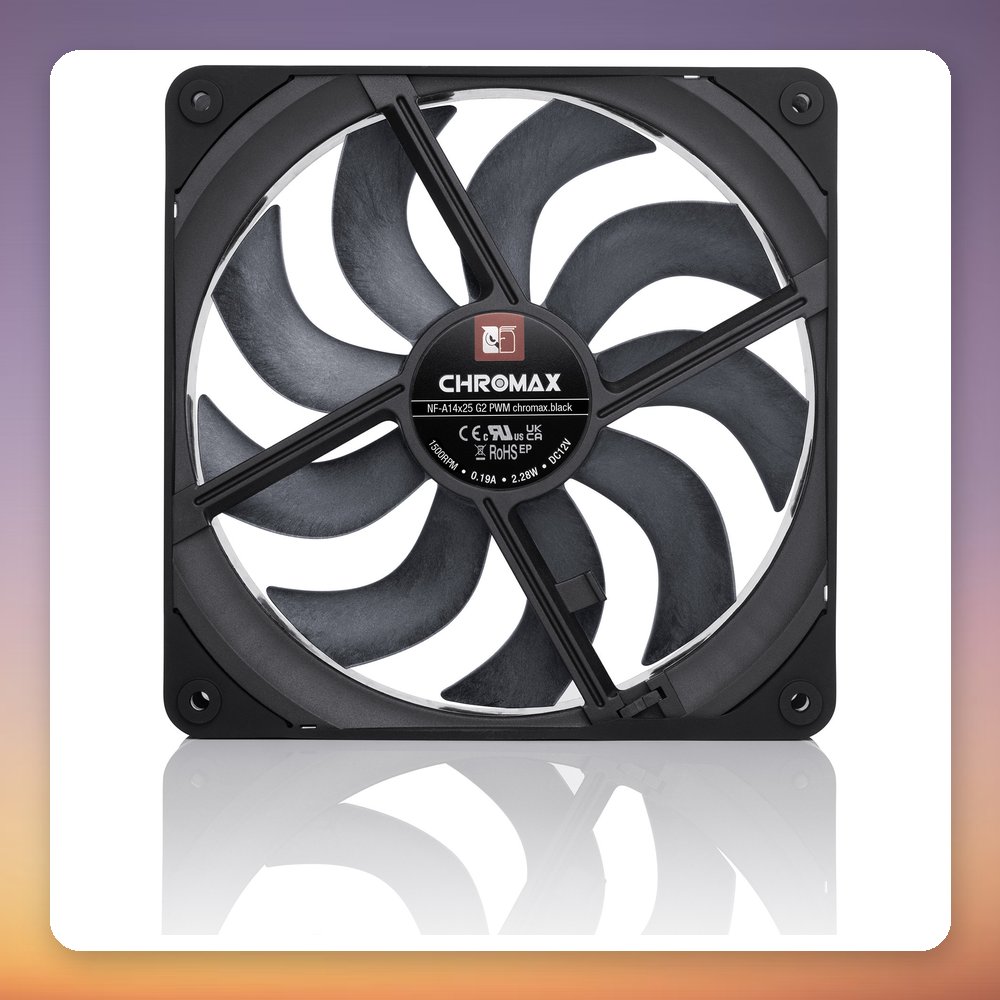

The Noctua NF-A14x25 G2 PWM chromax.black is a 140 mm, 25 mm thick case fan in black with a 4-pin PWM connector. It runs at up to 1,500 rpm, moves up to 155.6 m³/h of air and delivers static pressure of up to 2.56 mm H2O at 24.8 dB. The impeller is made from Sterrox LCP and has winglets, Flow Acceleration Channels and a centrifugal turbulator hub, with a gap of only 0.7 mm between impeller and frame.

This fan suits builders who want strong airflow with low noise, whether as a case fan or on a water-cooling radiator. It uses an SSO 2 bearing with an MTTF above 150,000 hours and draws 2.28 W at 12 V. The box includes a Low-Noise Adapter that lowers noise to 19.7 dB(A), a Y-cable, a 30 cm extension cable and anti-vibration mounts, pads and a sealing lip, plus fan screws.

Specification

• Manufacturer: Noctua
• Model: NF-A14x25 G2 PWM chromax.black
• MPN: NF-A14x25 G2 PWM chromax.black
• EAN: 9010018100723
• Fan size: 140 x 140 x 25 mm
• Colour: Black
• Speed: 1,500 rpm
• Airflow: 155.6 m³/h
• Static pressure: Up to 2.56 mm H2O
• Noise level: 24.8 dB (19.7 dB(A) with Low-Noise Adapter)
• Connector: 4-pin PWM
• Voltage: 12 V
• Power consumption: 2.28 W
• Bearing: SSO 2
• MTTF: > 150,000 hours
• Cable length: 50 cm (20 cm + 30 cm NA-EC1 extension)
• Mounting: Screwed
• Weight: 225 g
