Product Overview

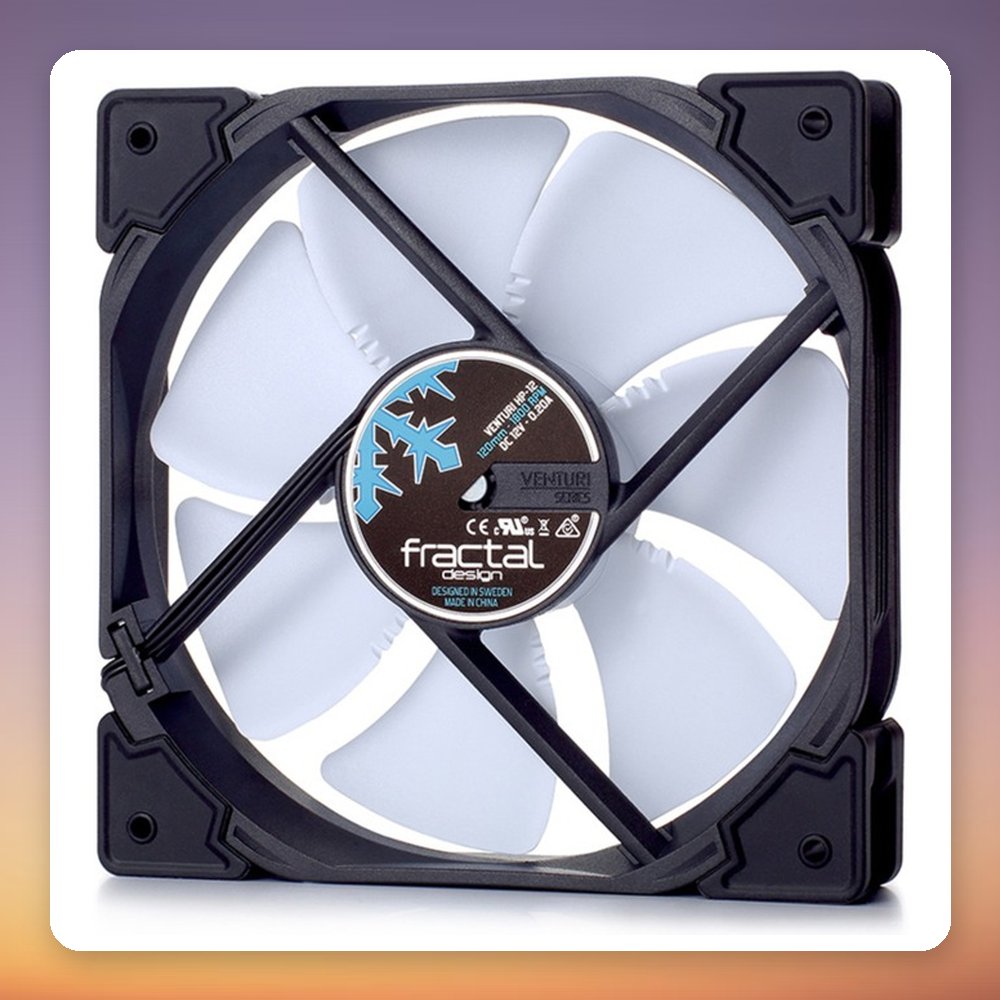

The Fractal Design Venturi HP-12 PWM is a 120 mm case fan from the High-Flow series, built for situations where high airflow matters. It spins from 400 to 1,800 RPM and moves up to 104.3 m³/h (61.4 CFM) of air at a maximum noise level of 31.7 dB(A), with static pressure of up to 2.3 mm H2O.

Fractal Design designed the Venturi fans primarily as case fans, and they suit setups with low airflow restriction. The 4-pin PWM connector lets the motherboard control the speed, and the fluid dynamic bearing keeps running noise low, from 10 dB at minimum speed. The blades are aerodynamically shaped on the lines of an aircraft wing. The white finish suits light-coloured PC builds, and the fan fixes in place with screws.

Specification

• Manufacturer: Fractal Design
• Model: Venturi HP-12 PWM
• MPN: FD-FAN-VENT-HP12-PWM-WT
• EAN: 7340172700203
• Fan size: 120 mm
• Fan speed: 400 – 1,800 RPM
• Airflow: 26.2 – 104.3 m³/h (15.4 – 61.4 CFM)
• Static pressure: 0.45 – 2.3 mm H2O
• Noise level: 10 – 31.7 dB(A)
• Bearing: Fluid Dynamic Bearing (FDB)
• Connector: 4-pin PWM
• Voltage range: 6 – 12 V
• Power consumption: 1 W
• Low PWM speed (0-20%): 400 RPM
• Colour: White
• Mounting: Screwed
• Dimensions (W x H x D): 120 x 120 x 25 mm
• Weight: 238 g
