Product Overview

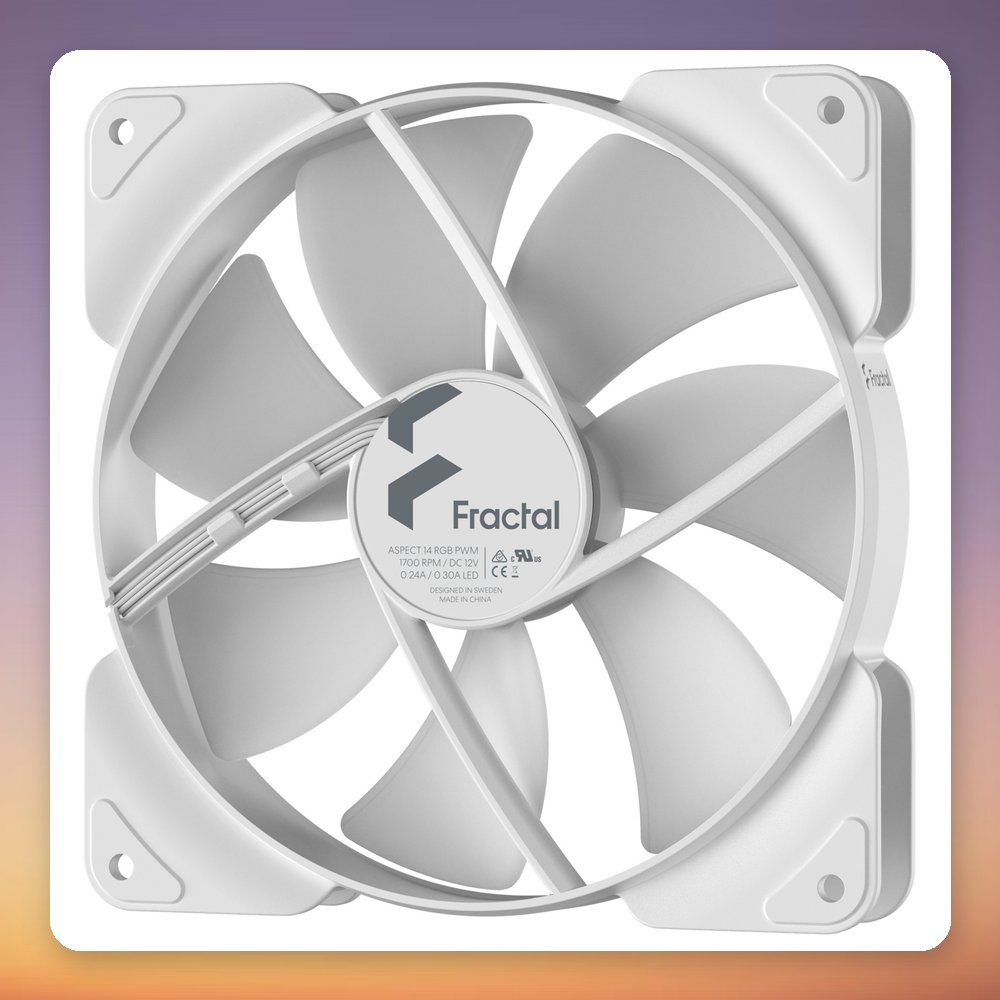

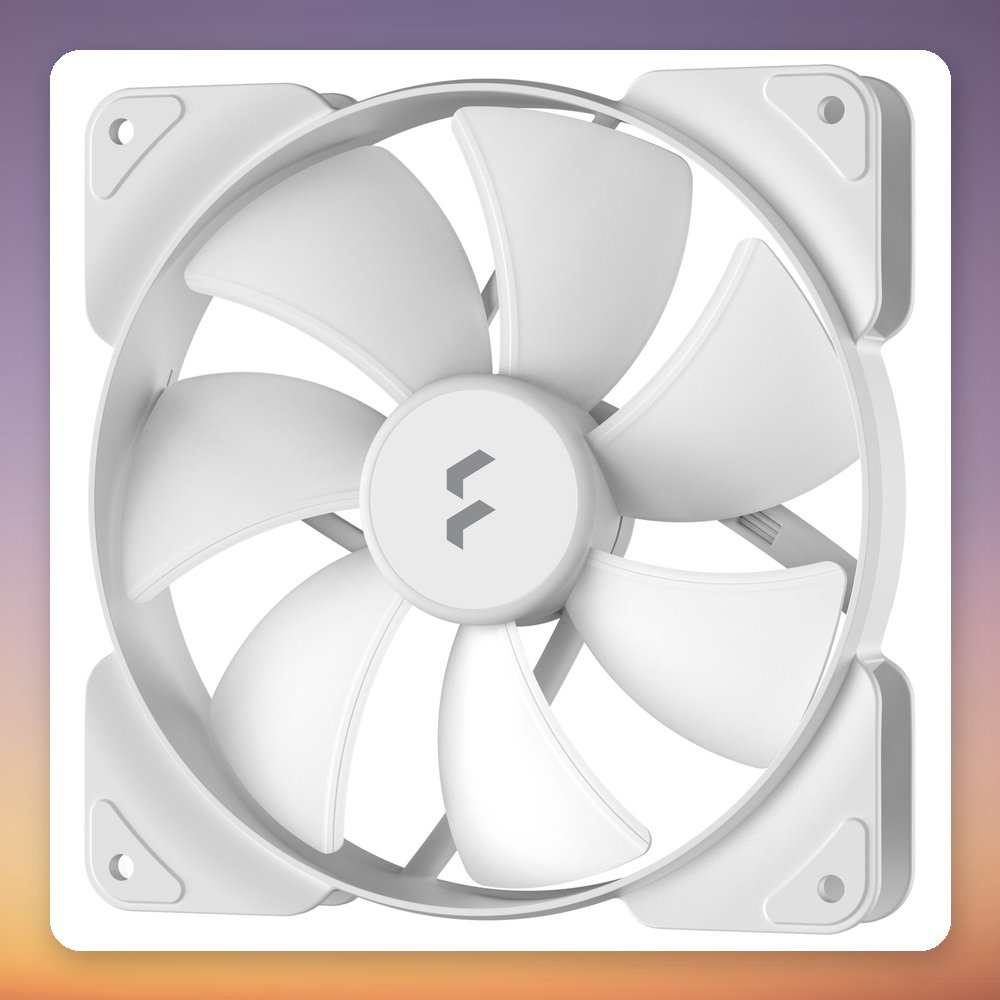

The Fractal Design Aspect 14 RGB PWM is a 140 mm case fan with a white frame and addressable RGB lighting. It runs at 500 to 1,700 RPM under 4-pin PWM control, moving between 34 and 132.5 m³/h (20 to 78 CFM) of air while staying between 10 and 35.5 dB. Rifle bearings and Trip Wire technology are used to improve efficiency and cut noise.

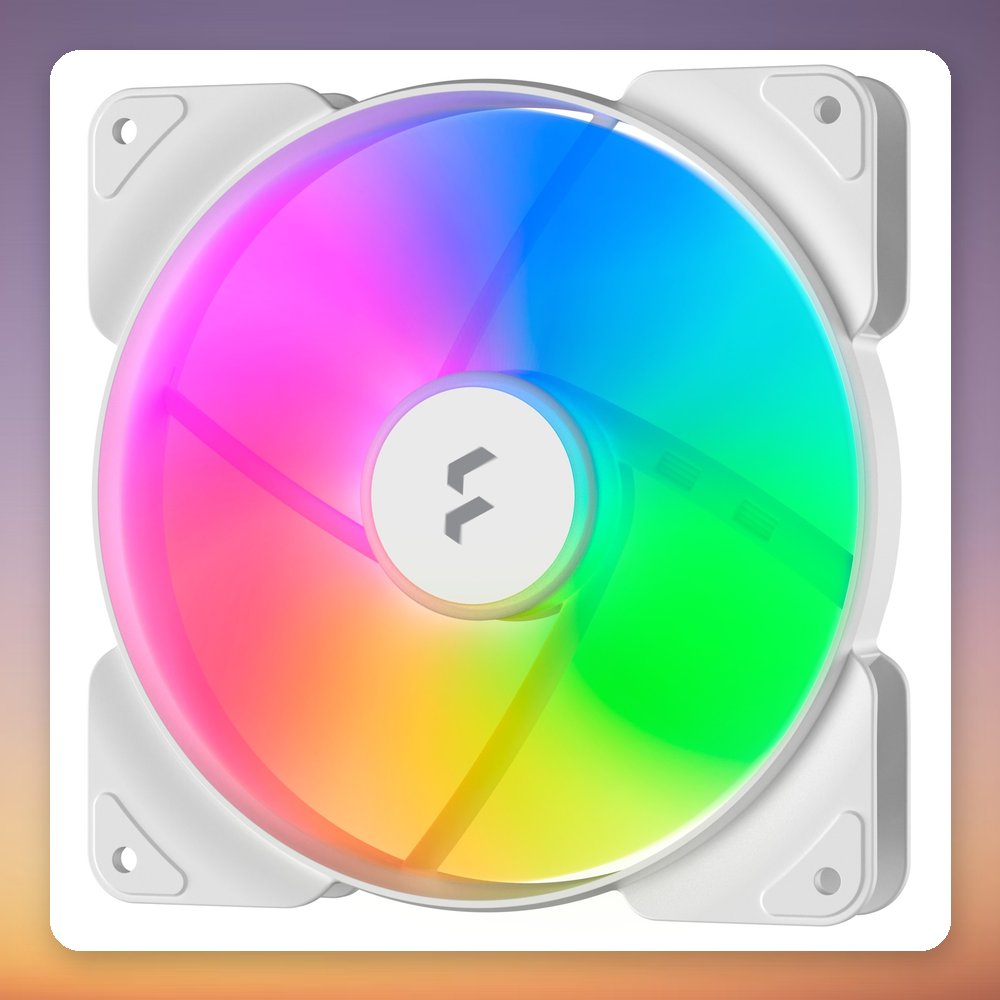

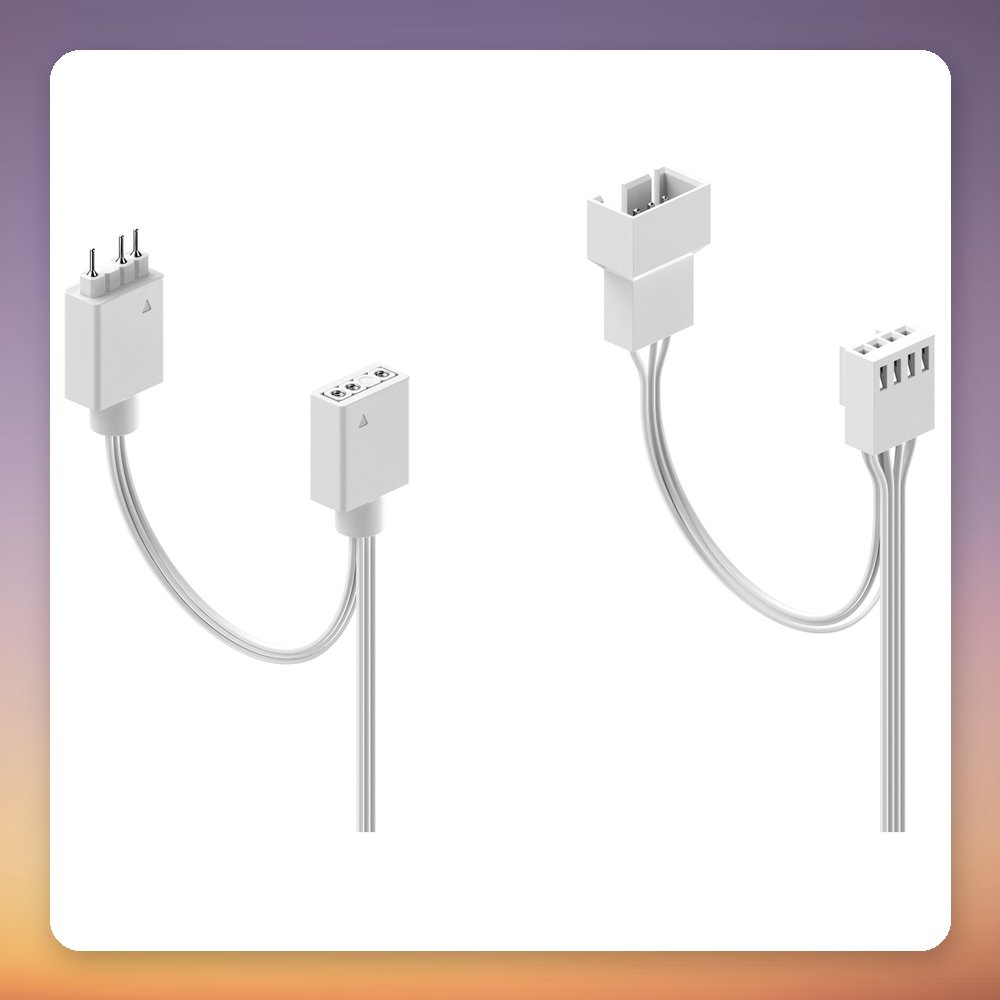

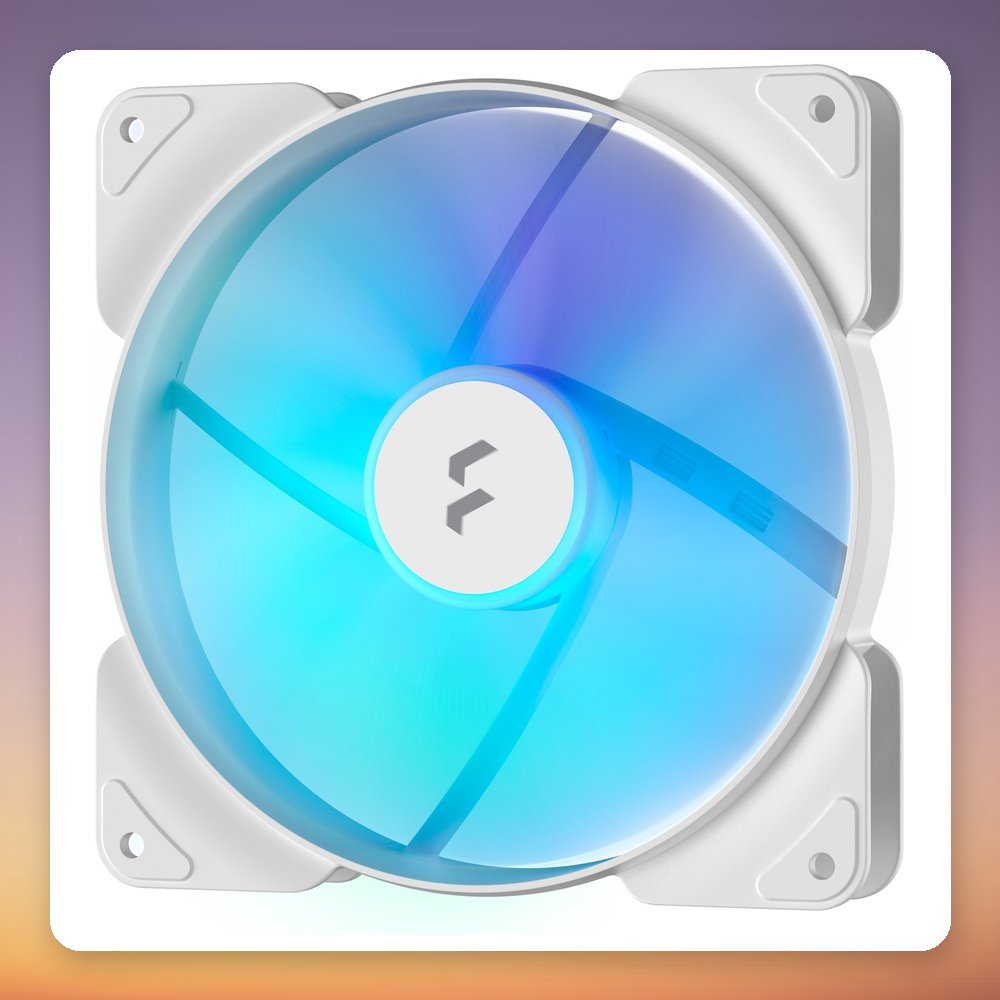

Fractal Design describes the Aspect as a fan for users who want a good-looking, high-quality fan that combines aesthetics and performance. The addressable RGB header works with AURA Sync, Mystic Light and RGB Fusion, and the ribbon-style cable is daisy-chainable, so several fans can be linked for simpler cable management. It is screw-mounted and suits PC cases that take a 140 mm fan, including white-themed builds.

Specification

• Manufacturer: Fractal Design
• Model: Aspect 14 RGB PWM
• MPN: FD-F-AS1-1409
• EAN: 7340172704027
• Fan size: 140 mm
• Dimensions (W x H x D): 140 x 140 x 25 mm
• Speed: 500 – 1,700 RPM
• Airflow: 34 – 132.5 m³/h (20 – 78 CFM)
• Static pressure: 0.3 – 2.05 mm H2O
• Noise level: 10 – 35.5 dB
• Bearing: Rifle
• Connector: 4-pin PWM
• Voltage range: 7 – 12 V
• Power consumption: 2.16 – 2.88 W
• Lighting: Addressable RGB (AURA Sync, Mystic Light, RGB Fusion)
• Cable length: 50 cm (daisy-chainable ribbon cable)
• Colour: White
• Mounting: Screwed
