Arctic P14 Pro Reverse 140 mm PWM Case Fan, Black, Single Pack
€9.53
Delivery: 7-12 business days
Arctic P14 Pro Reverse 140 mm PWM Case Fan, Black, Single Pack
- Reverse-blade design for rear-side air intake
- Up to 166.5 m³/h airflow and 5.1 mmH2O pressure
- 400 – 2,650 RPM via 4-pin PWM control
- Daisy-chain PWM socket: several fans, one header
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview

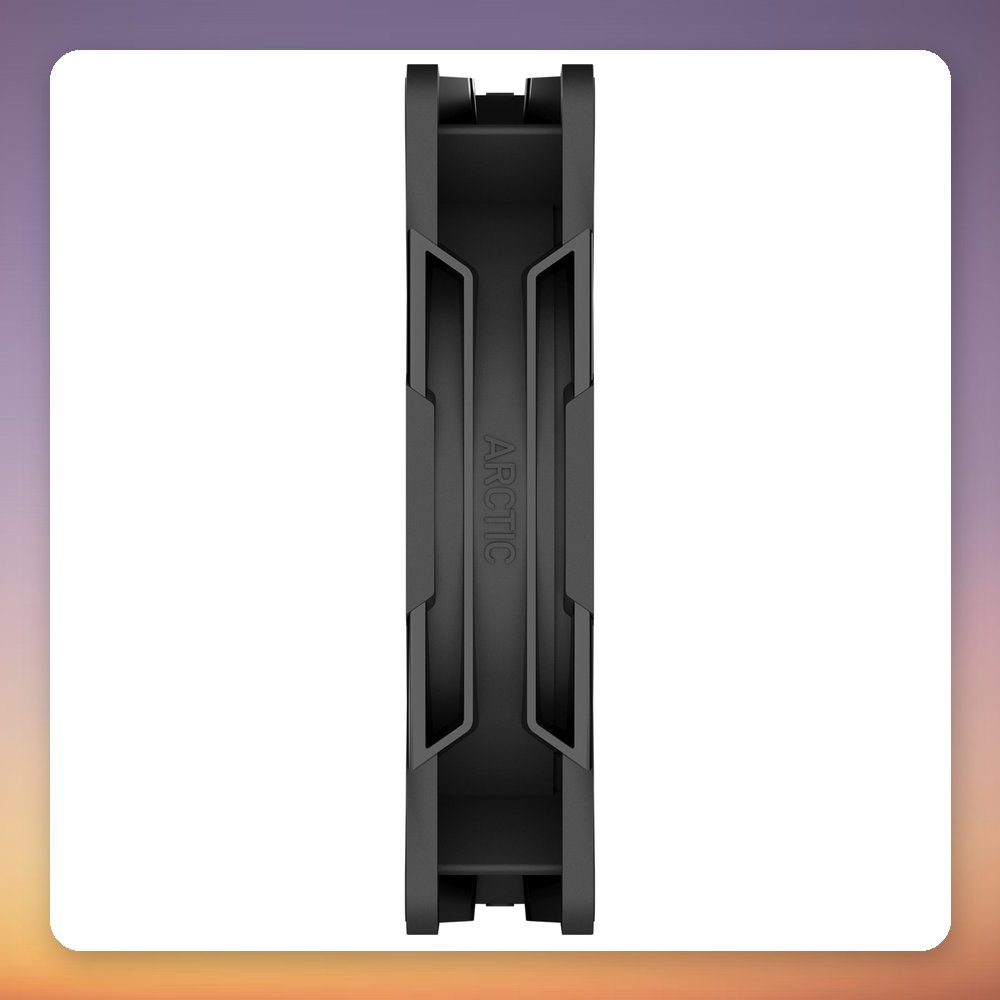

The Arctic P14 Pro Reverse 140 mm PWM fan is a reverse-blade case fan designed for drawing air in from the rear side of the fan. It moves up to 166.5 m³/h (98 cfm) with static pressure of up to 5.1 mmH2O, and its speed range runs from 400 to 2,650 RPM under 4-pin PWM control. A fluid dynamic bearing and a funnel-shaped air inlet with drop-shaped struts reduce flow losses.
This fan suits PC builders who want to mount a 140 mm fan with its intake on the rear side, for example when fitting fans on the back of a radiator or in a case where the standard orientation doesn’t work. The extra PWM socket lets you daisy-chain several fans and control them from a single motherboard header, which keeps cable routing tidy. The cable is 400 mm plus an 80 mm daisy-chain cable, and four screws are included.
Specification
- Manufacturer: Arctic
- Model: P14 Pro Reverse
- MPN: ACFAN00329A
- EAN: 4895265000744
- Fan size: 140 mm (140 x 140 x 30 mm)
- Type: Case fan, reverse blade
- Speed: 400 – 2,650 RPM
- Airflow: 166.5 m³/h (98 cfm)
- Static pressure: Up to 5.1 mmH2O
- Noise level: Up to 23.5 dB(A) (0.3 sone)
- Bearing: Fluid Dynamic Bearing (FDB)
- Connector: 4-pin PWM (with additional daisy-chain PWM socket)
- Voltage: 12 V rated (2.8 – 12 V range)
- Rated current: 0.4 A
- Fan blades: 5
- Cable length: 400 mm + 80 mm daisy-chain cable
- Lighting: None
- Colour: Black
- Weight: 248 g
- Dimensions (W x H x D): 140 x 140 x 30 mm
delivery time 7-12 business days
| Weight | 0.314 kg |
|---|
