Product Overview

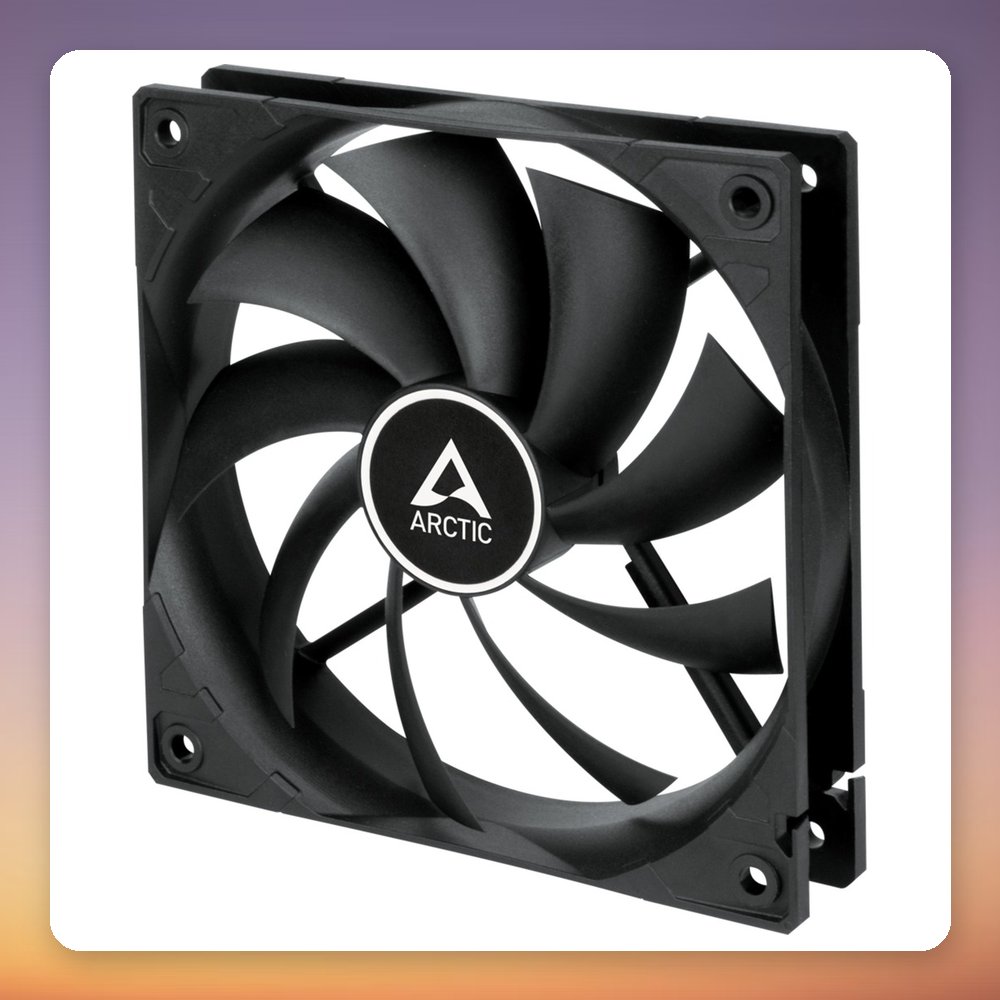

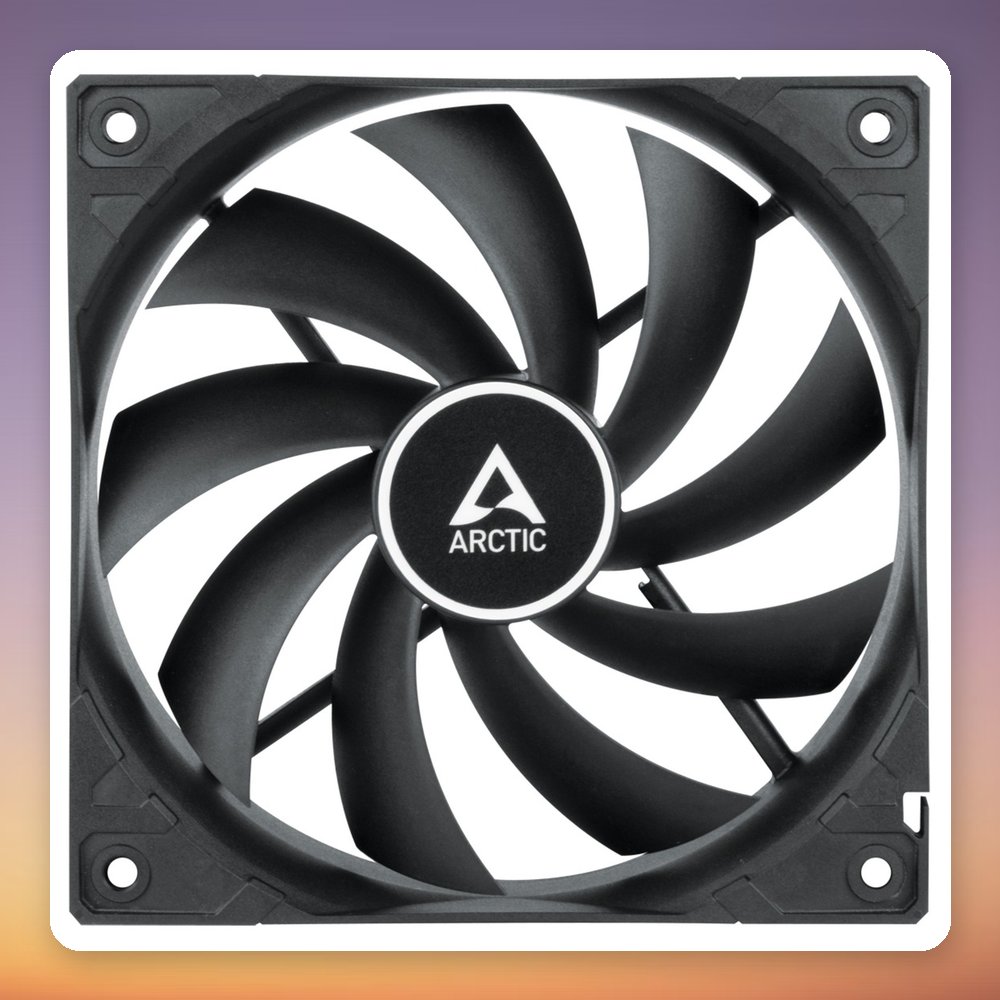

The Arctic F12 PWM PST 120 mm case fan is a 120 x 120 x 25 mm fan with a fluid dynamic bearing and 4-pin PWM control. It runs from 230 to 1,350 RPM and moves up to 90.1 m³/h (53 cfm) of air at a rated noise level of 0.3 sone, with a maximum air pressure of 1 mmH2O. The oil-capsule fluid dynamic bearing is designed to avoid lubricant loss, giving a quiet running sound with a longer service life than a plain sleeve bearing.

The PST (PWM Sharing Technology) feature lets several fans follow a single PWM signal, so you can daisy-chain multiple case fans from one header, for example the CPU cooler’s PWM signal, and have them speed up and slow down together. The fan has no lighting, comes in black, and is fitted with screws (included). With a 0.4 m cable and a weight of 109 g, it suits airflow upgrades in a standard PC case and quiet gaming or home builds where fans are controlled by the motherboard.

Specification

• Manufacturer: Arctic
• Model: F12 PWM PST
• MPN: ACFAN00200A
• EAN: 4895213702966
• Fan size: 120 mm (120 x 120 x 25 mm)
• Speed: 230 – 1,350 RPM
• Airflow: 90.1 m³/h (53 cfm)
• Air pressure: Up to 1 mmH2O
• Noise level: 0.3 sone
• Bearing: Fluid Dynamic Bearing (FDB)
• Connector: 4-pin PWM (4-pin + 4-pin with PST)
• Voltage: 12 V
• Starting voltage: 6 V
• Rated current: 0.24 A
• Cable length: 0.4 m
• Colour: Black
• Lighting: No
• Weight: 109 g
