Product Overview

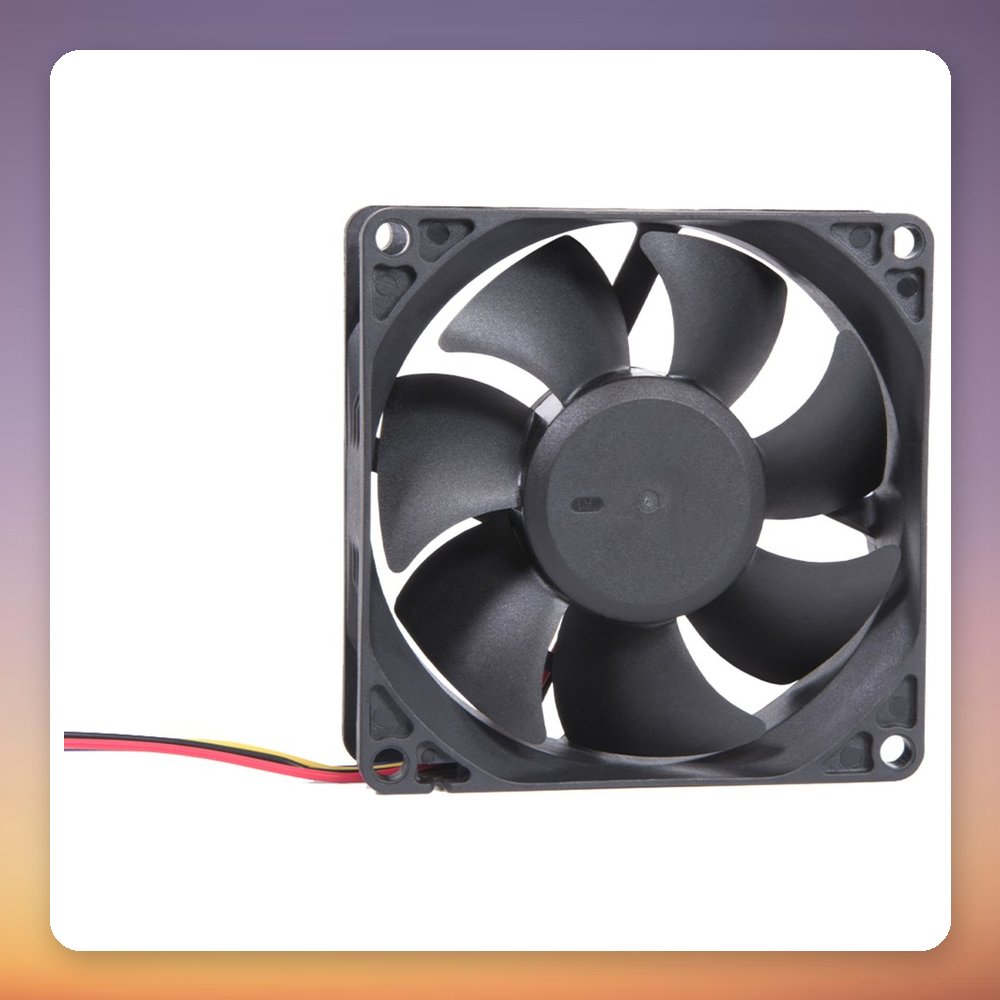

The Alphacool ES 80mm 800-6000rpm PWM fan is an 80 mm server and workstation fan with a very wide speed range of 800 to 6,000 rpm. It moves up to 130.93 m³/h of air at a static pressure of up to 14.29 mm/H2O, so it suits radiators and tight, restrictive airflow paths. A double ball bearing is fitted for a longer service life under full load.

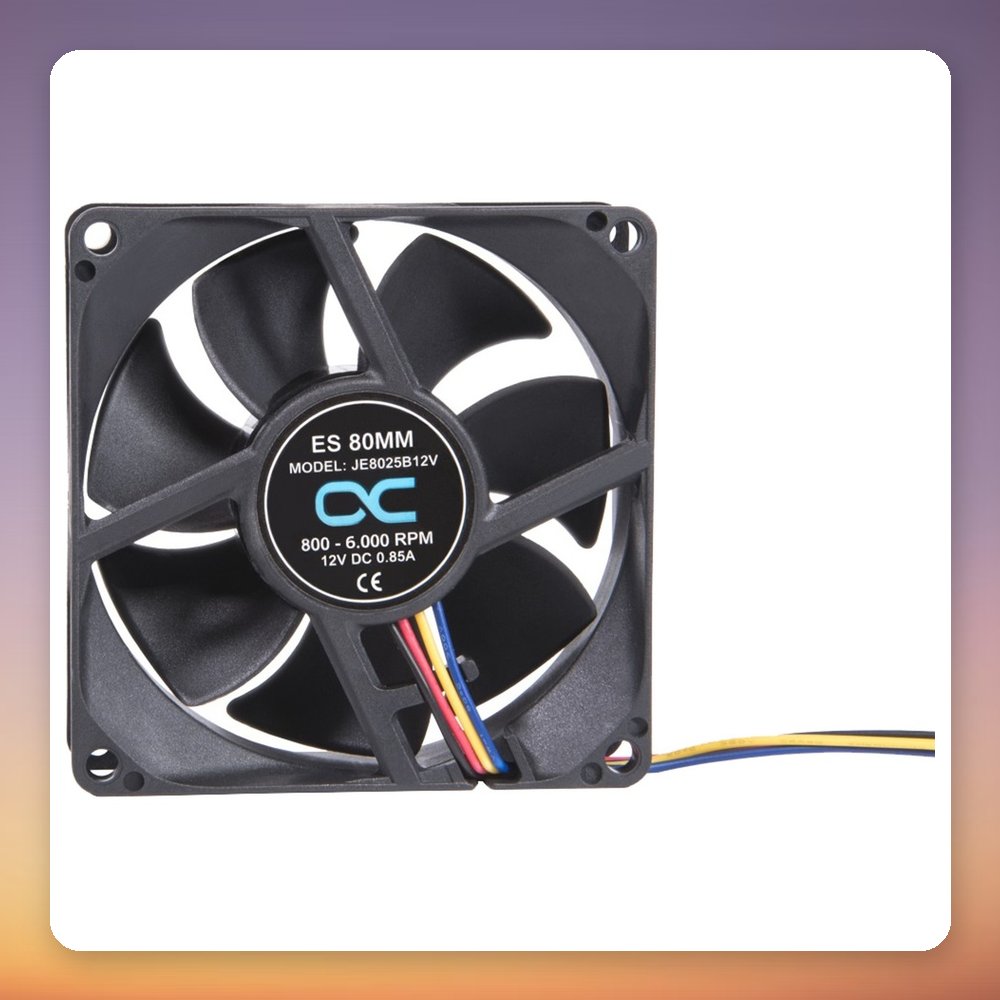

Unlike many fans of this kind, the ES fan uses a 4-pin PWM connector rather than a 2- or 3-pin DC plug. It always receives full voltage and is controlled by pulse width modulation, which allows regulation across the whole speed range. It is suited to servers, workstations and PC cases that need a compact, high-airflow 80 mm fan, and it is screw-mounted. Note that the stickers on the fan show 1000-4000 rpm, but the correct range is 800-6000 rpm.

Specification

• Manufacturer: Alphacool
• Model: ES 80mm
• MPN: 24829
• EAN: 4250197135795
• Fan size: 80 x 80 x 25 mm
• Speed: 800 – 6,000 rpm
• Airflow: 130.93 m³/h
• Static pressure: Up to 14.29 mm/H2O
• Noise level: 50 dB
• Bearing: Double ball bearing

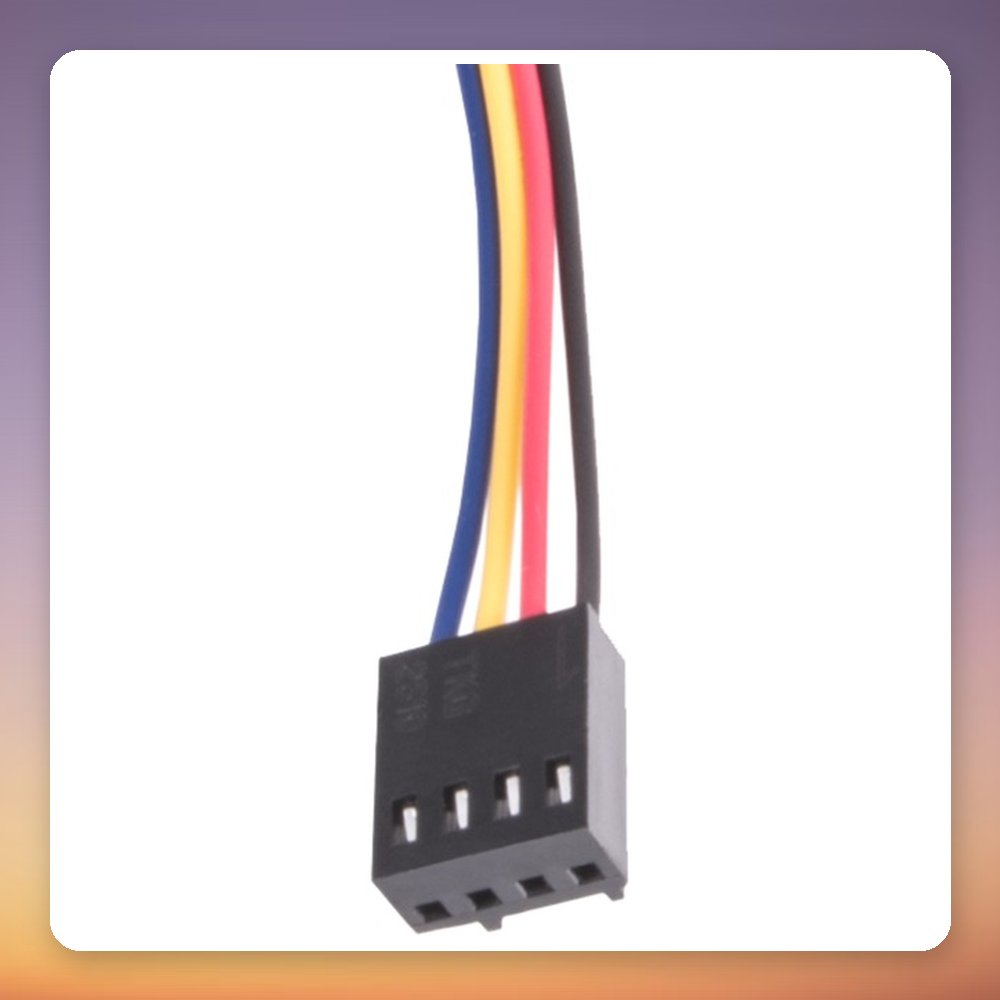

• Connector: 4-pin PWM
• Voltage range: 7 – 14 V
• Power consumption: 7.92 – 10.2 W
• Mounting: Screwed
• Colour: Black
• Intended use: PC cases, suitable for servers
