Product Overview

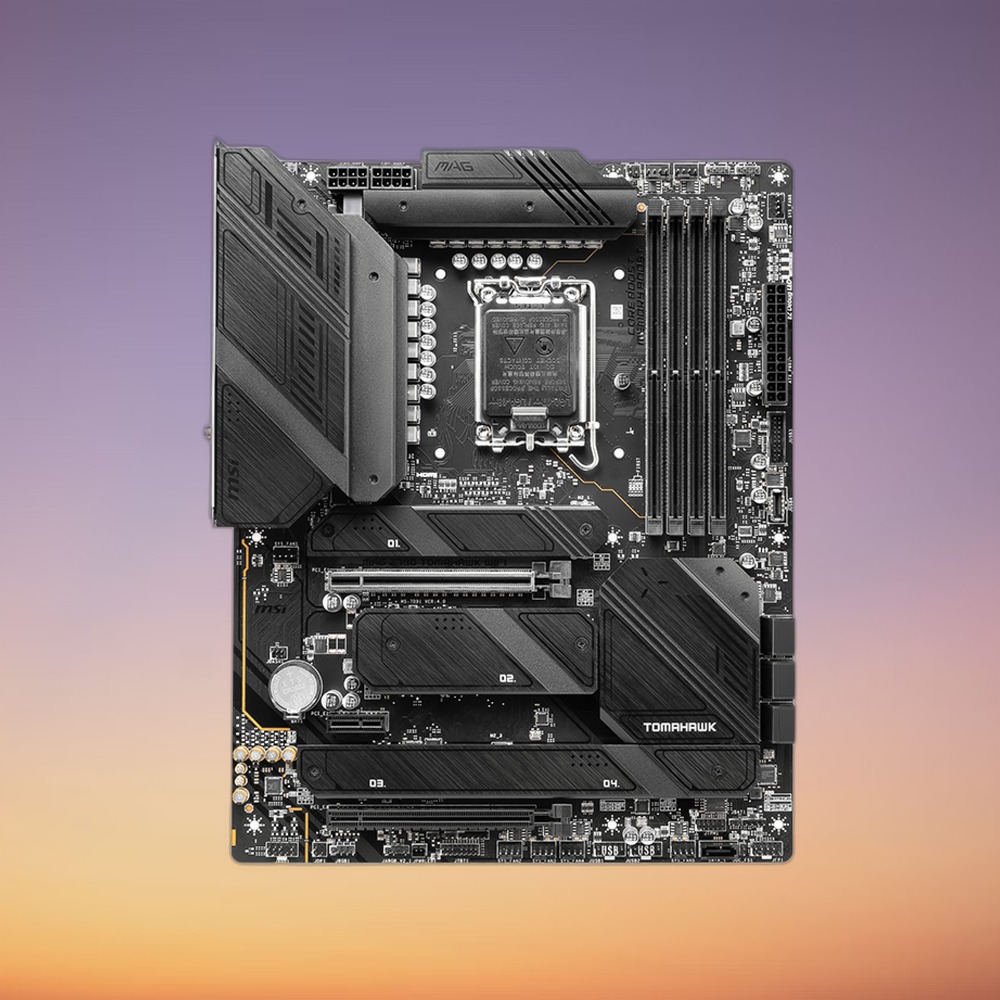

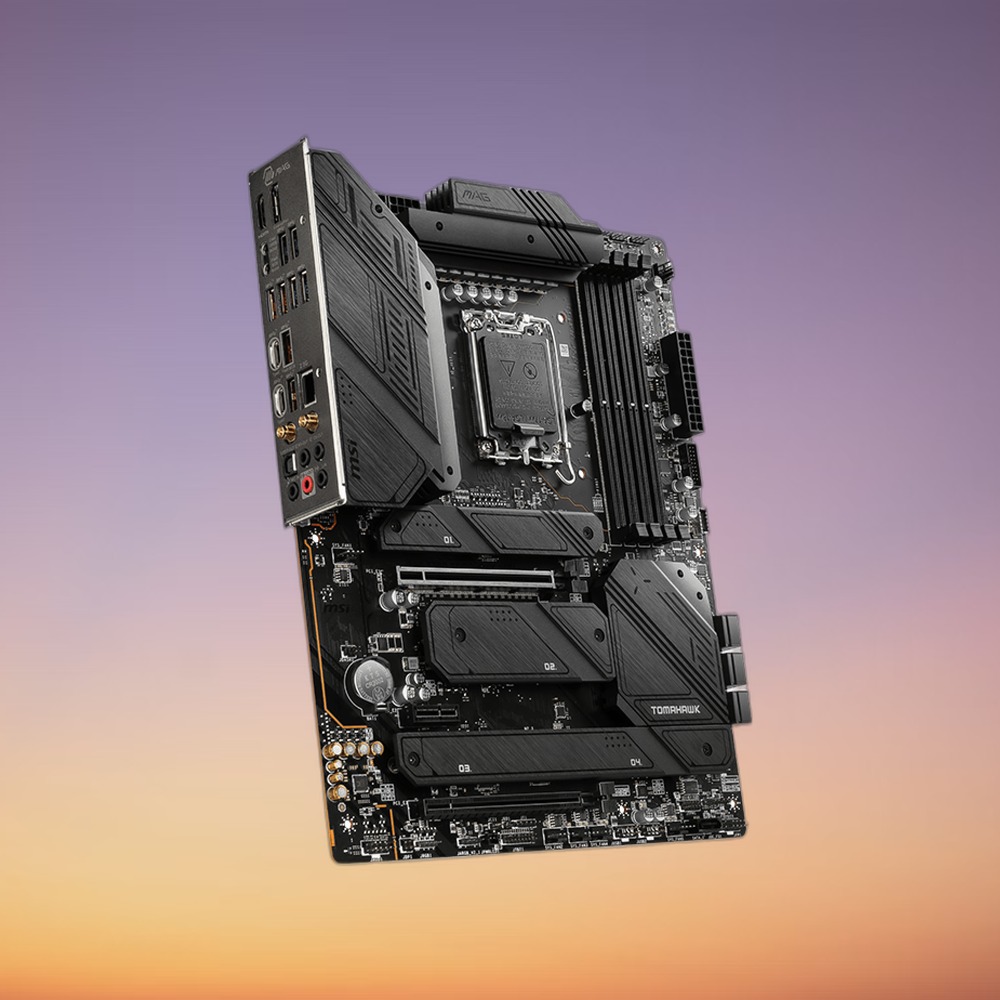

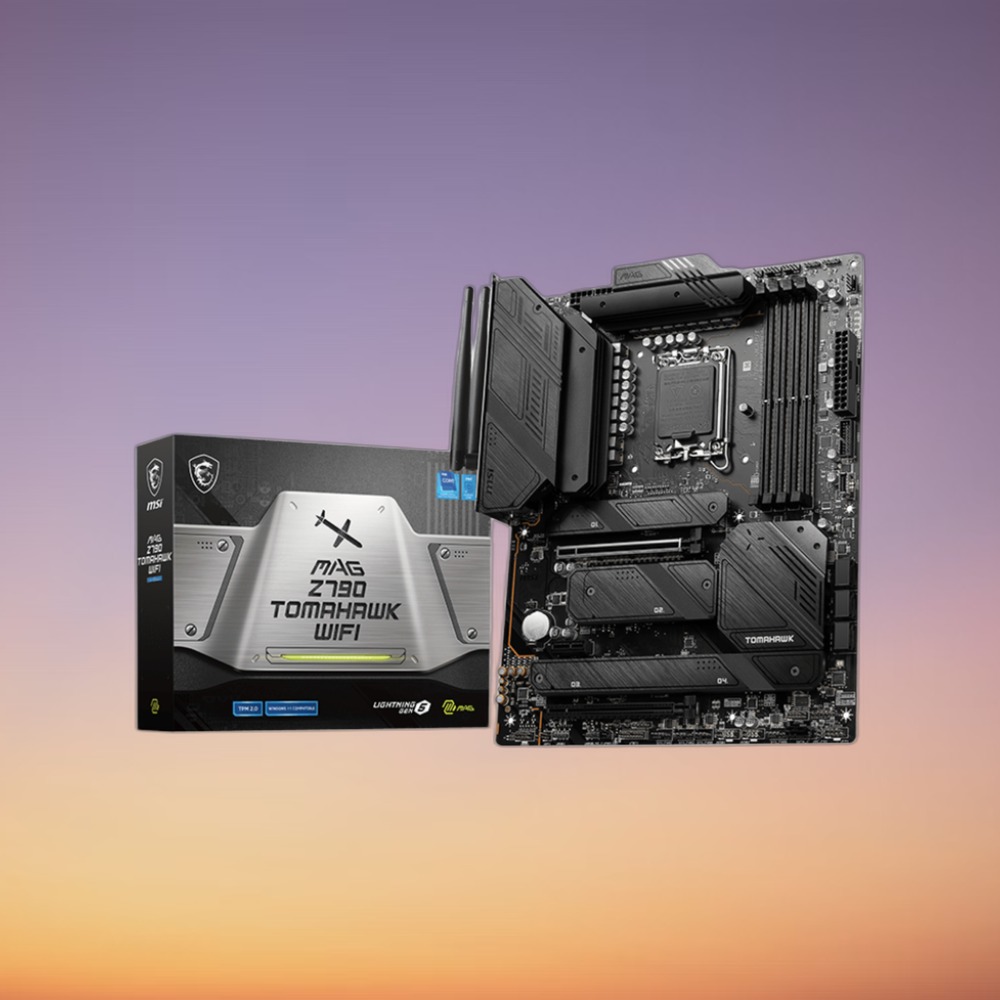

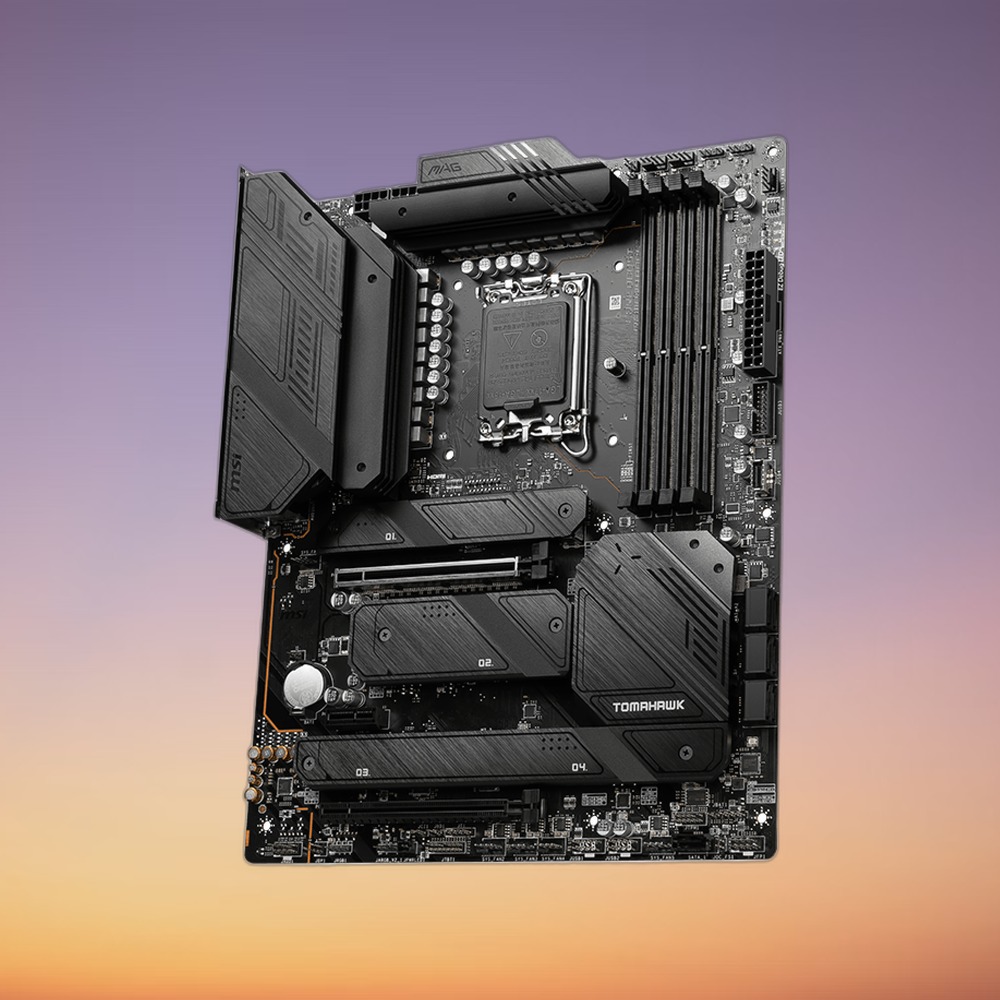

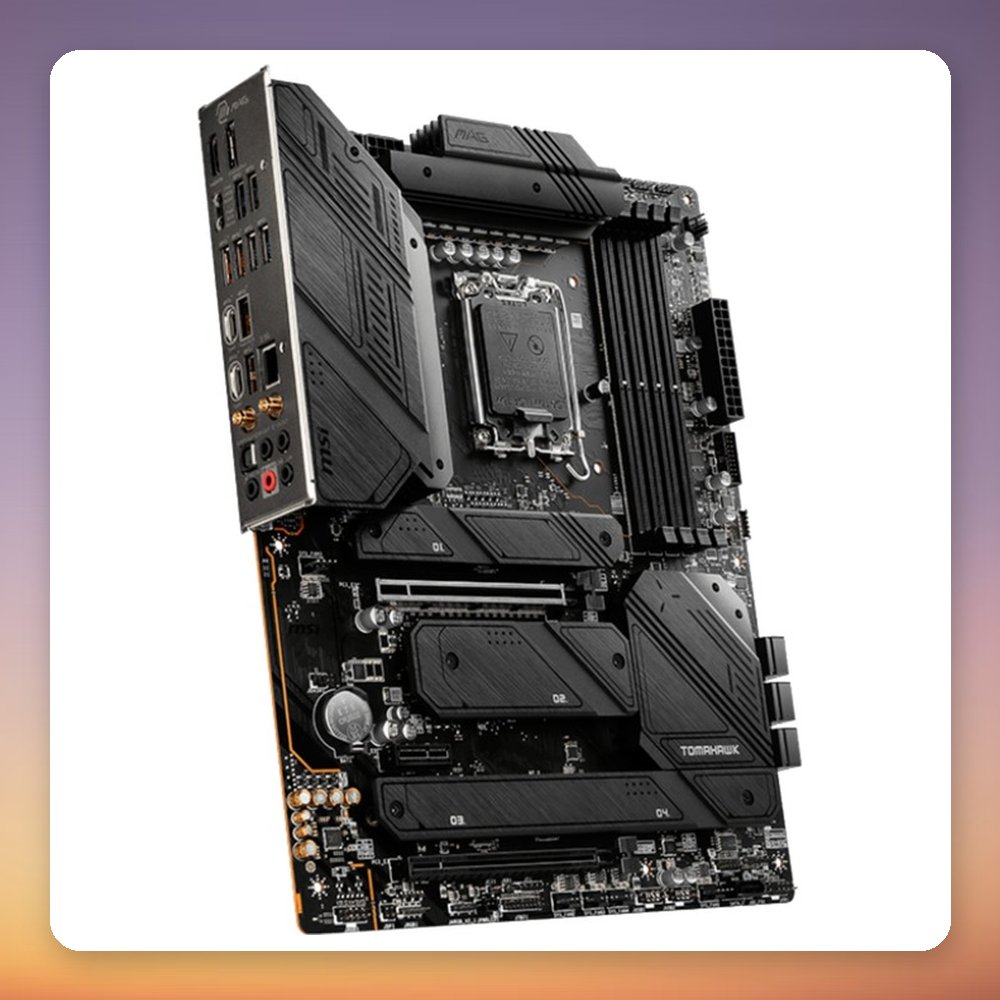

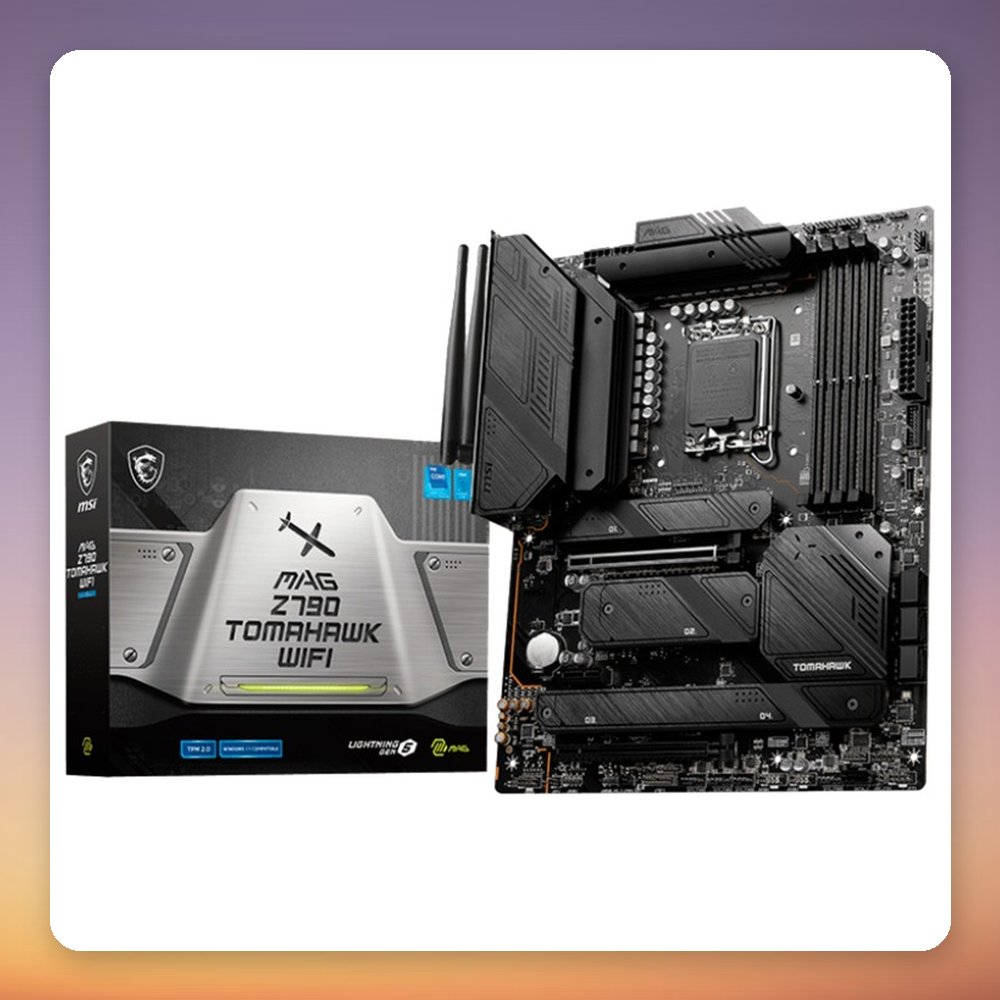

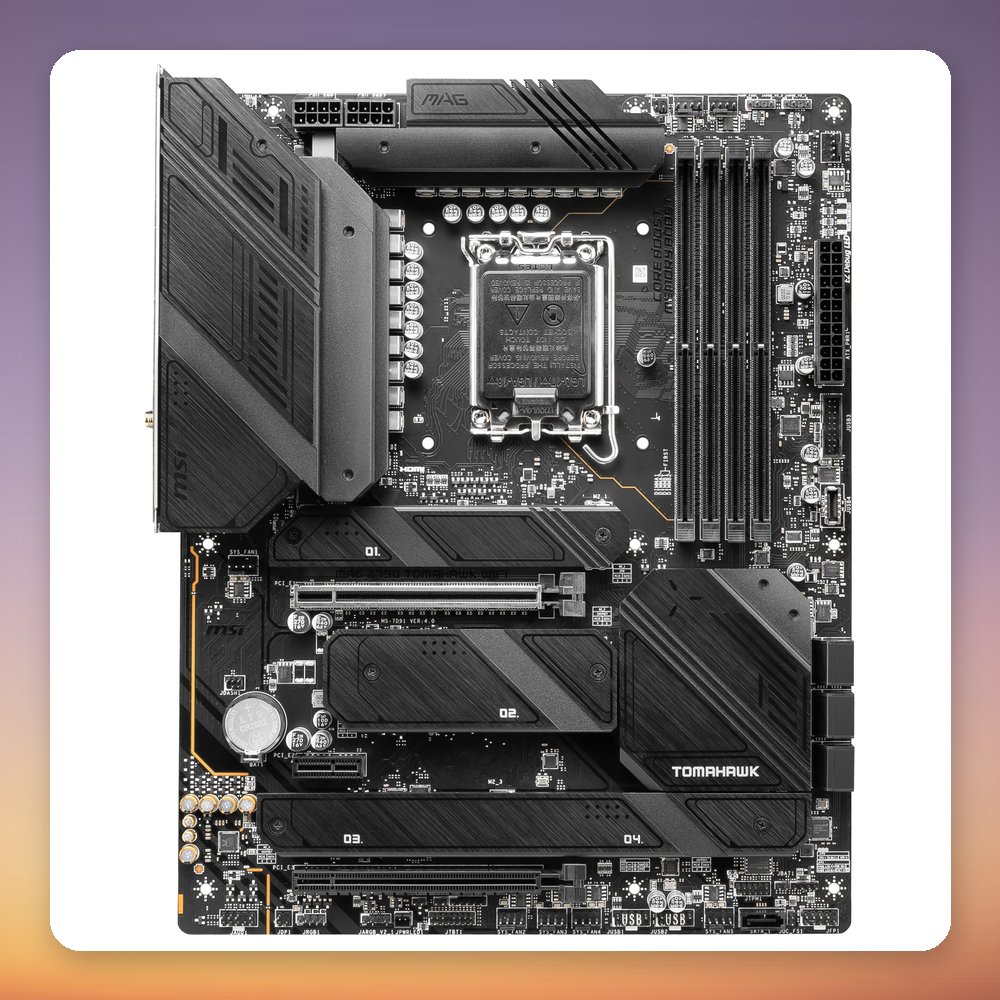

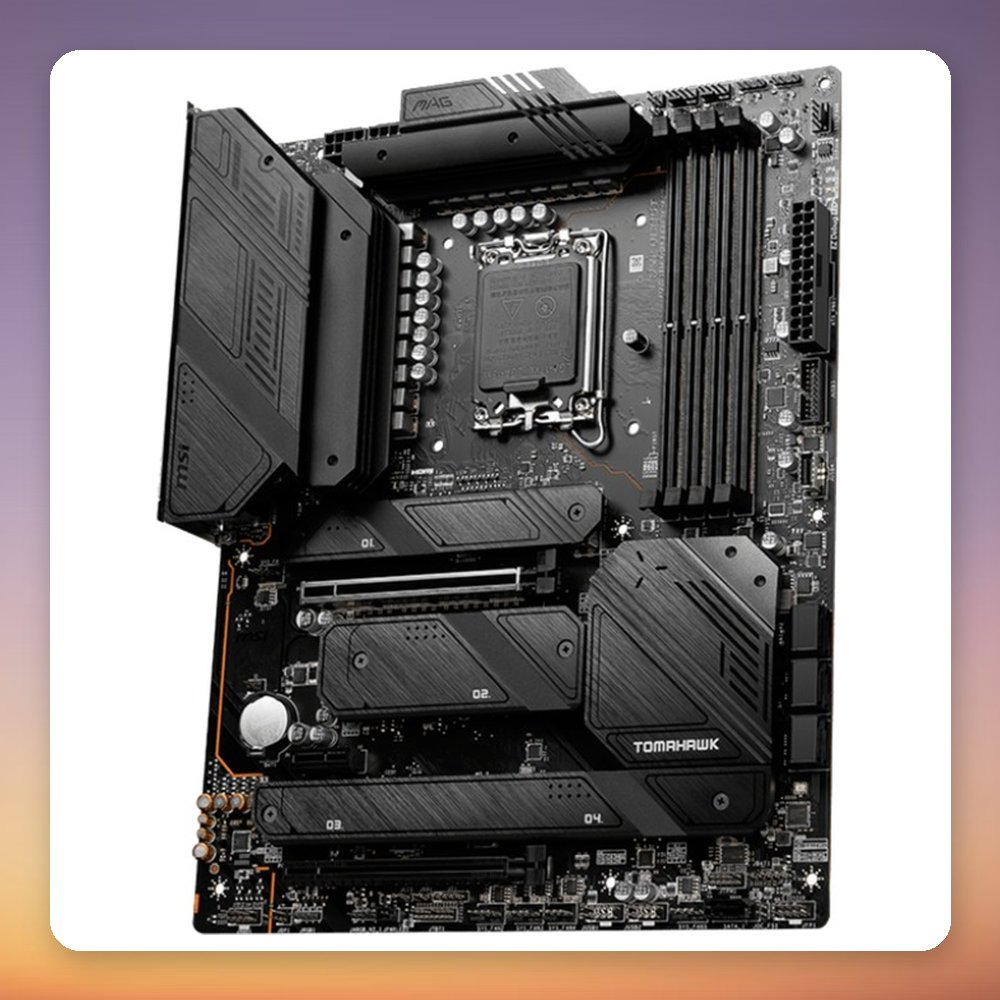

The MSI MAG Z790 TOMAHAWK WIFI is an ATX motherboard built on the Intel Z790 chipset for LGA 1700 processors. It has four DDR5 slots running dual-channel, with support for memory speeds up to DDR5-7200 (OC), and four M.2 slots that all support PCIe Gen 4.0. Connectivity is a strong point, with Intel 2.5 Gbps LAN, Wi-Fi 6E and Bluetooth 5.2 on board.

This board suits a mid-range to high-end Intel gaming or general-purpose build where lots of storage and fast I/O matter. Seven SATA ports and four M.2 slots leave plenty of room for drives, while the PCIe 5.0 x16 slot is ready for a modern graphics card. It also offers eight 4-pin PWM fan headers, one RGB header and three addressable RGB headers (Mystic Light). A BIOS update may be needed to support the very latest processors.

Specification

• Manufacturer: MSI
• Model: MAG Z790 TOMAHAWK WIFI
• MPN: 7D91-009R
• EAN: 4711377025492
• Socket: LGA 1700
• Chipset: Intel Z790
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to DDR5-7200+ (OC)
• Max. memory: 256 GB (per MSI/Wave data; Icecat lists 192 GB)
• PCIe slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe x1
• M.2 slots: 4x M.2 (Key M), all PCIe Gen 4.0, 42-110 mm
• SATA ports: 7x SATA III, RAID 0/1/5/10
• LAN: Intel 2.5 Gbps Ethernet
• Wireless: Intel Wi-Fi 6E, Bluetooth 5.2

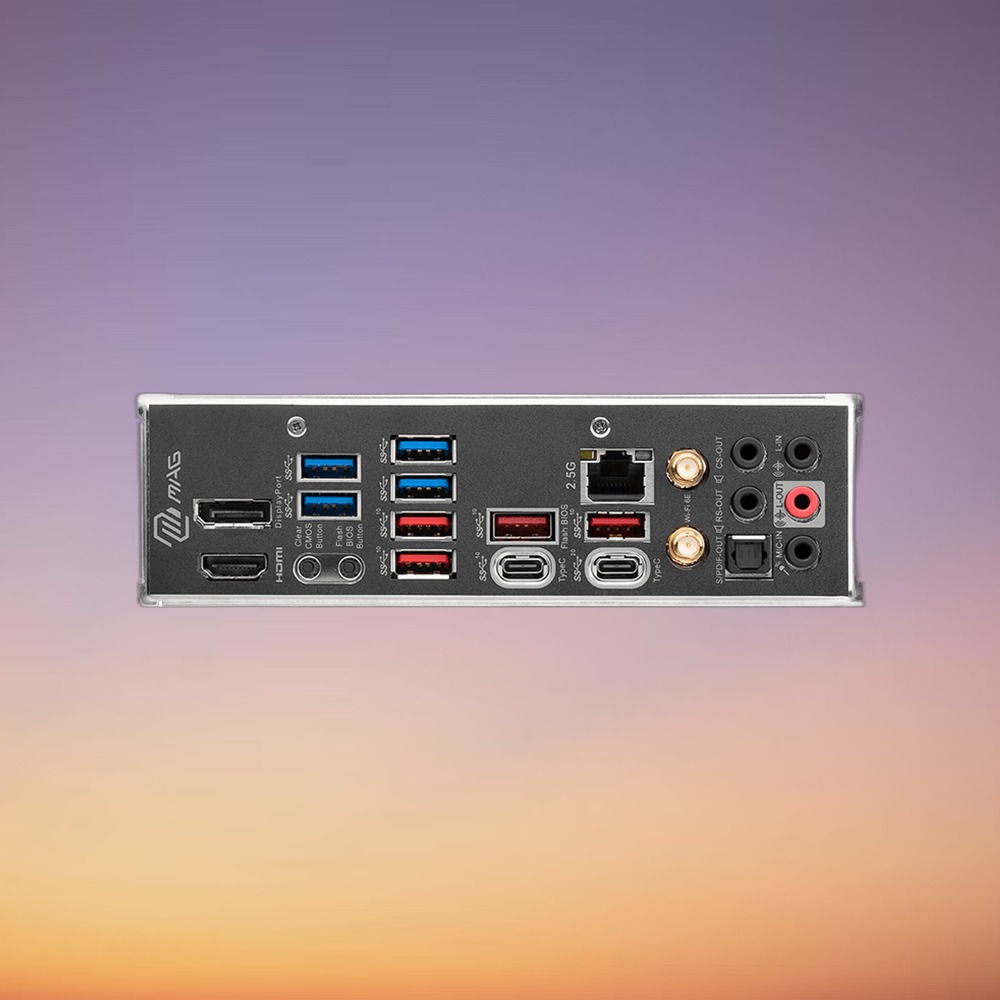

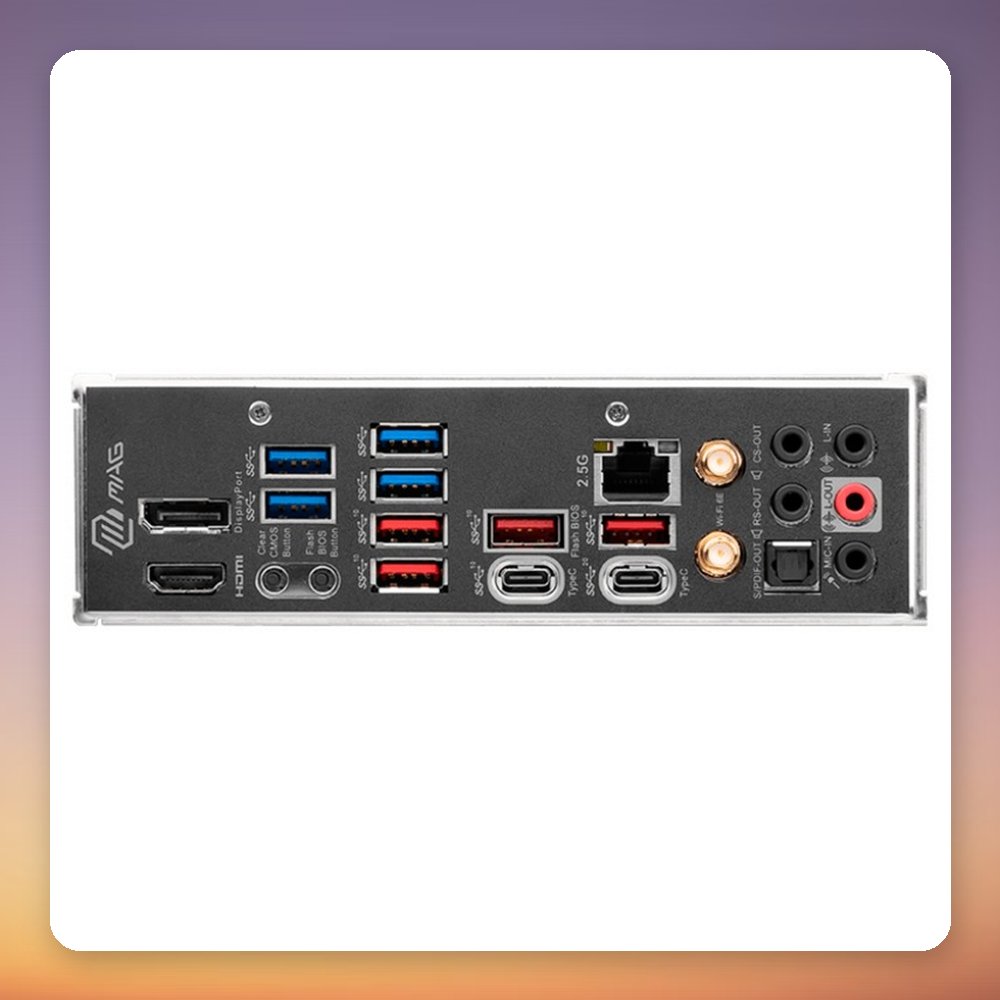

• Rear USB: 1x USB-C 10 Gbps, 4x USB-A 10 Gbps, 4x USB-A 5 Gbps
• Video outputs: 1x HDMI, 1x DisplayPort (requires CPU with integrated graphics)
• Audio: Realtek ALC4080, 7.1 channel, optical S/PDIF out
• Fan headers: 8x 4-pin PWM
• RGB headers: 1x RGB, 3x addressable RGB (Mystic Light)
• Colour: Black
