Product Overview

GIGABYTE Z890 D PLUS Motherboard – Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 9466MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM.

Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125

Specification

• EAN: [‘4719331880644’]
• Maximum internal memory: 256 GB
• Unbuffered memory: Yes
• Maximum internal memory per slot: 64 GB
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 8
• RAID support: Yes
• RAID levels: 0, 1, 5, 10
• Parallel processing technology support: Not supported
• Maximum resolution: 4096 x 2304 pixels
• HDCP: Yes
• HDCP version: 2.3
• DirectX version: 12.0
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 2
• Number of chassis fan connectors: 4
• EPS power connector (8-pin): Yes
• Number of EPS power connectors (8-pin): 2
• TPM connector: Yes
• Serial port headers: 1
• Thunderbolt headers: 2
• Number of water pump connectors: 2
• RGB LED pin header: Yes
• Number of RGB LED pin headers: 4

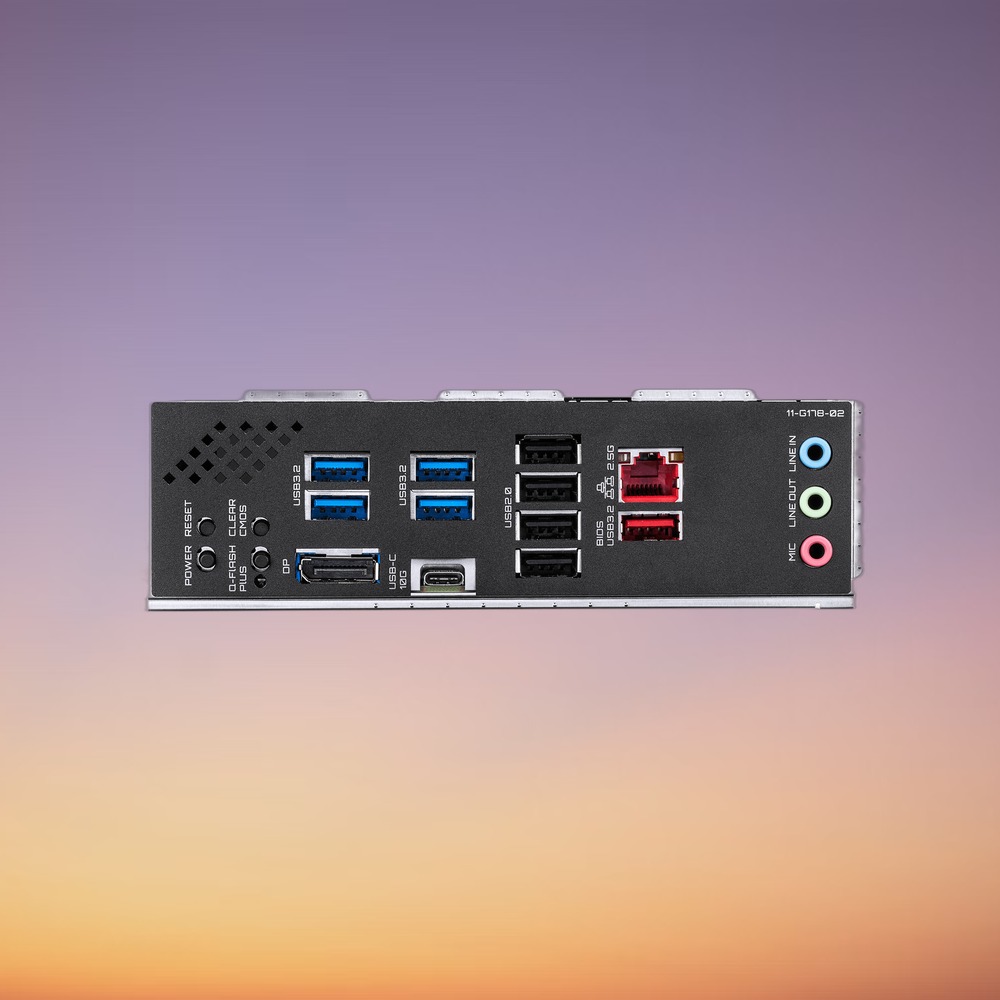

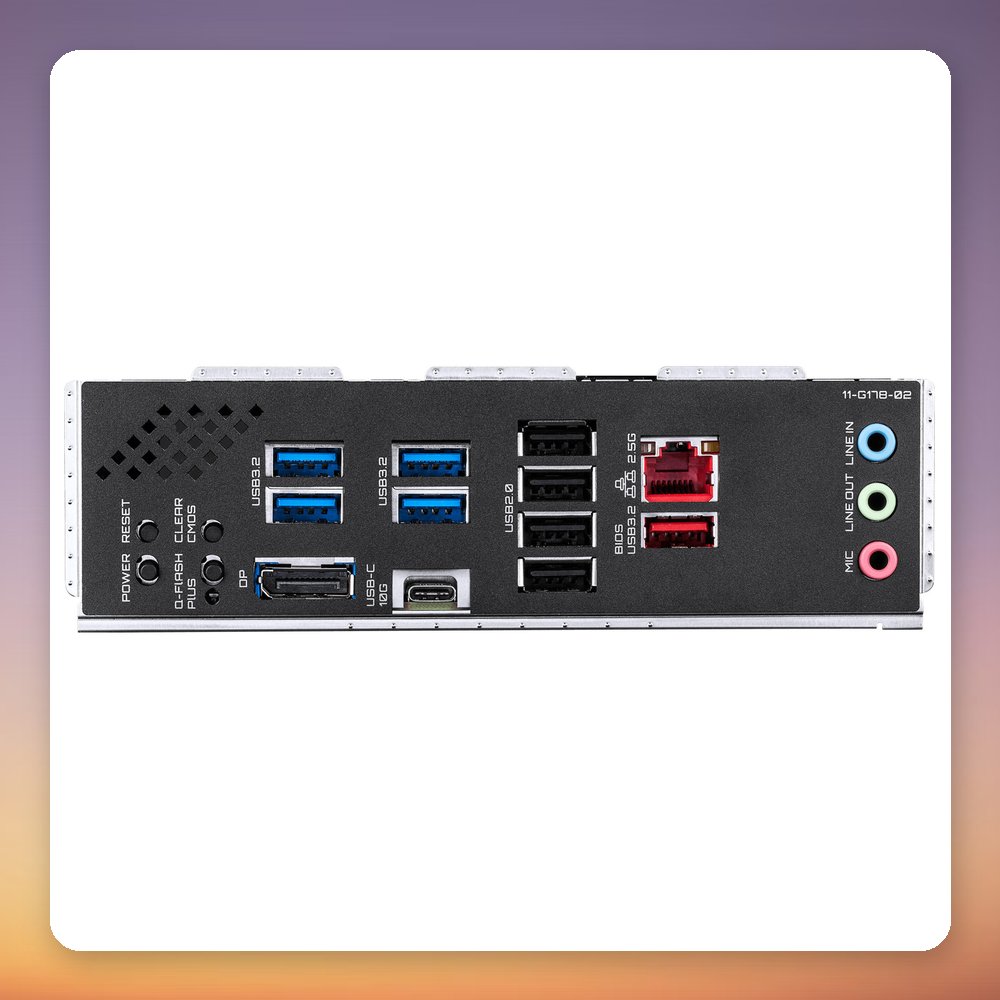

• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
