Product Overview

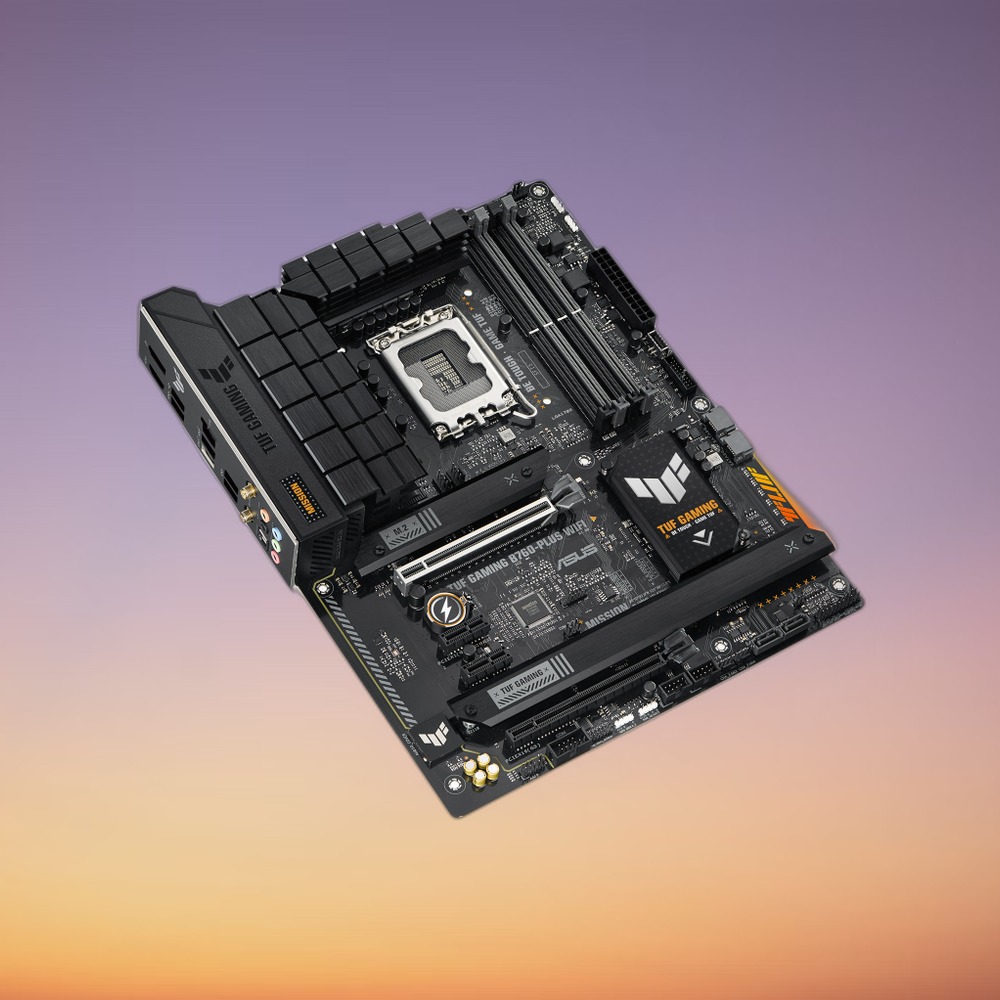

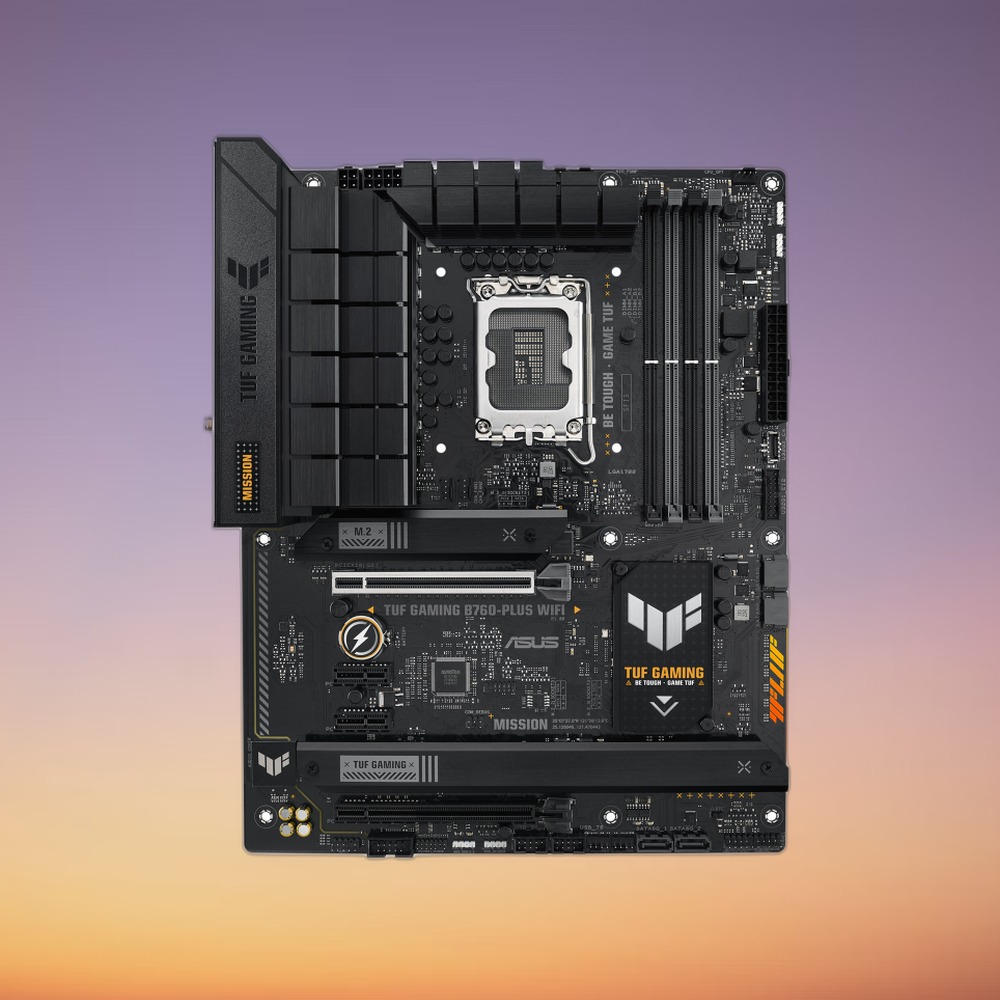

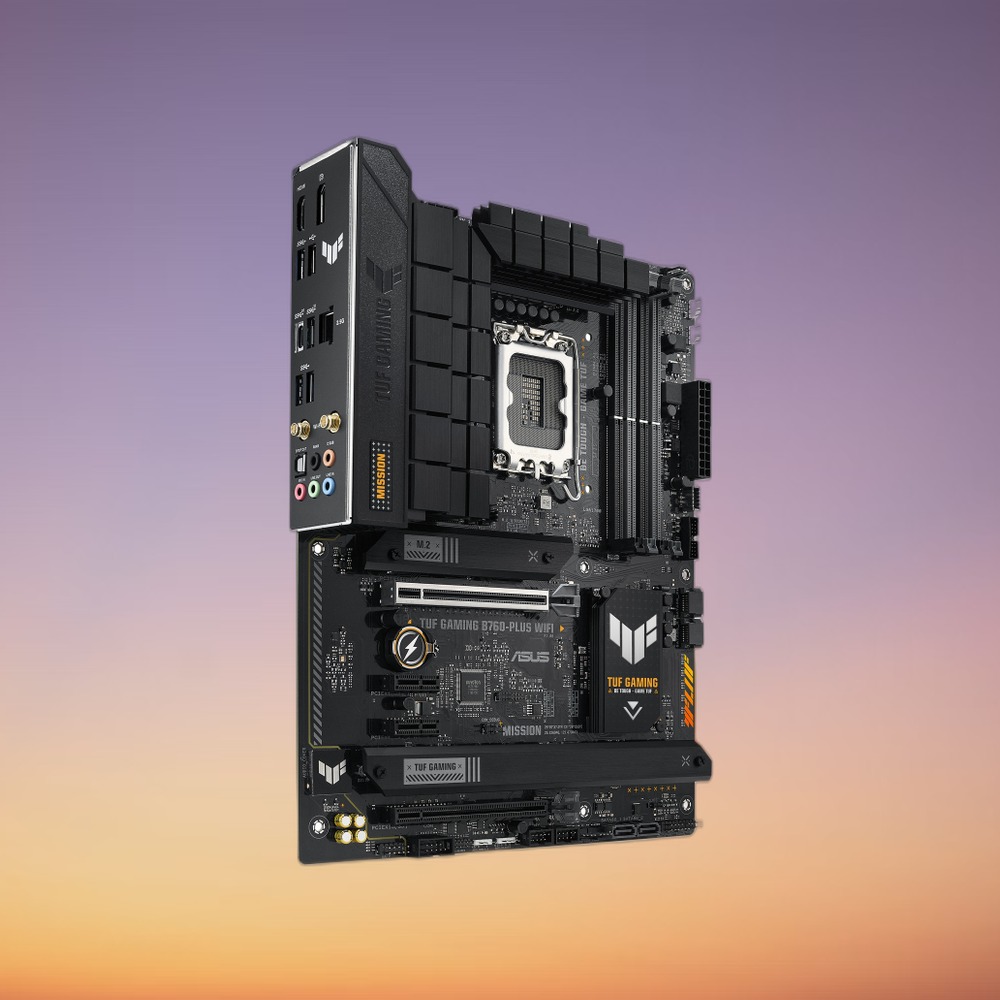

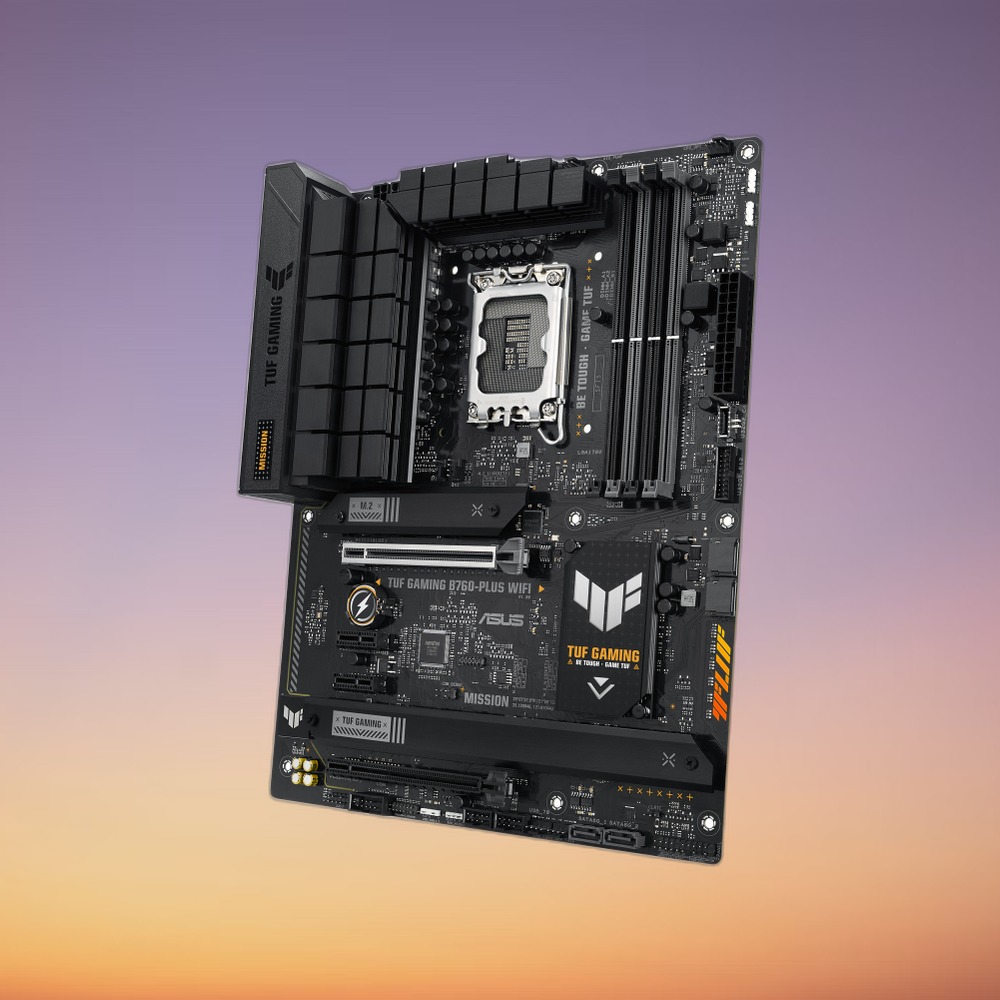

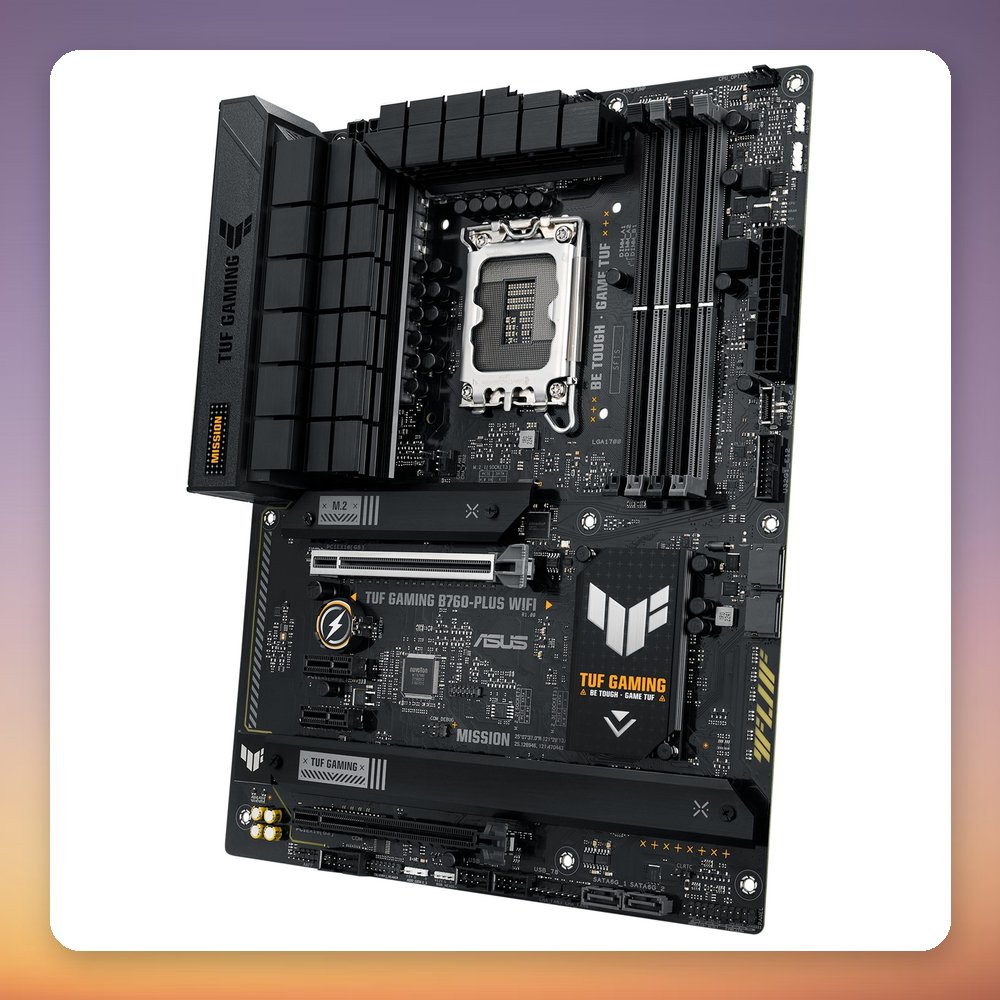

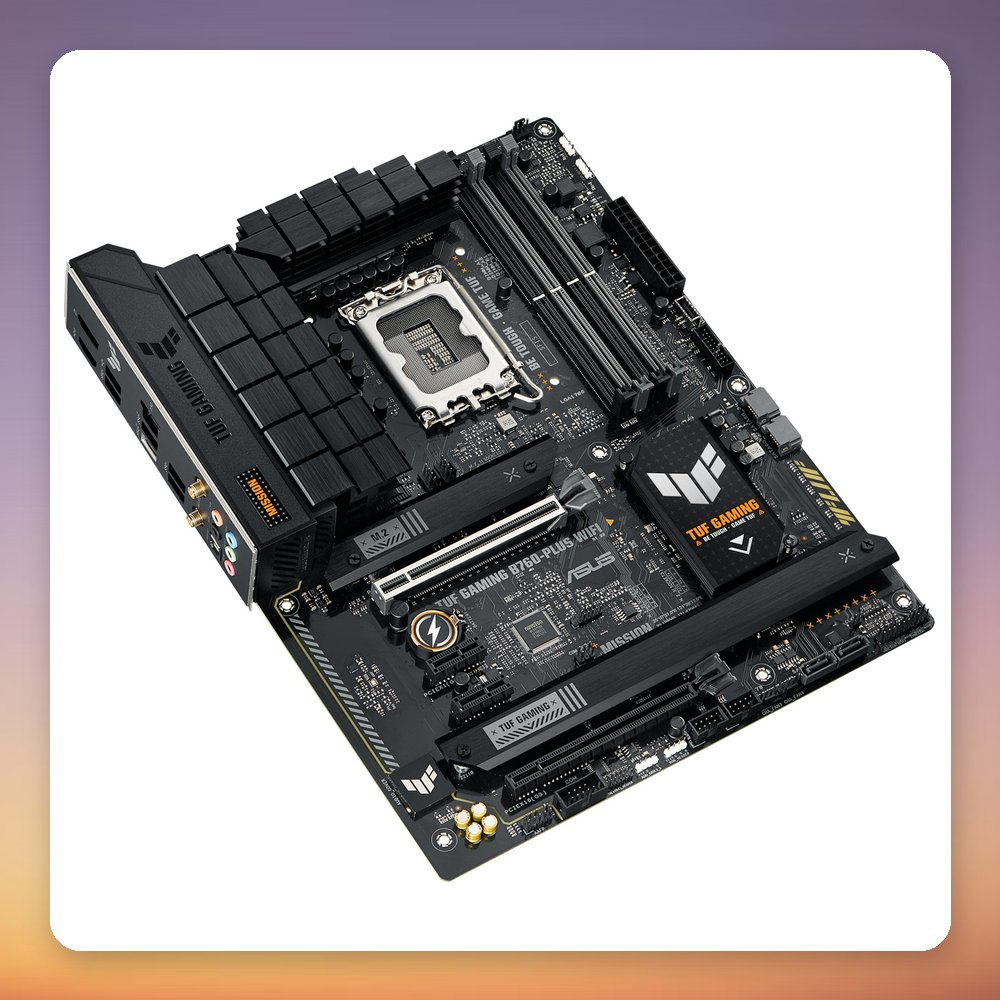

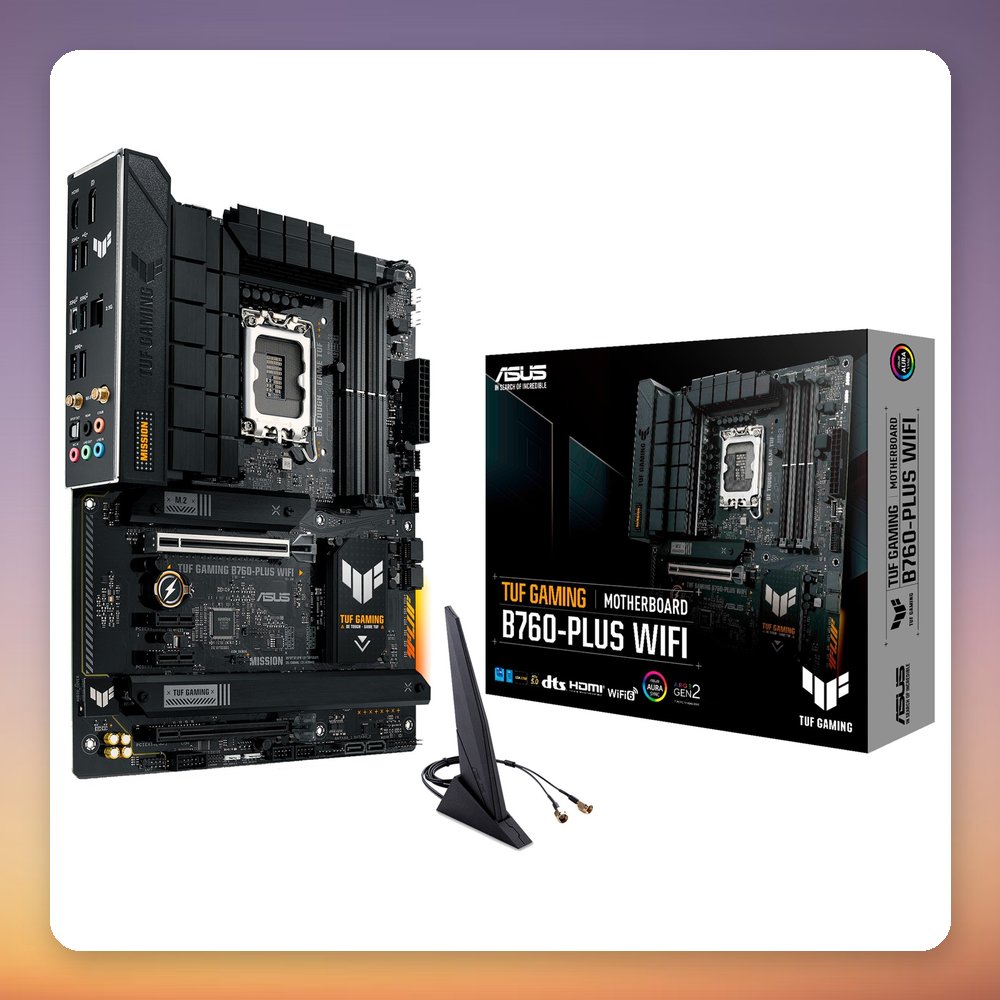

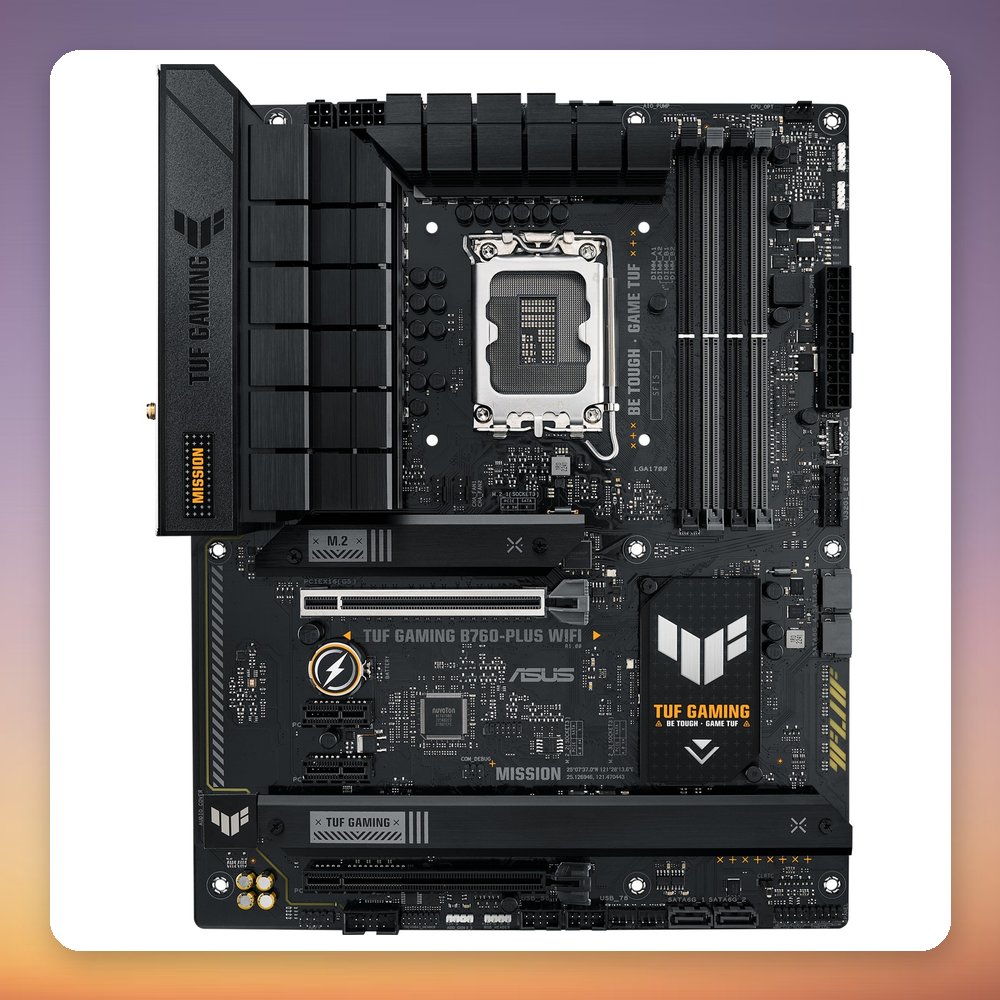

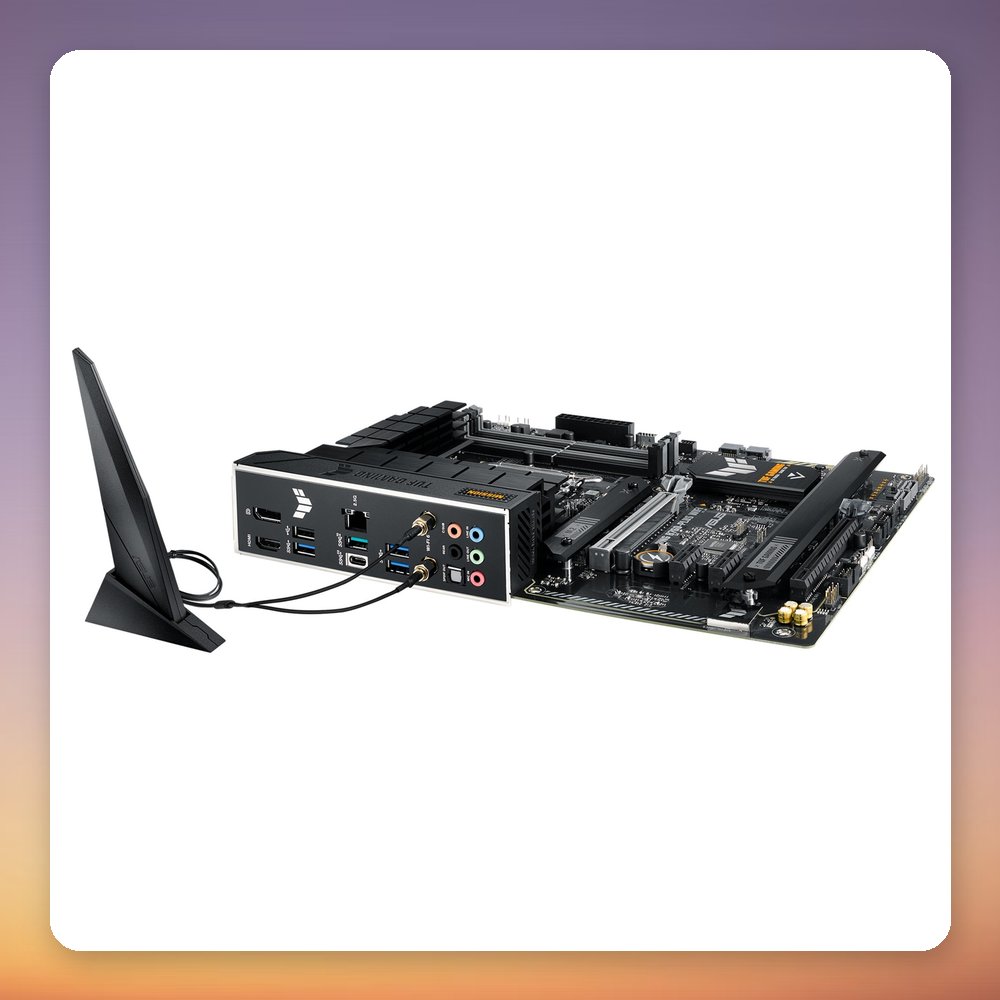

The ASUS TUF Gaming B760-Plus WiFi is an ATX motherboard built on the Intel B760 chipset for LGA 1700 processors. It takes four DDR5 DIMM slots in dual-channel, with up to 192 GB of memory according to ASUS, a PCIe 5.0 x16 slot for the graphics card and three M.2 slots. Networking is covered by 2.5 Gb Ethernet plus Wi-Fi 6 and Bluetooth 5.2.

This board suits a mid-range to high-end Intel gaming build that needs fast storage and modern connectivity without paying for a Z-series chipset. Three M.2 slots, four SATA ports and a USB-C 3.2 Gen 2×2 (20 Gbit/s) port on the rear panel leave plenty of room for upgrades. Seven 4-pin PWM fan headers and AURA Sync RGB support cover cooling and lighting. Note that a BIOS update may be needed for the newest CPUs.

Specification

• Manufacturer: Asus
• Model: TUF Gaming B760-Plus WiFi
• MPN: 90MB1ER0-M1EAY0
• EAN: 4711387095119
• Chipset: Intel B760
• CPU socket: LGA 1700
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 192 GB
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe x16 (x4 mode), 2x PCIe 3.0 x1
• M.2 slots: 3x M.2 (M key), PCIe 4.0, 42-110 mm
• SATA ports: 4x SATA III (RAID 0, 1, 5, 10)
• Networking: 2.5 Gb Ethernet, Wi-Fi 6, Bluetooth 5.2

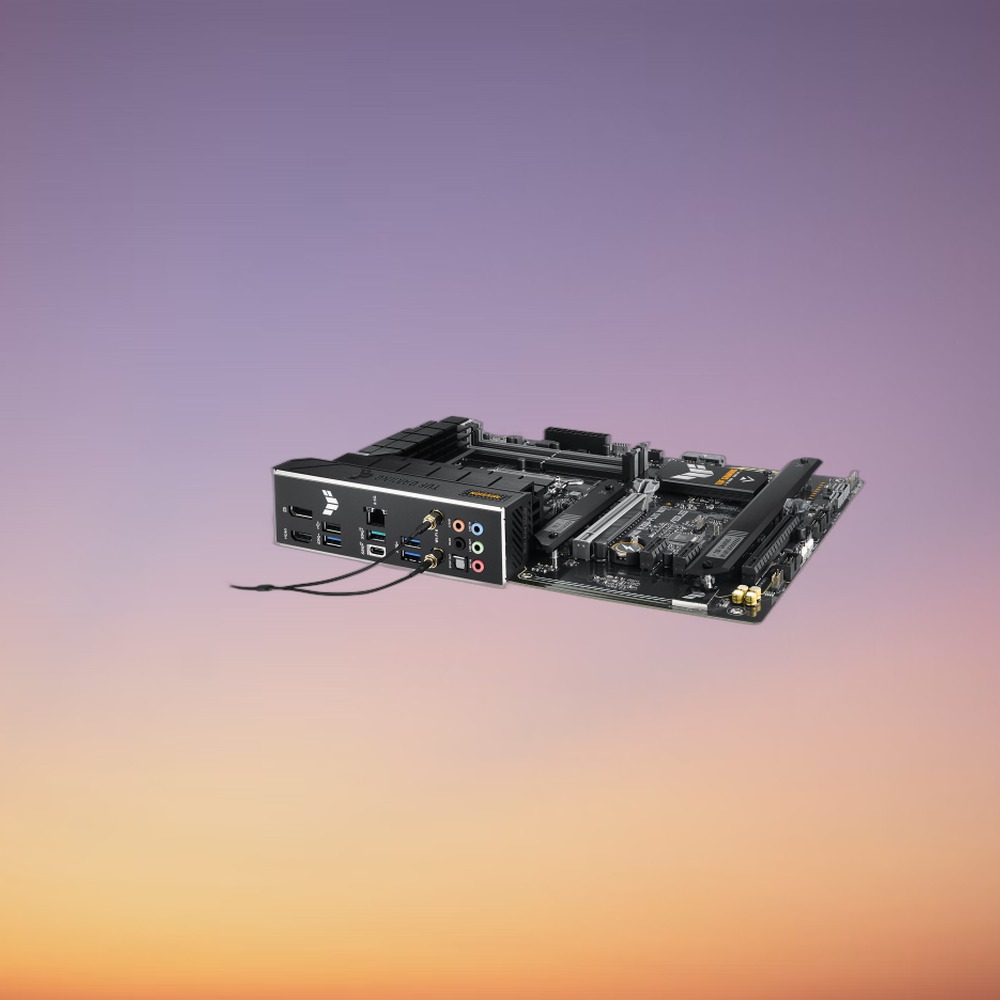

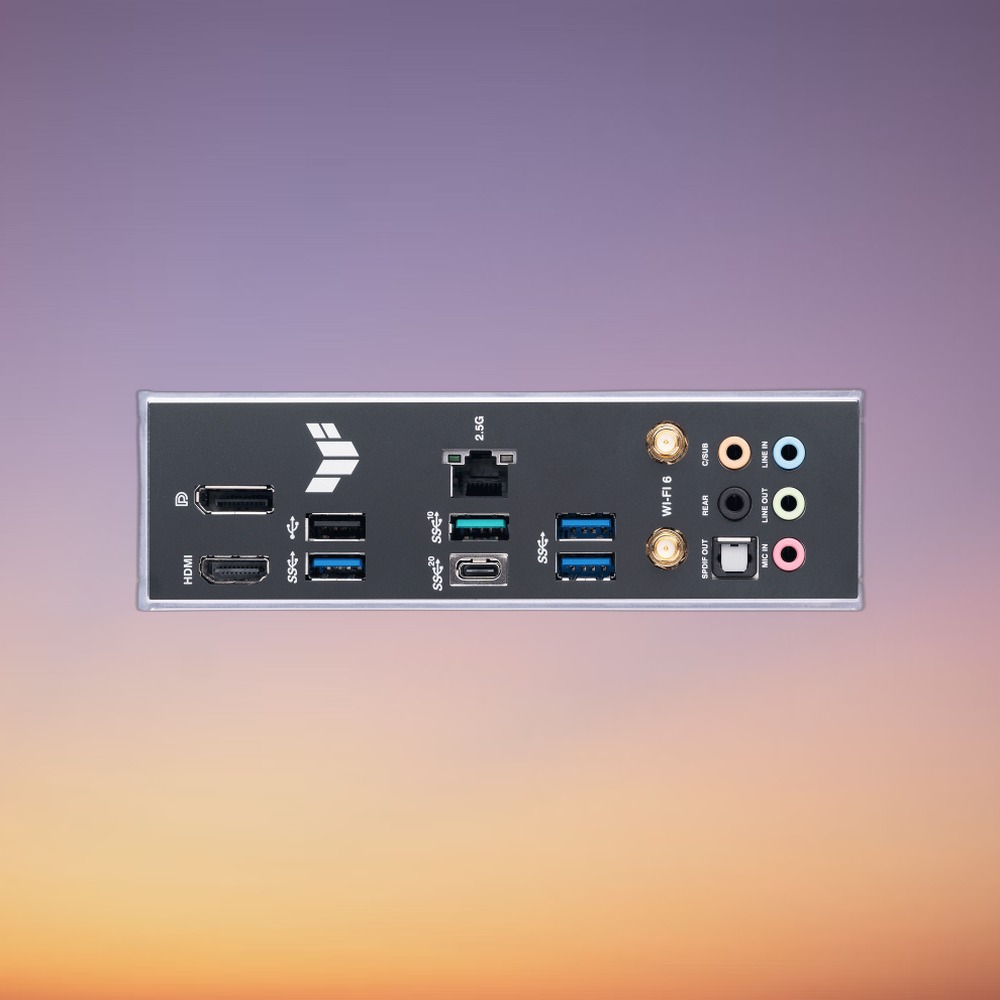

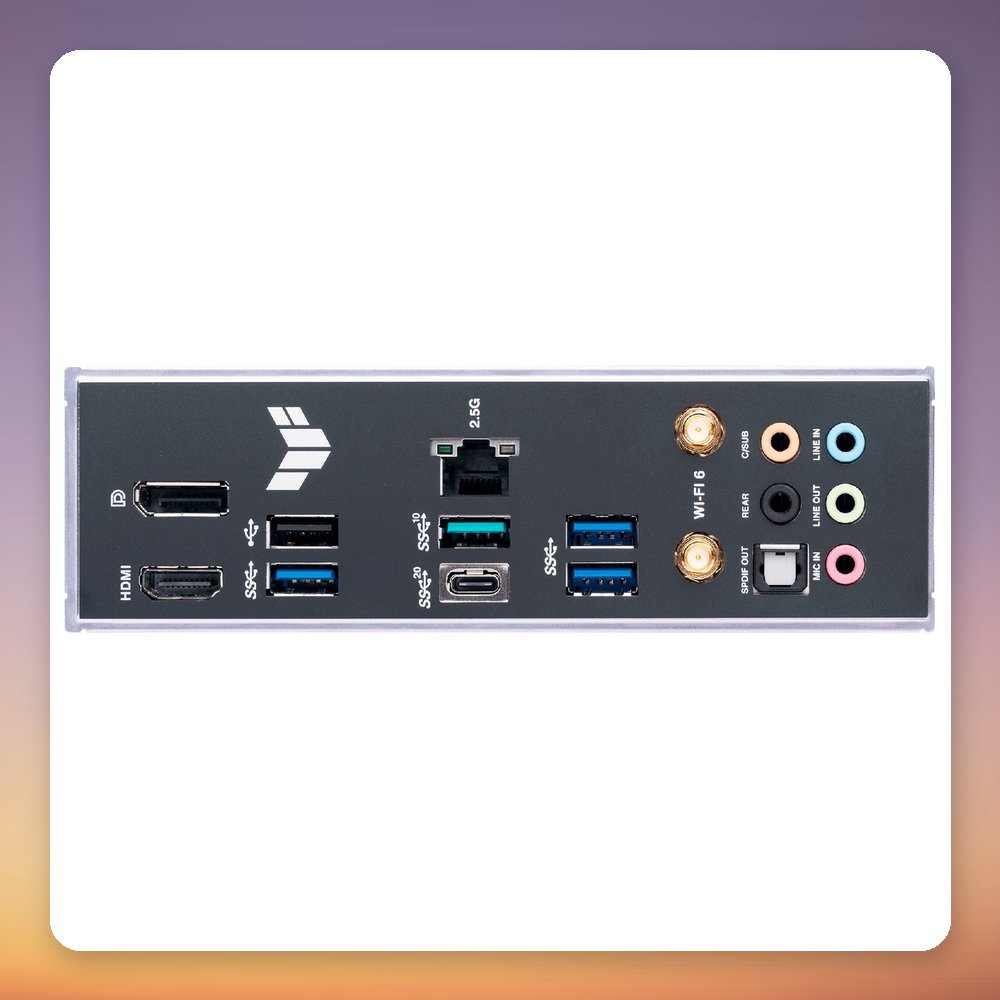

• Rear USB: 1x USB-C 3.2 Gen 2×2, 1x USB-A 3.2 Gen 2, 3x USB-A 3.2 Gen 1, 1x USB 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (needs CPU with integrated graphics)
• Audio: Realtek 7.1 channel HD audio, optical S/PDIF out
• Fan headers: 7x 4-pin PWM
• RGB: 1x RGB header, 3x addressable RGB headers, AURA Sync
• Colour: Black
• Dimensions (W x H): 244 x 305 mm
• Weight: 1.1 kg
