Product Overview

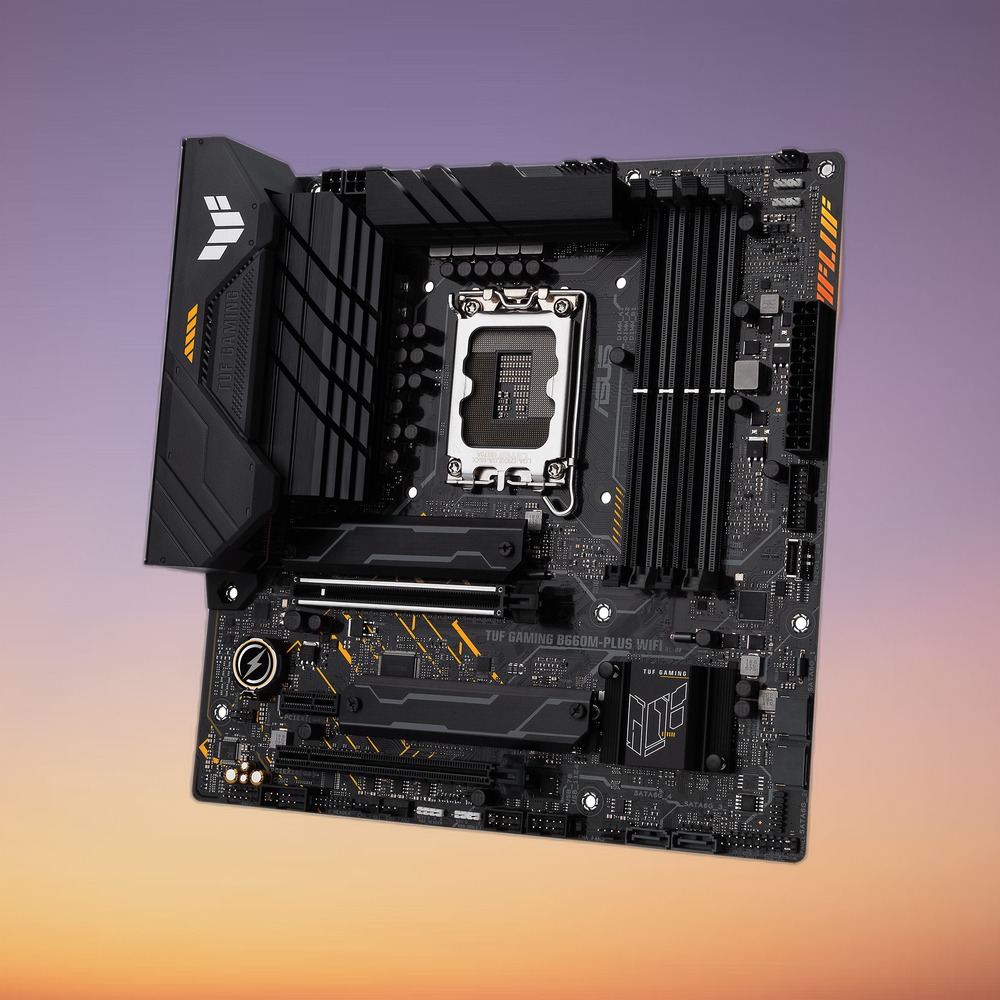

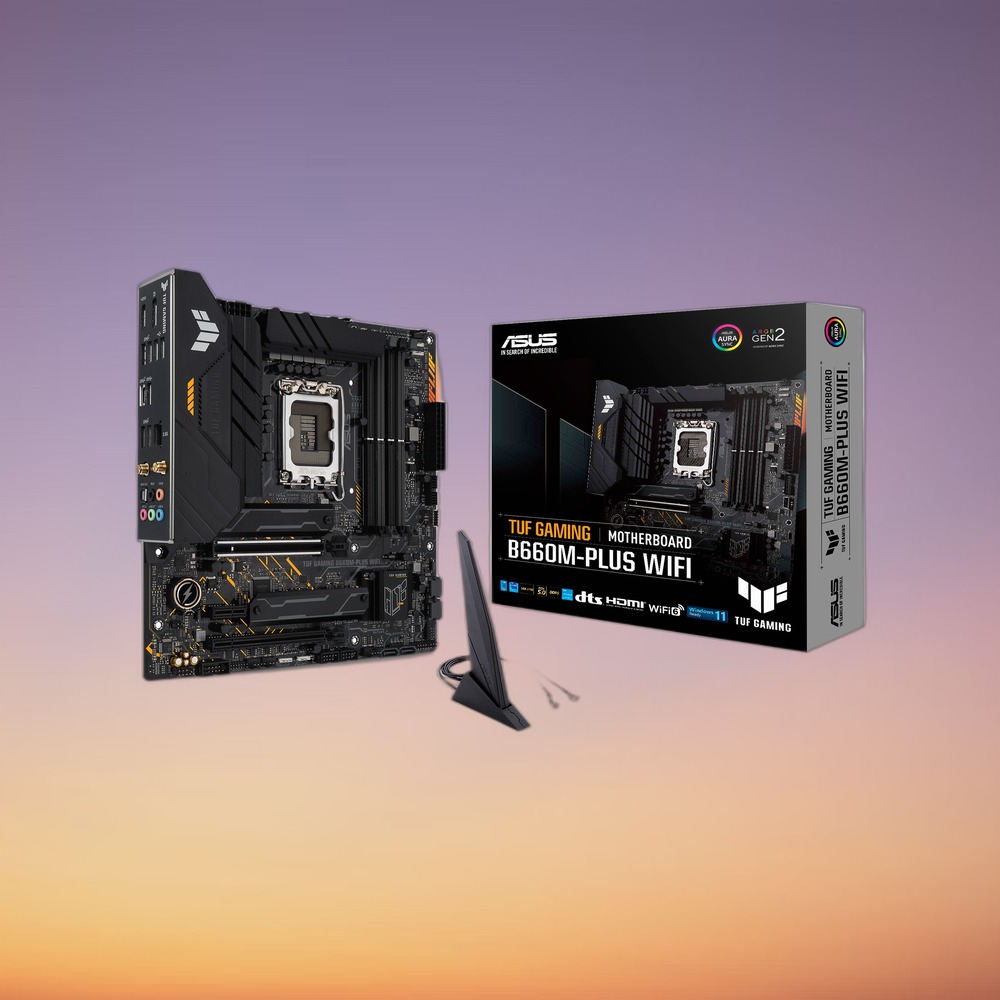

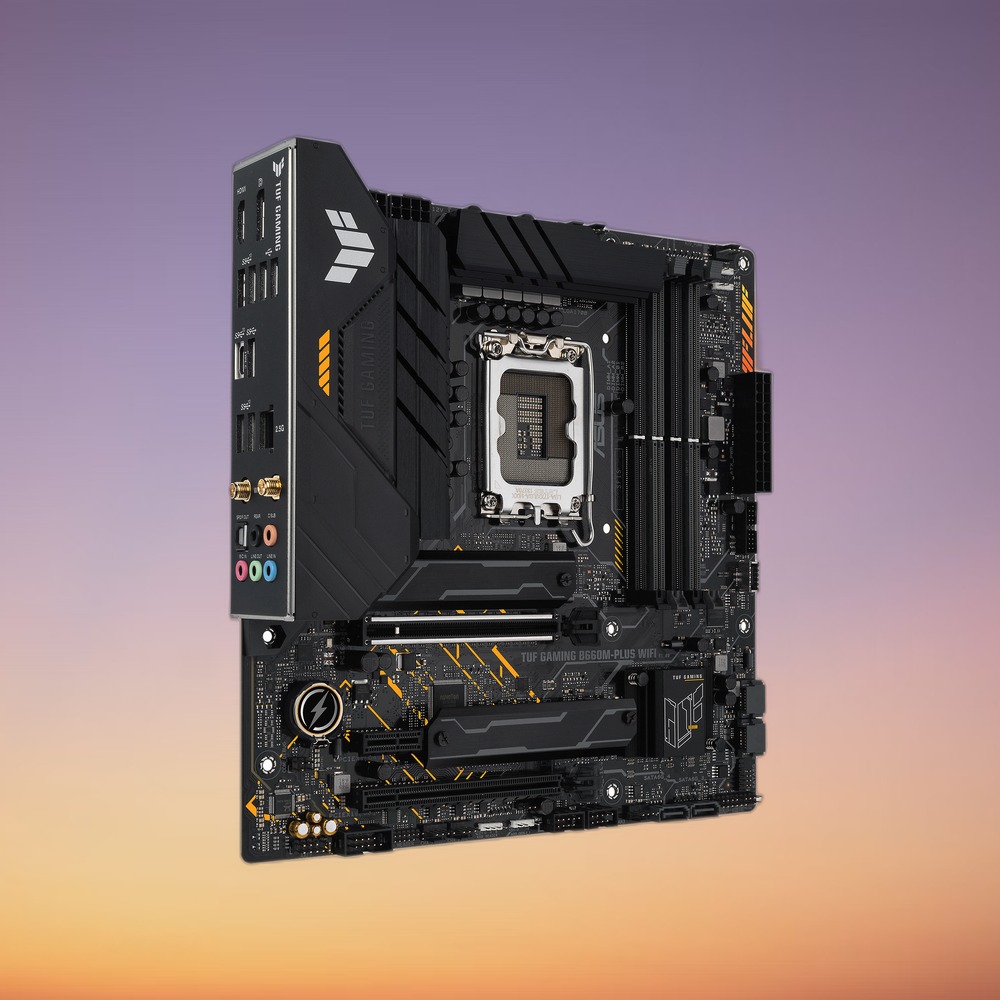

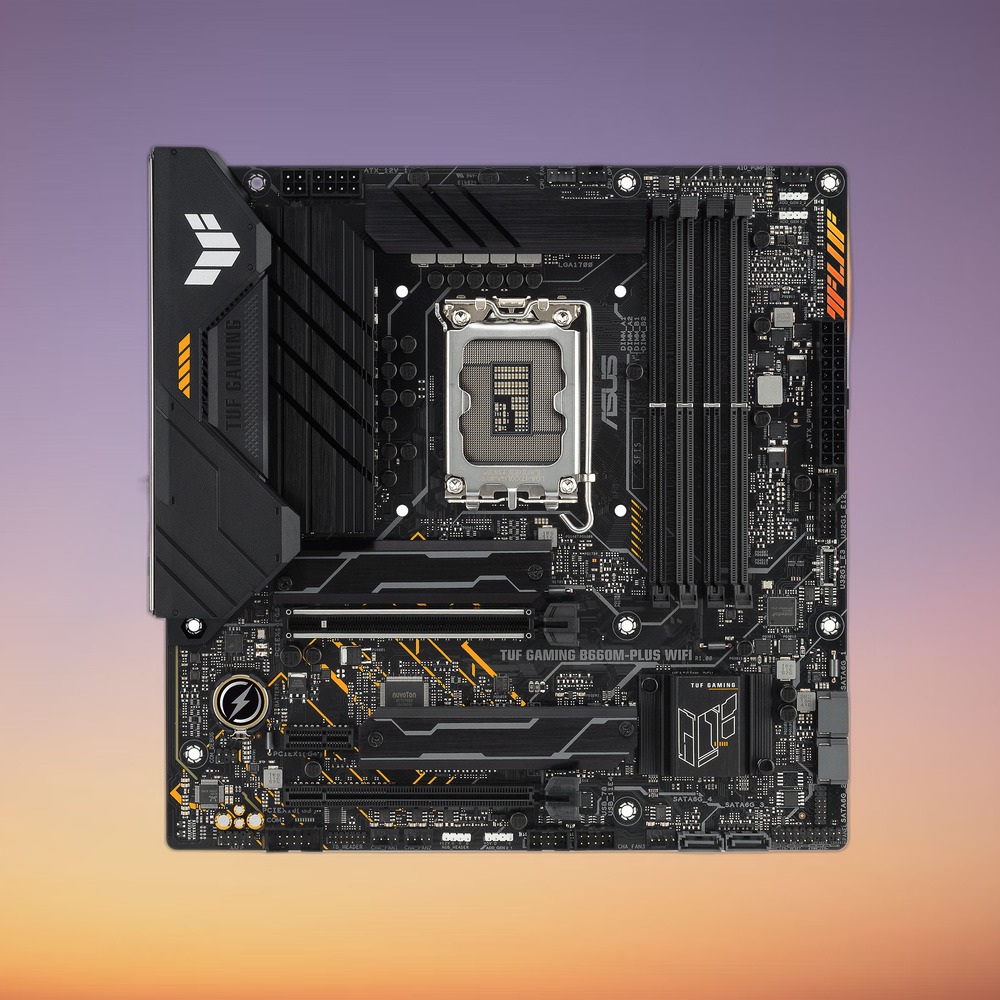

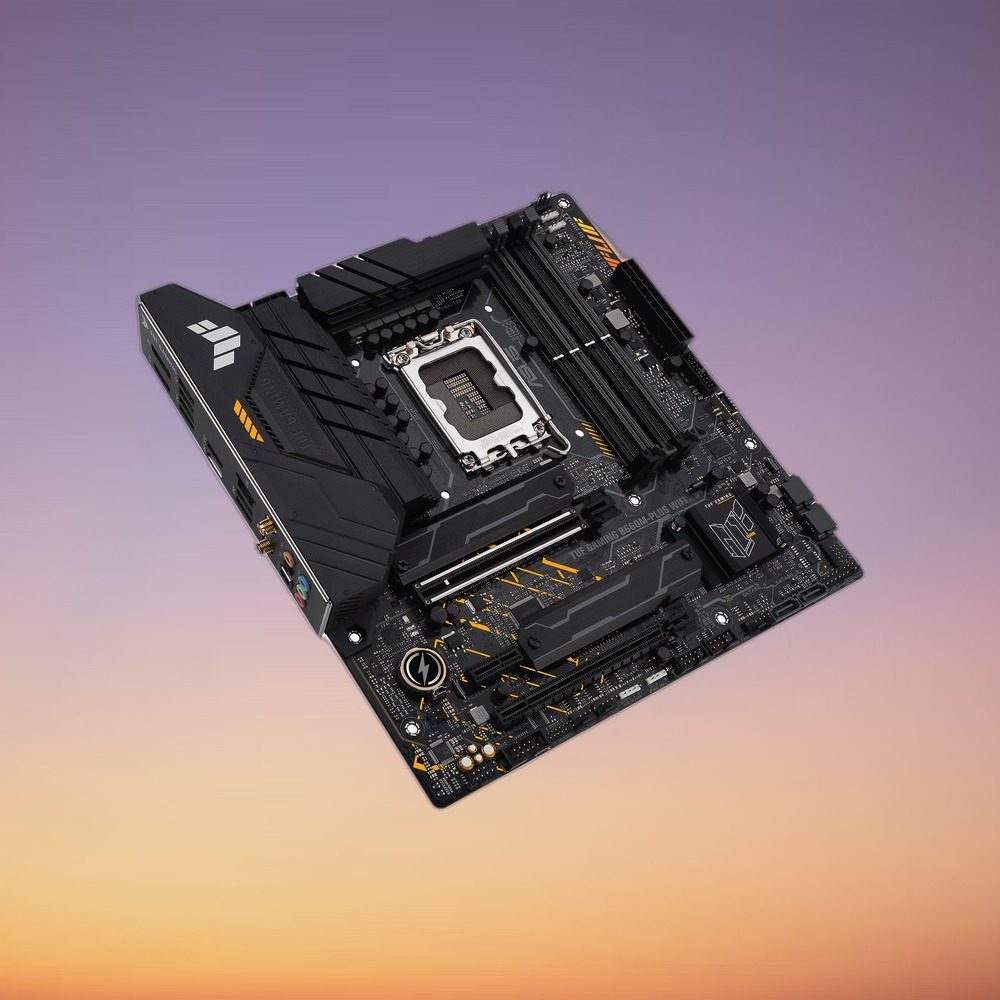

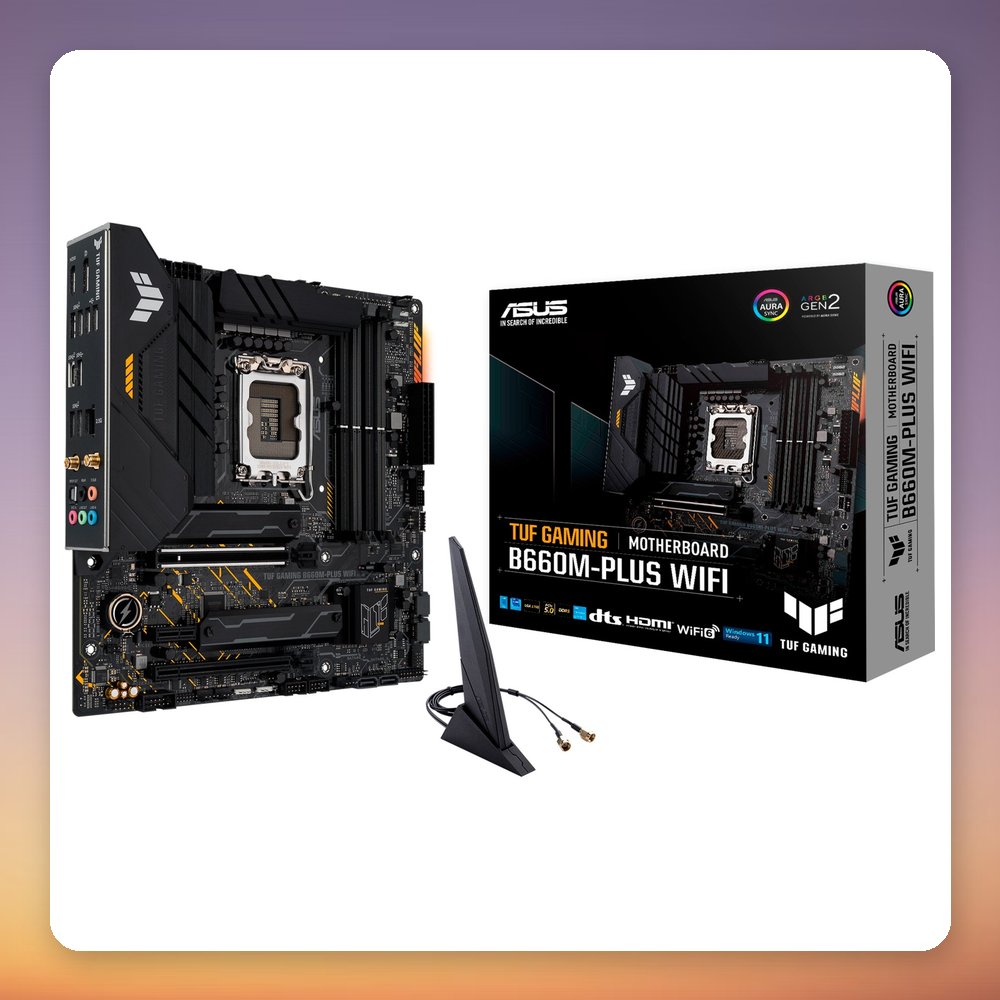

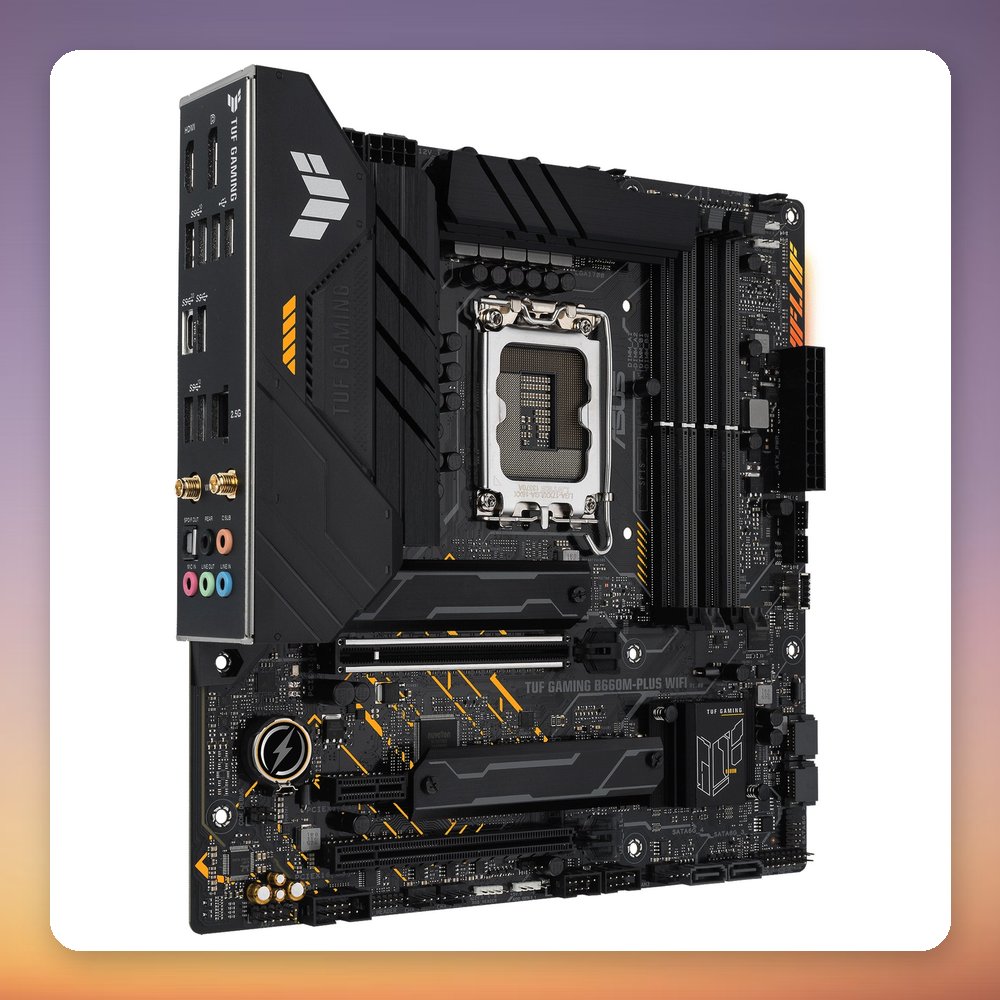

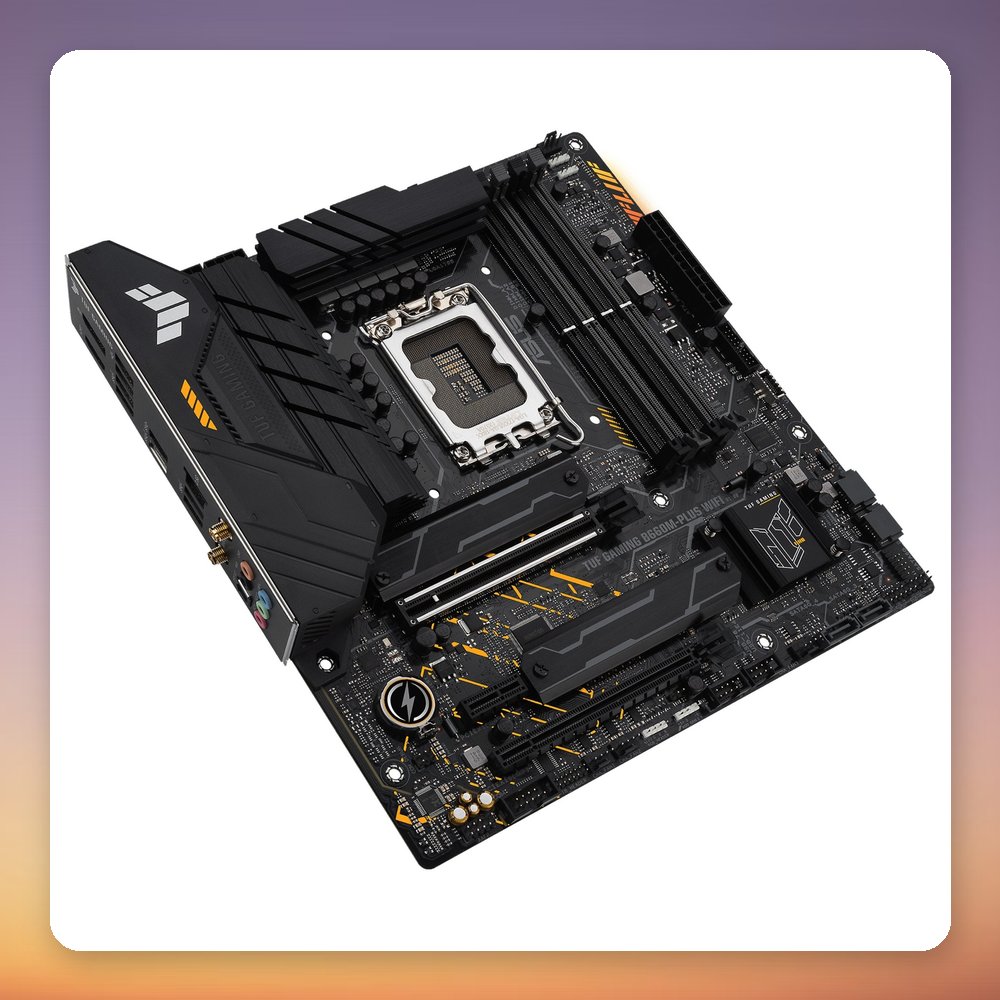

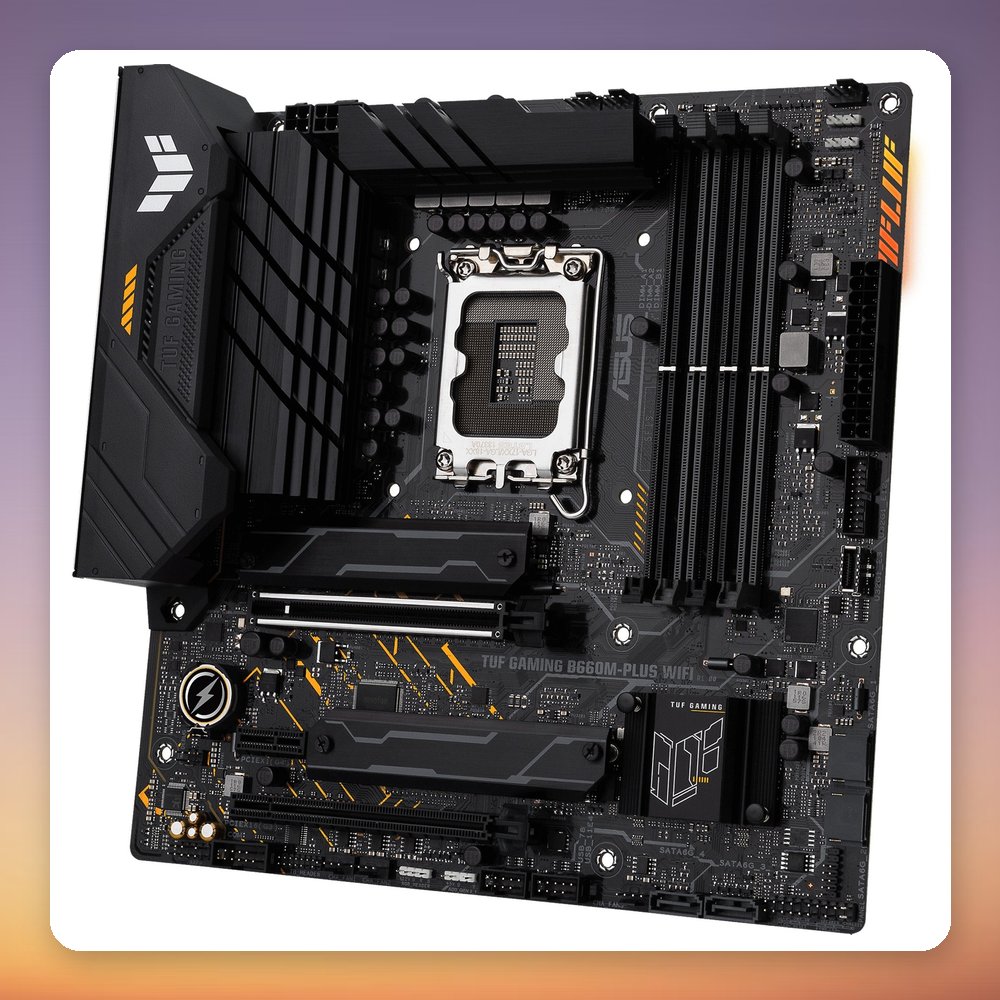

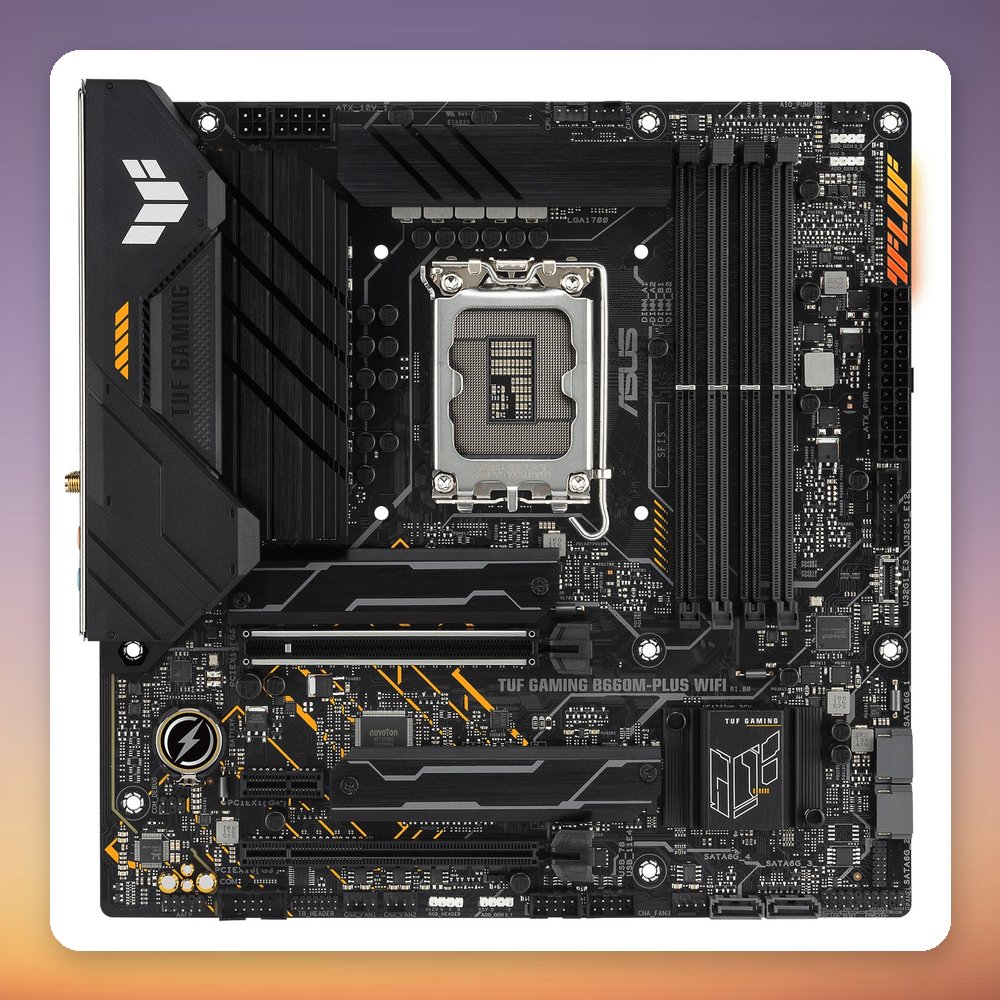

The ASUS TUF Gaming B660M-Plus WiFi is a micro ATX motherboard built on the Intel B660 chipset for LGA 1700 processors. It uses DDR5 memory across four DIMM slots, supporting up to 128 GB at speeds up to DDR5-6000 (OC), and adds a PCIe 5.0 x16 slot, two M.2 slots with dedicated heatsinks, 2.5 GbE LAN and Wi-Fi 6 with Bluetooth 5.2 built in.

This board suits a compact 12th Gen Intel Core build that needs wireless connectivity without a separate Wi-Fi card. The VRM uses 10+1 DrMOS power stages with an enlarged heatsink, and there are six 4-pin PWM fan headers, one RGB header and three addressable RGB headers with Aura Sync support. A USB-C 3.2 Gen 2×2 port (20 Gbps) is on the rear I/O, along with HDMI and DisplayPort outputs for CPUs with integrated graphics. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: TUF Gaming B660M-Plus WiFi
• MPN: 90MB1AZ0-M1EAY0
• EAN: 4711081604358
• Socket: LGA 1700
• Chipset: Intel B660
• Form factor: micro ATX (244 x 244 mm)
• Memory: 4x DDR5 DIMM, dual-channel, up to 128 GB, non-ECC
• Memory speed: DDR5-4800 to DDR5-6000 (OC)
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe x1
• M.2 slots: 2x M.2 (M key, SATA/PCIe, 42-80 mm) with heatsinks
• SATA: 4x SATA 6 Gb/s, RAID 0/1/5/10
• LAN: Intel 2.5 Gigabit Ethernet
• Wireless: Wi-Fi 6 (802.11ax), Bluetooth 5.2

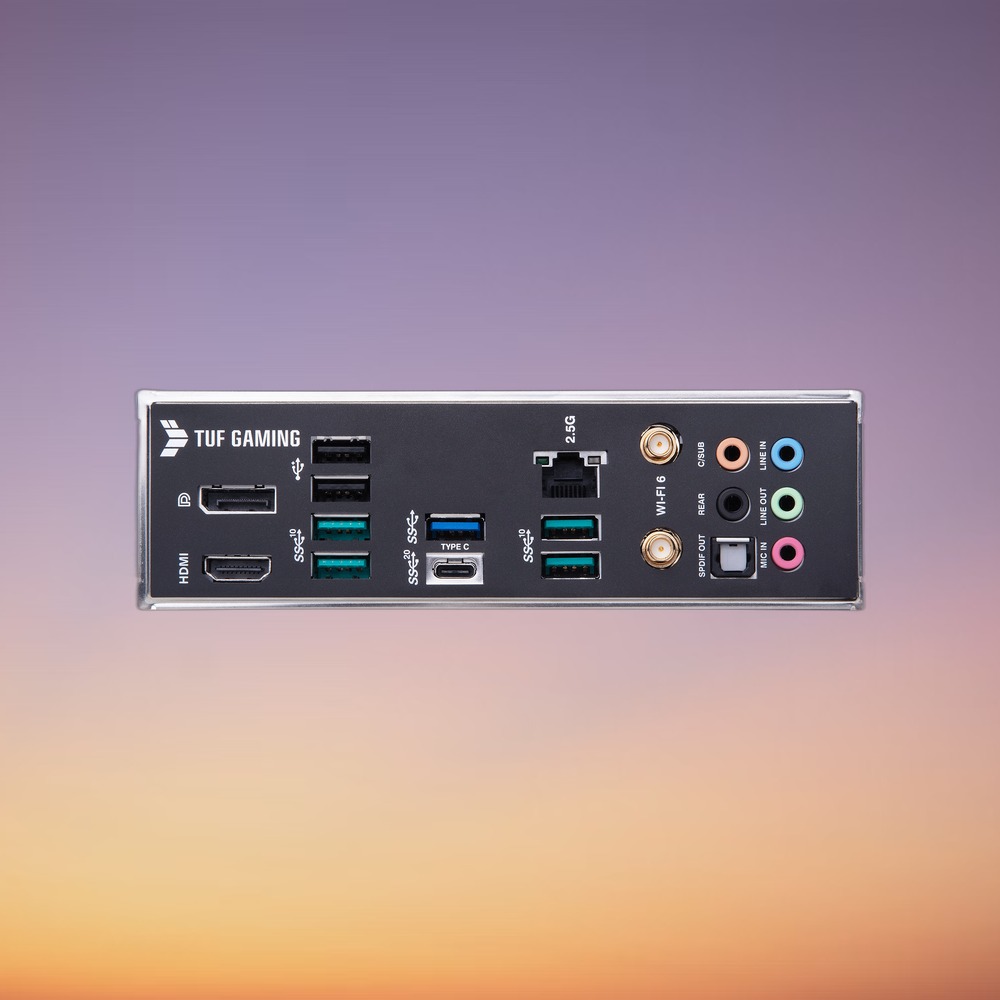

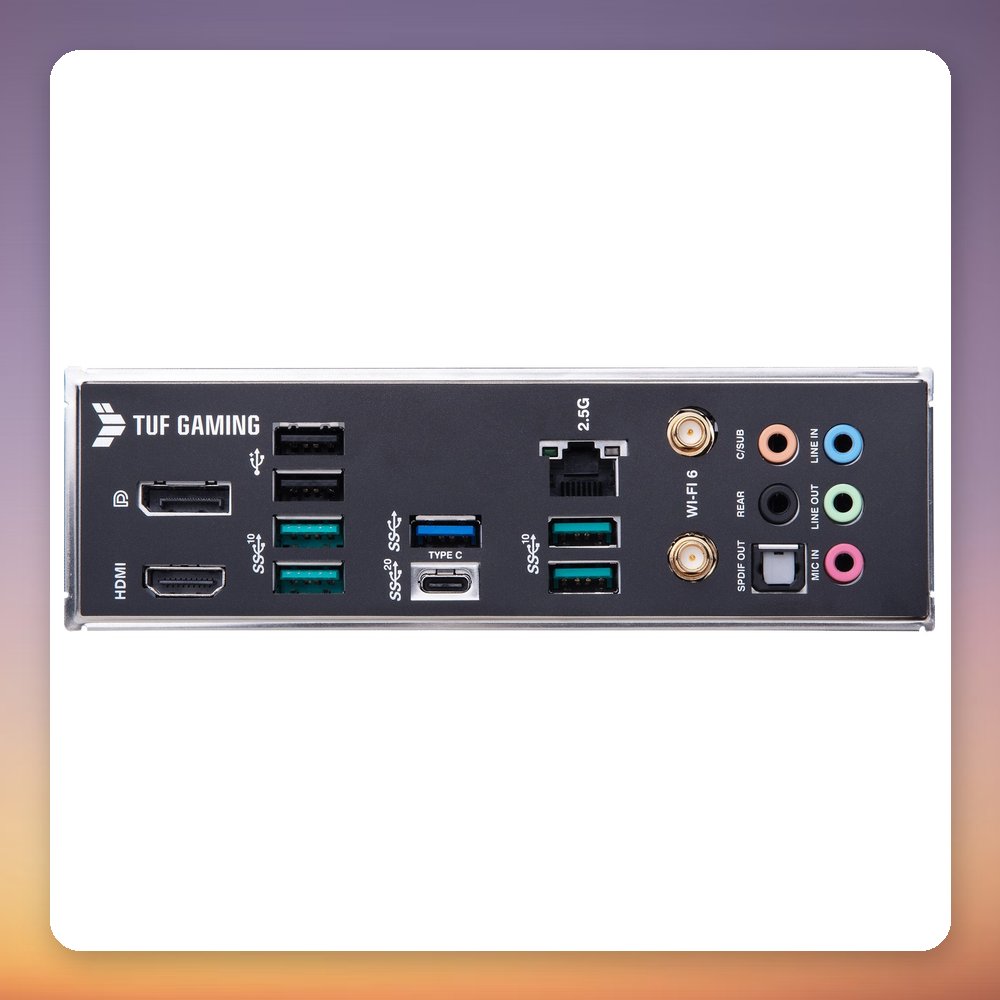

• Rear USB: 1x USB-C 3.2 Gen 2×2, 4x USB-A 3.2 Gen 2, 1x USB-A 3.2 Gen 1, 2x USB 2.0
• Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.4
• Audio: Realtek 7.1 channel HD audio, optical S/PDIF out
• RGB: 1x RGB header, 3x addressable RGB headers (Aura Sync)
• Fan headers: 6x 4-pin PWM
• Weight: 1.35 kg
• Dimensions (W x H x D): 244 x 68 x 244 mm
