Product Overview

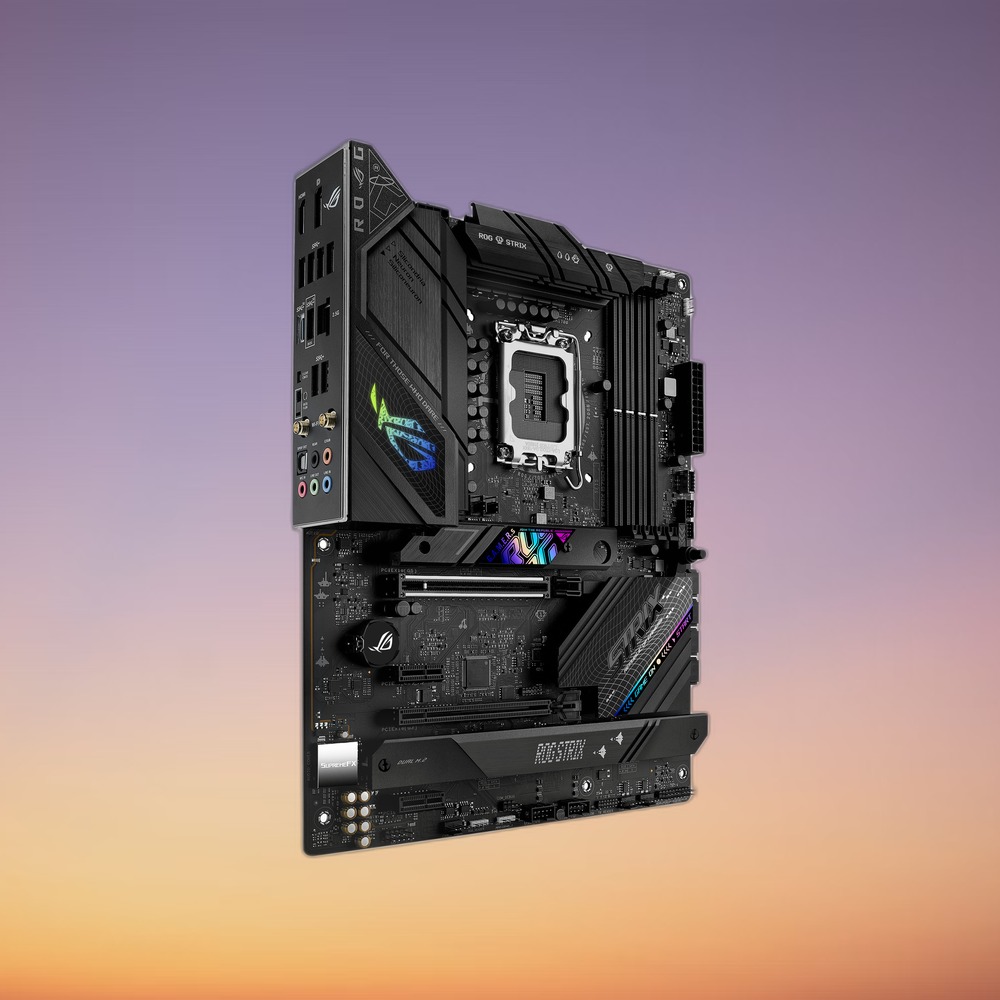

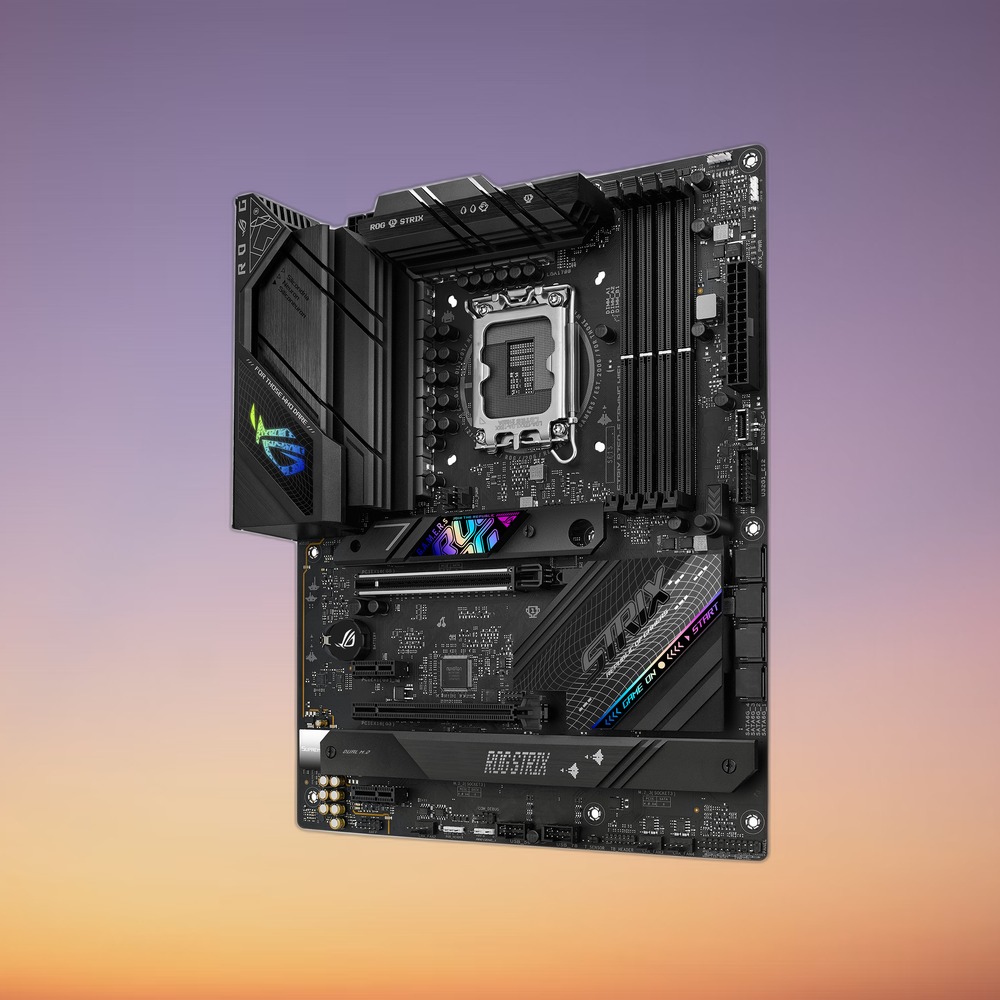

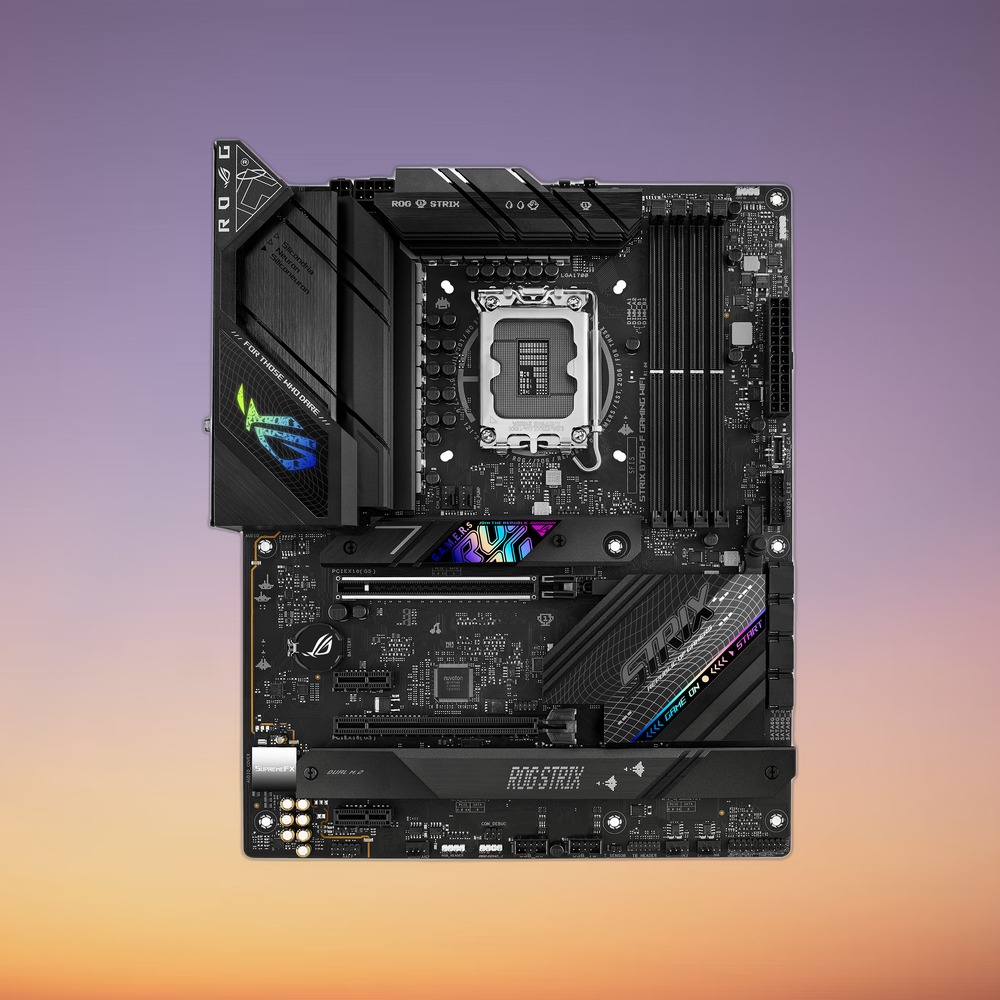

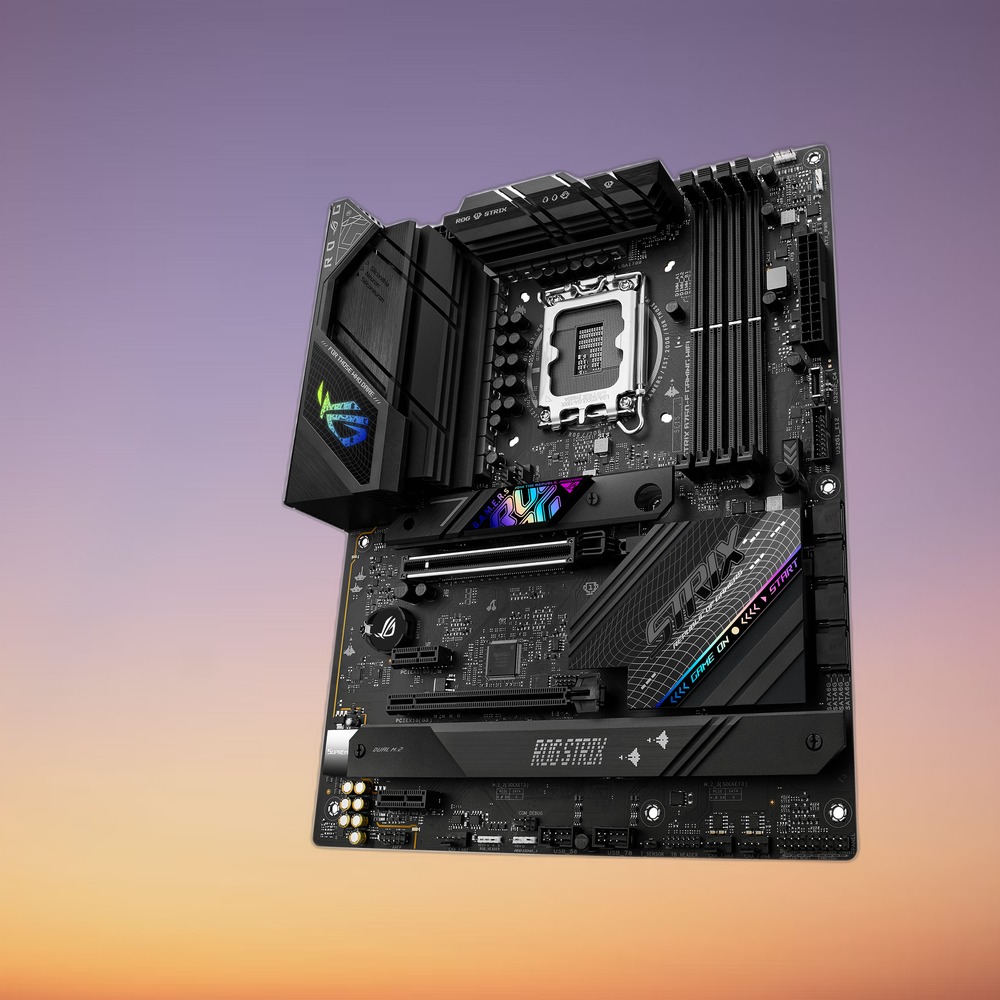

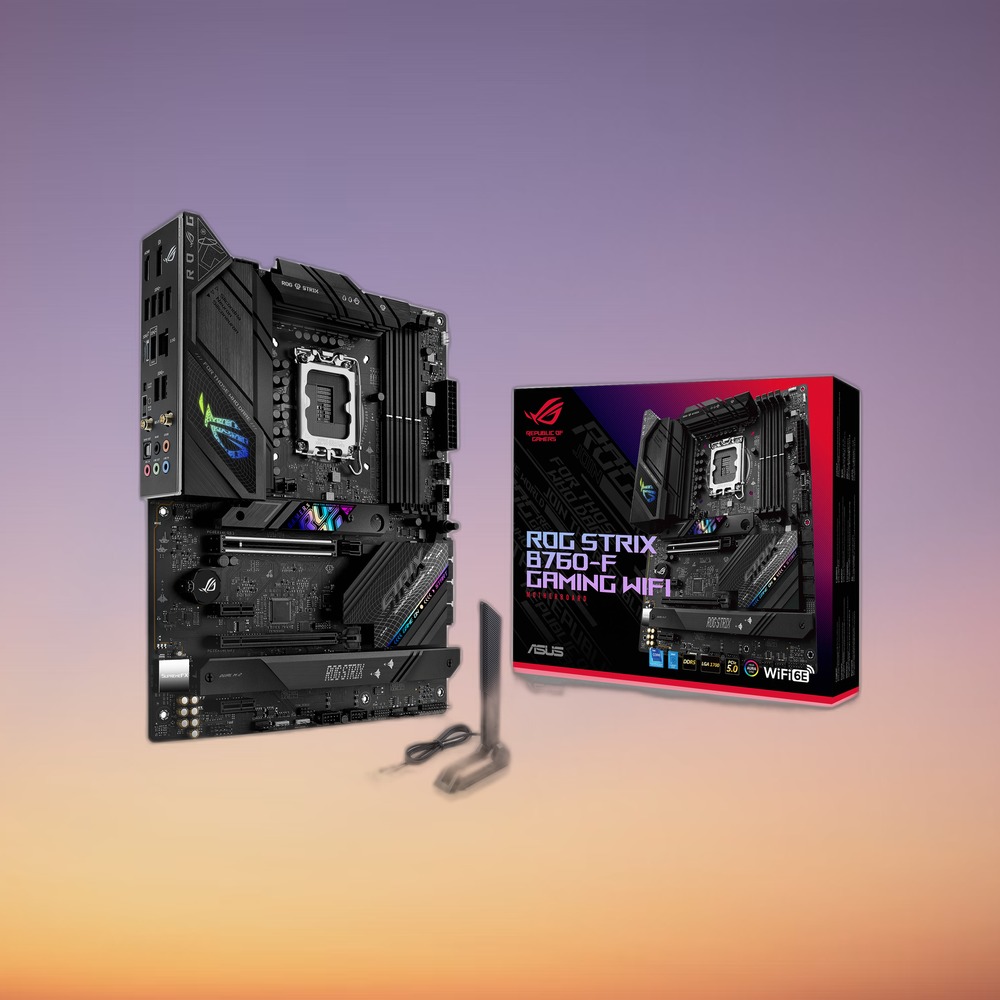

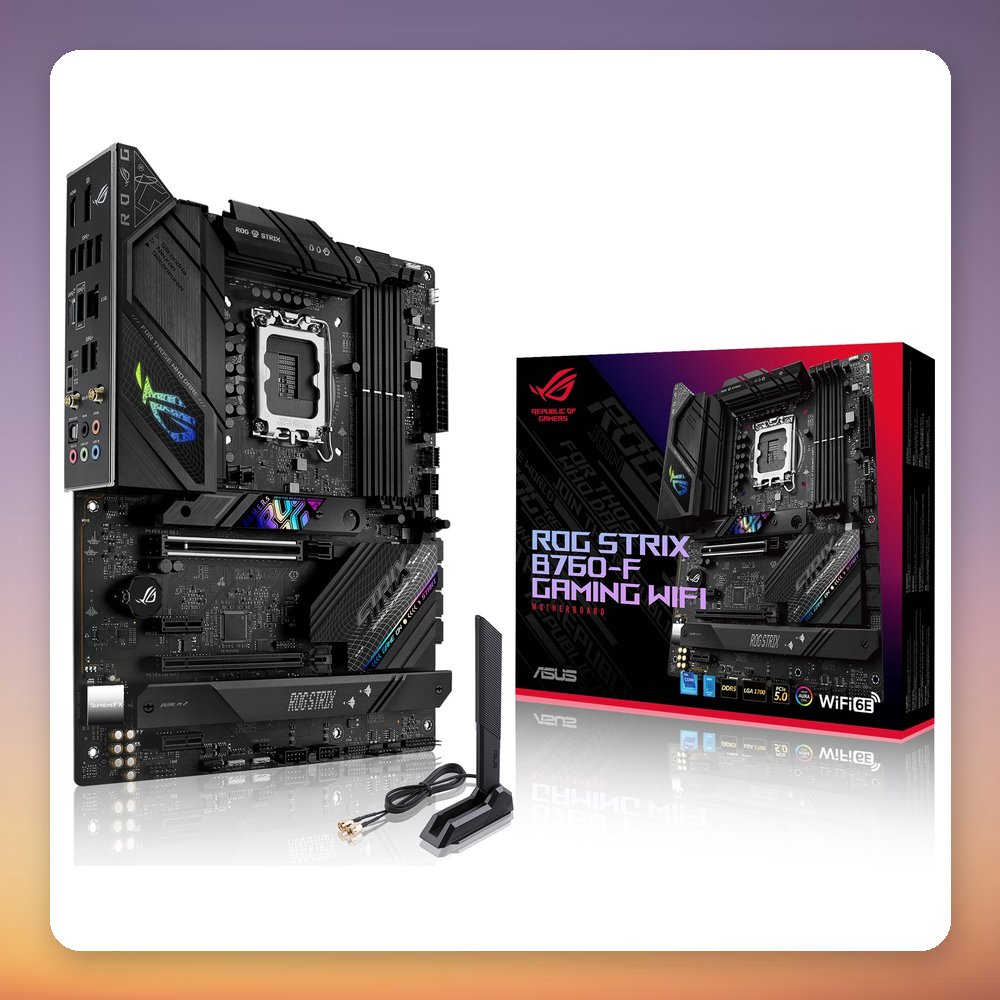

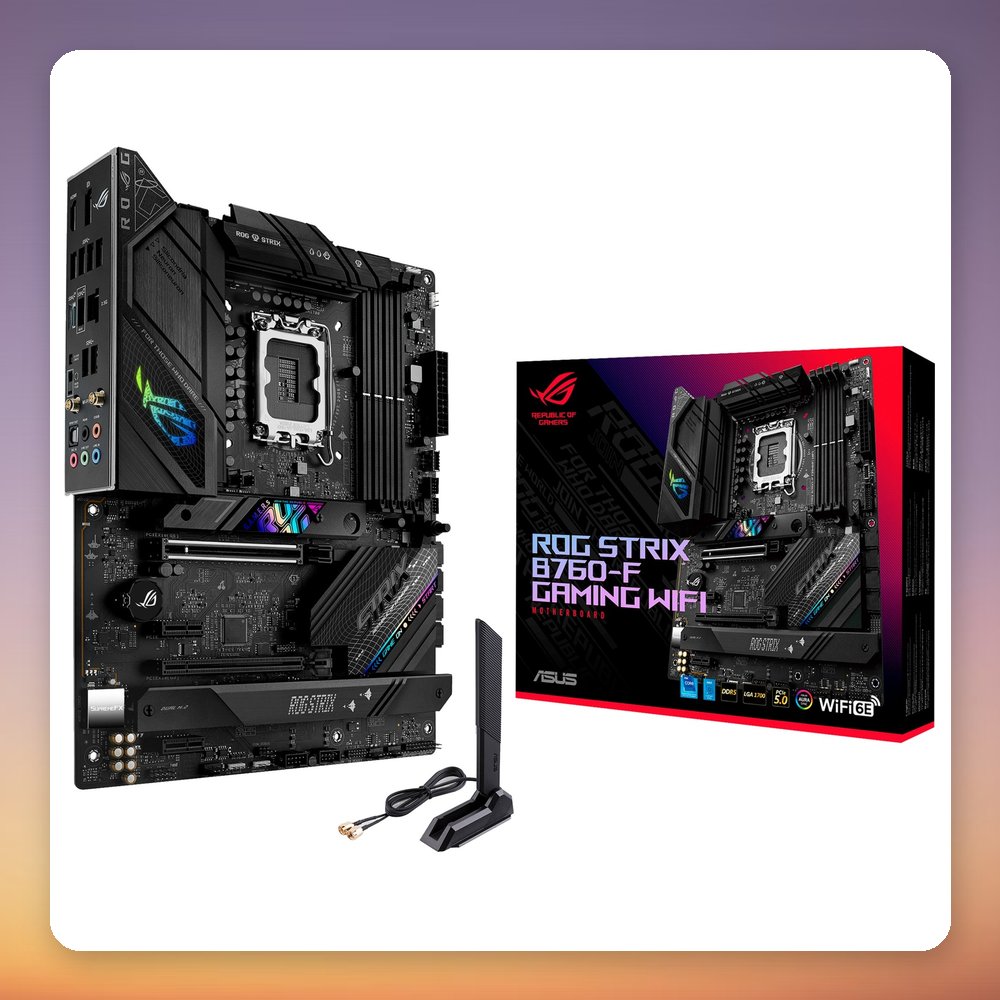

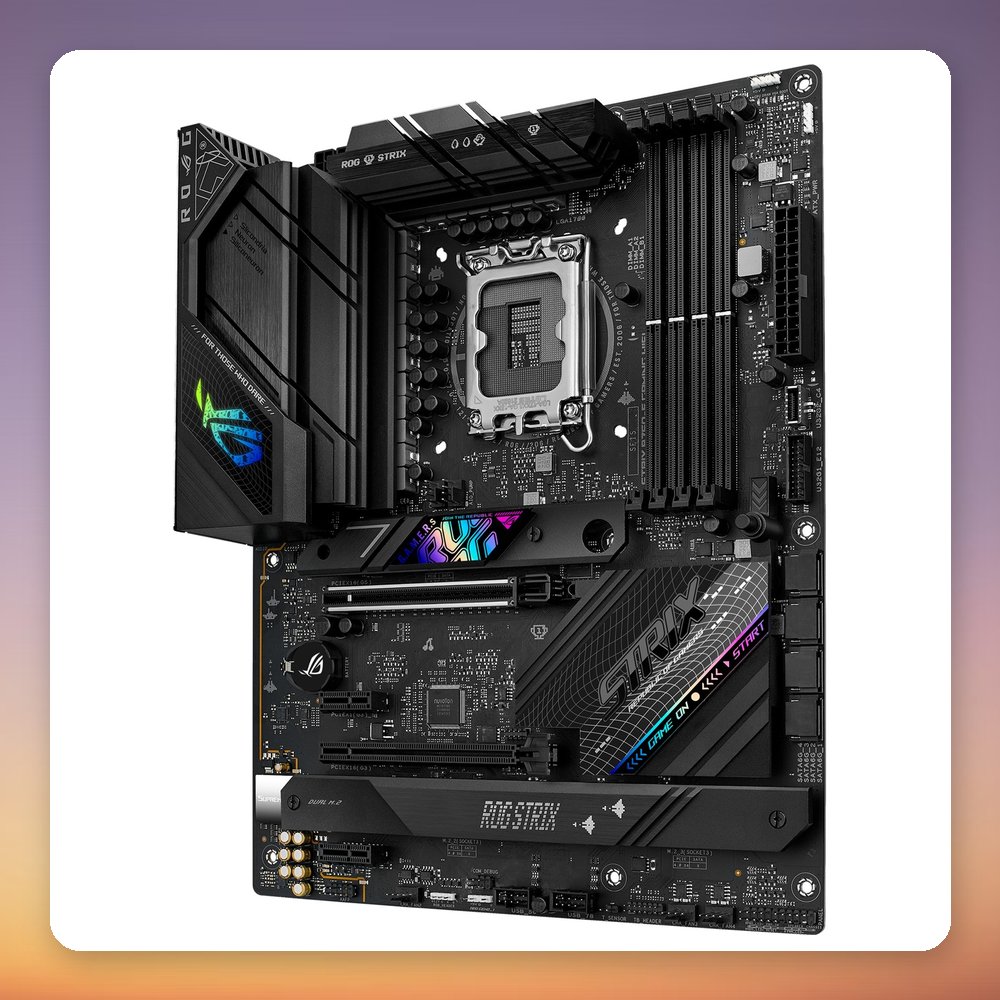

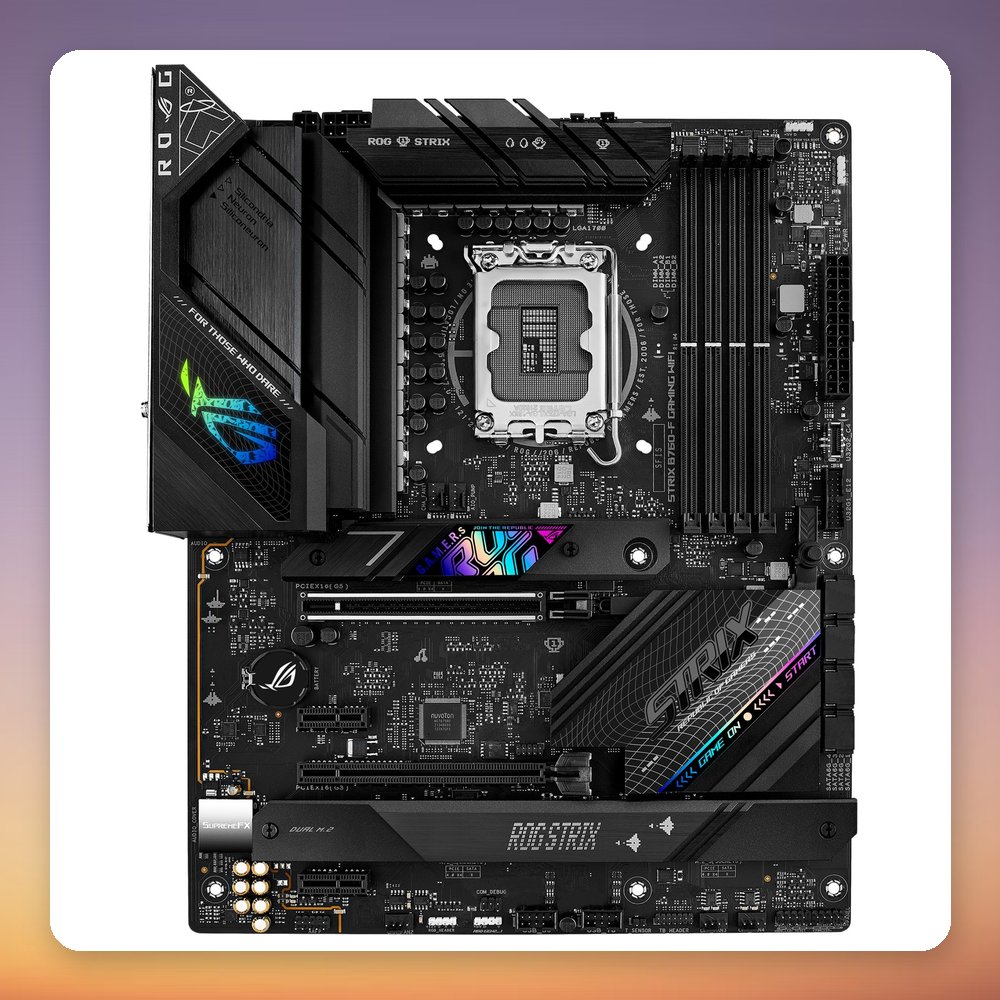

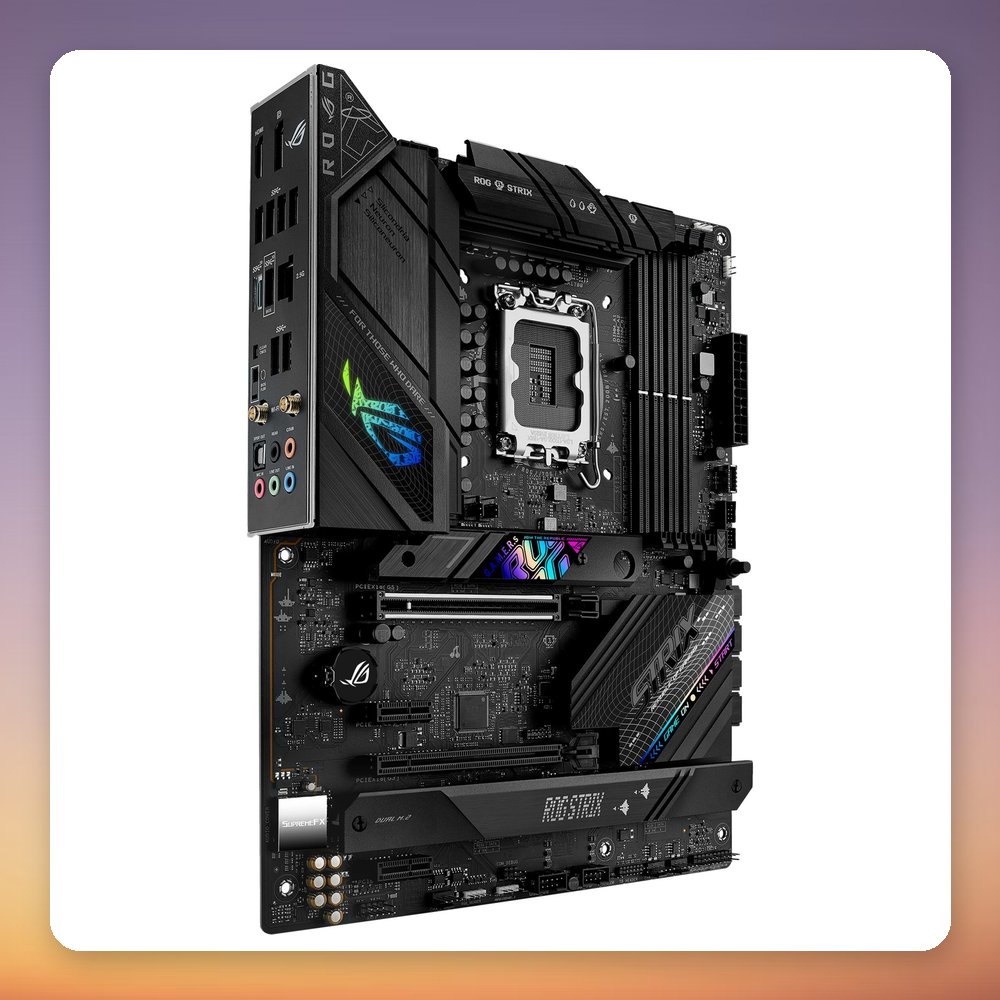

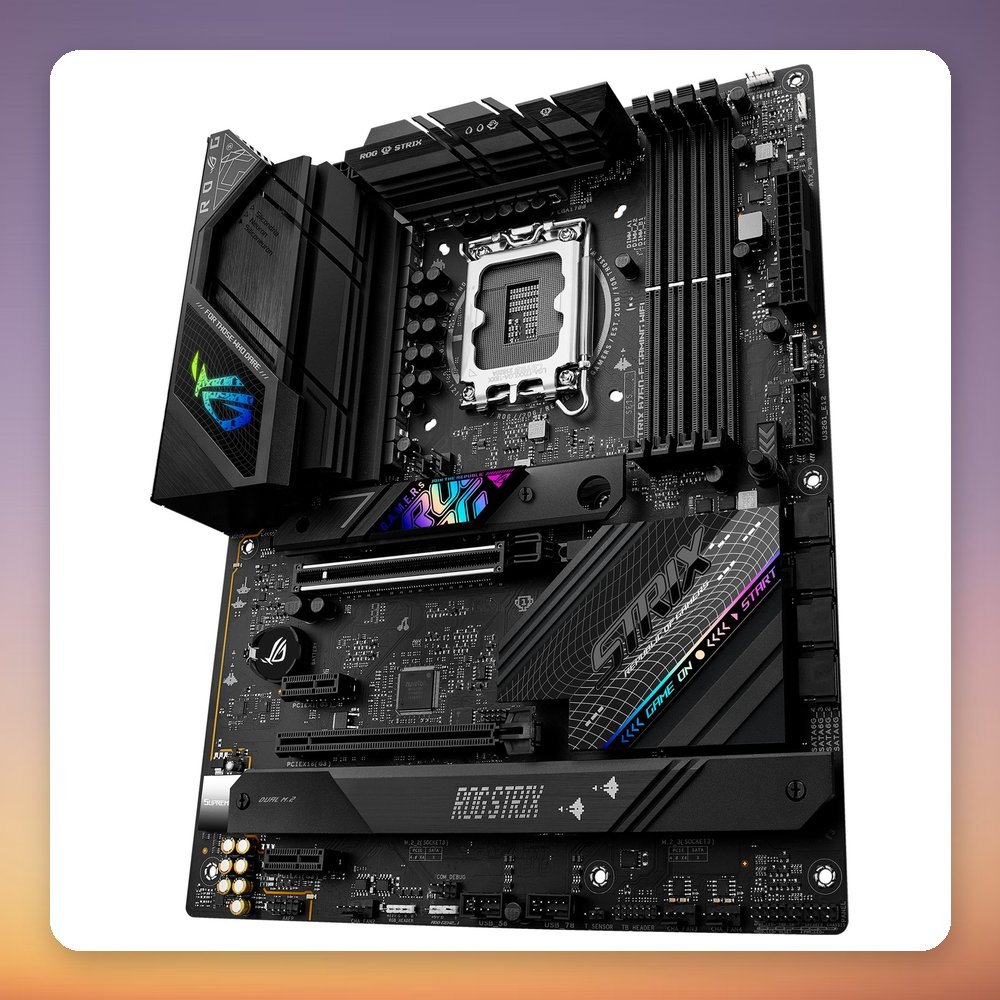

The ASUS ROG Strix B760-F Gaming WiFi is an ATX motherboard built on the Intel B760 chipset for LGA 1700 processors. It has four DDR5 DIMM slots supporting memory speeds up to 7800 MHz (OC), a PCIe 5.0 x16 slot for the graphics card, and three M.2 slots for PCIe Gen 4.0 SSDs. Power delivery uses 16+1 power stages, each rated to 60 A.

This board suits a mid-range to high-end Intel gaming build with a 13th Gen chip, since it adds Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gb Ethernet out of the box. Builders get convenient extras such as the PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack and Q-LED diagnostics. Note that a BIOS update may be needed to support the newest processors.

Specification

• Manufacturer: Asus
• Model: ROG Strix B760-F Gaming WiFi
• MPN: 90MB1CT0-M1EAY0
• EAN: 47110819746660
• CPU socket: LGA 1700
• Chipset: Intel B760
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 192 GB (Wave) / 128 GB (Icecat)
• Memory speed: Up to DDR5-7800 (OC)
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1
• M.2 slots: 3x M.2 (M key), PCIe Gen 4.0, 42-110 mm
• SATA: 4x SATA III, RAID 0/1/5/10
• Networking: Intel 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3
• Rear USB: 1x USB-C 3.2 Gen 2×2, 1x USB-A 3.2 Gen 2, 6x USB-A 3.2 Gen 1
• Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.4 (requires CPU with integrated graphics)
• Audio: ROG SupremeFX 7.1, Realtek ALC4080
• RGB: 1x RGB header, 3x addressable RGB headers, AURA Sync
• Dimensions (W x H x D): 244 x 305 mm
• Colour: Black
