Product Overview

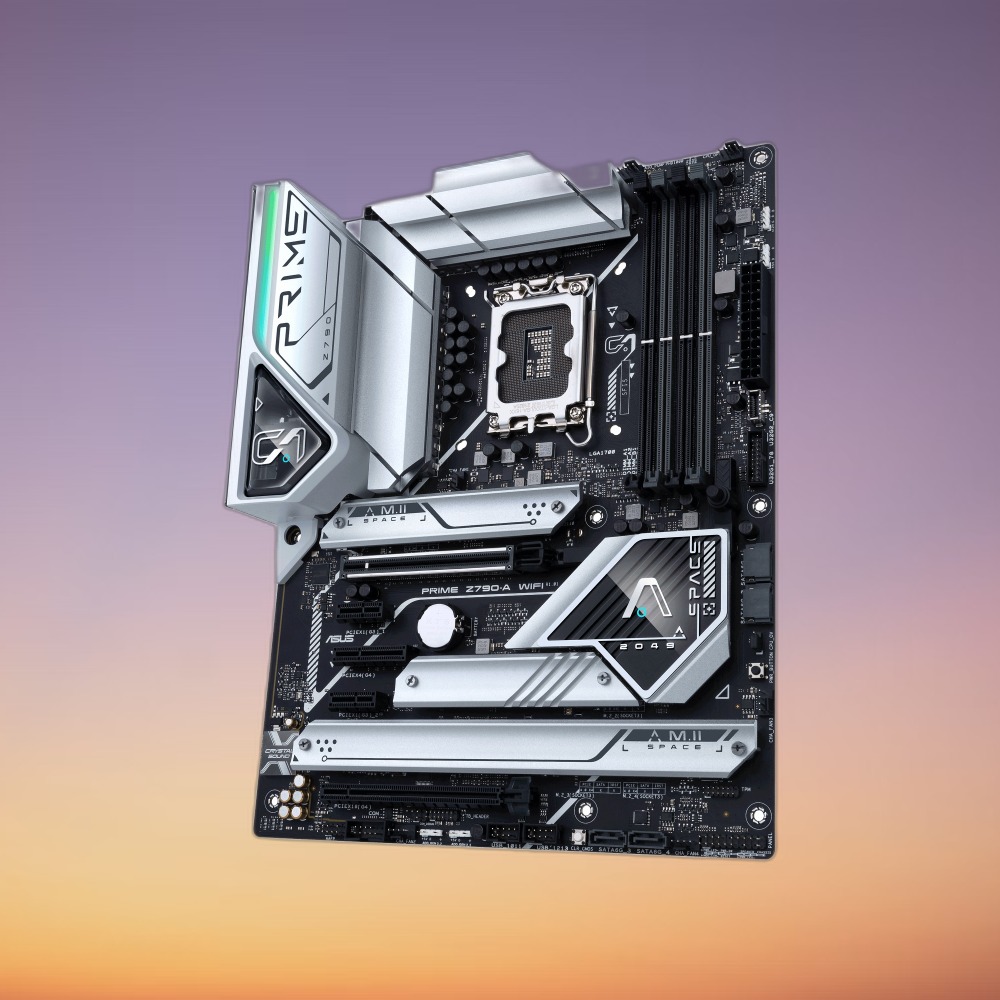

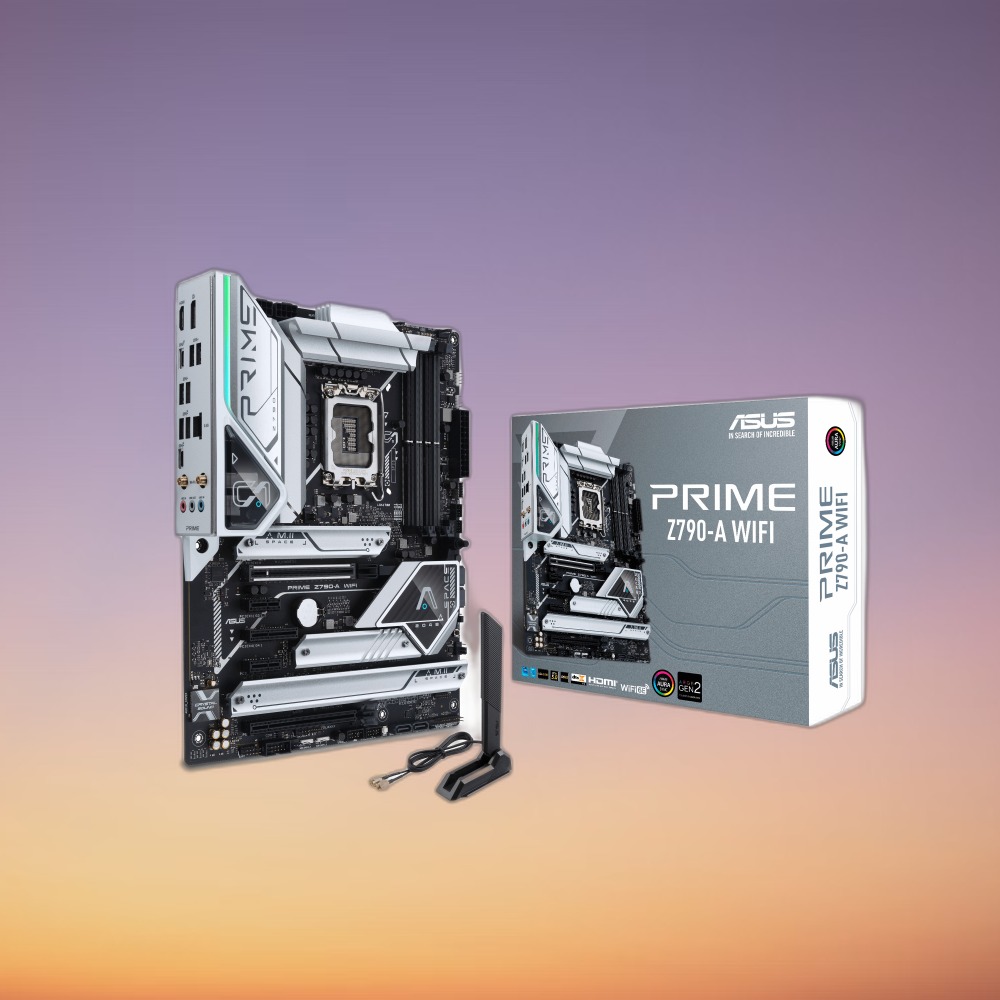

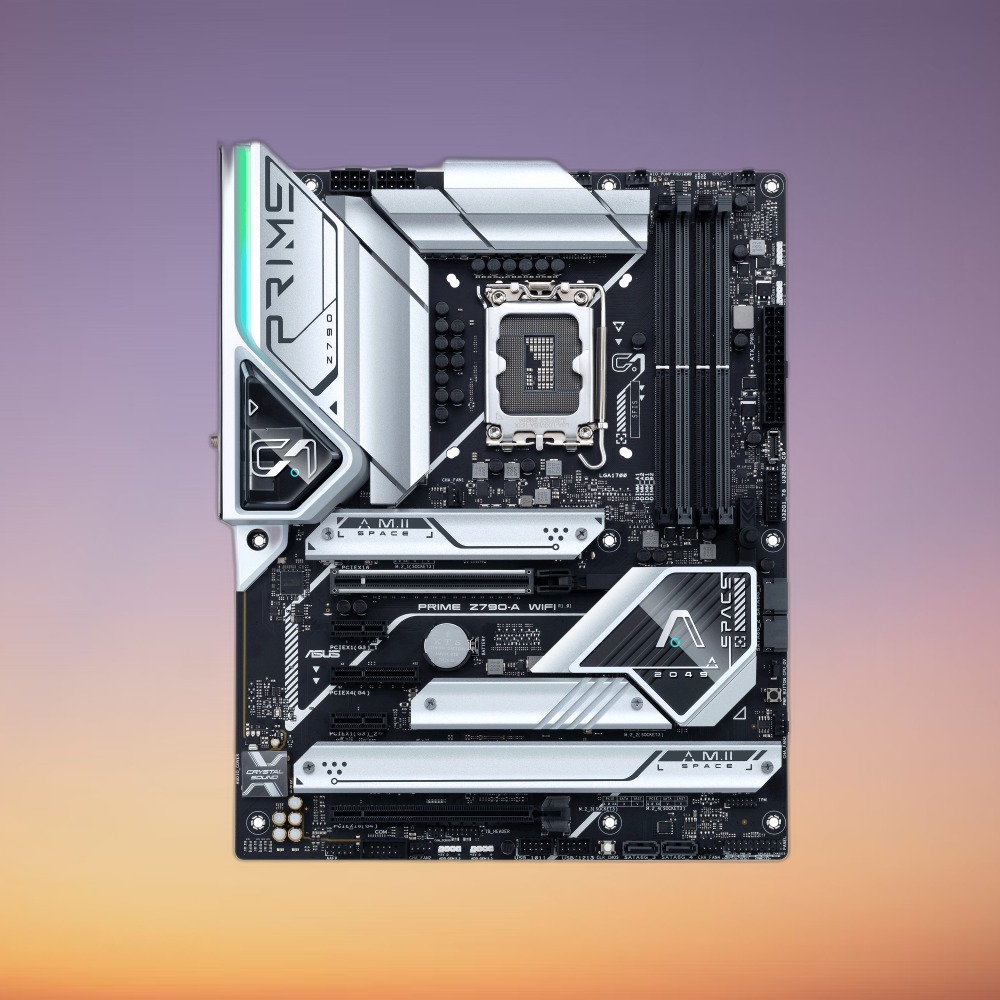

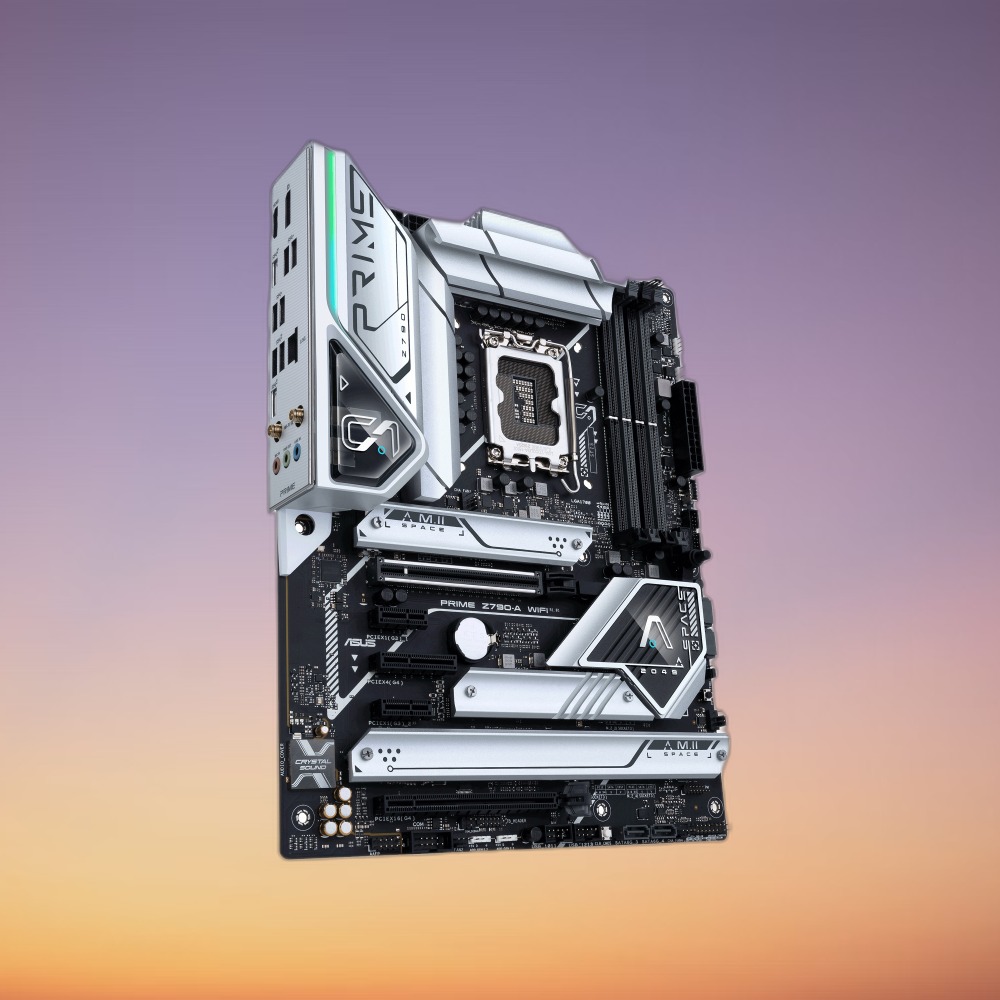

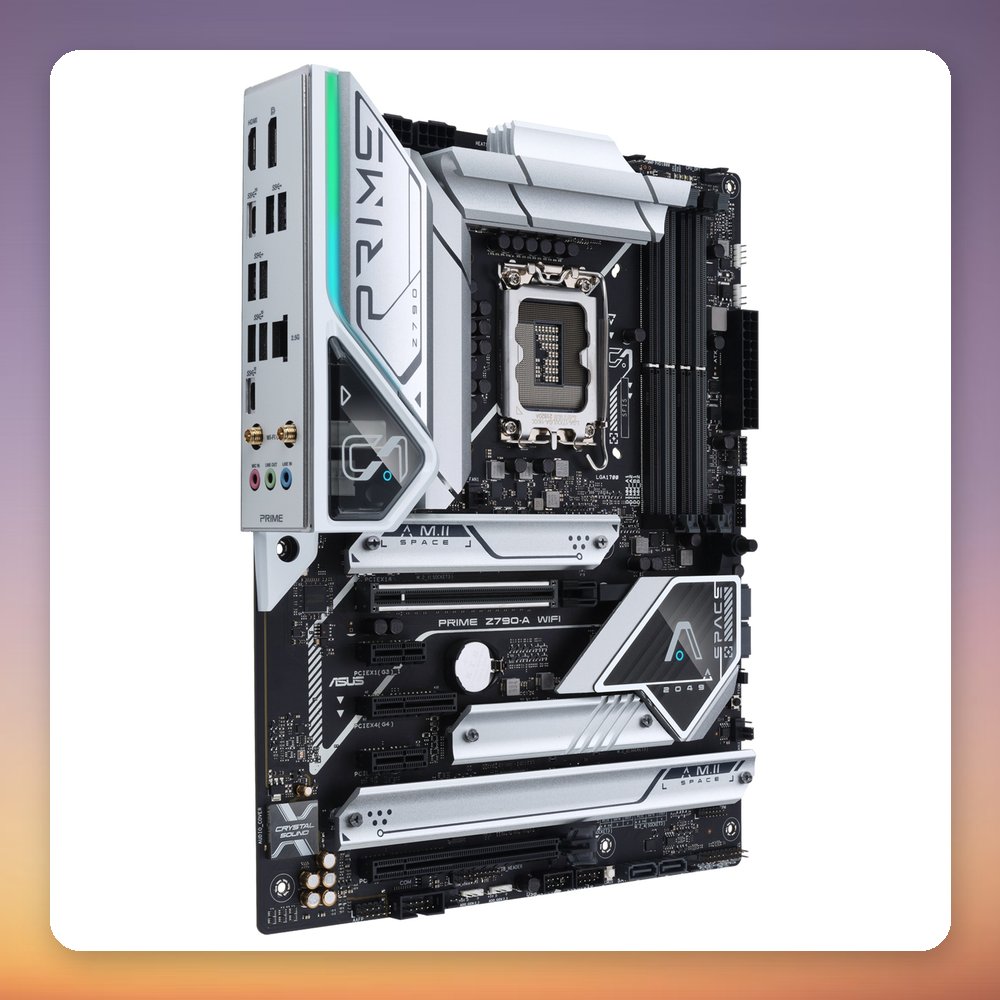

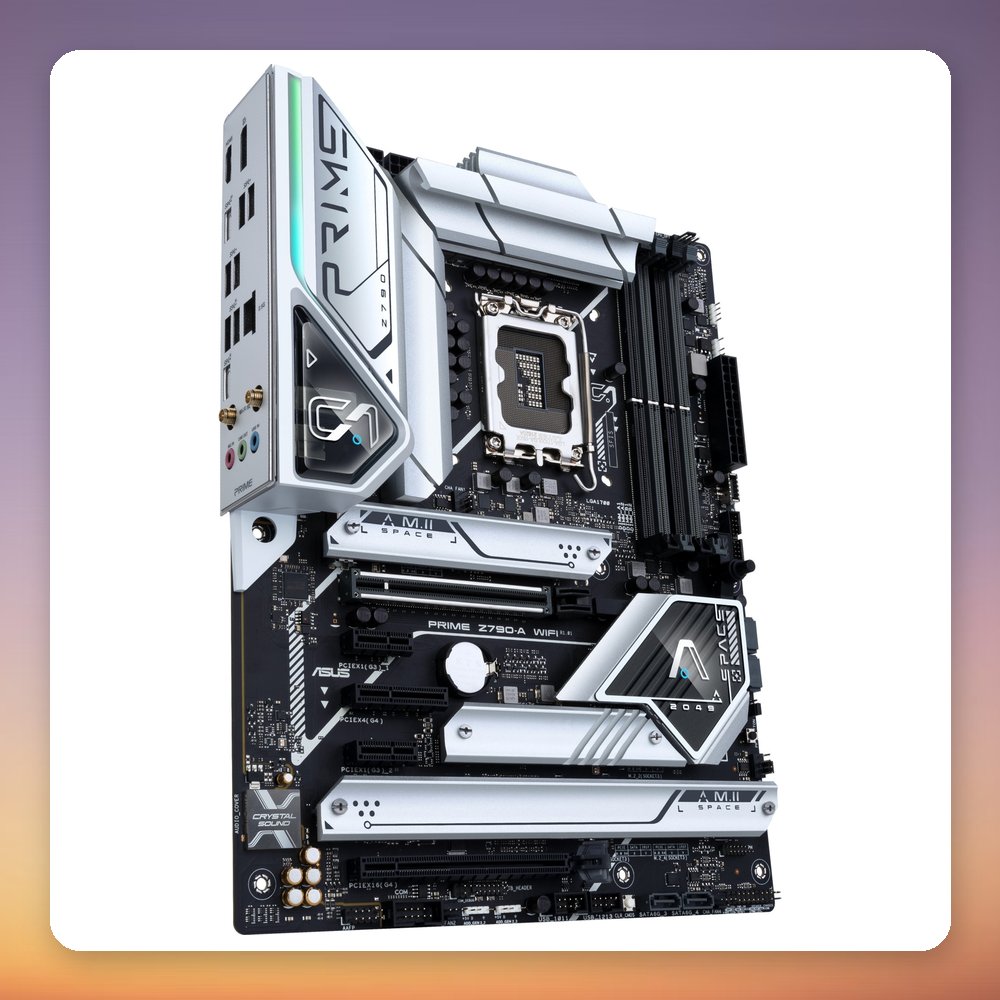

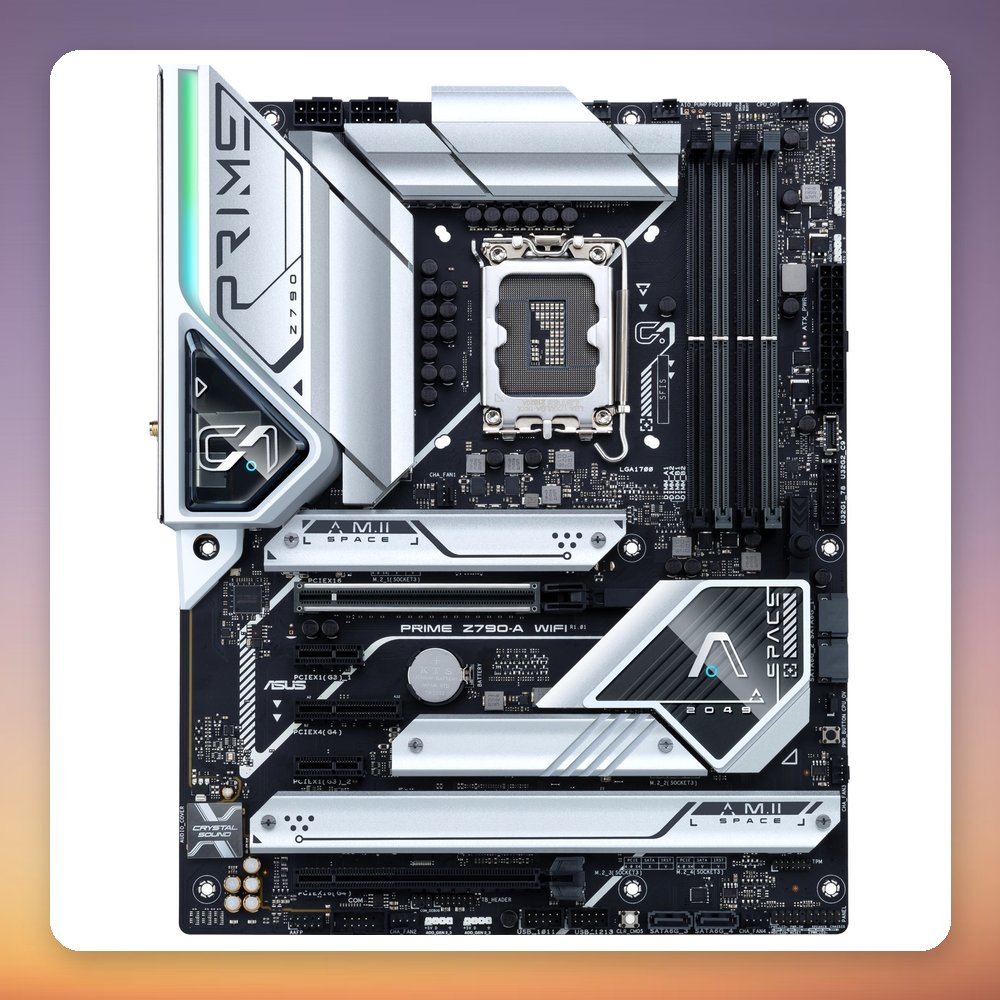

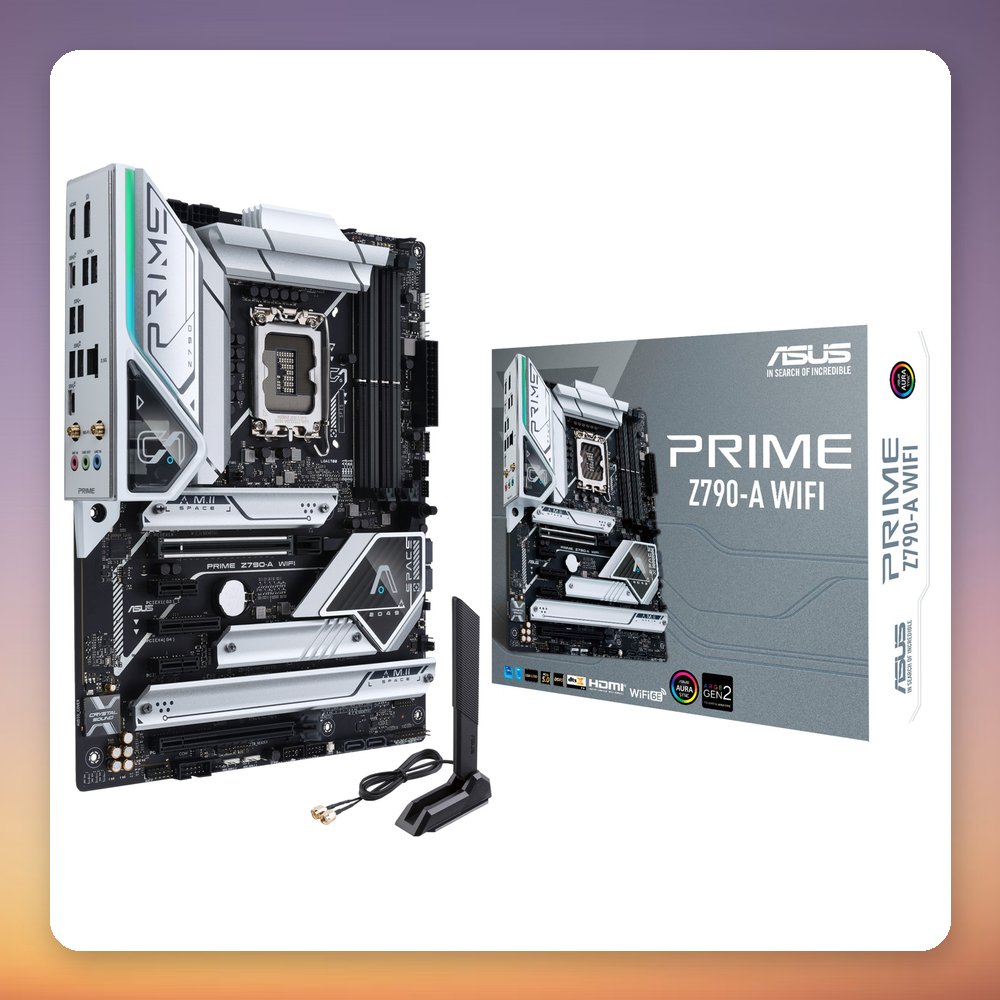

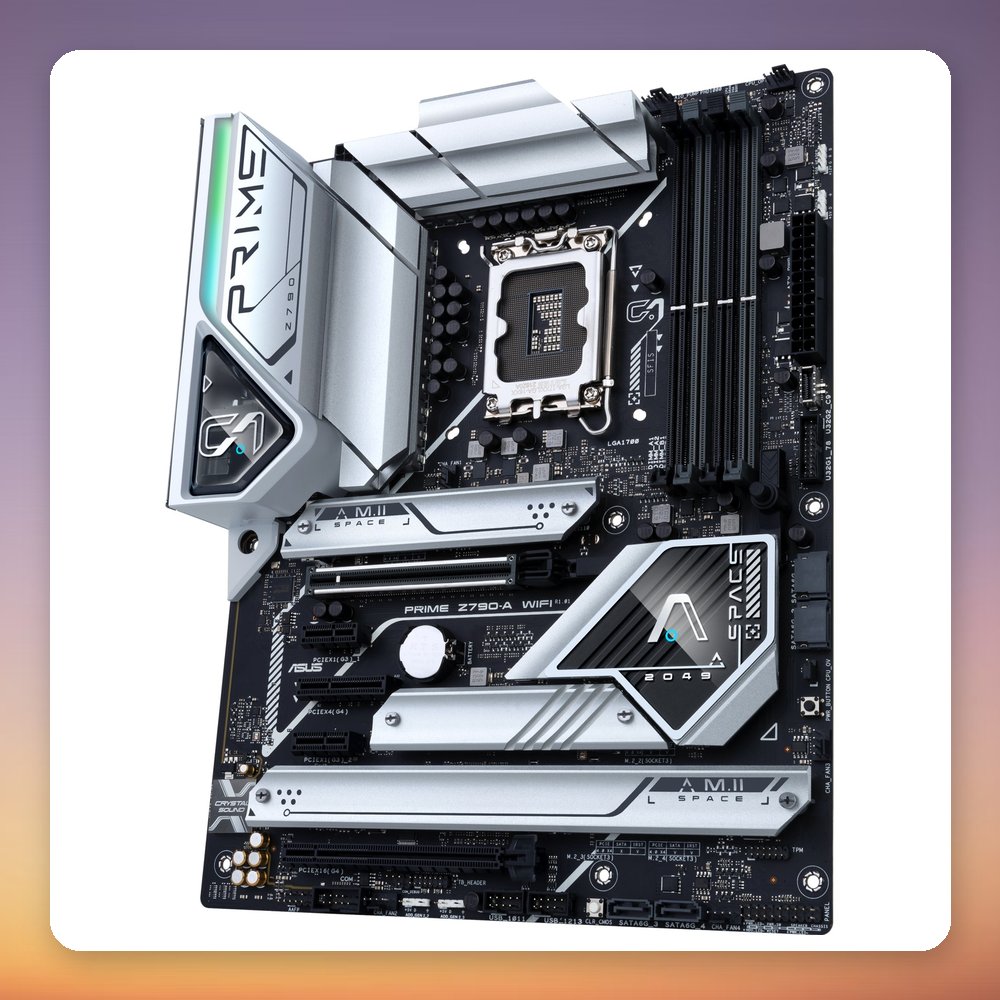

The Asus PRIME Z790-A WIFI is an ATX motherboard built on the Intel Z790 chipset for LGA 1700 processors. It takes four DDR5 DIMMs in dual-channel, with support up to DDR5-7200 (OC), and offers four M.2 slots covered by three heatsinks, plus a PCIe 5.0 x16 slot for the graphics card.

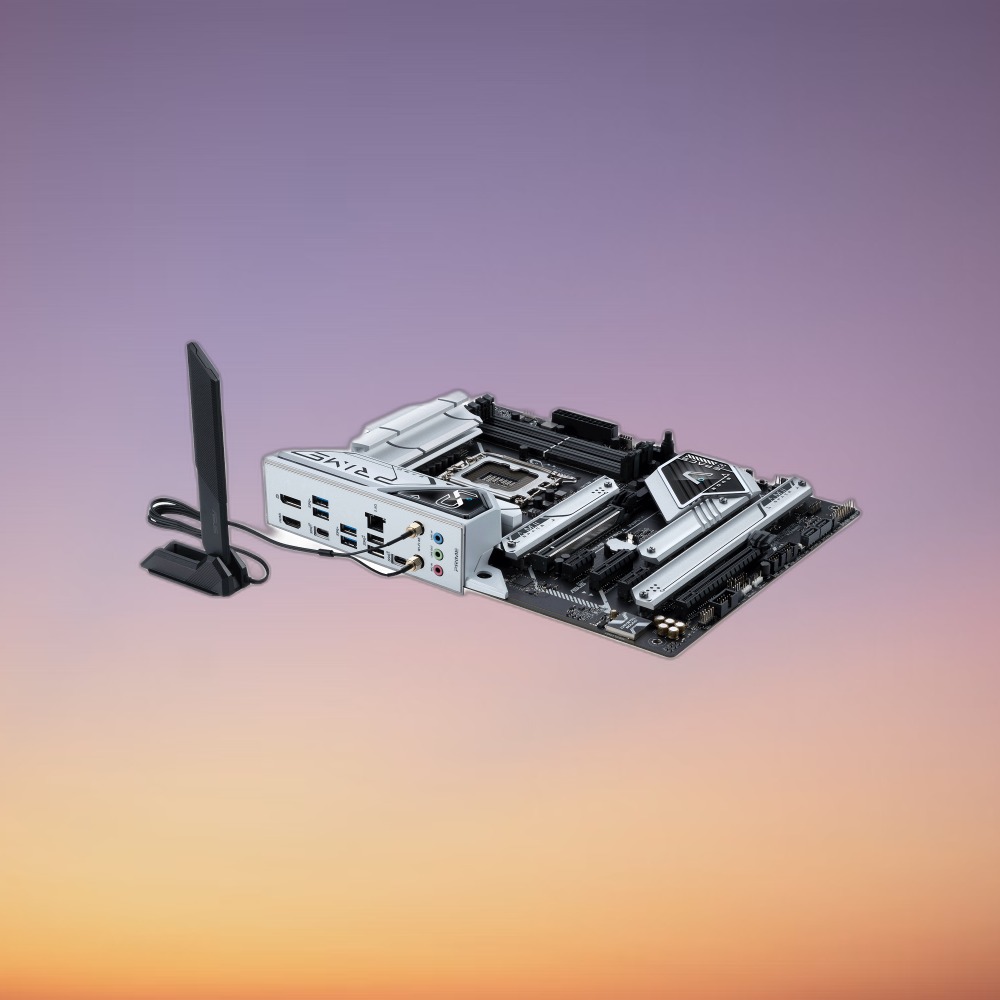

With built-in Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gb Intel Ethernet, this board suits gaming and general-purpose builds around 12th and 13th Gen Intel Core CPUs without needing add-in network cards. It includes seven 4-pin fan headers, a dedicated AIO pump header, Aura Sync RGB headers and a Thunderbolt header, giving builders plenty of room to expand. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: PRIME Z790-A WIFI
• MPN: 90MB1CS0-M1EAY0
• EAN: 4711081939320
• Socket: LGA 1700
• Chipset: Intel Z790
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, non-ECC
• Memory speed: DDR5-4800 to DDR5-7200 (OC)
• M.2 slots: 4x M.2 (M key), SATA and PCIe, 42 – 110 mm
• SATA ports: 4x SATA III
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 4.0 x4, 2x PCIe 3.0 x1
• Networking: 1x Intel 2.5 Gb Ethernet, Wi-Fi 6E (802.11ax), Bluetooth 5.3

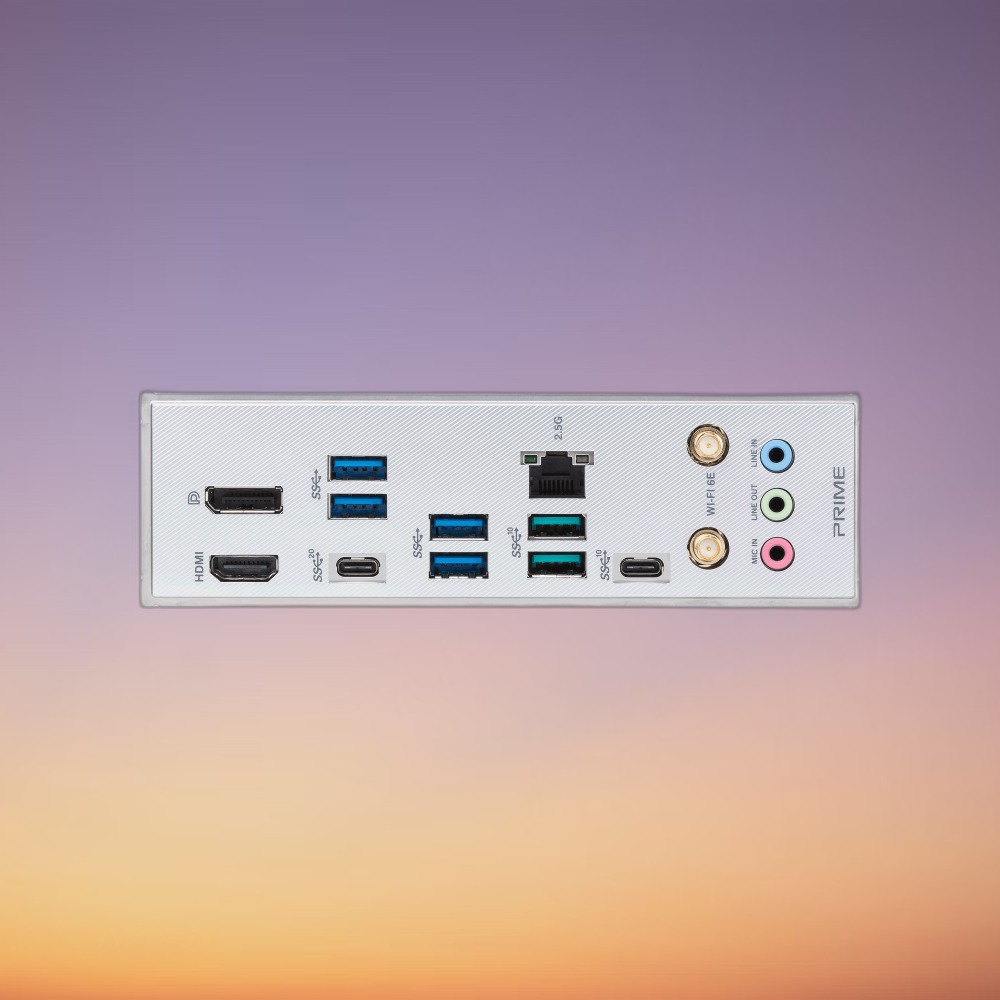

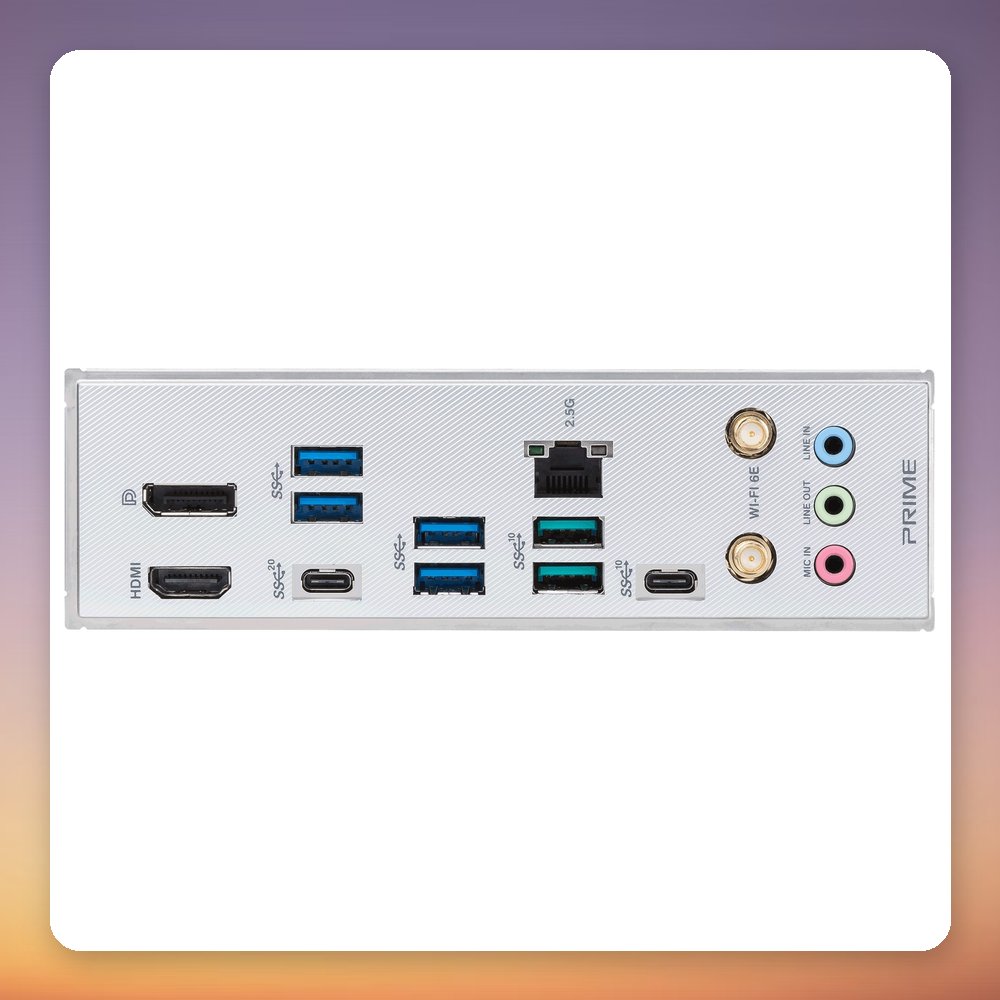

• Rear USB: 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 2, 4x USB-A 3.2 Gen 1
• Video outputs: 1x HDMI, 1x DisplayPort (CPU with integrated graphics required)
• Audio: Realtek S1220A 7.1 Surround Sound
• RGB: 1x RGB header, 3x addressable RGB headers, Aura Sync
• Dimensions (W x D): 305 x 244 mm
• Weight: 1.27 kg (packaged)
