Product Overview

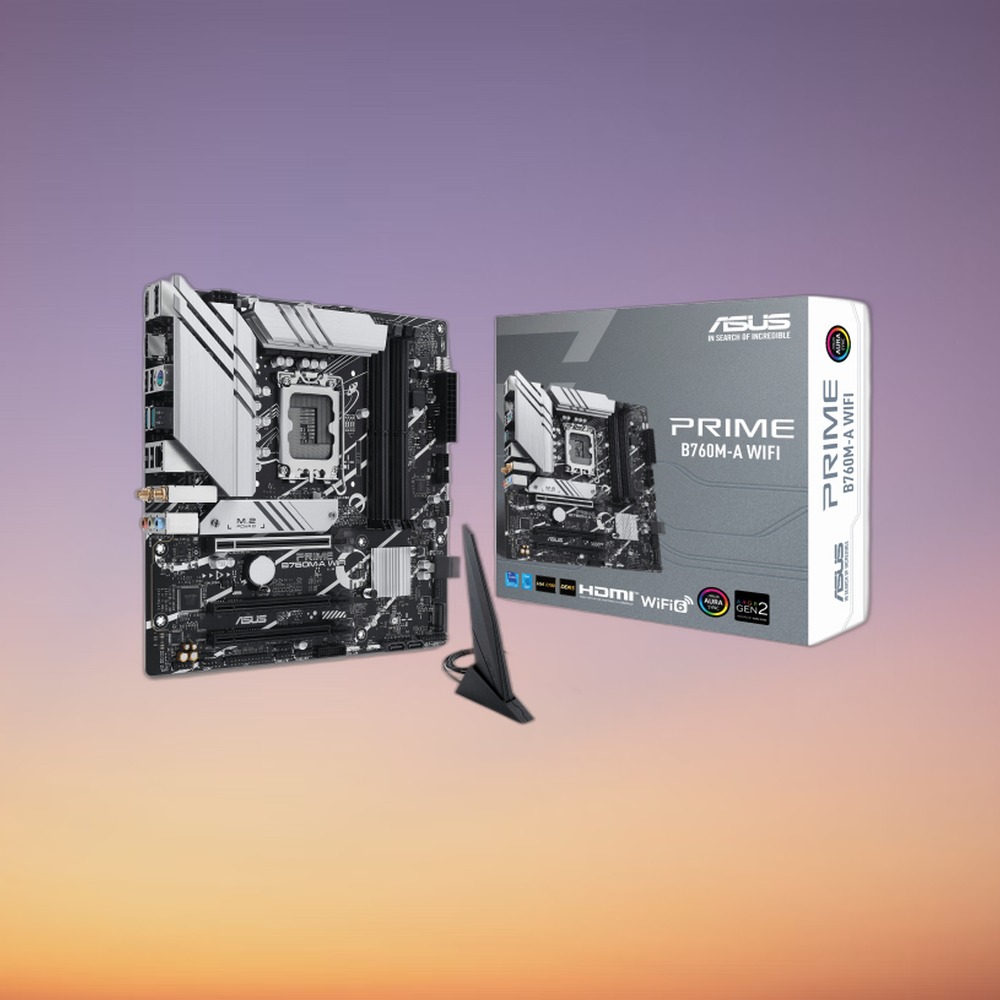

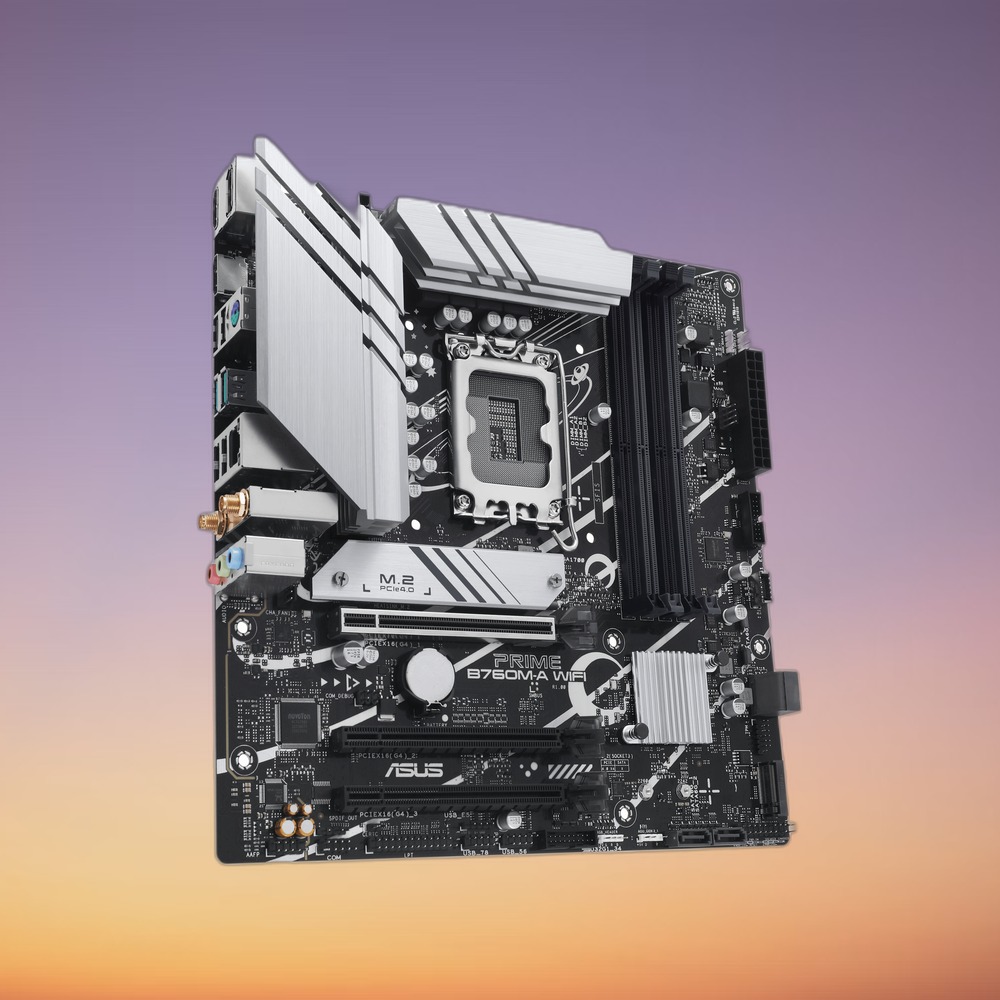

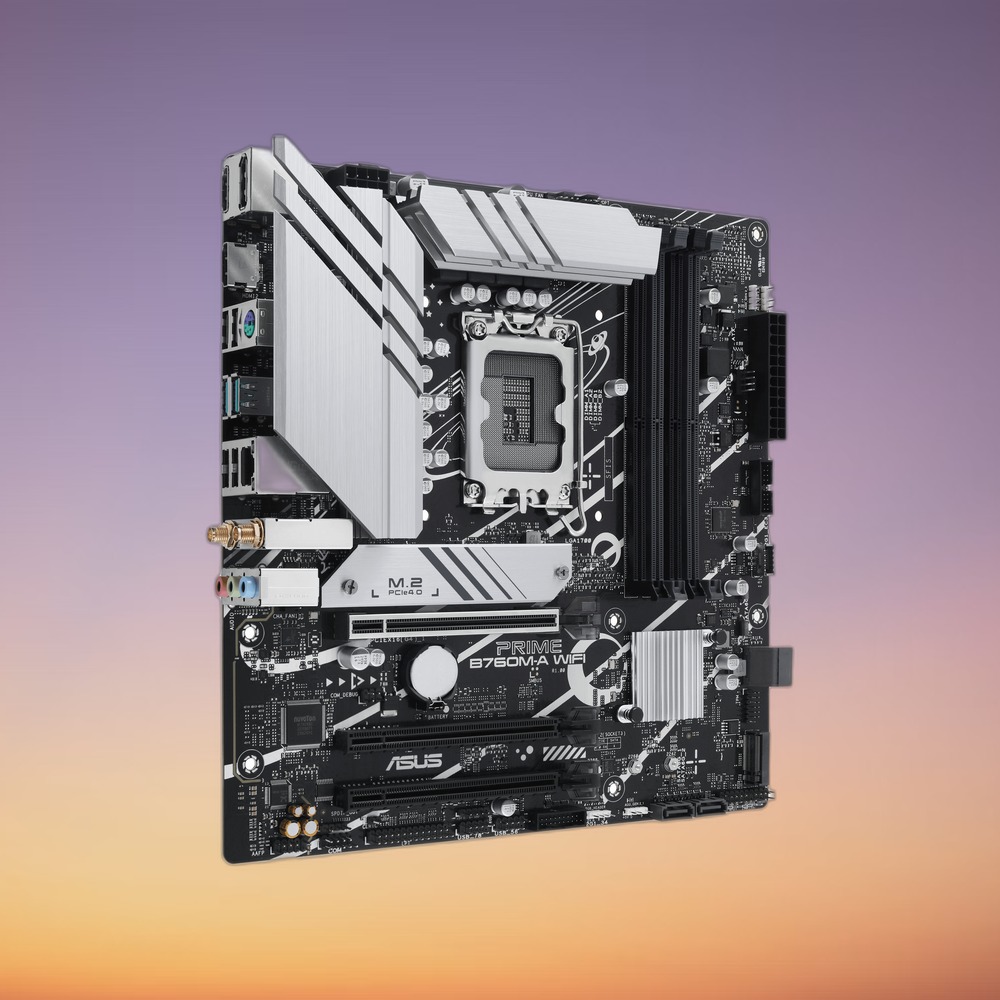

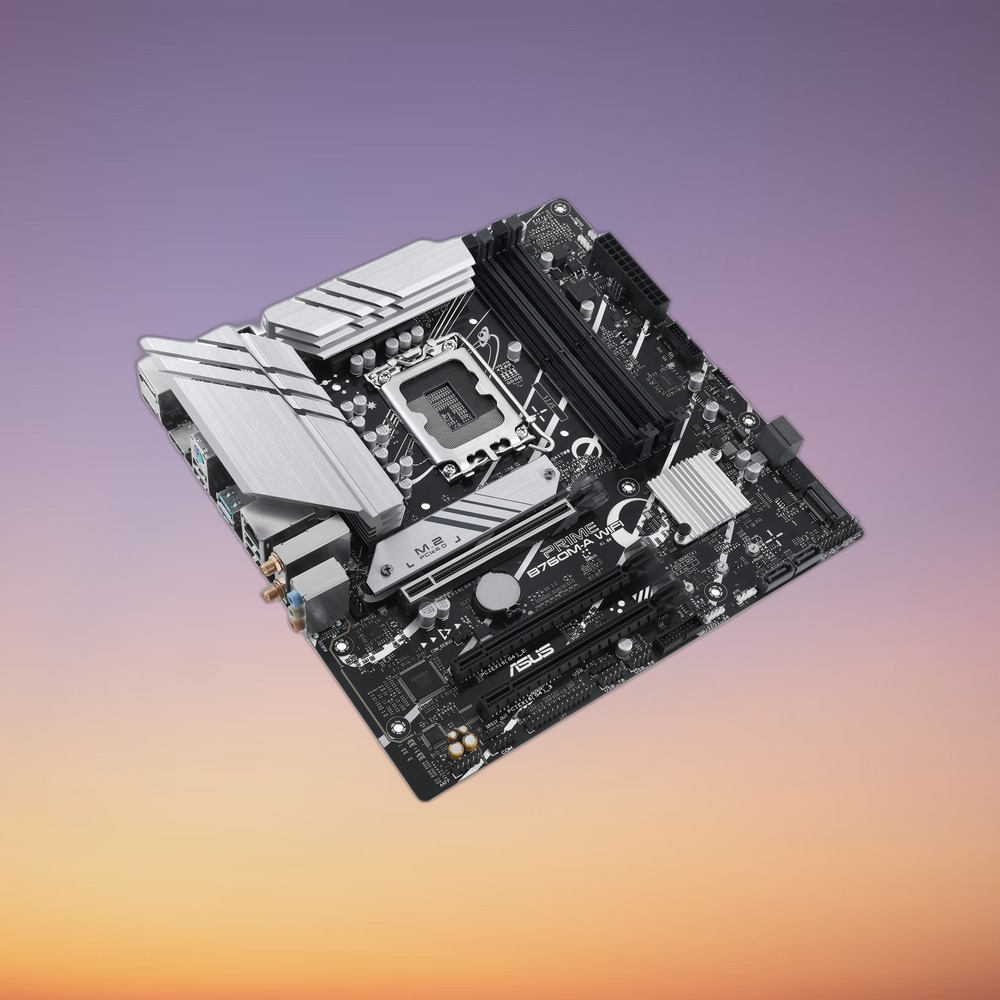

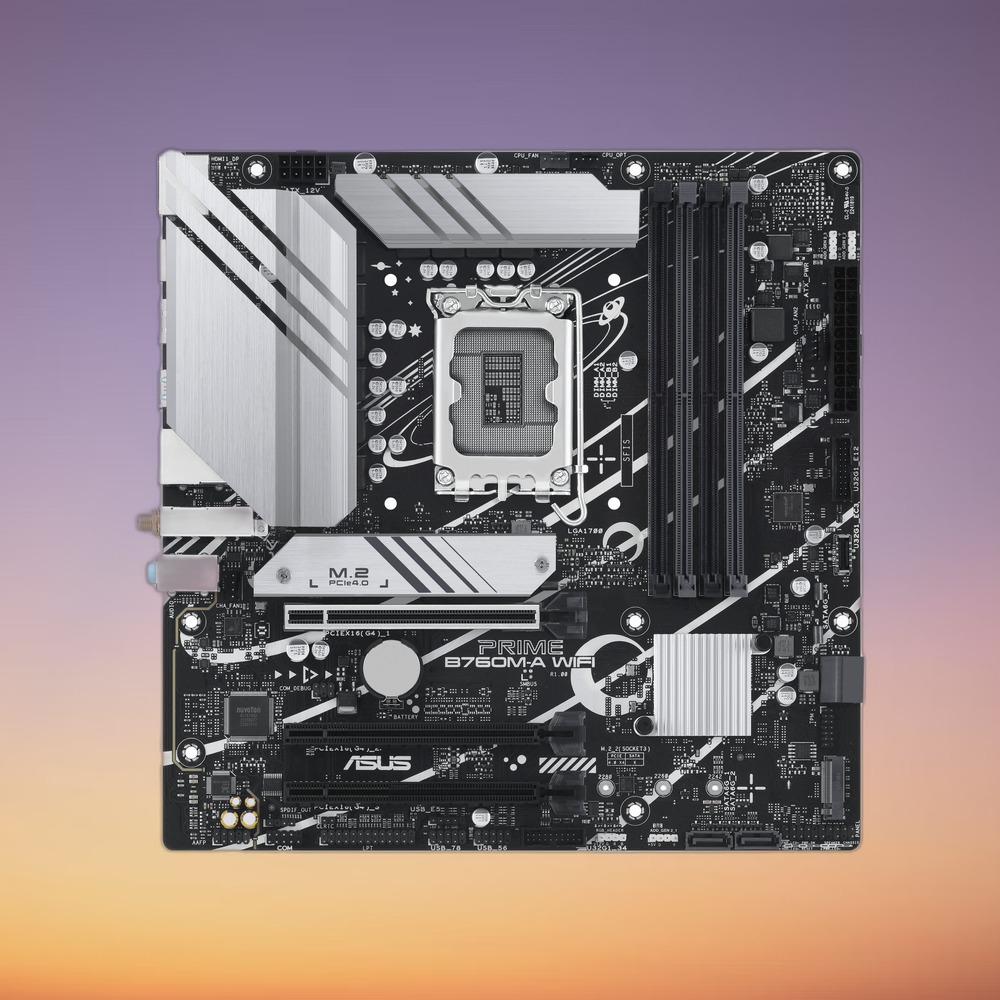

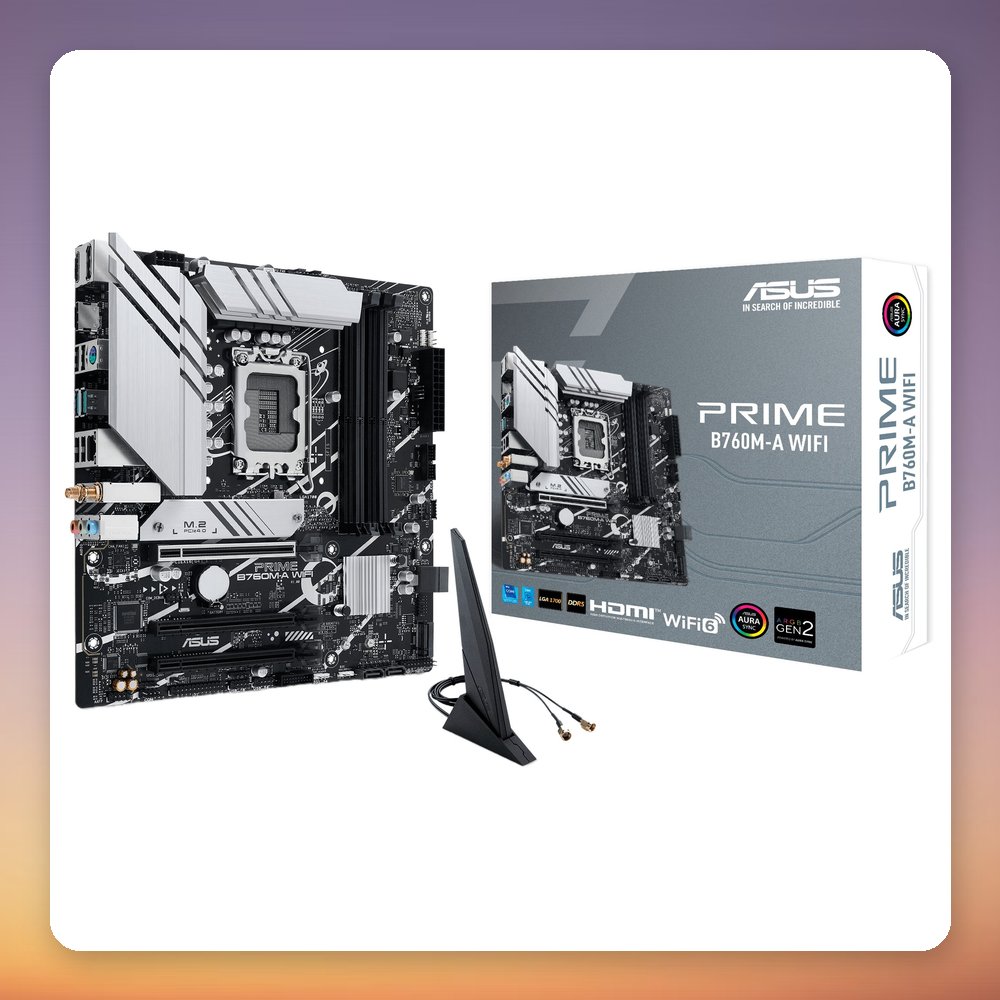

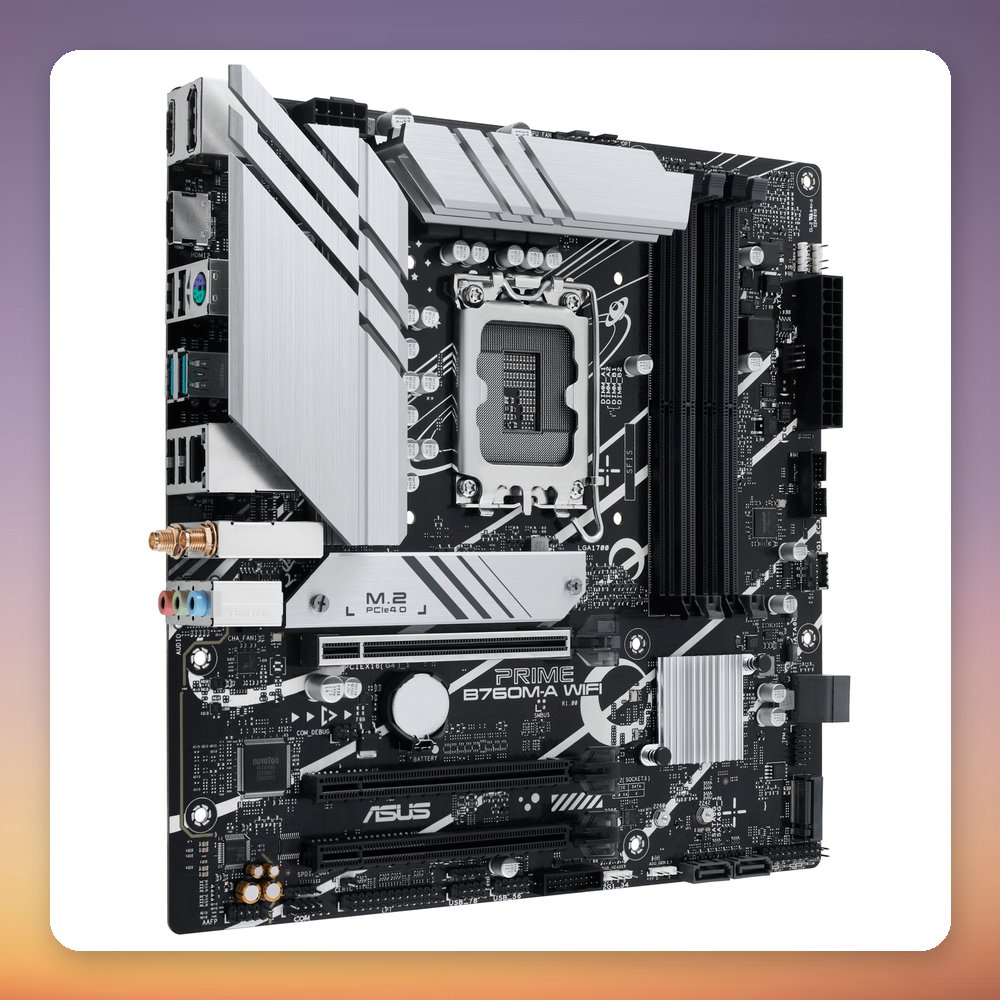

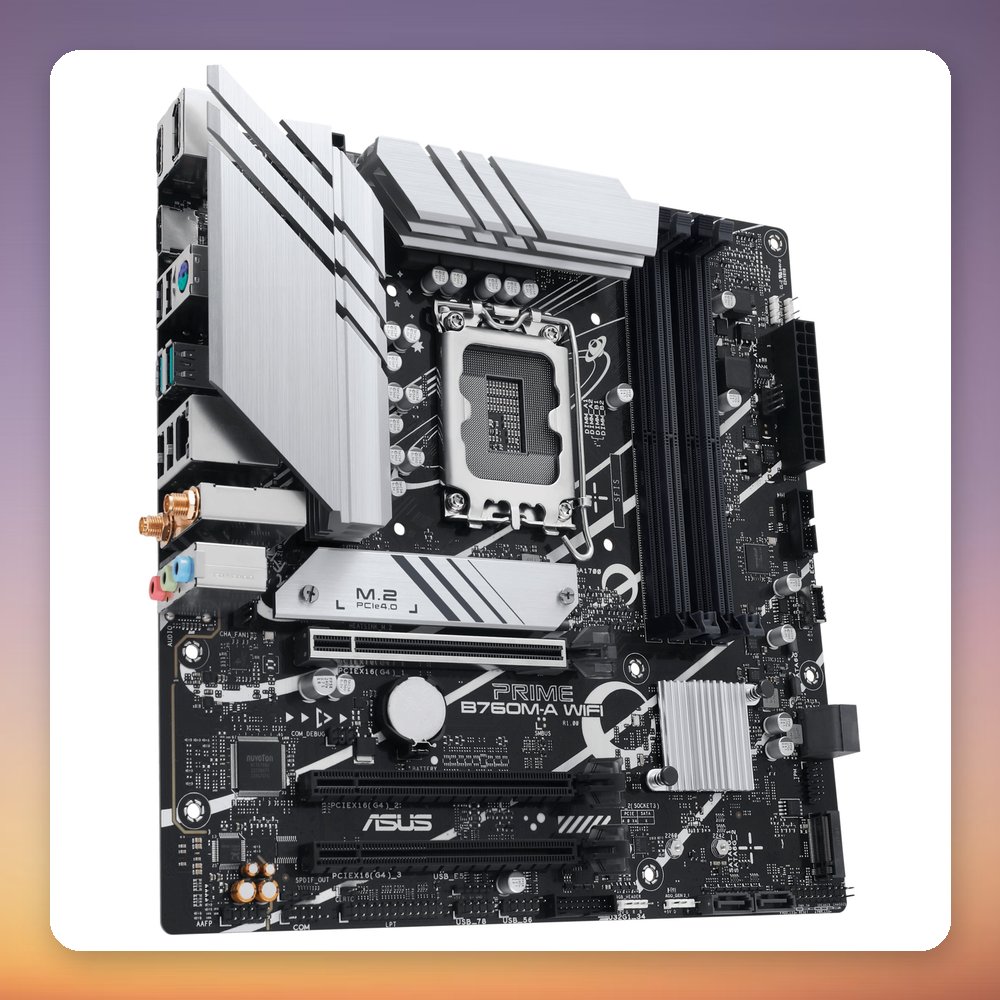

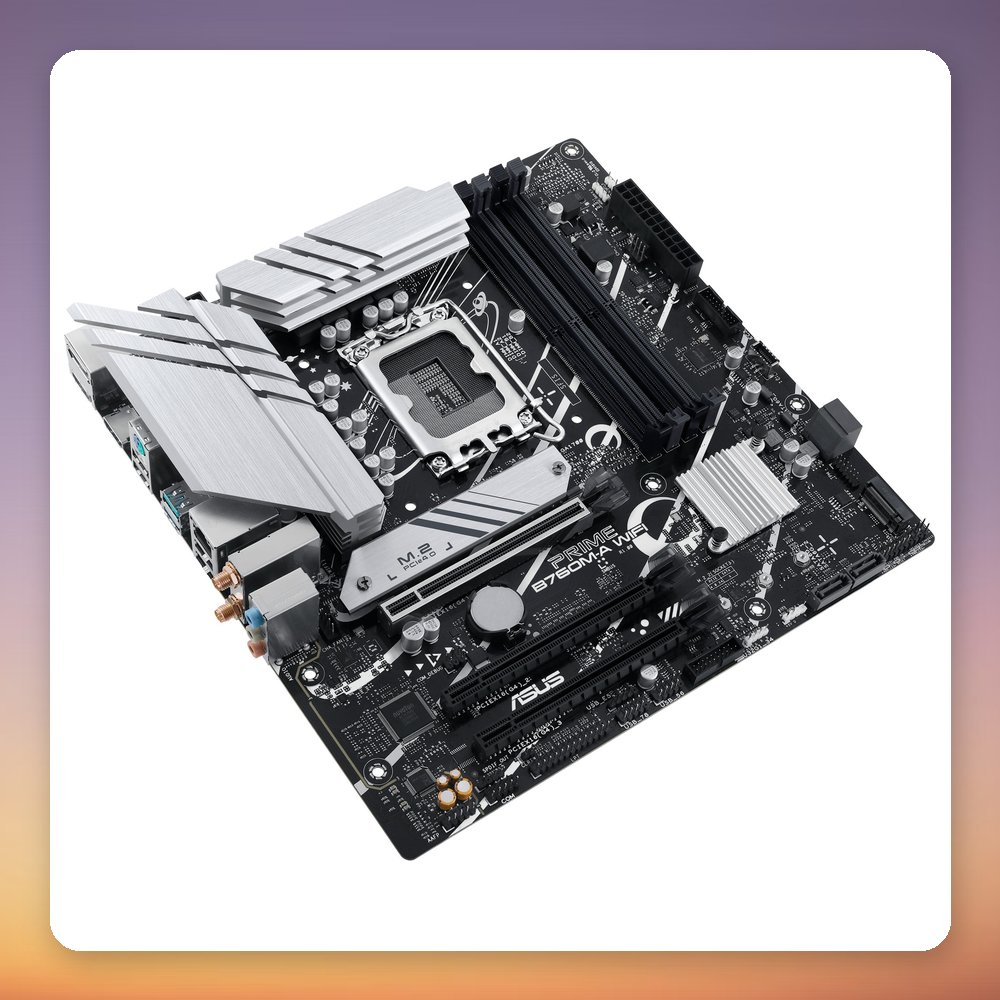

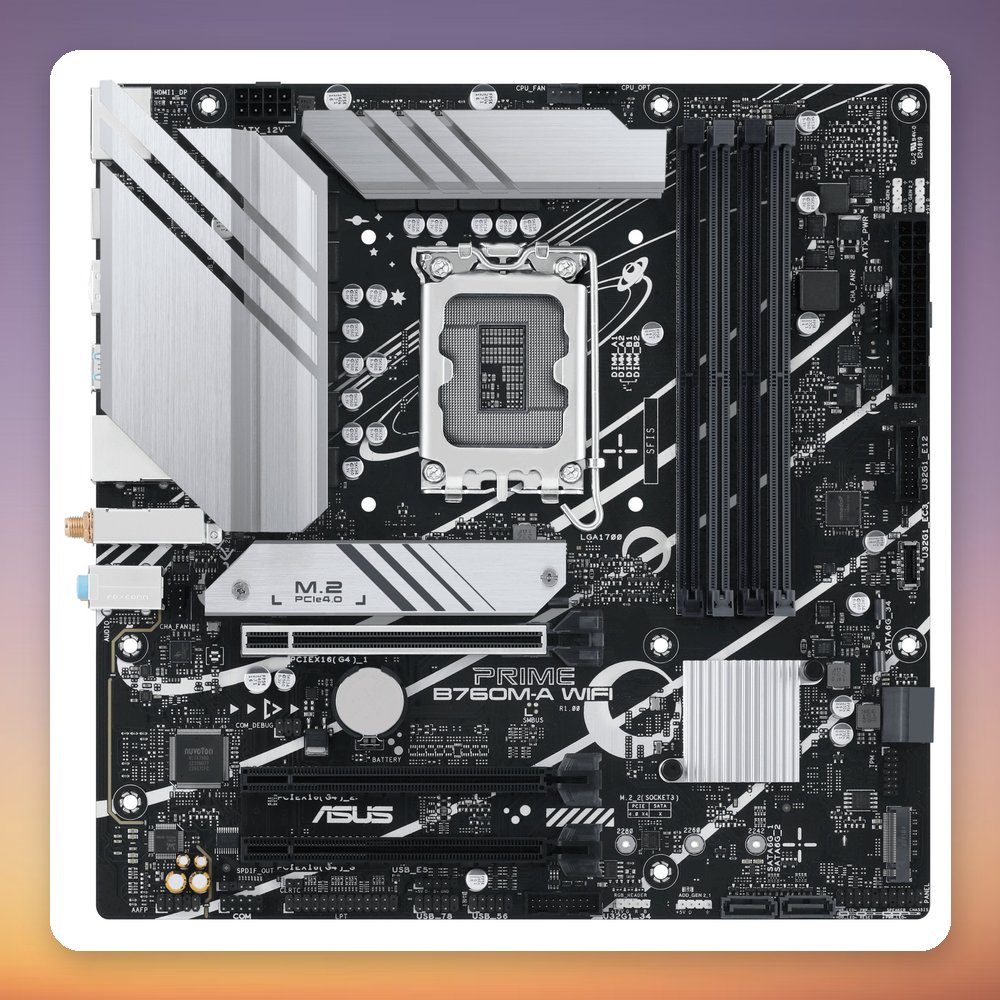

The Asus PRIME B760M-A WIFI is a micro ATX motherboard for Intel LGA 1700 processors, built on the Intel B760 chipset. It takes four DDR5 DIMM slots in dual-channel, supporting speeds up to DDR5-7200 (OC) and up to 192 GB of memory according to Asus. Storage is covered by two PCIe Gen 4.0 M.2 slots and four SATA ports, and it includes Wi-Fi 6, Bluetooth 5.2 and 2.5 Gb Ethernet.

This board suits a compact Intel gaming or general-purpose PC where you want DDR5 memory, built-in wireless and modern connectivity without moving to a larger ATX board. It has two HDMI outputs and one DisplayPort for use with a CPU that has integrated graphics, four 4-pin PWM fan headers, one RGB header and three addressable RGB headers with AURA Sync. Note that a BIOS update may be needed to support the newest processors.

Specification

• Manufacturer: Asus
• Model: PRIME B760M-A WIFI
• MPN: 90MB1EL0-M1EAY0
• EAN: 4711387131435
• Socket: LGA 1700
• Chipset: Intel B760
• Form factor: micro ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to DDR5-7200 (OC)
• Maximum memory: 192 GB
• M.2 slots: 2x M.2 (Key M), PCIe Gen 4.0, 42-80 mm
• SATA ports: 4x SATA III
• RAID levels: 0, 1, 5, 10
• Expansion slots: 1x PCIe x16, 1x PCIe x4, 1x PCIe x1
• Networking: Realtek 2.5 Gb Ethernet, Wi-Fi 6, Bluetooth 5.2

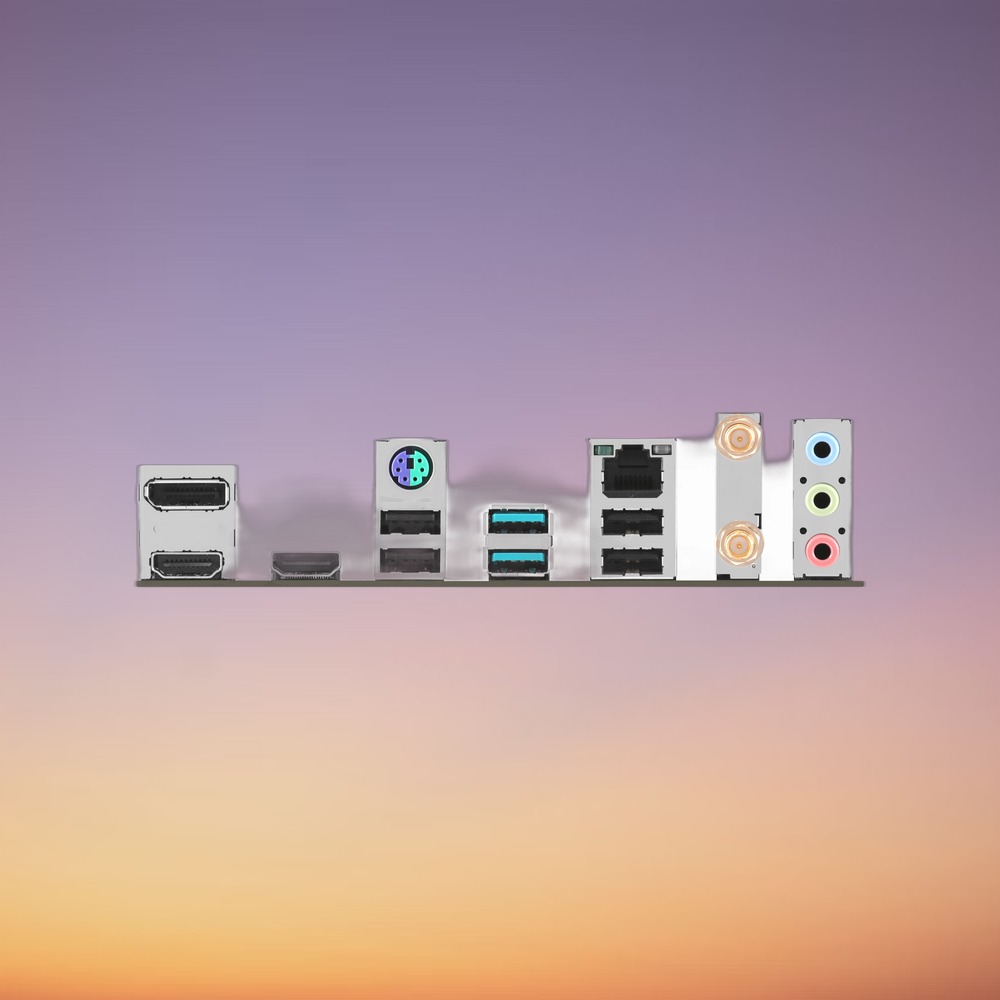

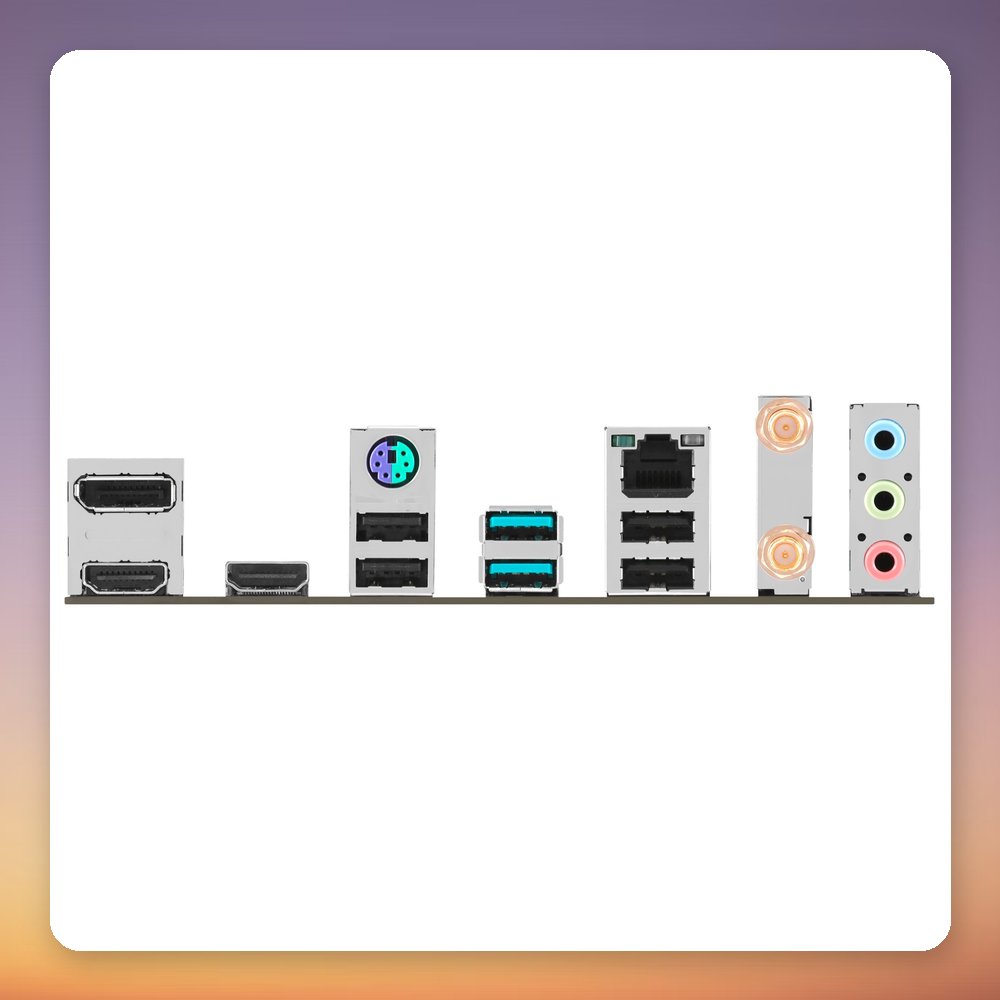

• Rear I/O: 2x USB-A 3.2 Gen 2, 4x USB-A 2.0, 2x HDMI, 1x DisplayPort, PS/2, RJ-45, 3x audio jacks
• Fan and RGB headers: 4x 4-pin PWM fan, 1x RGB, 3x addressable RGB (AURA Sync)
• Audio: Realtek 7.1 Surround Sound HD
• Dimensions (W x H x D): 244 x 244 x 36 mm
• Weight: 690 g
