Product Overview

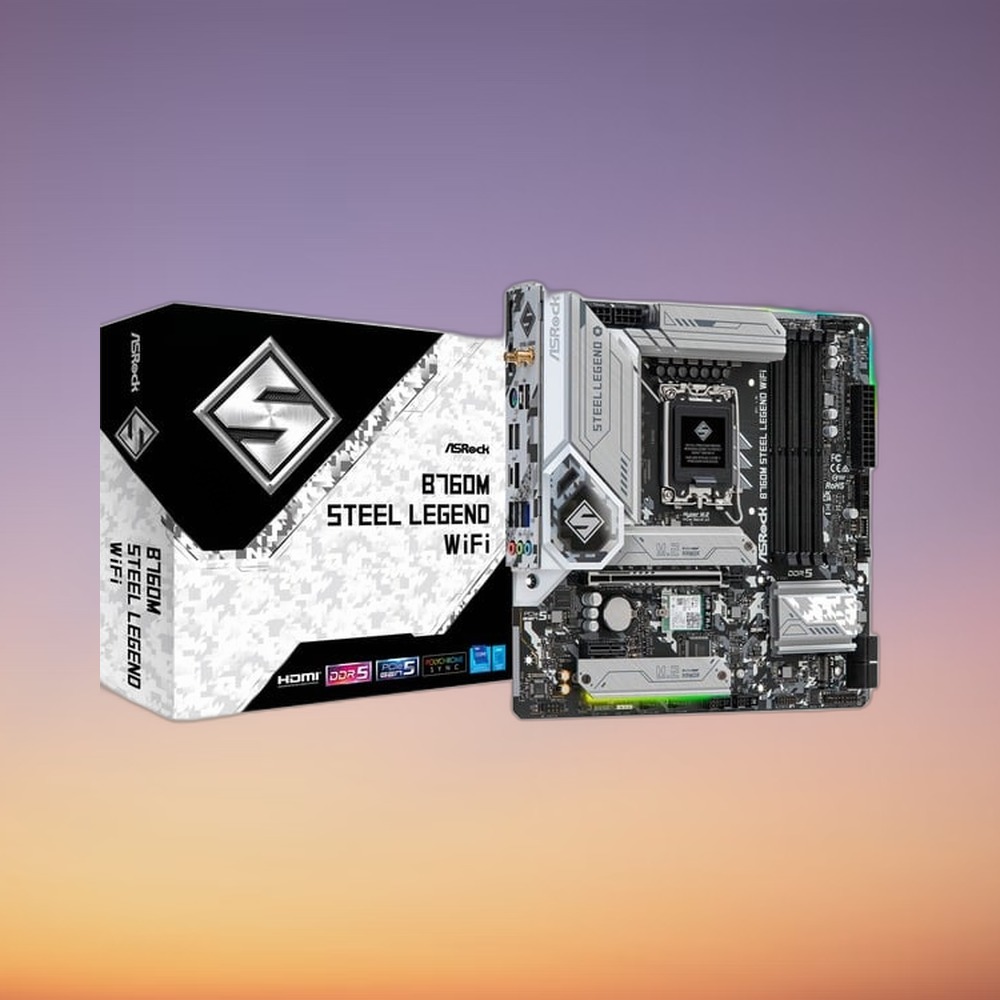

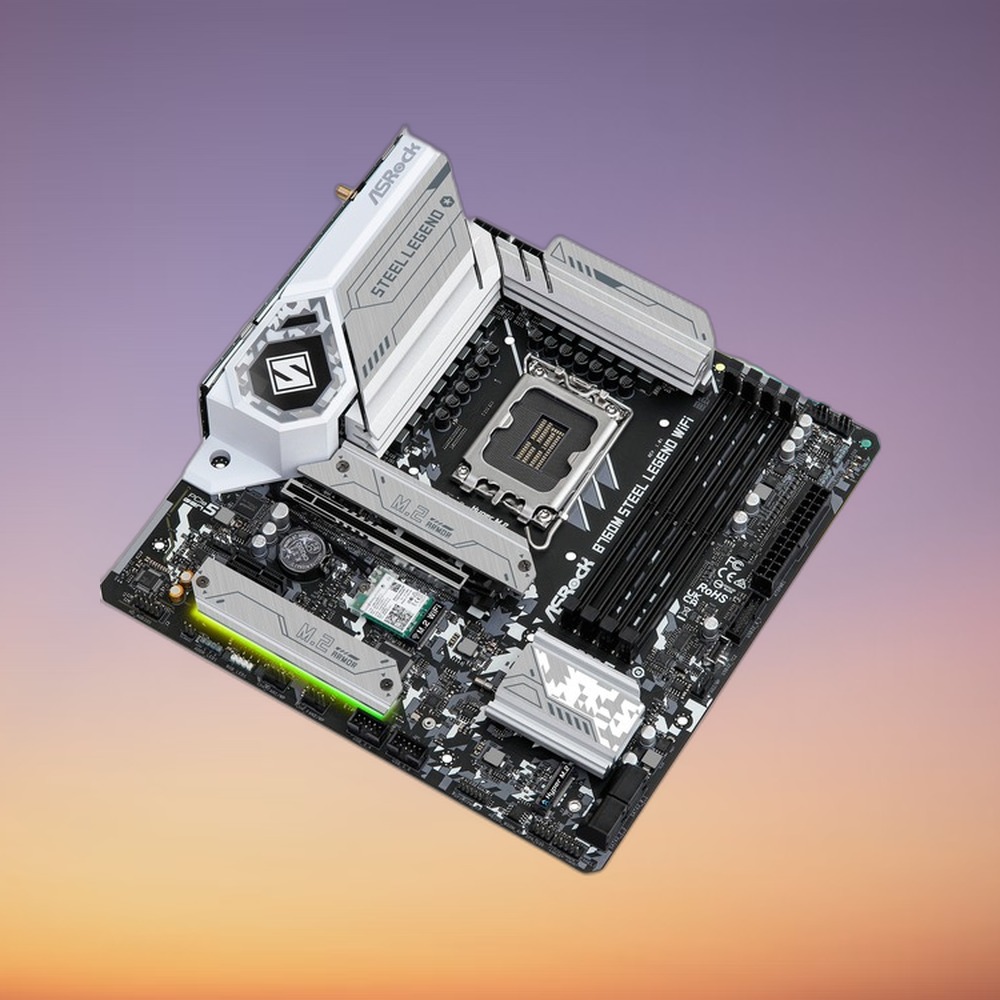

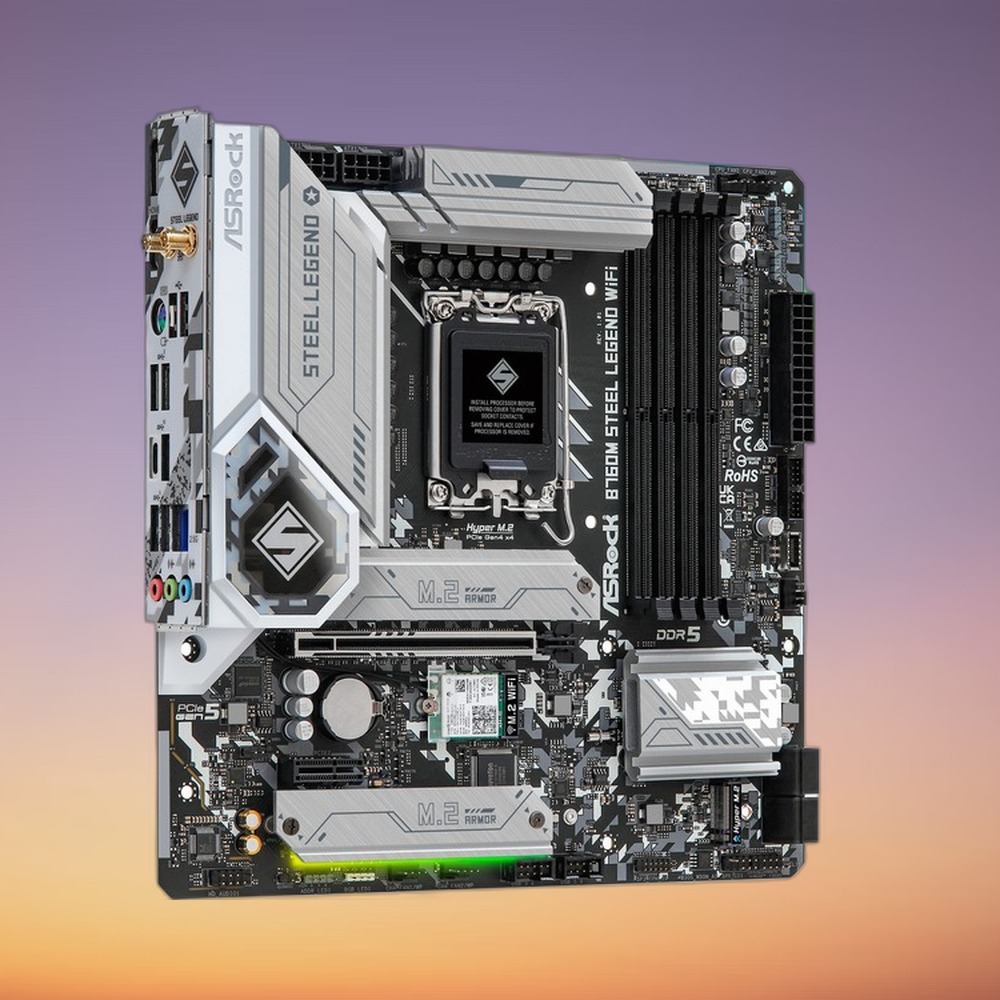

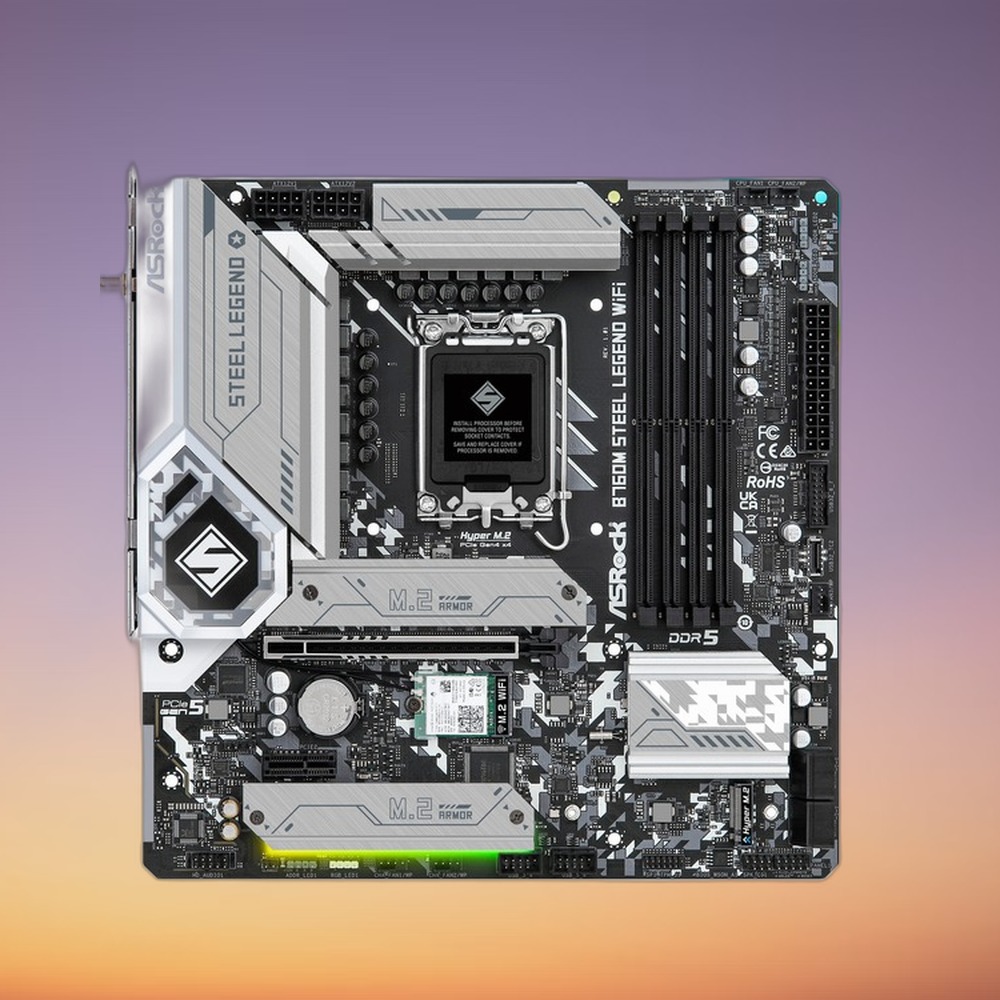

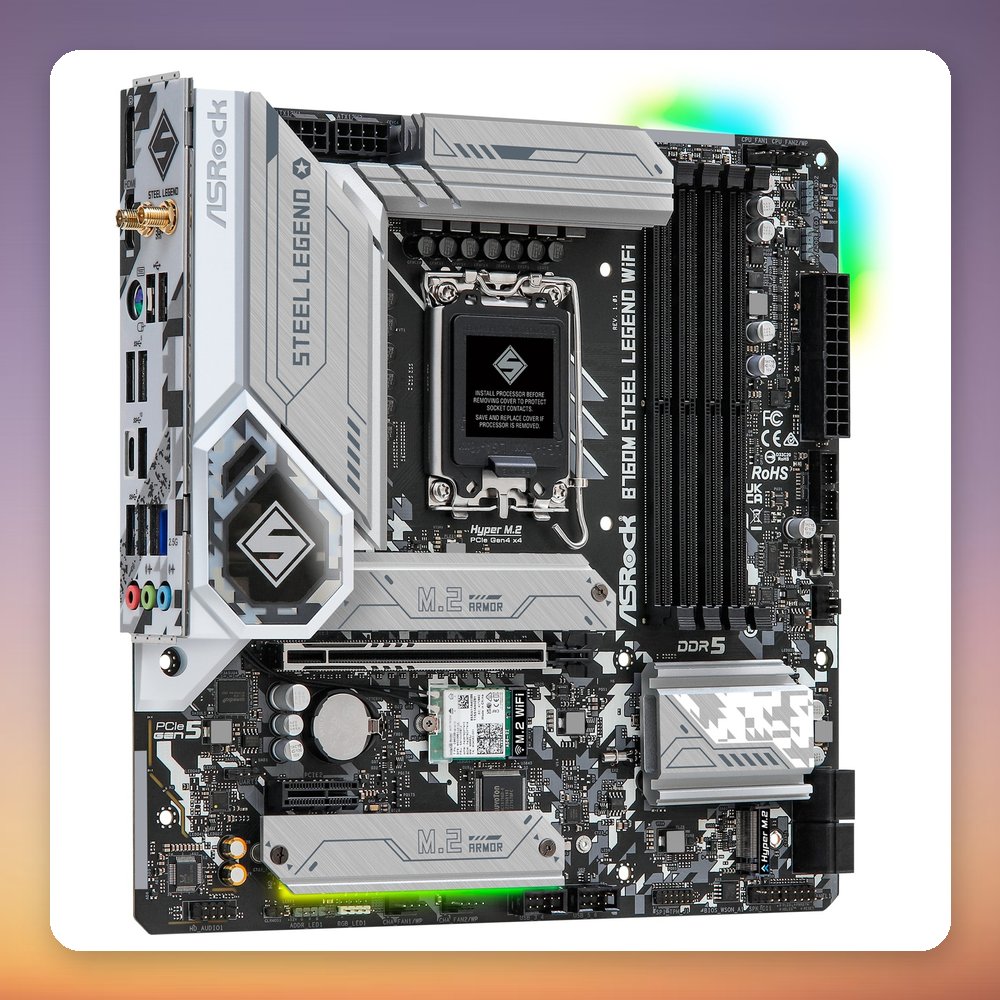

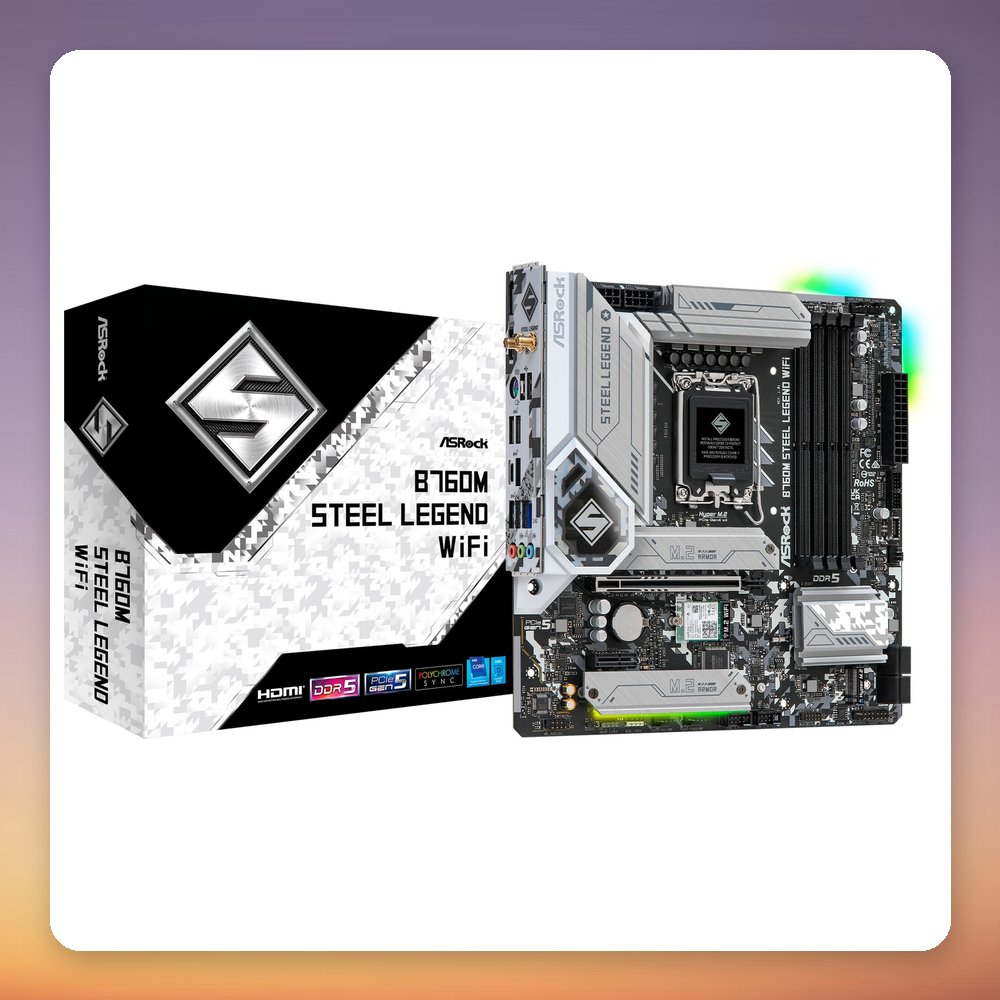

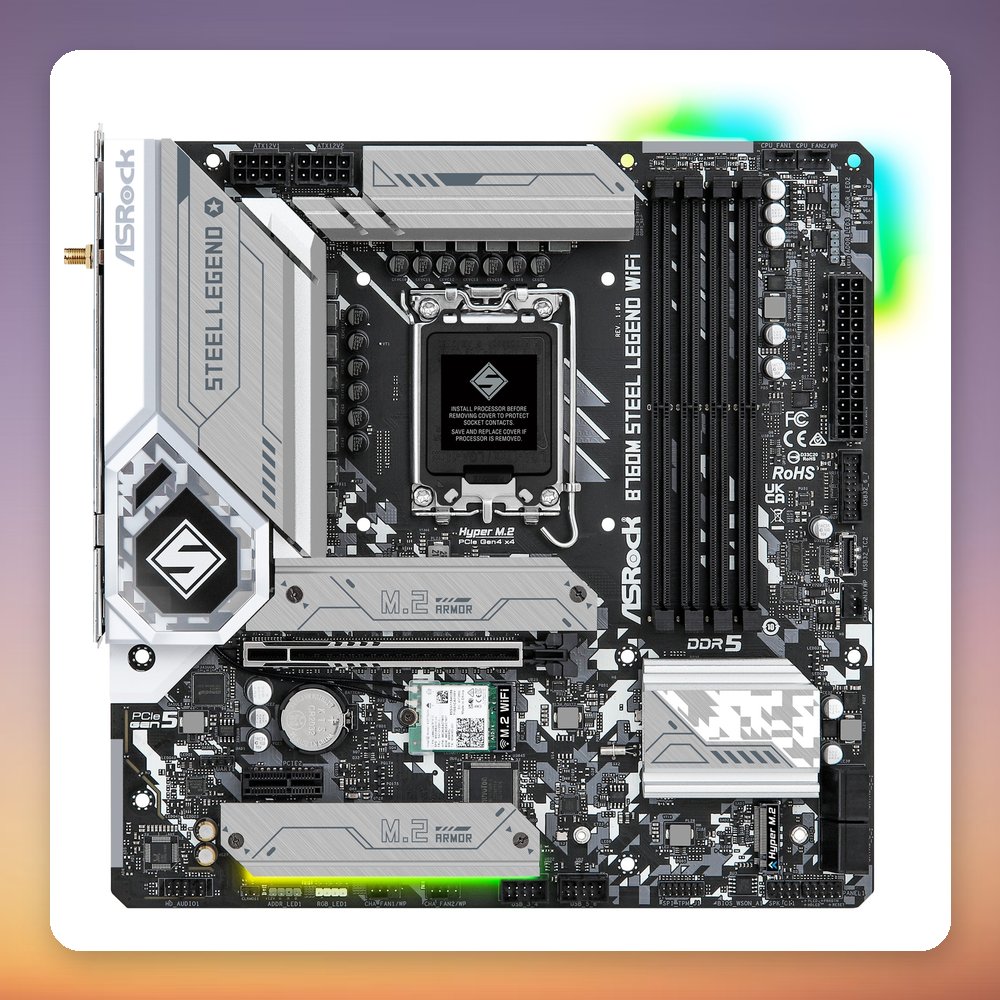

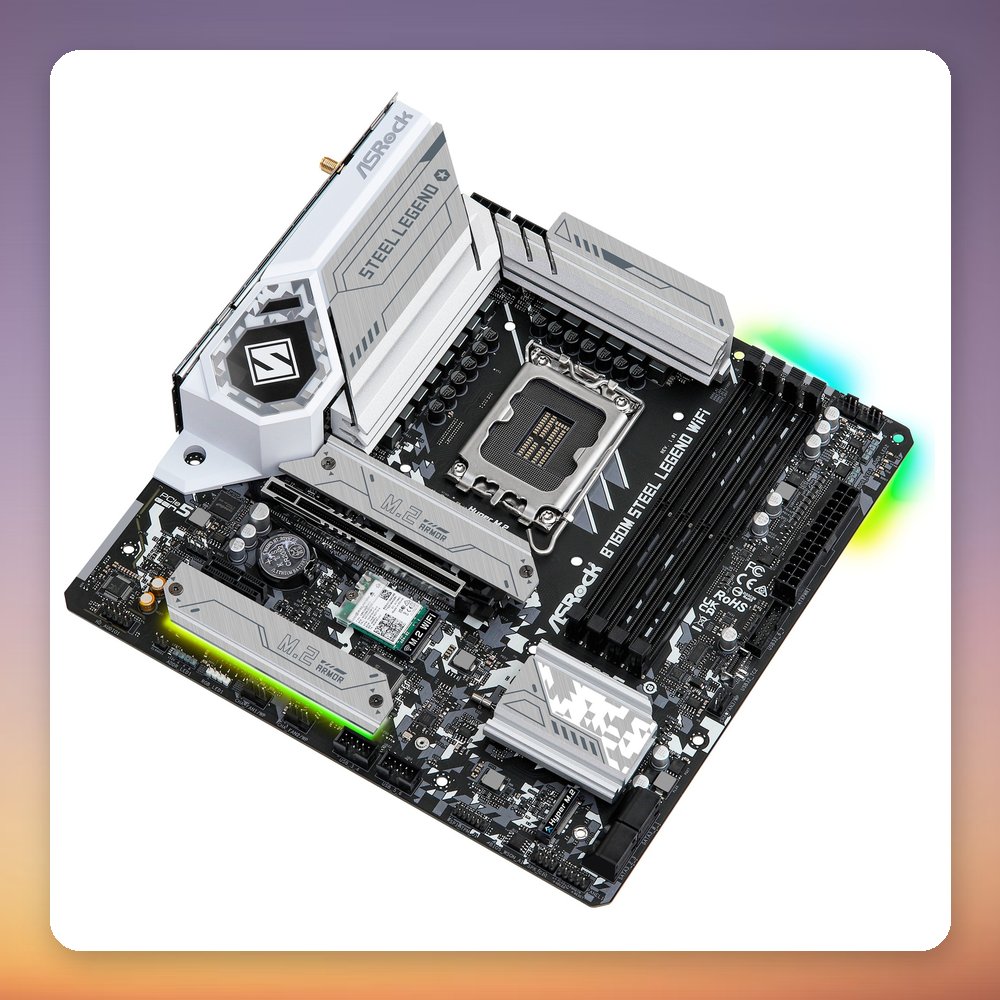

The ASRock B760M Steel Legend WiFi is a Micro ATX motherboard built on the Intel B760 chipset for LGA1700 processors. It combines four DDR5 DIMM slots (up to 192 GB, dual channel) with Wi-Fi 6E, Bluetooth and 2.5 Gigabit LAN, so a compact build gets modern wireless and wired networking without extra cards.

With three M.2 connectors, four SATA ports, a PCIe 4.0 x16 slot and a USB 3.2 Gen 2 Type-C port on the rear, it suits a compact gaming PC or a mid-range LGA1700 upgrade. Five 4-pin PWM fan headers and three addressable RGB headers cover cooling and lighting. Two SATA cables, two Wi-Fi antennas and M.2 mounting hardware are included. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asrock
• Model: B760M Steel Legend WiFi
• MPN: 90-MXBL70-A0UAYZ
• EAN: 4710483941795
• Socket: LGA1700
• Chipset: Intel B760
• Form factor: Micro ATX (µATX)
• Memory: 4x DDR5 DIMM, dual channel, up to 192 GB
• Memory speeds: DDR5-4800 to 5600 native; up to 7200 (OC)
• Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 4.0 x1
• M.2 slots: 3x M.2 (plus 1x M.2 for Wi-Fi)
• SATA: 4x SATA 6 Gb/s (RAID 0, 1, 5, 10)
• Networking: 2.5 Gigabit LAN (Dragon RTL8125BG), Wi-Fi 6E (802.11ax), Bluetooth

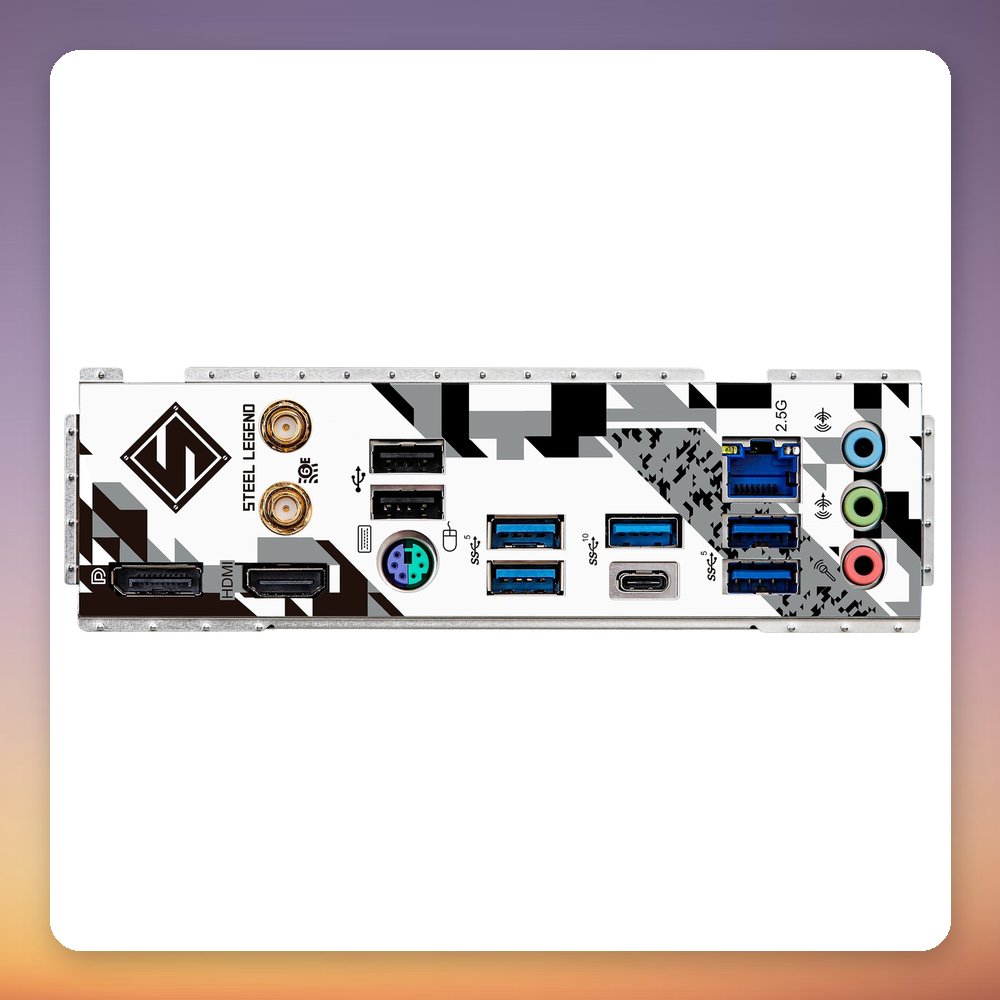

• Rear USB: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 4x USB-A 3.2 Gen 1, 2x USB-A 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (requires a CPU with integrated graphics)
• Fan and RGB headers: 5x 4-pin PWM fan, 3x addressable RGB, 1x RGB
• Power connectors: 24-pin ATX + 2x 8-pin ATX12V
• Colour: Grey/black
• Dimensions (W x H): 244 x 244 mm
