Product Overview

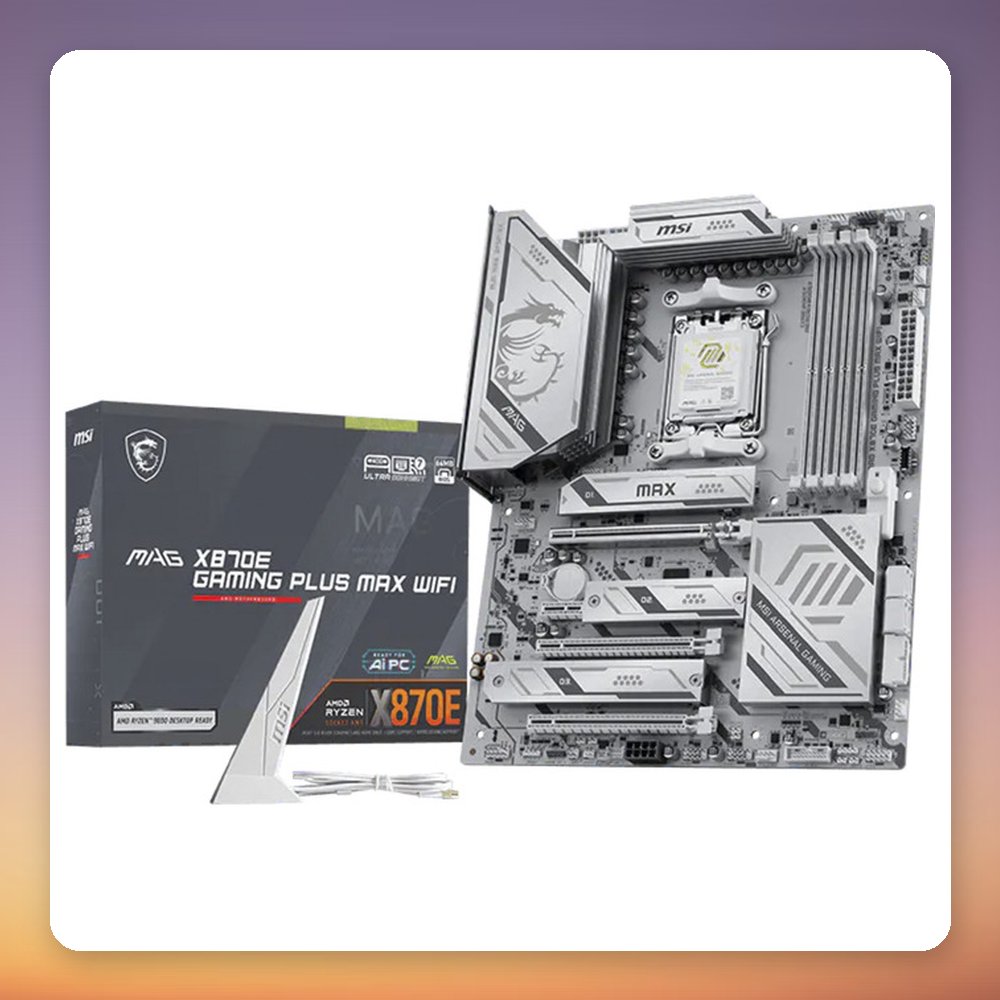

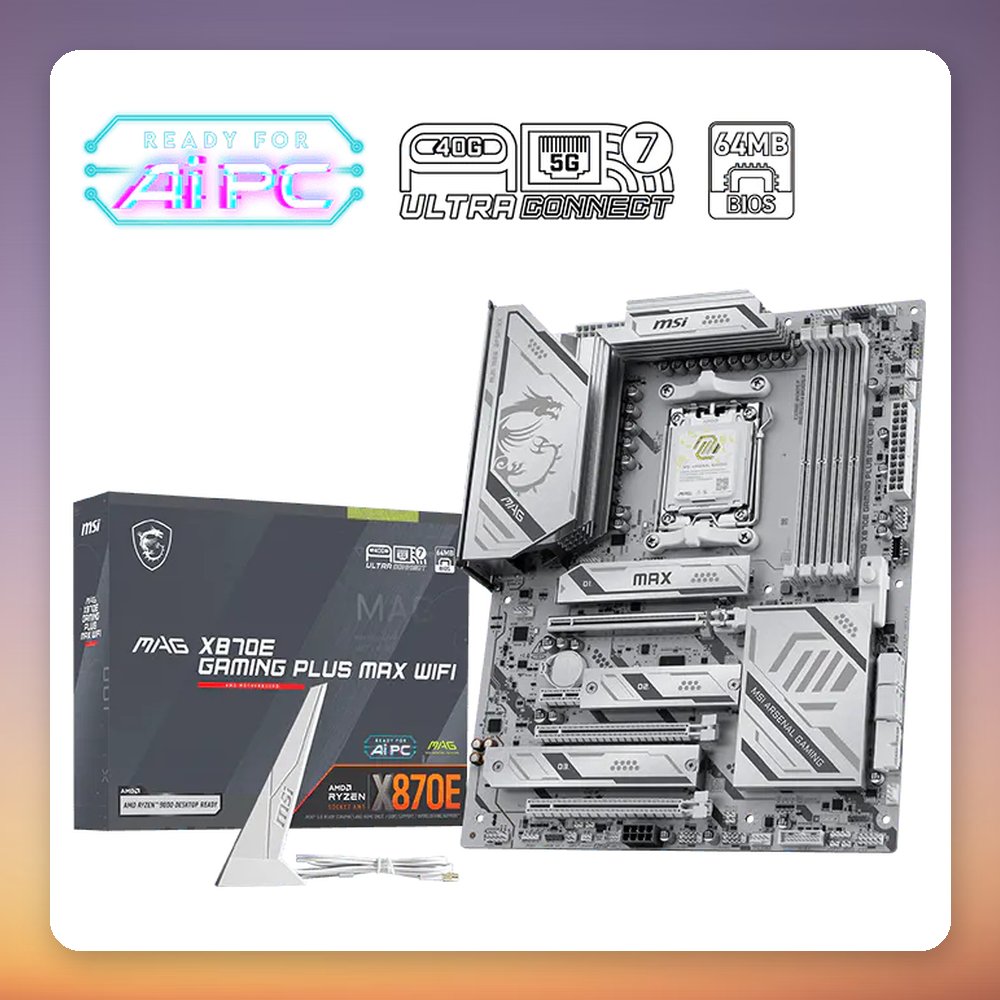

The MSI MAG X870E Gaming Plus MAX WiFi is an ATX motherboard for the AMD Socket AM5, built on the X870E chipset. It stands out with a PCIe 5.0 x16 slot, a PCIe 5.0 M.2 slot, Wi-Fi 7 with Bluetooth 5.4, 5 Gigabit LAN and a USB4 port, plus a 14+2+1 phase power design with dual CPU power connectors and 60A Smart Power Stage.

It suits AM5 gaming builds with Ryzen 7000, 8000 or 9000 series processors, including X3D models. Four DDR5 slots take up to 256 GB, with support up to 8200 MT/s (OC), and three M.2 slots plus four SATA ports cover storage. Tool-free EZ DIY features such as the EZ M.2 Clip II and the PCIe card release button make building and upgrading easier. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: MSI
• Model: MAG X870E Gaming Plus MAX WiFi
• MPN: 7E70-016R
• EAN: 0824142448571
• CPU socket: AMD Socket AM5
• Chipset: AMD X870E
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, max. 256 GB, non-ECC
• Memory speed: DDR5-4800 to 5600 (JEDEC), up to 8200 MT/s (OC)
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 lanes), 1x PCIe 3.0 x1
• M.2 slots: 3x M.2 (M key): slot 1 PCIe 5.0, slots 2 and 3 PCIe 4.0
• SATA: 4x SATA III, RAID 0/1/5/10
• Networking: Realtek RTL8126 5 Gigabit LAN, Wi-Fi 7 (802.11be), Bluetooth 5.4
• Rear USB: 1x USB4, 1x USB-C 20 Gbps, 2x USB-A 5 Gbps, 4x USB-A 2.0
• Video outputs: HDMI 2.1, 2x DisplayPort 1.4 (via USB4/iGPU, CPU with integrated graphics required)
• Audio: Realtek ALC897 codec, 7.1 channels
• Power connectors: 24-pin ATX, 2x 8-pin EPS
• RGB: Mystic Light, 3x ARGB headers, 1x RGB header
• Colour: Black
• Dimensions (W x D): 243.8 x 304.8 mm
