Product Overview

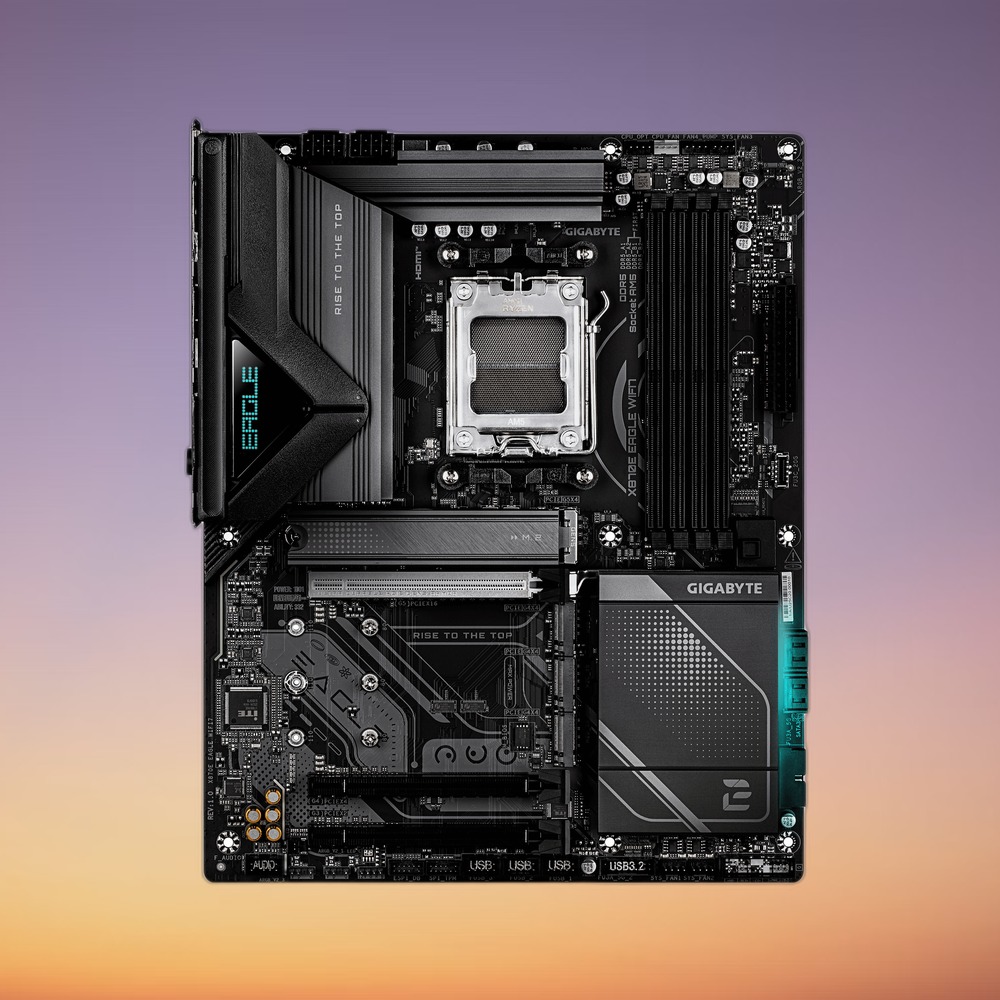

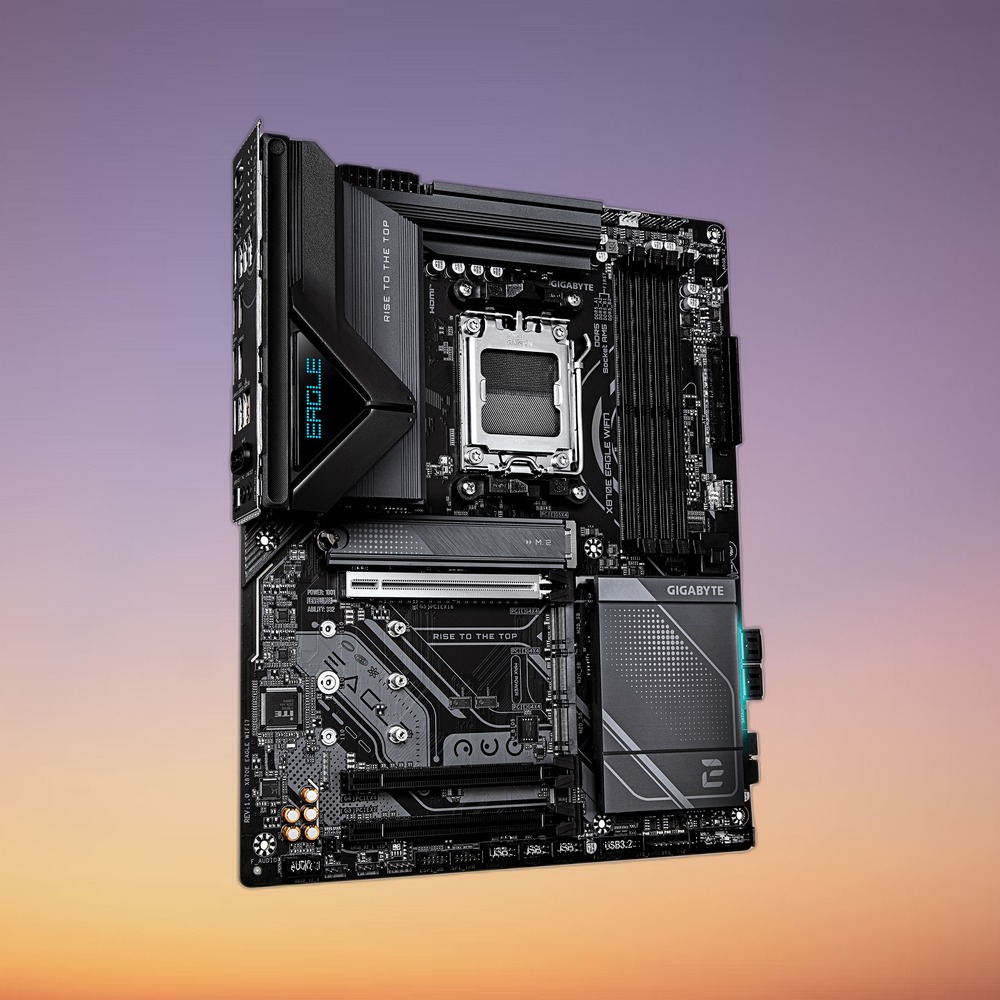

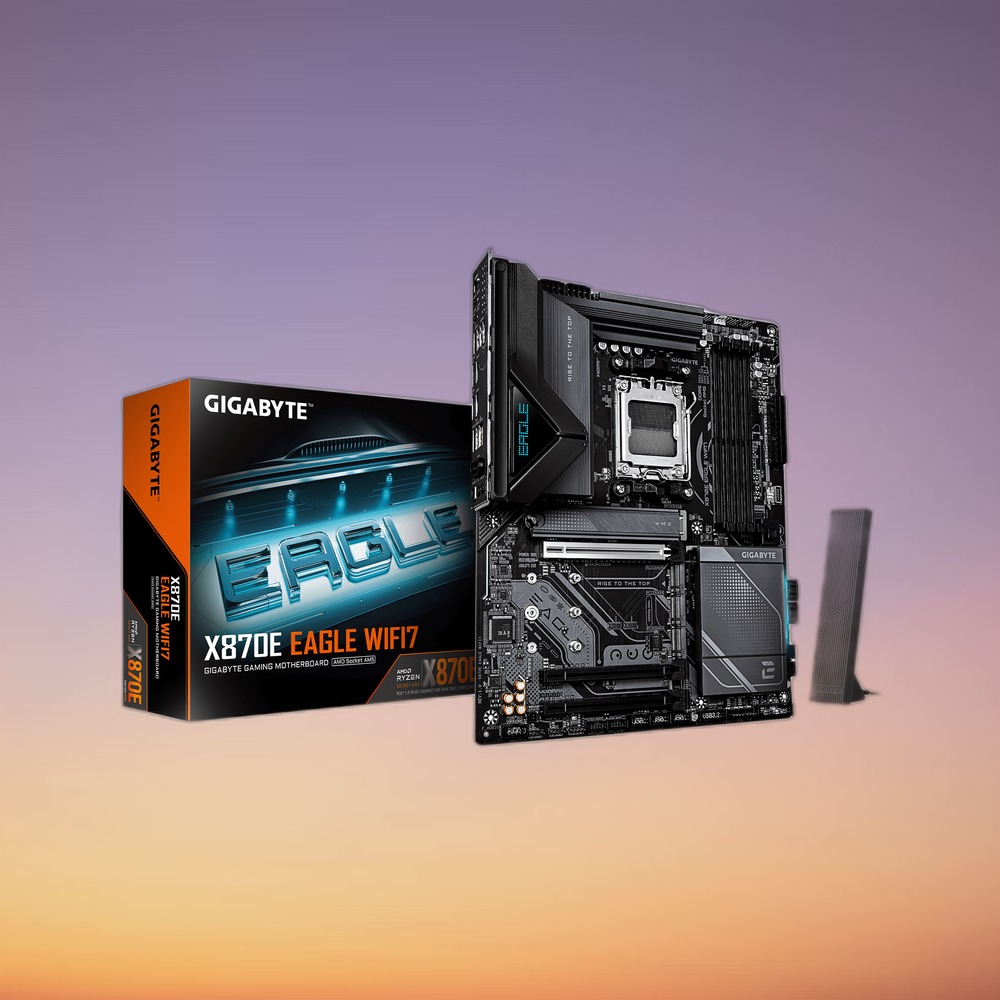

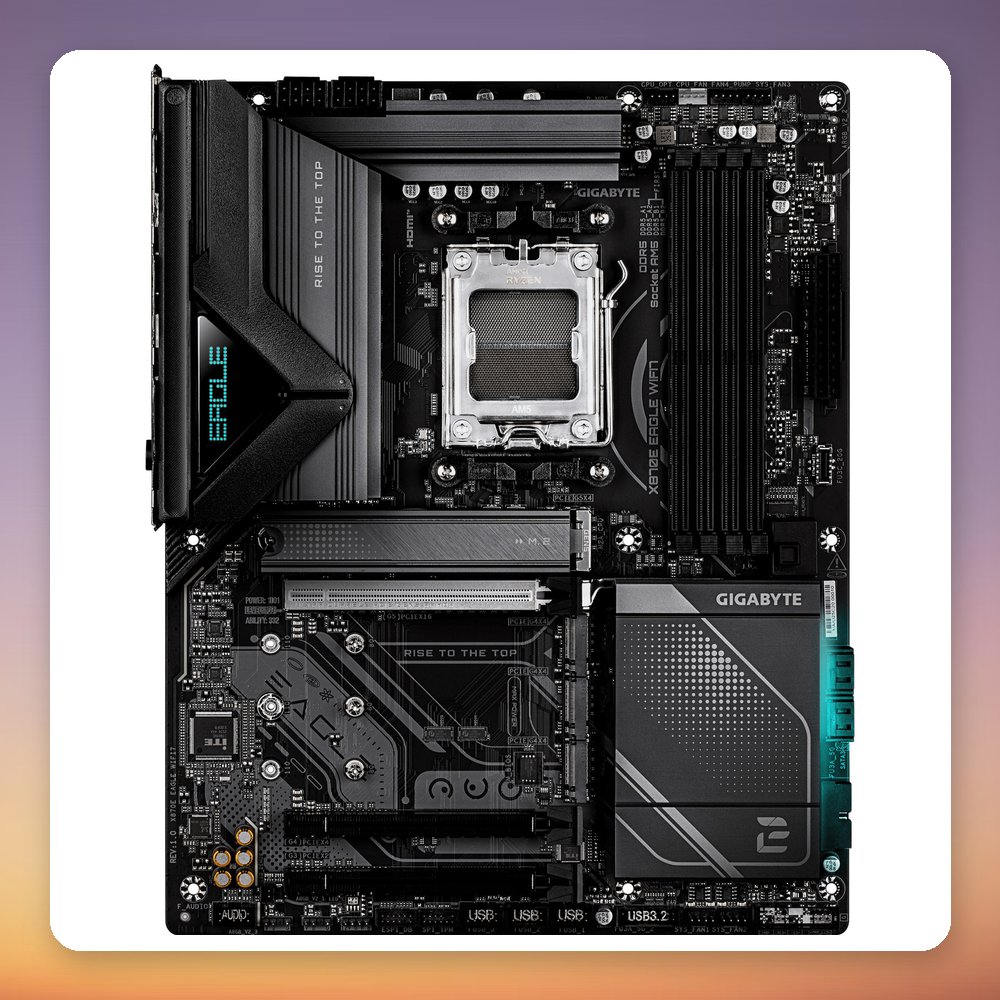

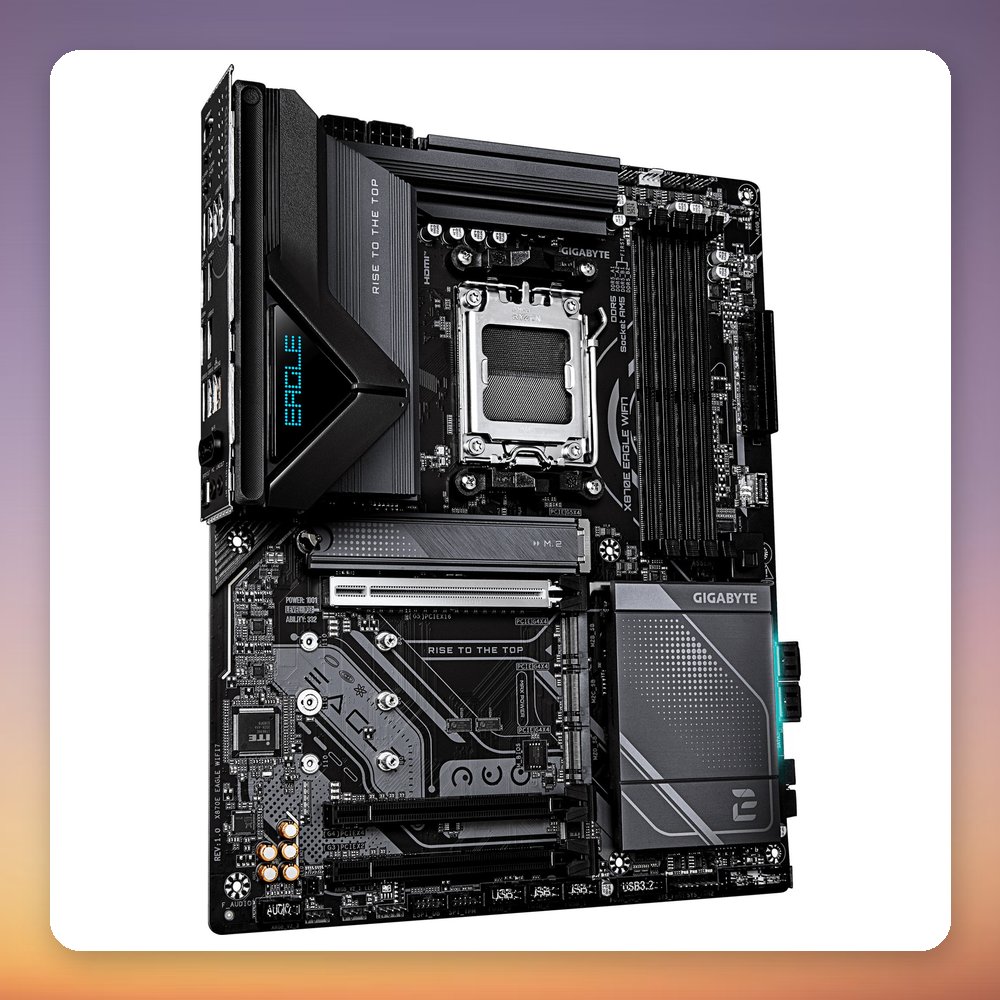

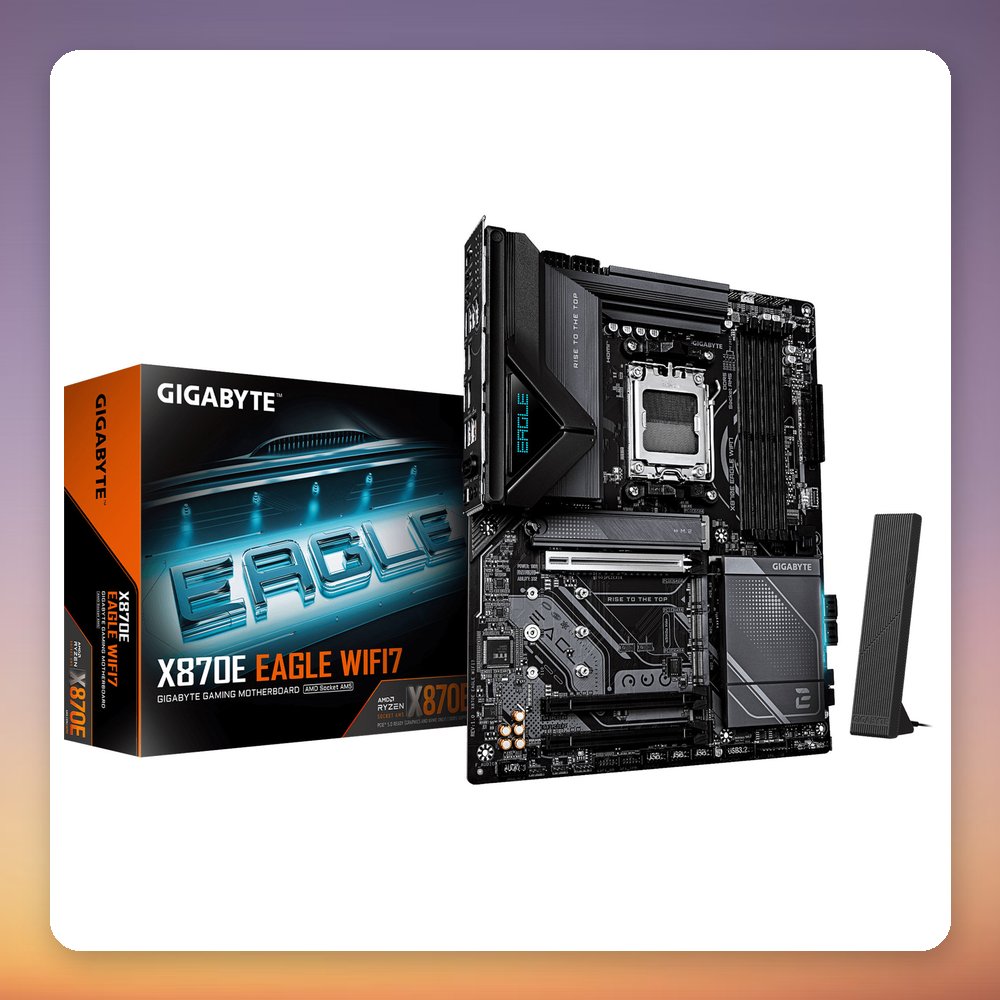

The GIGABYTE X870E EAGLE WIFI7 is an ATX motherboard for Socket AM5 built on the AMD X870E chipset. It supports Ryzen 7000, 8000 and 9000 series processors, and its four DIMM slots take up to 256 GB of DDR5 with speeds up to 8200 MT/s (OC). Storage options are generous: four M.2 slots, one of which runs at PCIe 5.0, plus four SATA ports.

Connectivity is a strong point for the money. The board has Wi-Fi 7 with Bluetooth 5.4, a Realtek 5GbE LAN port and two USB4 ports on the rear I/O, alongside a USB 3.2 Gen 2×2 (20 Gbit/s) header for a front-panel Type-C port. It suits AM5 gaming and general-purpose builds that need fast NVMe storage and modern networking. A BIOS update may be required to support the newest processors.

Specification

• Manufacturer: GigaByte
• Model: X870E EAGLE WIFI7
• MPN: X870E EAGLE WIFI7
• EAN: 4719331880200
• Socket: AMD Socket AM5
• Chipset: AMD X870E
• Form factor: ATX (244 x 305 mm)
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB, up to 8200 MT/s (OC)
• M.2 slots: 4x M.2 (M key): 1x PCIe 5.0, 3x PCIe 4.0
• SATA ports: 4x SATA III
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x2)
• Networking: Realtek 5GbE LAN; Wi-Fi 7 (RTL8922AE)
• Bluetooth: 5.4

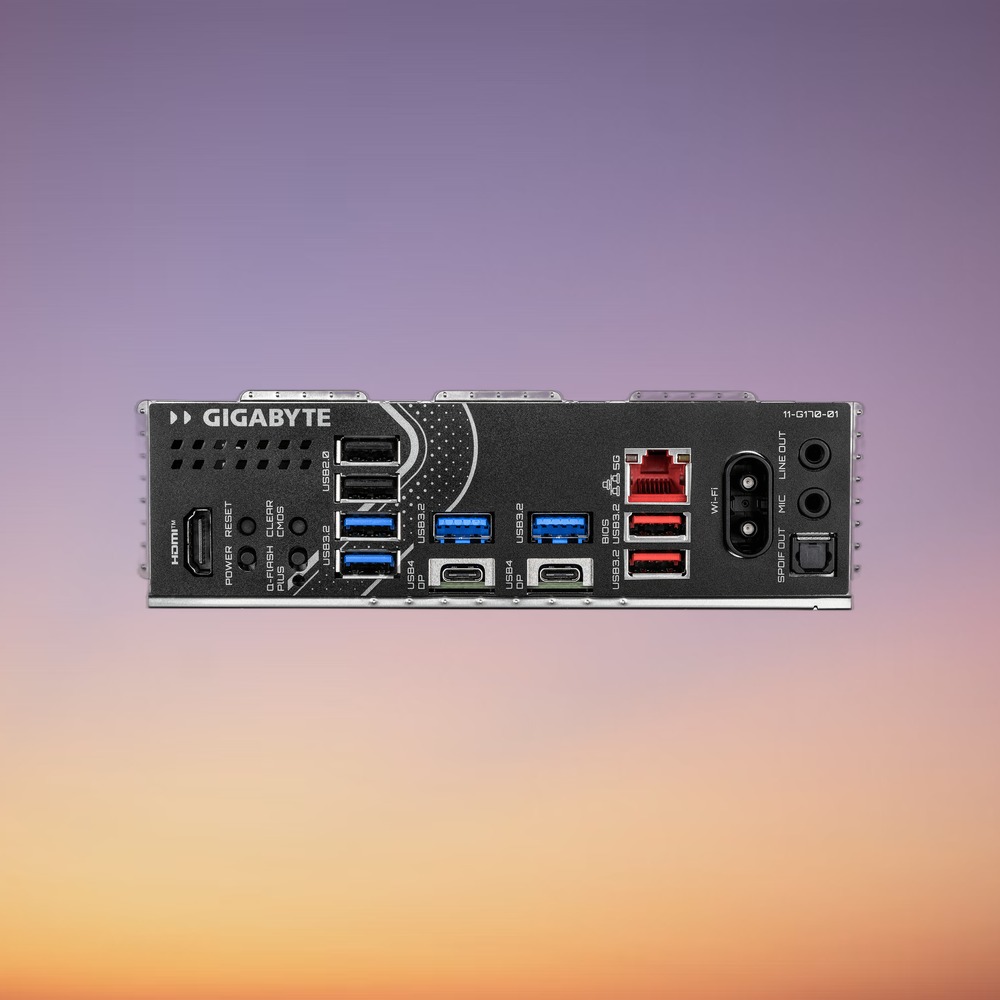

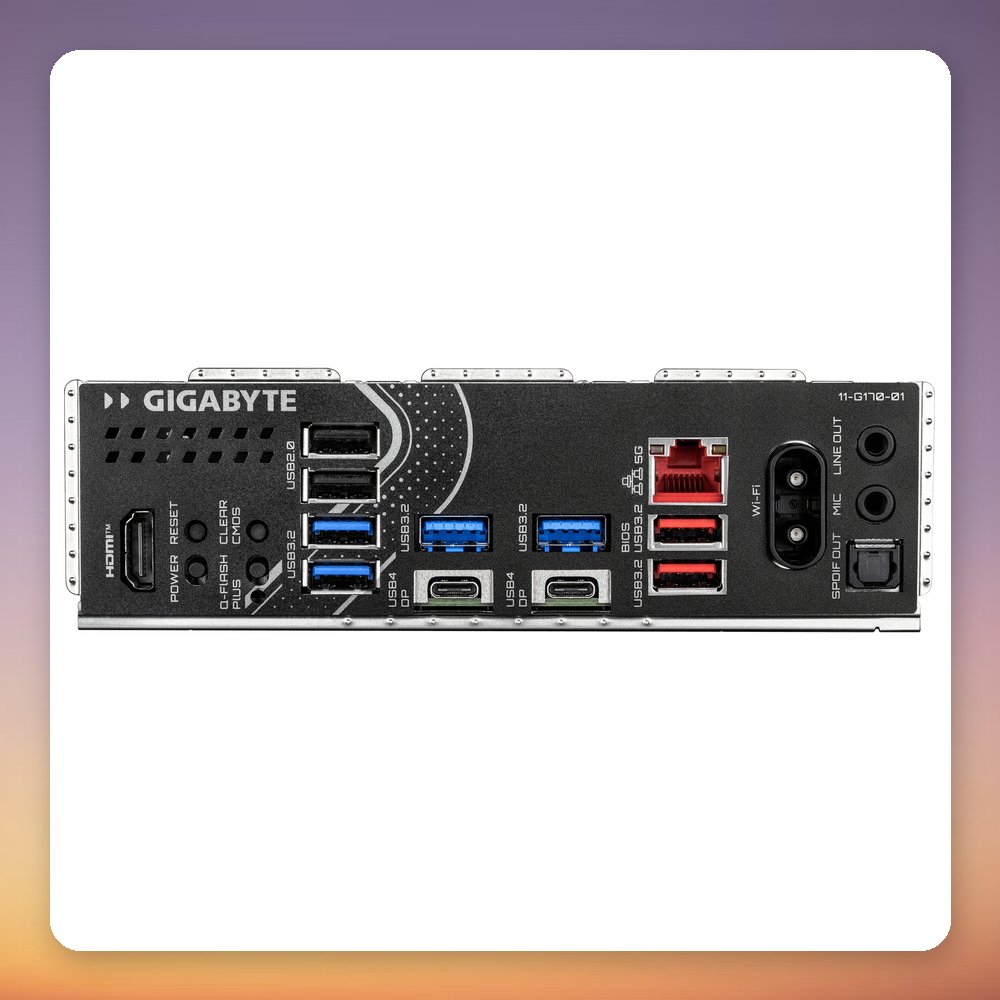

• Rear USB: 2x USB4, 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 2x USB 2.0
• Video output: 1x HDMI, 2x DisplayPort via USB4 (requires CPU with integrated graphics)
• Audio: Realtek ALC1220 codec, 7.1 channel
• RAID: 0, 1, 10
• Colour: Black
