Product Overview

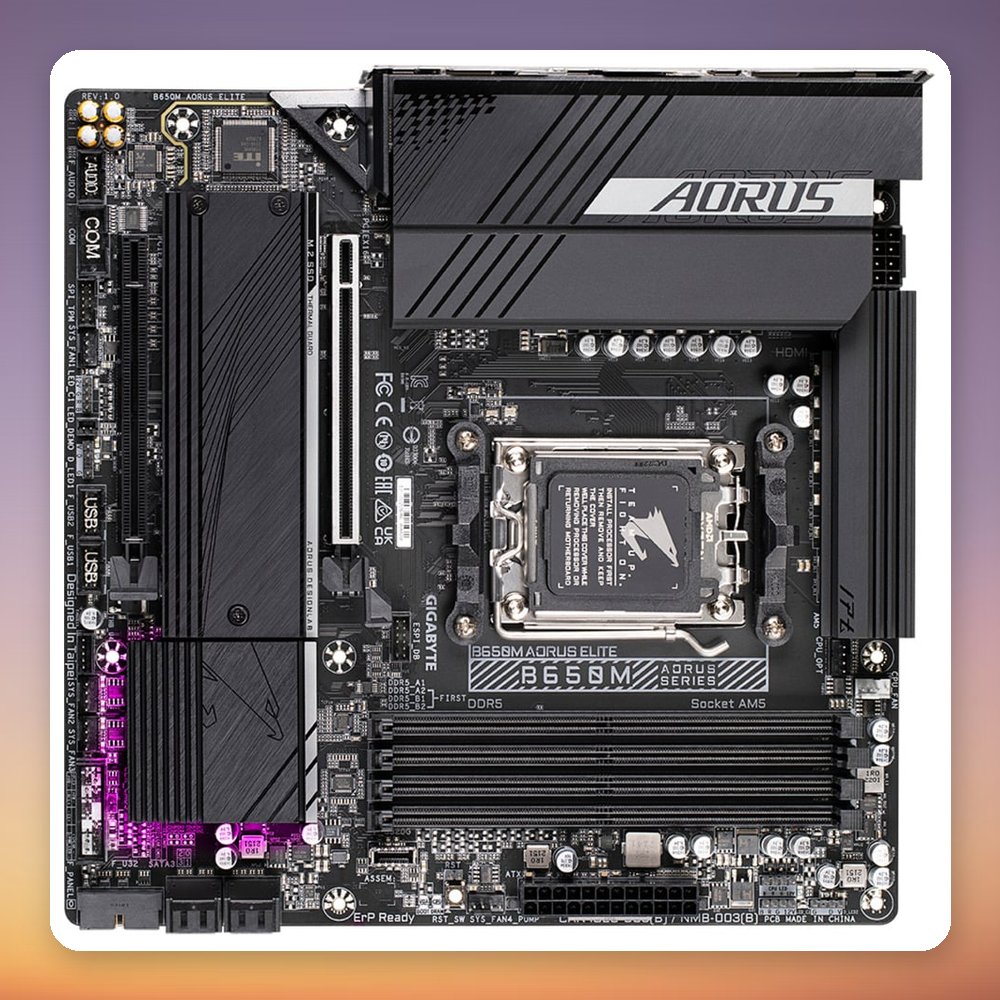

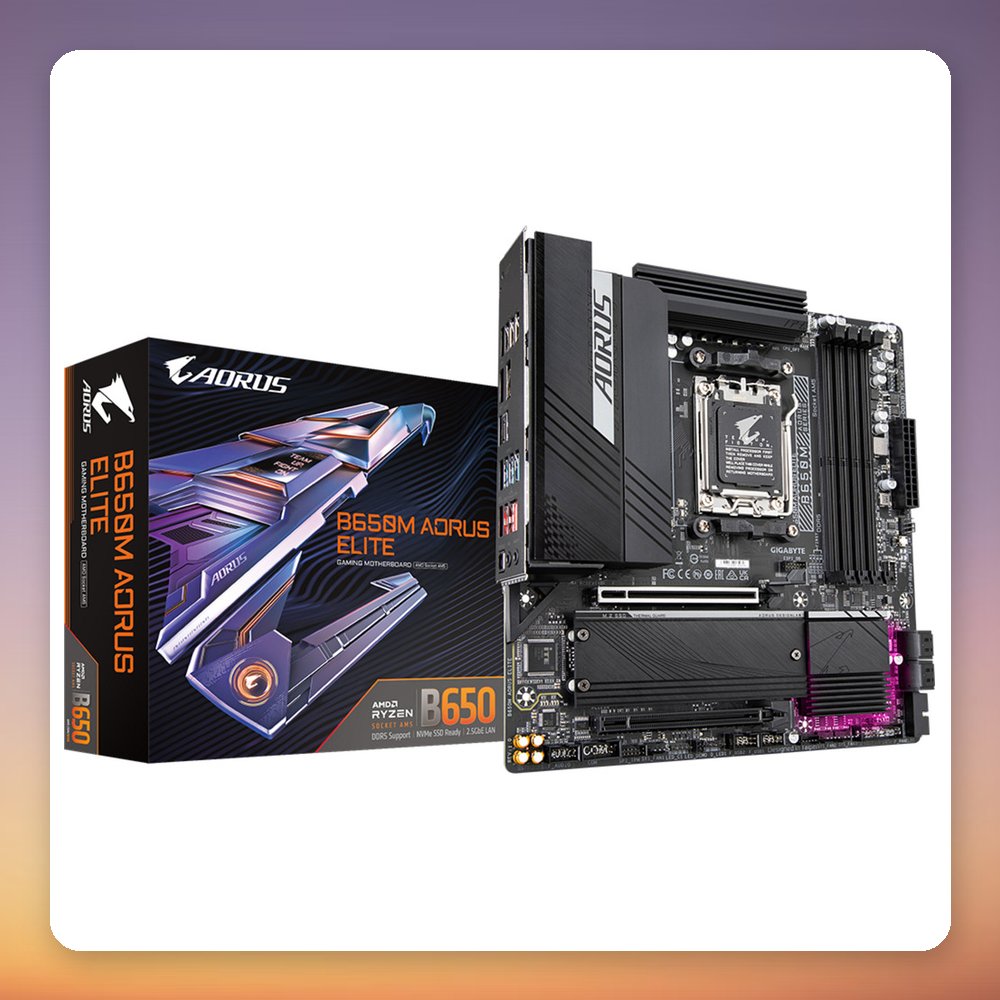

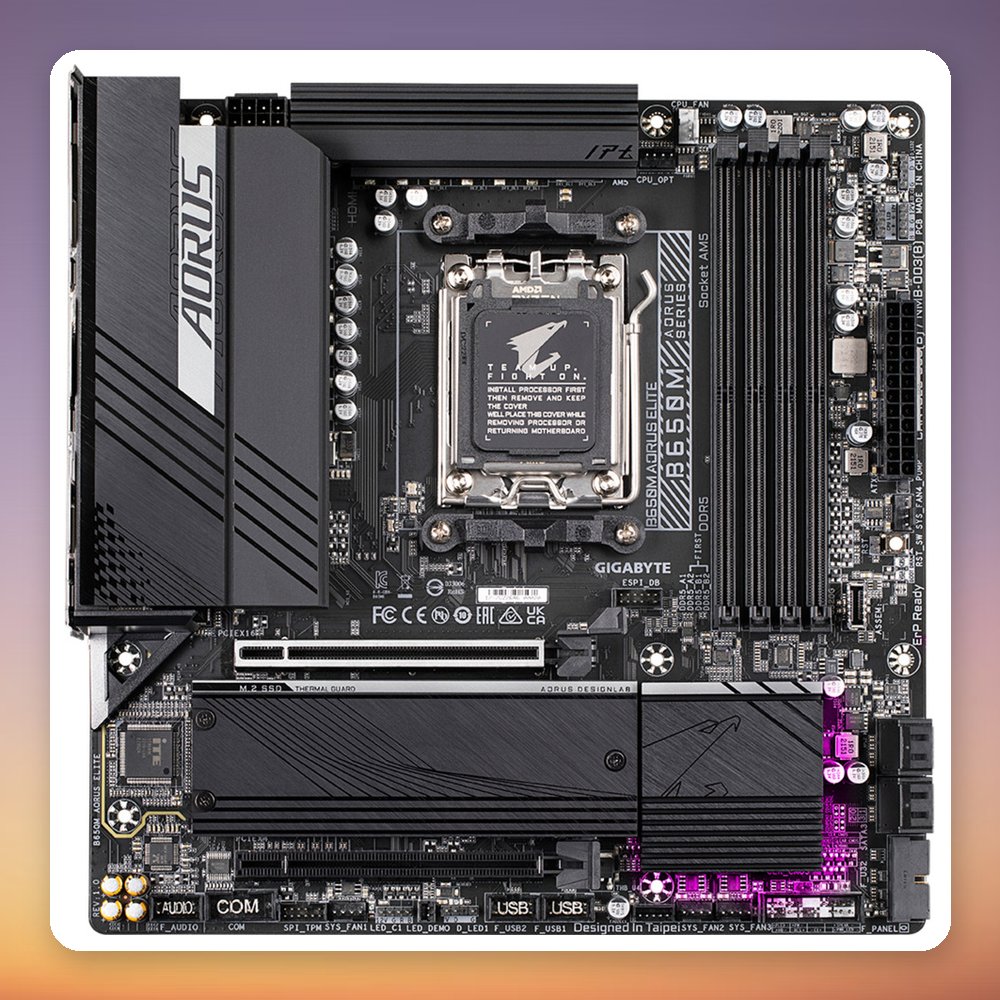

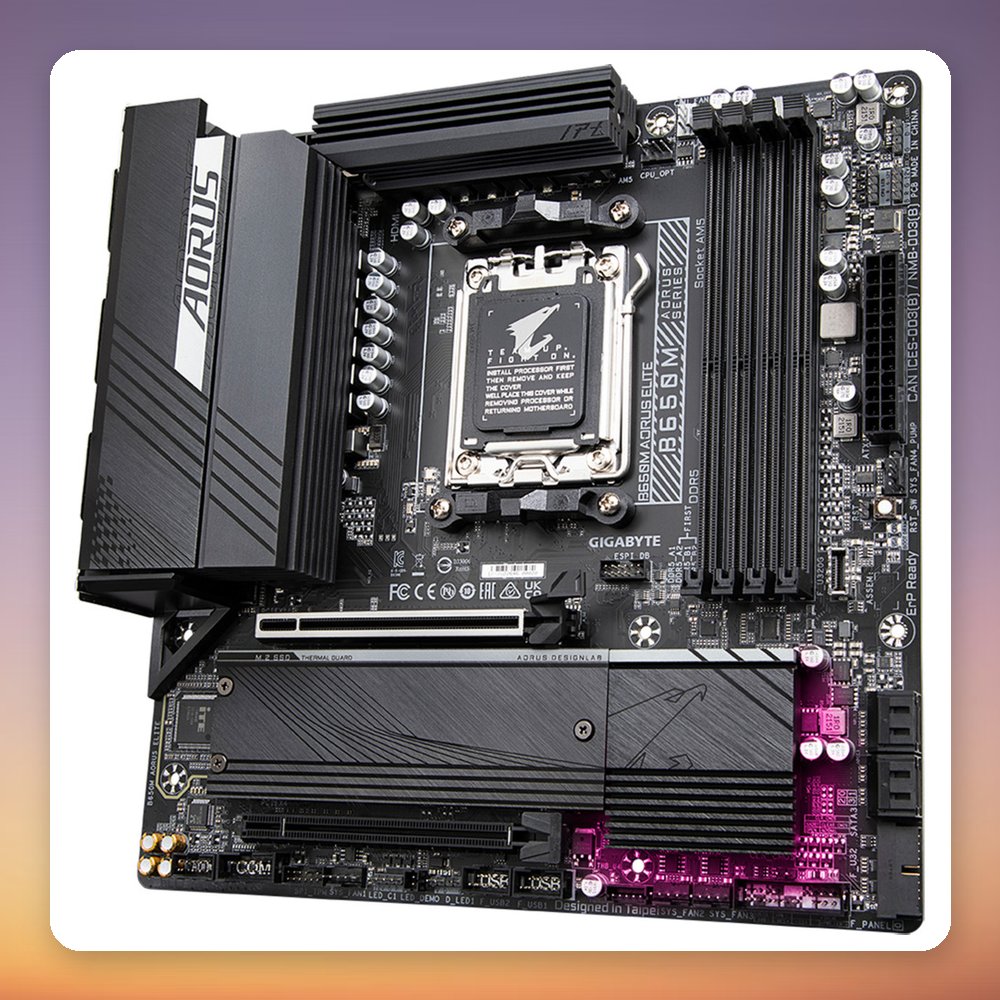

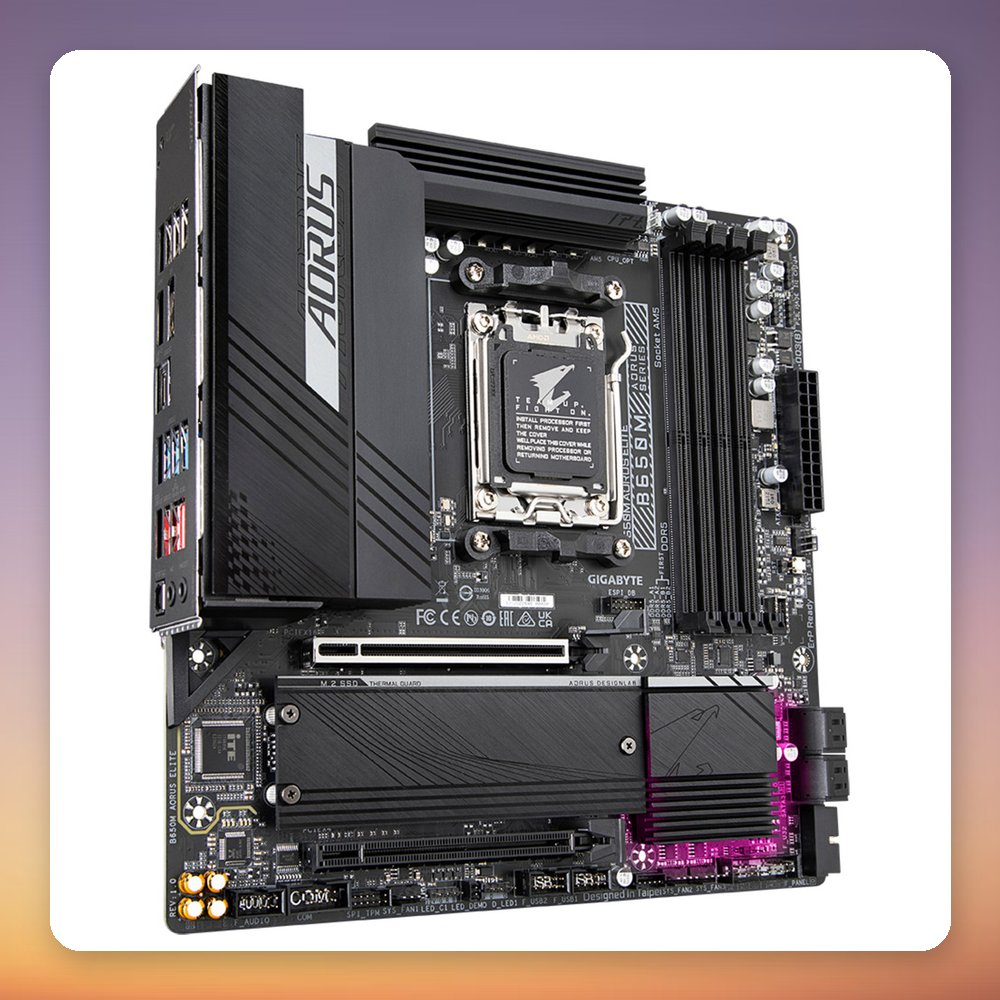

The Gigabyte B650M AORUS ELITE is a black Micro-ATX motherboard for Socket AM5, built on the AMD B650 chipset. It supports Ryzen 7000, 8000 and 9000 series processors and takes up to 256 GB of dual-channel DDR5 across four DIMM slots, with memory speeds up to 8000 MHz listed. Storage comes from two M.2 slots, the first running at PCIe 5.0, plus four SATA III ports.

With 2.5 Gigabit Ethernet, a USB 3.2 Gen 2×2 Type-C port, HDMI 2.1 and DisplayPort 1.4 outputs, this board suits a compact gaming or everyday desktop build around a Ryzen CPU. Video outputs only work with a processor that has integrated graphics. There is no onboard Wi-Fi. Some newer processors may need a BIOS update before the board will recognise them.

Specification

• Manufacturer: GigaByte
• Model: B650M AORUS ELITE
• MPN: B650M AORUS ELITE
• EAN: 4719331849818
• CPU socket: AMD Socket AM5
• Chipset: AMD B650
• Supported processors: AMD Ryzen 7000, 8000 and 9000 series
• Form factor: Micro-ATX (µATX)
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB, non-ECC
• Memory speed: Up to 8000 MHz (OC)
• M.2 slots: 2x M.2 (M key): 1st PCIe 5.0 up to 25110, 2nd PCIe 4.0 up to 22110
• SATA: 4x SATA III, RAID 0/1/10
• Expansion slots: 2x PCIe 4.0 x16 (1x x16, 1x x4 per Wave data)
• Networking: 2.5 Gigabit Ethernet (Realtek RTL8125), no Wi-Fi
• Rear USB: 1x USB 3.2 Gen 2×2 Type-C, 2x USB 3.2 Gen 2 Type-A, 4x USB 2.0
• Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.4
• Audio: Realtek ALC897, 7.1 channels
• Fan headers: 2x CPU fan, 4x chassis fan
• Colour: Black
