Product Overview

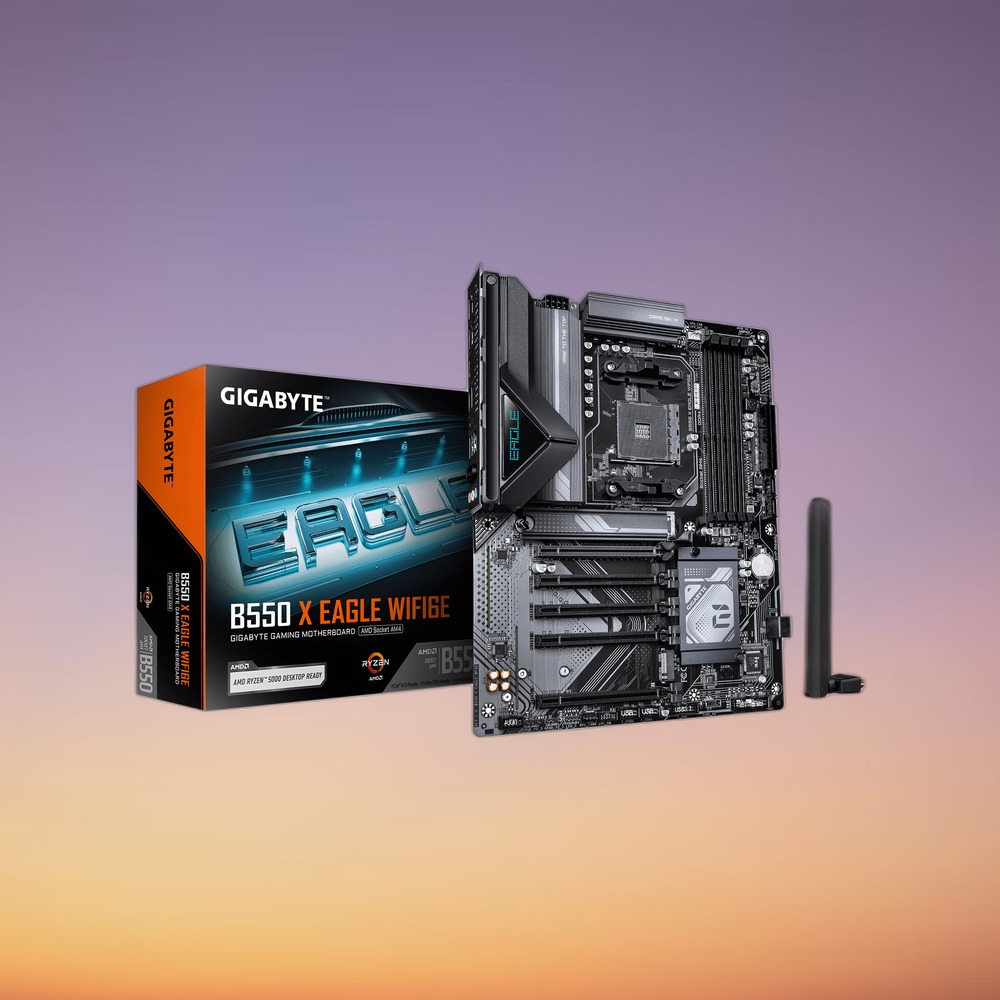

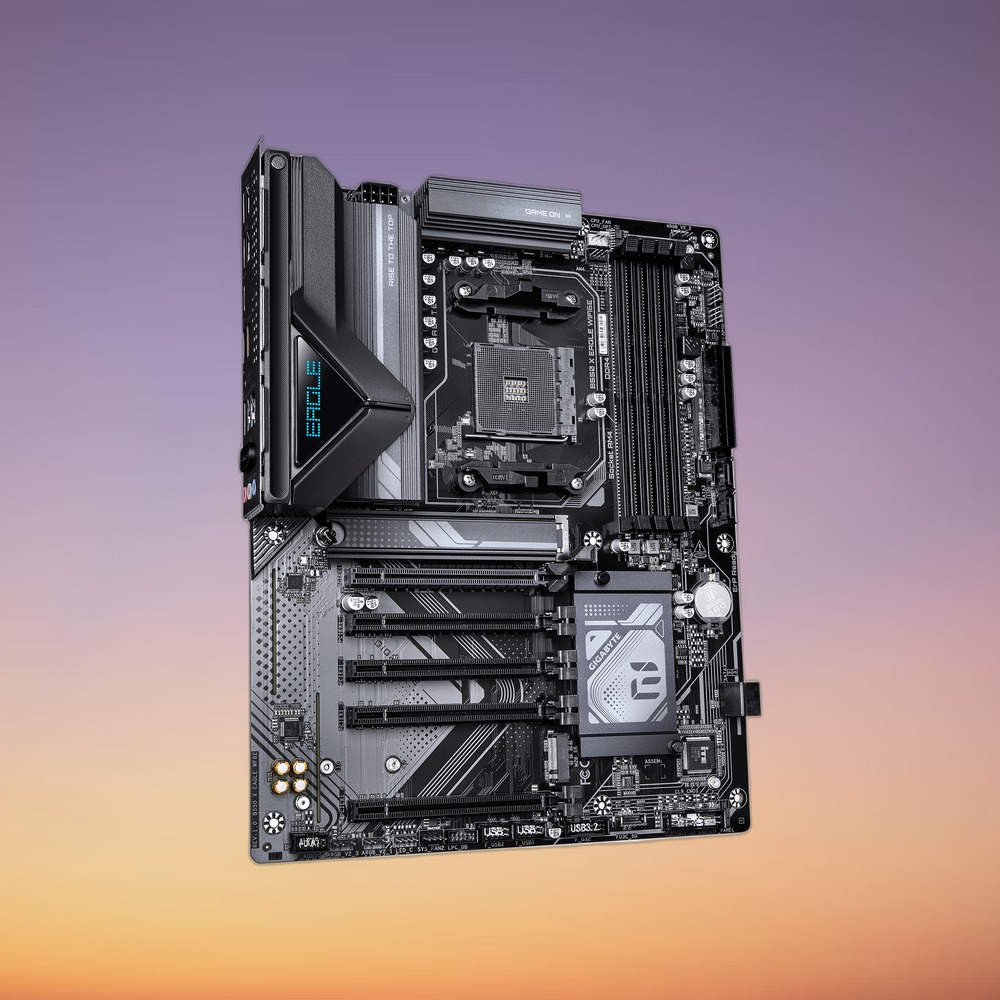

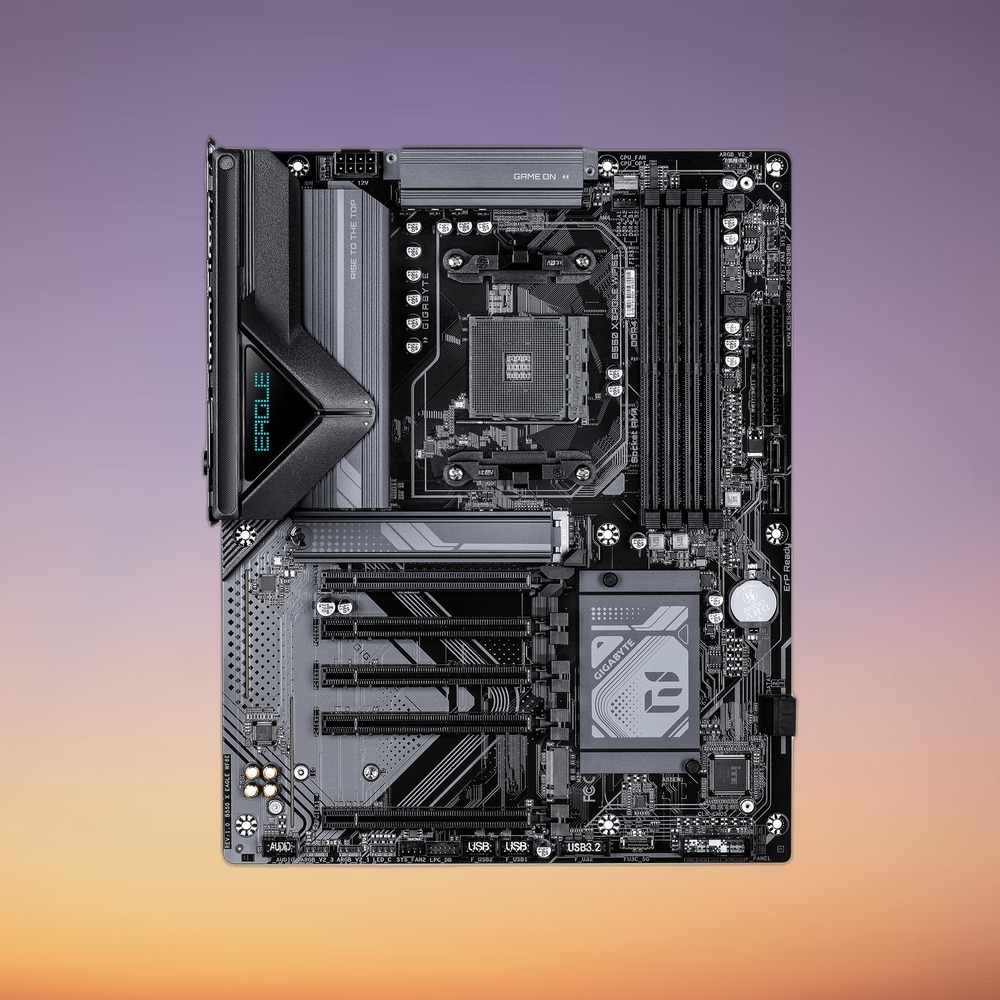

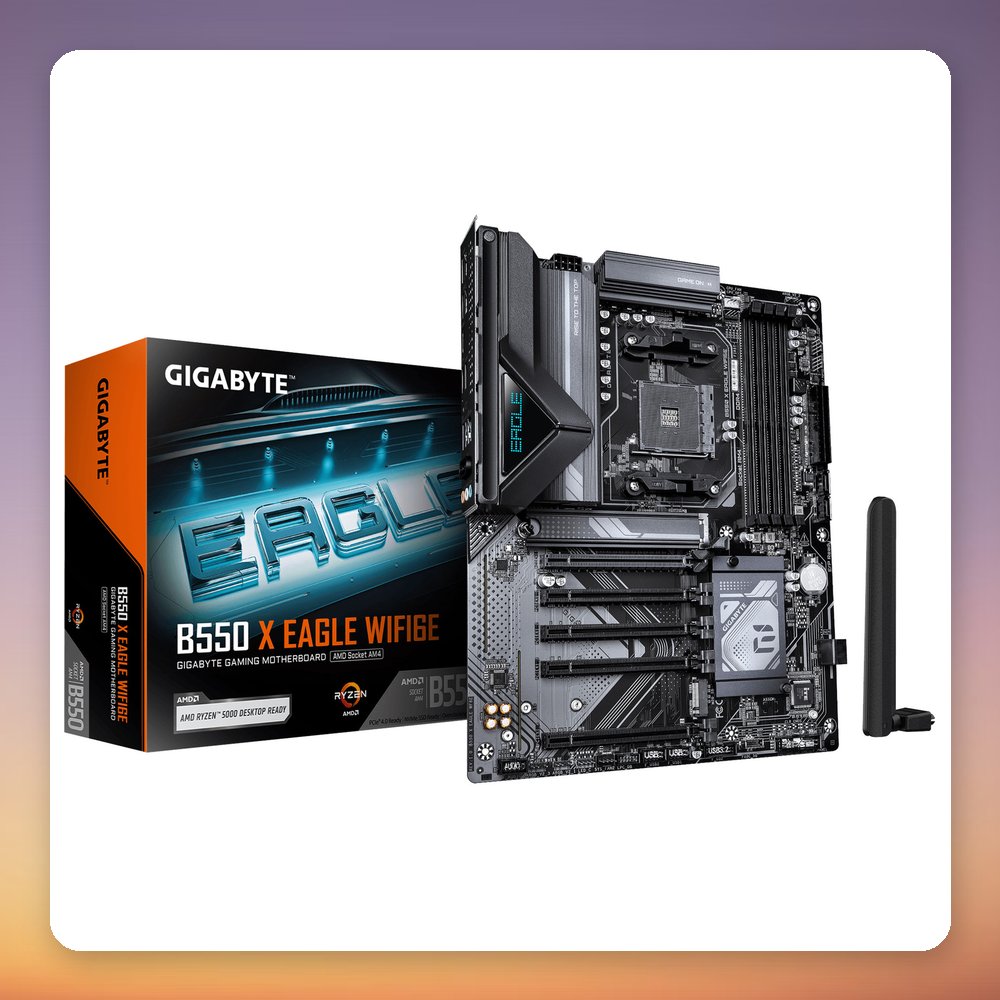

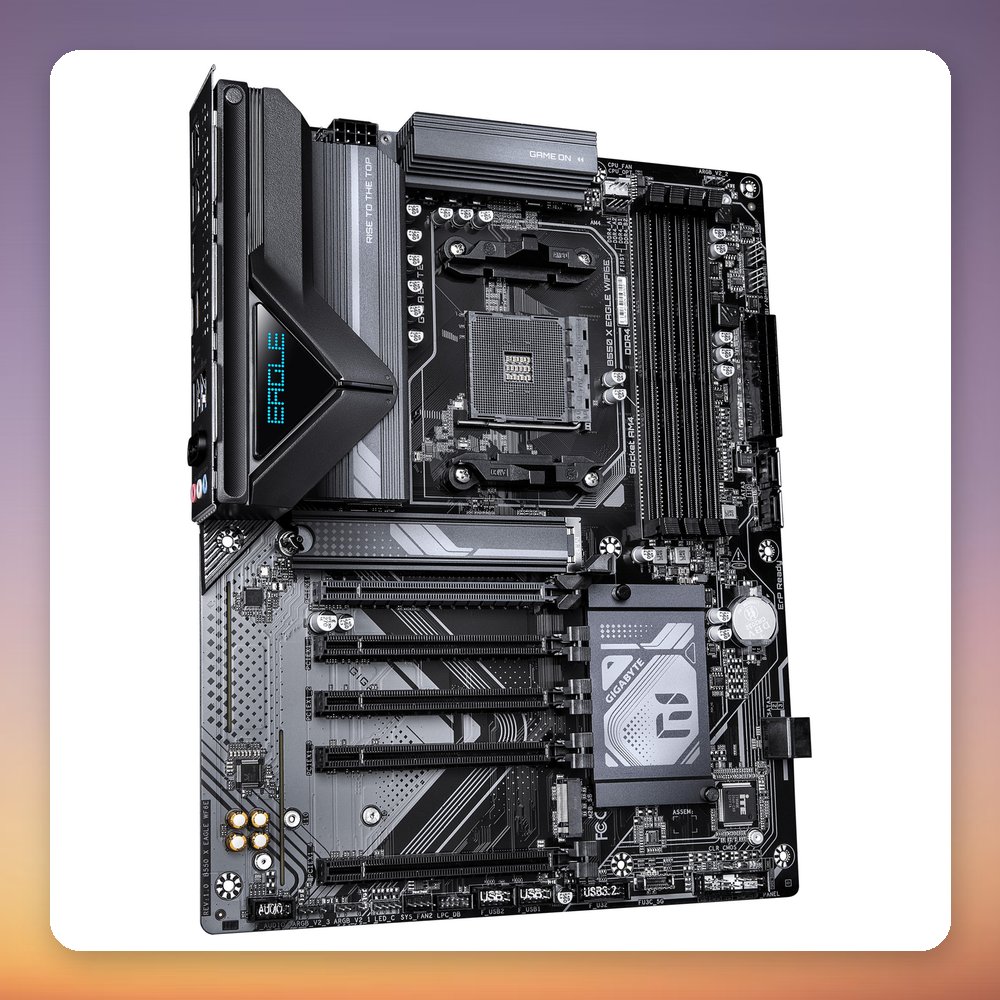

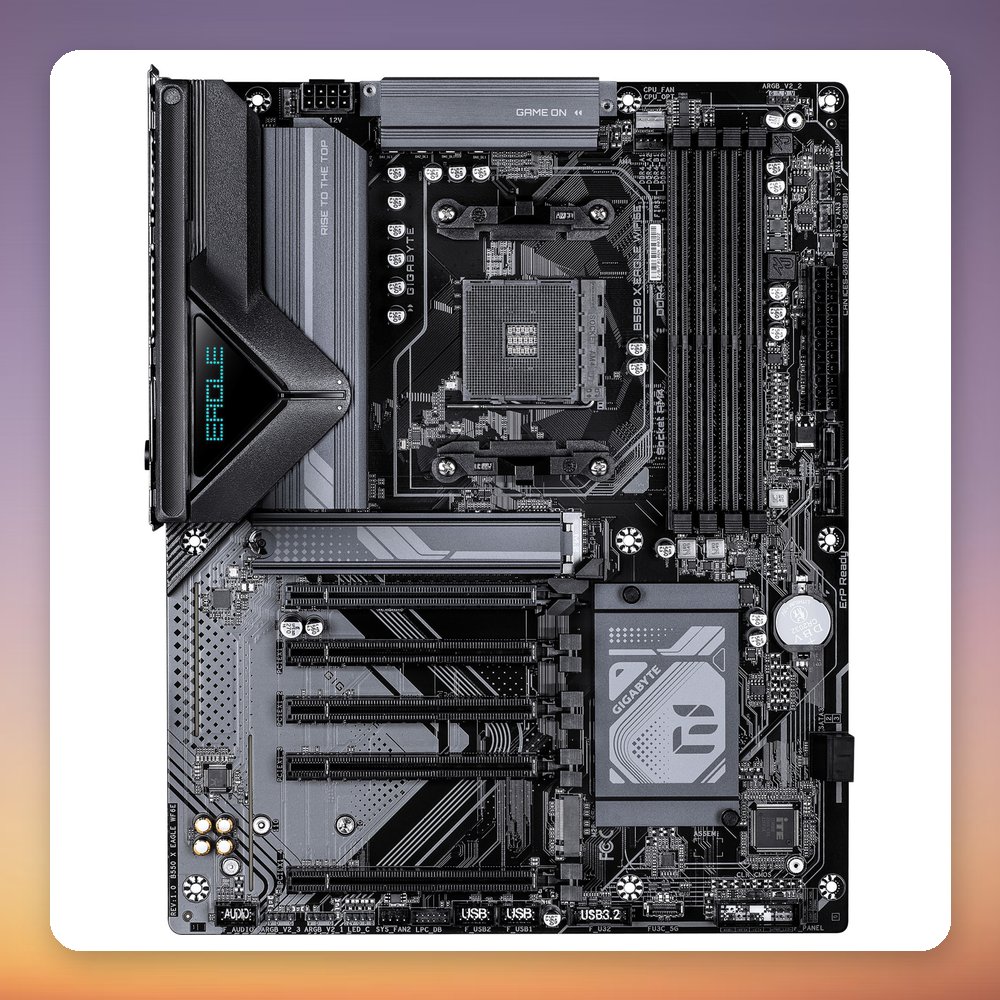

The Gigabyte B550 X EAGLE WIFI6E is an ATX motherboard for Socket AM4, built on the AMD B550 chipset. What sets it apart is the built-in wireless and wired networking: Wi-Fi 6E with Bluetooth 5.3 alongside a Realtek 2.5 Gigabit Ethernet port. It has four DIMM slots for up to 128 GB of dual-channel DDR4, with support for ECC and non-ECC unbuffered memory.

This board suits AM4 gaming and general-purpose builds based on Ryzen 3000, 4000 or 5000 series processors. Storage is covered by two M.2 slots (the first running at PCIe 4.0) and four SATA III ports, with RAID 0, 1 and 10 available. Connectivity includes HDMI 2.1 and DVI-D for CPUs with integrated graphics, a USB-C 3.2 Gen 2 port, and four fan headers plus RGB and addressable RGB headers. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: GigaByte
• Model: B550 X EAGLE WIFI6E
• MPN: B550 X EAGLE WF6E
• EAN: 4719331883331
• Socket: AMD AM4
• Chipset: AMD B550
• Form factor: ATX
• Compatible processors: AMD Ryzen 3000, 4000 and 5000 series
• Memory: 4x DIMM, DDR4, dual-channel, up to 128 GB
• Memory speeds: DDR4-2133 to DDR4-3200 (2133/2400/2667/2933/3200 MT/s)
• ECC support: ECC and non-ECC (unbuffered)
• M.2 slots: 2x M.2 (Key M), up to 22110; first slot PCIe 4.0, second PCIe 3.0
• SATA: 4x SATA III, RAID 0/1/10
• Expansion slots: 1x PCIe 4.0 x16, 4x PCIe x1 (3.0)
• Networking: Realtek 2.5GbE LAN, Wi-Fi 6E (802.11ax), Bluetooth 5.3
• Rear USB ports: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 4x USB-A 2.0
• Video outputs: 1x HDMI 2.1, 1x DVI-D (CPU with integrated graphics required)
• Audio: Realtek ALC897, 7.1 channels
• Fan and RGB headers: 5x 4-pin PWM fan, 1x RGB, 3x addressable RGB (RGB Fusion)
• Weight: 1.5 kg
