Product Overview

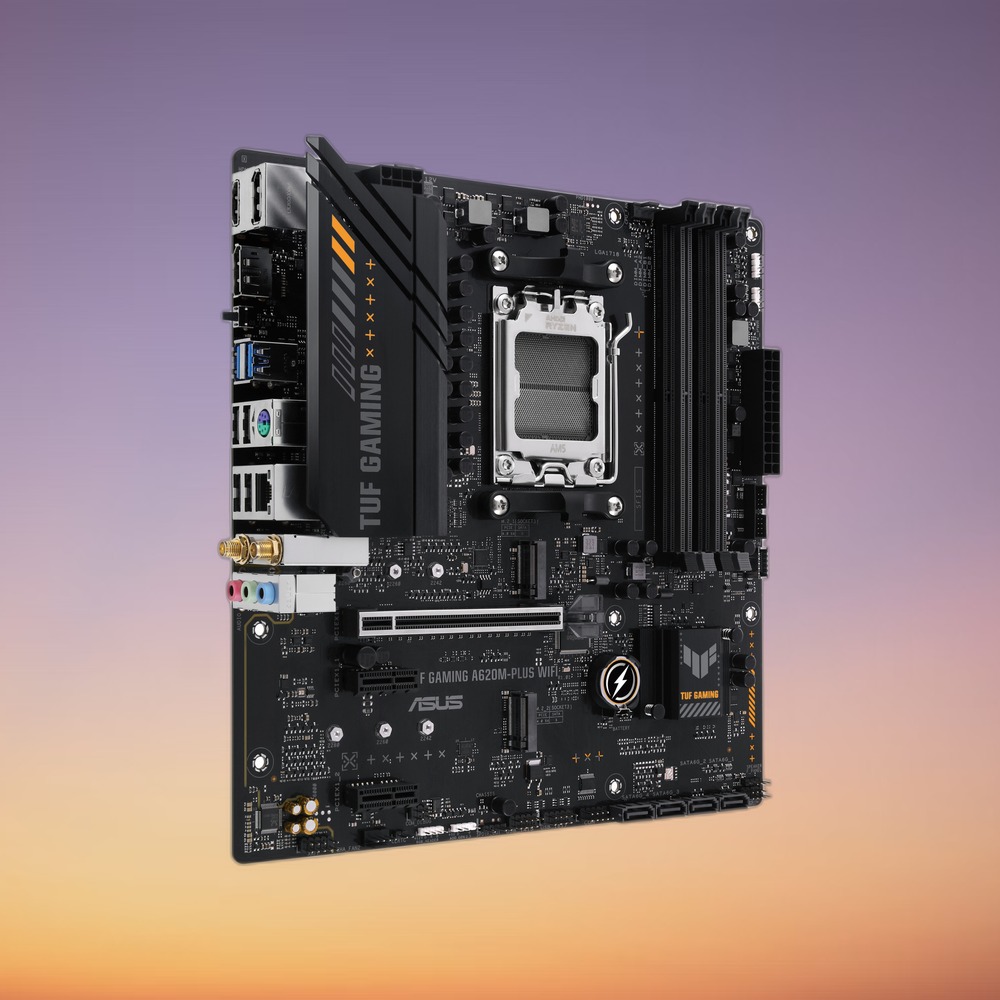

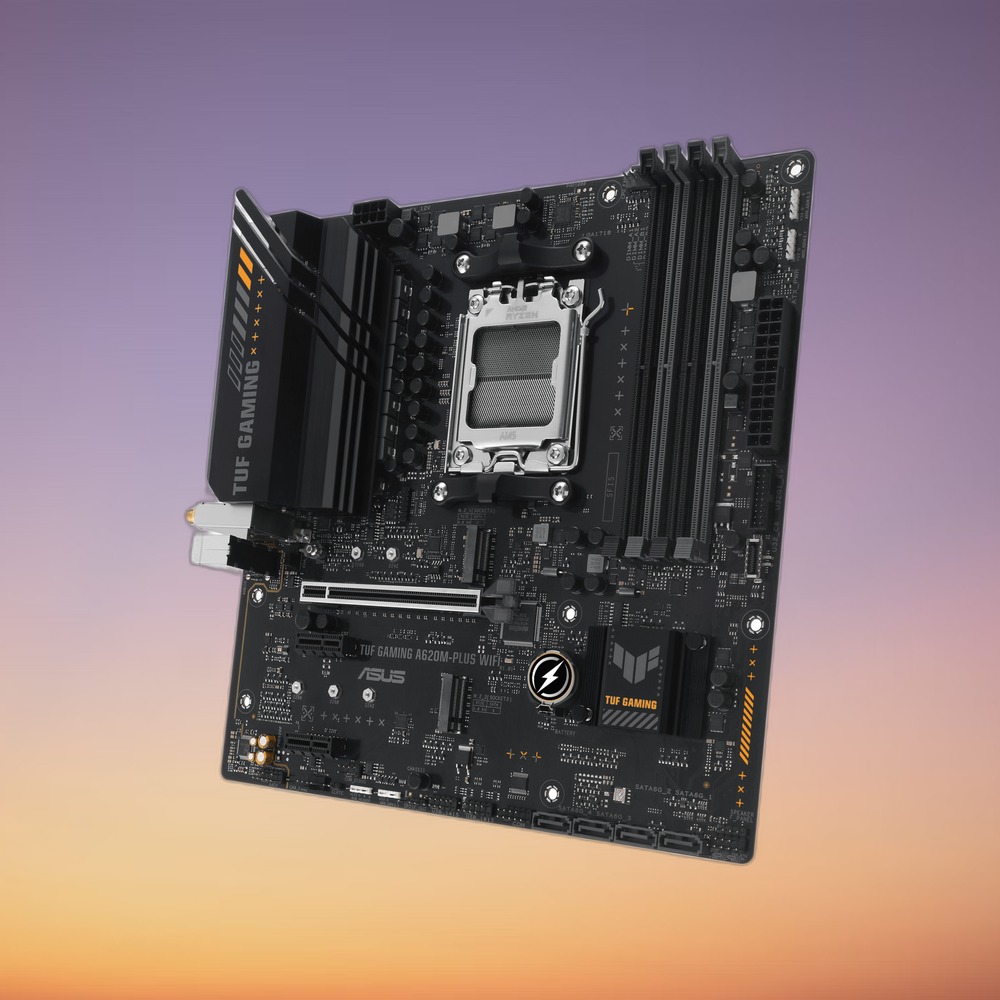

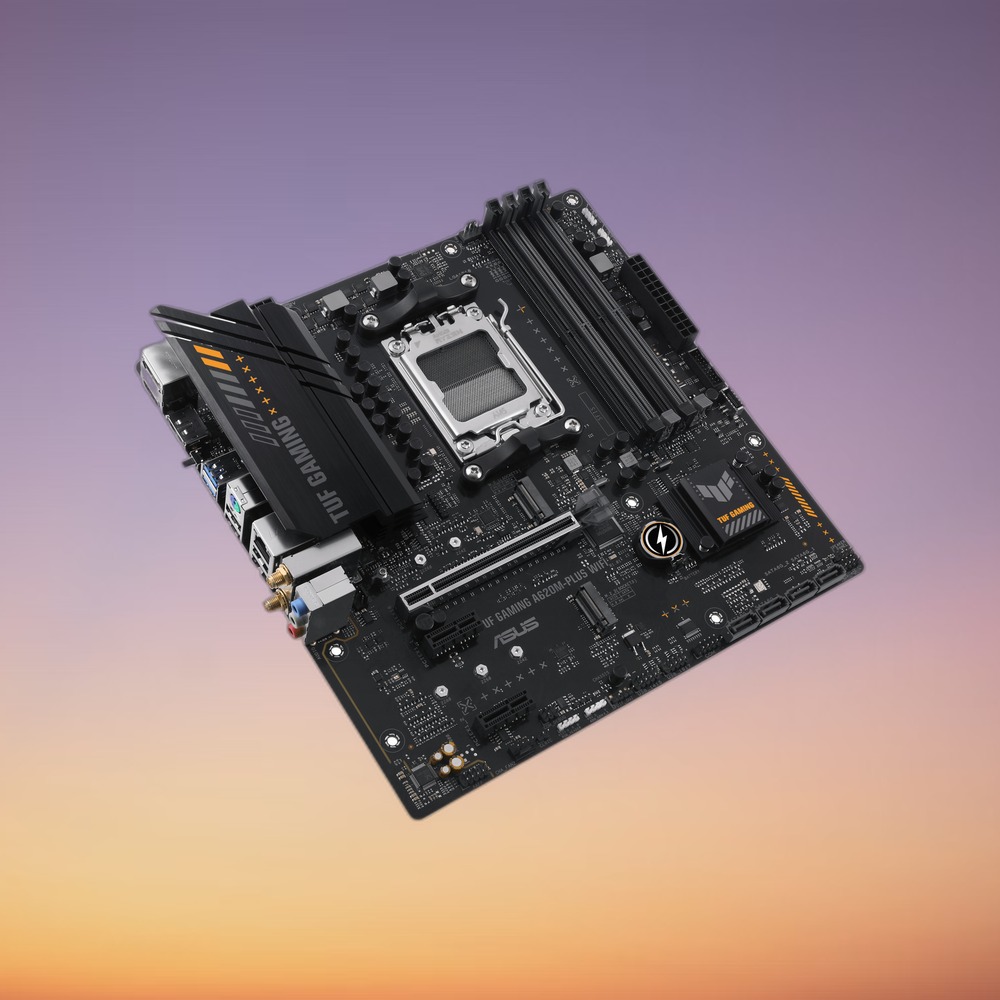

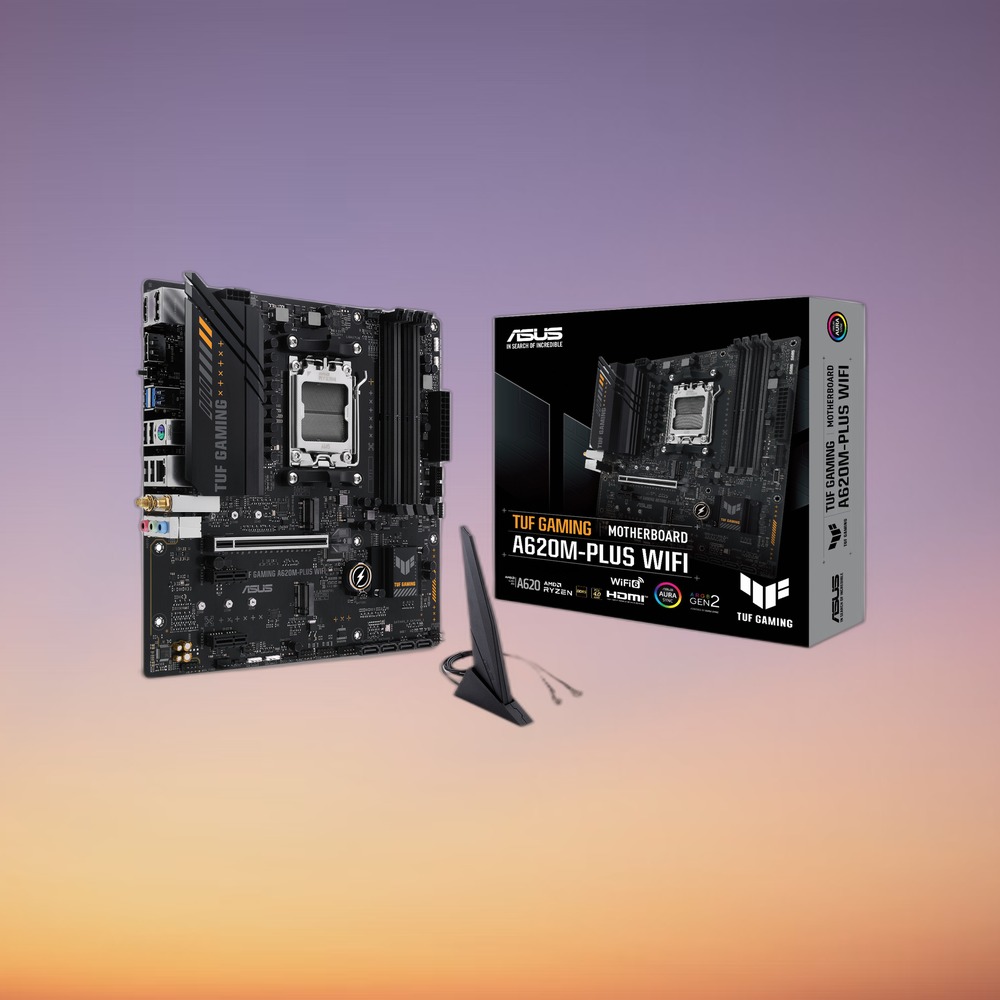

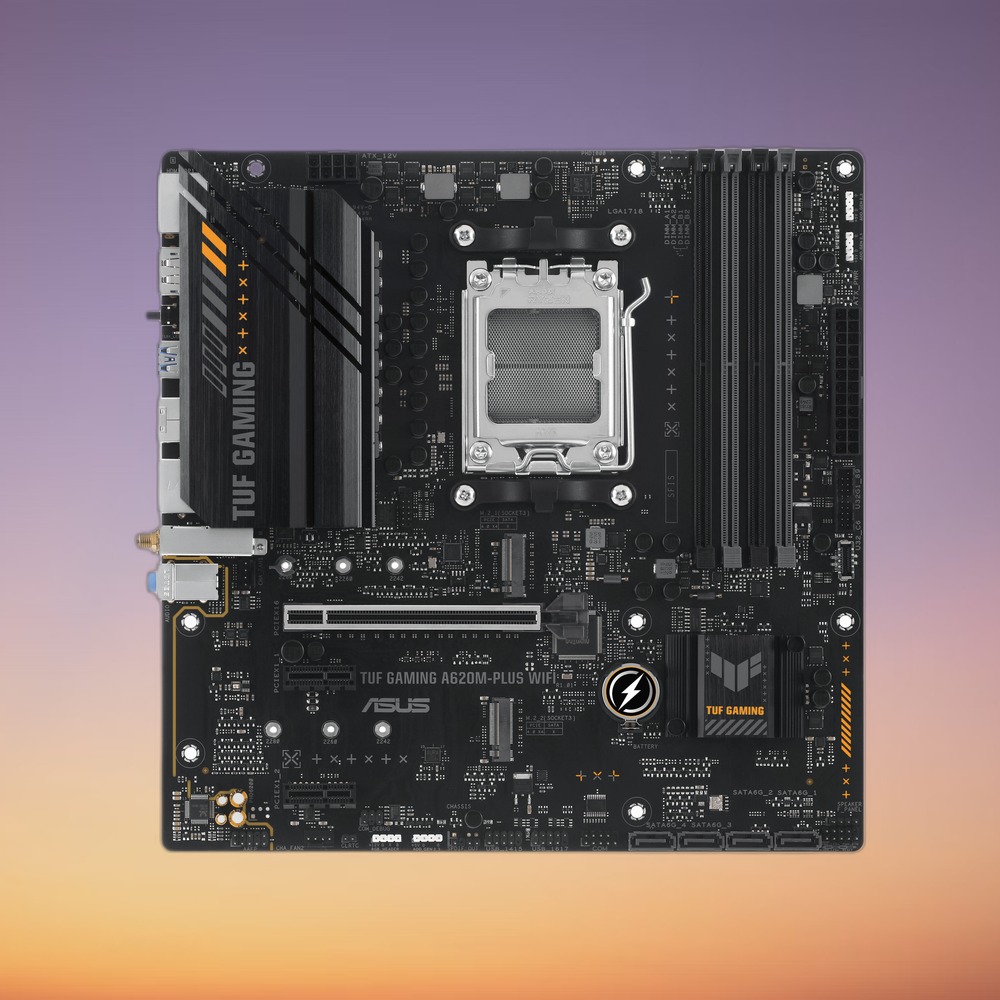

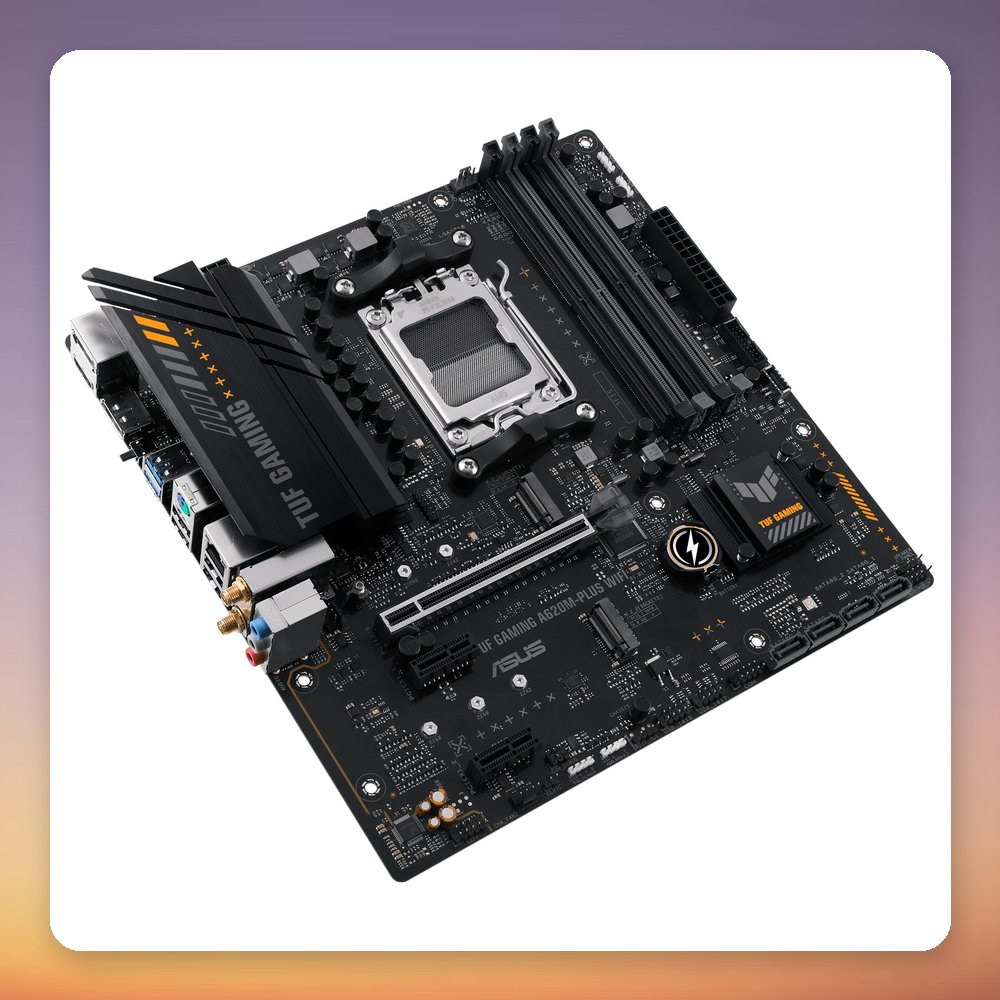

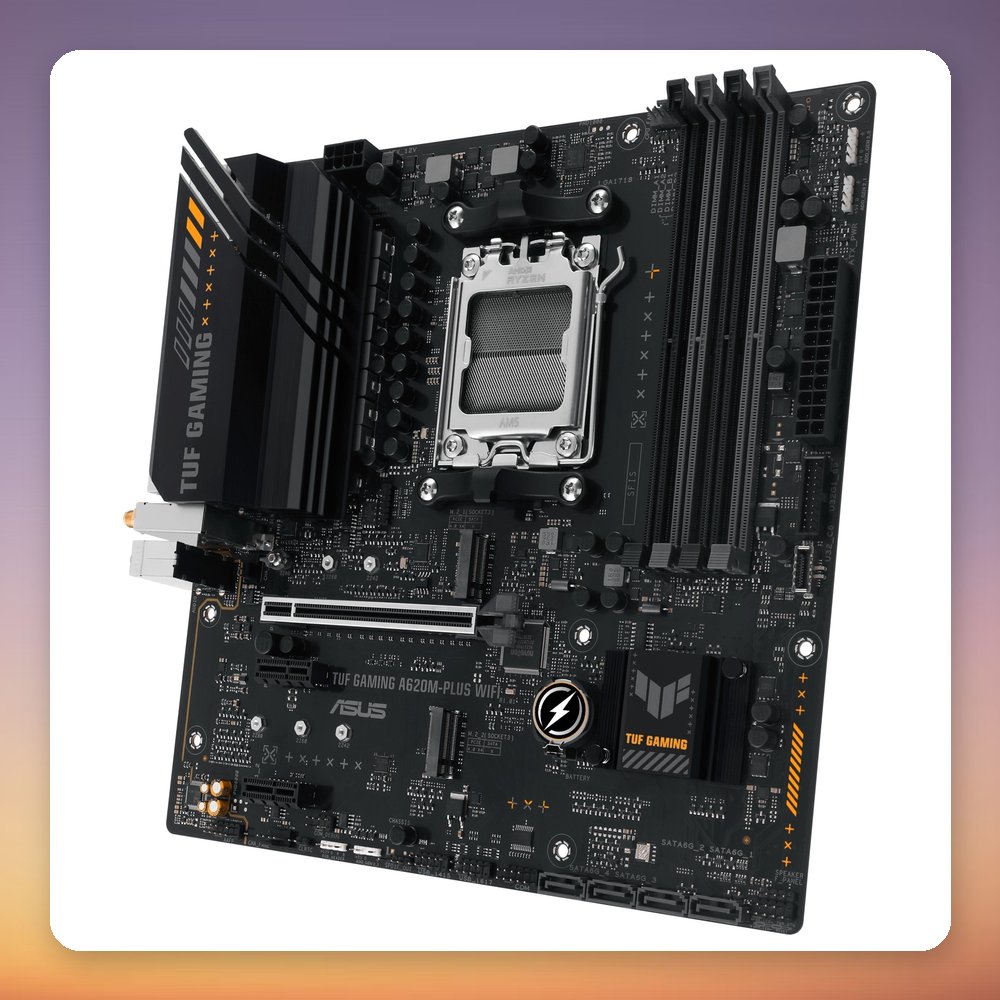

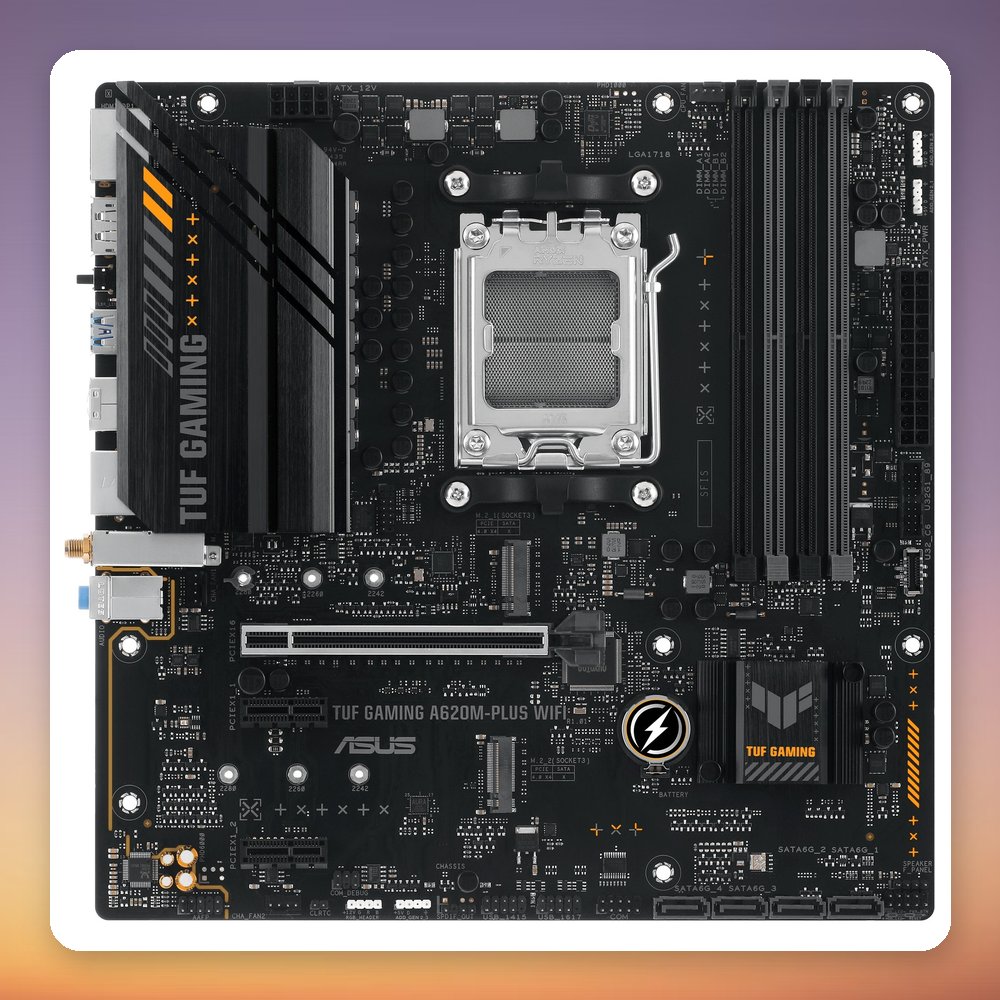

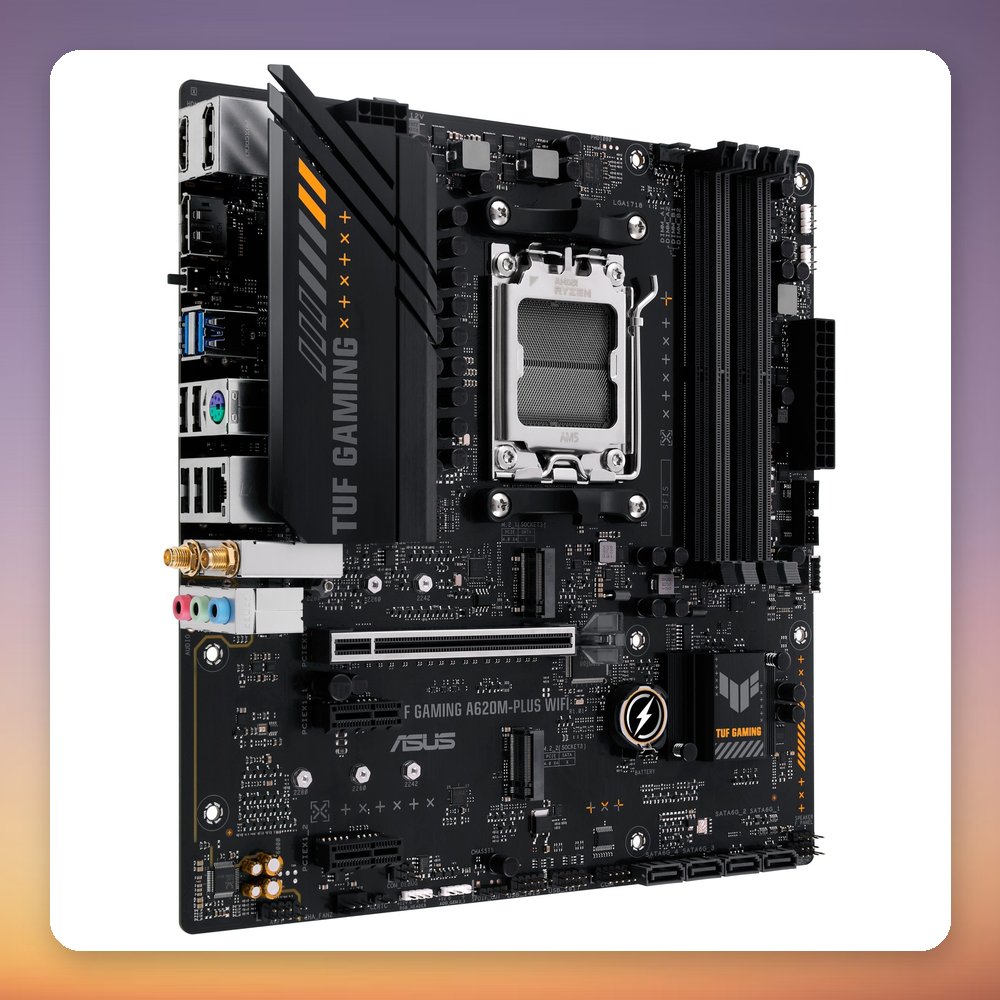

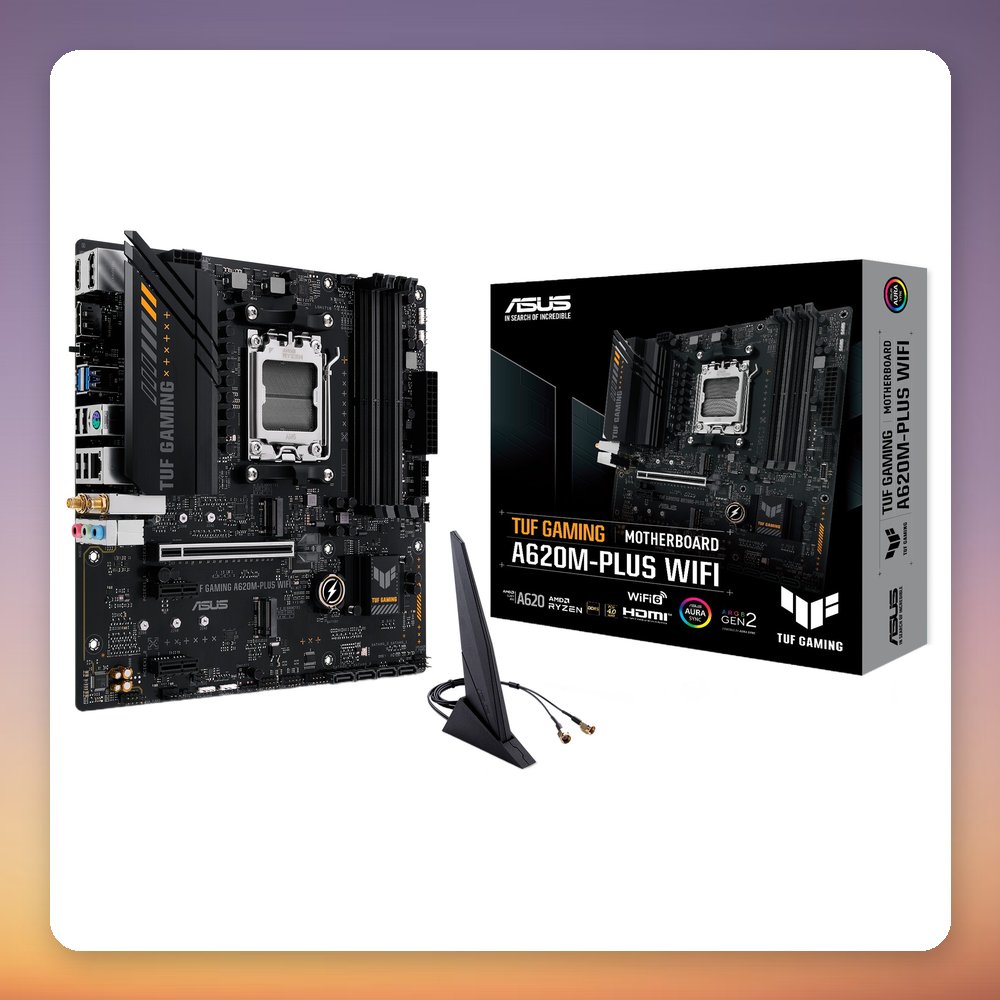

The Asus TUF Gaming A620M-Plus WiFi is a micro-ATX motherboard built on the AMD A620 chipset for Socket AM5 processors. It stands out in the A620 class by including WiFi 6 and Bluetooth 5.3 on the board, alongside 2.5 Gb Ethernet, four DDR5 slots with support up to 192 GB, and two M.2 slots. It also provides HDMI and two DisplayPort outputs for CPUs with integrated graphics.

This board suits compact and mid-range AM5 gaming PC builds where you want wireless connectivity without adding a separate card. Asus lists support for Ryzen 7000, 8000F/8000G and 9000 series processors. Storage is covered by four SATA ports and two M.2 slots, and RGB fans or strips connect through one RGB header and three addressable RGB headers using AURA Sync. Memory is dual-channel and supports both ECC and non-ECC modules.

Specification

• Manufacturer: Asus
• Model: TUF Gaming A620M-Plus WiFi
• MPN: 90MB1F00-M0EAY0
• EAN: 4711387164266
• CPU Socket: AMD Socket AM5
• Chipset: AMD A620
• Form Factor: micro-ATX (244 x 244 mm)
• Memory: 4x DDR5 DIMM, dual-channel, up to 192 GB, ECC and non-ECC
• Memory Speed: DDR5-4800 to 7600+ (OC)
• Expansion Slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
• Storage: 2x M.2 (M key, 42-80 mm, PCIe), 4x SATA 6 Gb/s, RAID 0/1/10

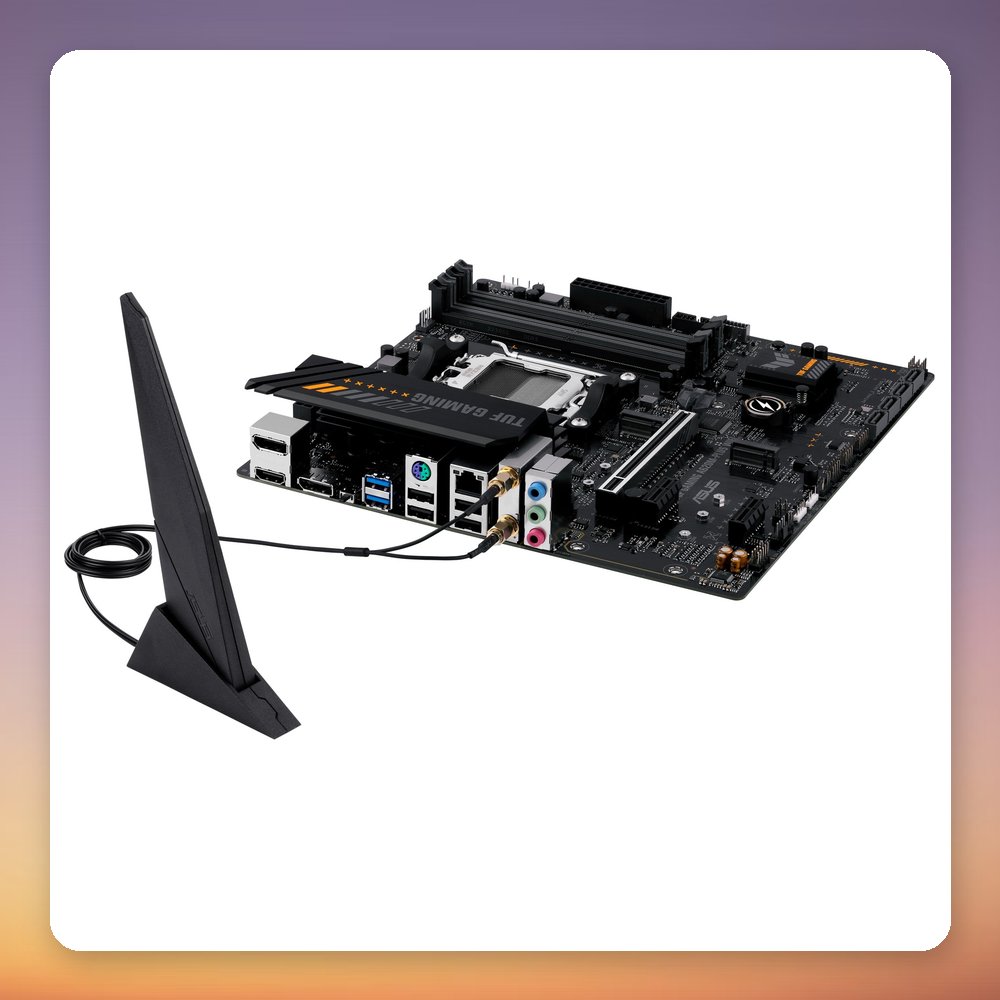

• Wireless: WiFi 6 (802.11ax), Bluetooth 5.3
• LAN: Realtek 2.5 Gb Ethernet with TUF LANGuard
• Video Outputs: 1x HDMI, 2x DisplayPort (CPU with integrated graphics required)
• Rear USB: 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0, 1x PS/2 combo
• Audio: Realtek 7.1 Surround Sound HD Audio CODEC
• RGB: 1x RGB header, 3x addressable RGB headers (AURA Sync)
• Fan Headers: 3x 4-pin PWM
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Weight: 800 g
