Product Overview

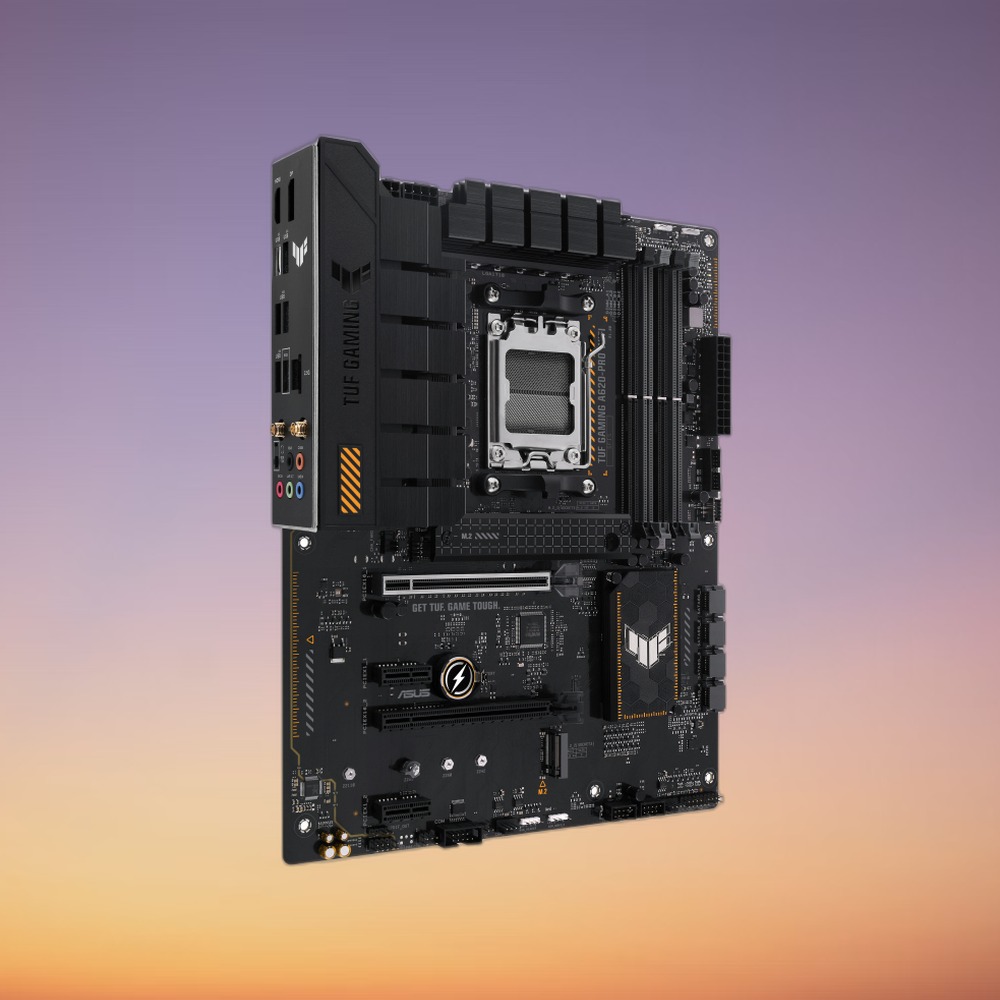

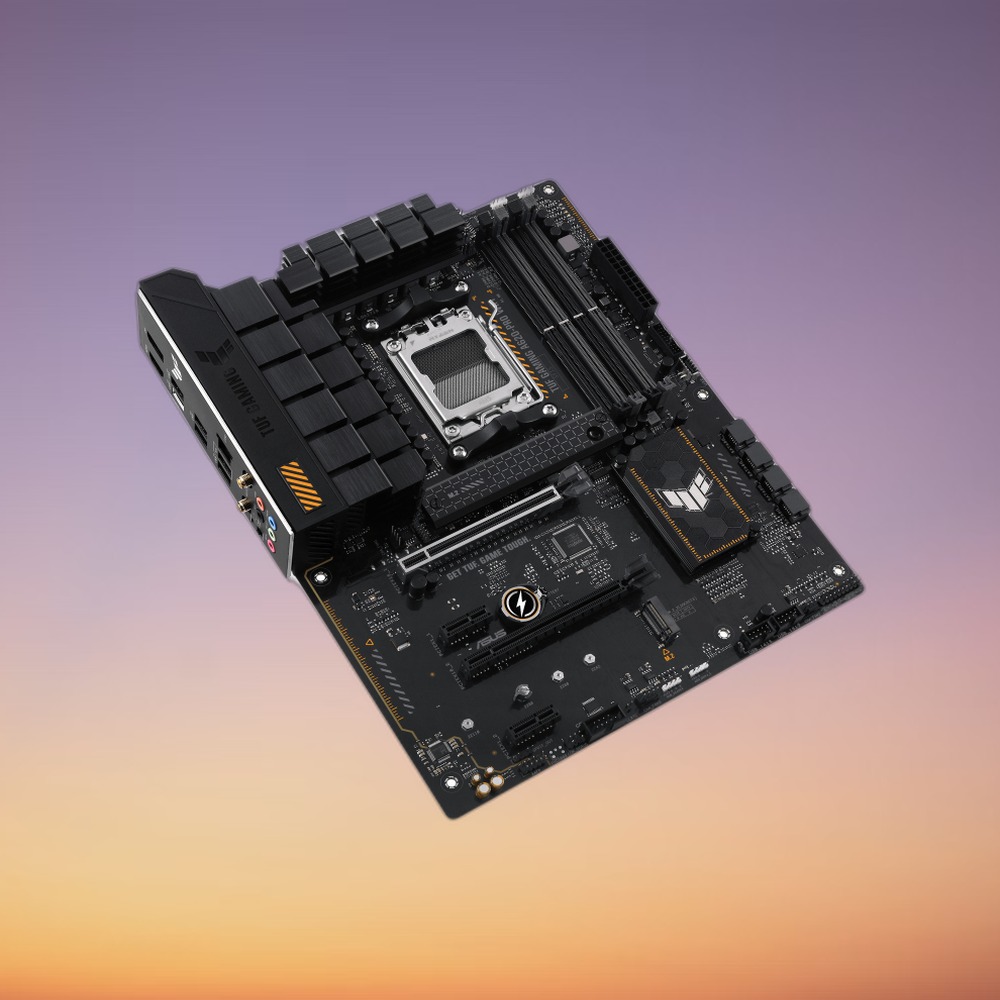

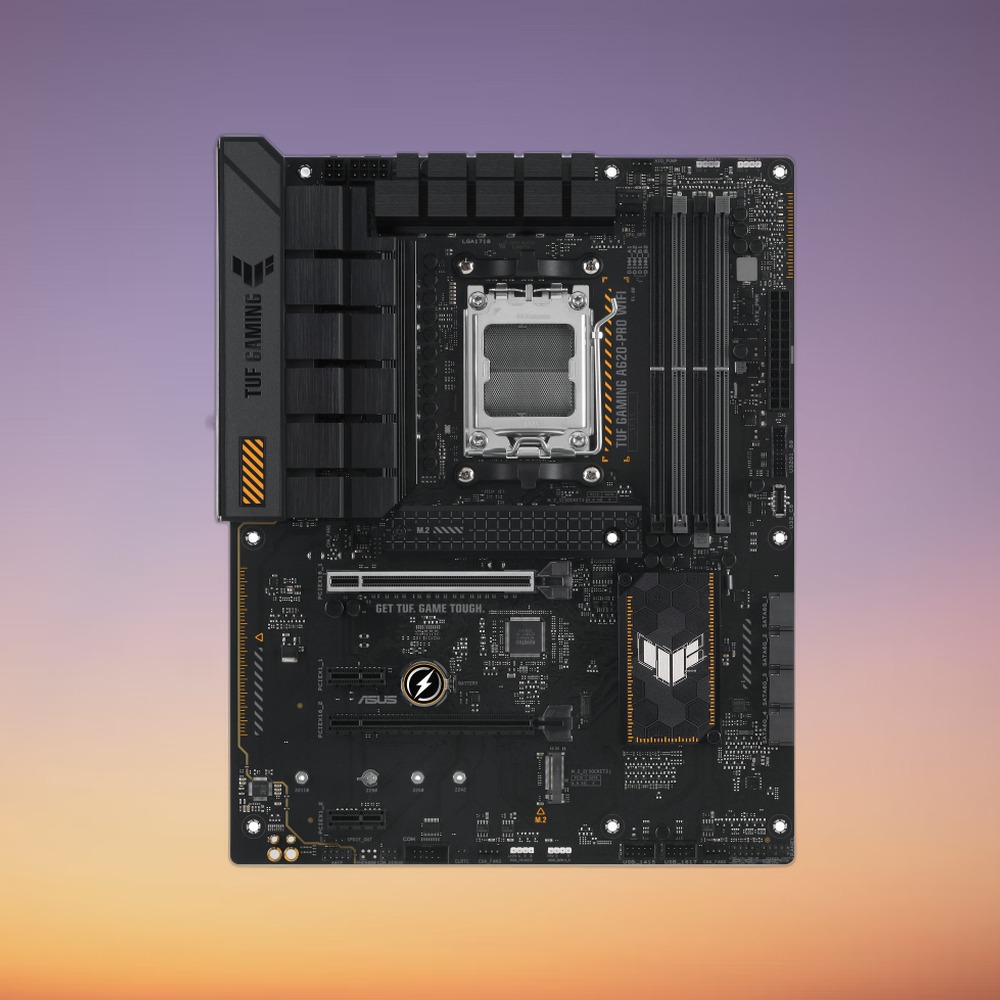

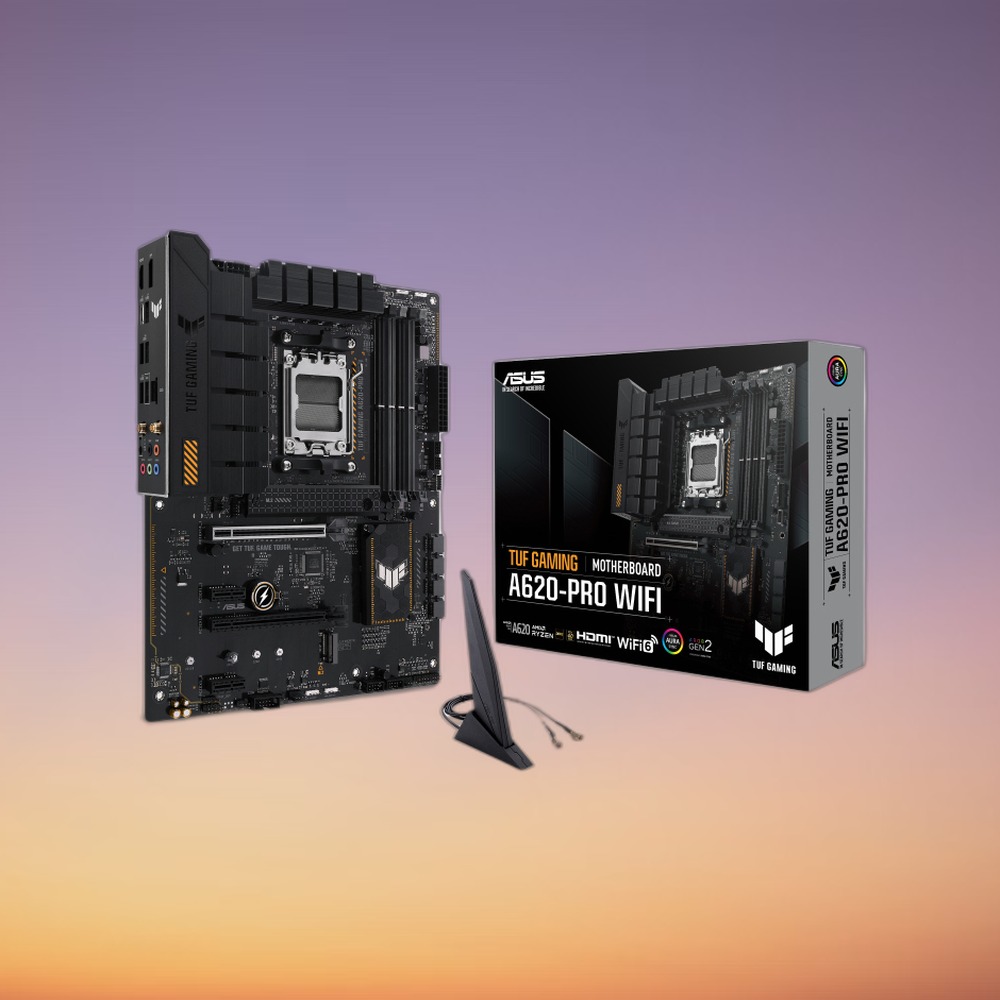

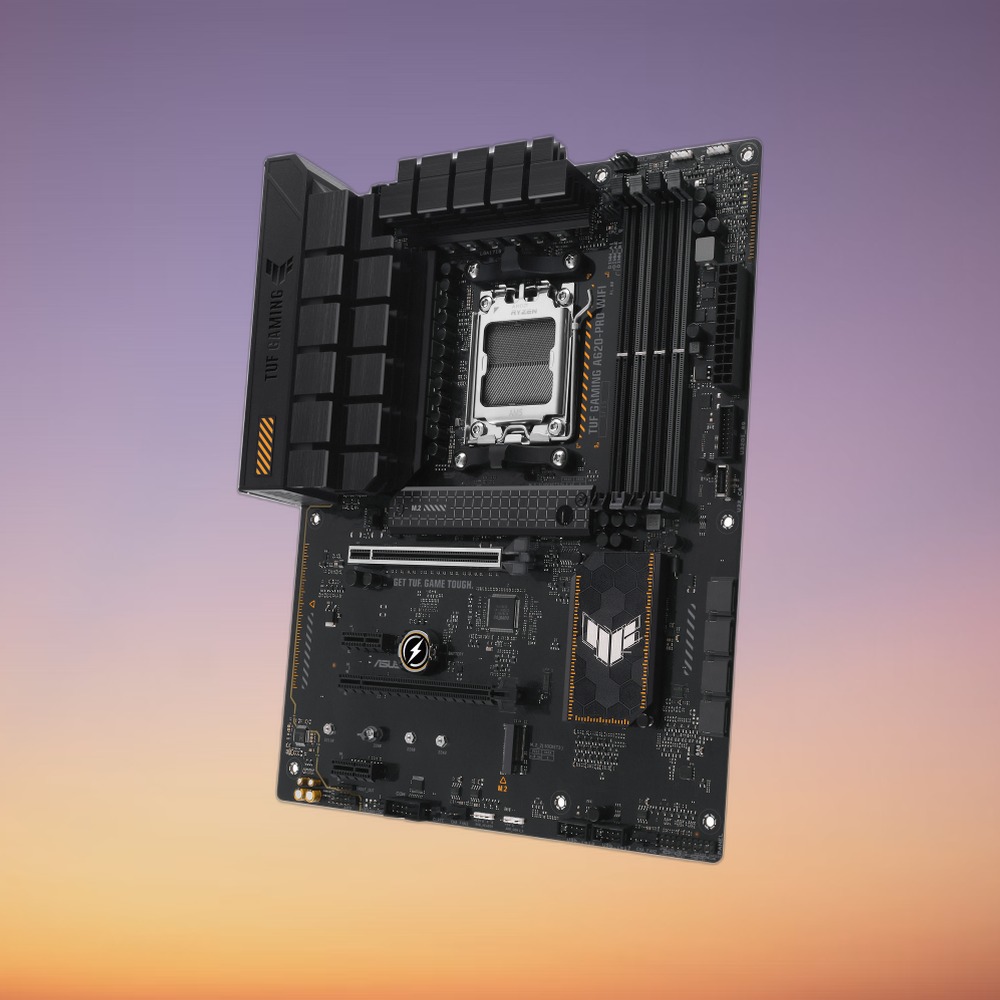

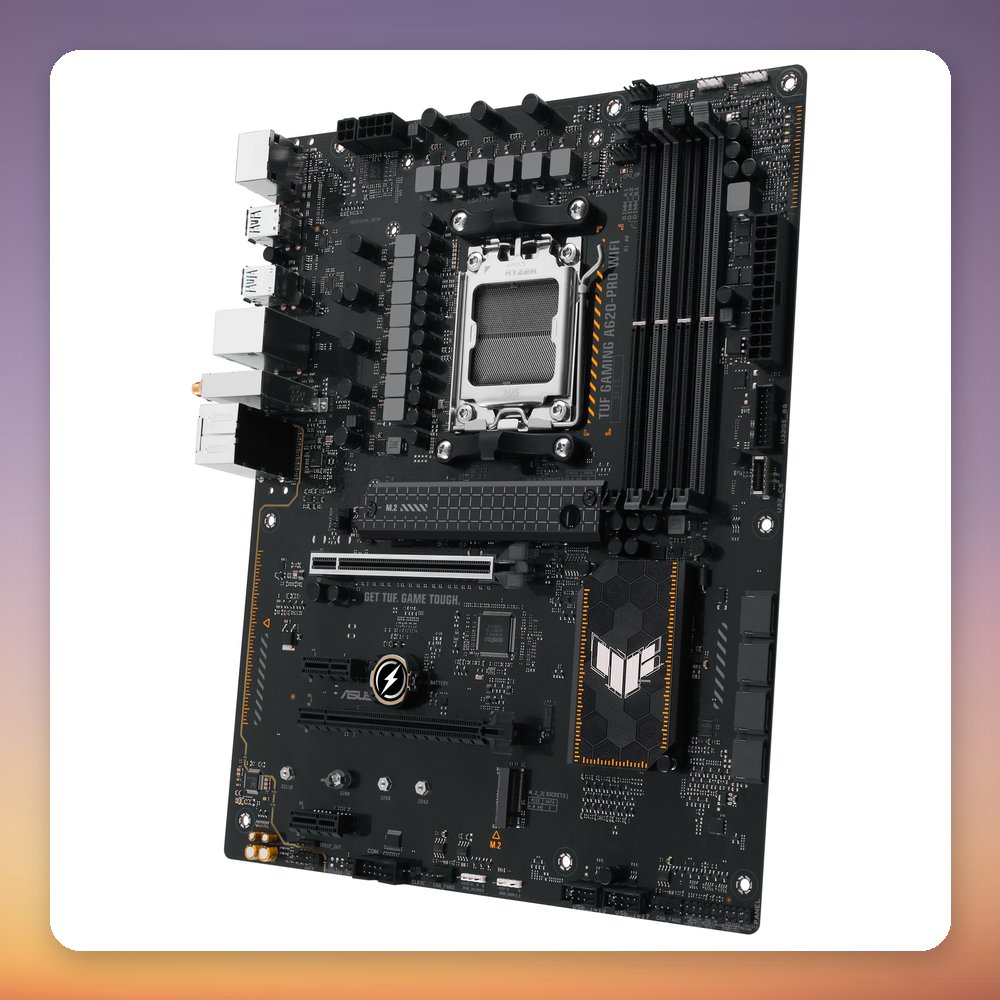

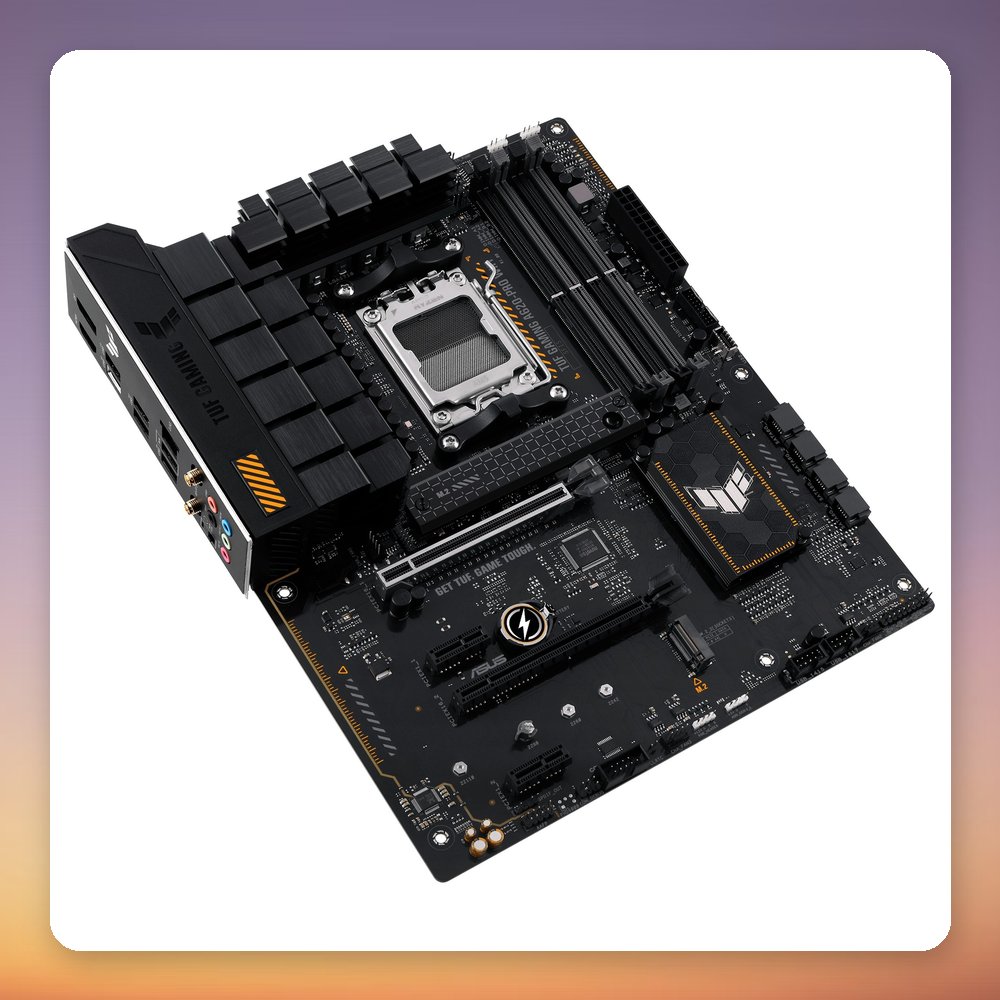

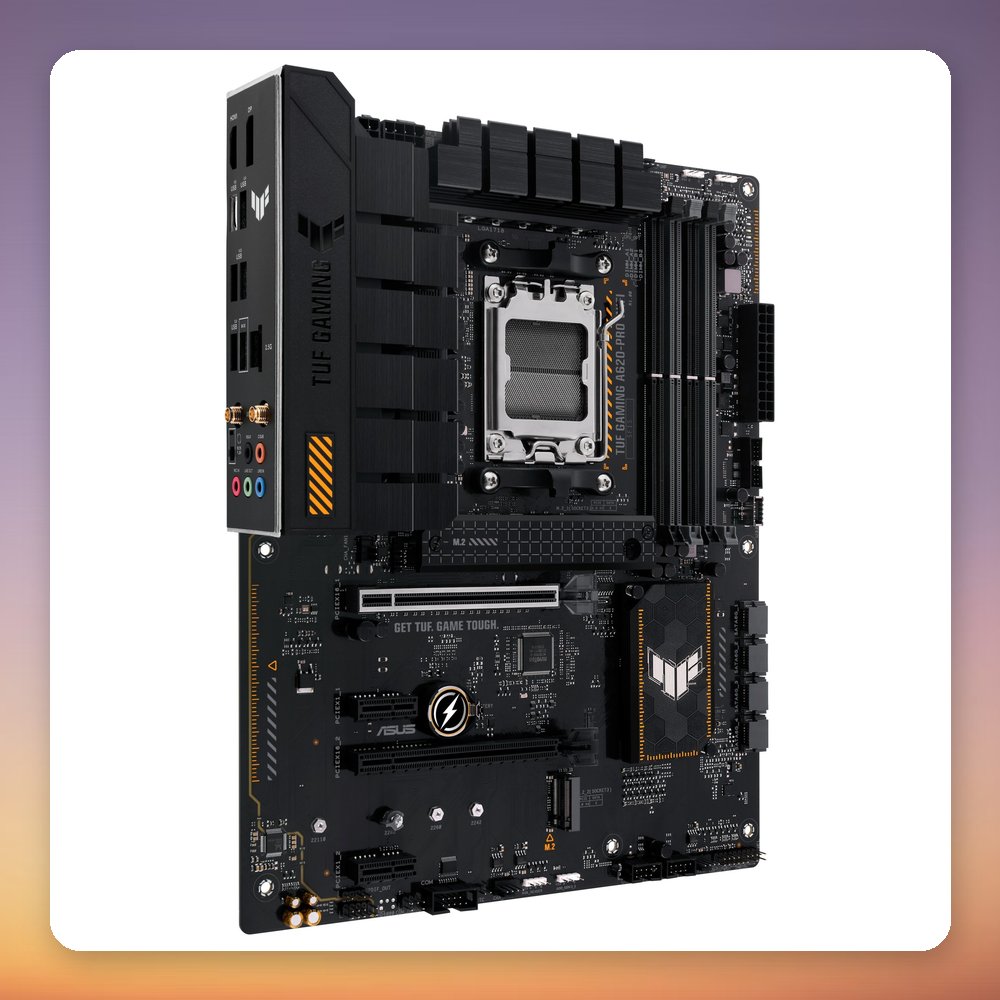

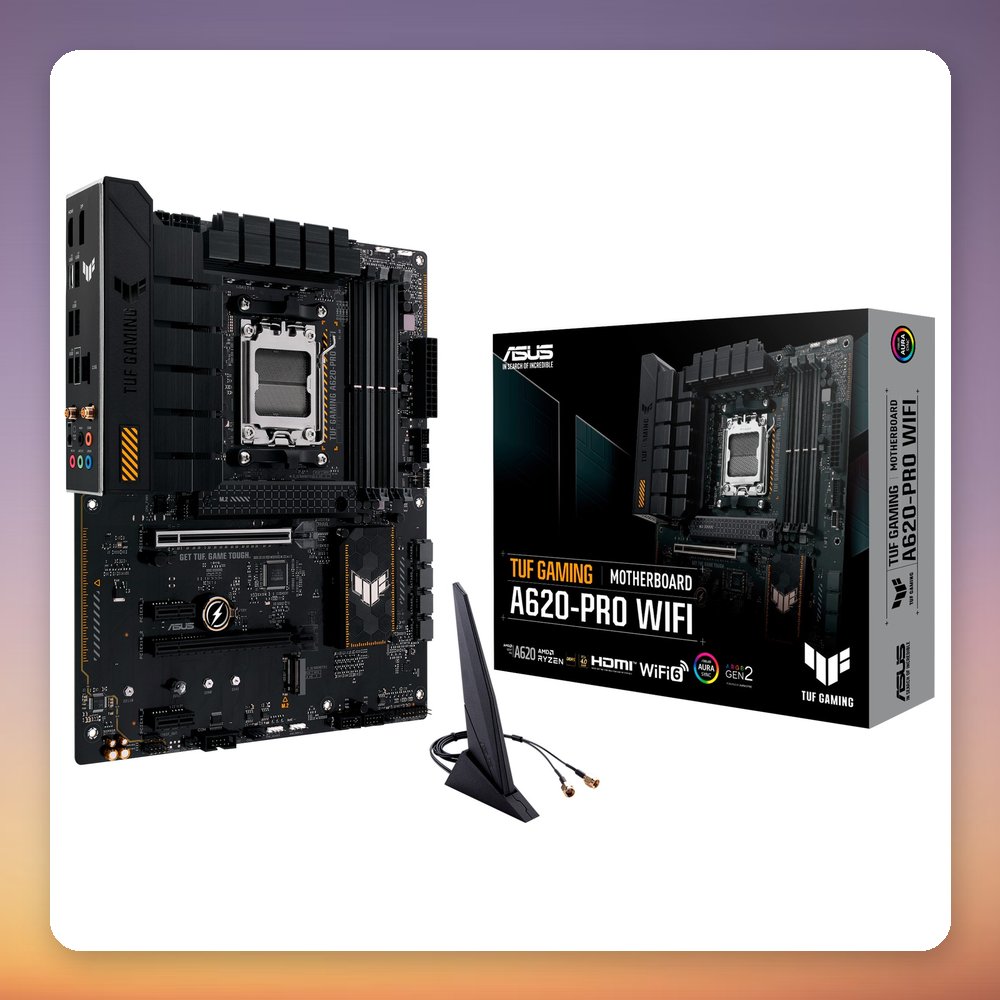

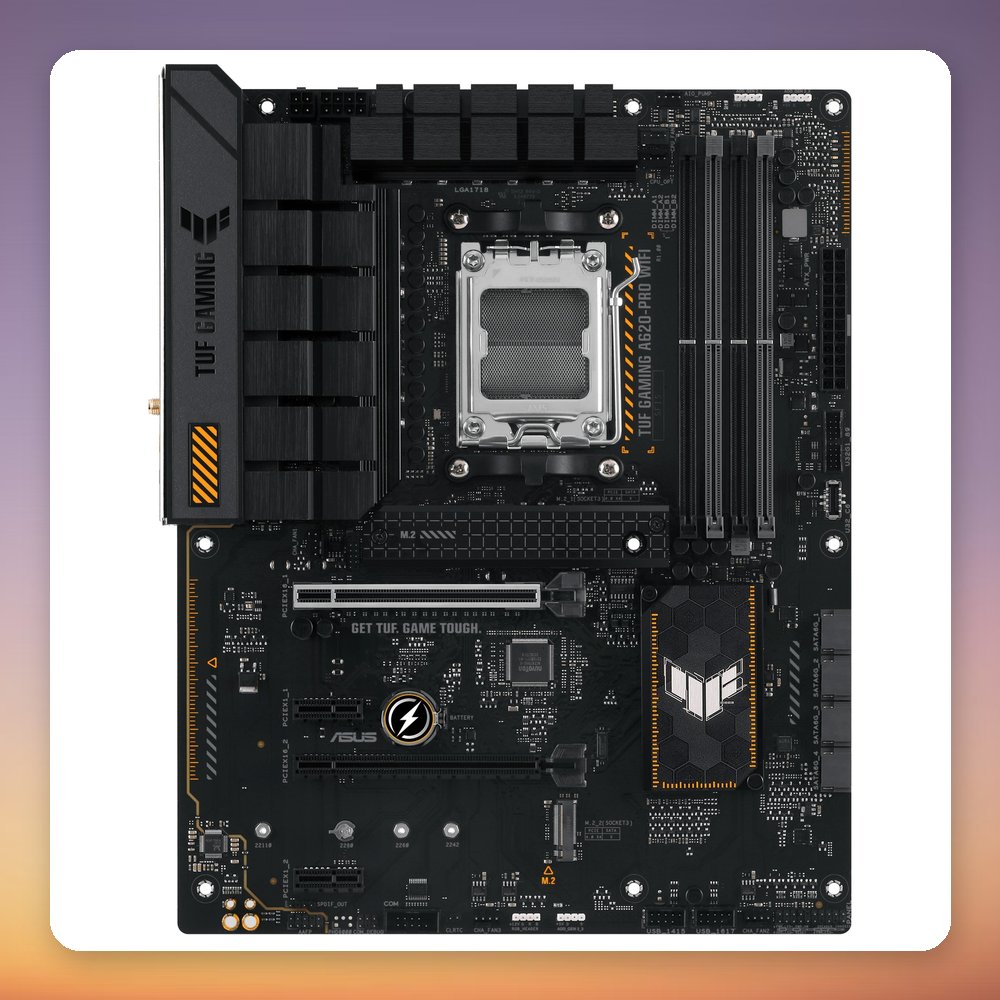

The Asus TUF Gaming A620-Pro WiFi is an ATX motherboard for AMD Socket AM5 built on the A620 chipset. It has four DDR5 DIMM slots supporting up to 192 GB, 12+2 DrMOS power stages rated at 50 A each, two M.2 slots, and onboard WiFi 6 with Bluetooth 5.3. Realtek 2.5Gb Ethernet and ECC memory support round off a well-equipped board in this chipset class.

This board suits a mid-range Ryzen gaming build where you want AM5 and DDR5 without paying for a higher-tier chipset. Six 4-pin PWM fan headers, three addressable RGB headers and AURA Sync support make tuning cooling and lighting straightforward. Four SATA ports and two M.2 slots cover storage, and a BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: TUF Gaming A620-Pro WiFi
• MPN: 90MB1FR0-M0EAY0
• EAN: 47113872068120
• Socket: AMD AM5
• Chipset: AMD A620
• Form factor: ATX (305 x 244 mm)
• Memory: 4x DDR5 DIMM, up to 192 GB, dual-channel, ECC and non-ECC
• Memory speeds: DDR5-4800 to 6400+ (OC)
• Expansion slots: 1x PCIe 4.0 x16, 1x PCIe x16 (x2 mode), 2x PCIe x1
• Storage: 2x M.2 (M key, 42-110 mm), 4x SATA III, RAID 0/1/10
• Networking: Realtek 2.5Gb Ethernet, WiFi 6 (802.11ax), Bluetooth 5.3

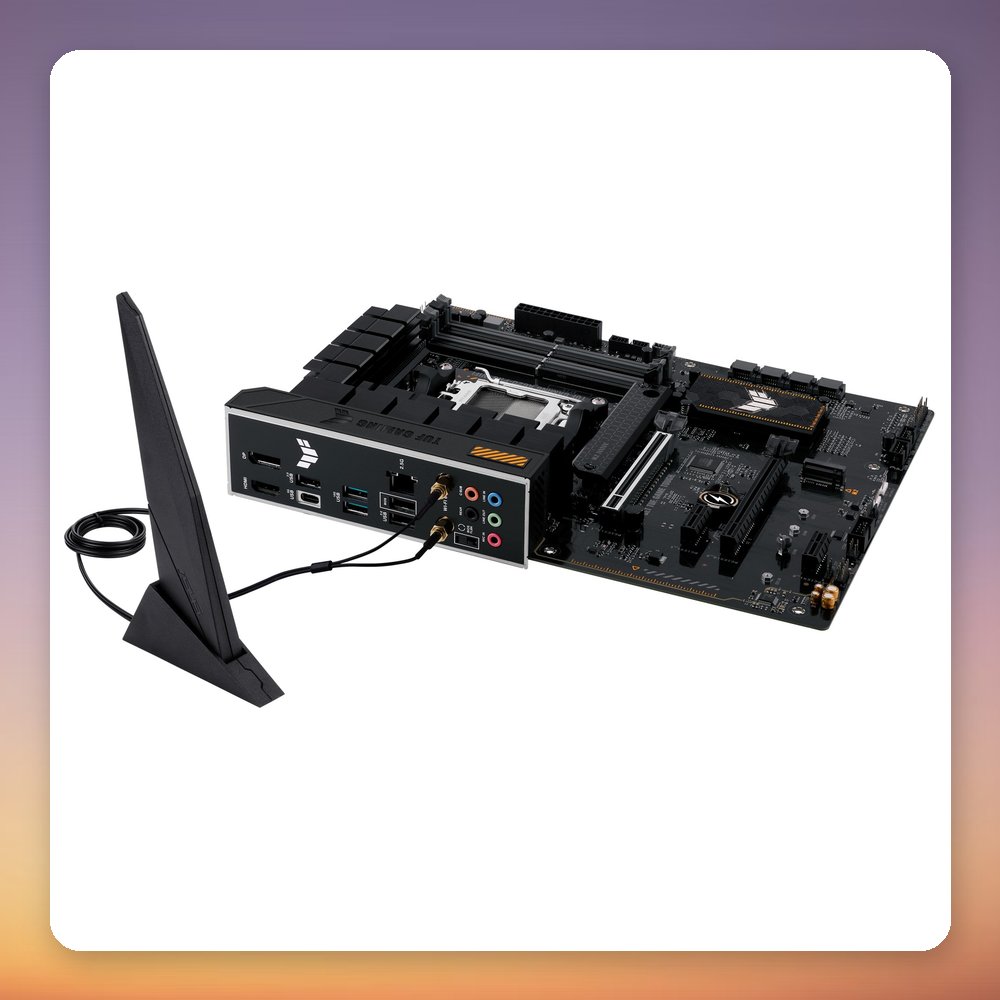

• Rear I/O: 2x USB-A 3.2 Gen 2, 1x USB-C 3.2 Gen 1, 3x USB 2.0, HDMI, DisplayPort, RJ-45, audio jacks
• Audio: Realtek 7.1 Surround Sound HD Audio
• Fan headers: 6x 4-pin PWM
• RGB headers: 1x RGB, 3x addressable RGB (AURA Sync)
• Power stages: 12+2 DrMOS, 50 A each
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Weight: 1.2 kg
