Product Overview

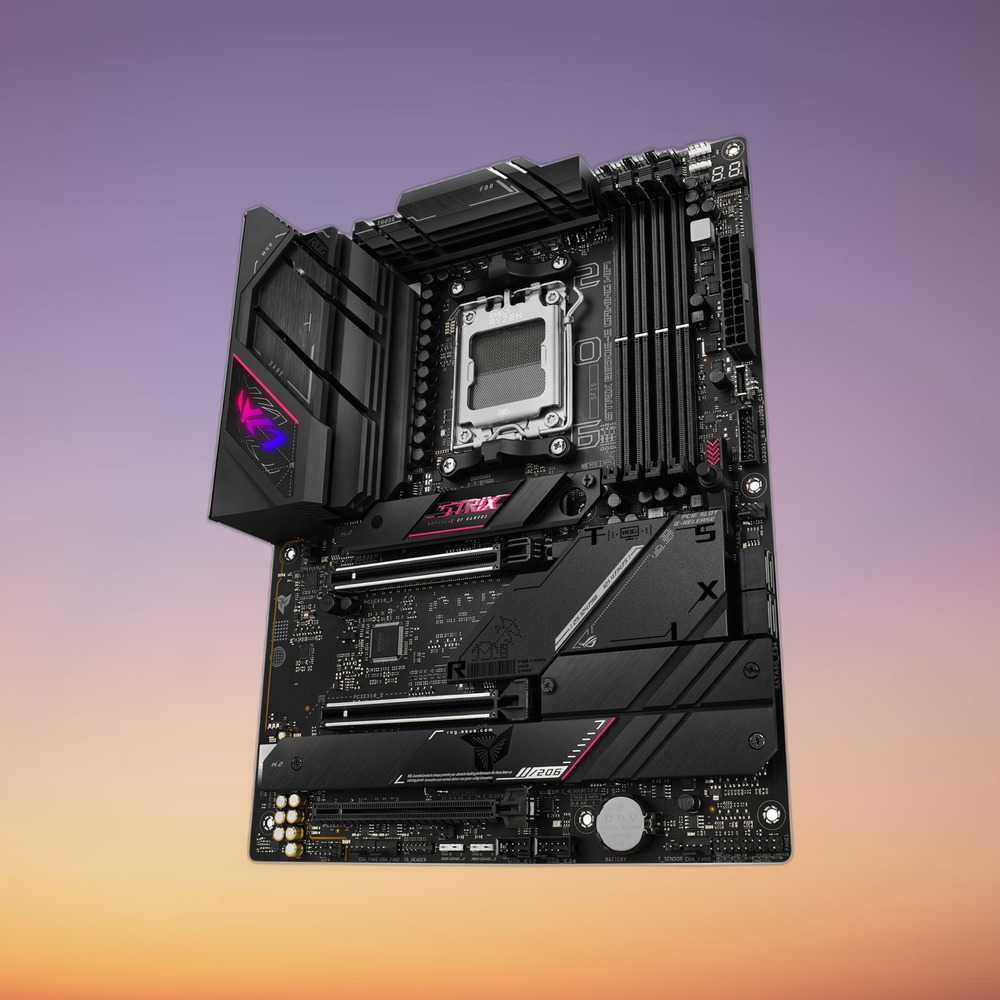

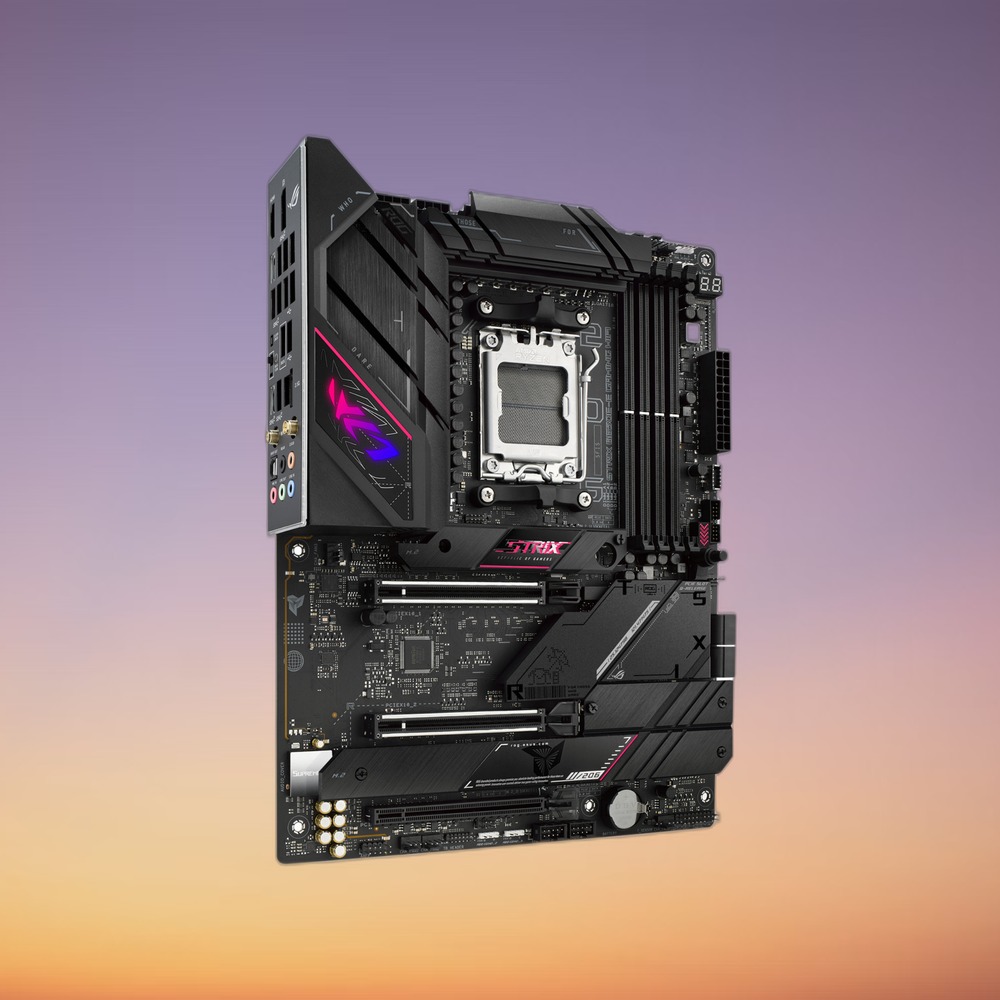

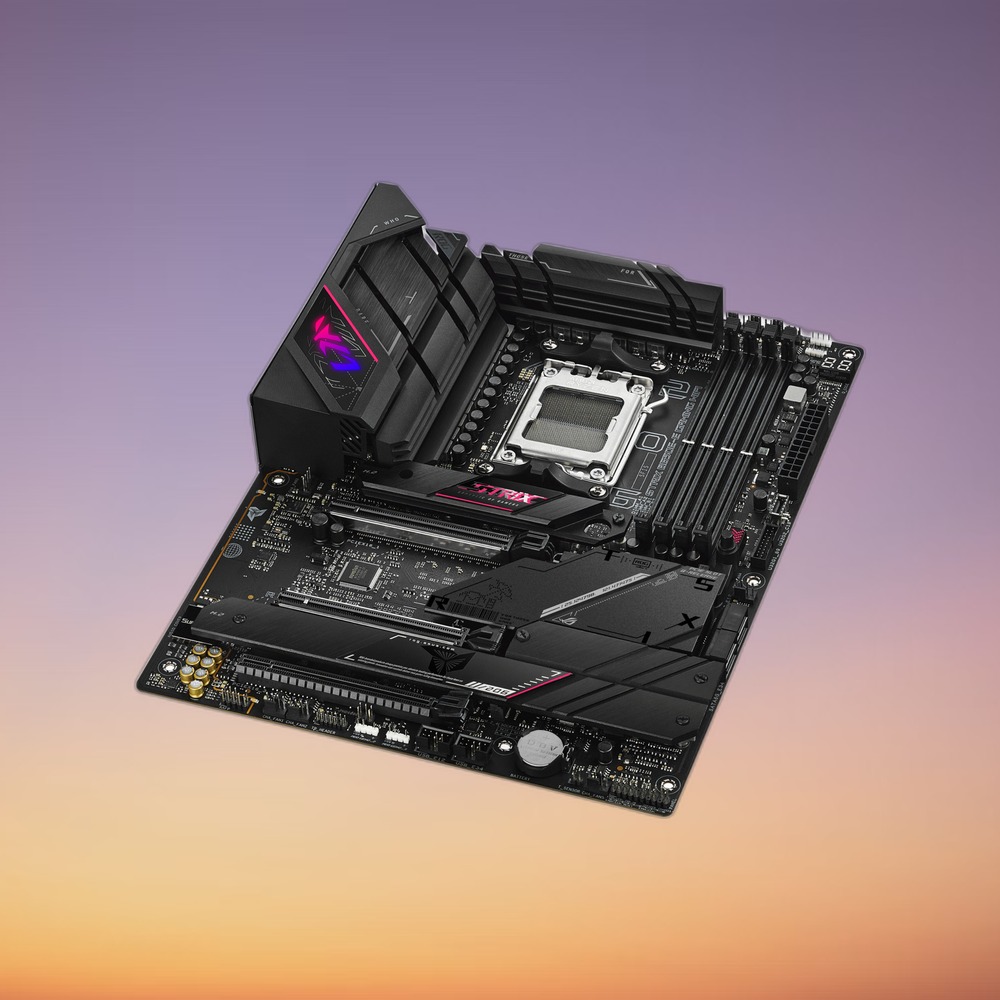

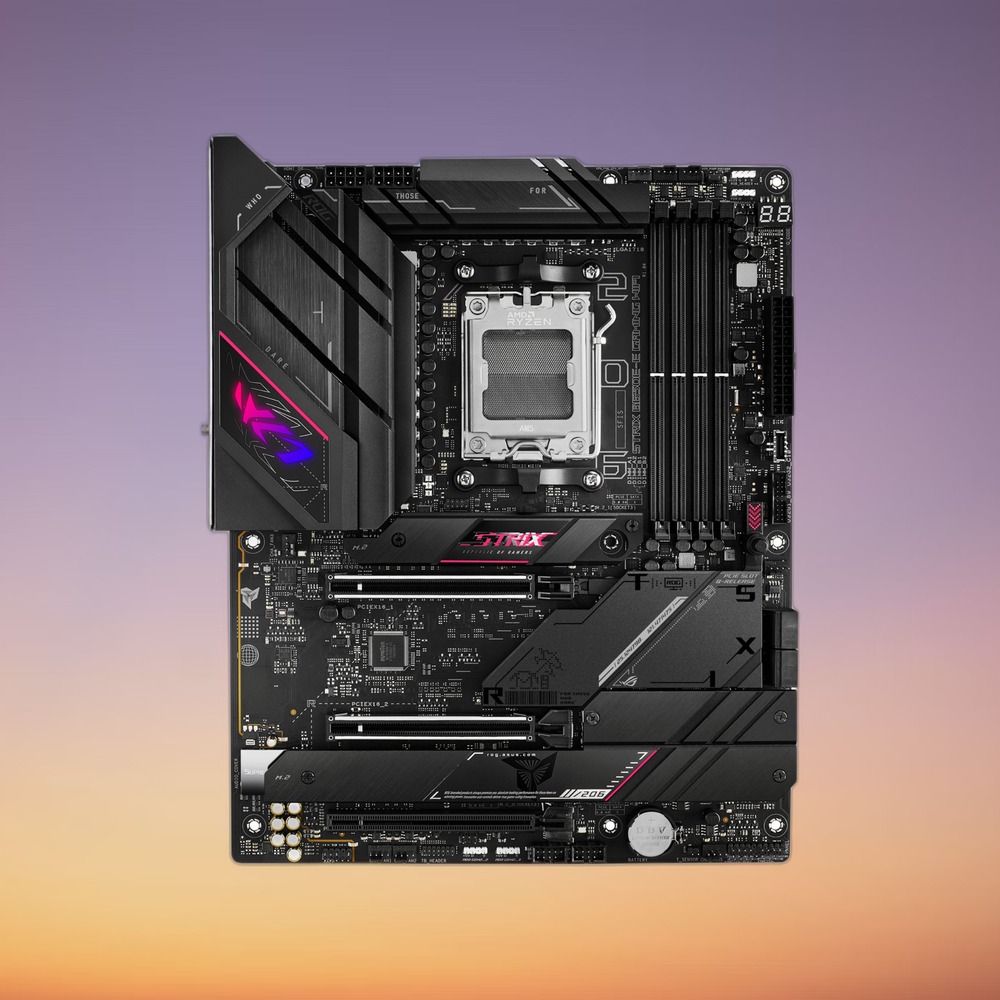

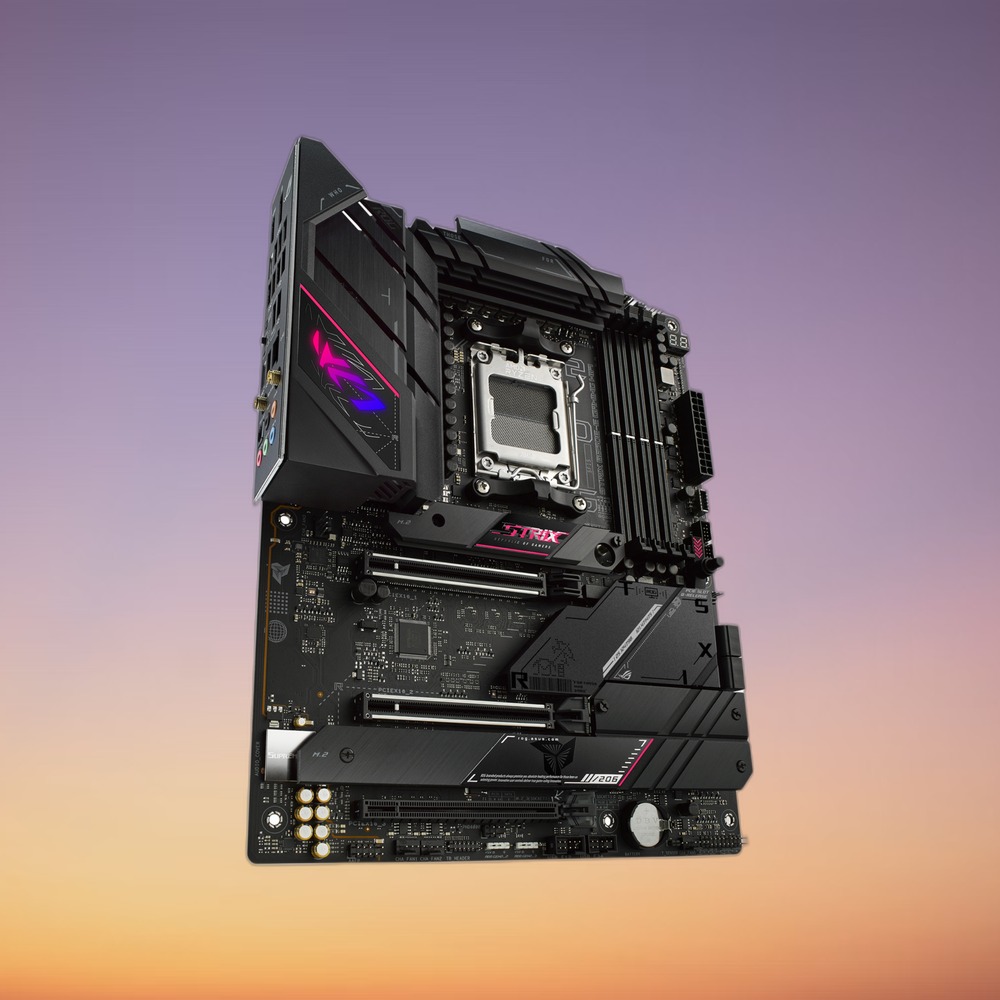

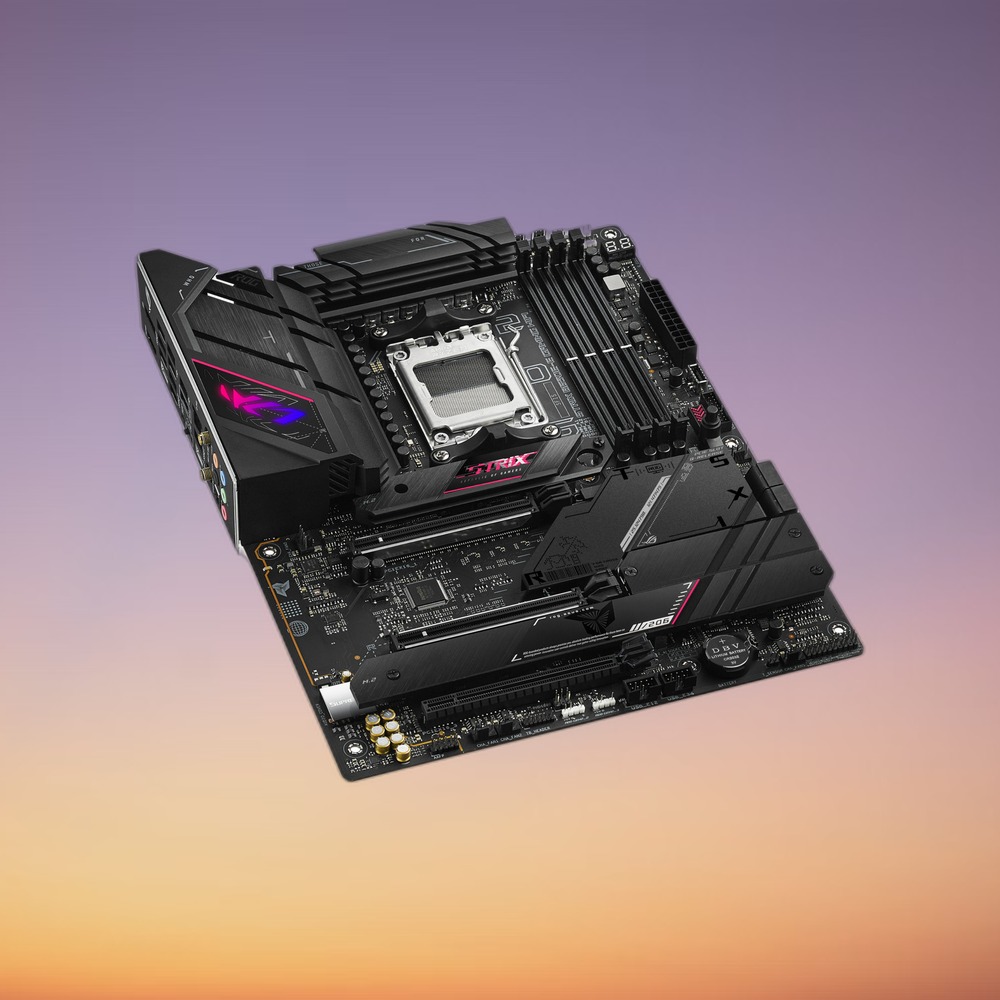

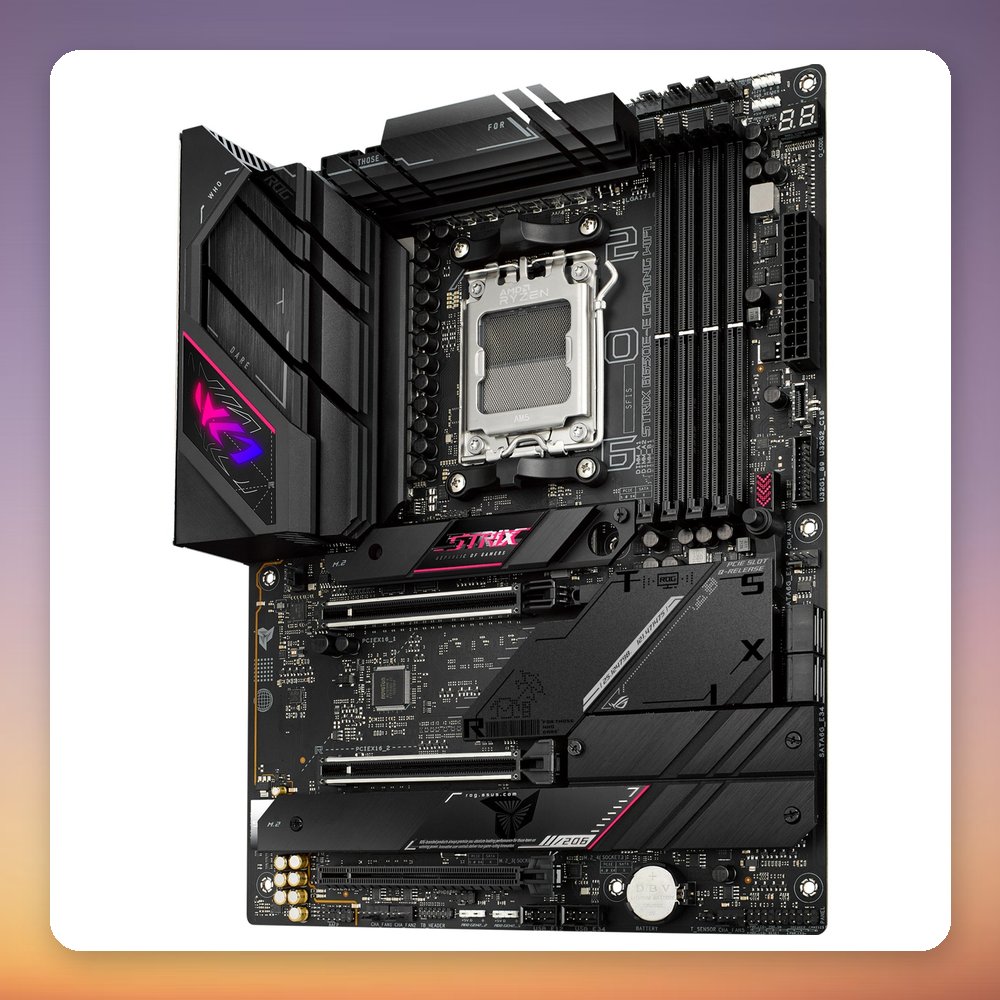

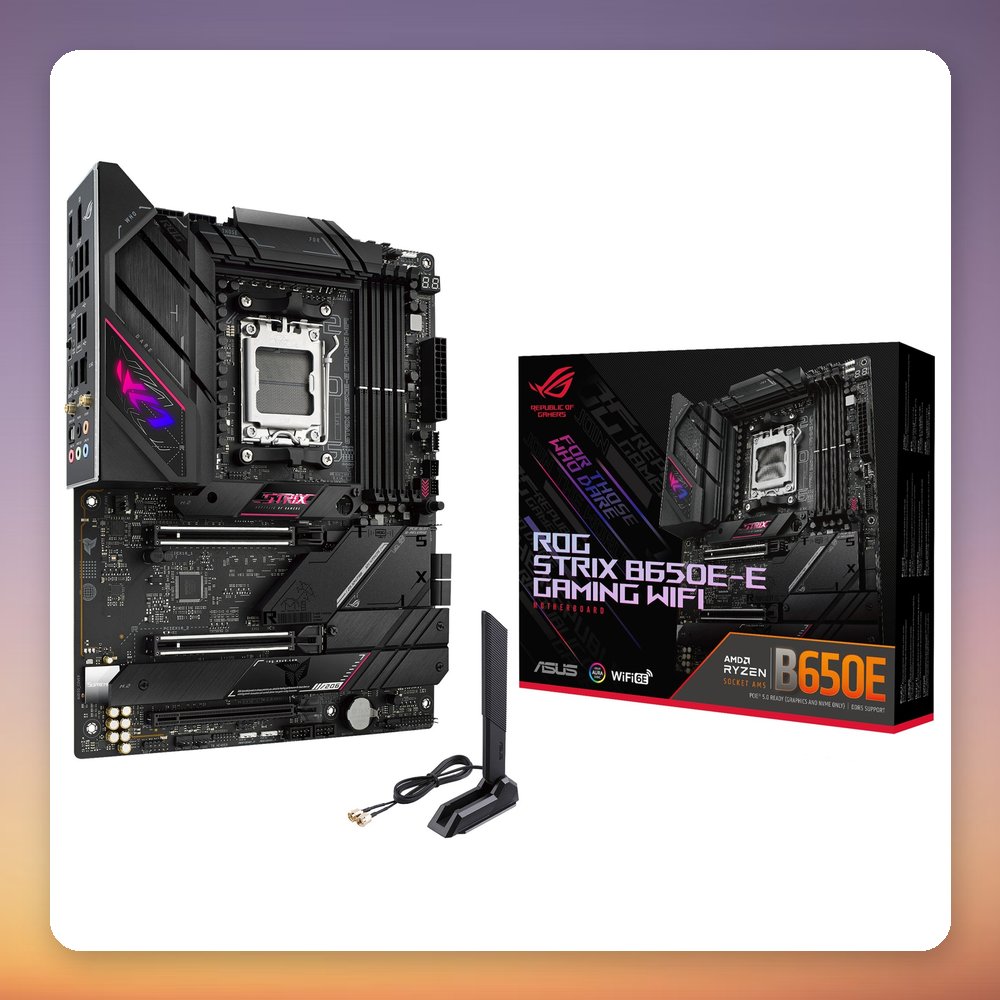

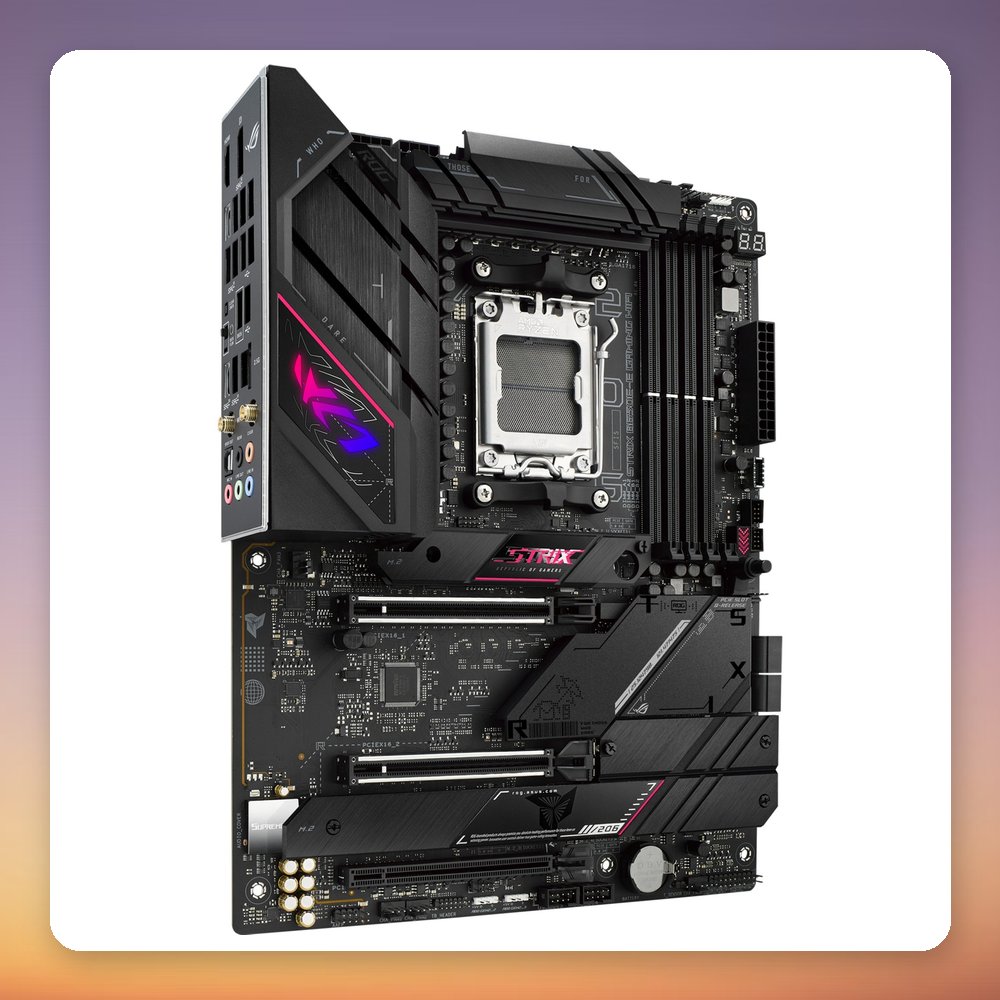

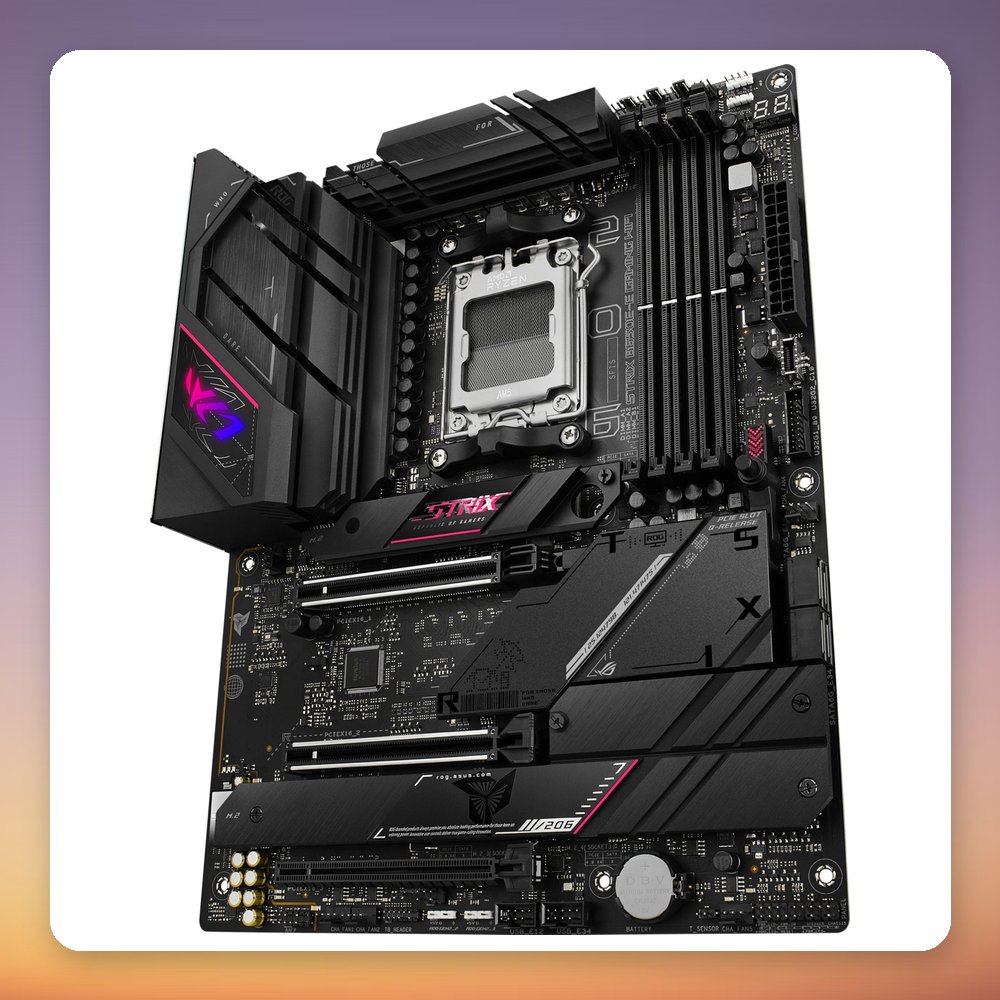

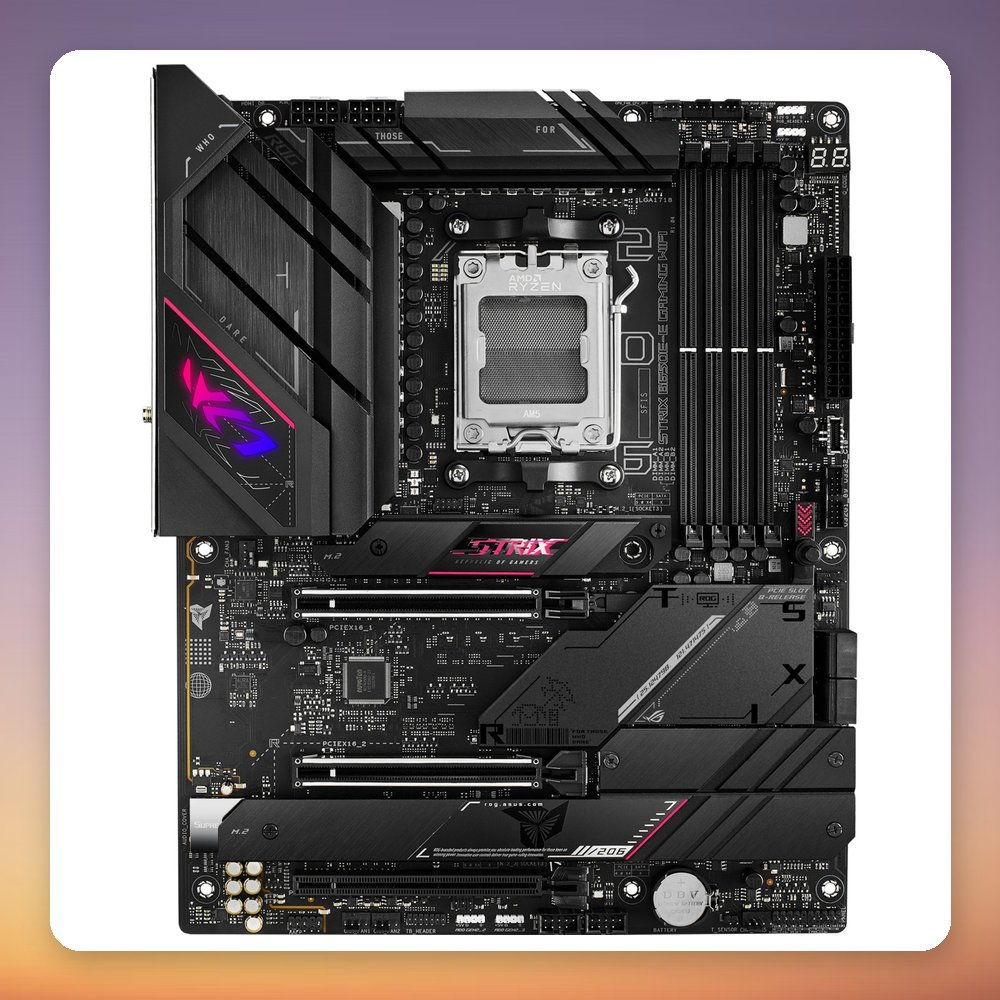

The Asus ROG Strix B650E-E Gaming WiFi is an ATX motherboard for Socket AM5 built on the AMD B650 chipset. It has four DDR5 DIMM slots and four M.2 slots, two of them PCIe 5.0 and two PCIe 4.0, along with two PCIe 5.0 x16 slots and a PCIe 4.0 x16 slot. Connectivity includes Intel 2.5 Gb Ethernet, Wi-Fi 6E and Bluetooth 5.2.

This board suits a Ryzen 7000 gaming build that needs fast storage and plenty of expansion. It also supports Ryzen 8000 and 9000 series processors, though a BIOS update may be required for the newest CPUs. Build-friendly features include a PCIe Slot Q-Release button, tool-free M.2 Q-Latch, a Q-Code LED panel, Clear CMOS and BIOS FlashBack buttons, and eight 4-pin PWM fan headers. Audio comes from a Realtek ALC4080 codec.

Specification

• Manufacturer: Asus
• Model: ROG Strix B650E-E Gaming WiFi
• MPN: 90MB1BB0-M0EAY0
• EAN: 4711081906209
• Socket: AM5
• Chipset: AMD B650
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 192 GB, ECC supported
• Memory speed: DDR5-4800 to DDR5-6400+ (OC)
• M.2 slots: 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0), 42-110 mm
• PCIe slots: 2x PCIe 5.0 x16, 1x PCIe 4.0 x16
• SATA: 4x SATA 6 Gb/s, RAID 0/1/10
• Networking: Intel 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.2
• Rear USB: 2x USB-C 10 Gbit/s, 6x USB-A 10 Gbit/s, 4x USB 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (iGPU CPUs only)
• Audio: Realtek ALC4080, 7.1 channels, optical S/PDIF out
• Fan headers: 8x 4-pin PWM
• RGB headers: 3x addressable RGB, 1x RGB (AURA Sync)
• Power connectors: 24-pin ATX + 2x 8-pin
• Dimensions (W x H x D): 244 x 305 x 50 mm
