Product Overview

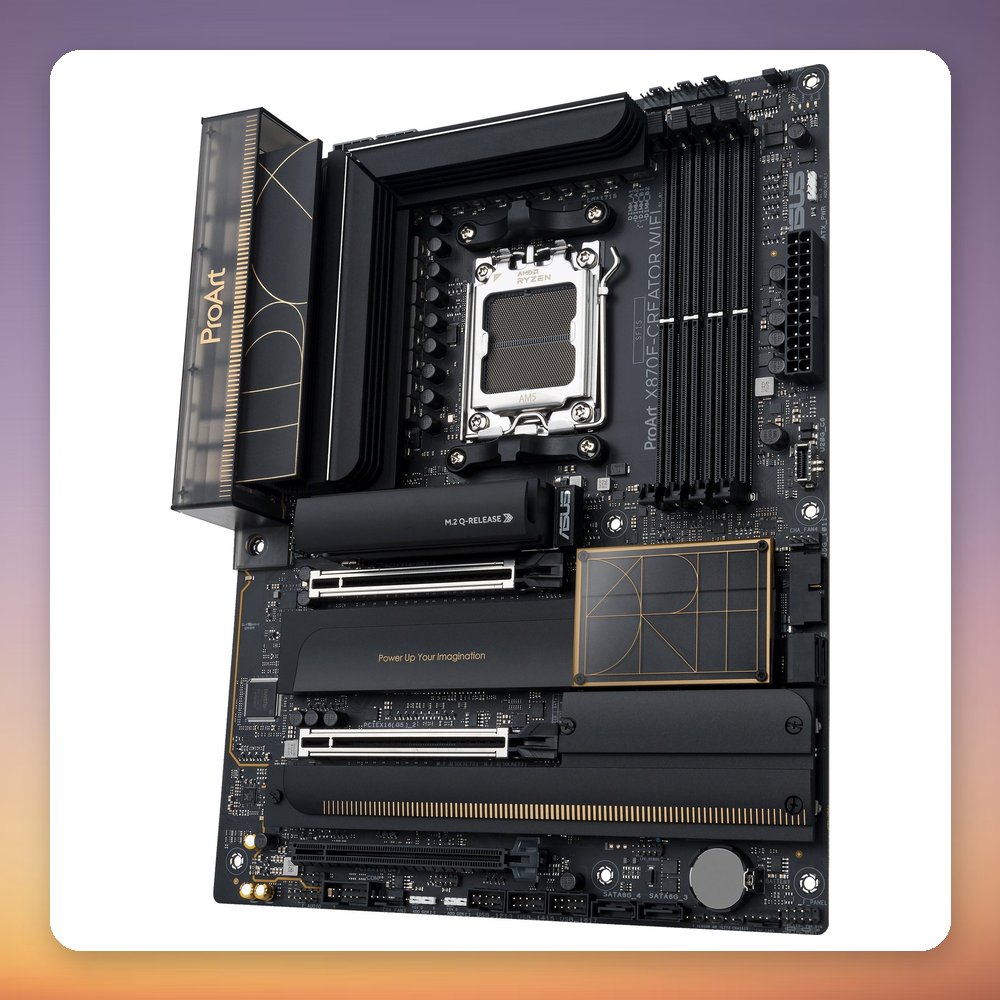

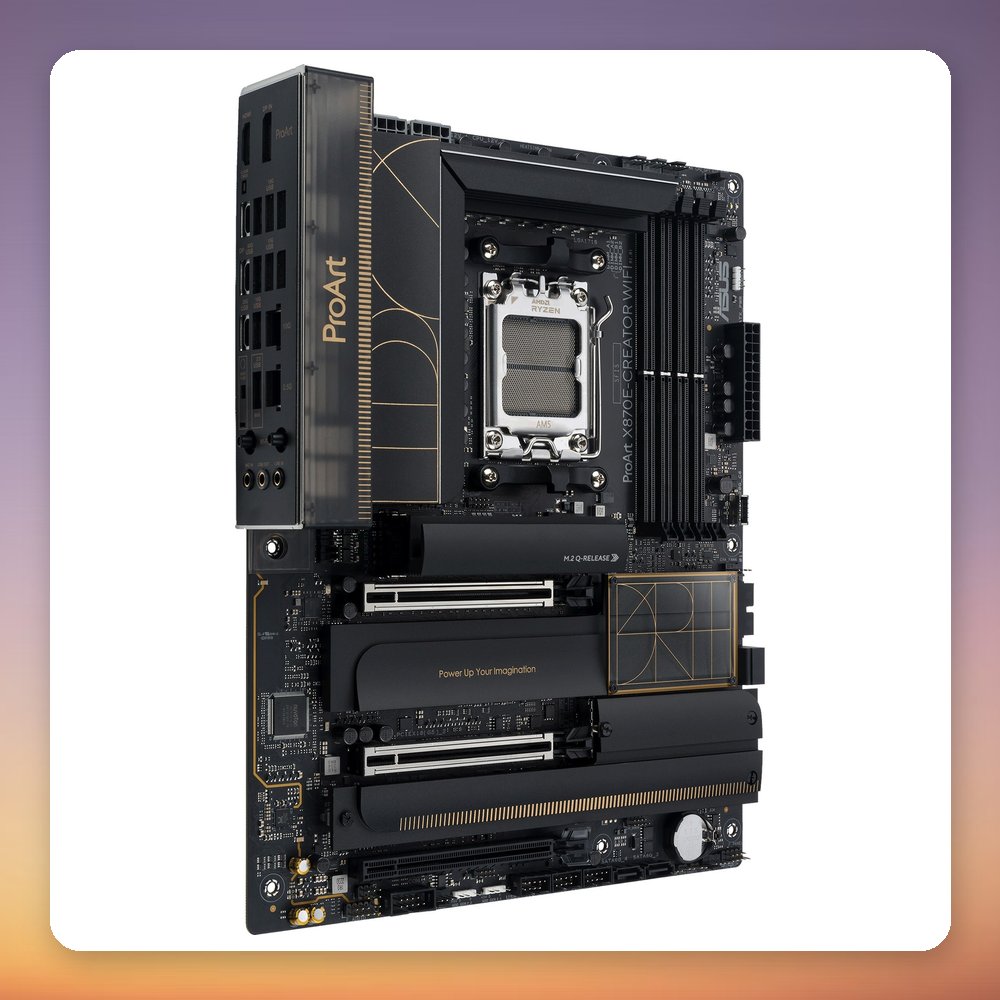

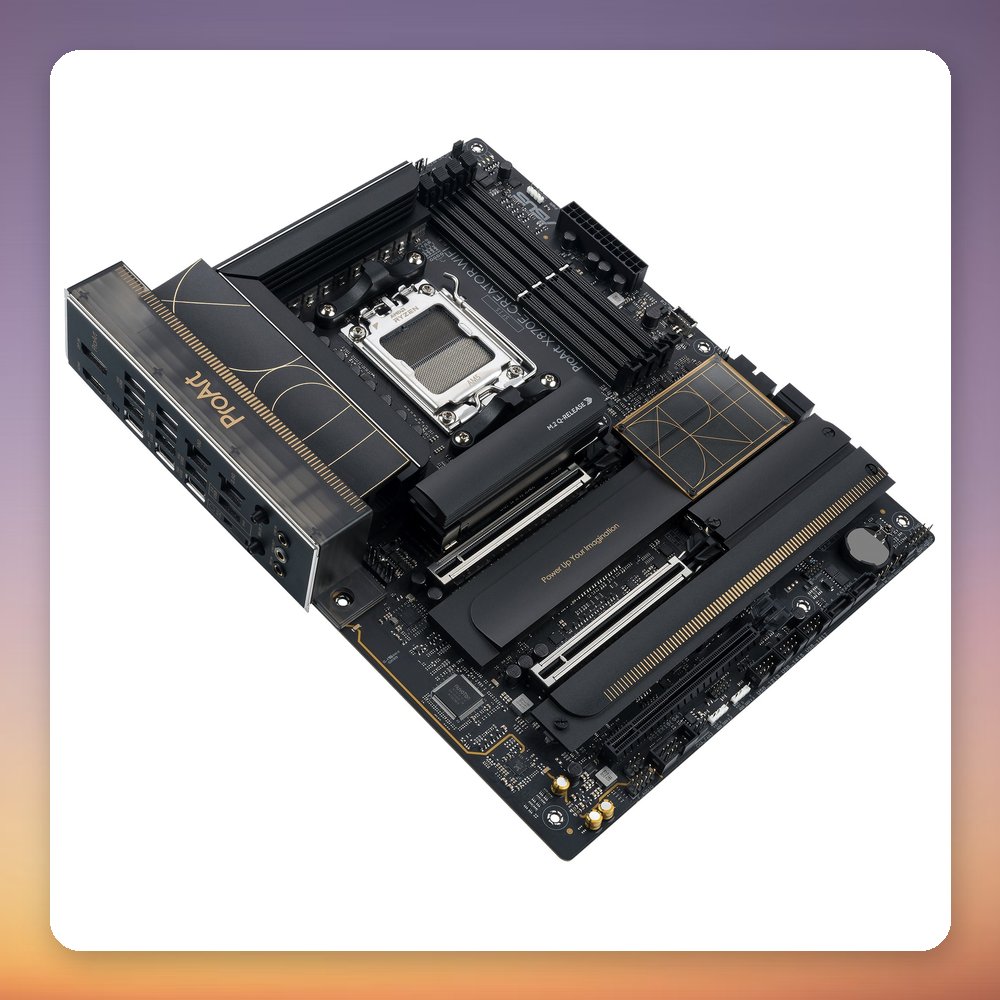

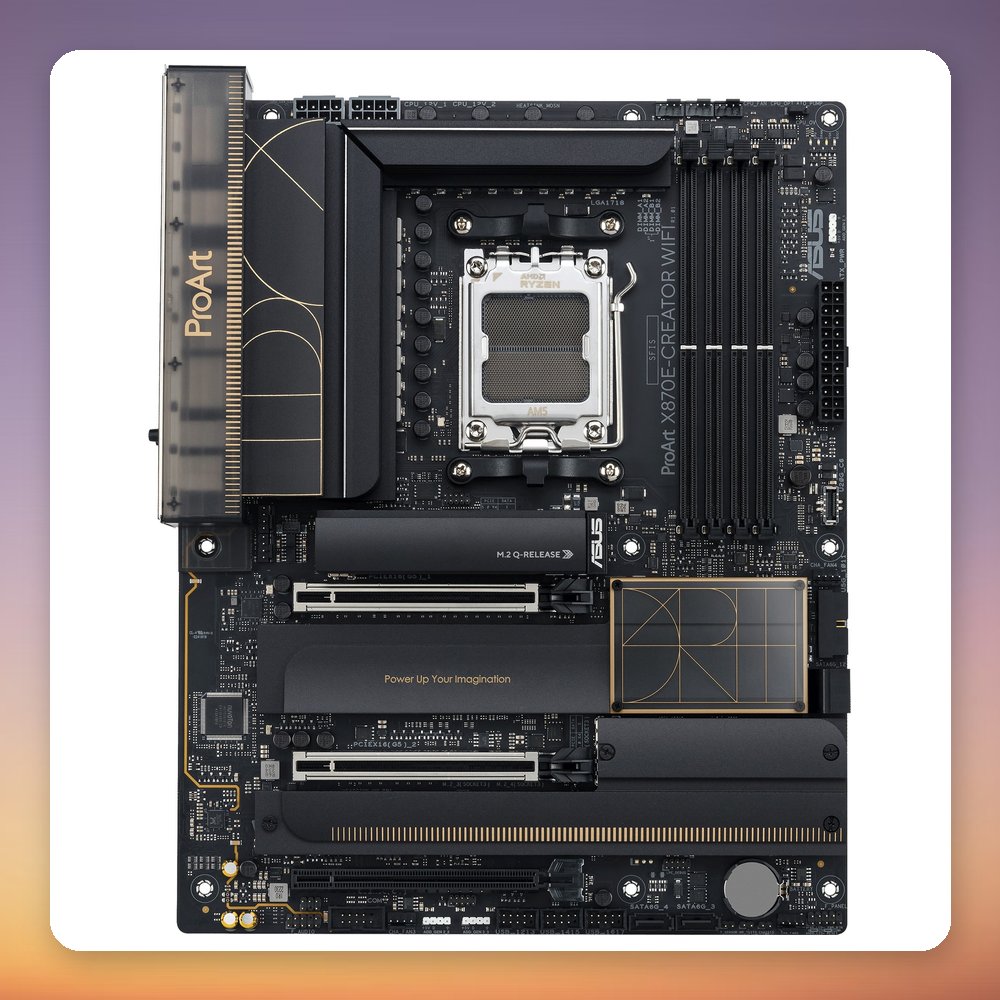

The Asus ProArt X870E-Creator WiFi is an ATX motherboard for Socket AM5 built on the AMD X870E chipset. What sets it apart is its connectivity: two USB4 ports, a Marvell 10 Gigabit Ethernet port alongside an Intel 2.5 Gigabit port, and Wi-Fi 7 with Bluetooth 5.4. It also offers four M.2 slots, two of them PCIe 5.0, and four DDR5 slots for up to 256 GB of memory.

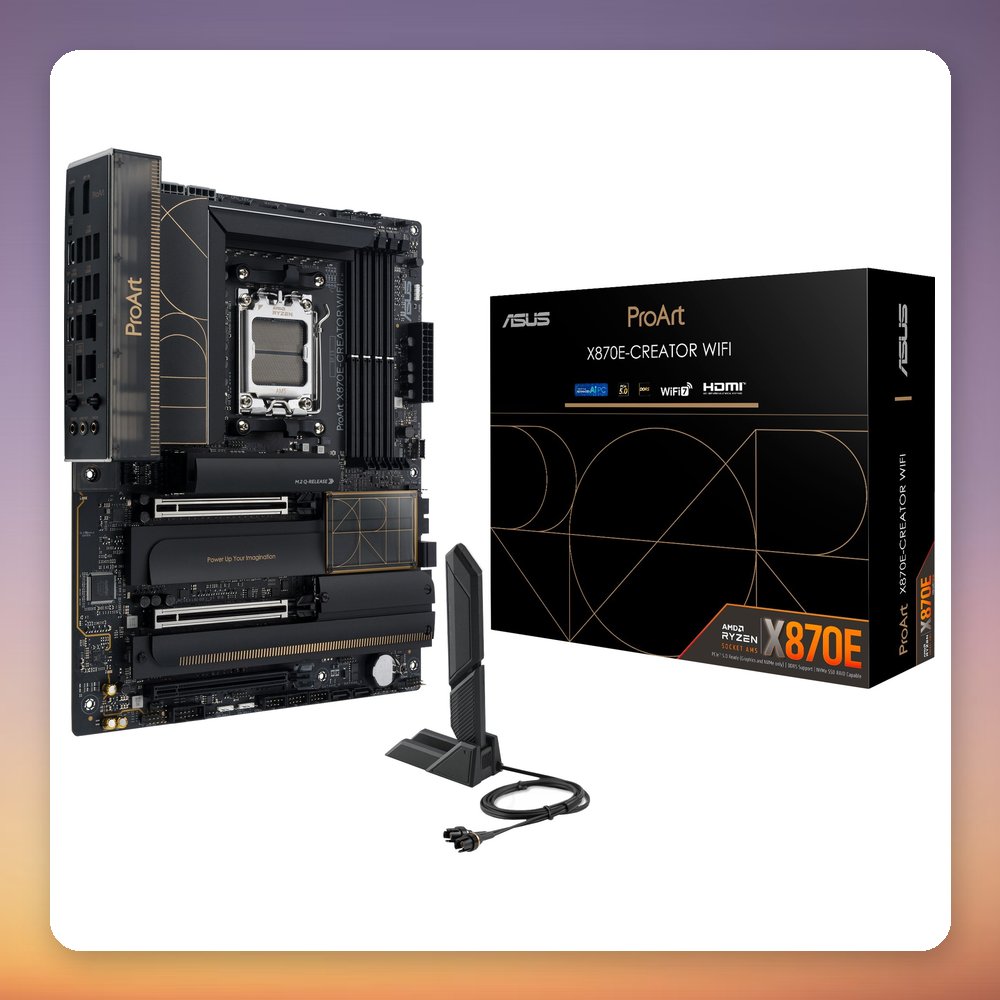

This board suits content-creation and workstation-style Ryzen builds that need fast storage, fast networking and plenty of high-speed ports. It supports Ryzen 7000, 8000 and 9000 series processors, though a BIOS update may be needed for the newest chips. The two USB4 ports can carry DisplayPort video from a discrete graphics card connected to the onboard DisplayPort input. In the box you get a DisplayPort cable, four SATA cables, an M.2 thermal pad and the Wi-Fi antenna.

Specification

• Manufacturer: Asus
• Model: ProArt X870E-Creator WiFi
• MPN: 90MB1IG0-M0EAY0
• EAN: 47113877307750
• Socket: AMD AM5
• Chipset: AMD X870E
• Form factor: ATX (244 x 305 mm)
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
• Memory speeds: DDR5-5200 / 4800 / 4400 (as listed by supplier)
• PCIe slots: 1x PCIe x16, 1x PCIe x8, 1x PCIe x4 (PCIe 5.0 x16, PCIe 5.0 x16 at x8, PCIe 4.0 x16 at x4)
• M.2 slots: 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0)
• SATA: 4x SATA 6 Gb/s, RAID 0/1/5/10
• Networking: 10 Gigabit Ethernet (Marvell AQtion) + 2.5 Gigabit Ethernet (Intel), Wi-Fi 7, Bluetooth 5.4

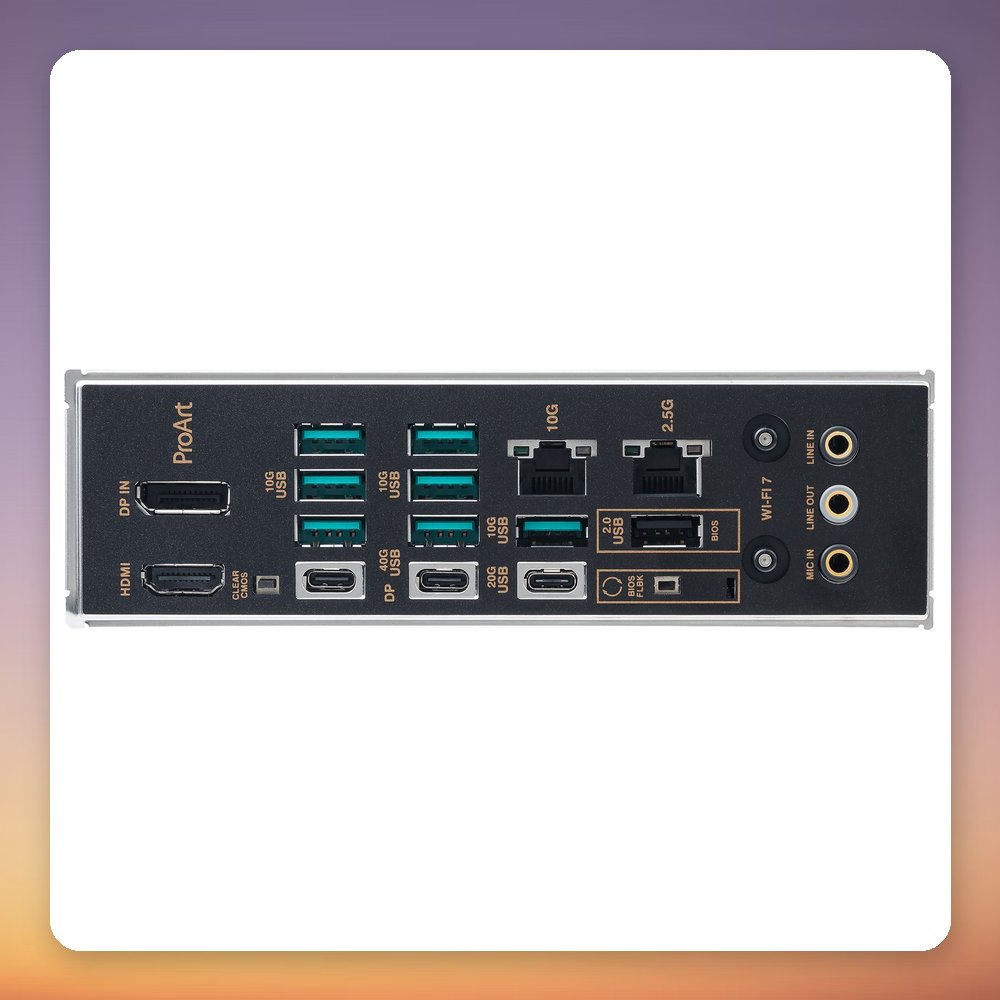

• Rear USB: 2x USB4, 1x USB-C 20 Gbps, 7x USB-A 10 Gbps, 1x USB 2.0
• Video: 1x HDMI, 1x DisplayPort-In, 2x USB4 DisplayPort output
• Audio: Realtek ALC1220P
• Fan headers: 8x 4-pin PWM
• RGB: 3x addressable RGB headers, AURA Sync
• Dimensions (W x H): 244 x 305 mm
